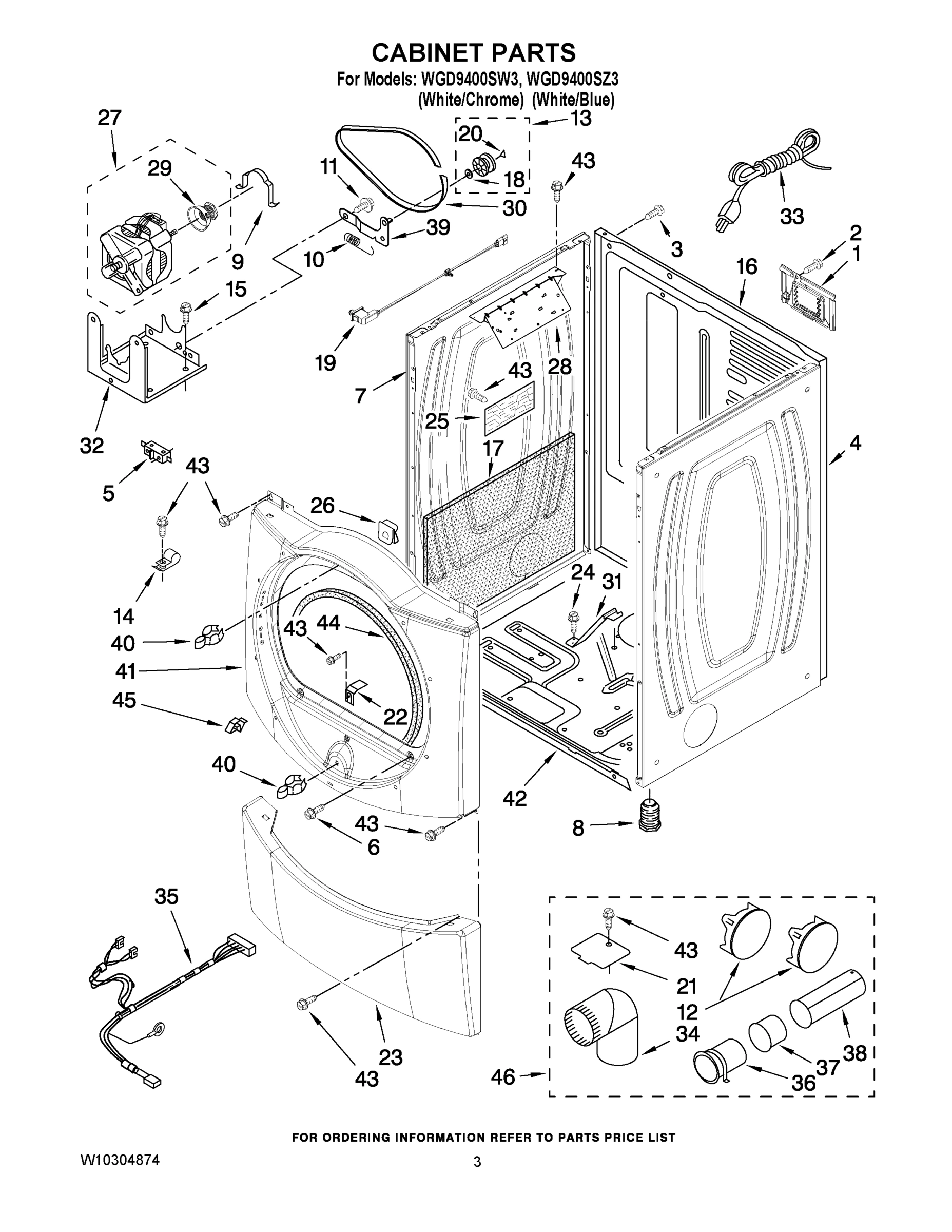

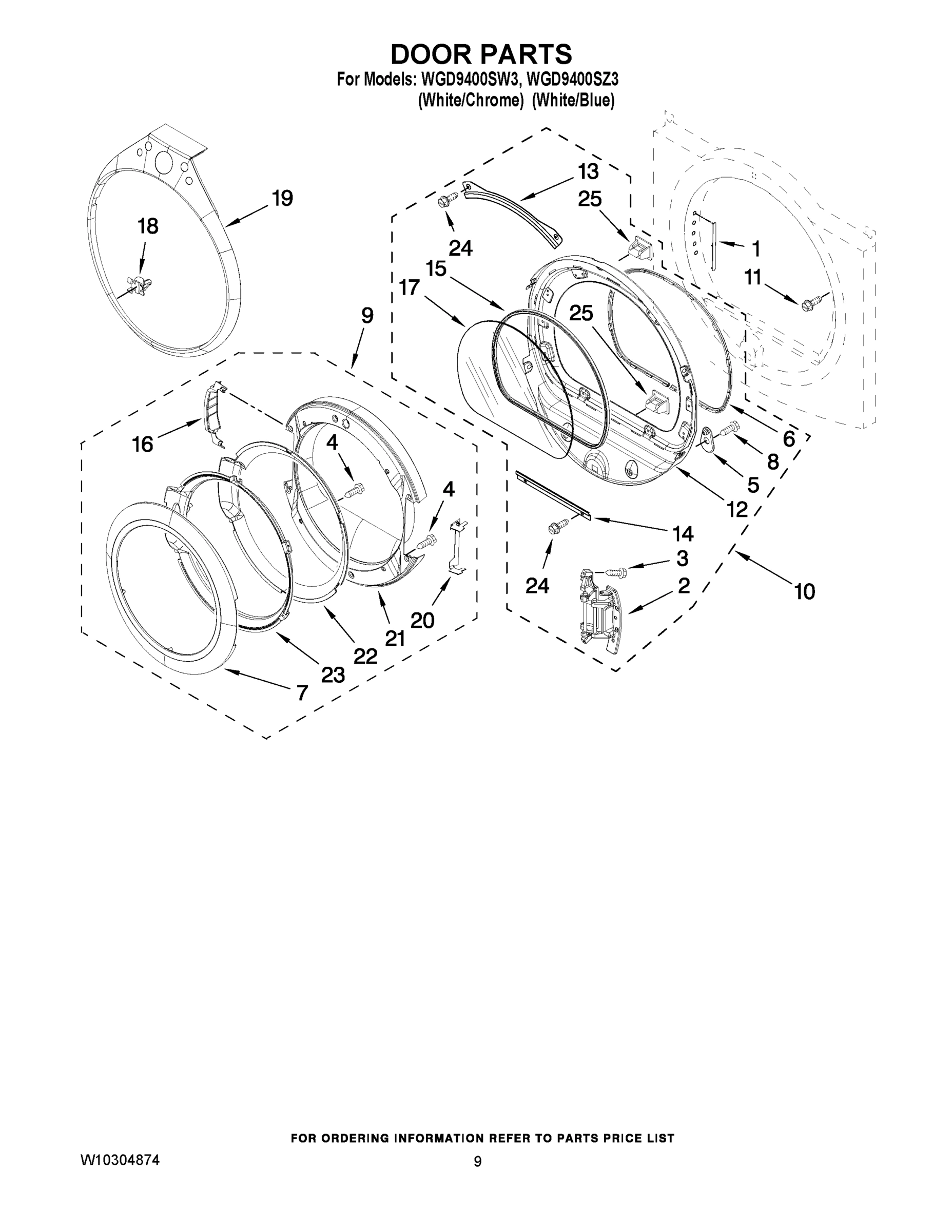

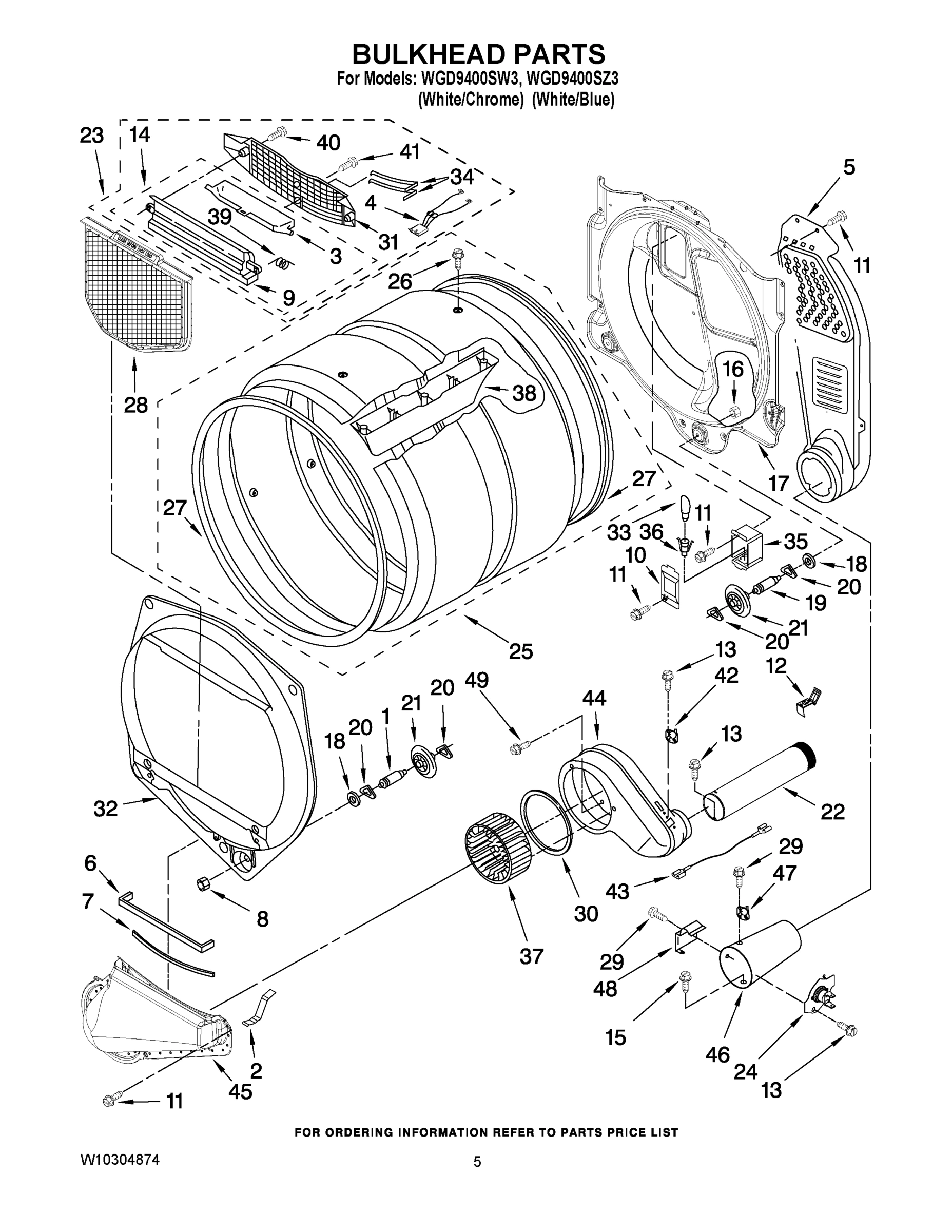

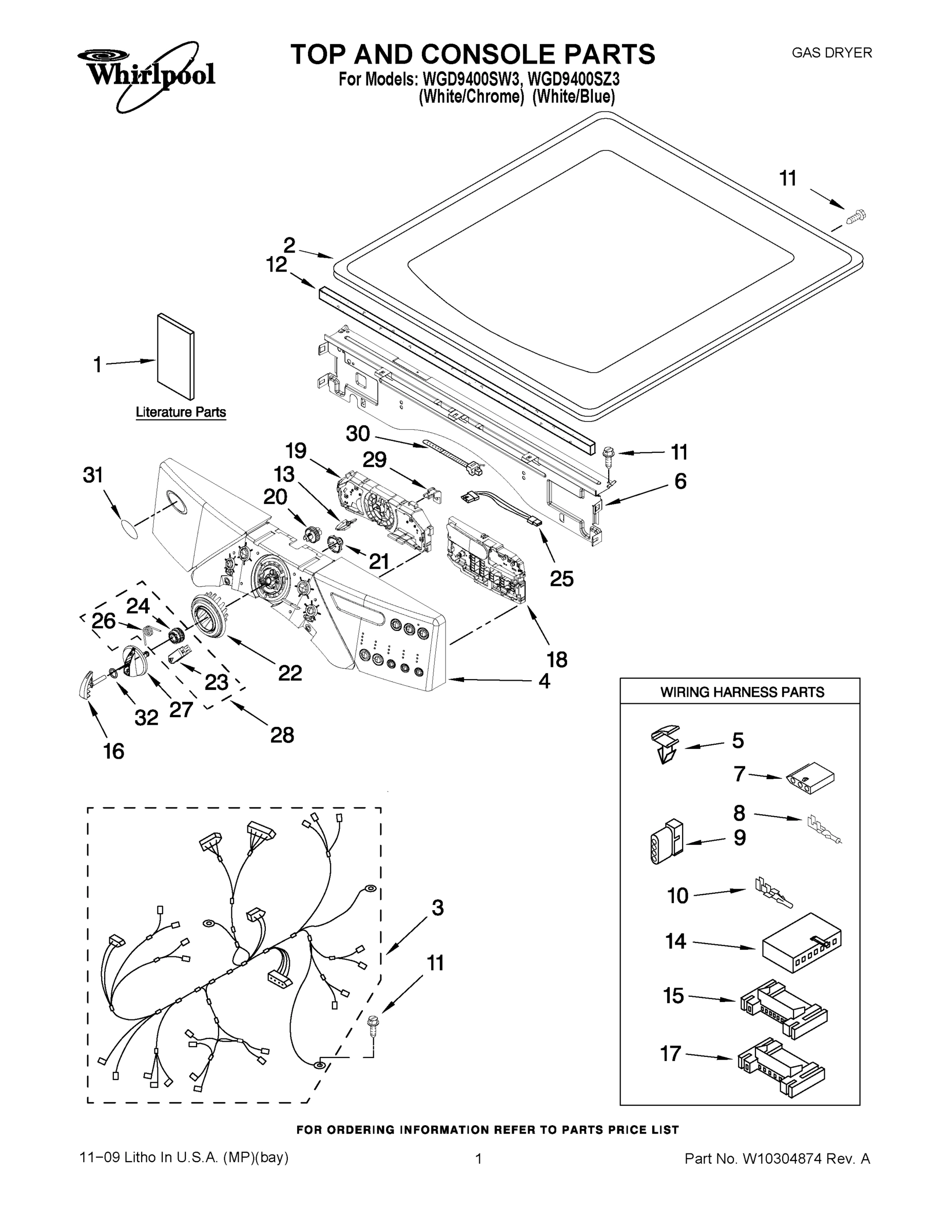

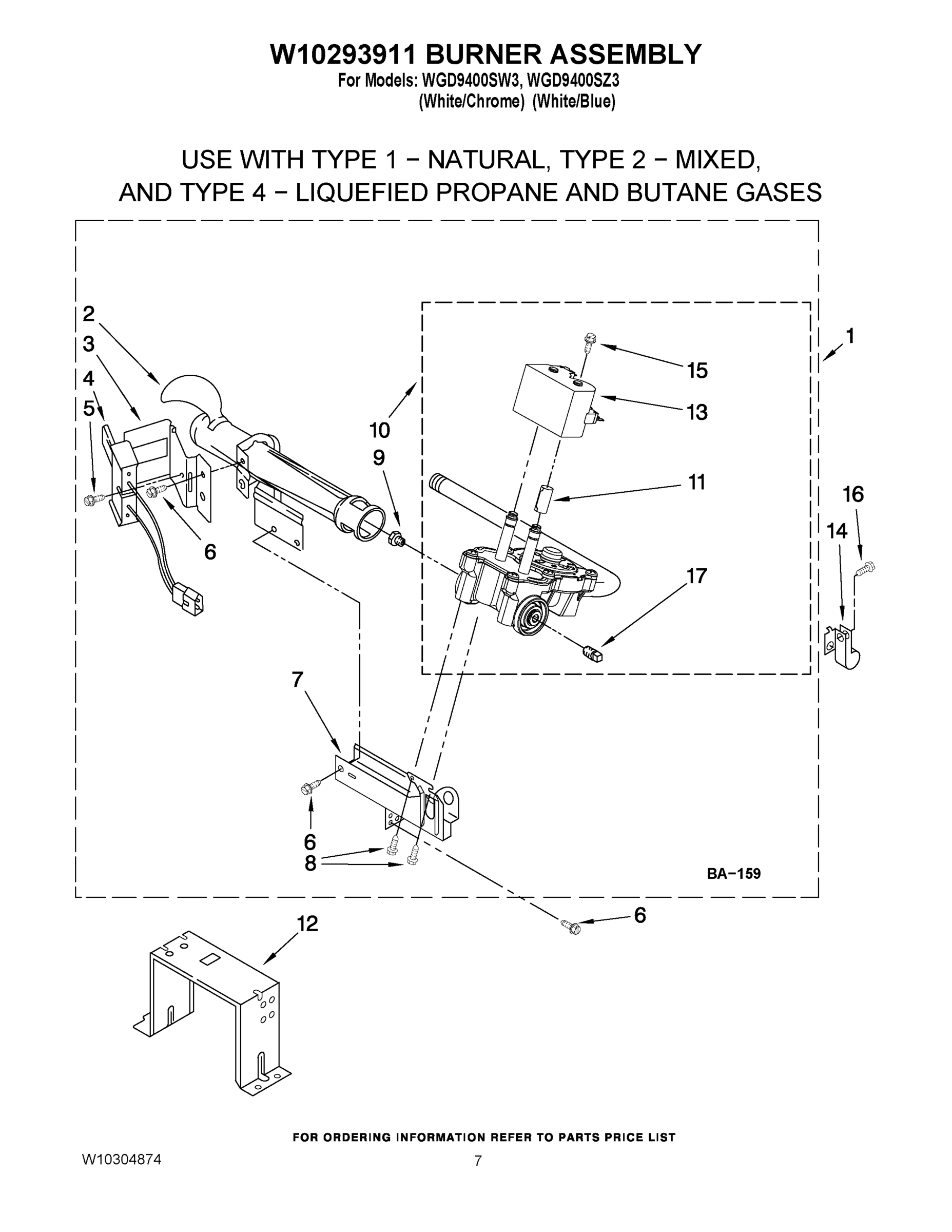

Model Whirlpool WGD9400SZ3 GAS DRYER – Common Parts &amp; Diagrams

1

W10819767 Whirlpool Cover Backorder WPL W10819767 $41.03

2

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

3

W11222846 Whirlpool Door Backorder WPL W11222846 $74.30

3

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.51

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $58.41

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

WPW10411937 Whirlpool Switch In Stock WPL WPW10411937 $13.21

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

W11233548 Whirlpool Panel In Stock WPL W11233548 $91.13

7

HANDLE, RING ASSEMBLY (WHITE/BLUE) WPL 8579496 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $29.06

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $12.08

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

9

DOOR ASSEMBLY (OUTER) (WHITE/CHROME) WPL W10180115 Contact Us For Availability

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

10

DOOR ASSEMBLY (INNER) (INCLUDES ILLUS.2,3,5,6 WPL 8577819 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $37.46

12

Door Inner WPL 8578229 Contact Us For Availability

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $10.79

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

14

3978776 Whirlpool Bracket Backorder WPL 3978776 $28.80

14

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

14

W11219327 Whirlpool Grille Outlet Backorder WPL W11219327 $31.44

326049536 Whirlpool Screw Backorder WPL 326049536 $9.70

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

16

Cover-Hinge, Stationary (LH) WPL W10180119 Contact Us For Availability

16

PANEL, REAR WPL W10244141 Contact Us For Availability

17

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $14.26

17

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

19

W10128087 Whirlpool Door Switch Backorder WPL W10128087 $26.77

19

TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE/CHROME) WPL W10180492 Contact Us For Availability

19

Tear-Drop Trim & Clip Assembly (White/Blue) WPL W10180494 Contact Us For Availability

20

Door Shield WPL W10180120 Contact Us For Availability

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

22

Door Mask WPL W10180117 Contact Us For Availability

23

W10253353 Whirlpool Outer Housing Backorder WPL W10253353 $101.31

23

Door Screen WPL 8578155 Contact Us For Availability

23

PANEL, TOE WPL W10246269 Contact Us For Availability

24

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

24

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

24

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $32.46

25

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

25

W10242906 Whirlpool Wire Harness Backorder WPL W10242906 $60.29

25

CONTROL BOARD WPL W10174745 Contact Us For Availability

26

W10853898 Whirlpool Screw In Stock WPL W10853898 $2.51

26

Clip-S Type WPL 62825 Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

28

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

28

Encoder, Wheel Kit (Includes Items: 23, 24, & WPL 280230 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $45.53

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $10.71

30

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

31

W10181903 Whirlpool Bracket Backorder WPL W10181903 $9.83

31

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $31.07

33

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $36.97

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

35

HARNESS, DIGITAL INTERFACE WPL W10242903 Contact Us For Availability

36

W11222979 Whirlpool Socket Backorder WPL W11222979 $43.76

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $29.43

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $28.80

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $30.96

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $10.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

41

FRONT PANEL (INCLUDES ITEM 44) WPL W10180423 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

42

BASE, CABINET WPL W10239098 Contact Us For Availability

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $53.07

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $69.14

47

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $43.57

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

49

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

PAINT, TOUCH-UP (1/2oz.) (Ultimate Silver) WPL 8212605 Contact Us For Availability
