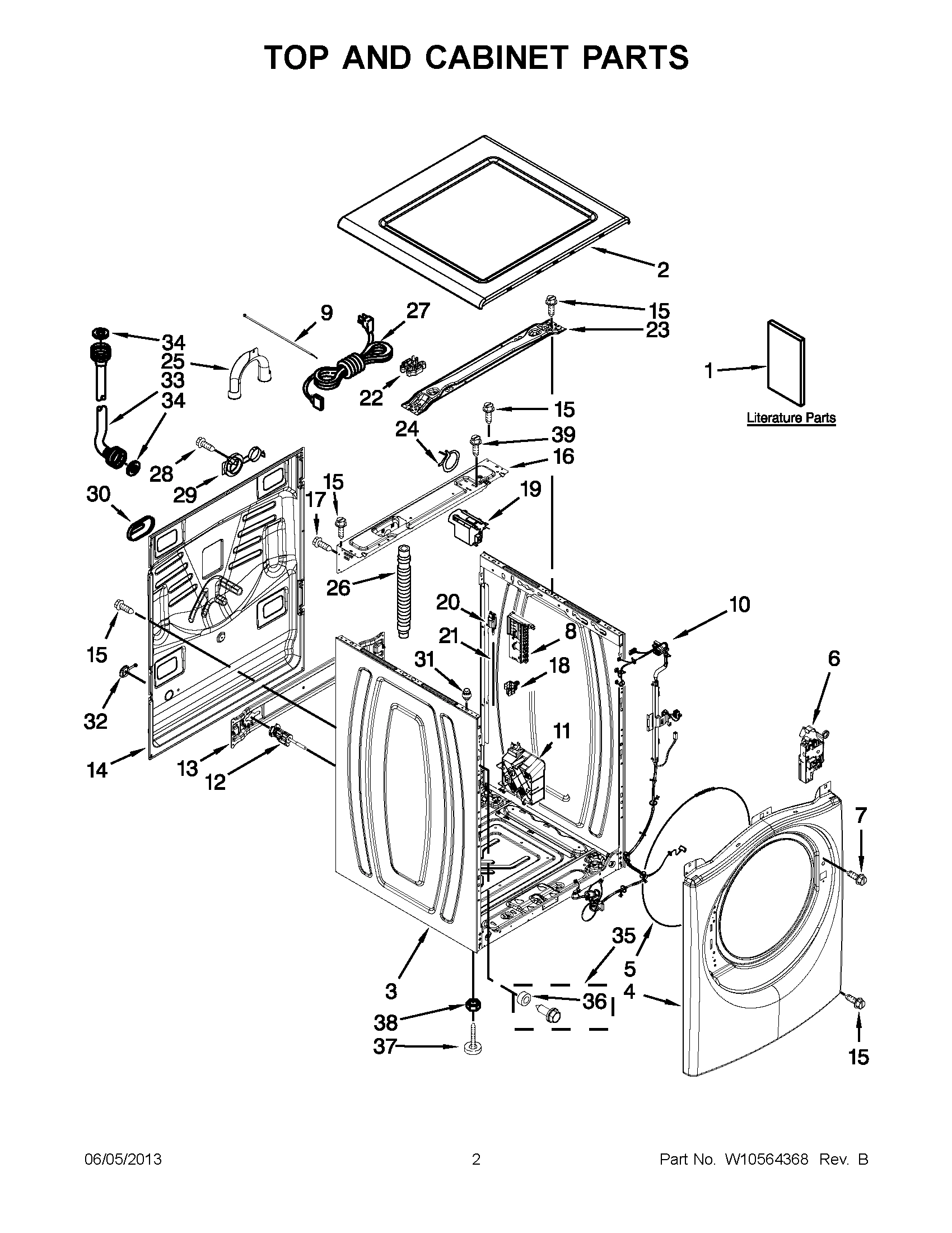

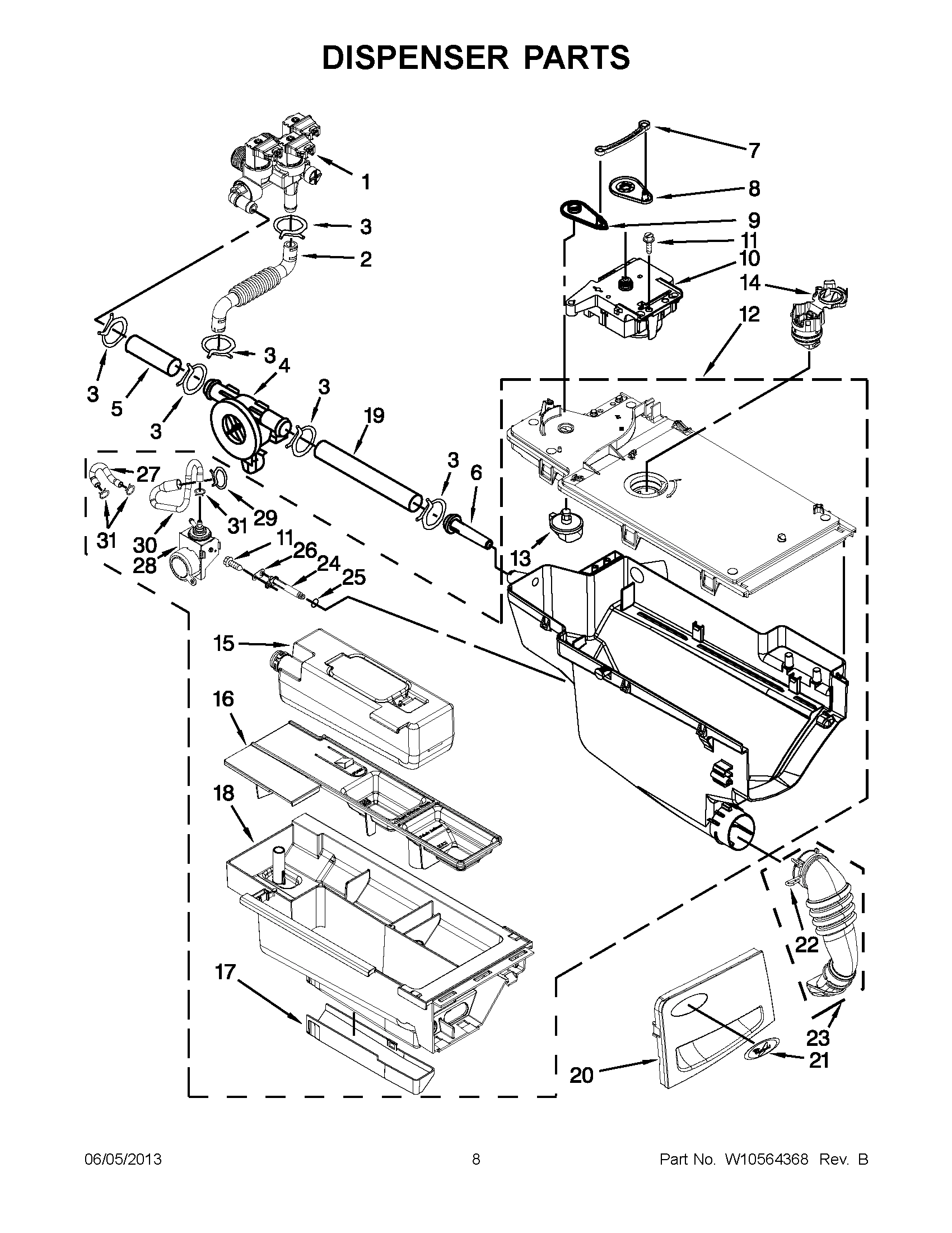

Model Whirlpool WFW97HEXR3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WPW10247306 Whirlpool Valve In Stock WPL WPW10247306 $123.40

1

WPW10267642 Whirlpool Hose In Stock WPL WPW10267642 $32.56

1

CONSOLE ASSSEMBLY (WHITE) WPL W10369394 Contact Us For Availability

2

W10239949 Whirlpool Hose Backorder WPL W10239949 $19.36

2

WPW10208373 Whirlpool Top In Stock WPL WPW10208373 $205.59

2

WPW10208398 Whirlpool Hinge Pin Cap In Stock WPL WPW10208398 $9.11

2

WPW10253476 Whirlpool Screw In Stock WPL WPW10253476 $6.04

2

WPW10316283 Whirlpool Top Cover Backorder WPL WPW10316283 $184.98

3

W11166595 Whirlpool Cabinet Assembly Backorder WPL W11166595 $196.63

3

WPW10208419 Whirlpool Plate Backorder WPL WPW10208419 $32.10

3

WPW10467168 Whirlpool Hose Assembly In Stock WPL WPW10467168 $20.57

4

8572266 Whirlpool Bumper Assembly In Stock WPL 8572266 $4.87

4

W10273036 Whirlpool Hose Clamp Backorder WPL W10273036 $6.84

4

W11253212 Whirlpool Washer Screw In Stock WPL W11253212 $14.77

4

WPW10441116 Whirlpool Panel Backorder WPL WPW10441116 $171.40

4

CONTROL UNIT, CENTRAL WPL W10442138 Contact Us For Availability

5

W10267937 Whirlpool Wire Harness Backorder WPL W10267937 $9.04

5

W10538825 Whirlpool Hose Backorder WPL W10538825 $10.82

5

W11266654 Whirlpool Washer Door Boot Seal Cla In Stock WPL W11266654 $13.25

5

SCREW WPL W10288126 Contact Us For Availability

5

PIPE, VENTILATION ASSEMBLY WPL W10261582 Contact Us For Availability

6

HARNESS, JUMPER UI WPL W10267938 No Longer Available

6

W10353599 Whirlpool Hose Clamp Backorder WPL W10353599 $12.22

6

WP8183181 Whirlpool Nozzle Backorder WPL WP8183181 $34.13

6

WPW10488048 Whirlpool Strike In Stock WPL WPW10488048 $4.70

7

W10208197 Whirlpool Bracket Backorder WPL W10208197 $64.40

7

W10253014 Whirlpool Counterweight Backorder WPL W10253014 $83.68

7

W11230114 Whirlpool Screw Assembly Backorder WPL W11230114 $9.59

7

WP8183183 Whirlpool Lever Backorder WPL WP8183183 $32.98

8

WP8534022 Whirlpool Screw Backorder WPL WP8534022 $2.51

8

WPW10389927-includeCORE Whirlpool WPW10389927 Backorder WPL WPW10389927-includeCORE $203.48

9

W10237535 Whirlpool Counterweight Backorder WPL W10237535 $83.82

9

WPW10183517 Whirlpool Lever Backorder WPL WPW10183517 $4.76

9

WPW10208275 Whirlpool Inner Door Assembly Backorder WPL WPW10208275 $125.31

9

Seal, Filter Cap WPL 8181736 Contact Us For Availability

W10241027 Whirlpool Filter Backorder WPL W10241027 $35.45

W10317566 Whirlpool Clip Backorder WPL W10317566 $4.56

W11173364 Whirlpool Bellows In Stock WPL W11173364 $124.48

HARNESS, WIRING (LOWER MAIN) WPL W10498561 Contact Us For Availability

W10271988 Whirlpool Wire Harness Backorder WPL W10271988 $155.34

W11218344 Whirlpool Boot Seal Retaining Ring In Stock WPL W11218344 $13.25

WPW10374126-includeCORE Whirlpool WPW10374126 Backorder WPL WPW10374126-includeCORE $283.85

GLASS, DOOR WPL W10208263 Contact Us For Availability

12

W10441646 Whirlpool Clip Assembly Backorder WPL W10441646 $7.96

12

DOOR, OUTER ASSEMBLY WPL W10208408 Contact Us For Availability

13

W10237498 Whirlpool Bracket Assembly Backorder WPL W10237498 $28.38

13

W10273034 Whirlpool Clamp Backorder WPL W10273034 $4.78

13

WPW10251394 Whirlpool Knob In Stock WPL WPW10251394 $32.39

14

WPW10260500 Whirlpool Trap Assembly Backorder WPL WPW10260500 $16.38

14

WPW10306690 Whirlpool Sensor Backorder WPL WPW10306690 $33.65

14

SCREEN, DOOR WPL W10208270 Contact Us For Availability

15

W11099174 Whirlpool Trim Ring Backorder WPL W11099174 $209.79

15

Clamp, Hose WPL 371499 Contact Us For Availability

16

W10208411 Whirlpool Handle Backorder WPL W10208411 $49.98

16

W10256661 Whirlpool Dispenser Backorder WPL W10256661 $79.08

16

WPW10467483 Whirlpool Bracket Backorder WPL WPW10467483 $14.42

17

W10003140 Whirlpool Cover Backorder WPL W10003140 $34.48

17

W10261496 Whirlpool Screw Backorder WPL W10261496 $7.91

18

WPW10181028 Whirlpool Clip Backorder WPL WPW10181028 $7.92

18

WPW10250723 Whirlpool Drawer Backorder WPL WPW10250723 $107.80

18

WPW10568614 Whirlpool Hose In Stock WPL WPW10568614 $49.21

19

WPW10352818 Whirlpool Vent Pipe Backorder WPL WPW10352818 $27.91

19

WPW10367632 Whirlpool Filter In Stock WPL WPW10367632 $44.62

W10316388 Whirlpool Clip Assembly Backorder WPL W10316388 $4.76

WPW10312527 Whirlpool Washer Water Level Swit In Stock WPL WPW10312527 $183.08

HANDLE, DRAWER (INCLUDES ITEM 21) (WHITE) WPL W10299862 Contact Us For Availability

HANDLE, DRAWER (INCLUDES ITEM 21) (SILVER) WPL W10327021 Contact Us For Availability

21

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $4.52

22

W10239910 Whirlpool Clamp Backorder WPL W10239910 $35.56

22

W10245452 Whirlpool Retainer Backorder WPL W10245452 $25.73

23

W10467484 Whirlpool Bracket Backorder WPL W10467484 $17.02

23

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

23

WPW10239966 Whirlpool Hose Backorder WPL WPW10239966 $33.31

24

W10250730 Whirlpool Tube Assembly Backorder WPL W10250730 $8.69

24

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

24

LIGHT, LED ASSEMBLY WPL W10272847 Contact Us For Availability

25

W10250731 Whirlpool O-Ring Backorder WPL W10250731 $27.52

25

W10318155 Whirlpool Cover Backorder WPL W10318155 $30.25

25

WPW10280024 Whirlpool Retainer Backorder WPL WPW10280024 $30.25

26

W11281268 Whirlpool Hose In Stock WPL W11281268 $13.91

27

W10268381 Whirlpool Hose Assembly Backorder WPL W10268381 $12.22

27

W11035353 Whirlpool Washer Power Cord Backorder WPL W11035353 $50.71

28

W11415987 Whirlpool Shock Absorber In Stock WPL W11415987 $54.09

28

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

30

W10268382 Whirlpool Hose In Stock WPL W10268382 $28.27

30

WPW10434964 Whirlpool Fan Assembly Backorder WPL WPW10434964 $117.02

37

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

38

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

1903WH Whirlpool Laundry Cart Backorder WPL 1903WH $57.29

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $16.56

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $19.37

8212526 Whirlpool Washer Water Leak Protectio Backorder WPL 8212526 $51.88

8212638RP Whirlpool Fill Hose Assembly, 2 Pac In Stock WPL 8212638RP $32.04

W10135699 Whirlpool Affresh Cleaner Tablets In Stock WPL W10135699 $9.61

W10250743A Whirlpool Washer Detergent Dispens In Stock WPL W10250743A $26.00

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $6.50

W10363227 Whirlpool Touch-Up Backorder WPL W10363227 $9.15

W10869845 Whirlpool Stack Kit In Stock WPL W10869845 $53.25

ACCESSORY PARTS, APPLIANCE CLEANER WPL 31682 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability
