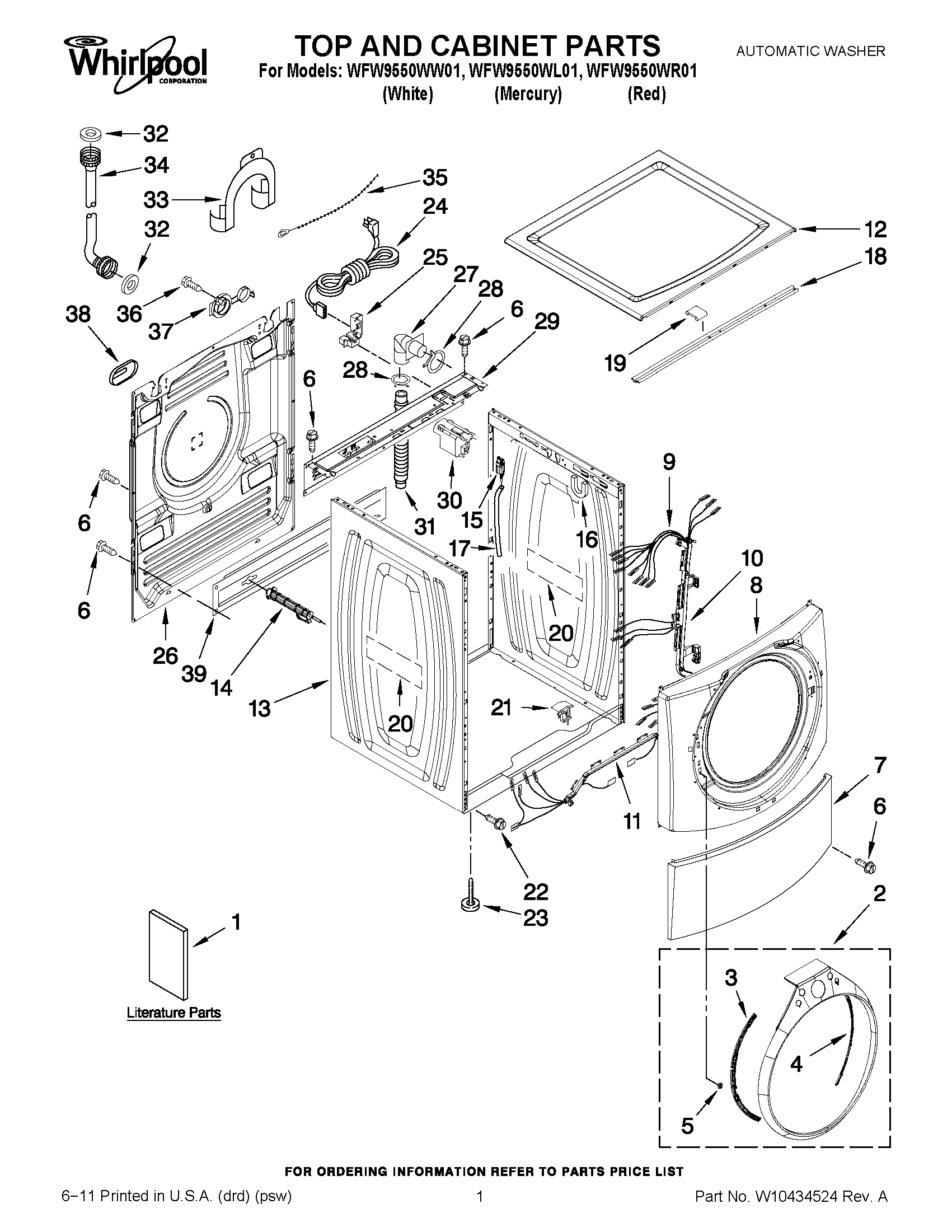

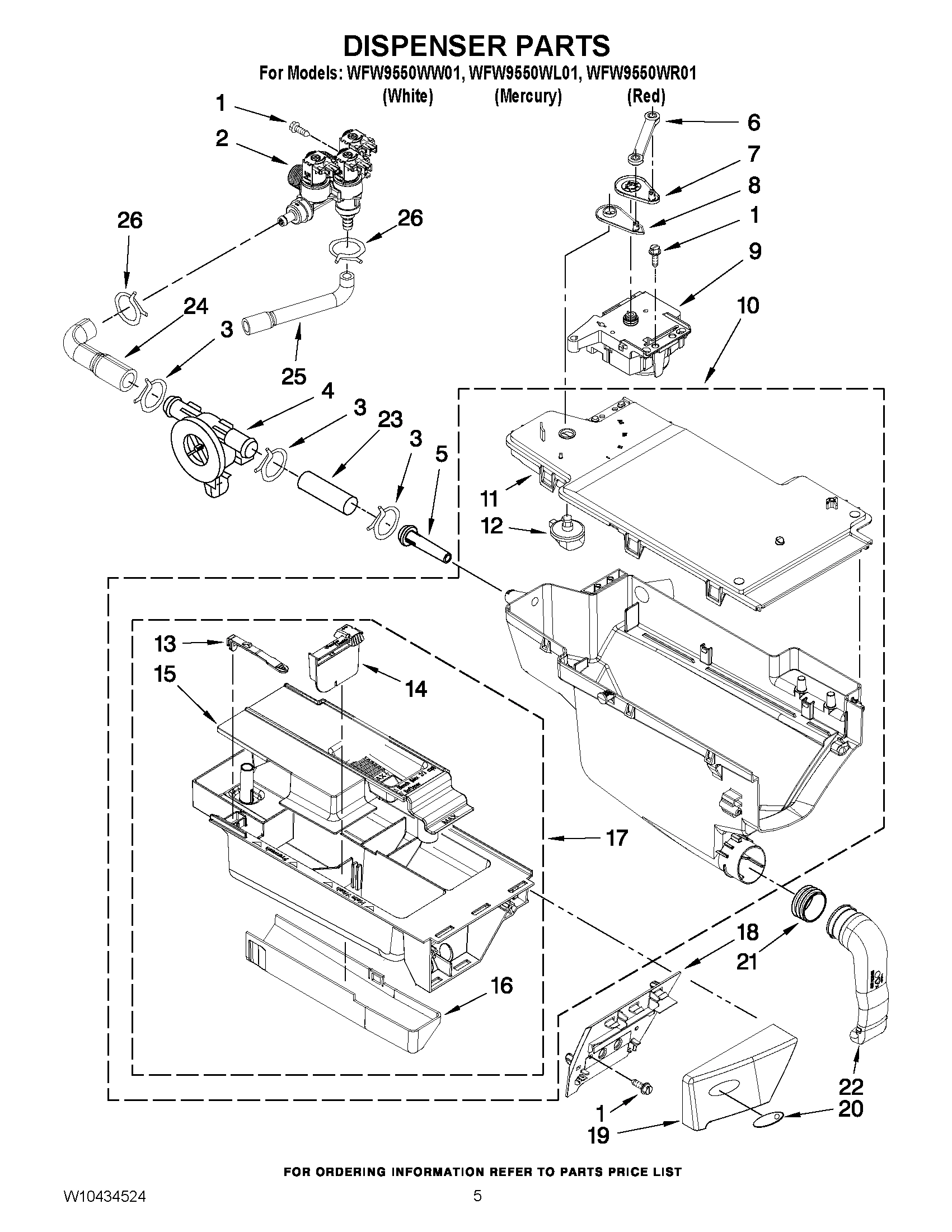

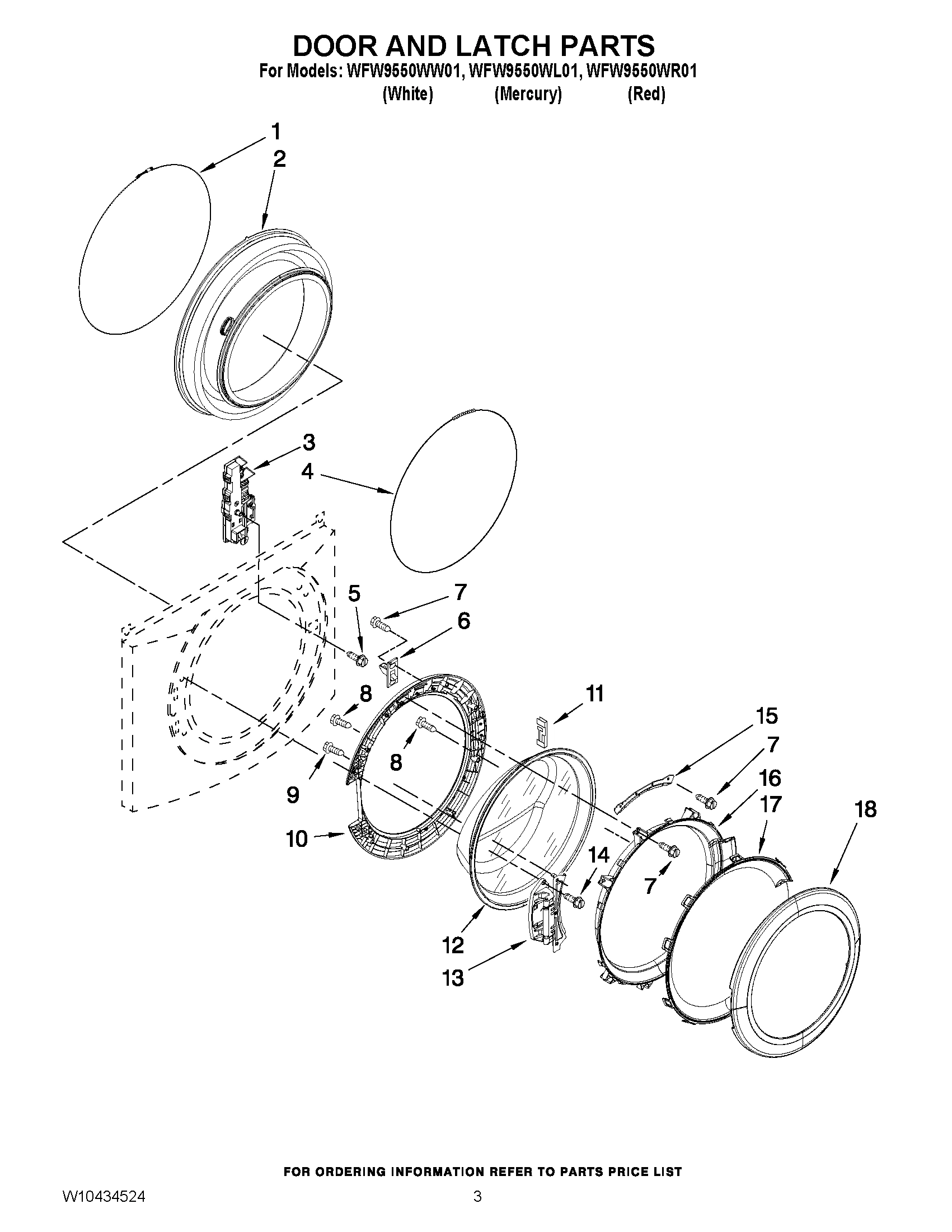

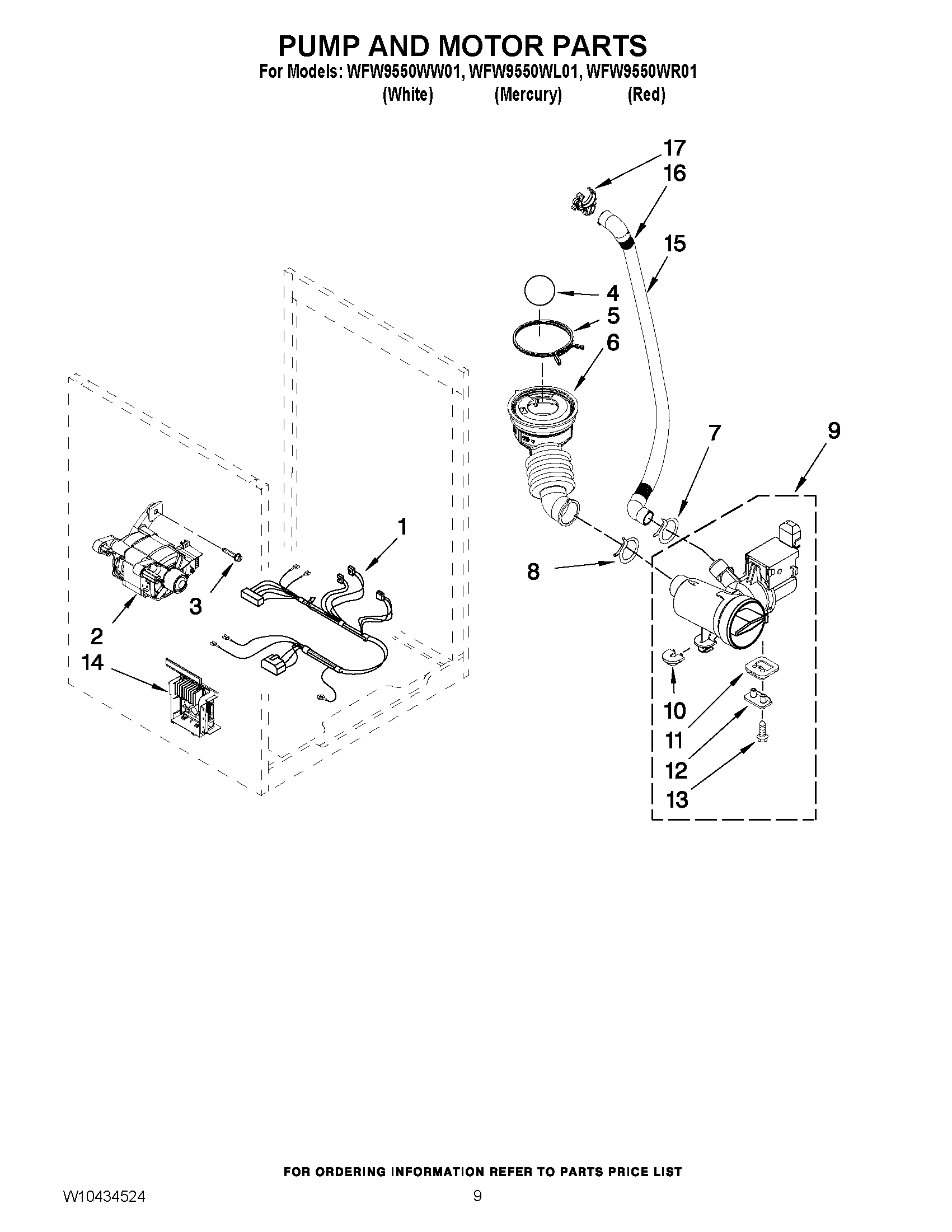

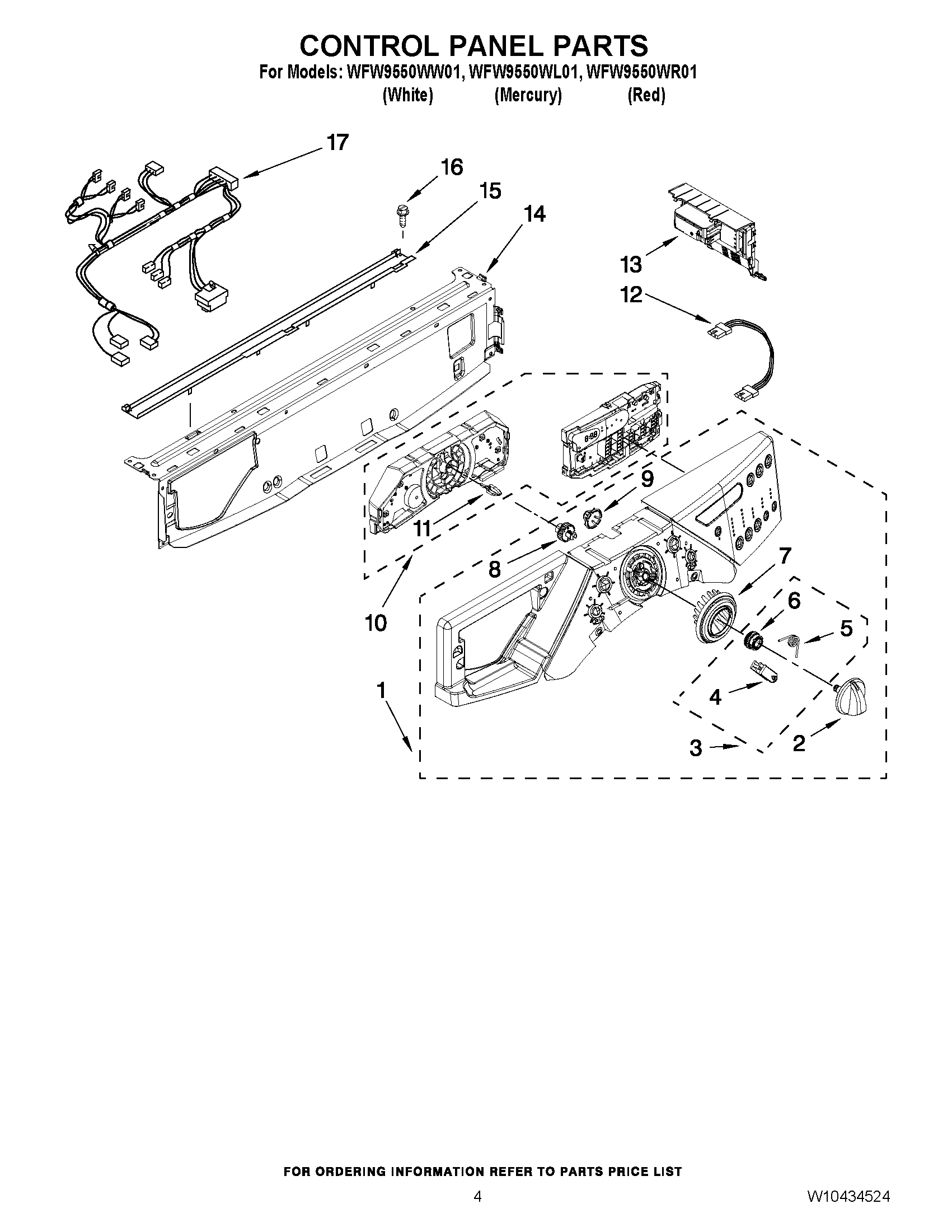

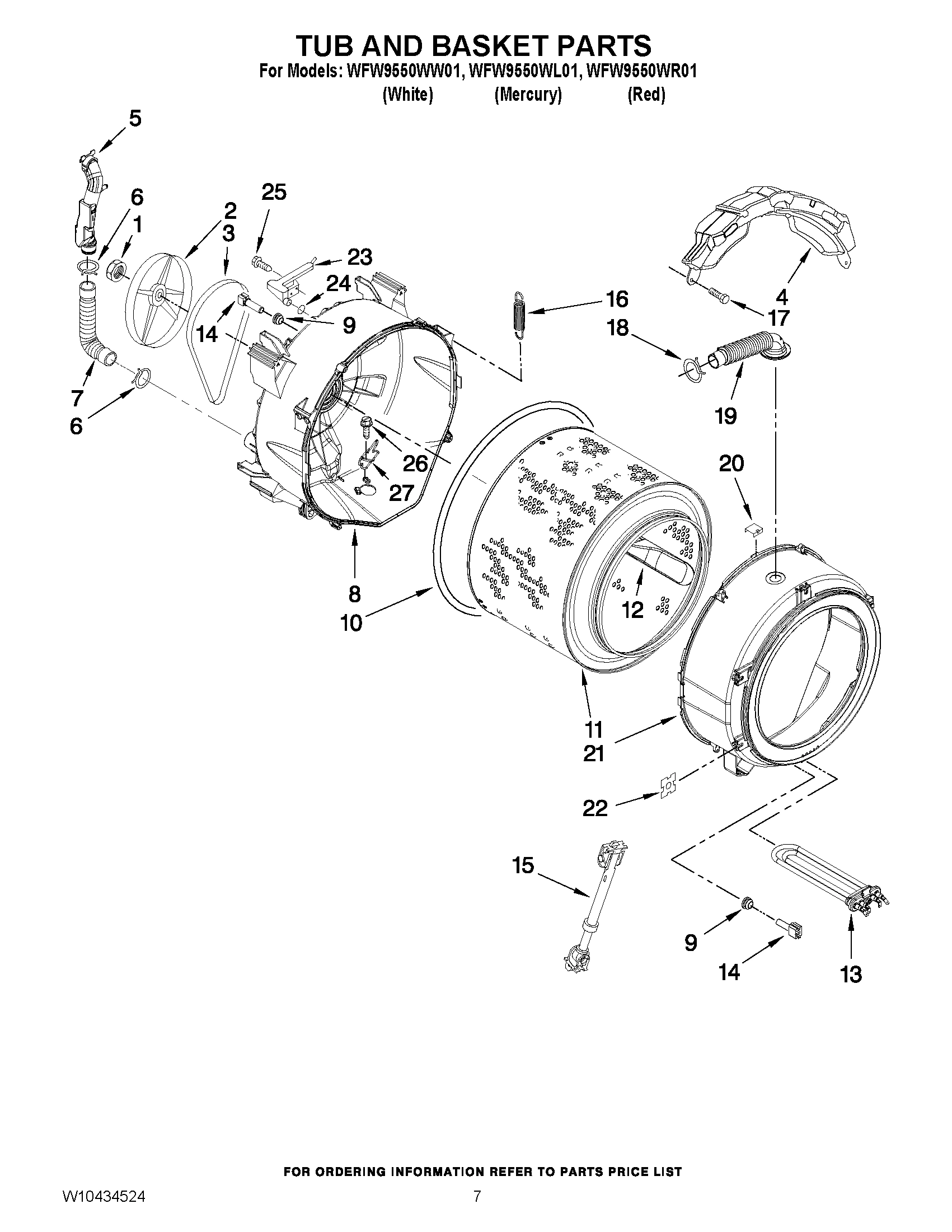

Model Whirlpool WFW9550WL01 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WPW10283361 Whirlpool Nut Backorder WPL WPW10283361 $28.80

1

HARNESS, MOTOR WPL W10186674 Contact Us For Availability

2

W10190685 Whirlpool Knob Assembly Backorder WPL W10190685 $38.01

2

WP8182650 Whirlpool Pulley In Stock WPL WP8182650 $79.12

2

WPW10140583 Whirlpool Drive Motor Backorder WPL WPW10140583 $225.90

2

WPW10247305 Whirlpool Valve In Stock WPL WPW10247305 $107.83

3

8540134 Whirlpool Screw Backorder WPL 8540134 $9.59

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

3

WPW10253483 Whirlpool Latch In Stock WPL WPW10253483 $123.30

3

WPW10388414 Whirlpool Washer Drive Belt In Stock WPL WPW10388414 $35.47

3

Wheel, Detent Kit (Includes Item 9) WPL W10133927 Contact Us For Availability

4

W10121657 Whirlpool Ball Backorder WPL W10121657 $9.22

4

WPW10110225 Whirlpool Flowmeter In Stock WPL WPW10110225 $59.48

4

COUNTERWEIGHT, FRONT WPL W10163424 Contact Us For Availability

5

W10249838 Whirlpool Vent Pipe Backorder WPL W10249838 $41.30

5

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $3.37

5

WP8183181 Whirlpool Nozzle Backorder WPL WP8183181 $32.50

5

WP8540725 Whirlpool Screw Assembly In Stock WPL WP8540725 $2.51

6

8540010 Whirlpool Clamp Backorder WPL 8540010 $6.81

6

WP8183183 Whirlpool Lever Backorder WPL WP8183183 $31.40

6

WPW10467168 Whirlpool Hose Assembly In Stock WPL WPW10467168 $18.81

7

WP8181743 Whirlpool Hose Assembly Backorder WPL WP8181743 $37.70

7

WP8183184 Whirlpool Actuator Cam Backorder WPL WP8183184 $31.40

8

W10131381 Whirlpool Wheel Backorder WPL W10131381 $28.80

8

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

8

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

8

WPW10183517 Whirlpool Lever Backorder WPL WPW10183517 $4.76

8

TUB, REAR (INCLUDES ITEMS 10, 22, 26 & 27) WPL W10399436 Contact Us For Availability

9

W10115662 Whirlpool Wire Harness Backorder WPL W10115662 $173.23

9

W11590578 Whirlpool Seal In Stock WPL W11590578 $2.40

9

WPW10352973 Whirlpool DIS Switch In Stock WPL WPW10352973 $63.21

9

WPW10730972 Whirlpool Washer Water Pump In Stock WPL WPW10730972 $84.78

W10034820 Whirlpool Grommet Backorder WPL W10034820 $7.89

WPW10003370 Whirlpool Frame Backorder WPL WPW10003370 $106.36

WPW10036350 Whirlpool Gasket Backorder WPL WPW10036350 $28.75

USER INTERFACE, CENTER & RIGHT WPL W10282179 Contact Us For Availability

DISPENSER, COMPLETE (INCLUDES ITEM 8) WPL W10399329 Contact Us For Availability

11

W10034830 Whirlpool Grommet Backorder WPL W10034830 $8.53

11

WPW10159904 Whirlpool Washer Spin Basket Drum Backorder WPL WPW10159904 $572.09

11

PLATE, DISTRIBUTION WPL W10371975 Contact Us For Availability

8540033 Whirlpool Cap Backorder WPL 8540033 $7.94

WP8181712 Whirlpool Nozzle Backorder WPL WP8181712 $30.93

WPW10110114 Whirlpool Baffle Backorder WPL WPW10110114 $44.58

GLASS, DOOR WPL W10135912 Contact Us For Availability

13

8533964 Whirlpool Screw Backorder WPL 8533964 $7.32

13

WP8181721 Whirlpool Retainer In Stock WPL WP8181721 $28.80

13

WPW10249844 Whirlpool Heater Assembly Backorder WPL WPW10249844 $182.72

14

W10059240 Whirlpool Bracket Assembly Backorder WPL W10059240 $71.89

14

WPW10121596 Whirlpool Divider Backorder WPL WPW10121596 $42.69

14

WPW10467289 Whirlpool Sensor In Stock WPL WPW10467289 $18.45

W10822553 Whirlpool Washer Shock Absorber In Stock WPL W10822553 $35.98

WPW10249845 Whirlpool Washer Water Level Swit In Stock WPL WPW10249845 $144.34

SYPHON, BLEACH/SOFTENER WPL W10163874 Contact Us For Availability

Sleeve, Drain Hose WPL W10004320 Contact Us For Availability

16

W10003140 Whirlpool Cover Backorder WPL W10003140 $32.83

16

W10243909 Whirlpool Spring Backorder WPL W10243909 $74.37

16

WPW10003250 Whirlpool Hose In Stock WPL WPW10003250 $17.95

8182209 Whirlpool Clip Backorder WPL 8182209 $8.99

W11685857 Whirlpool Screw Assembly Backorder WPL W11685857 $8.11

WPW10004260 Whirlpool Pressure Switch Hose In Stock WPL WPW10004260 $4.07

DRAWER, DETERGENT (COMPLETE) WPL W10163872 Contact Us For Availability

18

3363365 Whirlpool Clamp Backorder WPL 3363365 $4.76

18

WPW10156617 Whirlpool Bracket Backorder WPL WPW10156617 $34.62

WP8540015 Whirlpool Hose Assembly In Stock WPL WP8540015 $15.59

HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (RED) WPL W10221725 Contact Us For Availability

HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (MERC WPL W10251281 Contact Us For Availability

HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (WHIT WPL W10251583 Contact Us For Availability

20

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $3.70

20

Medallion WPL 3400981 Contact Us For Availability

21

WP8181747 Whirlpool Seal Assembly In Stock WPL WP8181747 $9.57

21

TUB, FRONT (INCLUDES ITEMS 10 & 22) WPL W10259785 Contact Us For Availability

22

8540479 Whirlpool Screw Backorder WPL 8540479 $5.65

22

WP8182512 Whirlpool Nut Assembly Backorder WPL WP8182512 $3.70

22

WPW10005300 Whirlpool Hose In Stock WPL WPW10005300 $7.06

23

W10862938 Whirlpool Leveling Feet Backorder WPL W10862938 $7.30

23

Hose, Inlet Nozzle WPL 8183180 Contact Us For Availability

23

Air Trap WPL W10003600 Contact Us For Availability

24

8183182 Whirlpool Hose Backorder WPL 8183182 $14.18

24

WPW10250553 Whirlpool O-Ring Backorder WPL WPW10250553 $2.51

25

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $9.59

25

WP8181710 Whirlpool Hose Assembly Backorder WPL WP8181710 $9.77

26

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

27

W10250558 Whirlpool Bracket Assembly Backorder WPL W10250558 $5.73

28

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

29

Brace, Rear WPL W10110677 Contact Us For Availability

36

8182201 Whirlpool Screw Backorder WPL 8182201 $9.59

37

W11116978 Whirlpool Grommet Backorder WPL W11116978 $11.27

38

WP8540268 Whirlpool Cover Assembly Backorder WPL WP8540268 $3.70

39

WPW10003040 Whirlpool Brace Backorder WPL WPW10003040 $36.11

39

WPL W10165710 WPL W10165710 Contact Us For Availability

1903WH Whirlpool Laundry Cart Backorder WPL 1903WH $57.29

285448A Whirlpool Washer In Stock WPL 285448A $2.73

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $19.37

8212526 Whirlpool Washer Water Leak Protectio In Stock WPL 8212526 $49.41

8212545RP Whirlpool Washer Commercial Grade 5 In Stock WPL 8212545RP $20.59

8212546RP Whirlpool Washer 4' Black Rubber Fi In Stock WPL 8212546RP $10.98

8212638RP Whirlpool Fill Hose Assembly, 2 Pac In Stock WPL 8212638RP $29.74

8212641RP Whirlpool Washer Hose Kit Black EPD In Stock WPL 8212641RP $13.27

8212656RP Whirlpool Fill Hose Backorder WPL 8212656RP $19.47

DRNEXT4 Whirlpool Washer Outer Drain Hose Ext In Stock WPL DRNEXT4 $23.97

W10135699 Whirlpool Affresh Cleaner Tablets In Stock WPL W10135699 $8.78

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $6.50

ALL PURPOSE APPLIANCE CLEANER WPL W10355010 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (RED) WPL W10218245 Contact Us For Availability
