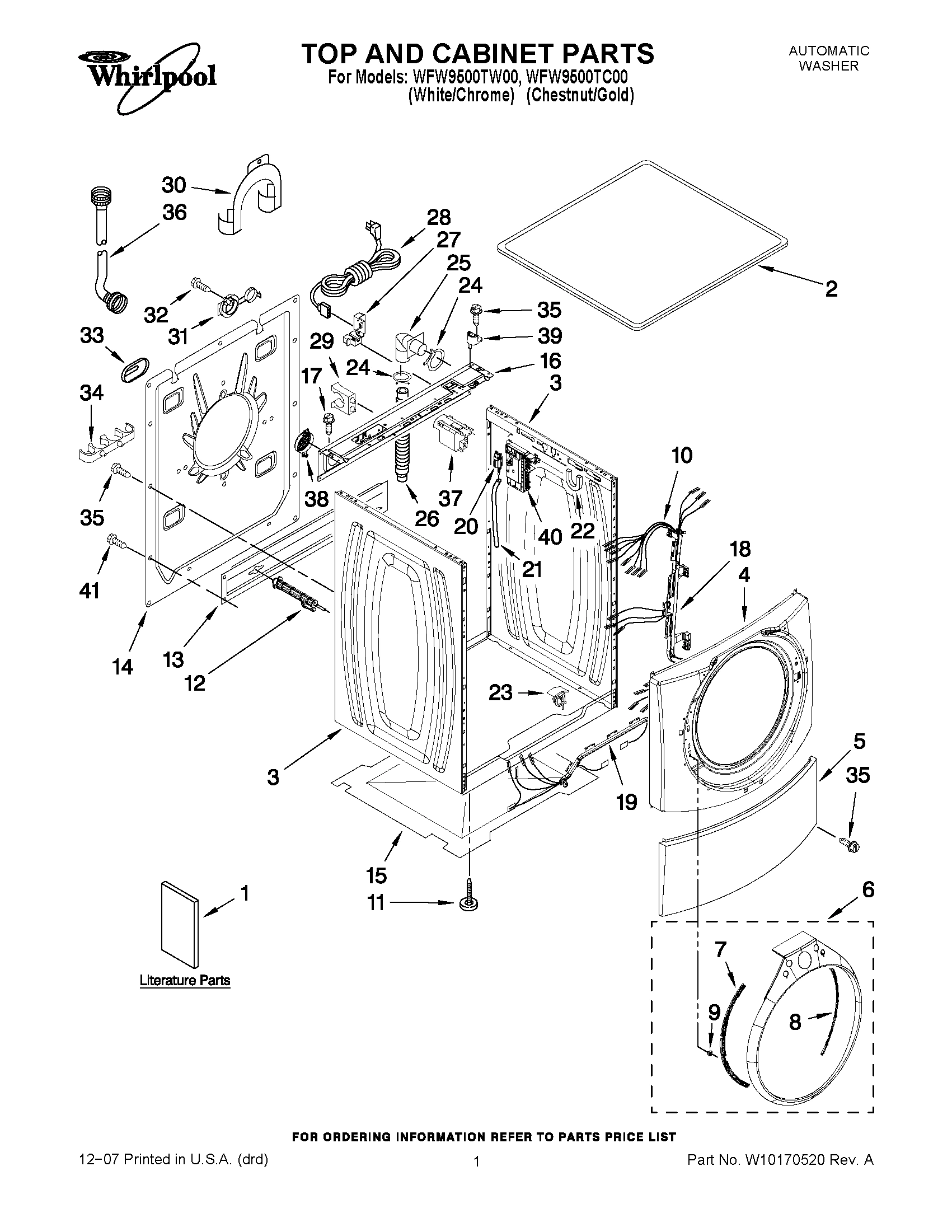

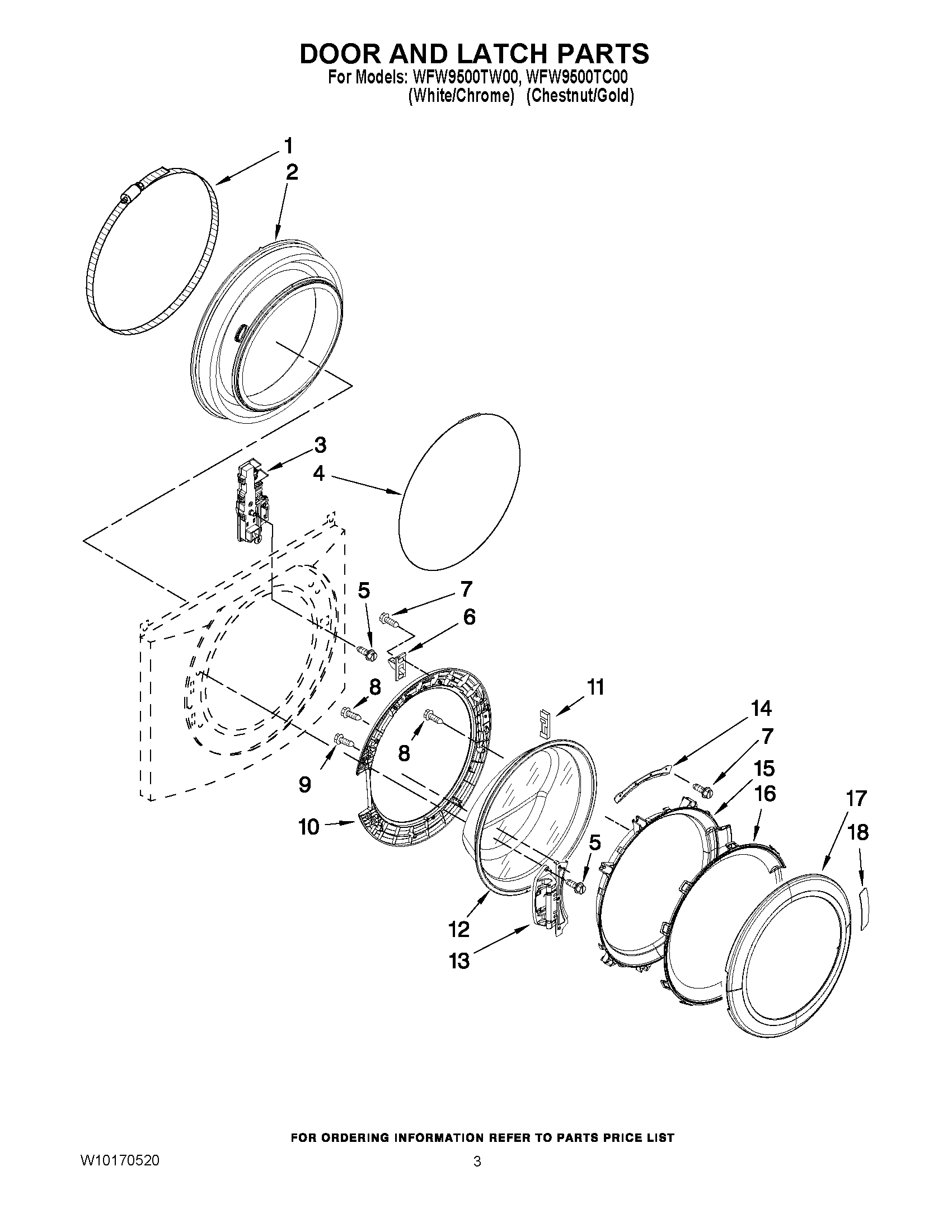

Model Whirlpool WFW9500TW00 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WPW10156253 Whirlpool Valve In Stock WPL WPW10156253 $110.79

1

WPW10283361 Whirlpool Nut Backorder WPL WPW10283361 $28.80

1

Panel, Control (White) WPL W10180778 Contact Us For Availability

1

Panel, Control (Chestnut) WPL W10180779 Contact Us For Availability

2

8183182 Whirlpool Hose Backorder WPL 8183182 $14.18

2

W10121657 Whirlpool Ball Backorder WPL W10121657 $9.22

2

WP8182119 Whirlpool Washer Door Boot Bellows In Stock WPL WP8182119 $107.85

2

WP8182650 Whirlpool Pulley In Stock WPL WP8182650 $79.12

2

Knob, Control (Includes Item 9) (White) WPL W10131369 Contact Us For Availability

2

Knob, Control (Includes Item 9) (Chestnut) WPL W10166990 Contact Us For Availability

3

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $3.37

3

WP8183270 Whirlpool Door Latch In Stock WPL WP8183270 $127.11

3

WPW10388414 Whirlpool Washer Drive Belt In Stock WPL WPW10388414 $35.47

3

Wheel, Detent Kit (Includes Item 9) WPL W10133927 Contact Us For Availability

4

W10902779 Whirlpool Clamp Assembly In Stock WPL W10902779 $11.27

4

WPW10008880 Whirlpool Counterweight Assembly Backorder WPL WPW10008880 $87.84

4

WPW10467168 Whirlpool Hose Assembly In Stock WPL WPW10467168 $18.81

4

Wheel, Rast (2) (Service In Kit Only) WPL W10131661 Contact Us For Availability

5

W10156255 Whirlpool Hose Backorder WPL W10156255 $28.80

5

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

5

Pipe, Ventilation WPL 8181744 Contact Us For Availability

5

Spring, Knob (2) (Service In Kit Only) WPL W10131377 Contact Us For Availability

6

WP8183181 Whirlpool Nozzle Backorder WPL WP8183181 $32.50

6

Wheel, Detent (Service In Kit Only) WPL W10131378 Contact Us For Availability

6

Clamp WPL 8181746 Contact Us For Availability

7

280187 Whirlpool Washer Electronic Water Drai In Stock WPL 280187 $108.34

7

WP8181743 Whirlpool Hose Assembly Backorder WPL WP8181743 $37.70

7

WP8183183 Whirlpool Lever Backorder WPL WP8183183 $31.40

7

Bracket, Trim Fixation (Left) WPL 8183208 Contact Us For Availability

7

Ring, Knob Light (Includes Item 9) WPL W10131376 Contact Us For Availability

8

W10131381 Whirlpool Wheel Backorder WPL W10131381 $28.80

8

W10772614 Whirlpool Outer Tub Assembly Backorder WPL W10772614 $373.67

8

WP8183184 Whirlpool Actuator Cam Backorder WPL WP8183184 $31.40

8

Grommet, Damper (Rear) WPL 8182820 Contact Us For Availability

9

WP8183210 Whirlpool Clip In Stock WPL WP8183210 $3.70

9

WPW10161052 Whirlpool Dispenser Lever Connect Backorder WPL WPW10161052 $3.70

9

WPW10526202 Whirlpool Grommet Backorder WPL WPW10526202 $6.28

9

Retainer, Snap WPL W10131382 Contact Us For Availability

9

Counterweight, Rear WPL 8181913 Contact Us For Availability

10

Gasket, Tub WPL 8181673 Contact Us For Availability

10

Seal, Filter Cap WPL 8181736 Contact Us For Availability

10

User Interface, Center WPL W10164402 Contact Us For Availability

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

Cap, Filter WPL 8183027 Contact Us For Availability

Foot, Leveling WPL 8181636 Contact Us For Availability

Adapter, Encoder Wheel WPL 8183177 Contact Us For Availability

Basket WPL 8182232 Contact Us For Availability

WP8182233 Whirlpool Baffle Assembly In Stock WPL WP8182233 $31.41

Plate, Distribution WPL W10164400 Contact Us For Availability

Bolt, Motor WPL W10128585 Contact Us For Availability

User Interface, Right WPL W10180777 Contact Us For Availability

W10157884 Whirlpool Wire Harness Backorder WPL W10157884 $63.01

WP8181712 Whirlpool Nozzle Backorder WPL WP8181712 $30.93

WP8183202 Whirlpool Door Hinge In Stock WPL WP8183202 $94.55

WPW10250553 Whirlpool O-Ring Backorder WPL WPW10250553 $2.51

Motor WPL 8182793 Contact Us For Availability

14

WP8181721 Whirlpool Retainer In Stock WPL WP8181721 $28.80

14

Airtrap WPL 8181731 Contact Us For Availability

14

Harness, Motor WPL W10157915 Contact Us For Availability

8182209 Whirlpool Clip Backorder WPL 8182209 $8.99

W10059240 Whirlpool Bracket Assembly Backorder WPL W10059240 $71.89

WPW10121596 Whirlpool Divider Backorder WPL WPW10121596 $42.69

SCREW WPL 8181785 Contact Us For Availability

W10121598 Whirlpool Dispenser Assembly Backorder WPL W10121598 $50.25

W10135004 Whirlpool Spring Assembly In Stock WPL W10135004 $28.02

WP8183204 Whirlpool Diverter Backorder WPL WP8183204 $68.44

WPW10003250 Whirlpool Hose In Stock WPL WPW10003250 $17.95

17

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

17

Steamer, Complete Assembly (Includes Item 20 WPL W10157910 Contact Us For Availability

17

Bolt WPL 8181647 Contact Us For Availability

W10121607 Whirlpool Cushion Backorder WPL W10121607 $33.29

W10156132 Whirlpool Hose Backorder WPL W10156132 $28.97

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

Harness, Wiring (Upper Main) WPL W10157883 Contact Us For Availability

19

WPW10156617 Whirlpool Bracket Backorder WPL WPW10156617 $34.62

19

Hose, Exhaust WPL W10156130 Contact Us For Availability

20

Hose, Overflow WPL W10156133 Contact Us For Availability

20

Connector, Overflow Hose WPL W10156249 Contact Us For Availability

21

W10156250 Whirlpool Cap Backorder WPL W10156250 $28.80

21

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $3.70

22

W10156251 Whirlpool Tank Backorder WPL W10156251 $27.45

22

WP8182512 Whirlpool Nut Assembly Backorder WPL WP8182512 $3.70

23

WP8181747 Whirlpool Seal Assembly In Stock WPL WP8181747 $9.57

23

SCREW WPL 8182214 Contact Us For Availability

24

W10250558 Whirlpool Bracket Assembly Backorder WPL W10250558 $5.73

25

W10772607 Whirlpool Outer Tub Backorder WPL W10772607 $200.22

25

Connector, Drain Hose WPL 8181738 Contact Us For Availability

25

Dispenser, Complete (Includes Item 9) WPL W10157886 Contact Us For Availability

26

WP8181737 Whirlpool Hose In Stock WPL WP8181737 $28.80

26

WPW10426377 Whirlpool Heater Assembly Backorder WPL WPW10426377 $124.92

26

Check Valve, Duckbill WPL W10156256 Contact Us For Availability

27

WPW10467289 Whirlpool Sensor In Stock WPL WPW10467289 $18.45

28

W10822553 Whirlpool Washer Shock Absorber In Stock WPL W10822553 $35.98

28

WP8183009 Whirlpool Power Cord Backorder WPL WP8183009 $52.78

29

W10156131 Whirlpool Hose Backorder WPL W10156131 $26.21

32

8182201 Whirlpool Screw Backorder WPL 8182201 $9.59

40

Control Board, Expansion WPL W10156258 Contact Us For Availability

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $14.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

38005 Whirlpool Stack Kit Backorder WPL 38005 $23.94

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

Rear Guard WPL 4396899 Contact Us For Availability

PAINT, TOUCH-UP (1/2oz.) (Chestnut) WPL W10162090 Contact Us For Availability
