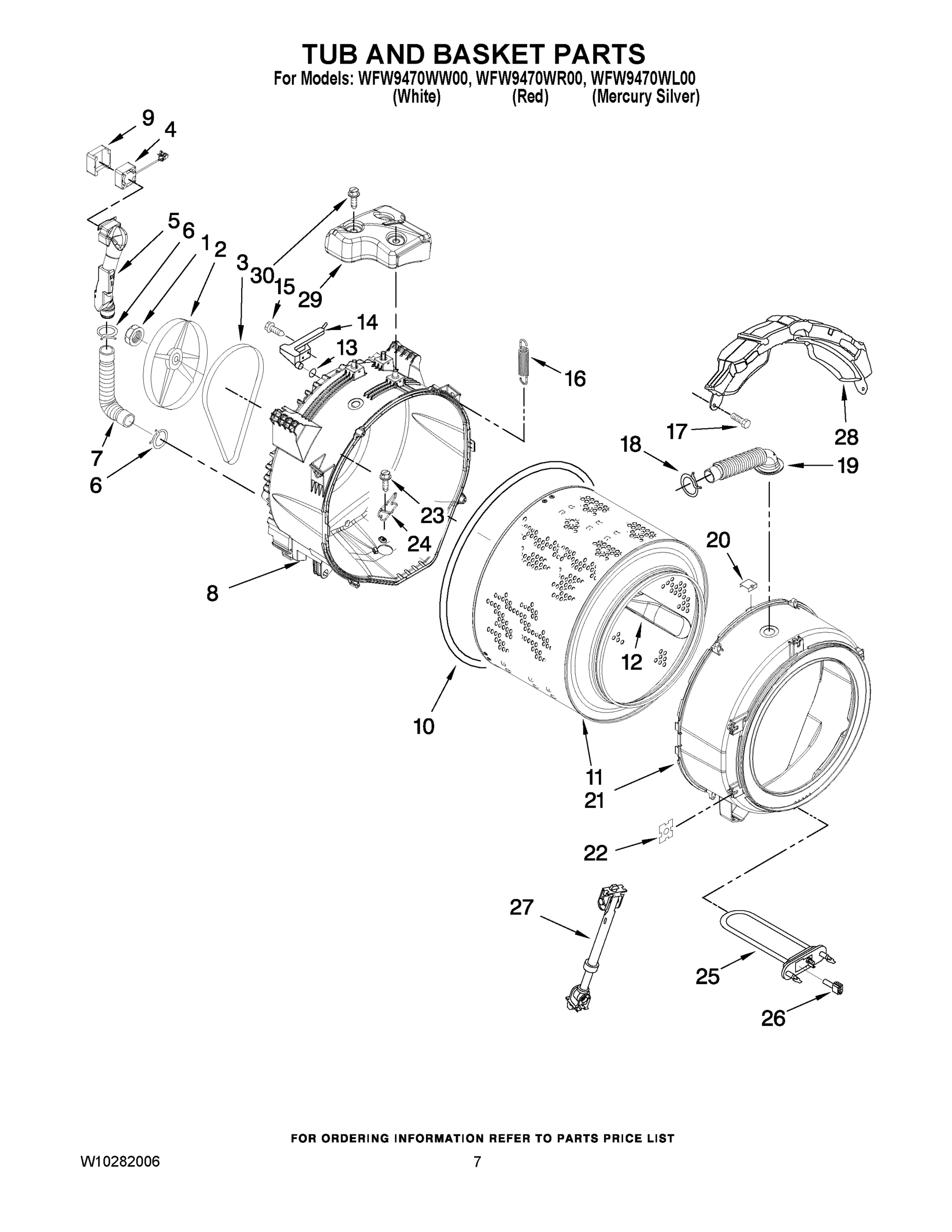

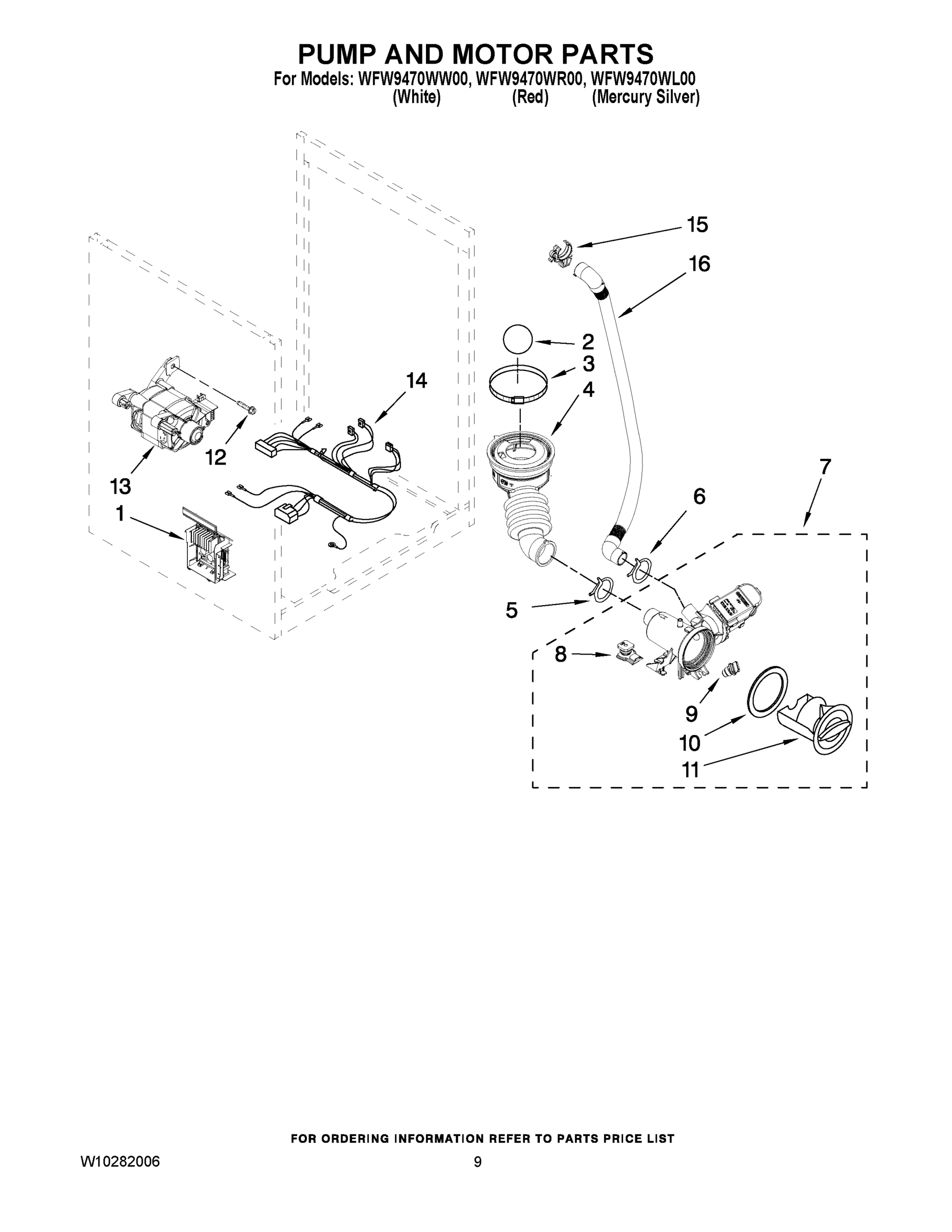

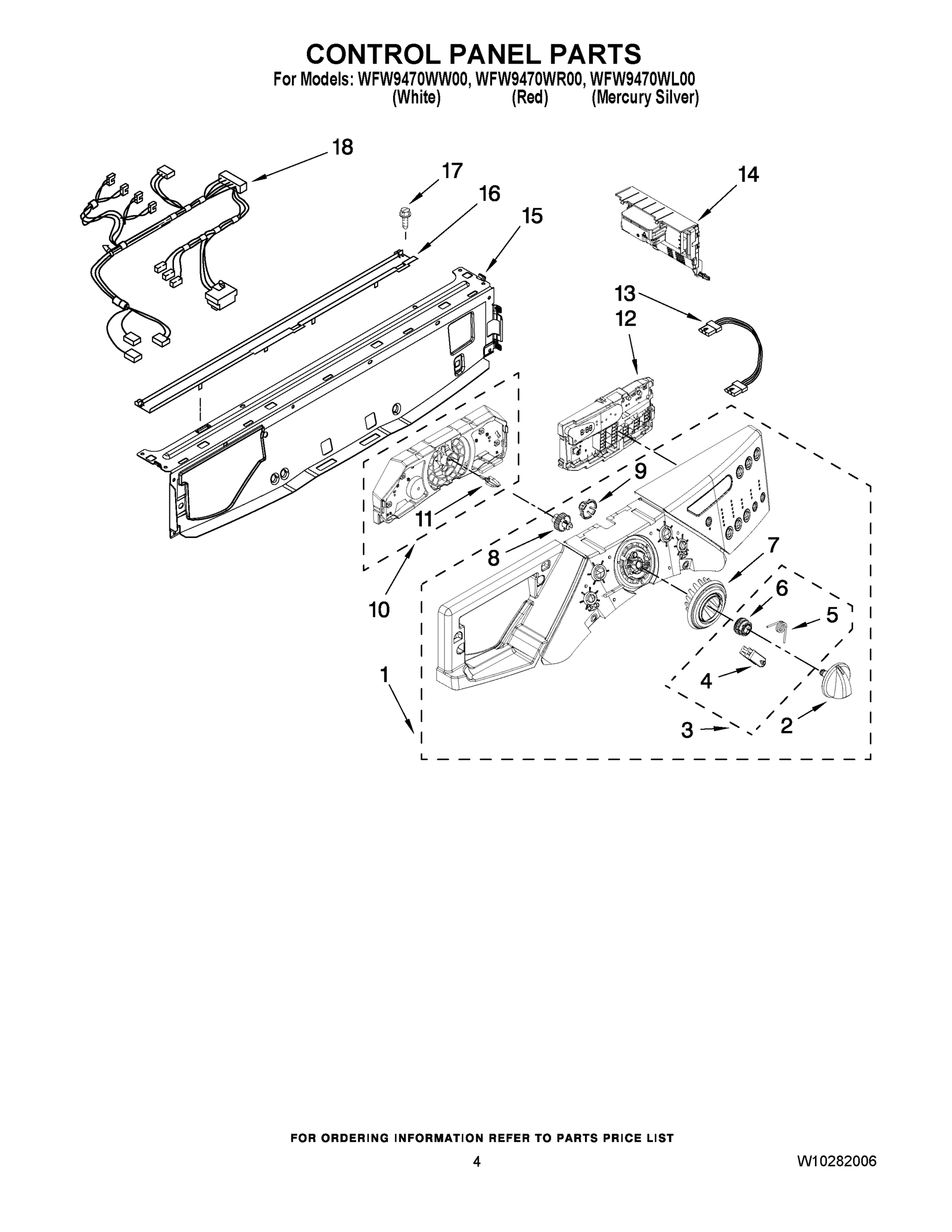

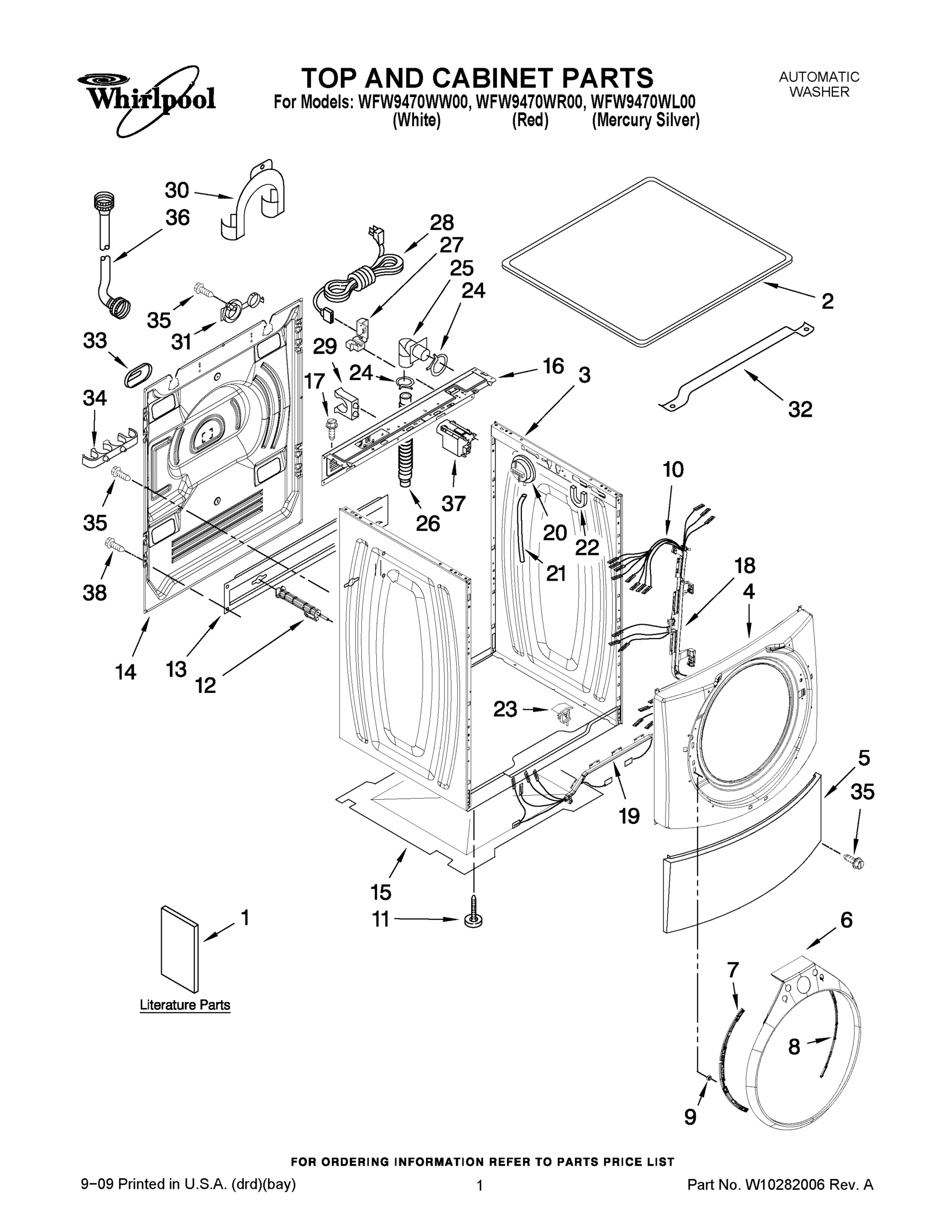

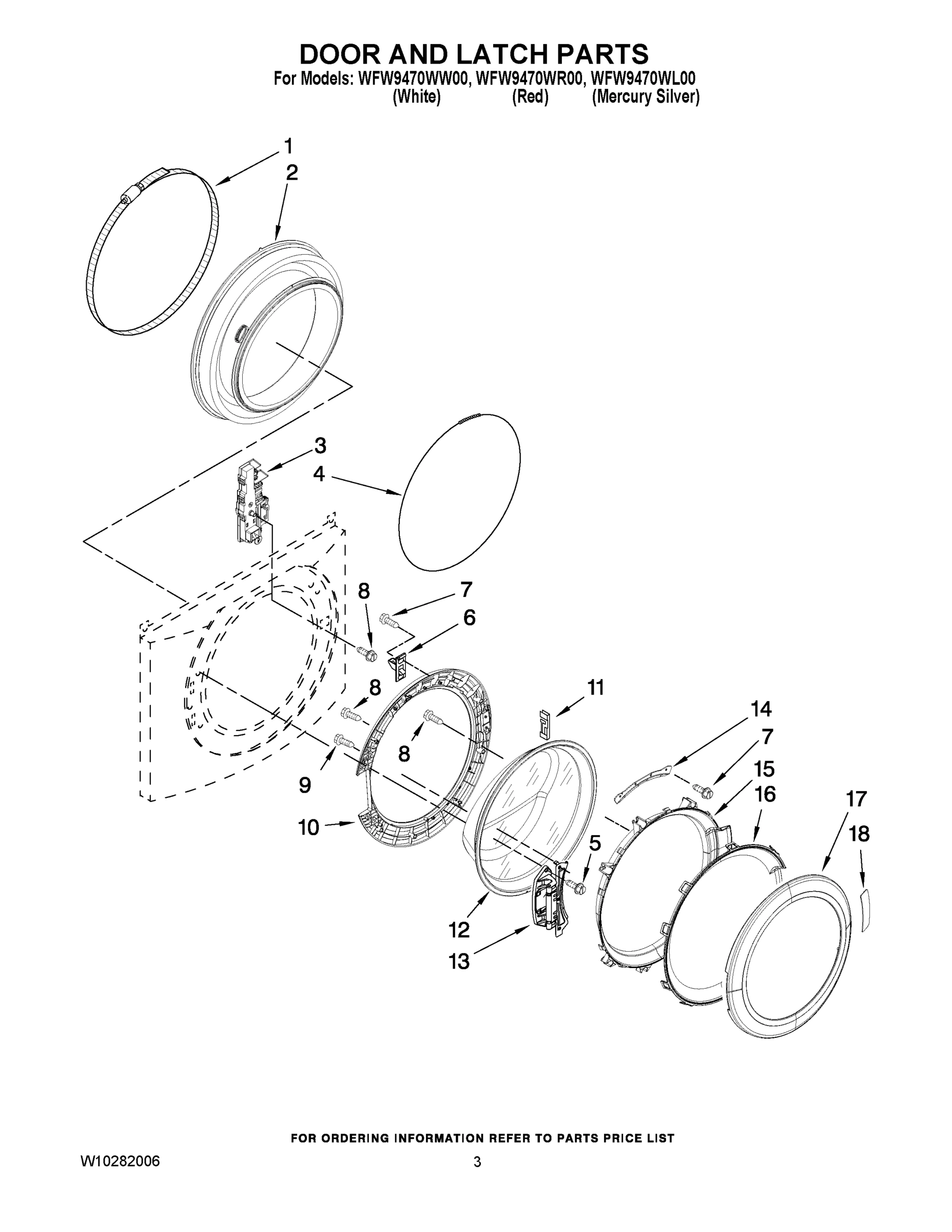

Model Whirlpool WFW9470WL00 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP8183196-includeCORE Whirlpool WP8183196 Ele Backorder WPL WP8183196-includeCORE $269.98

1

WPW10283361 Whirlpool Nut In Stock WPL WPW10283361 $31.07

1

WPW10289387 Whirlpool Washer Valve In Stock WPL WPW10289387 $94.37

2

W10121657 Whirlpool Ball Backorder WPL W10121657 $9.22

2

W10190685 Whirlpool Knob Assembly Backorder WPL W10190685 $39.91

2

W10291582 Whirlpool Hose Assembly Backorder WPL W10291582 $10.07

2

WP8182119 Whirlpool Washer Door Boot Bellows In Stock WPL WP8182119 $116.49

2

WP8182650 Whirlpool Pulley In Stock WPL WP8182650 $83.89

3

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $3.37

3

WP8183270 Whirlpool Door Latch In Stock WPL WP8183270 $139.59

3

WPW10388414 Whirlpool Washer Drive Belt In Stock WPL WPW10388414 $38.06

3

Wheel, Detent Kit (Includes Item 9) WPL W10133927 Contact Us For Availability

4

W10902779 Whirlpool Clamp Assembly In Stock WPL W10902779 $12.10

4

WP8183181 Whirlpool Nozzle Backorder WPL WP8183181 $34.13

4

WPW10283362 Whirlpool Fan Backorder WPL WPW10283362 $176.79

4

WPW10467168 Whirlpool Hose Assembly In Stock WPL WPW10467168 $20.57

5

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

5

WP8540725 Whirlpool Screw Assembly In Stock WPL WP8540725 $3.33

5

PIPE, VENTILATION WPL W10283513 Contact Us For Availability

6

WP8183183 Whirlpool Lever Backorder WPL WP8183183 $32.98

6

WPW10488048 Whirlpool Strike In Stock WPL WPW10488048 $4.70

6

Clamp WPL W10208156 Contact Us For Availability

7

280187 Whirlpool Washer Electronic Water Drai In Stock WPL 280187 $129.76

7

WP8181743 Whirlpool Hose Assembly Backorder WPL WP8181743 $39.58

7

WP8183184 Whirlpool Actuator Cam Backorder WPL WP8183184 $32.98

7

Bracket, Trim Fixation (Left) WPL 8183208 Contact Us For Availability

7

Screw WPL 8181758 Contact Us For Availability

8

W10131381 Whirlpool Wheel Backorder WPL W10131381 $30.25

8

WPW10161052 Whirlpool Dispenser Lever Connect Backorder WPL WPW10161052 $3.70

8

TUB, REAR (INCLUDES ITEMS 10, 22, 23 & 24) WPL W10283358 Contact Us For Availability

8

Grommet, Damper (Rear) WPL 8182820 Contact Us For Availability

9

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $3.33

9

WP8183210 Whirlpool Clip In Stock WPL WP8183210 $4.52

9

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

9

WPW10526202 Whirlpool Grommet Backorder WPL WPW10526202 $6.28

9

SUPPORT,VENTILATION FAN WPL W10283366 Contact Us For Availability

WPW10003370 Whirlpool Frame Backorder WPL WPW10003370 $109.83

Gasket, Tub WPL 8181673 Contact Us For Availability

USER INTERFACE, CENTER WPL W10283460 Contact Us For Availability

Seal, Filter Cap WPL 8181736 Contact Us For Availability

BASKET WPL W10283352 Contact Us For Availability

Cap, Filter (Includes Item 10) WPL 8183027 Contact Us For Availability

Foot, Leveling WPL 8181636 Contact Us For Availability

Clamp, Glass Support WPL 8181659 Contact Us For Availability

WPW10283356 Whirlpool Washer Tub Baffle In Stock WPL WPW10283356 $42.99

WPW10283462 Whirlpool Washer Electronic Contr Backorder WPL WPW10283462 $182.27

Plate, Distribution WPL W10164400 Contact Us For Availability

Bolt, Motor WPL W10128585 Contact Us For Availability

Glass, Door WPL 8181655 Contact Us For Availability

W10852624 Whirlpool Wire Harness Backorder WPL W10852624 $68.07

WP8181712 Whirlpool Nozzle Backorder WPL WP8181712 $32.48

WP8183202 Whirlpool Door Hinge In Stock WPL WP8183202 $95.37

WPW10250553 Whirlpool O-Ring Backorder WPL WPW10250553 $2.51

Motor WPL 8182793 Contact Us For Availability

W10295703 Whirlpool Clamp Assembly Backorder WPL W10295703 $7.32

WP8181721 Whirlpool Retainer Backorder WPL WP8181721 $30.25

WPW10189680 Whirlpool Wire Harness Backorder WPL WPW10189680 $91.97

Airtrap WPL 8181731 Contact Us For Availability

8182209 Whirlpool Clip Backorder WPL 8182209 $8.99

W10059240 Whirlpool Bracket Assembly Backorder WPL W10059240 $75.50

WP8183256 Whirlpool Frame Assembly Backorder WPL WP8183256 $131.93

WPW10121596 Whirlpool Divider Backorder WPL WPW10121596 $44.84

SCREW WPL 8181785 Contact Us For Availability

W10121598 Whirlpool Dispenser Assembly Backorder WPL W10121598 $52.76

W10135004 Whirlpool Spring Assembly In Stock WPL W10135004 $30.25

WP8183204 Whirlpool Diverter Backorder WPL WP8183204 $71.86

WPW10003250 Whirlpool Hose In Stock WPL WPW10003250 $19.67

SCREEN, DOOR WPL W10248071 Contact Us For Availability

17

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

17

BOLT, FRONT COUNTERWEIGHT (3) WPL 8181647 Contact Us For Availability

17

TRIM RING, OUTER DOOR (INCLUDES ITEM 18) WPL W10248123 Contact Us For Availability

18

W10283495 Whirlpool Wire Harness Backorder WPL W10283495 $107.04

18

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

18

Pad, Door Handle WPL W10121607 Contact Us For Availability

19

WP8540015 Whirlpool Hose Assembly Backorder WPL WP8540015 $17.20

19

WPW10156617 Whirlpool Bracket Backorder WPL WPW10156617 $36.36

20

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $4.52

20

WPW10271610 Whirlpool Washer Water Level Swit Backorder WPL WPW10271610 $76.74

21

W10772607 Whirlpool Outer Tub Backorder WPL W10772607 $219.65

22

WP8181747 Whirlpool Seal Assembly In Stock WPL WP8181747 $10.39

22

WP8182512 Whirlpool Nut Assembly Backorder WPL WP8182512 $3.70

23

SCREW WPL 8182214 Contact Us For Availability

24

W10250558 Whirlpool Bracket Assembly Backorder WPL W10250558 $5.73

25

WPW10426377 Whirlpool Heater Assembly Backorder WPL WPW10426377 $124.92

25

Connector, Drain Hose WPL 8181738 Contact Us For Availability

26

WP8181737 Whirlpool Hose In Stock WPL WP8181737 $31.07

26

WPW10467289 Whirlpool Sensor In Stock WPL WPW10467289 $20.18

27

W10822553 Whirlpool Washer Shock Absorber In Stock WPL W10822553 $36.80

28

WP8183009 Whirlpool Power Cord Backorder WPL WP8183009 $52.78

28

WPW10008880 Whirlpool Counterweight Assembly Backorder WPL WPW10008880 $92.24

29

COUNTERWEIGHT, REAR WPL W10283355 Contact Us For Availability

30

SCREW, REAR COUNTERWEIGHT (3) WPL W10283359 Contact Us For Availability

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $16.56

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

38005 Whirlpool Stack Kit Backorder WPL 38005 $23.94

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

W10135699 Whirlpool Affresh Cleaner Tablets In Stock WPL W10135699 $9.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
