Model Whirlpool WFW9450WR00 AUTOMATIC WASHER – Common Parts &amp; Diagrams

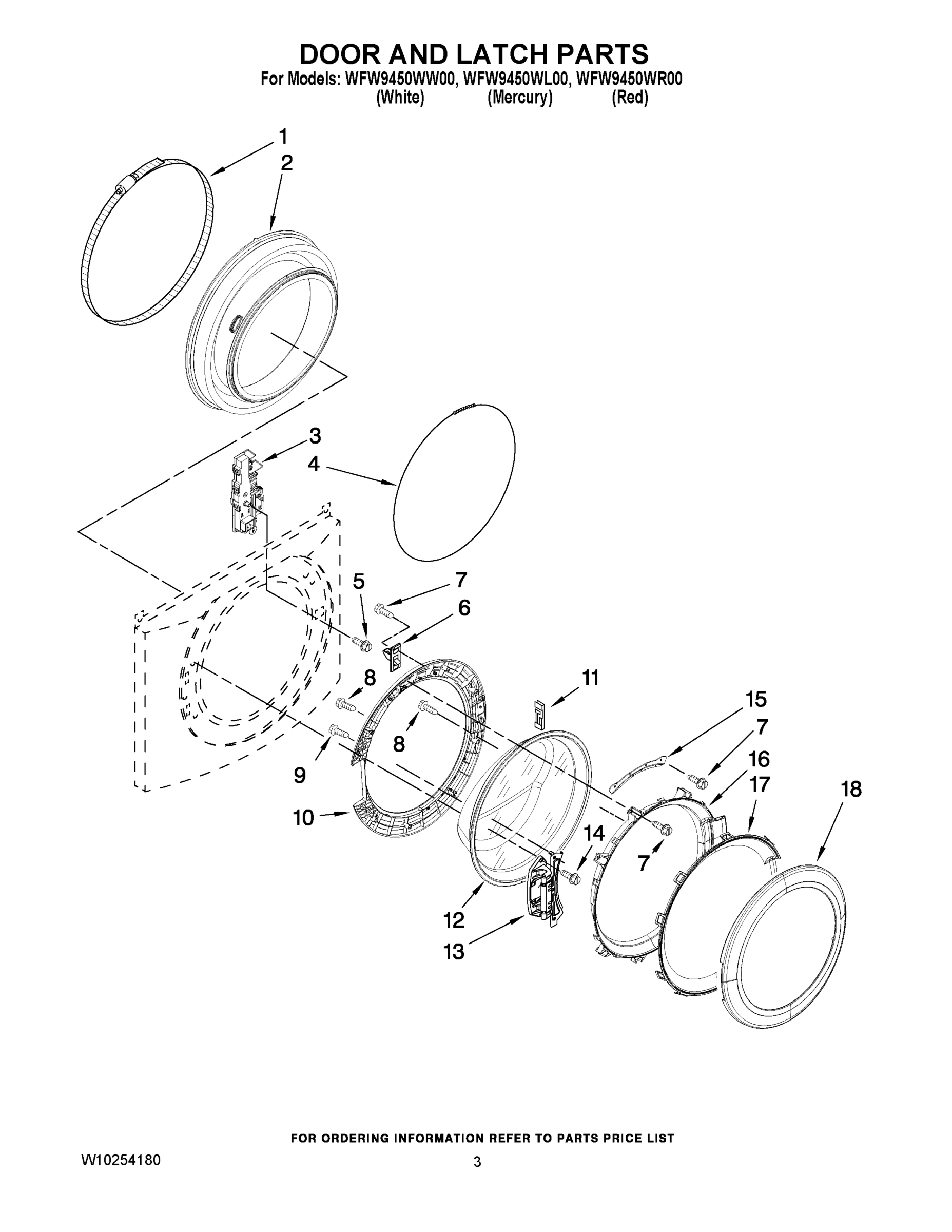

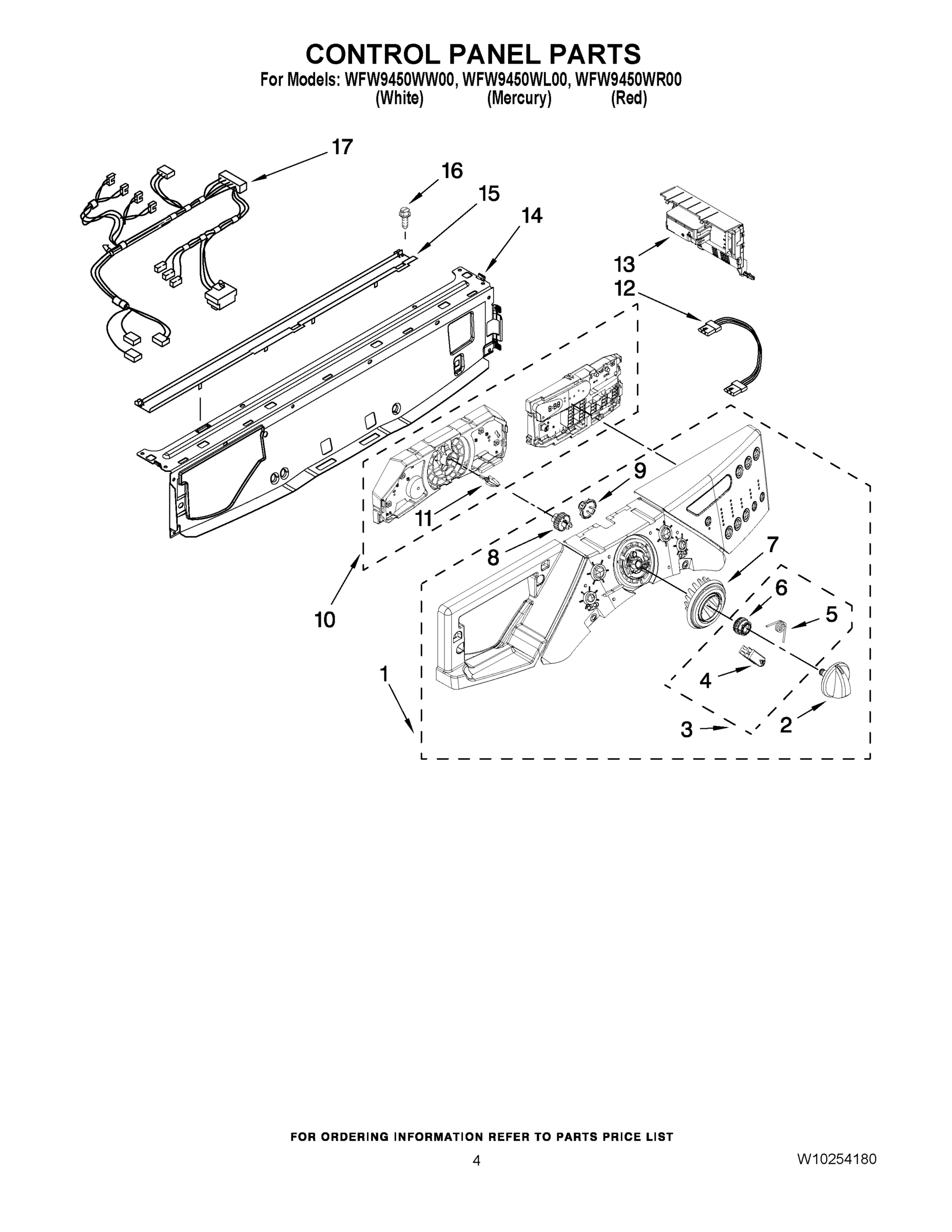

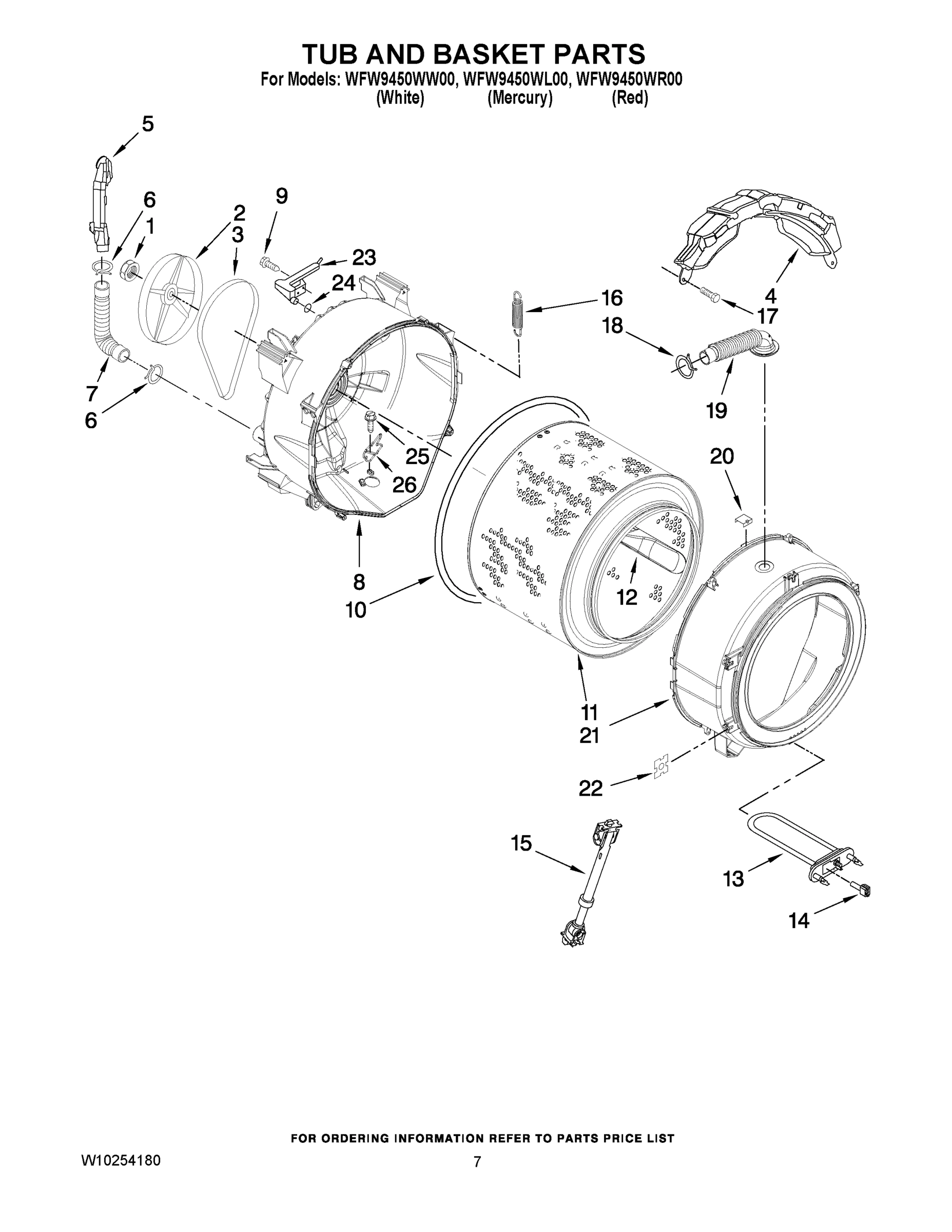

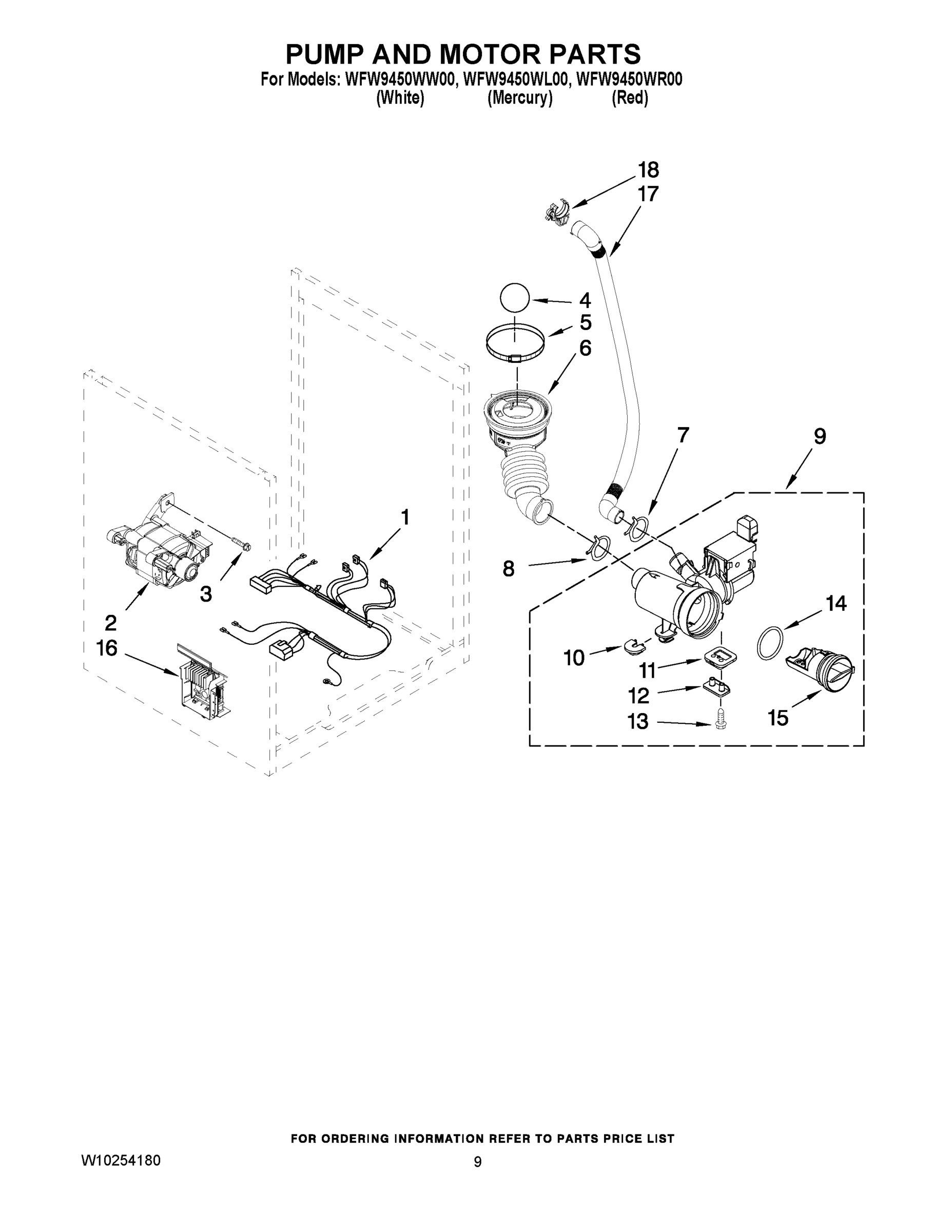

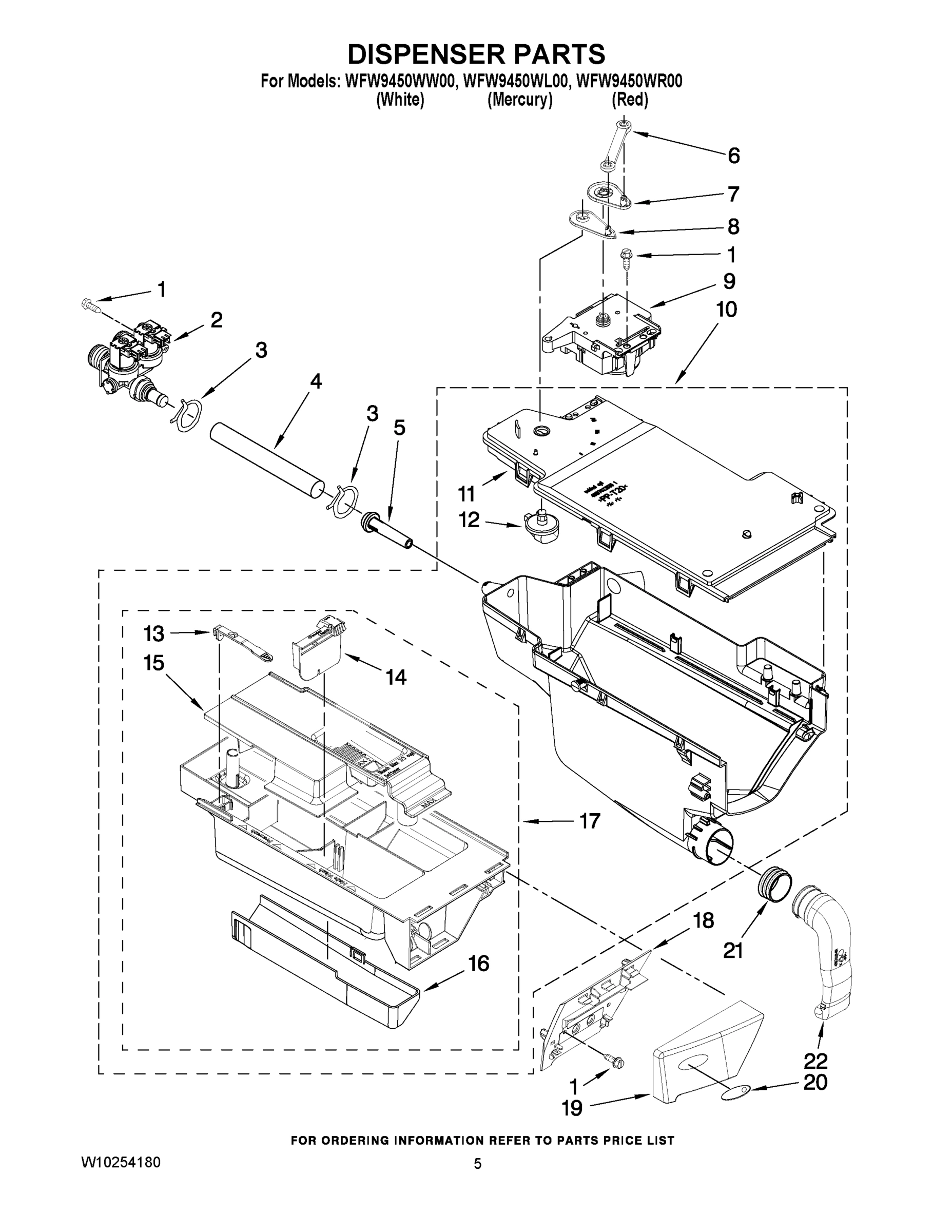

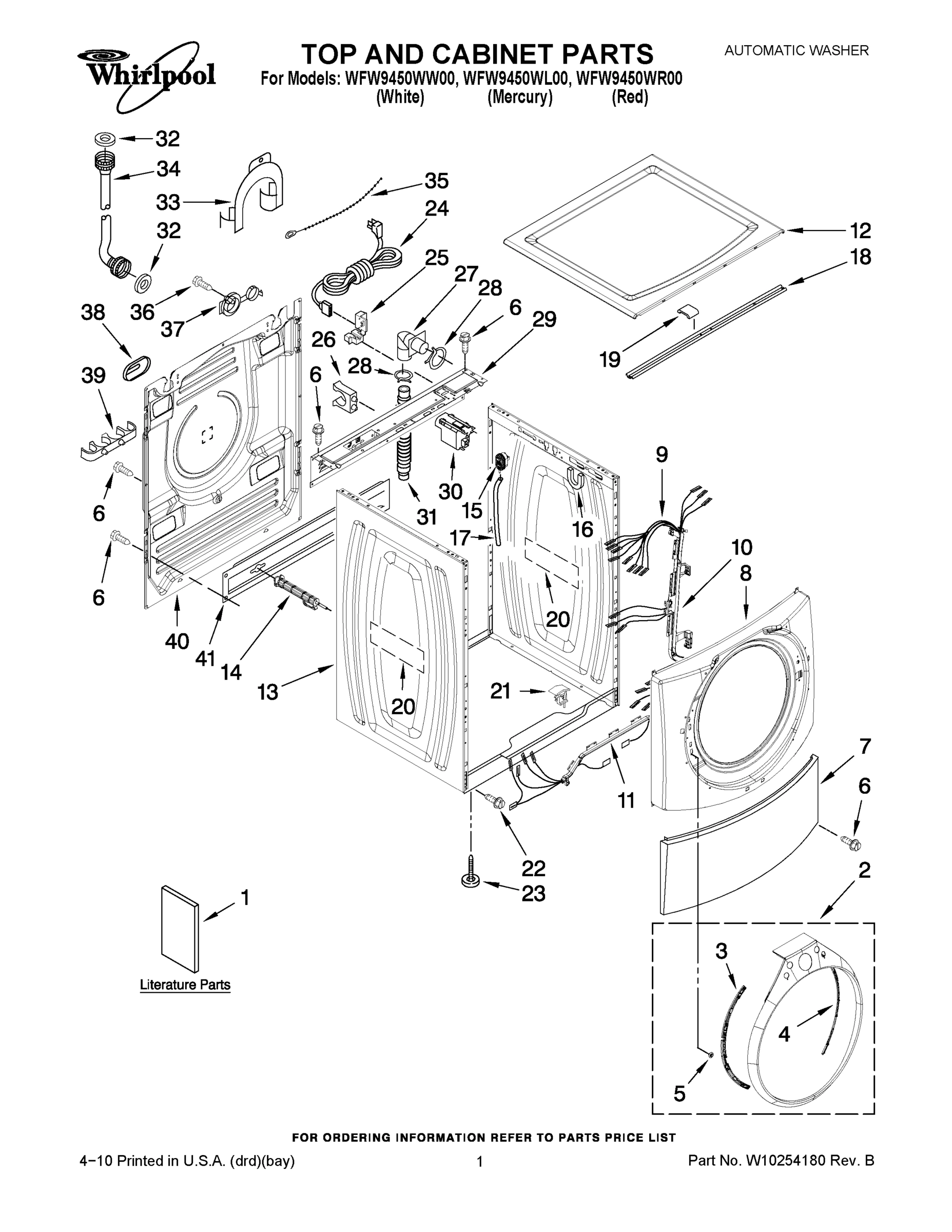

1

Harness, Motor WPL W10004420 Contact Us For Availability

1

PANEL, CONTROL (RED) WPL W10251423 Contact Us For Availability

1

PANEL, CONTROL (MERCURY) WPL W10251425 Contact Us For Availability

1

PANEL, CONTROL (WHITE) WPL W10251430 Contact Us For Availability

2

W10190685 Whirlpool Knob Assembly Backorder WPL W10190685 $38.01

2

WP8182119 Whirlpool Washer Door Boot Bellows In Stock WPL WP8182119 $107.85

2

WP8182650 Whirlpool Pulley In Stock WPL WP8182650 $79.12

2

Valve, Water Inlet WPL WP8540751 No Longer Available

2

WPW10140583 Whirlpool Drive Motor Backorder WPL WPW10140583 $225.90

3

8540134 Whirlpool Screw Backorder WPL 8540134 $9.59

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

3

WPW10253483 Whirlpool Latch In Stock WPL WPW10253483 $123.30

3

WPW10388414 Whirlpool Washer Drive Belt In Stock WPL WPW10388414 $35.47

3

Wheel, Detent Kit (Includes Item 9) WPL W10133927 Contact Us For Availability

4

W10121657 Whirlpool Ball Backorder WPL W10121657 $9.22

4

W10803052 Whirlpool Hose Backorder WPL W10803052 $5.09

4

W10902779 Whirlpool Clamp Assembly In Stock WPL W10902779 $11.27

4

Counterweight, Front (2) WPL W10163424 Contact Us For Availability

4

Wheel, Rast (2) (Service In Kit Only) WPL W10131661 Contact Us For Availability

5

W10112169 Whirlpool Vent Pipe Backorder WPL W10112169 $67.22

5

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $3.37

5

WP8183181 Whirlpool Nozzle Backorder WPL WP8183181 $32.50

5

WP8540725 Whirlpool Screw Assembly In Stock WPL WP8540725 $2.51

5

Spring, Knob (2) (Service In Kit Only) WPL W10131377 Contact Us For Availability

6

8540010 Whirlpool Clamp Backorder WPL 8540010 $6.81

6

WP8183183 Whirlpool Lever Backorder WPL WP8183183 $31.40

6

WPW10467168 Whirlpool Hose Assembly In Stock WPL WPW10467168 $18.81

6

WPW10488048 Whirlpool Strike In Stock WPL WPW10488048 $3.70

6

Wheel, Detent (Service In Kit Only) WPL W10131378 Contact Us For Availability

7

WP8181743 Whirlpool Hose Assembly Backorder WPL WP8181743 $37.70

7

WP8183184 Whirlpool Actuator Cam Backorder WPL WP8183184 $31.40

7

Ring, Knob Light (Includes Item 9) WPL W10131376 Contact Us For Availability

8

W10131381 Whirlpool Wheel Backorder WPL W10131381 $28.80

8

W10261338 Whirlpool Outer Tub Backorder WPL W10261338 $385.23

8

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

8

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

8

WPW10161052 Whirlpool Dispenser Lever Connect Backorder WPL WPW10161052 $3.70

9

W10221500 Whirlpool Wire Harness Backorder WPL W10221500 $121.34

9

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $9.59

9

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $2.51

9

WPW10352973 Whirlpool DIS Switch In Stock WPL WPW10352973 $63.21

9

Retainer, Snap WPL W10131382 Contact Us For Availability

W10034820 Whirlpool Grommet Backorder WPL W10034820 $7.89

WPW10003370 Whirlpool Frame Backorder WPL WPW10003370 $106.36

WPW10036350 Whirlpool Gasket Backorder WPL WPW10036350 $28.75

USER INTERFACE, CENTER & RIGHT WPL W10282183 Contact Us For Availability

Dispenser, Complete (Includes Item 8) WPL W10074160 Contact Us For Availability

W10034830 Whirlpool Grommet Backorder WPL W10034830 $8.53

WPW10159904 Whirlpool Washer Spin Basket Drum Backorder WPL WPW10159904 $572.09

Plate, Distribution WPL W10005080 Contact Us For Availability

Clamp, Support WPL W10003430 Contact Us For Availability

Adapter, Encoder Wheel WPL 8183177 Contact Us For Availability

8540033 Whirlpool Cap Backorder WPL 8540033 $7.94

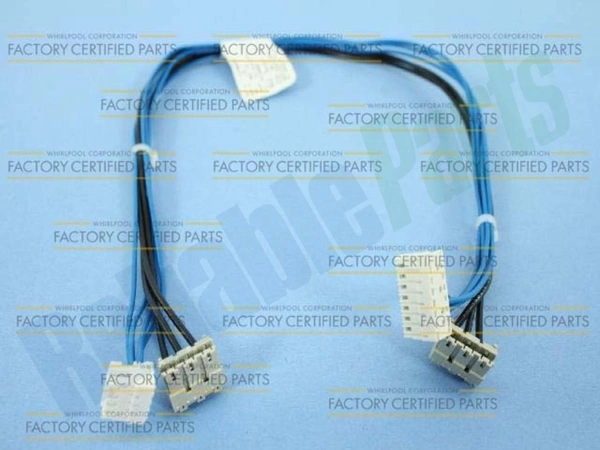

W10067000 Whirlpool Wire Harness Backorder WPL W10067000 $64.89

WP8181712 Whirlpool Nozzle Backorder WPL WP8181712 $30.93

WPW10110114 Whirlpool Baffle Backorder WPL WPW10110114 $44.58

GLASS, DOOR WPL W10135912 Contact Us For Availability

8533964 Whirlpool Screw Backorder WPL 8533964 $7.32

WP8181721 Whirlpool Retainer In Stock WPL WP8181721 $28.80

WP8183202 Whirlpool Door Hinge In Stock WPL WP8183202 $94.55

WPW10426377 Whirlpool Heater Assembly Backorder WPL WPW10426377 $124.92

MICROCOMPUTER, MACHINE CONTROL WPL W10251745 Contact Us For Availability

W10059240 Whirlpool Bracket Assembly Backorder WPL W10059240 $71.89

WPW10121596 Whirlpool Divider Backorder WPL WPW10121596 $42.69

WPW10467289 Whirlpool Sensor In Stock WPL WPW10467289 $18.45

WPW10730972 Whirlpool Washer Water Pump In Stock WPL WPW10730972 $84.78

W10121598 Whirlpool Dispenser Assembly Backorder WPL W10121598 $50.25

W10295703 Whirlpool Clamp Assembly Backorder WPL W10295703 $7.32

W10822553 Whirlpool Washer Shock Absorber In Stock WPL W10822553 $35.98

W11417623 Whirlpool Washer Water Level Switch In Stock WPL W11417623 $28.91

WP8183204 Whirlpool Diverter Backorder WPL WP8183204 $68.44

W10003140 Whirlpool Cover Backorder WPL W10003140 $32.83

W10243909 Whirlpool Spring Backorder WPL W10243909 $74.37

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

WP8183256 Whirlpool Frame Assembly Backorder WPL WP8183256 $125.65

W10251589 Whirlpool Wire Harness Backorder WPL W10251589 $142.22

W11685857 Whirlpool Screw Assembly Backorder WPL W11685857 $8.11

WPW10003250 Whirlpool Hose In Stock WPL WPW10003250 $17.95

WPW10004260 Whirlpool Pressure Switch Hose In Stock WPL WPW10004260 $4.07

WPW10015190 Whirlpool Drawer Backorder WPL WPW10015190 $79.15

Screen, Door WPL W10008990 Contact Us For Availability

3363365 Whirlpool Clamp Backorder WPL 3363365 $4.76

8182209 Whirlpool Clip Backorder WPL 8182209 $8.99

WPW10069120 Whirlpool Trim Ring Backorder WPL WPW10069120 $133.75

WPW10156617 Whirlpool Bracket Backorder WPL WPW10156617 $34.62

WP8540015 Whirlpool Hose Assembly In Stock WPL WP8540015 $15.59

HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (RED) WPL W10251719 Contact Us For Availability

HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (MERC WPL W10251720 Contact Us For Availability

HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (WHIT WPL W10251722 Contact Us For Availability

20

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $3.70

20

Absorber, Sound WPL 3976348 Contact Us For Availability

20

Medallion WPL 3400981 Contact Us For Availability

21

WP8181747 Whirlpool Seal Assembly In Stock WPL WP8181747 $9.57

21

Tub, Front (Includes Items 10 & 22) WPL W10004180 Contact Us For Availability

22

8540479 Whirlpool Screw Backorder WPL 8540479 $5.65

22

WP8182512 Whirlpool Nut Assembly Backorder WPL WP8182512 $3.70

22

WPW10005300 Whirlpool Hose In Stock WPL WPW10005300 $7.06

23

W10862938 Whirlpool Leveling Feet Backorder WPL W10862938 $7.30

23

Air Trap WPL W10003600 Contact Us For Availability

24

WPW10250553 Whirlpool O-Ring Backorder WPL WPW10250553 $2.51

26

W10250558 Whirlpool Bracket Assembly Backorder WPL W10250558 $5.73

28

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

29

Brace, Rear WPL W10110677 Contact Us For Availability

32

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $14.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W10135699 Whirlpool Affresh Cleaner Tablets In Stock WPL W10135699 $8.78
