Model Whirlpool WFW9450WL00 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WPW10283361 Whirlpool Nut In Stock WPL WPW10283361 $30.25

1

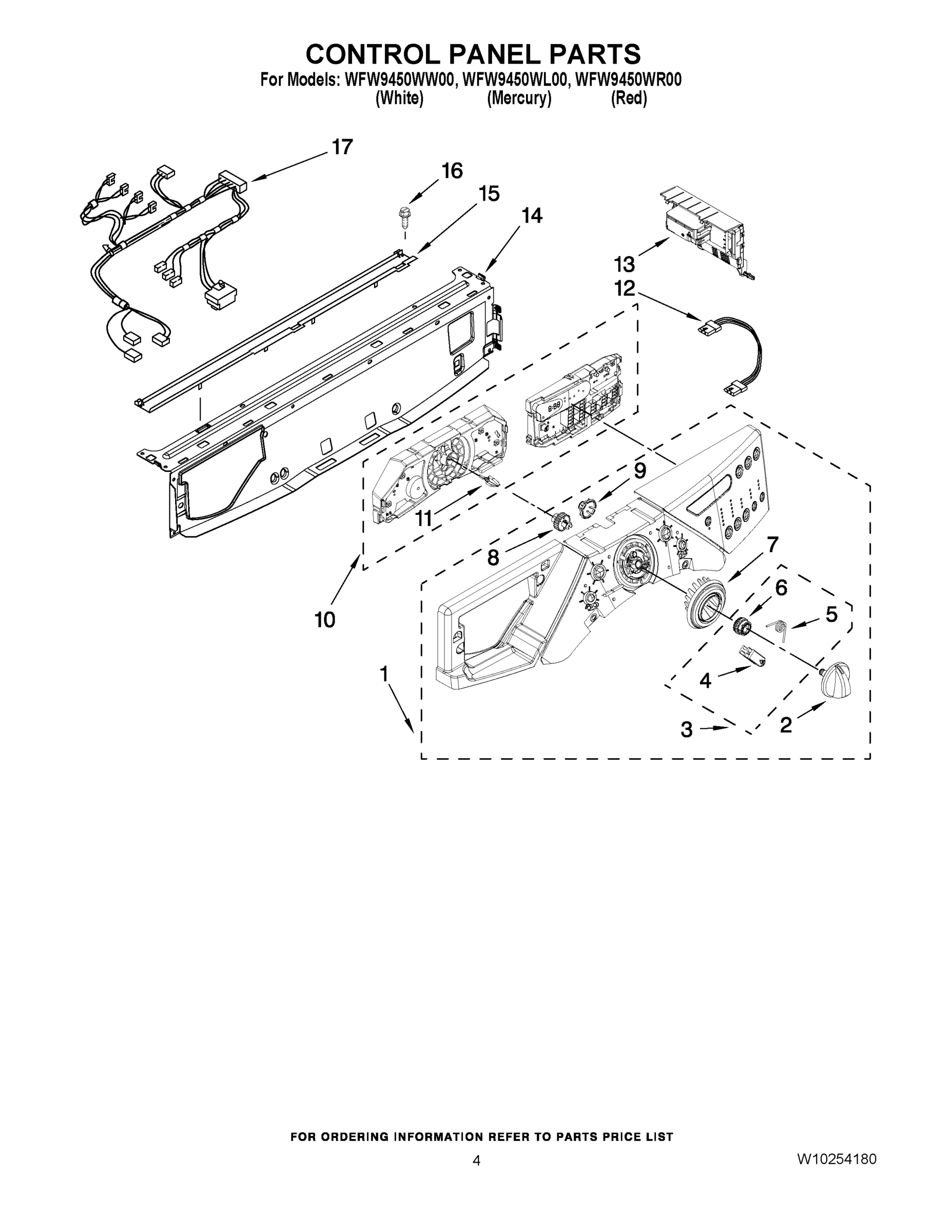

PANEL, CONTROL (RED) WPL W10251423 Contact Us For Availability

1

PANEL, CONTROL (MERCURY) WPL W10251425 Contact Us For Availability

1

PANEL, CONTROL (WHITE) WPL W10251430 Contact Us For Availability

2

W10190685 Whirlpool Knob Assembly In Stock WPL W10190685 $39.91

2

WP8182119 Whirlpool Washer Door Boot Bellows In Stock WPL WP8182119 $84.83

2

WP8182650 Whirlpool Pulley In Stock WPL WP8182650 $83.08

2

Valve, Water Inlet WPL WP8540751 No Longer Available

2

WPW10140583 Whirlpool Drive Motor Backorder WPL WPW10140583 $225.90

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

3

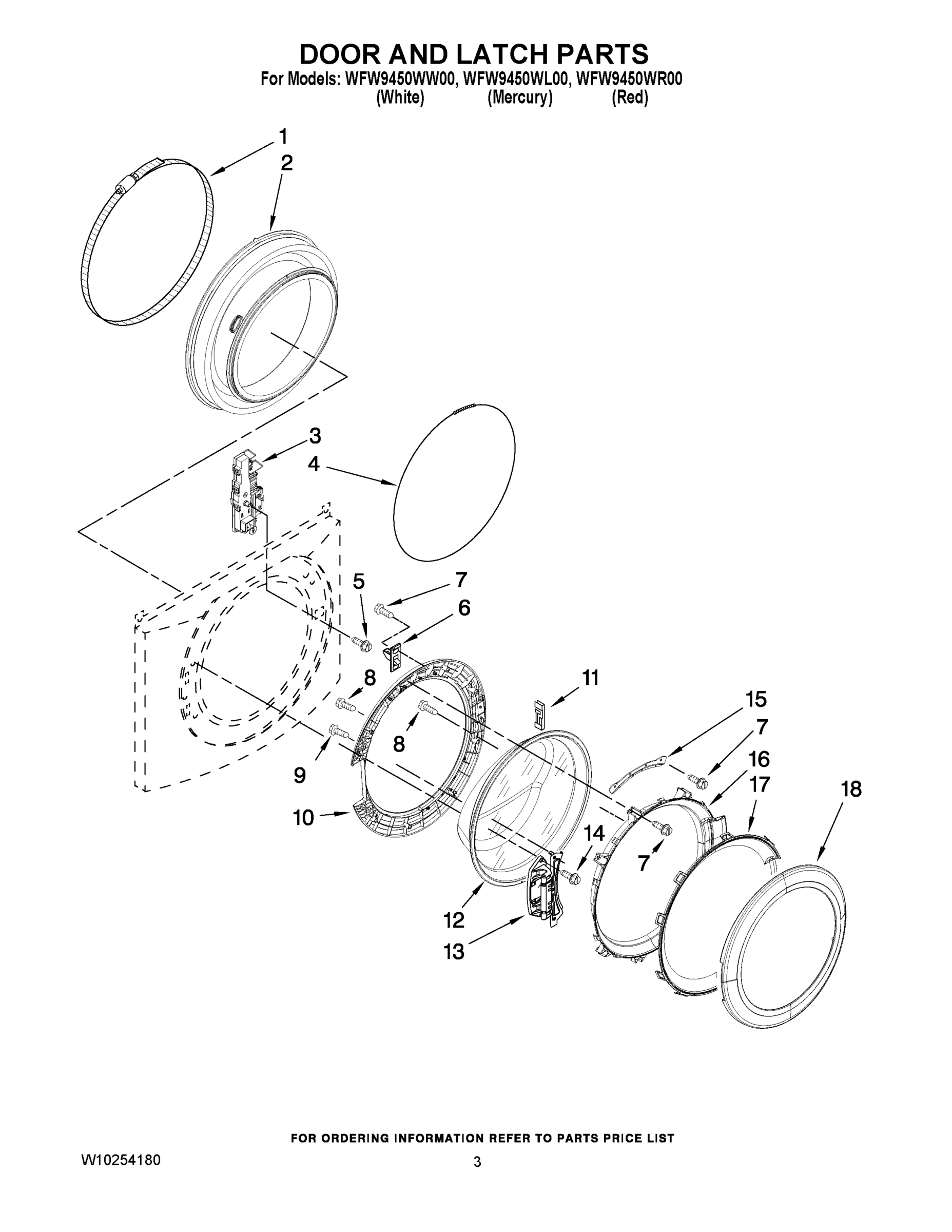

WPW10253483 Whirlpool Latch In Stock WPL WPW10253483 $123.30

3

WPW10388414 Whirlpool Washer Drive Belt In Stock WPL WPW10388414 $37.24

3

Wheel, Detent Kit (Includes Item 9) WPL W10133927 Contact Us For Availability

4

W10121657 Whirlpool Ball Backorder WPL W10121657 $9.22

4

W10803052 Whirlpool Hose Backorder WPL W10803052 $5.09

4

W10902779 Whirlpool Clamp Assembly In Stock WPL W10902779 $11.27

4

Counterweight, Front (2) WPL W10163424 Contact Us For Availability

4

Wheel, Rast (2) (Service In Kit Only) WPL W10131661 Contact Us For Availability

5

W10112169 Whirlpool Vent Pipe Backorder WPL W10112169 $70.59

5

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $3.37

5

WP8183181 Whirlpool Nozzle Backorder WPL WP8183181 $34.13

5

WP8540725 Whirlpool Screw Assembly In Stock WPL WP8540725 $2.51

5

Spring, Knob (2) (Service In Kit Only) WPL W10131377 Contact Us For Availability

6

8540010 Whirlpool Clamp Backorder WPL 8540010 $6.81

6

WP8183183 Whirlpool Lever Backorder WPL WP8183183 $32.98

6

WPW10467168 Whirlpool Hose Assembly In Stock WPL WPW10467168 $19.75

6

WPW10488048 Whirlpool Strike In Stock WPL WPW10488048 $3.88

6

Wheel, Detent (Service In Kit Only) WPL W10131378 Contact Us For Availability

7

WP8181743 Whirlpool Hose Assembly Backorder WPL WP8181743 $39.58

7

WP8183184 Whirlpool Actuator Cam Backorder WPL WP8183184 $32.98

7

Ring, Knob Light (Includes Item 9) WPL W10131376 Contact Us For Availability

8

W10131381 Whirlpool Wheel Backorder WPL W10131381 $30.25

8

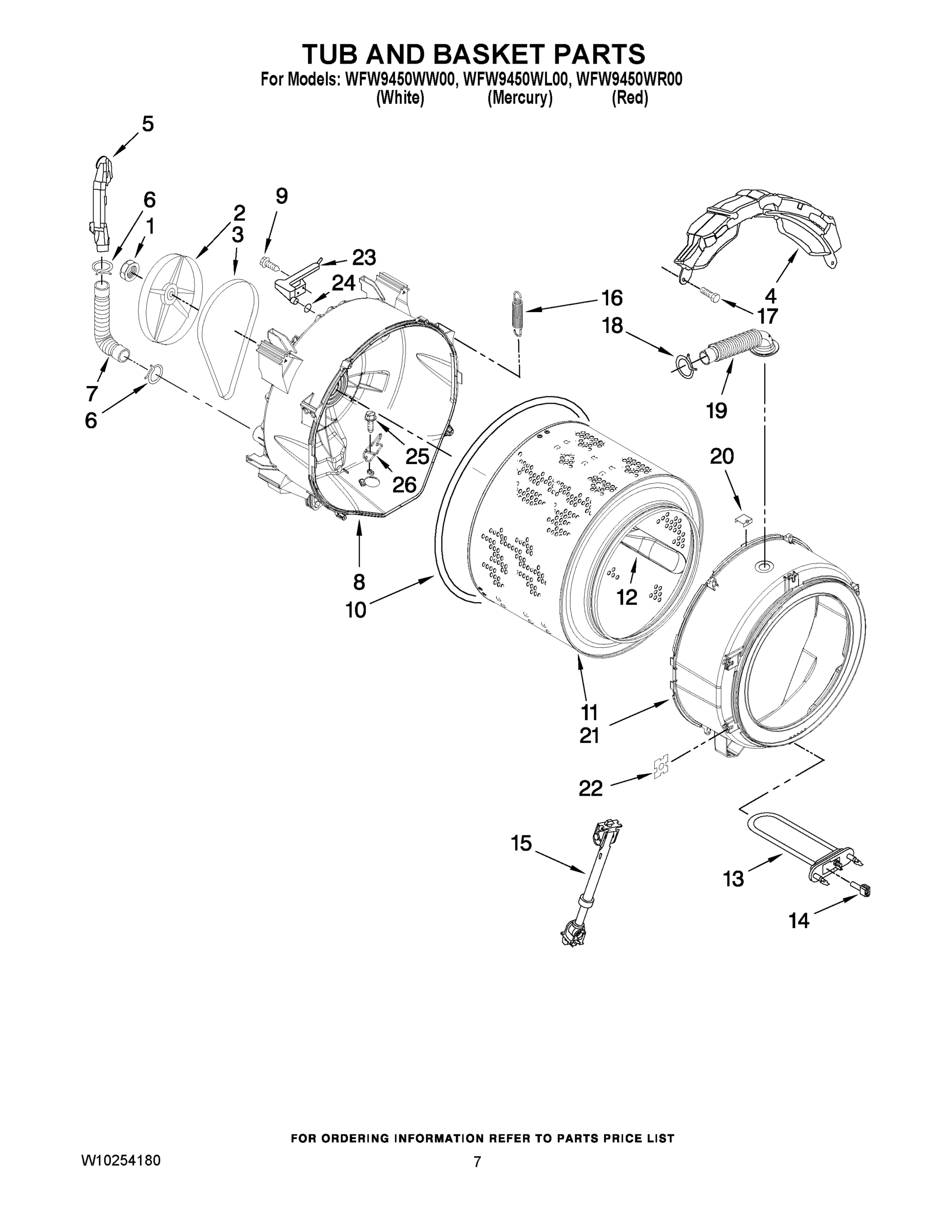

W10261338 Whirlpool Outer Tub Backorder WPL W10261338 $367.72

8

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

8

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

8

WPW10161052 Whirlpool Dispenser Lever Connect Backorder WPL WPW10161052 $3.70

9

W10221500 Whirlpool Wire Harness Backorder WPL W10221500 $127.41

9

W11230114 Whirlpool Screw Assembly Backorder WPL W11230114 $9.59

9

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $2.51

9

WPW10352973 Whirlpool DIS Switch In Stock WPL WPW10352973 $63.21

9

Retainer, Snap WPL W10131382 Contact Us For Availability

W10034820 Whirlpool Grommet Backorder WPL W10034820 $7.89

WPW10003370 Whirlpool Frame Backorder WPL WPW10003370 $109.83

WPW10036350 Whirlpool Gasket Backorder WPL WPW10036350 $30.20

USER INTERFACE, CENTER & RIGHT WPL W10282183 Contact Us For Availability

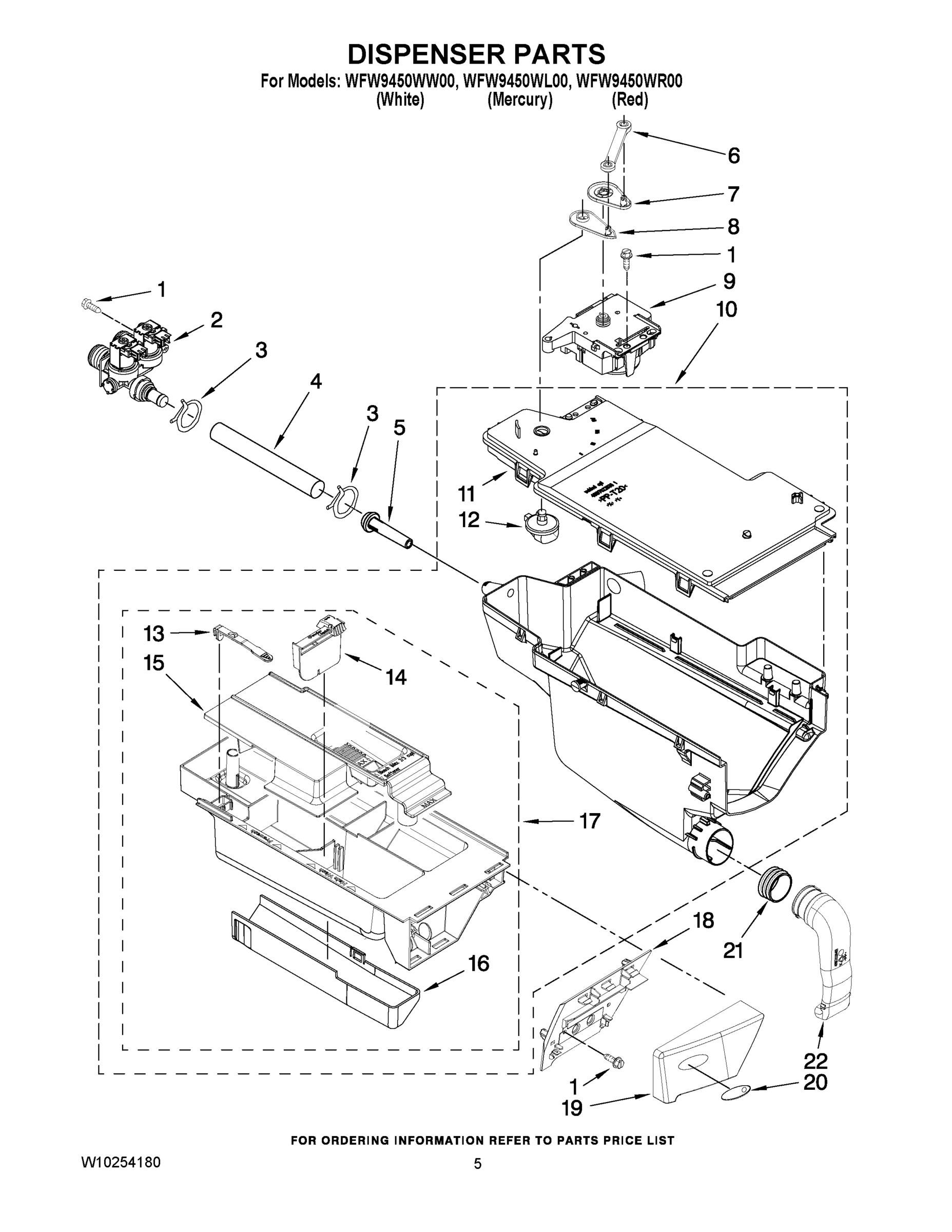

Dispenser, Complete (Includes Item 8) WPL W10074160 Contact Us For Availability

WPW10159904 Whirlpool Washer Spin Basket Drum Backorder WPL WPW10159904 $572.09

Foot, Rubber (Lock) WPL W10034830 Contact Us For Availability

Adapter, Encoder Wheel WPL 8183177 Contact Us For Availability

Clamp, Support WPL W10003430 Contact Us For Availability

Plate, Distribution WPL W10005080 Contact Us For Availability

8540033 Whirlpool Cap Backorder WPL 8540033 $7.94

W10067000 Whirlpool Wire Harness Backorder WPL W10067000 $68.13

WP8181712 Whirlpool Nozzle Backorder WPL WP8181712 $32.48

WPW10110114 Whirlpool Baffle Backorder WPL WPW10110114 $46.81

GLASS, DOOR WPL W10135912 Contact Us For Availability

8533964 Whirlpool Screw Backorder WPL 8533964 $7.32

WP8181721 Whirlpool Retainer Backorder WPL WP8181721 $30.25

WP8183202 Whirlpool Door Hinge In Stock WPL WP8183202 $94.55

WPW10426377 Whirlpool Heater Assembly Backorder WPL WPW10426377 $124.92

MICROCOMPUTER, MACHINE CONTROL WPL W10251745 Contact Us For Availability

W10059240 Whirlpool Bracket Assembly Backorder WPL W10059240 $75.50

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

WPW10121596 Whirlpool Divider Backorder WPL WPW10121596 $44.84

WPW10467289 Whirlpool Sensor In Stock WPL WPW10467289 $19.36

WPW10730972 Whirlpool Washer Water Pump In Stock WPL WPW10730972 $84.78

W10121598 Whirlpool Dispenser Assembly Backorder WPL W10121598 $52.76

W10295703 Whirlpool Clamp Assembly Backorder WPL W10295703 $7.32

W10822553 Whirlpool Washer Shock Absorber In Stock WPL W10822553 $35.98

W11417623 Whirlpool Washer Water Level Switch In Stock WPL W11417623 $28.91

WP8183204 Whirlpool Diverter Backorder WPL WP8183204 $71.86

W10003140 Whirlpool Cover Backorder WPL W10003140 $34.48

W10243909 Whirlpool Spring Backorder WPL W10243909 $78.08

WP8183256 Whirlpool Frame Assembly Backorder WPL WP8183256 $131.93

WPW10384846-includeCORE Whirlpool WPW10384846 Backorder WPL WPW10384846-includeCORE $291.64

W10251589 Whirlpool Wire Harness Backorder WPL W10251589 $149.34

W11685857 Whirlpool Screw Assembly Backorder WPL W11685857 $8.11

WPW10003250 Whirlpool Hose In Stock WPL WPW10003250 $18.85

WPW10004260 Whirlpool Pressure Switch Hose In Stock WPL WPW10004260 $4.07

WPW10015190 Whirlpool Drawer Backorder WPL WPW10015190 $83.12

Screen, Door WPL W10008990 Contact Us For Availability

3363365 Whirlpool Clamp Backorder WPL 3363365 $4.76

8182209 Whirlpool Clip Backorder WPL 8182209 $8.99

WPW10156617 Whirlpool Bracket Backorder WPL WPW10156617 $36.36

Trim Ring, Outer Door WPL W10069120 Contact Us For Availability

WP8540015 Whirlpool Hose Assembly Backorder WPL WP8540015 $16.38

HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (RED) WPL W10251719 Contact Us For Availability

HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (MERC WPL W10251720 Contact Us For Availability

HANDLE, DRAWER (INCLUDES ITEMS 18 & 20) (WHIT WPL W10251722 Contact Us For Availability

20

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $3.70

20

Absorber, Sound WPL 3976348 Contact Us For Availability

20

Medallion WPL 3400981 Contact Us For Availability

21

WP8181747 Whirlpool Seal Assembly In Stock WPL WP8181747 $9.57

21

Tub, Front (Includes Items 10 & 22) WPL W10004180 Contact Us For Availability

22

8540479 Whirlpool Screw Backorder WPL 8540479 $5.65

22

WP8182512 Whirlpool Nut Assembly Backorder WPL WP8182512 $3.70

22

WPW10005300 Whirlpool Hose In Stock WPL WPW10005300 $7.06

23

W10862938 Whirlpool Leveling Feet In Stock WPL W10862938 $7.30

23

Air Trap WPL W10003600 Contact Us For Availability

24

WPW10250553 Whirlpool O-Ring Backorder WPL WPW10250553 $2.51

26

W10250558 Whirlpool Bracket Assembly Backorder WPL W10250558 $5.73

28

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

29

Brace, Rear WPL W10110677 Contact Us For Availability

32

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $15.74

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

AFFRESH ODOR REMOVER WPL W10135699 No Longer Available

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
