Model Whirlpool WFC310S0AB0 ELECTRIC RANGE – Common Parts & Diagrams
03 - CONTROL PANEL PARTS
04 - CHASSIS PARTS

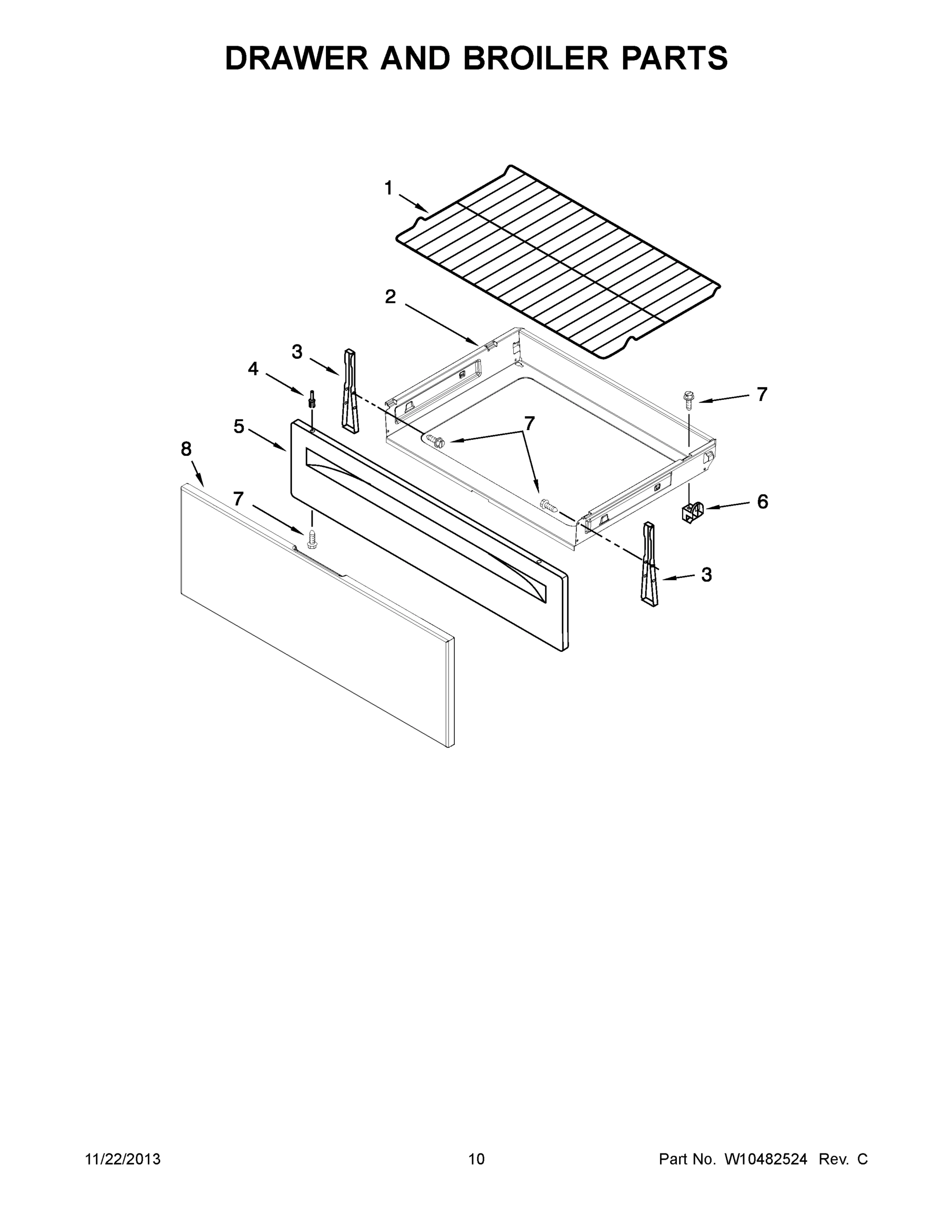

06 - DRAWER AND BROILER PARTS

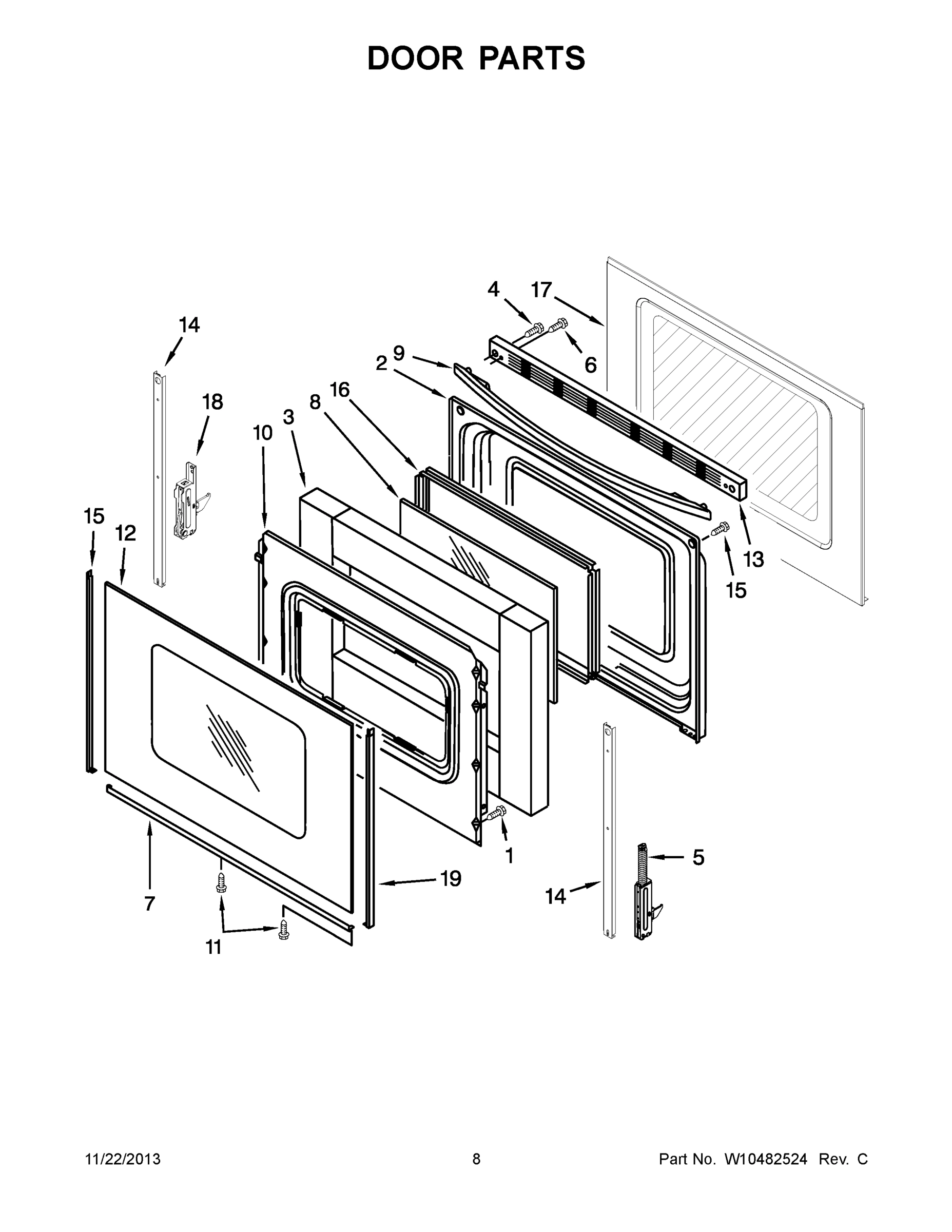

05 - DOOR PARTS
07 - OPTIONAL PARTS

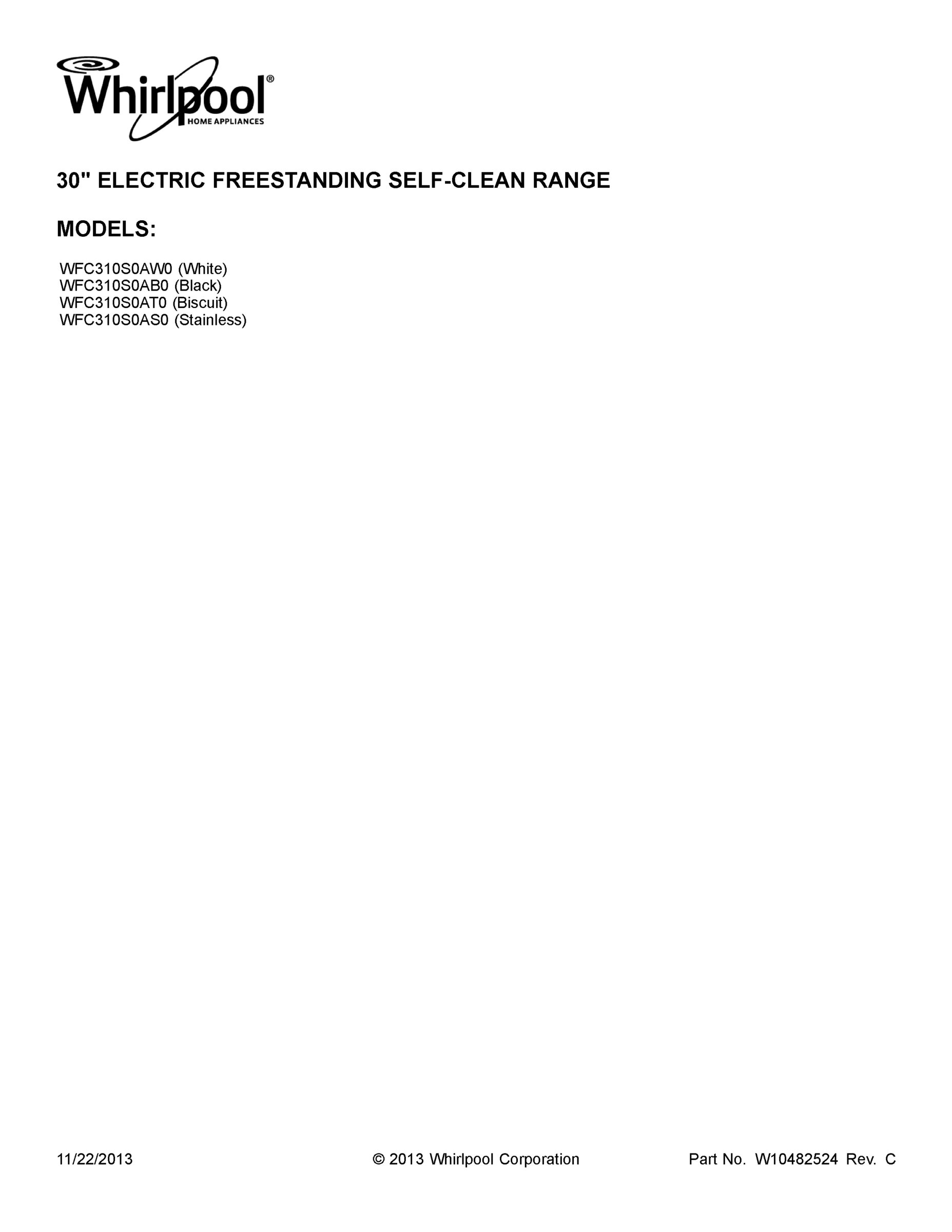

01 - COVER SHEET

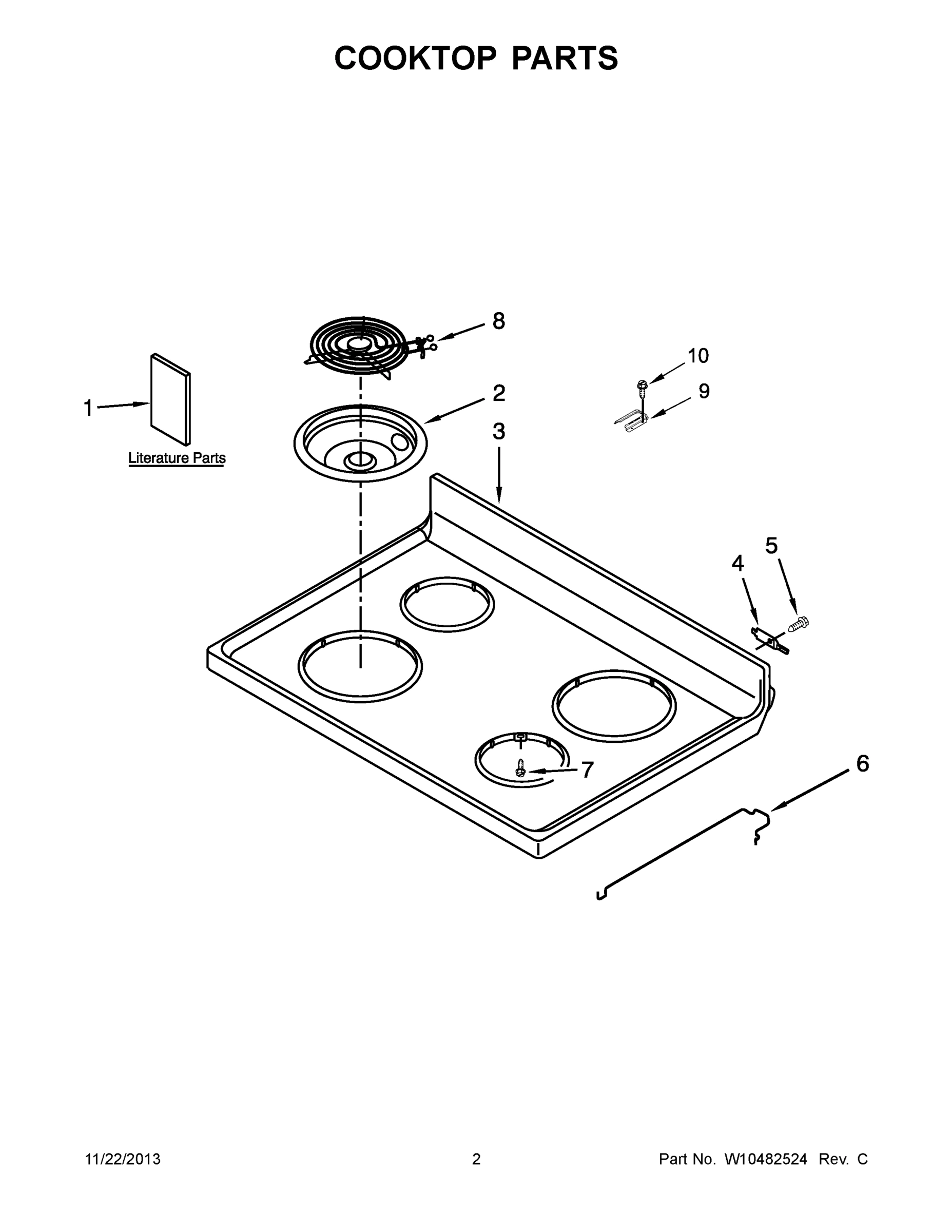

02 - COOKTOP PARTS
Common parts from model Whirlpool WFC310S0AB0 ELECTRIC RANGE
1
Vent Tube WPL 9755804 Contact Us For Availability
3
PANEL, CONSOLE (WHITE) WPL W10333937 Contact Us For Availability
7
BRACKET, CONSOLE MOUNTING WPL W10525121 Contact Us For Availability
9
HANDLE, OVEN DOOR (BLACK) WPL W10300490 Contact Us For Availability
9
HANDLE, OVEN DOOR (WHITE) WPL W10300489 Contact Us For Availability
9
HANDLE, OVEN DOOR (BISCUIT) WPL W10300491 Contact Us For Availability
10
Clip, Spring WPL 3196200 Contact Us For Availability
13
Clip, Panel WPL W10137382 Contact Us For Availability
14
Shield, Heat WPL W10134247 Contact Us For Availability
20
BACK, MAIN WPL W10289149 Contact Us For Availability
29
ROD, DOOR SWITCH WPL 9757239 Contact Us For Availability
30
RETAINER, INSULATION WPL W10450380 Contact Us For Availability
33
Rod, Latch WPL W10078380 Contact Us For Availability
36
Screw WPL 3196172 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) WPL 285006 Contact Us For Availability
NI
ACCESSORY PARTS, PREMIUM BROILER PAN AND ROAS WPL W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, KITCHEN AND APPLIANCE CLEANE WPL W10355010 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE AND DRIP PAN WPL 31617A Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability
× ![]()
