Model Whirlpool WERP4120PB0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN – Common Parts & Diagrams

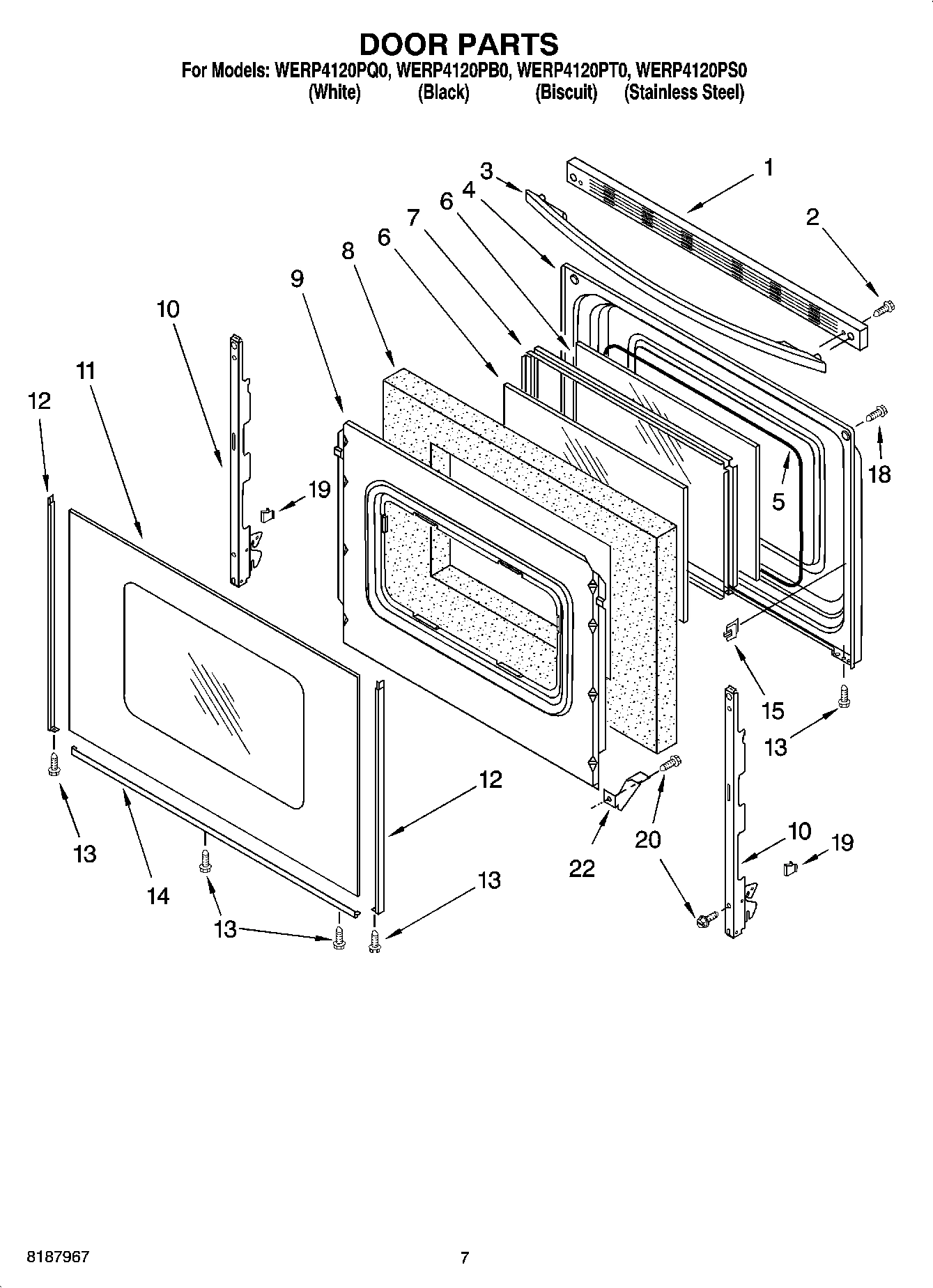

05 - DOOR PARTS, OPTIONAL PARTS

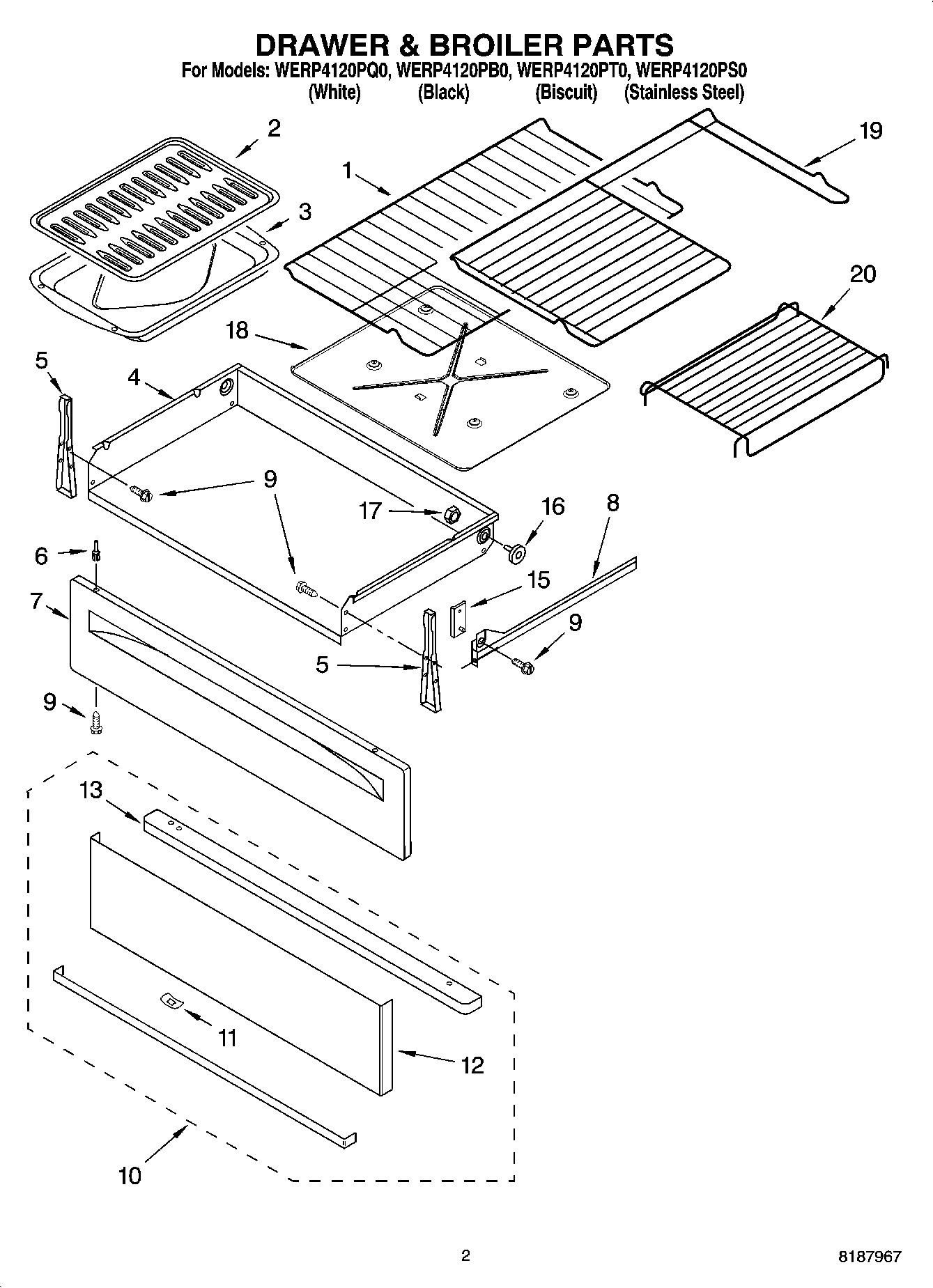

02 - DRAWER & BROILER PARTS
04 - CONTROL PANEL PARTS
01 - COOKTOP PARTS
03 - CHASSIS PARTS
Common parts from model Whirlpool WERP4120PB0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN
WPL 350930 WPL 350930 Contact Us For Availability
WPL 4392899 WPL 4392899 Contact Us For Availability
WPL 285006 WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
WPL 8316781 WPL 8316781 Contact Us For Availability
WPL 9756350 WPL 9756350 Contact Us For Availability
WPL 9756779 WPL 9756779 Contact Us For Availability
WPL 9759590 WPL 9759590 Contact Us For Availability
WPL 9761453 WPL 9761453 Contact Us For Availability
WPL 9761455 WPL 9761455 Contact Us For Availability
WPL ARI165246A WPL ARI165246A Contact Us For Availability
WPL ARI165247A WPL ARI165247A Contact Us For Availability
WPL ARI165248A WPL ARI165248A Contact Us For Availability
WPL ARI165249A WPL ARI165249A Contact Us For Availability
WPL ARI165250A WPL ARI165250A Contact Us For Availability
WPL ARI165251A WPL ARI165251A Contact Us For Availability
WPL ARI165252A WPL ARI165252A Contact Us For Availability
WPL ARI165253A WPL ARI165253A Contact Us For Availability
1
Trim, Top (Black) WPL 3196819 Contact Us For Availability
1
Trim, Top (Stainless Steel) WPL 8272243 Contact Us For Availability
1
Trim, Top (Biscuit) WPL 8522434 Contact Us For Availability
1
Endcap (Biscuit Left Hand) WPL W10009060 Contact Us For Availability
1
Template, Anti-Tip (English/Spanish) WPL 8523048 Contact Us For Availability
1
Installation Instructions WPL 9756848 Contact Us For Availability
1
Template, Anti-Tip (English/French) WPL 9756849 Contact Us For Availability
1
Tech Sheet WPL 9758058 Contact Us For Availability
1
Use & Care Guide WPL 9758899 Contact Us For Availability
2
Bracket, Console WPL 9756364 Contact Us For Availability
2
Spring, Locator WPL W10035930 Contact Us For Availability
2
Support, Corner LR WPL 8273905 Contact Us For Availability
3
Handle, Door (Biscuit) WPL 8522445 Contact Us For Availability
3
Panel, Backguard (Stainless Steel) WPL 9763288 Contact Us For Availability
3
Panel, Backguard (White) WPL 9763289 Contact Us For Availability
3
Panel, Backguard (Black) WPL 9763290 Contact Us For Availability
3
Panel, Backguard (Biscuit) WPL 9763291 Contact Us For Availability
4
Seal, Oven Flange WPL W10010350 Contact Us For Availability
4
Liner, Door WPL 3186292 Contact Us For Availability
4
Drawer, Storage WPL 9761030 Contact Us For Availability
4
Cooktop (White) WPL 9758722 Contact Us For Availability
4
Cooktop (Black) WPL 9758723 Contact Us For Availability
4
Cooktop (Biscuit) WPL 9758724 Contact Us For Availability
5
Seal, Window WPL 8522414 Contact Us For Availability
5
Light, Indicator (Hot Surface) WPL 8523739 Contact Us For Availability
6
Rivet, Push (2) (Almond) WPL 3196815 Contact Us For Availability
6
Bracket, Ind Light WPL 8523741 Contact Us For Availability
7
Knob, Infinite (4) (White) WPL 9757132 Contact Us For Availability
7
Knob, Infinite (4) (Biscuit) WPL 9757626 Contact Us For Availability
8
Rail, Drawer (Left Hand) WPL 8274190 Contact Us For Availability
8
Rail, Drawer (Right Hand) WPL 8274191 Contact Us For Availability
8
Shield, Heat WPL 8523280 Contact Us For Availability
8
Shield, Wiring WPL 8524132 Contact Us For Availability
8
Screen - Catalyst WPL 9758213 Contact Us For Availability
9
Bracket, Control (White) WPL 9757623 Contact Us For Availability
9
Bracket, Control (Biscuit) WPL 9758472 Contact Us For Availability
9
Bracket, Control (Black) WPL 9758473 Contact Us For Availability
9
Bracket, Element ((2)) WPL 8272791 Contact Us For Availability
9
Bracket, Element ((1)) WPL 8273720 Contact Us For Availability
10
Hinge, Door (2) (Stainless Model) WPL 8272822 Contact Us For Availability
10
For Stainless Model Only WPL ARI165243A Contact Us For Availability
10
Cover, Rear WPL 9756999 Contact Us For Availability
10
Support, Front (2) WPL 3195736 Contact Us For Availability
11
Glass, Outer (Biscuit) WPL 9756416 Contact Us For Availability
11
Glass, Outer (Stainless Model) WPL 9756435 Contact Us For Availability
11
Bezel, Keep Warm (White) WPL 9757489 Contact Us For Availability
11
Bezel, Keep Warm (Biscuit) WPL 9758488 Contact Us For Availability
11
Bezel, Keep Warm (Black) WPL 9758489 Contact Us For Availability
11
Heat Shield WPL 9758893 Contact Us For Availability
12
Panel, Stainless WPL 9755798 Contact Us For Availability
12
Control, Range WPL 9757271 Contact Us For Availability
12
Frame, Front Not Serviced WPL ARI165244A Contact Us For Availability
13
Handle, Drawer WPL 9757237 Contact Us For Availability
14
Cnnctr, Cable Flex WPL 9762425 Contact Us For Availability
14
Clip, Panel (6) WPL 3196576 Contact Us For Availability
15
Clip, Glass (4) WPL 3196025 Contact Us For Availability
15
Spacer, Glide WPL 8522669 Contact Us For Availability
15
Cover, Rear (Console) WPL 9756366 Contact Us For Availability
17
Support, Corner RR WPL 3195987 Contact Us For Availability
18
Button (Black) WPL 9758491 Contact Us For Availability
18
Heat Shield, Drawer WPL 9756711 Contact Us For Availability
18
Button (White) WPL 9757492 Contact Us For Availability
18
Button (Biscuit) WPL 9758490 Contact Us For Availability
19
Breaker, 15Amp (Architect Grey) WPL 9757604 Contact Us For Availability
20
Receptacle (Biscuit) WPL 9757603 Contact Us For Availability
20
Receptacle (White) WPL 9758889 Contact Us For Availability
20
Receptacle (Black) WPL 9758890 Contact Us For Availability
20
Receptacle (Stainless Steel) WPL 9758892 Contact Us For Availability
21
Reflector, Lig WPL 9757358 Contact Us For Availability
22
WPL 3196166 WPL 3196166 Contact Us For Availability
22
WPL 8281194 WPL 8281194 Contact Us For Availability
22
Back, Main WPL 8274034 Contact Us For Availability
23
WPL 9757490 WPL 9757490 Contact Us For Availability
24
WPL 8533968 WPL 8533968 Contact Us For Availability
25
WPL 9757609 WPL 9757609 Contact Us For Availability
26
Cover, Tray WPL 9755771 Contact Us For Availability
29
Screw WPL 3196179 Contact Us For Availability
33
Screw WPL 3196172 Contact Us For Availability
38
Retainer, Side (2) WPL 8523803 Contact Us For Availability
39
Shield, Outer (2) WPL 3196091 Contact Us For Availability
40
Shield, Inner (2) WPL 3196092 Contact Us For Availability
42
Rod, Latch WPL 3196961 Contact Us For Availability
43
Latch Asy, Rear WPL 9758228 Contact Us For Availability
46
Tray, Hidden Bake Element WPL 9755769 Contact Us For Availability
48
Insulation, Back WPL 9755772 Contact Us For Availability
48
Insulation WPL ARI165245A Contact Us For Availability
× ![]()
