Model GE WCCB2050T5AC Washer – Common Parts & Diagrams

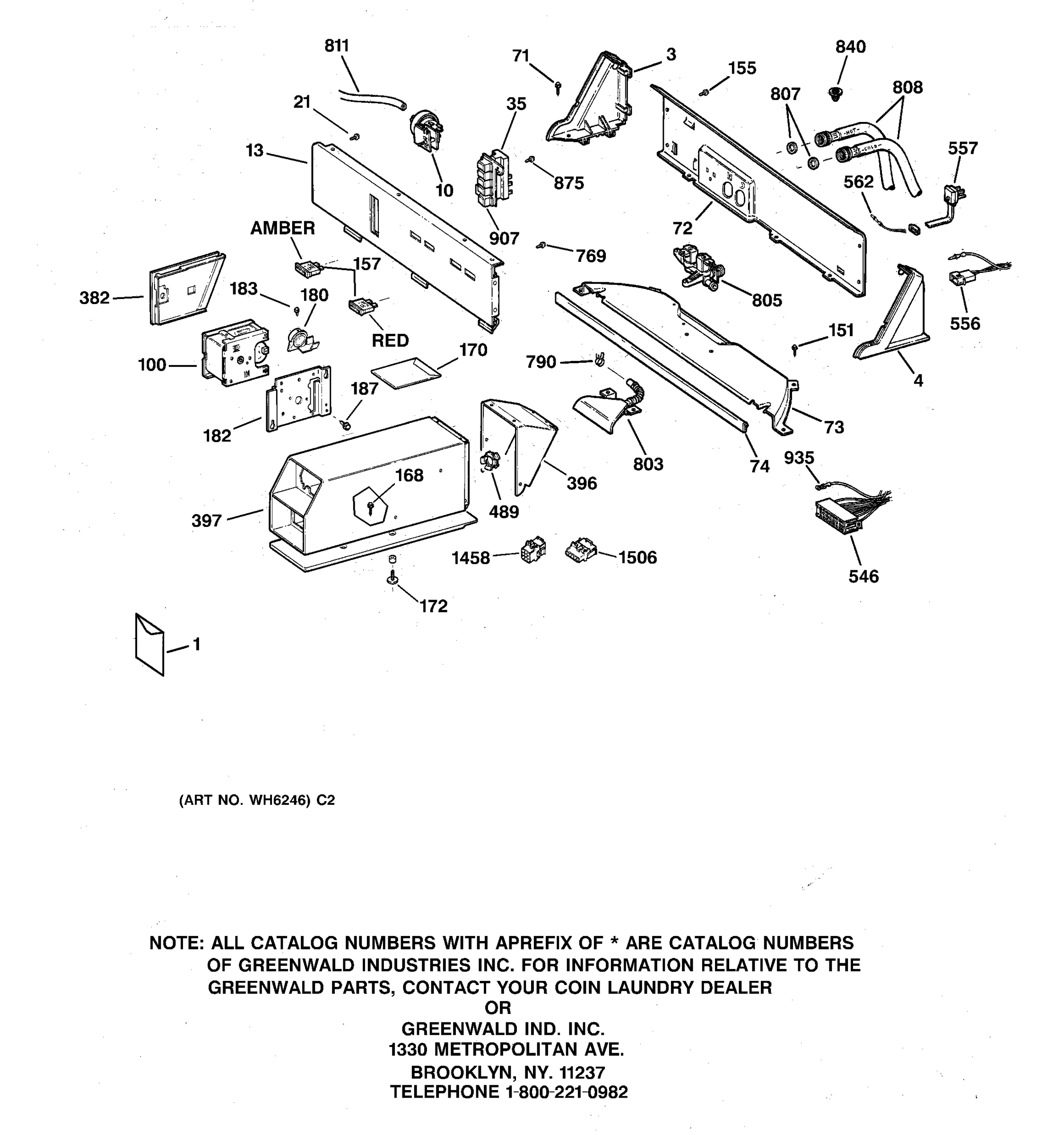

BACKSPLASH & COIN BOX ASSEMBLY

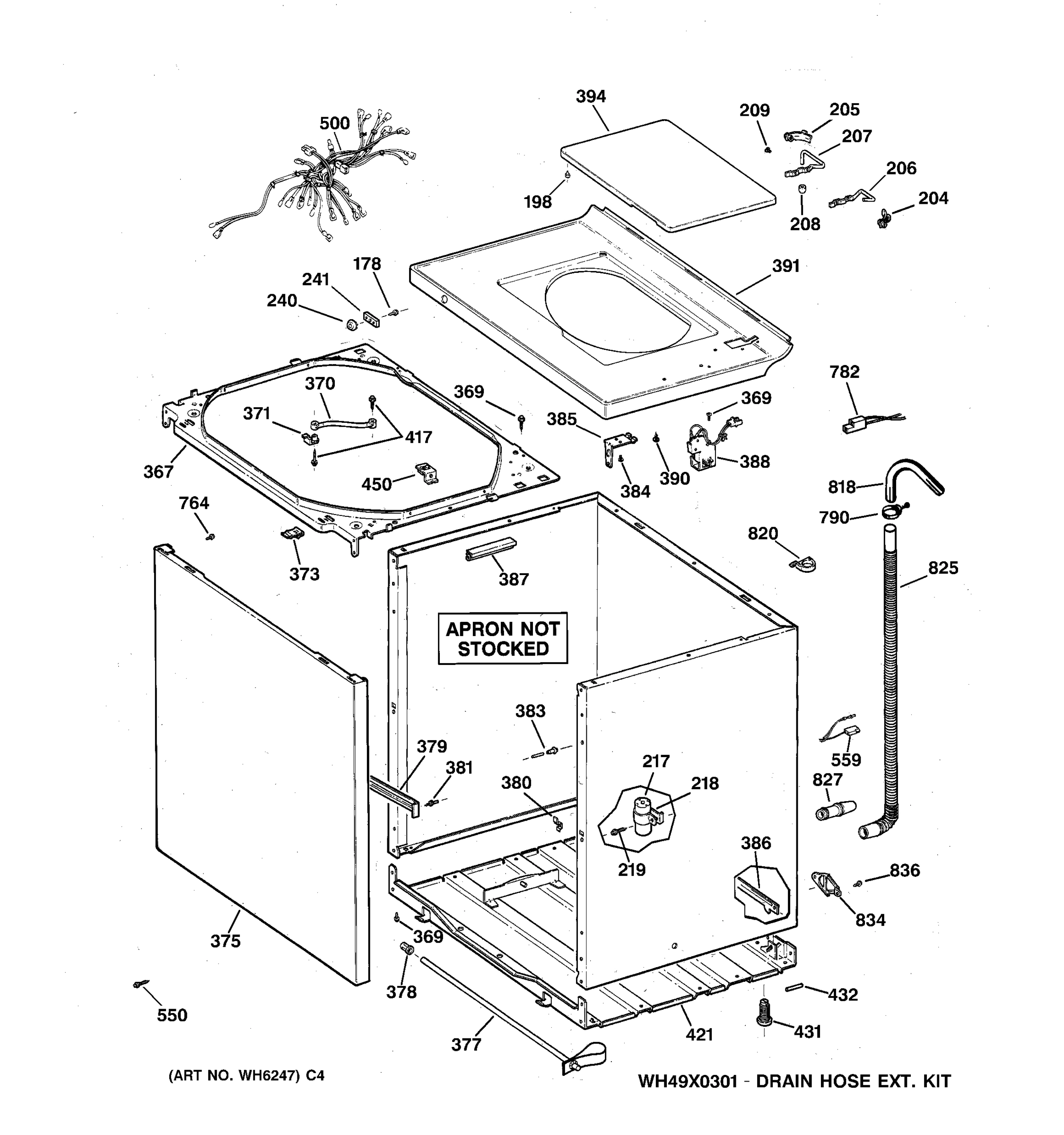

CABINET, COVER & FRONT PANEL
SUSPENSION, PUMP & DRIVE COMPONENTS
TUB, BASKET & AGITATOR
Common parts from model GE WCCB2050T5AC Washer
3
END CAP LH AD GEN WE19X1002 Contact Us For Availability
4
END CAP RH AD GEN WE19X1003 Contact Us For Availability
10
GEN WH12X1049 GEN WH12X1049 Contact Us For Availability
13
GEN WH42X2509 GEN WH42X2509 Contact Us For Availability
35
GEN WH12X1058 GEN WH12X1058 Contact Us For Availability
72
GEN WH46X0337 GEN WH46X0337 Contact Us For Availability
73
GEN WH46X0341 GEN WH46X0341 Contact Us For Availability
74
GEN WH08X0379 GEN WH08X0379 Contact Us For Availability
100
GEN WH12X1052 GEN WH12X1052 Contact Us For Availability
155
GEN WH02X1233 GEN WH02X1233 Contact Us For Availability
157
GEN WE01X0950 GEN WE01X0950 Contact Us For Availability
157
GEN WH12X0624 GEN WH12X0624 Contact Us For Availability
168
GEN WZ02X0468 GEN WZ02X0468 Contact Us For Availability
170
GEN WH49X0264 GEN WH49X0264 Contact Us For Availability
172
GEN WH02X1234 GEN WH02X1234 Contact Us For Availability
178
GEN WH02X0939 GEN WH02X0939 Contact Us For Availability
180
GEN * 72-33-4 GEN * 72-33-4 Contact Us For Availability
182
GEN * 74-05 GEN * 74-05 Contact Us For Availability
183
GEN 8-32X5/16 GEN 8-32X5/16 Contact Us For Availability
187
GEN WH02X0946 GEN WH02X0946 Contact Us For Availability
204
GEN WH01X2752 GEN WH01X2752 Contact Us For Availability
205
GEN WH01X2759 GEN WH01X2759 Contact Us For Availability
207
GEN WH01X2762 GEN WH01X2762 Contact Us For Availability
208
GEN WH01X2742 GEN WH01X2742 Contact Us For Availability
217
GEN WH12X1041 GEN WH12X1041 Contact Us For Availability
218
GEN WH01X2758 GEN WH01X2758 Contact Us For Availability
219
GEN WH02X1220 GEN WH02X1220 Contact Us For Availability
240
GEN WH01X2266 GEN WH01X2266 Contact Us For Availability
241
GEN WH01X2268 GEN WH01X2268 Contact Us For Availability
293
GEN WH01X2753 GEN WH01X2753 Contact Us For Availability
296
GEN WH01X2784 GEN WH01X2784 Contact Us For Availability
300
GEN WH43X0141 GEN WH43X0141 Contact Us For Availability
305
GEN WH41X0374 GEN WH41X0374 Contact Us For Availability
313
GEN WH02X1195 GEN WH02X1195 Contact Us For Availability
316
GEN WH45X0153 GEN WH45X0153 Contact Us For Availability
317
GEN WH45X0155 GEN WH45X0155 Contact Us For Availability
320
GEN WH38X0055 GEN WH38X0055 Contact Us For Availability
321
GEN WH01X2728 GEN WH01X2728 Contact Us For Availability
323
GEN WH45X0154 GEN WH45X0154 Contact Us For Availability
327
GEN WH45X0152 GEN WH45X0152 Contact Us For Availability
331
GEN WH02X1221 GEN WH02X1221 Contact Us For Availability
367
GEN WH46X0364 GEN WH46X0364 Contact Us For Availability
375
GEN WH46X0347 GEN WH46X0347 Contact Us For Availability
377
GEN WH46X0344 GEN WH46X0344 Contact Us For Availability
379
GEN WH16X0514 GEN WH16X0514 Contact Us For Availability
380
GEN WH02X1207 GEN WH02X1207 Contact Us For Availability
382
GEN WH42X2505 GEN WH42X2505 Contact Us For Availability
386
GEN WH46X0342 GEN WH46X0342 Contact Us For Availability
388
GEN WH12X1051 GEN WH12X1051 Contact Us For Availability
390
GEN WH01X2724 GEN WH01X2724 Contact Us For Availability
391
GEN WH44X1217 GEN WH44X1217 Contact Us For Availability
394
GEN WH44X1220 GEN WH44X1220 Contact Us For Availability
396
ADAPTER METER CASE GEN WH42X2504 Contact Us For Availability
397
GEN WH42X2503 GEN WH42X2503 Contact Us For Availability
403
GEN WH17X0096 GEN WH17X0096 Contact Us For Availability
412
GEN WH01X2733 GEN WH01X2733 Contact Us For Availability
413
GEN WH02X1204 GEN WH02X1204 Contact Us For Availability
417
GEN WH02X0694 GEN WH02X0694 Contact Us For Availability
421
GEN WH46X0346 GEN WH46X0346 Contact Us For Availability
432
GEN WH02X1188 GEN WH02X1188 Contact Us For Availability
489
GEN WH01X2572 GEN WH01X2572 Contact Us For Availability
500
GEN WH19X0312 GEN WH19X0312 Contact Us For Availability
546
GEN WH12X0870 GEN WH12X0870 Contact Us For Availability
550
SCR 8-18 AB HWX 3/8 S GEN WE02X0281 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
559
GEN WH12X0538 GEN WH12X0538 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
608
GEN WH05X0256 GEN WH05X0256 Contact Us For Availability
642
GEN WH12X1059 GEN WH12X1059 Contact Us For Availability
725
GEN WH07X0126 GEN WH07X0126 Contact Us For Availability
764
GEN WB01X5755 GEN WB01X5755 Contact Us For Availability
782
GEN WB17X5060 GEN WB17X5060 Contact Us For Availability
818
GEN WH41X0035 GEN WH41X0035 Contact Us For Availability
827
GEN WH41X0386 GEN WH41X0386 Contact Us For Availability
840
GEN WH01X2267 GEN WH01X2267 Contact Us For Availability
853
GEN WH41X0369 GEN WH41X0369 Contact Us For Availability
907
GEN WD09X0206 GEN WD09X0206 Contact Us For Availability
935
GEN WD01X1434 GEN WD01X1434 Contact Us For Availability
1458
TERM BLK ASM-1 PIN(1458) GEN WB17X5073 Contact Us For Availability
1506
GEN WB17X5059 GEN WB17X5059 Contact Us For Availability
× ![]()
