Model GE VGBS100DM2WW – Common Parts & Diagrams

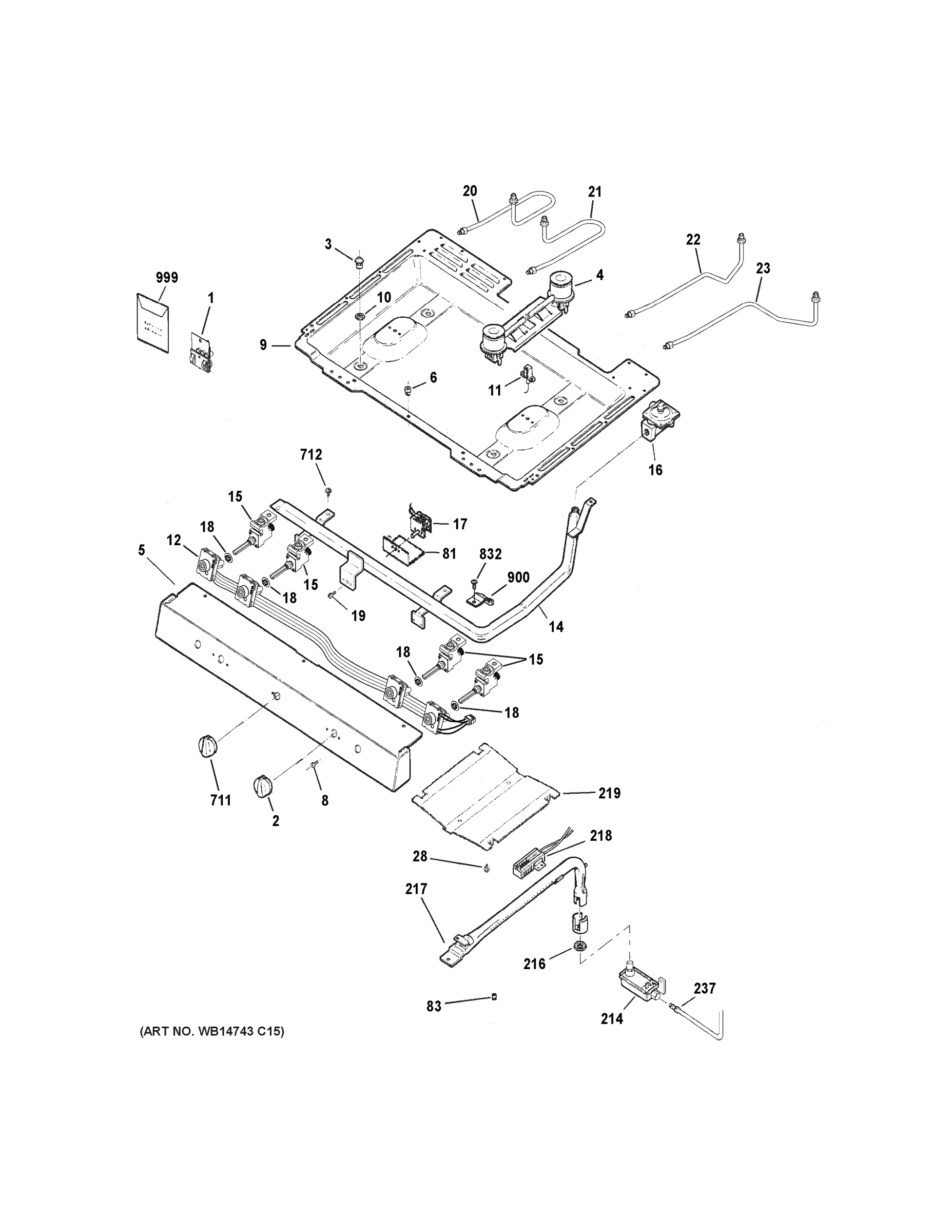

GAS & BURNER PARTS
COOKTOP
BODY PARTS
DOOR & DRAWER PARTS
Common parts from model GE VGBS100DM2WW
2
KNOB MINIVALVE GEN WB03K10218 Contact Us For Availability
3
ORIFICE NAT GAS GEN WB28K10033 Contact Us For Availability
8
SCREW 8-32 GEN WB01K10002 Contact Us For Availability
11
SPARK ELECTRODE TOP LF GEN WB18X26988 Contact Us For Availability
11
SPARK ELECTRODE TOP GEN WB18X26987 Contact Us For Availability
12
HARNESS BURNER BOX GEN WB18X31212 Contact Us For Availability
15
ROUND VALVE BURNER 140 GEN WB28K10578 Contact Us For Availability
16
PRESSURE REGULATOR GEN WB19K10055 Contact Us For Availability
17
ELECTRIC THERMOSTAT DRL GEN WB24X24270 Contact Us For Availability
20
FRONT TUBE ASSY LEFT GEN WB28K10009 Contact Us For Availability
21
FRONT TUBE ASSY RIGHT GEN WB28K10010 Contact Us For Availability
22
TUBE-BURNER LT REAR GEN WB28K10011 Contact Us For Availability
23
TUBE-BURNER RT REAR GEN WB28K10012 Contact Us For Availability
83
OVEN ORIFICE SPUD GEN WB28X21079 Contact Us For Availability
90
FRAME FRONT BUMPER GEN WB02X28738 Contact Us For Availability
110
IGNITION MODULE GEN WB13X24321 Contact Us For Availability
113
GRATE (BLK) GEN WB31K10015 Contact Us For Availability
114
COOKTOP (WH) GEN WB62K10001 Contact Us For Availability
130
SCREW GEN WB01K10043 Contact Us For Availability
200
OVEN RACK GEN WB48X20249 Contact Us For Availability
201
OVEN RACK GEN WB48X26677 Contact Us For Availability
203
LINE CORD GEN WB18K10036 Contact Us For Availability
206
SCREW GEN WB01K10091 Contact Us For Availability
214
SAFETY VALVE SINGLE GEN WB21X35006 Contact Us For Availability
217
BURNER OVEN ASSY GEN WB16X20253 Contact Us For Availability
222
HINGE DOOR GEN WB10X21955 Contact Us For Availability
241
BOTTOM RANGE GEN WB63K10029 Contact Us For Availability
243
SUPPORT BASE RT GEN WB63X20215 Contact Us For Availability
243
SUPPORT BASE LT GEN WB63X20216 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
301
HINGE DOOR GEN WB10X26678 Contact Us For Availability
304
CLIP BROIL HANDLE GEN WB01X26891 Contact Us For Availability
306
PANEL DRAWER GEN WB56X26688 Contact Us For Availability
307
LINER DRAWER GEN WB56X26676 Contact Us For Availability
316
HANDLE GEN WB15K10100 Contact Us For Availability
329
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
335
SPACER GEN WB02K10156 Contact Us For Availability
342
PANEL SIDE FOIL GEN WB35X26892 Contact Us For Availability
362
BARRIER DOOR GEN WB07X20288 Contact Us For Availability
711
KNOB THERMOSTAT ASM. GEN WB03X22704 Contact Us For Availability
900
ROUND VALVE BRACKET GEN WB02K10263 Contact Us For Availability
999
HINGE SERVICE KIT GEN WB49X21392 Contact Us For Availability
1330
RECEIVER HINGE GEN WB10X20220 Contact Us For Availability
× ![]()
