Model Unimac UWN065K2L Washer – Common Parts & Diagrams
Control Module (Drawing 1 of 3)
Control Module (Drawing 2 of 3)

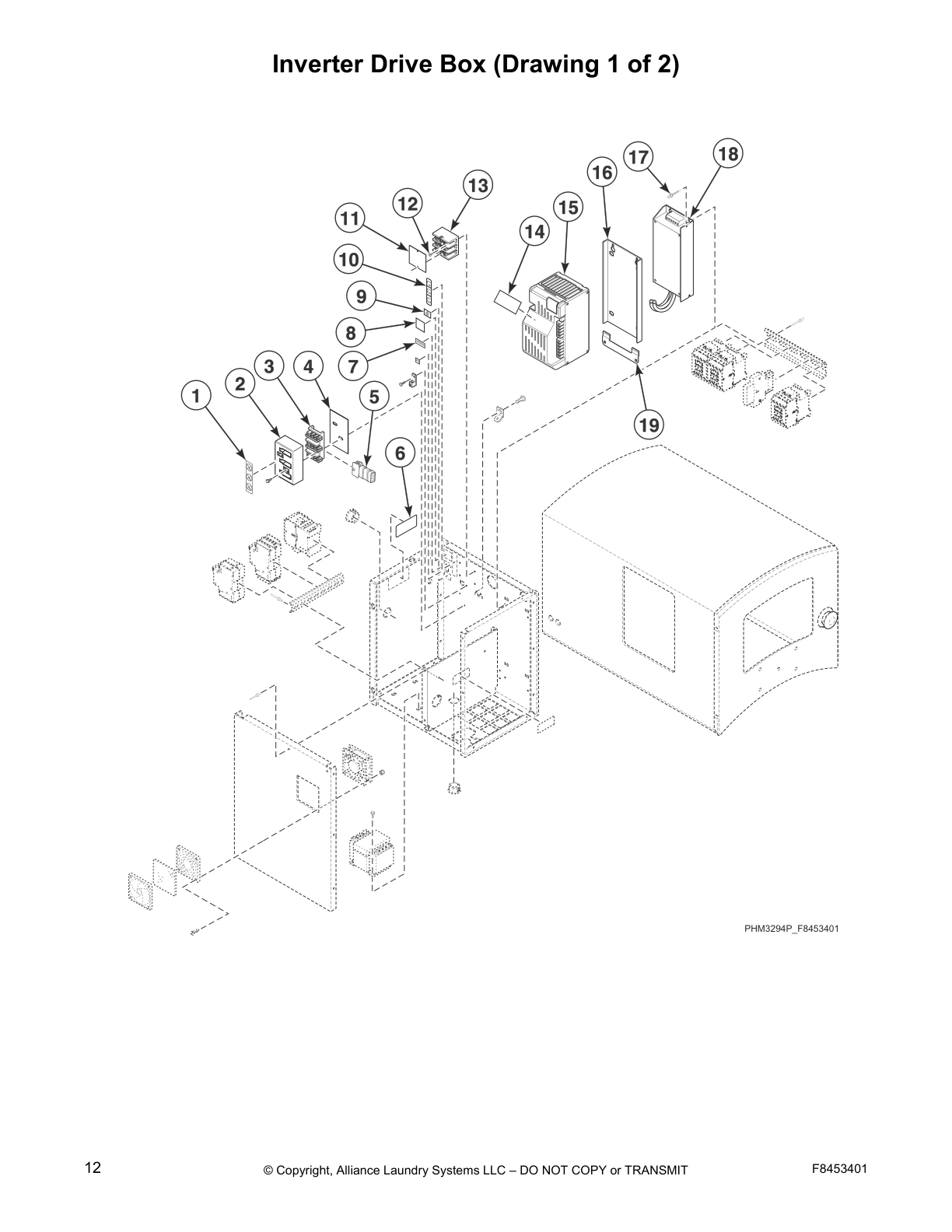

Inverter Drive Box (Drawing 1 of 2)

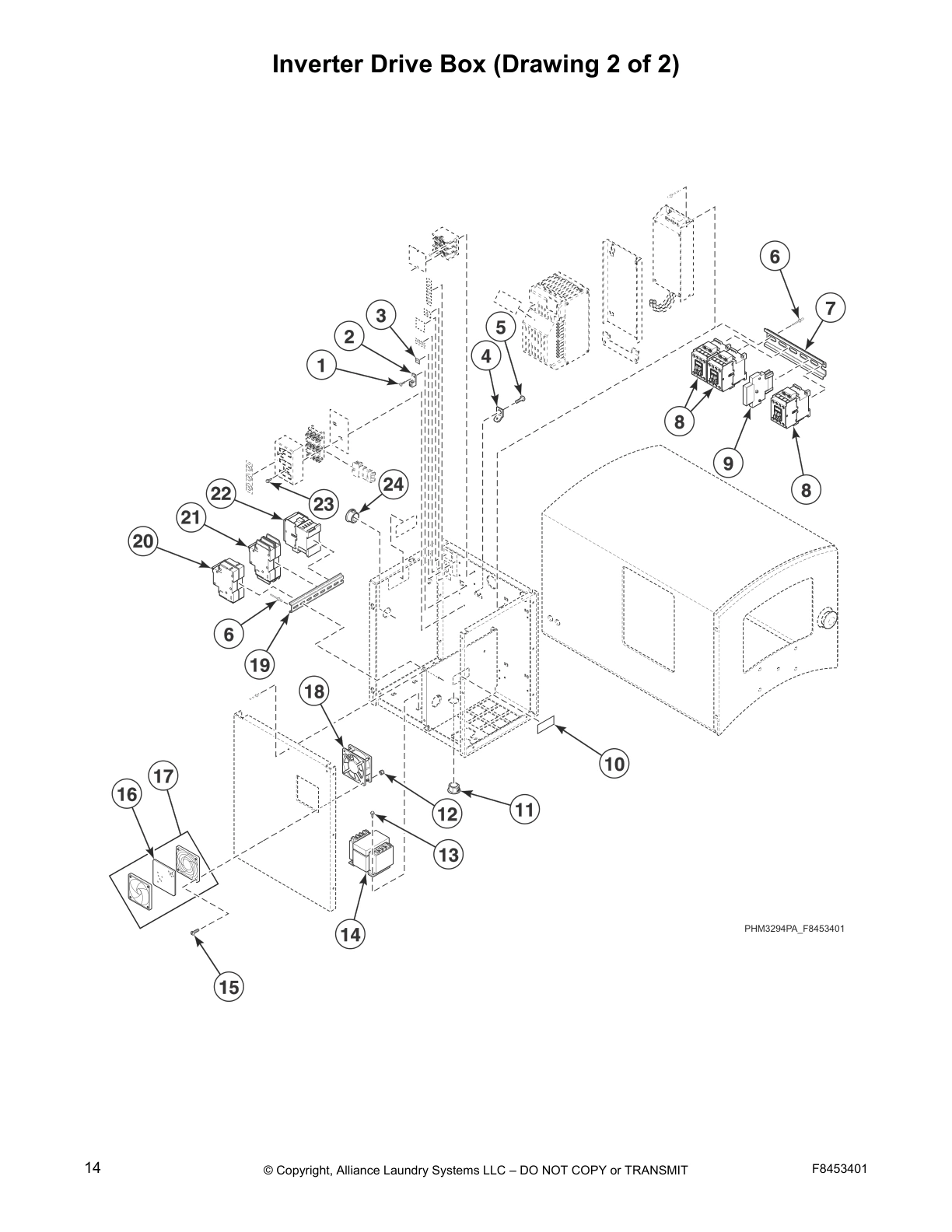

Inverter Drive Box (Drawing 2 of 2)

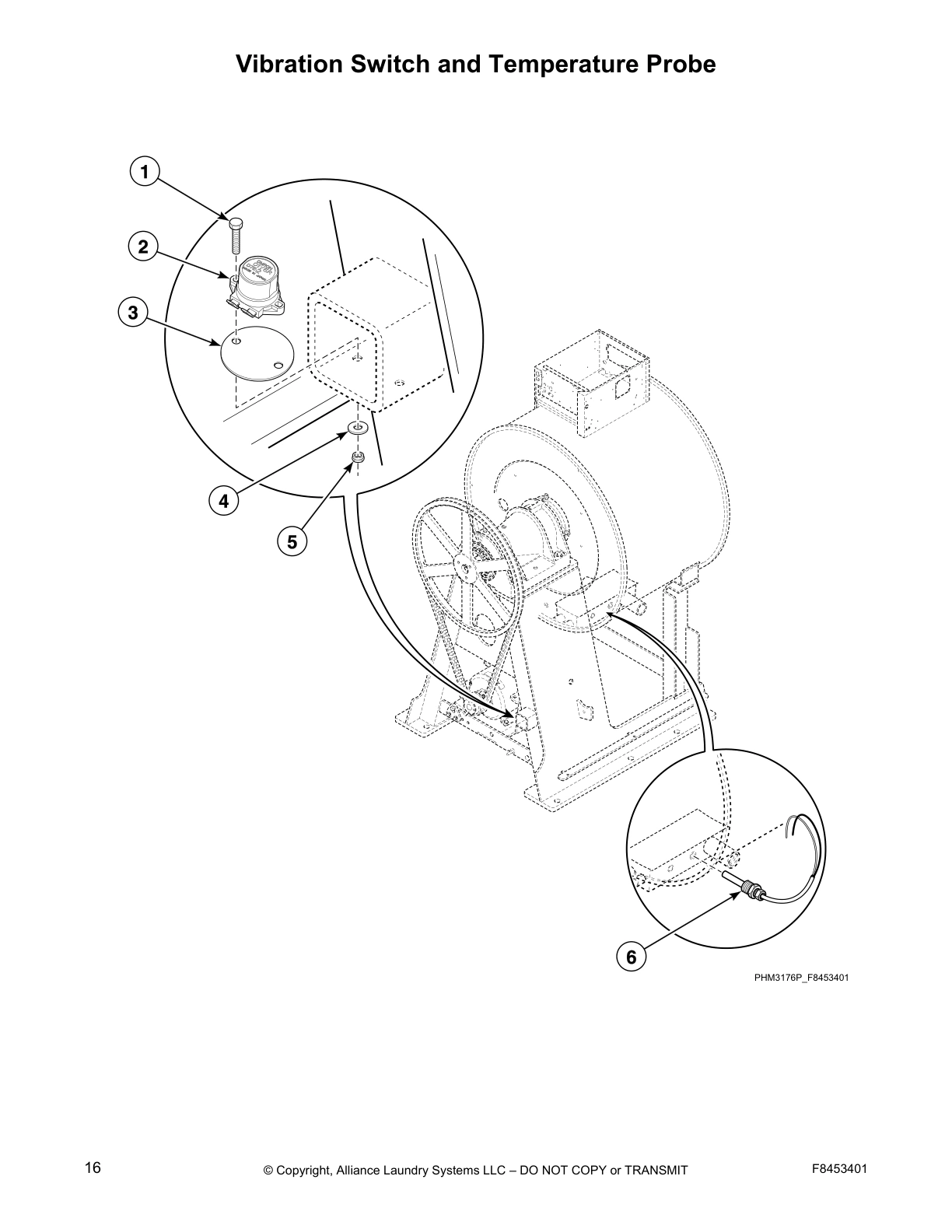

Vibration Switch and Temperature Probe

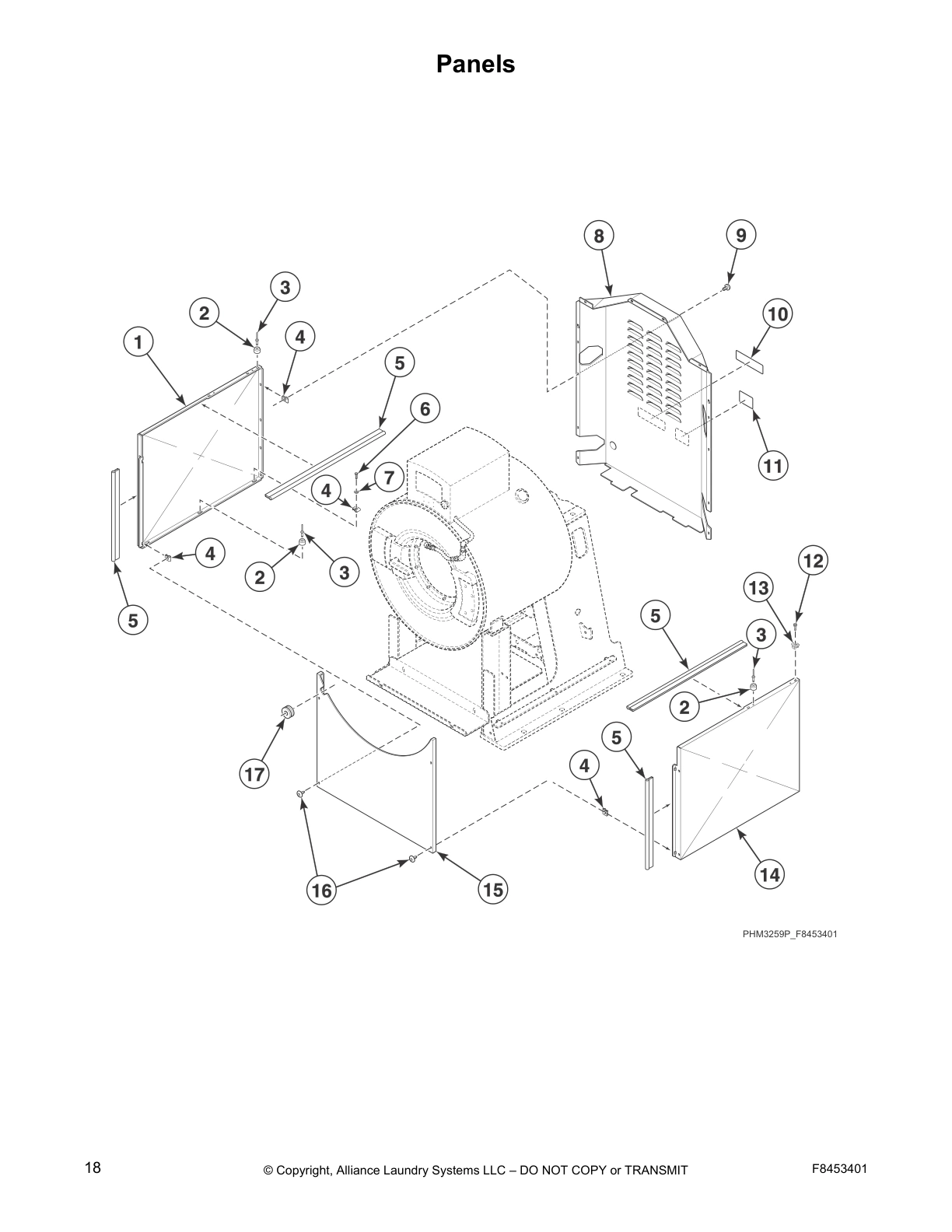

Panels

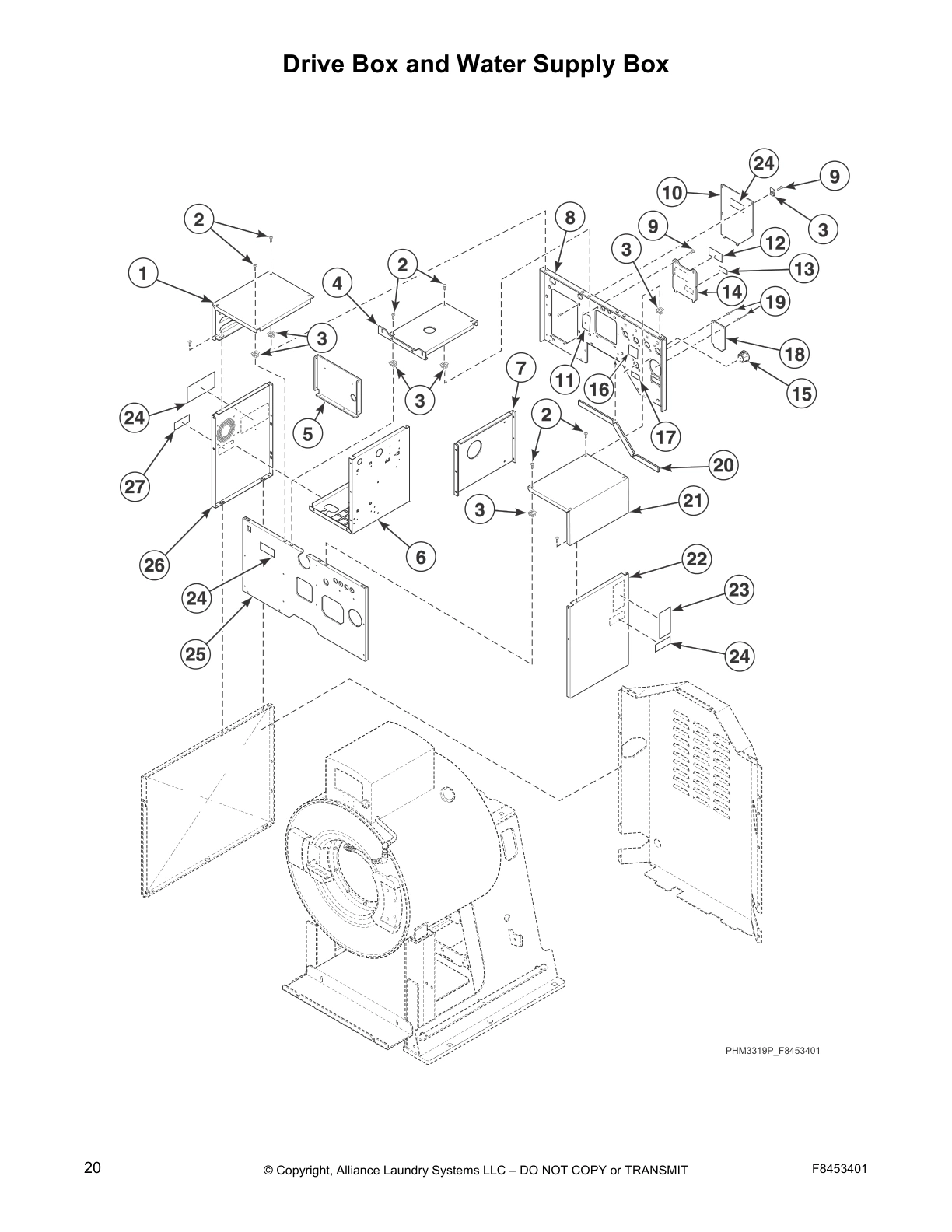

Drive Box and Water Supply Box

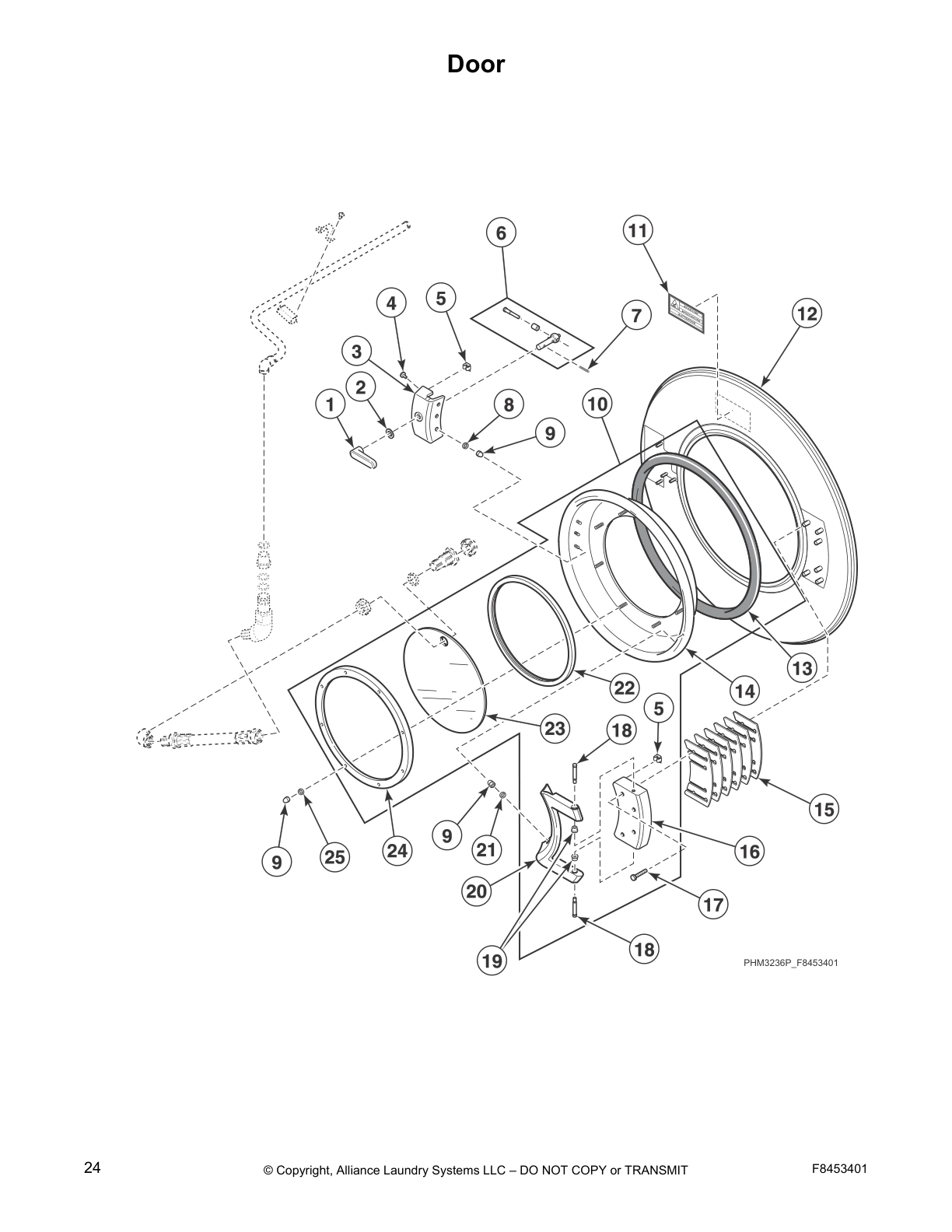

Door

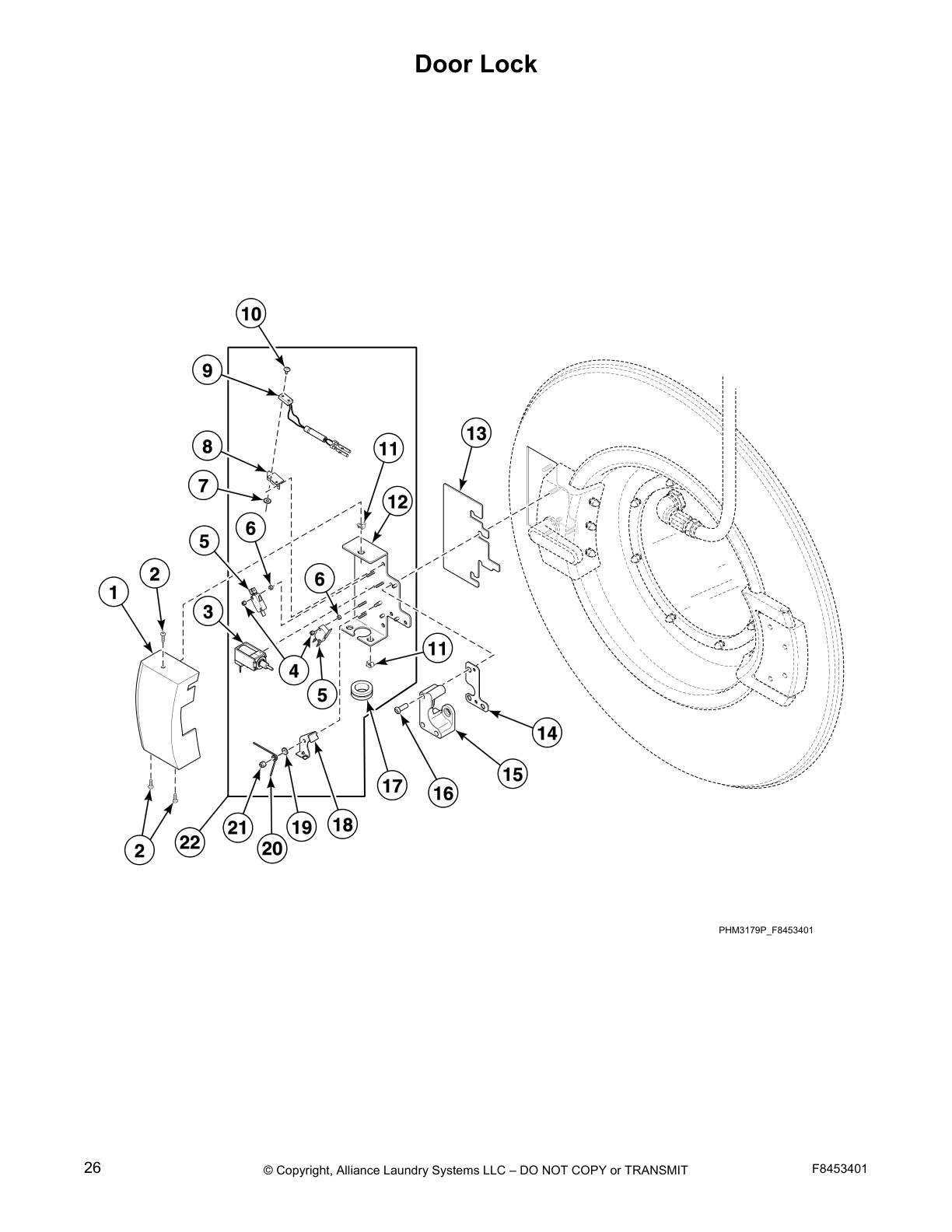

Door Lock

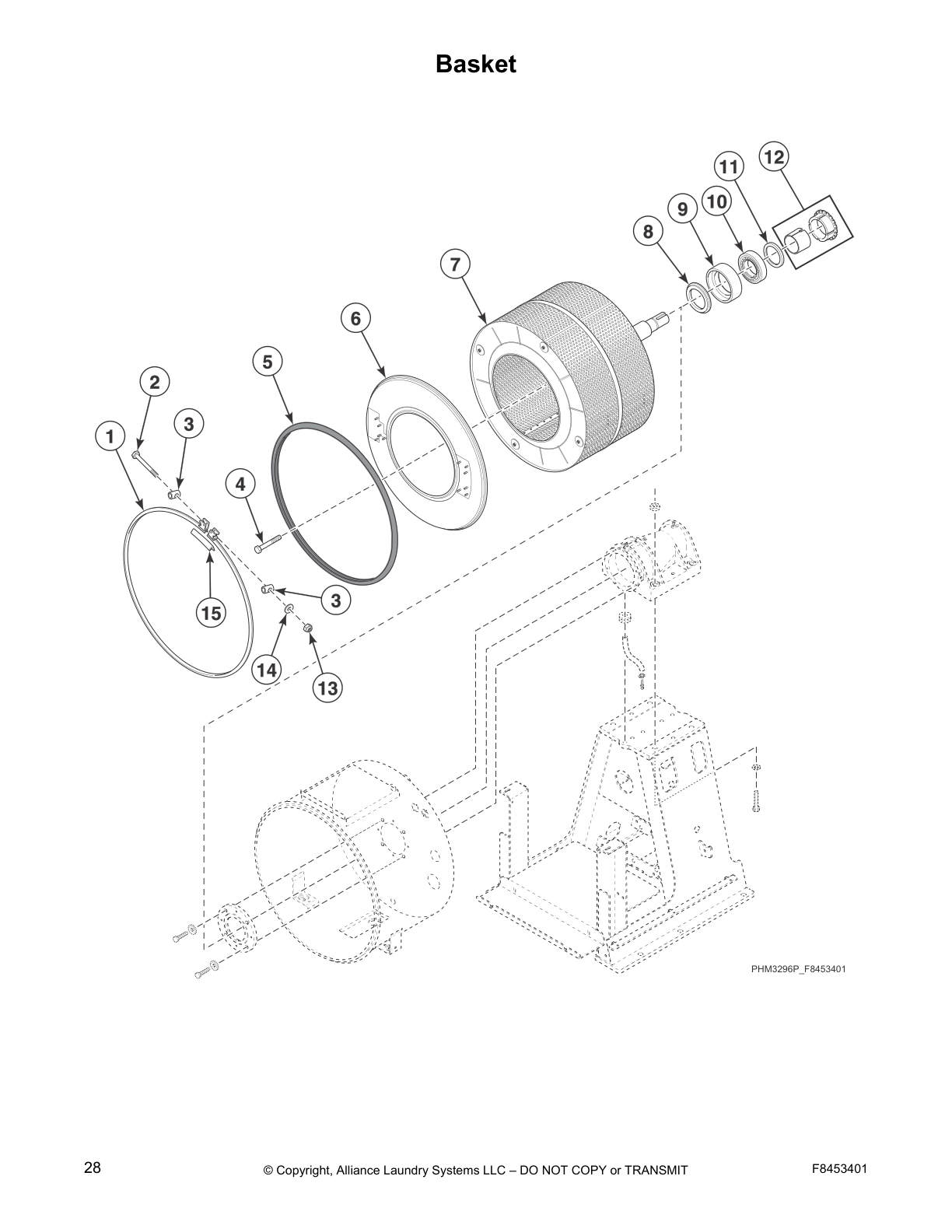

Basket

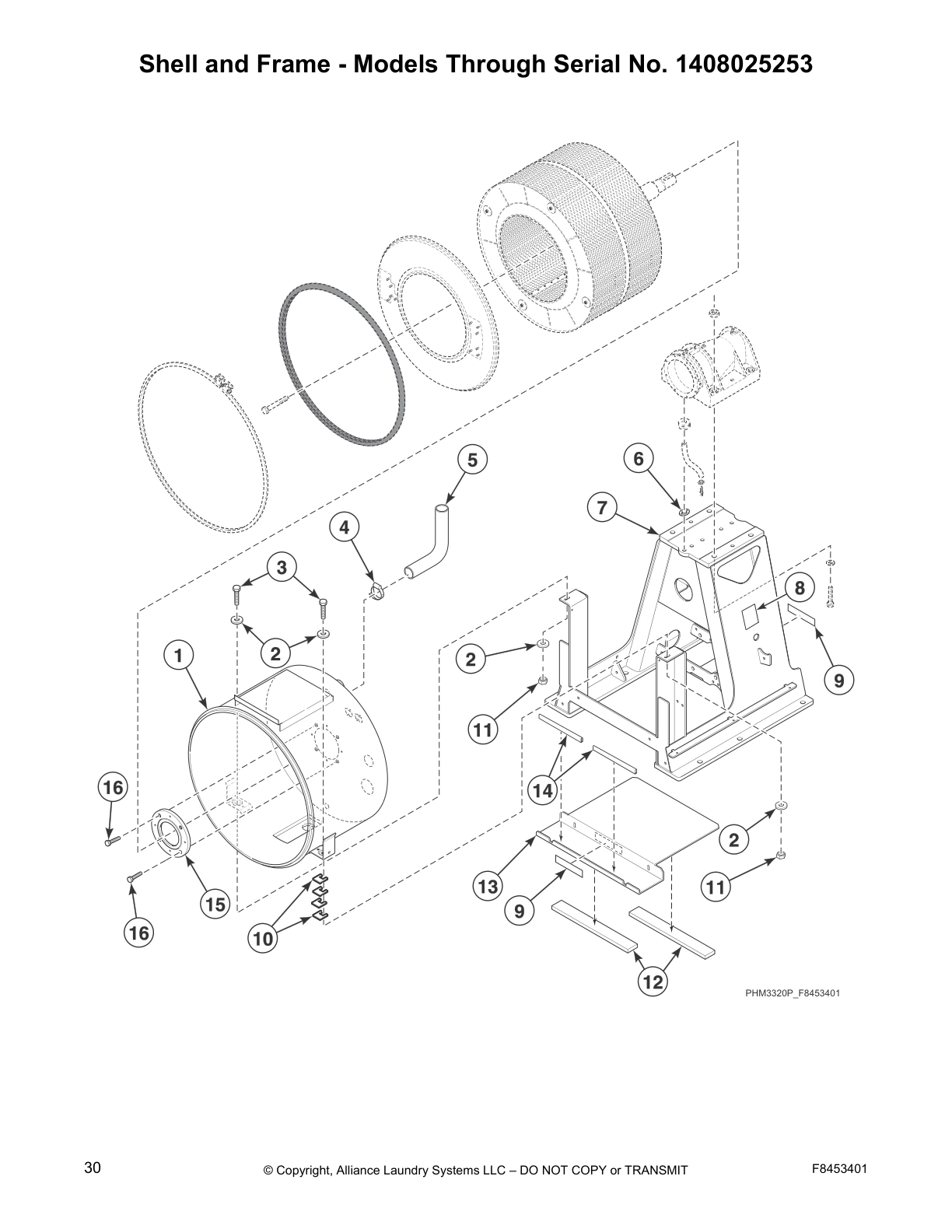

Shell and Frame - Models Through Serial No. 1408025253

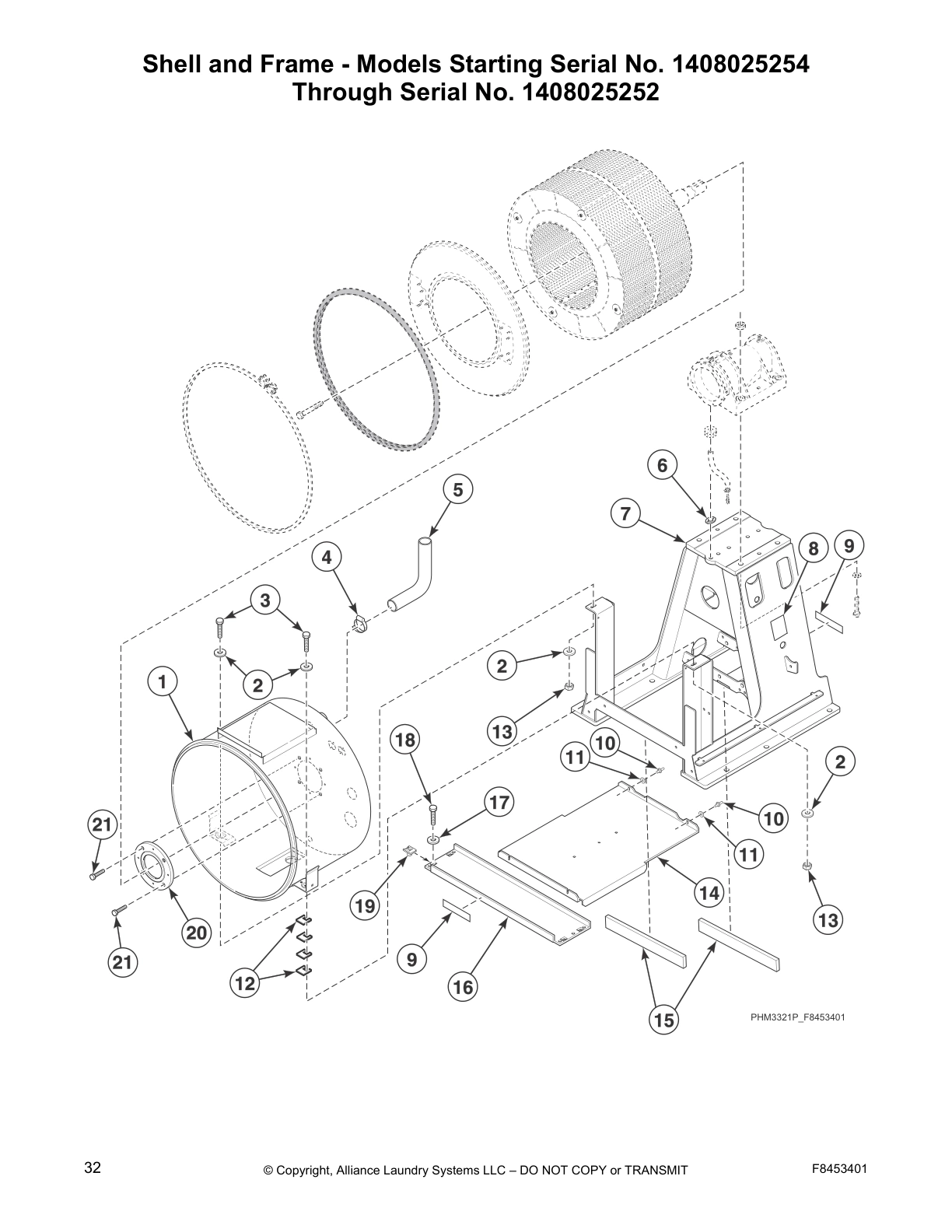

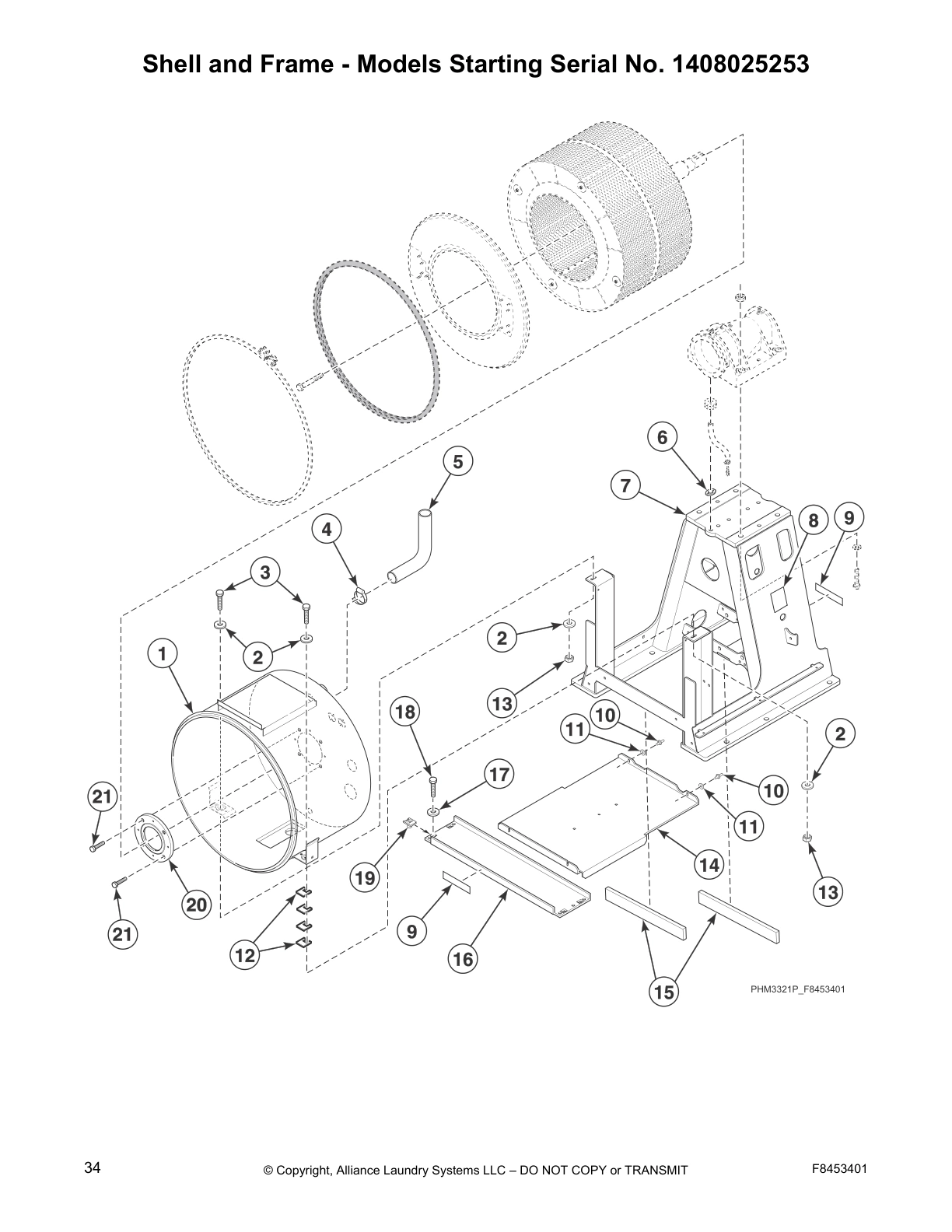

Shell and Frame - Models Starting Serial No. 1408025254
Through Serial No. 1408025252
Shell and Frame - Models Starting Serial No. 1408025253

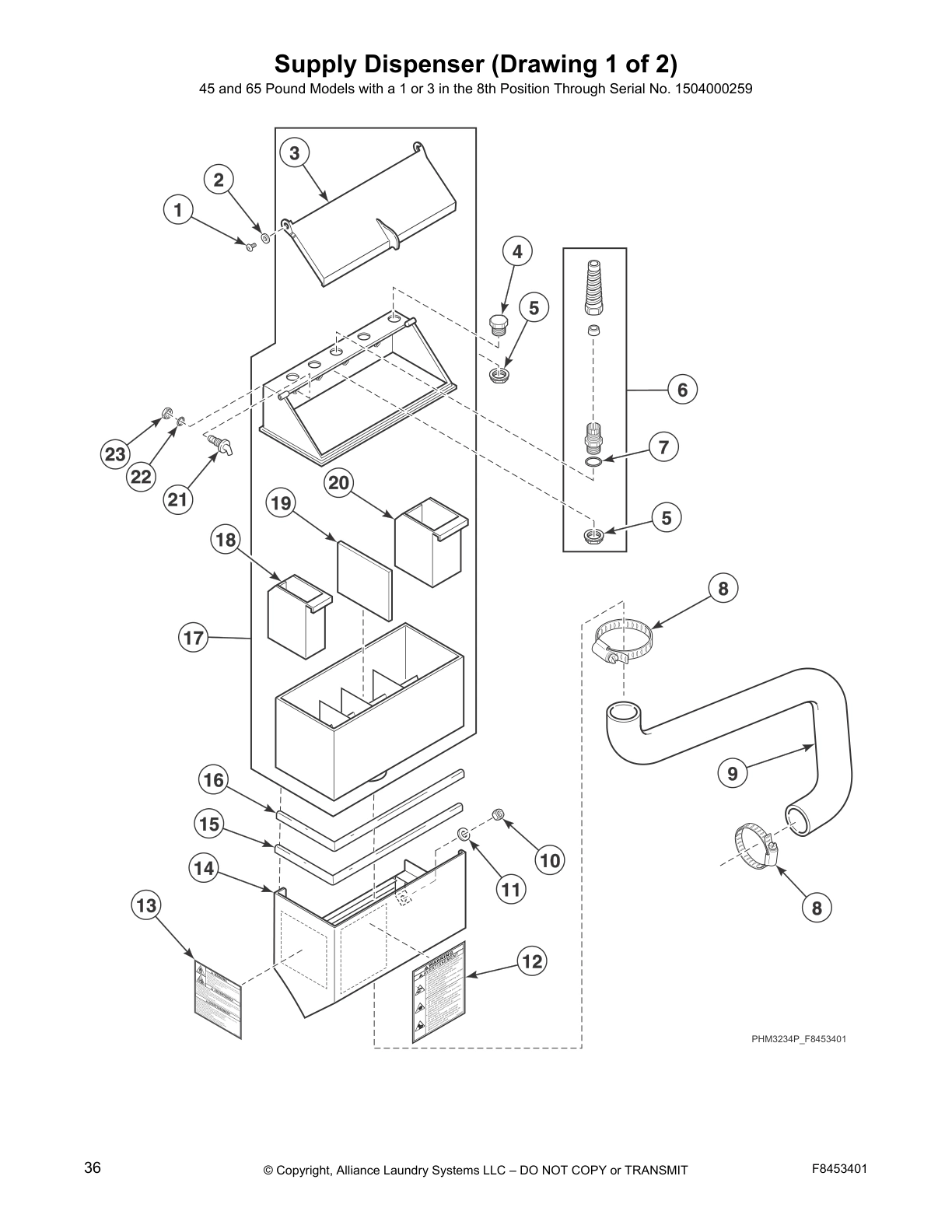

Supply Dispenser (Drawing 1 of 2)

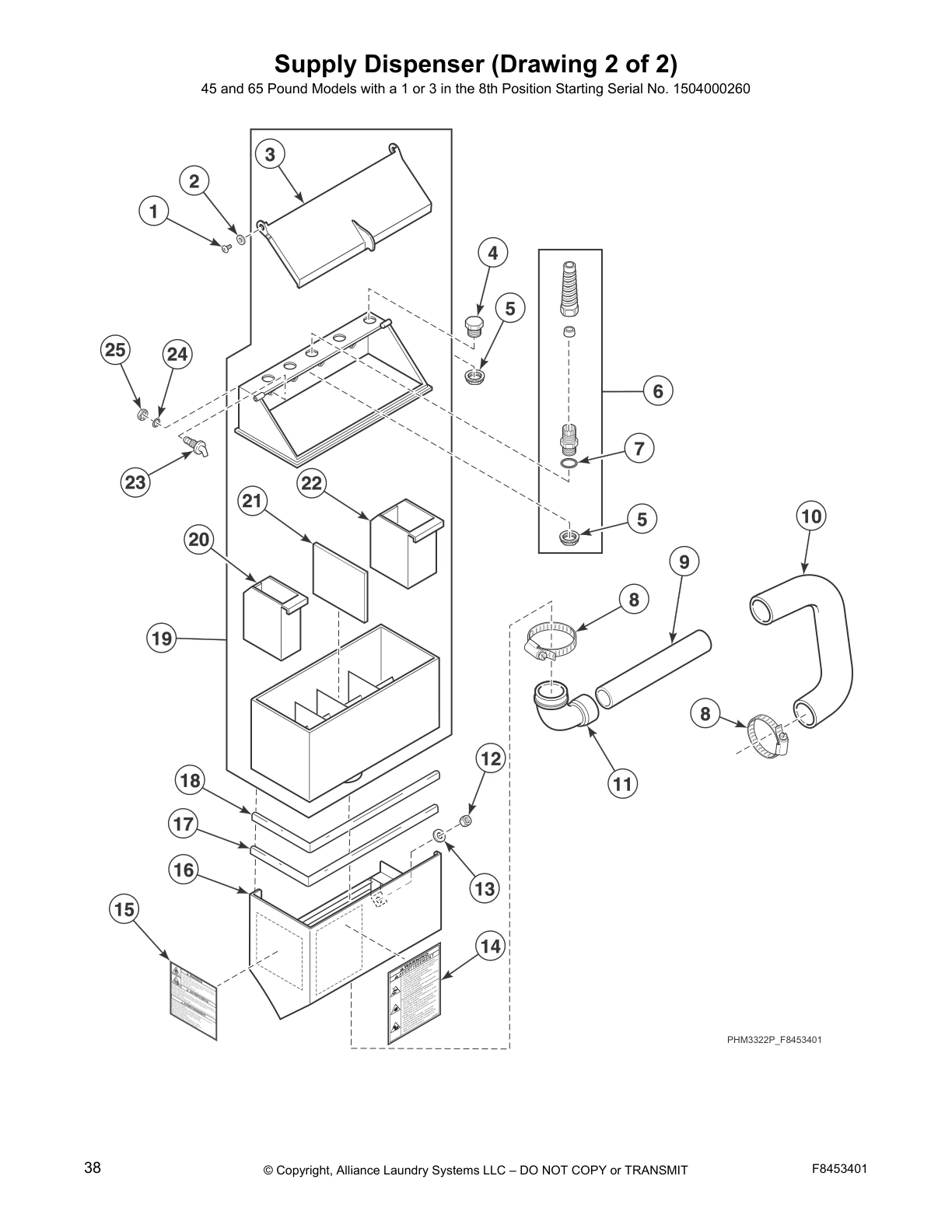

Supply Dispenser (Drawing 2 of 2)

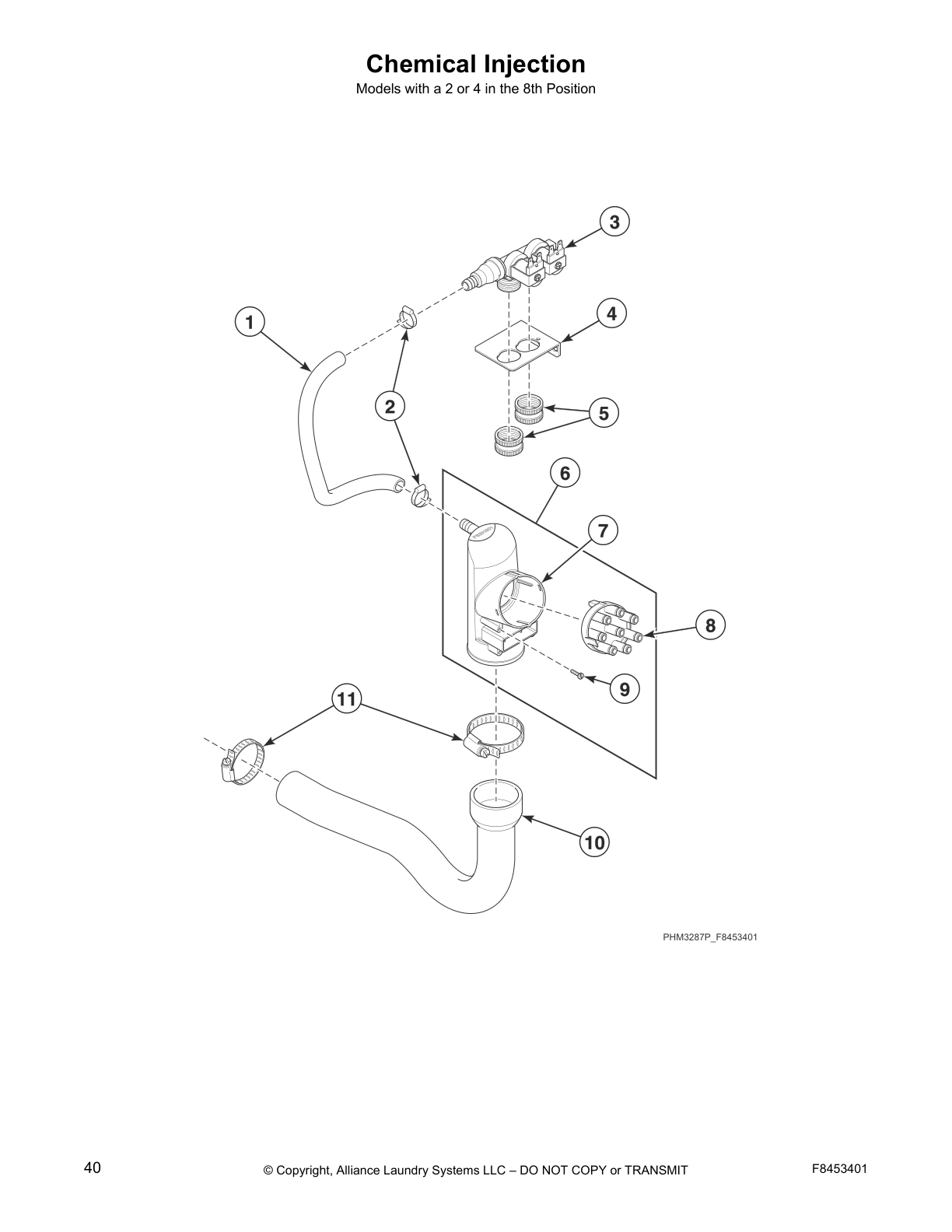

Chemical Injection

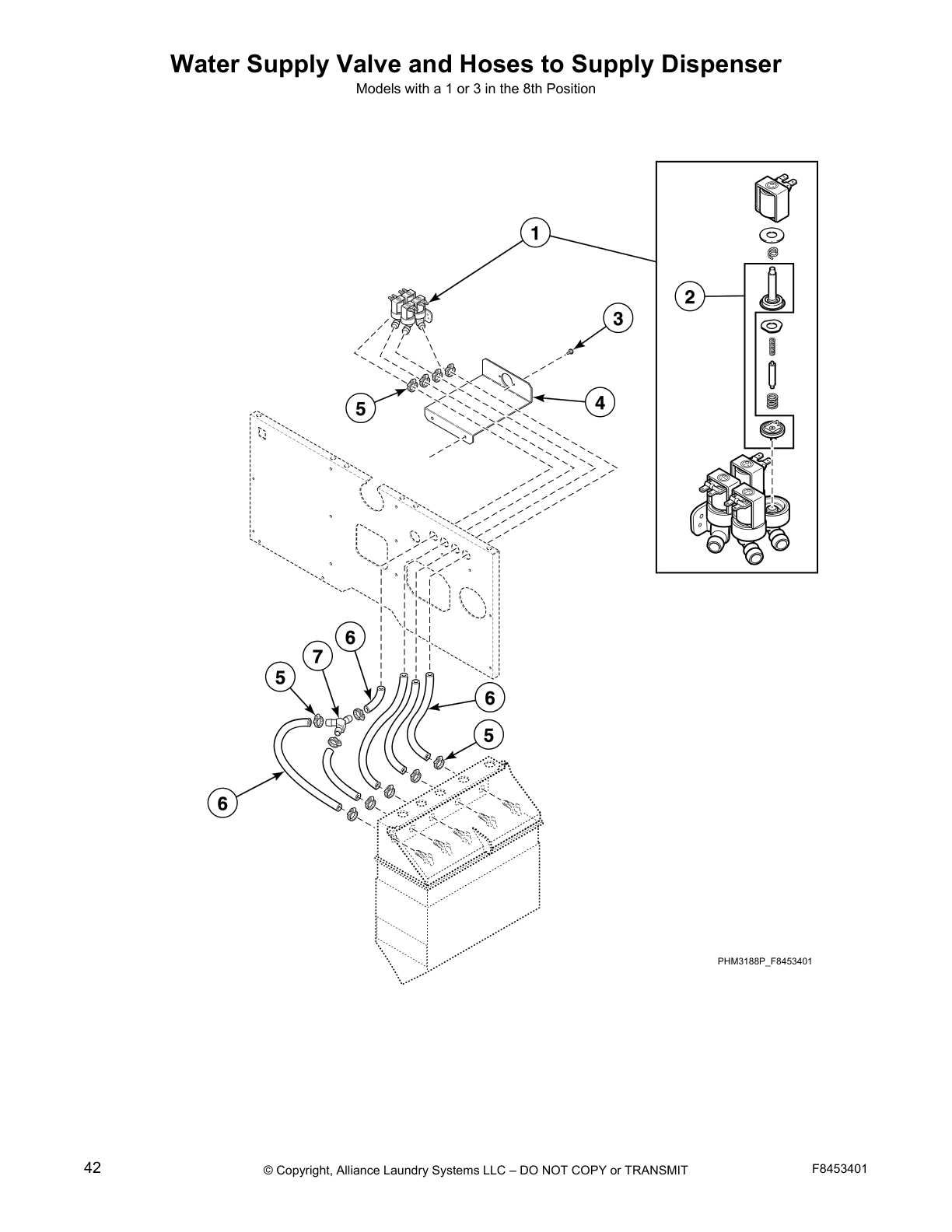

Water Supply Valve and Hoses to Supply Dispenser

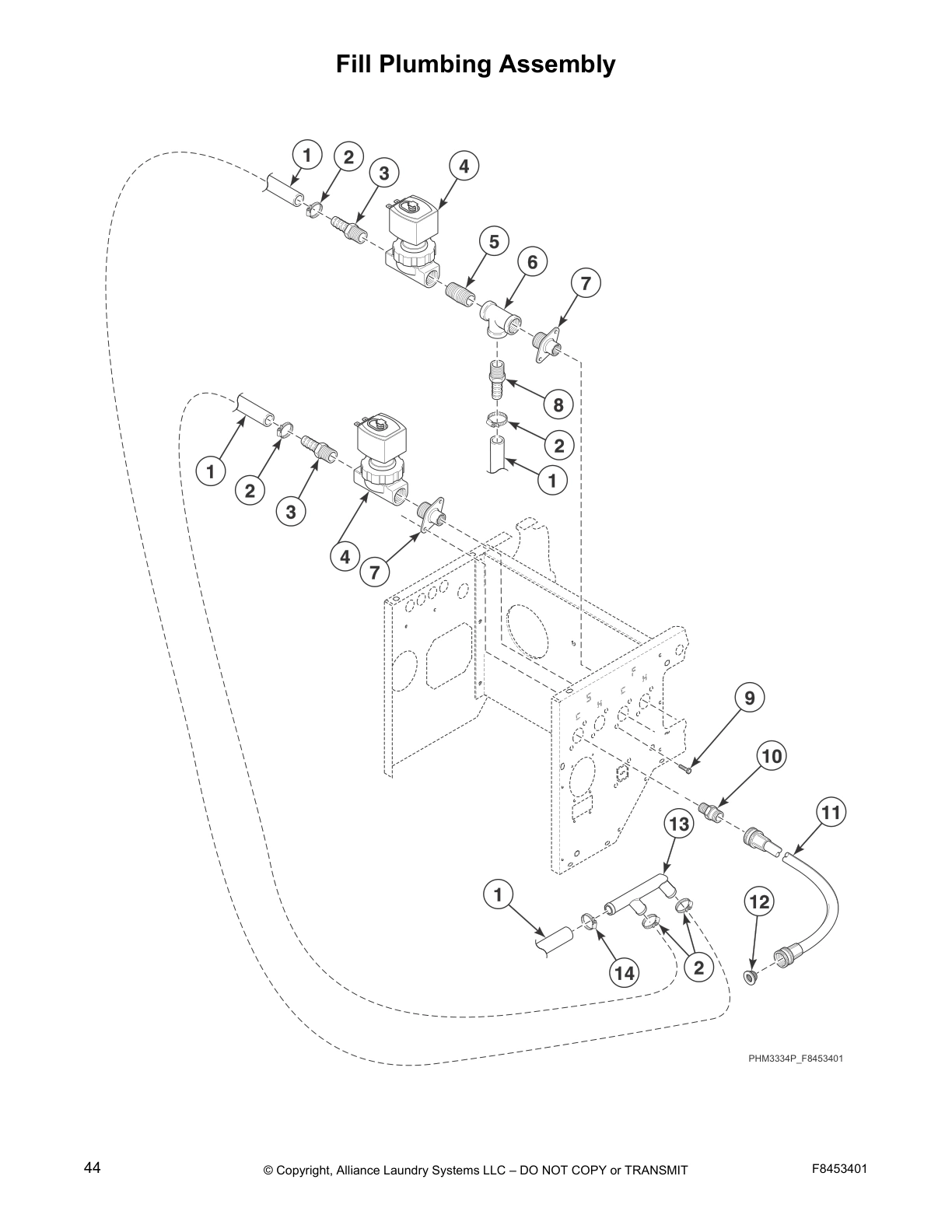

Fill Plumbing Assembly

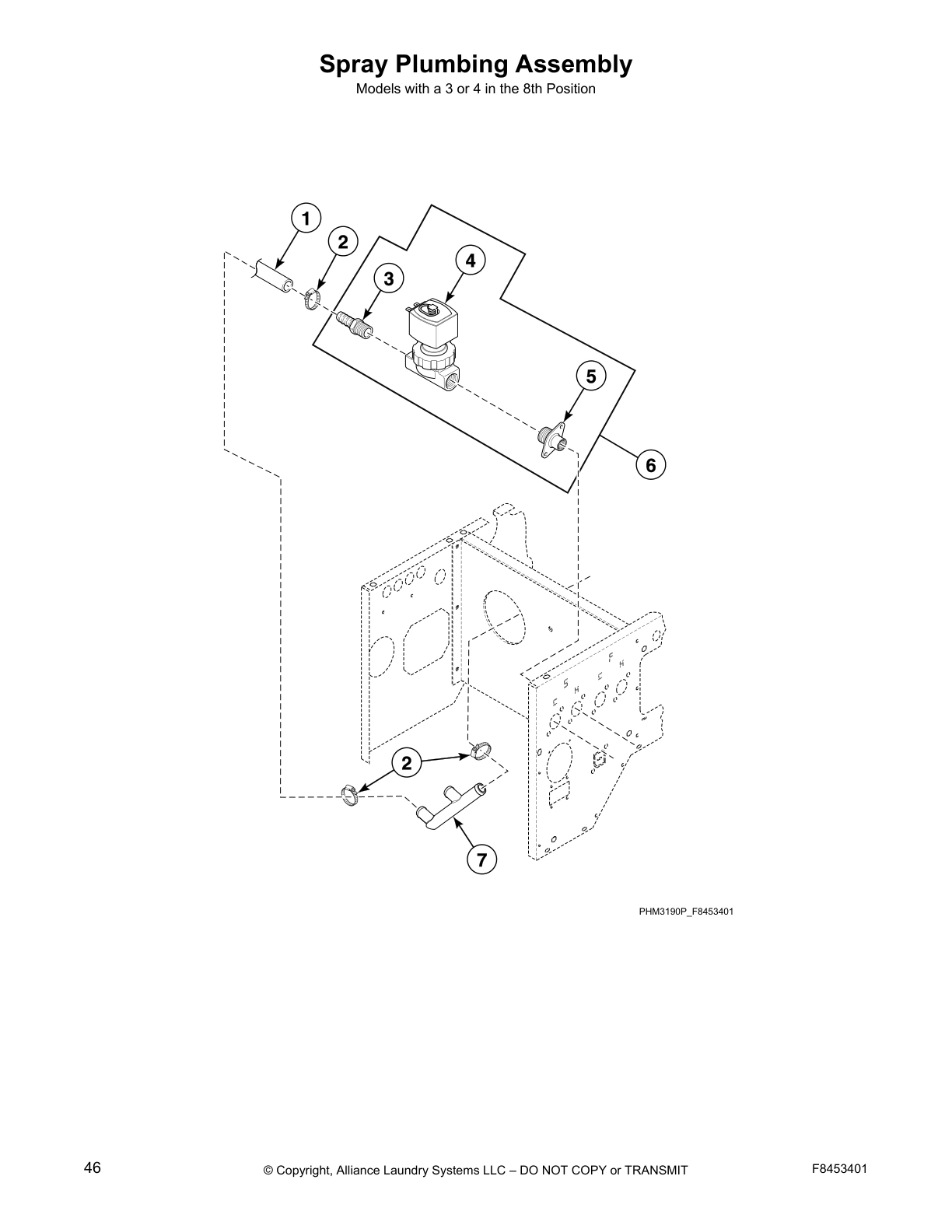

Spray Plumbing Assembly

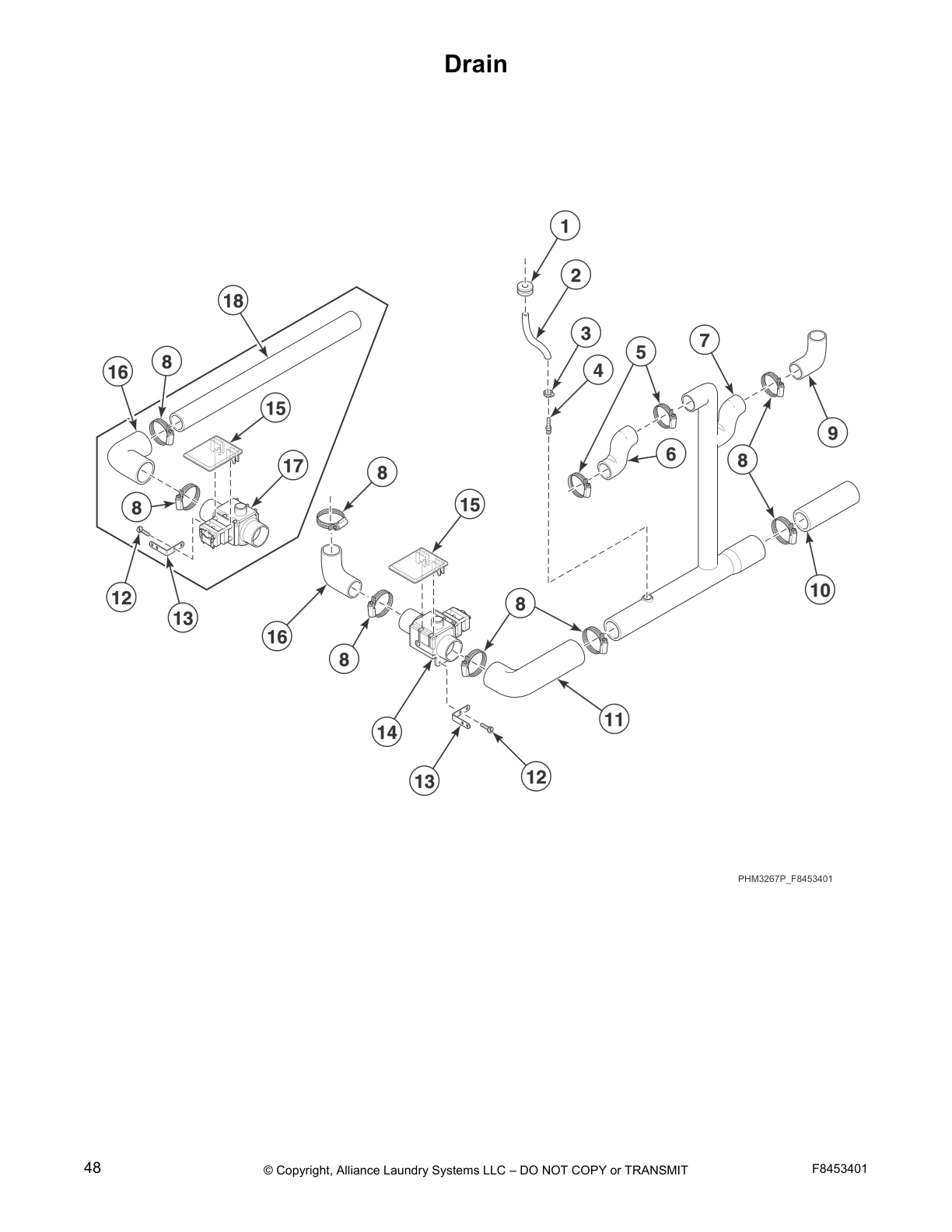

Drain

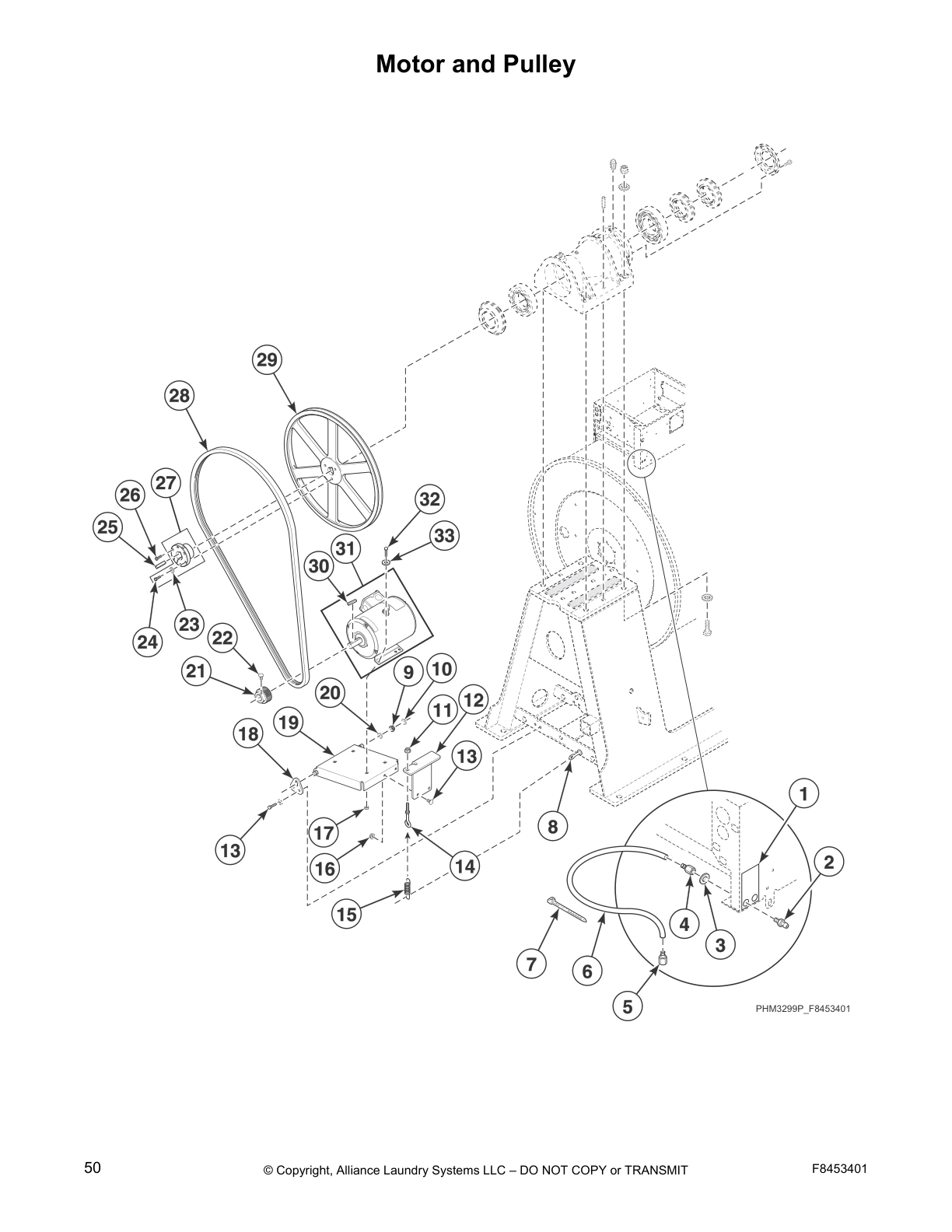

Motor and Pulley

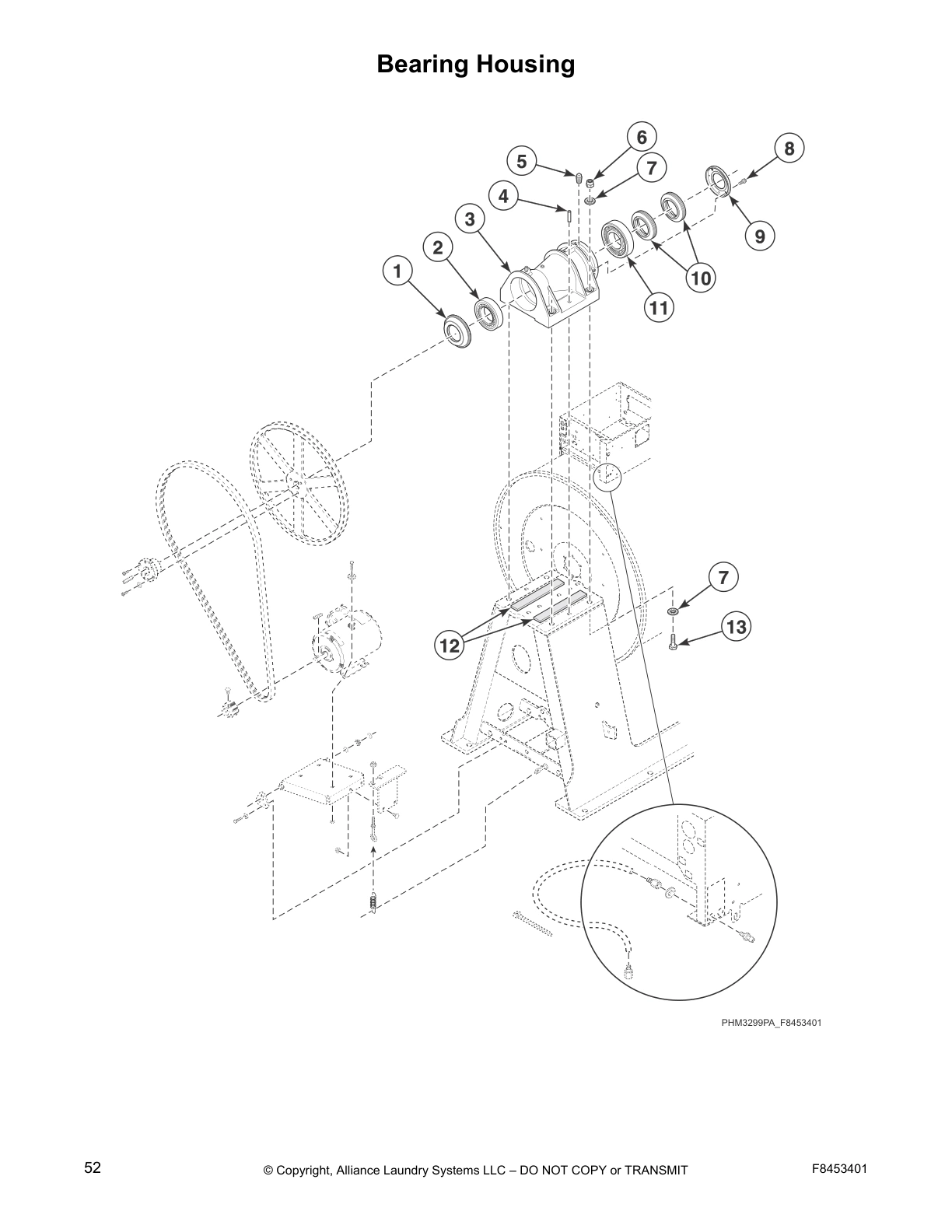

Bearing Housing

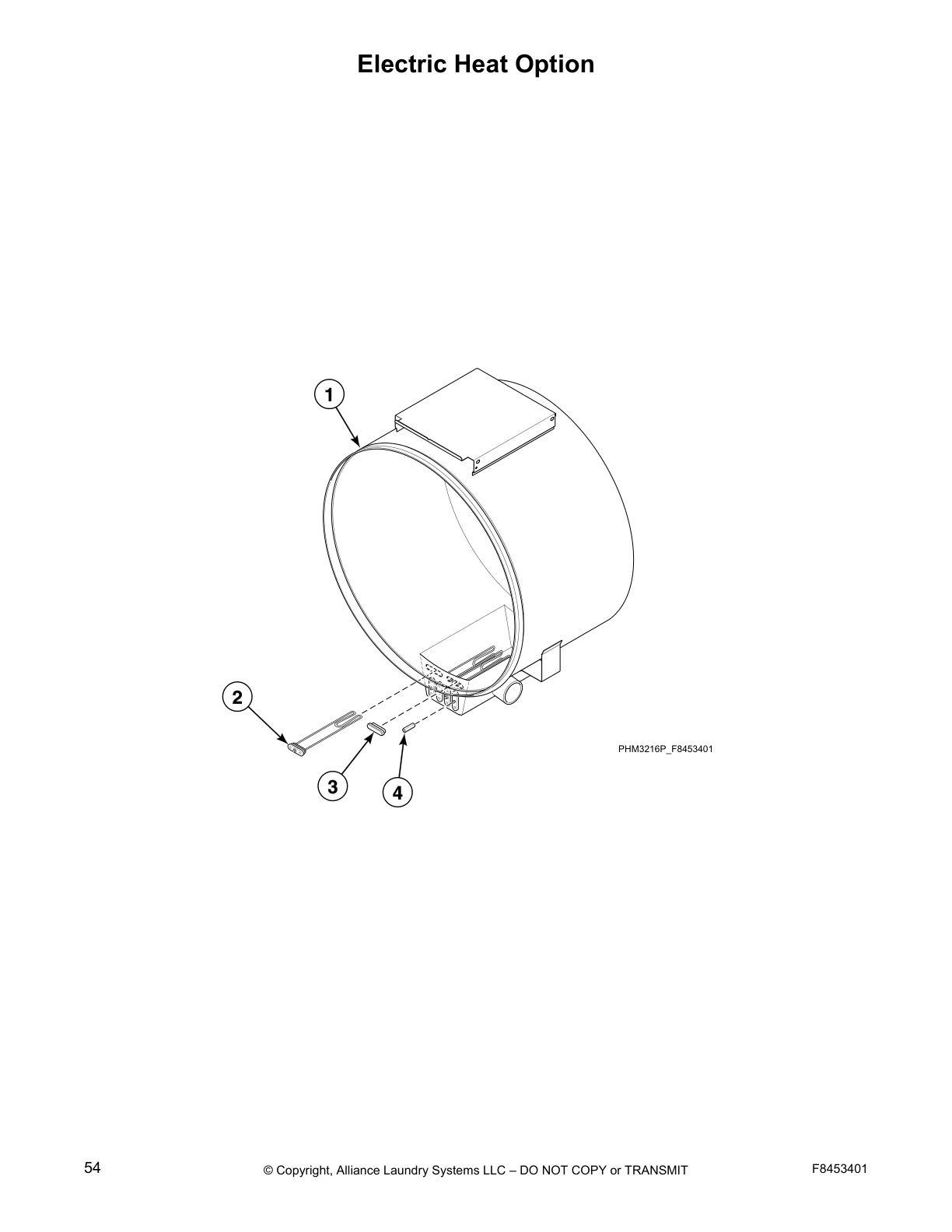

Electric Heat Option

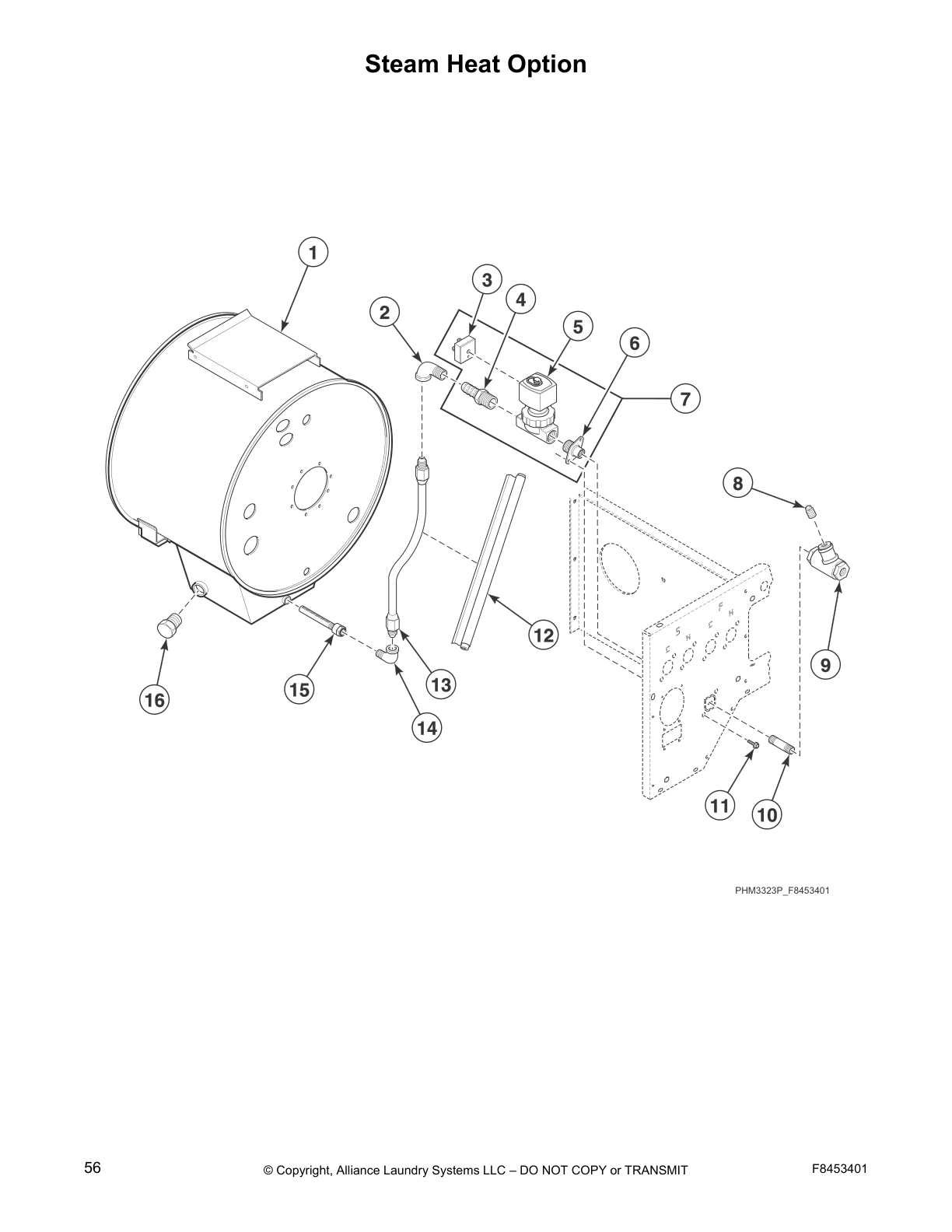

Steam Heat Option

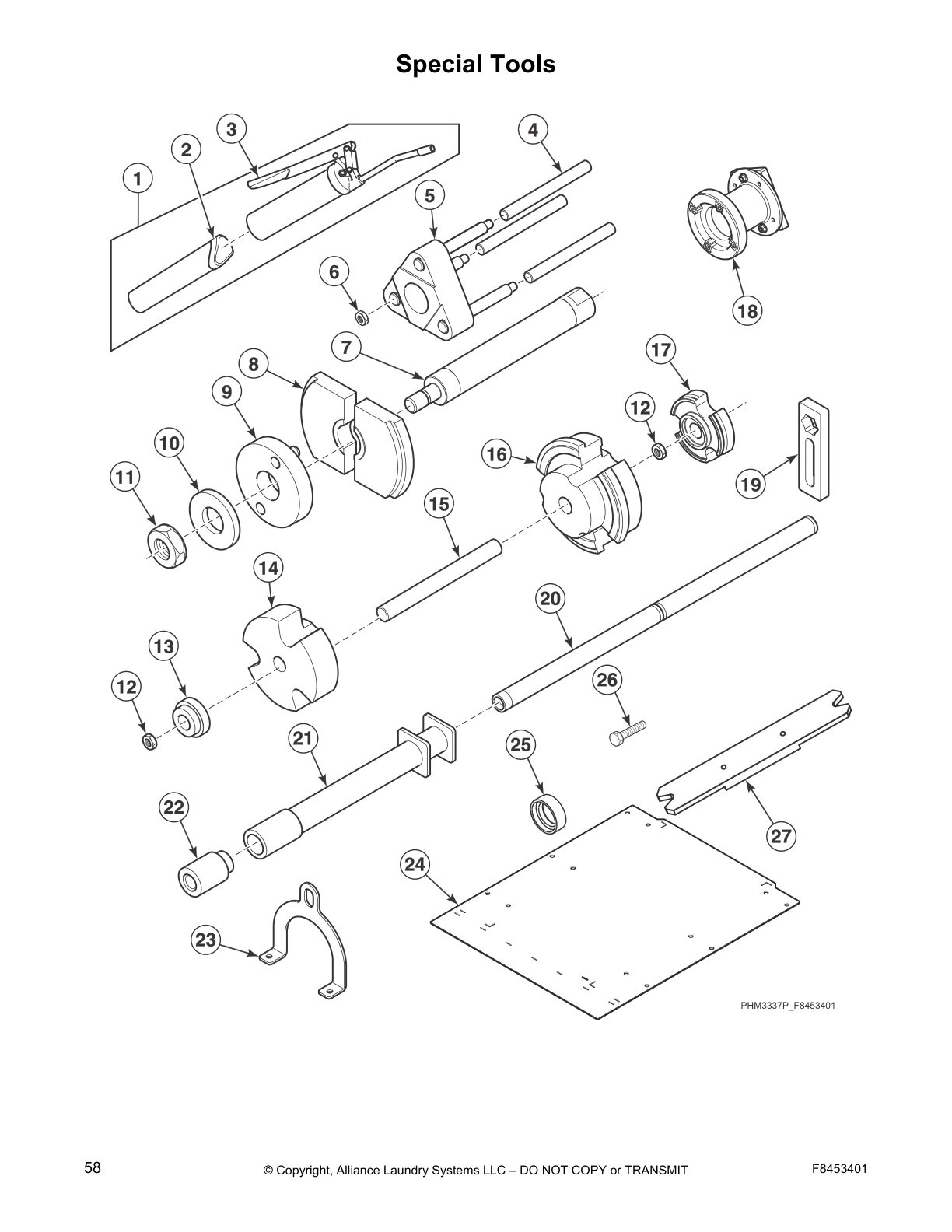

Special Tools
Common parts from model Unimac UWN065K2L Washer
Power Harness
Dual heat SPQ F8158801P Contact Us For Availability
SPQ F8030101P SPQ F8030101P Contact Us For Availability
SPQ F8028109 SPQ F8028109 Contact Us For Availability
Electric Heat Harness SPQ F8060301 Contact Us For Availability
SPQ F8054903 SPQ F8054903 Contact Us For Availability
SPQ F8054603 SPQ F8054603 Contact Us For Availability
SPQ F8134101 SPQ F8134101 Contact Us For Availability
SPQ F8347501 SPQ F8347501 Contact Us For Availability
1
Do Not Tamper Label SPQ F8345901 Contact Us For Availability
1
Left Side Panel SPQ F8407904 Contact Us For Availability
1
Top Left Cover SPQ F8374002 Contact Us For Availability
1
Door Handle SPQ F8435501 Contact Us For Availability
1
Door Lock Cover SPQ F8435801 Contact Us For Availability
1
Shell Assembly SPQ F8279202 Contact Us For Availability
1
Hose SPQ F8232006 Contact Us For Availability
1
Grommet SPQ F8410501 Contact Us For Availability
1
Grease Instruction Label SPQ F8422801 Contact Us For Availability
1
Seal SPQ F8379301 Contact Us For Availability
1
Grease Gun Kit SPQ F798700 Contact Us For Availability
2
Screw SPQ F8206901 Contact Us For Availability
2
Muffin Fan SPQ F8153901 Contact Us For Availability
2
Terminal Block Shield SPQ F828P3 Contact Us For Availability
2
Circuit Breaker SPQ F8134001 Contact Us For Availability
2
Washer SPQ F431916 Contact Us For Availability
2
Bolt SPQ F8270701 Contact Us For Availability
2
Motor Pulley SPQ F190701 Contact Us For Availability
2
Dowel Pin SPQ F8375401 Contact Us For Availability
2
Electric Heat Harness SPQ F8056701 Contact Us For Availability
2
Bearing Grease SPQ F210206P Contact Us For Availability
3
Connector SPQ F8246601 Contact Us For Availability
3
Terminal Block SPQ F8322401 Contact Us For Availability
3
Vibration Switch Shield SPQ F8337301 Contact Us For Availability
3
Nut SPQ M412763 Contact Us For Availability
3
Drive Box Partition SPQ F8530402 Contact Us For Availability
3
Expansion Clip SPQ F8435701 Contact Us For Availability
3
Solenoid SPQ F8630601 Contact Us For Availability
3
SPQ H88213996 SPQ H88213996 Contact Us For Availability
3
Hose Barb SPQ F200222 Contact Us For Availability
3
Hose Barb SPQ F8110701 Contact Us For Availability
3
Screw SPQ 70292801 Contact Us For Availability
3
Heating Element SPQ F360203P Contact Us For Availability
3
DIN Valve Adapter Kit SPQ F8382301 Contact Us For Availability
3
Grease Gun SPQ F210207P Contact Us For Availability
4
Insulator SPQ 70333001 Contact Us For Availability
4
Pop Rivet SPQ F8405101 Contact Us For Availability
4
Door Lock Microswitch SPQ F430225 Contact Us For Availability
4
Door Latch Arm Assembly SPQ F8406201 Contact Us For Availability
4
Screw SPQ 70391101 Contact Us For Availability
4
Cap SPQ F8428901 Contact Us For Availability
4
Valve SPQ F8322803P Contact Us For Availability
4
Overflow Hose SPQ F8402301 Contact Us For Availability
4
Flanged Bushing SPQ F422114 Contact Us For Availability
4
Connector SPQ F8406502 Contact Us For Availability
5
Spacer SPQ F200203200 Contact Us For Availability
5
Jumper Configuration Assembly
240 Volt SPQ 802492 Contact Us For Availability
5
Contactor SPQ F330188P Contact Us For Availability
5
Washer SPQ F8412802 Contact Us For Availability
5
Bulkhead Brace SPQ F8374101 Contact Us For Availability
5
Shell Band Gasket SPQ F8502305 Contact Us For Availability
5
Molded Drain SPQ F200215 Contact Us For Availability
5
SPQ F8363601 SPQ F8363601 Contact Us For Availability
5
Nipple SPQ F421964 Contact Us For Availability
5
Nut SPQ J1408004 Contact Us For Availability
5
Valve SPQ F8322801P Contact Us For Availability
6
Warning Label SPQ 430642 Contact Us For Availability
6
Jumper Harness Assembly
208 Volt SPQ F422500 Contact Us For Availability
6
Interlock Contactor SPQ 51783 Contact Us For Availability
6
Temperature Harness SPQ F8028221P Contact Us For Availability
6
Rear Bulkhead Panel SPQ F8332801 Contact Us For Availability
6
Door Assembly Kit
Includes item 10, 15, 17, 7 SPQ F8221403 Contact Us For Availability
6
Shell Front Assembly SPQ F8319901 Contact Us For Availability
6
Reed Switch Bracket SPQ F431901 Contact Us For Availability
6
SPQ F8452701 SPQ F8452701 Contact Us For Availability
6
Dispenser SPQ F8331801P Contact Us For Availability
6
Coupling SPQ F8362701 Contact Us For Availability
6
Drain Valve Harness SPQ F0150488-00 Contact Us For Availability
6
Seal Wear Plate SPQ F430248 Contact Us For Availability
7
Models with a 1 or 2 in the 8 SPQ F431222 Contact Us For Availability
7
Use Copper Conductors Only Caution Label SPQ M413862 Contact Us For Availability
7
Reed Switch Assembly SPQ F431125 Contact Us For Availability
7
SPQ F8324501 SPQ F8324501 Contact Us For Availability
7
Basket Assembly Kit SPQ F8424302P Contact Us For Availability
7
Dispenser Cap SPQ F8331801 Contact Us For Availability
7
Manifold SPQ F8333201 Contact Us For Availability
7
Coupling SPQ F421921 Contact Us For Availability
7
Dual Drain Harness SPQ F8351302 Contact Us For Availability
7
SPQ F140605 SPQ F140605 Contact Us For Availability
7
Steam Valve Assembly SPQ F8288403 Contact Us For Availability
8
Interlock Switch Harness
Models with a K in t SPQ F8339601 Contact Us For Availability
8
SPQ M411283 SPQ M411283 Contact Us For Availability
8
SPQ F8487901 SPQ F8487901 Contact Us For Availability
8
SPQ F8439001 SPQ F8439001 Contact Us For Availability
8
SPQ F826P3 SPQ F826P3 Contact Us For Availability
8
SPQ F8402601 SPQ F8402601 Contact Us For Availability
8
Excluder Seal SPQ F8527701 Contact Us For Availability
8
Screw SPQ F8325101 Contact Us For Availability
8
Screw SPQ F422208 Contact Us For Availability
8
SPQ F200201 SPQ F200201 Contact Us For Availability
8
Plug SPQ F420409 Contact Us For Availability
9
SPQ F430903 SPQ F430903 Contact Us For Availability
9
Main Power Harness SPQ F8242201 Contact Us For Availability
9
SPQ F8438901 SPQ F8438901 Contact Us For Availability
9
SPQ F8066801P SPQ F8066801P Contact Us For Availability
9
SPQ F8262001 SPQ F8262001 Contact Us For Availability
9
Bearing Housing Kit SPQ F8550101 Contact Us For Availability
9
SPQ F8261303 SPQ F8261303 Contact Us For Availability
9
SPQ F8333301 SPQ F8333301 Contact Us For Availability
10
Electrical Access Cover SPQ F8323801 Contact Us For Availability
10
Door Assembly
Includes items 1-9, 13, 14, 16 SPQ F8531701 Contact Us For Availability
10
Blind Rivet SPQ F8245101 Contact Us For Availability
10
Dispenser Hose SPQ F8548801 Contact Us For Availability
10
Adapter SPQ F8265701 Contact Us For Availability
10
Drain Hose SPQ F200165100 Contact Us For Availability
10
Spacer SPQ F8451601 Contact Us For Availability
10
Radial Seal SPQ F8203807 Contact Us For Availability
10
Pipe Nipple SPQ 901403 Contact Us For Availability
10
Washer SPQ F8456101 Contact Us For Availability
11
Plug SPQ F8223901 Contact Us For Availability
11
Power Distribution Block Cover SPQ 44014901P Contact Us For Availability
11
Mount on Concrete Warning Label SPQ F8246401 Contact Us For Availability
11
Conversion Label SPQ F8448801 Contact Us For Availability
11
Bearing SPQ F8280504 Contact Us For Availability
11
Hose Clamp SPQ F200213 Contact Us For Availability
11
Hose Adapter SPQ F421908 Contact Us For Availability
11
Drain Elbow Hose SPQ F8387301 Contact Us For Availability
11
Screw SPQ 70321501 Contact Us For Availability
11
Nut SPQ F8455801 Contact Us For Availability
12
Warning Label SPQ F8233501 Contact Us For Availability
12
Nut SPQ F430231 Contact Us For Availability
12
Screw SPQ M411072 Contact Us For Availability
12
Door Lock Plate Assembly SPQ F8320401 Contact Us For Availability
12
Sleeve Adapter SPQ F8382501 Contact Us For Availability
12
Washer SPQ F8279201 Contact Us For Availability
12
Washer SPQ F8402701 Contact Us For Availability
12
Water Hose SPQ F200166 Contact Us For Availability
12
Screw SPQ 202175 Contact Us For Availability
12
Motor Spring Bracket SPQ F8342201 Contact Us For Availability
13
Power Distribution Block SPQ M413865 Contact Us For Availability
13
External Supply Connection Decal SPQ F8150201 Contact Us For Availability
13
Male Tab Terminal SPQ M400985 Contact Us For Availability
13
Shell Front Assembly
Includes F8233201 Stud, SPQ F8508501 Contact Us For Availability
13
Washer SPQ F431147 Contact Us For Availability
13
Door Lock Plate Shim SPQ F8398401 Contact Us For Availability
13
Washer SPQ F200164 Contact Us For Availability
13
Valve Support Bracket SPQ F8312901 Contact Us For Availability
13
Bolt SPQ F8402801 Contact Us For Availability
13
Screw SPQ F8313701 Contact Us For Availability
13
Steam Hose SPQ F200197 Contact Us For Availability
14
Electric Shock Danger Label SPQ F8115501 Contact Us For Availability
14
Right Side Panel SPQ F8407903 Contact Us For Availability
14
Warning Label SPQ F8428501 Contact Us For Availability
14
Door Gasket SPQ F8308001 Contact Us For Availability
14
Shim SPQ F8484401 Contact Us For Availability
14
Gasket SPQ F8353901 Contact Us For Availability
14
Eye Bolt SPQ F8319503 Contact Us For Availability
14
Street Elbow SPQ F421703 Contact Us For Availability
15
Clip SPQ F8108501P Contact Us For Availability
15
Filter Retainer Guard SPQ F8151201 Contact Us For Availability
15
Front Panel SPQ F8408001 Contact Us For Availability
15
Door Weldment
Studded SPQ F8398301 Contact Us For Availability
15
Door Lock Catch SPQ F8344501 Contact Us For Availability
15
Seal Wear Plate SPQ F8207001 Contact Us For Availability
15
Hose Clamp SPQ F8428701 Contact Us For Availability
15
Drain Valve Cover SPQ F200133600 Contact Us For Availability
15
Extension Spring SPQ F8440701 Contact Us For Availability
15
Threaded Rod SPQ F8452101 Contact Us For Availability
16
Muffin Fan SPQ F200318900P Contact Us For Availability
16
Drive Mounting Bracket SPQ F8386901 Contact Us For Availability
16
Screw SPQ F8117601 Contact Us For Availability
16
Grommet SPQ 70182601 Contact Us For Availability
16
Door Hinge Shim SPQ F8435901 Contact Us For Availability
16
Drain Valve Kit SPQ F8340801 Contact Us For Availability
17
Drive Fan Harness SPQ F220900 Contact Us For Availability
17
Nut SPQ 70346501 Contact Us For Availability
17
Screw SPQ M405535 Contact Us For Availability
17
Panel Locator SPQ F170604 Contact Us For Availability
17
Grommet SPQ F8457801 Contact Us For Availability
17
Pipe SPQ F200166402 Contact Us For Availability
17
Motor Isolation Kit SPQ F8387601 Contact Us For Availability
18
DIN Rail SPQ F110110 Contact Us For Availability
18
EMI Filter Power Harness SPQ F8129001 Contact Us For Availability
18
Bolt SPQ F8549301 Contact Us For Availability
18
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
18
Hose Clamp SPQ F0602365-27 Contact Us For Availability
18
Grease Fitting SPQ F8441101 Contact Us For Availability
19
Tubing SPQ F8079401 Contact Us For Availability
19
EMI Filter Kit SPQ F827P3 Contact Us For Availability
19
Male Tab Terminal SPQ F8113901 Contact Us For Availability
19
Hose Clamp SPQ 70030401 Contact Us For Availability
19
Bushing SPQ F8378701 Contact Us For Availability
19
Washer SPQ F8193101 Contact Us For Availability
19
O-Ring SPQ F8562503 Contact Us For Availability
20
Harness SPQ 00177 Contact Us For Availability
20
Rear Bulkhead Edging SPQ F8439101 Contact Us For Availability
20
Door Hinge SPQ F8436001 Contact Us For Availability
20
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
20
Belt SPQ F8441901 Contact Us For Availability
21
Nut SPQ F430232 Contact Us For Availability
21
Step Down Power Harness SPQ F8303001P Contact Us For Availability
21
Top Right Cover SPQ F8374001 Contact Us For Availability
21
Warning Label SPQ F8442702 Contact Us For Availability
21
Basket Pulley SPQ F8362601 Contact Us For Availability
22
Contactor SPQ F8030002P Contact Us For Availability
22
Right Bulkhead Panel SPQ F8530401 Contact Us For Availability
22
Door Lock Assembly SPQ F8320501 Contact Us For Availability
23
Snap Bushing SPQ F8030001 Contact Us For Availability
23
Door Glass Retainer SPQ C000191 Contact Us For Availability
24
Communication Board SPQ F430174 Contact Us For Availability
24
Network Board Assembly
Network models SPQ F431210 Contact Us For Availability
24
Ground Lug Connector SPQ 70256901P Contact Us For Availability
24
Handle Mount SPQ F8323301 Contact Us For Availability
24
Frame Template SPQ F8413201 Contact Us For Availability
25
Expansion Clip SPQ F8286503 Contact Us For Availability
25
Magnet SPQ F431100 Contact Us For Availability
26
Top Cover SPQ F8286501 Contact Us For Availability
28
Washer SPQ F8382806 Contact Us For Availability
29
Fuse
5 Amp SPQ F8189401P Contact Us For Availability
29
Motor SPQ F8517801 Contact Us For Availability
30
Pressure Bulb SPQ F980P3 Contact Us For Availability
31
Air Coupling SPQ F8335201P Contact Us For Availability
33
Cable Tie SPQ F8366601 Contact Us For Availability
NI
SPQ F200233500 SPQ F200233500 Contact Us For Availability
NI
SPQ F8383101 SPQ F8383101 Contact Us For Availability
NI
SPQ F8028701 SPQ F8028701 Contact Us For Availability
NI
Network Wire Harness Assembly SPQ M413506 Contact Us For Availability
NI
SPQ F8060401P SPQ F8060401P Contact Us For Availability
NI
SPQ 44088501P SPQ 44088501P Contact Us For Availability
NI
SPQ F8367801 SPQ F8367801 Contact Us For Availability
NI
Logic Supply Power Harness SPQ F230630 Contact Us For Availability
NI
Electric Heat Coils Harness SPQ F230739 Contact Us For Availability
NI
SPQ F8060001 SPQ F8060001 Contact Us For Availability
NI
SPQ F8054901 SPQ F8054901 Contact Us For Availability
NI
SPQ F8054602 SPQ F8054602 Contact Us For Availability
NI
SPQ F8054601 SPQ F8054601 Contact Us For Availability
NI
SPQ F330186P SPQ F330186P Contact Us For Availability
NI
Thermistor Sensor SPQ F370609 Contact Us For Availability
NI
SPQ F8028234 SPQ F8028234 Contact Us For Availability
NI
SPQ 20253 SPQ 20253 Contact Us For Availability
NI
SPQ F8351601 SPQ F8351601 Contact Us For Availability
NI
SPQ F8029503 SPQ F8029503 Contact Us For Availability
NI
Fill Valve Harness SPQ F8347101 Contact Us For Availability
NI
SPQ F8257002 SPQ F8257002 Contact Us For Availability
NI
SPQ F8257001P SPQ F8257001P Contact Us For Availability
NI
SPQ F8257101 SPQ F8257101 Contact Us For Availability
NI
SPQ F824P3 SPQ F824P3 Contact Us For Availability
NI
Bearing Housing Assembly SPQ F822P3 Contact Us For Availability
NI
SPQ F8474602 SPQ F8474602 Contact Us For Availability
NI
Heating Element Plug SPQ F360202 Contact Us For Availability
NI
SPQ F8054702 SPQ F8054702 Contact Us For Availability
NI
SPQ F8054701P SPQ F8054701P Contact Us For Availability
NI
Steam Assembly SPQ F8394501 Contact Us For Availability
NI
Wet-Clean Kit SPQ F923P3 Contact Us For Availability
NI
USB IR Interface Kit SPQ 203346 Contact Us For Availability
NI
Reuse Kit SPQ F924P3 Contact Us For Availability
× ![]()
