Model Unimac USE017*F5412 Dryer – Common Parts & Diagrams

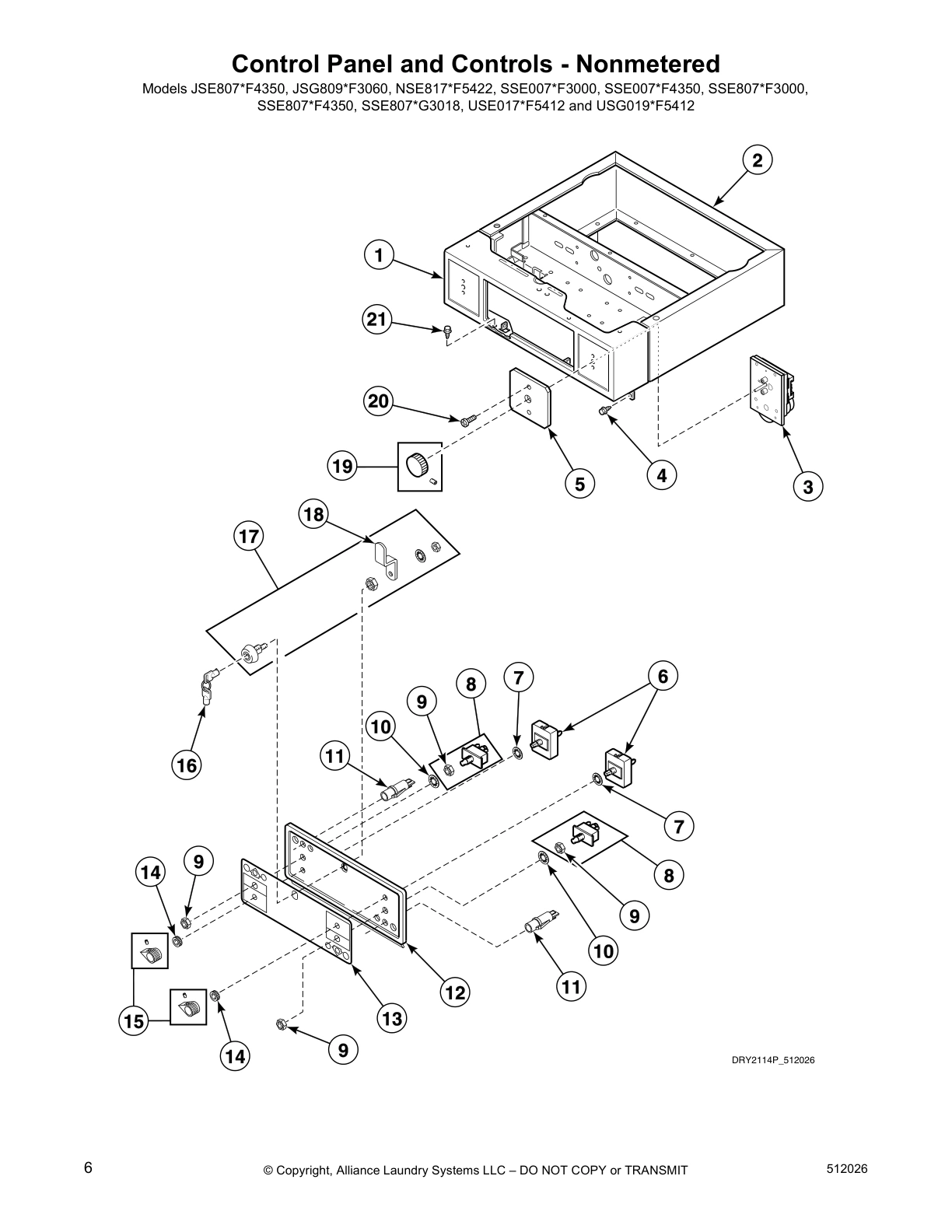

Control Panel and Controls - Nonmetered

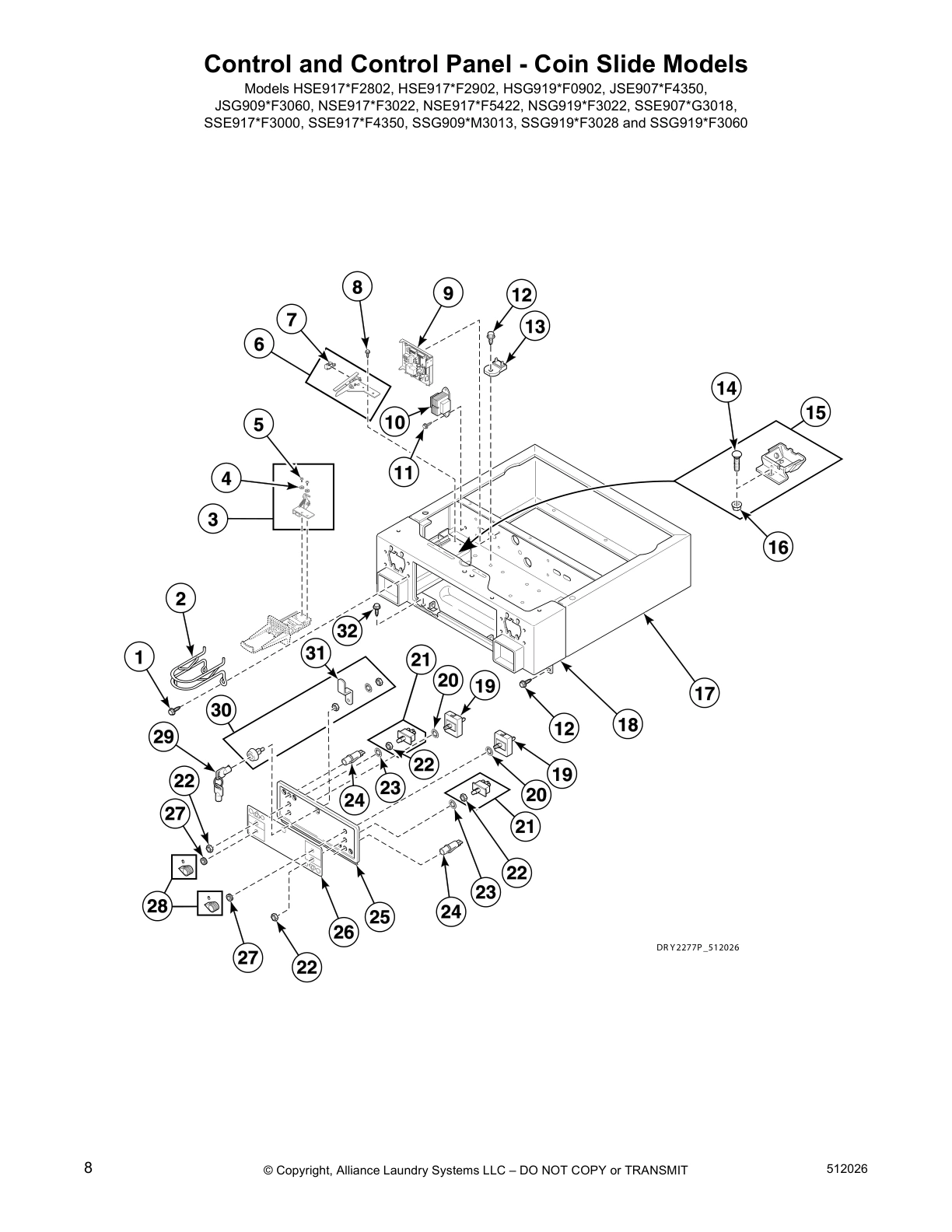

Control and Control Panel - Coin Slide Models
Control Panel and Controls - Coin Slide Ready Models
Control Panel and Controls - Coin Drop and Card Models
(Drawing 1 of 2)
Control Panel and Controls - Coin Drop and Card Models
(Drawing 2 of 2)
Control Cabinet Controls - Coin Drop Models
Card Reader - Card Reader Ready and Installed Models
Integrated Card Reader Installed and Ready -
All Netmaster Integrated Card Reader Models
Control Cabinet - Non-Vend Models
Loading Door without Window
Loading Door with Window (Drawing 1 of 2)
Loading Door with Window (Drawing 2 of 2)
Access Panel, Front Panel and Seal
Front Panel Assembly
Common parts from model Unimac USE017*F5412 Dryer
SPQ 511636WP SPQ 511636WP Contact Us For Availability
5
Liner Door Seal SPQ 510103LP Contact Us For Availability
6
Door Liner Grill SPQ 510129 Contact Us For Availability
7
SPQ 510066WP SPQ 510066WP Contact Us For Availability
15
Washer SPQ 91176 Contact Us For Availability
19
Control Panel and Bracket Asse SPQ 32464 Contact Us For Availability
NI
SPQ 62853 SPQ 62853 Contact Us For Availability
NI
SPQ 510098W SPQ 510098W Contact Us For Availability
× ![]()
