Model UniMac UCZ030HN2 Washer – Common Parts & Diagrams

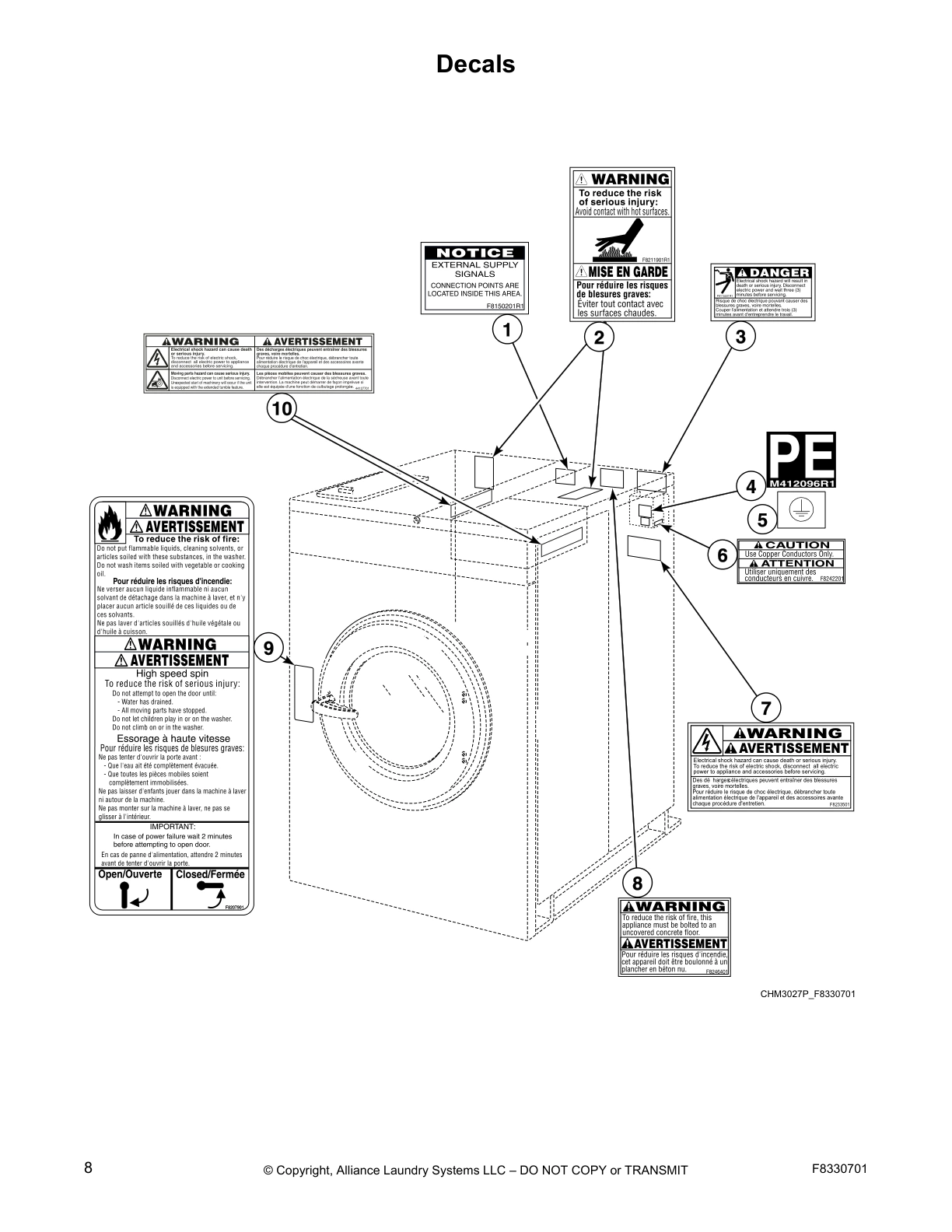

Decals

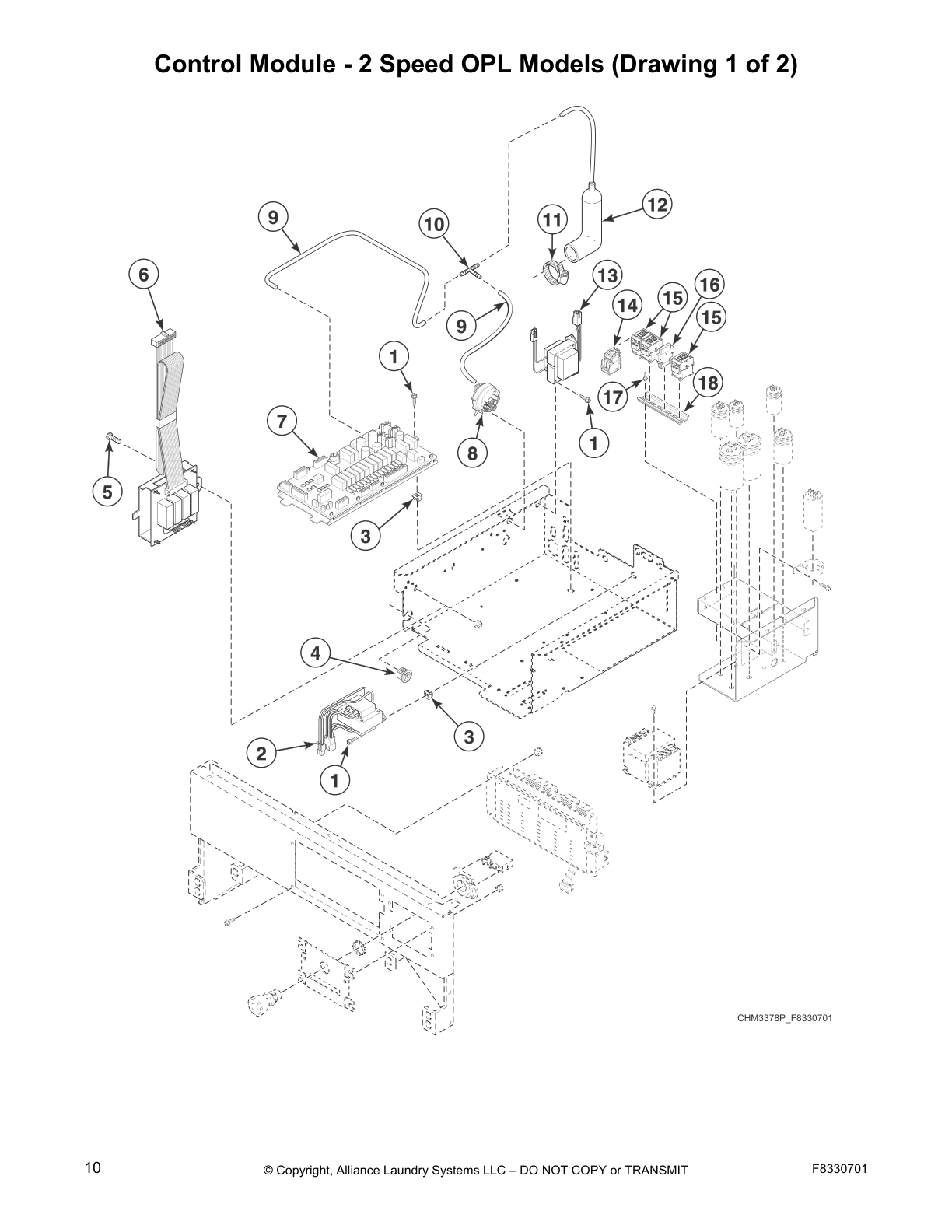

Control Module - 2 Speed OPL Models (Drawing 1 of 2)

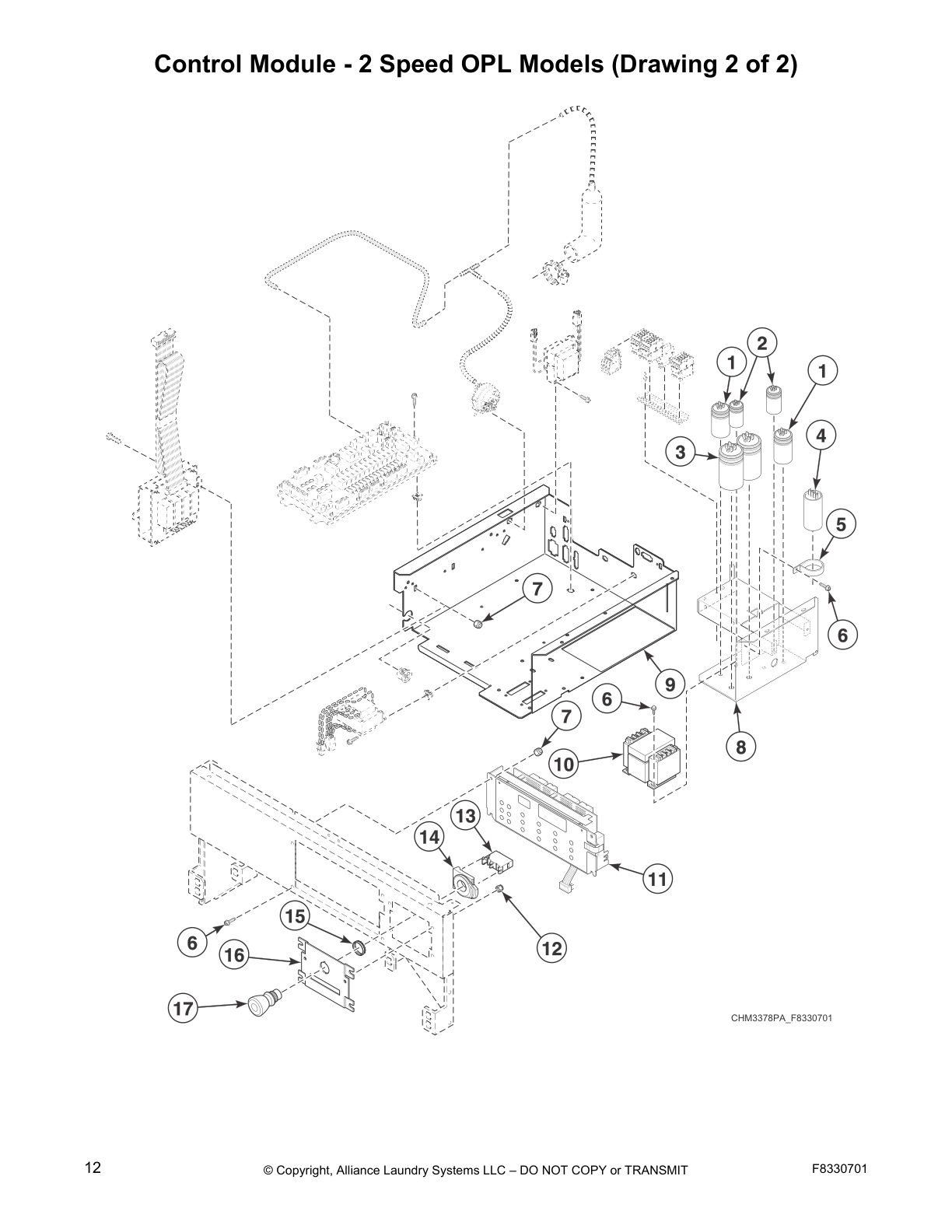

Control Module - 2 Speed OPL Models (Drawing 2 of 2)

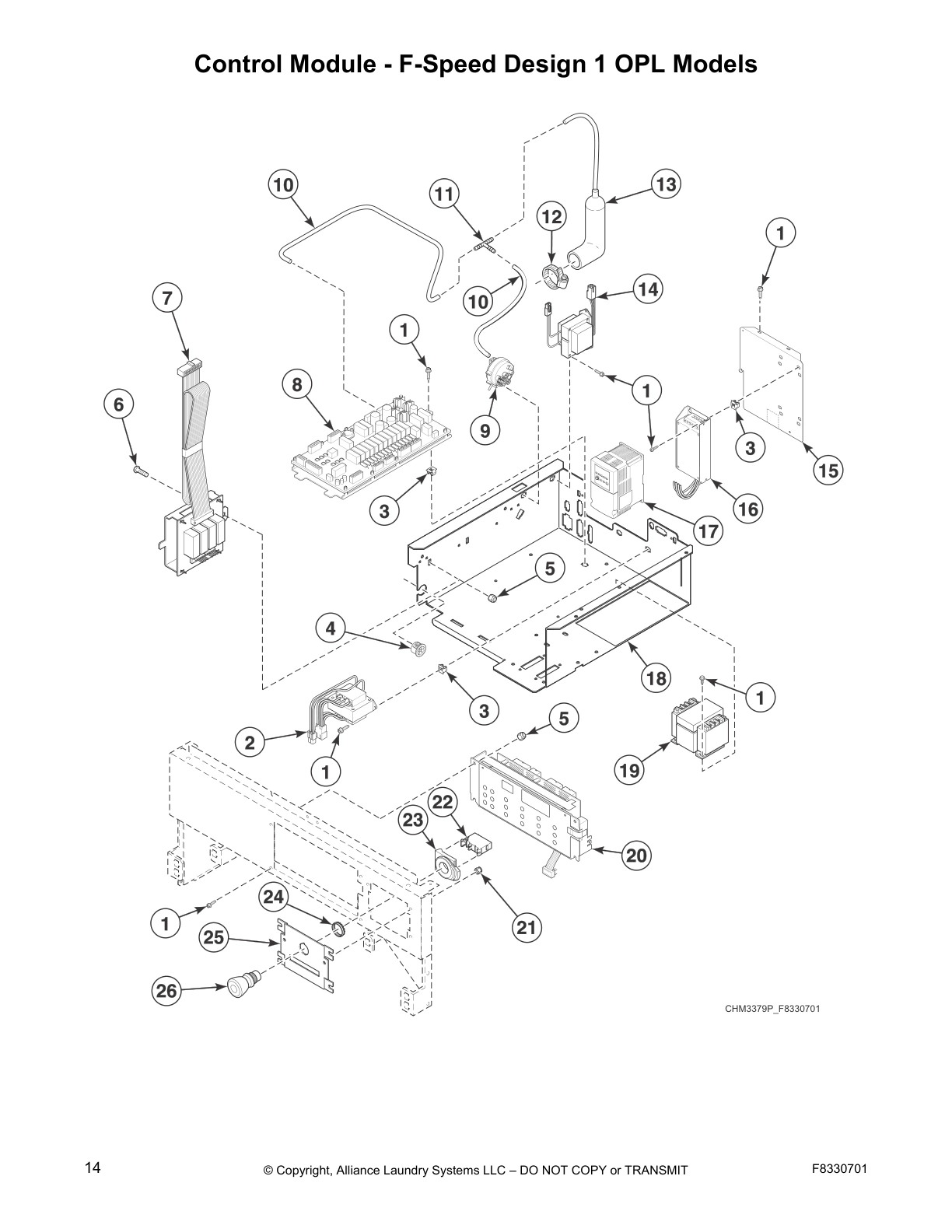

Control Module - F-Speed Design 1 OPL Models

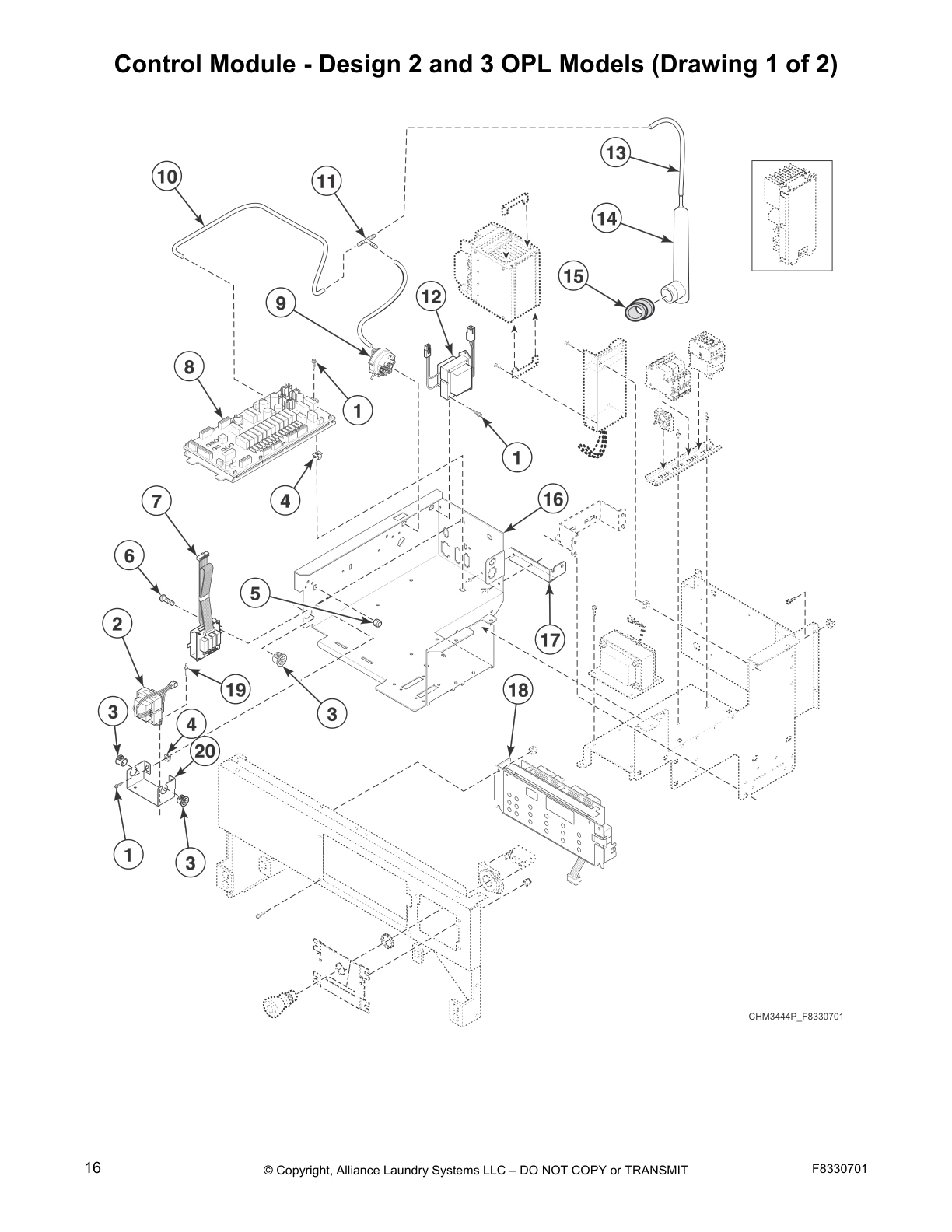

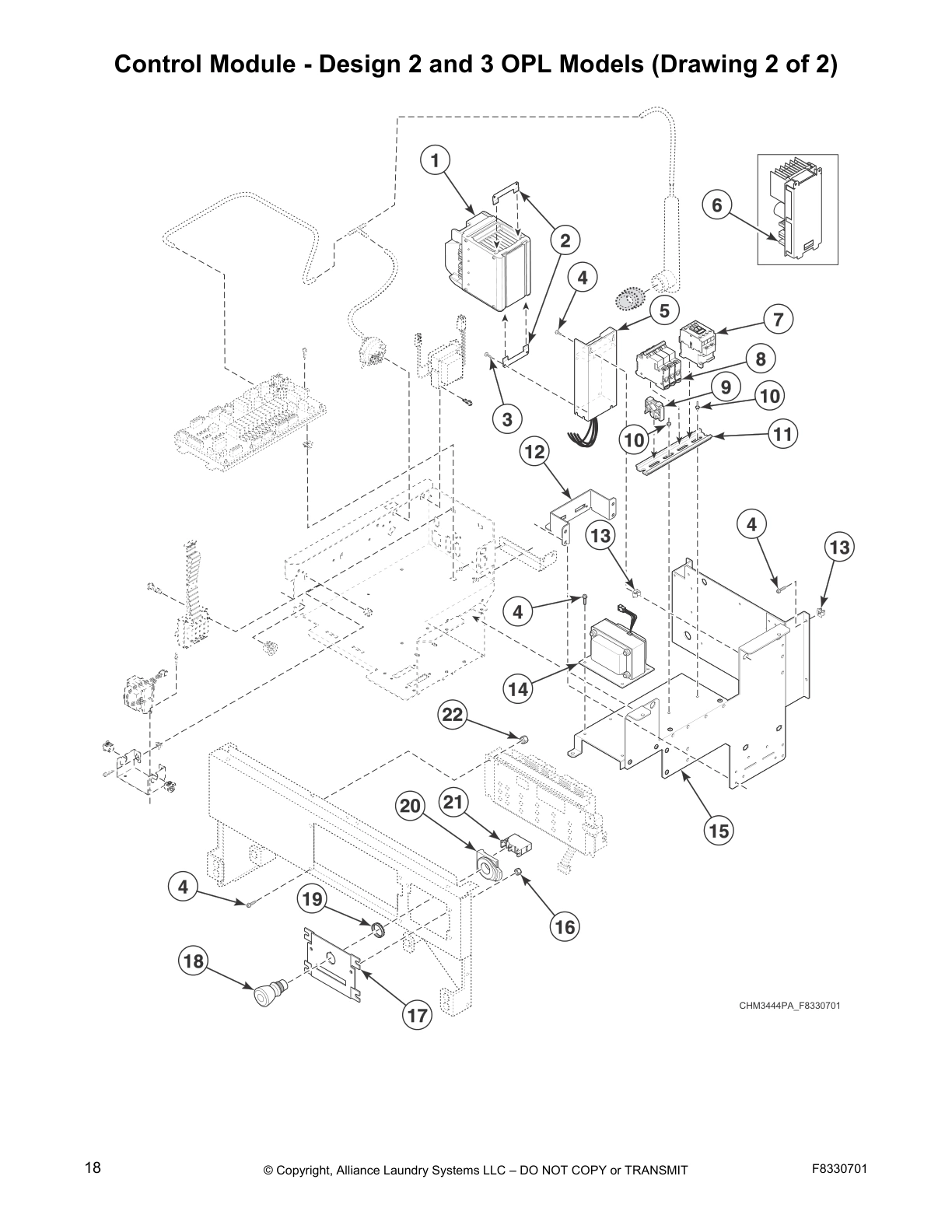

Control Module - Design 2 and 3 OPL Models (Drawing 1 of 2)
Control Module - Design 2 and 3 OPL Models (Drawing 2 of 2)

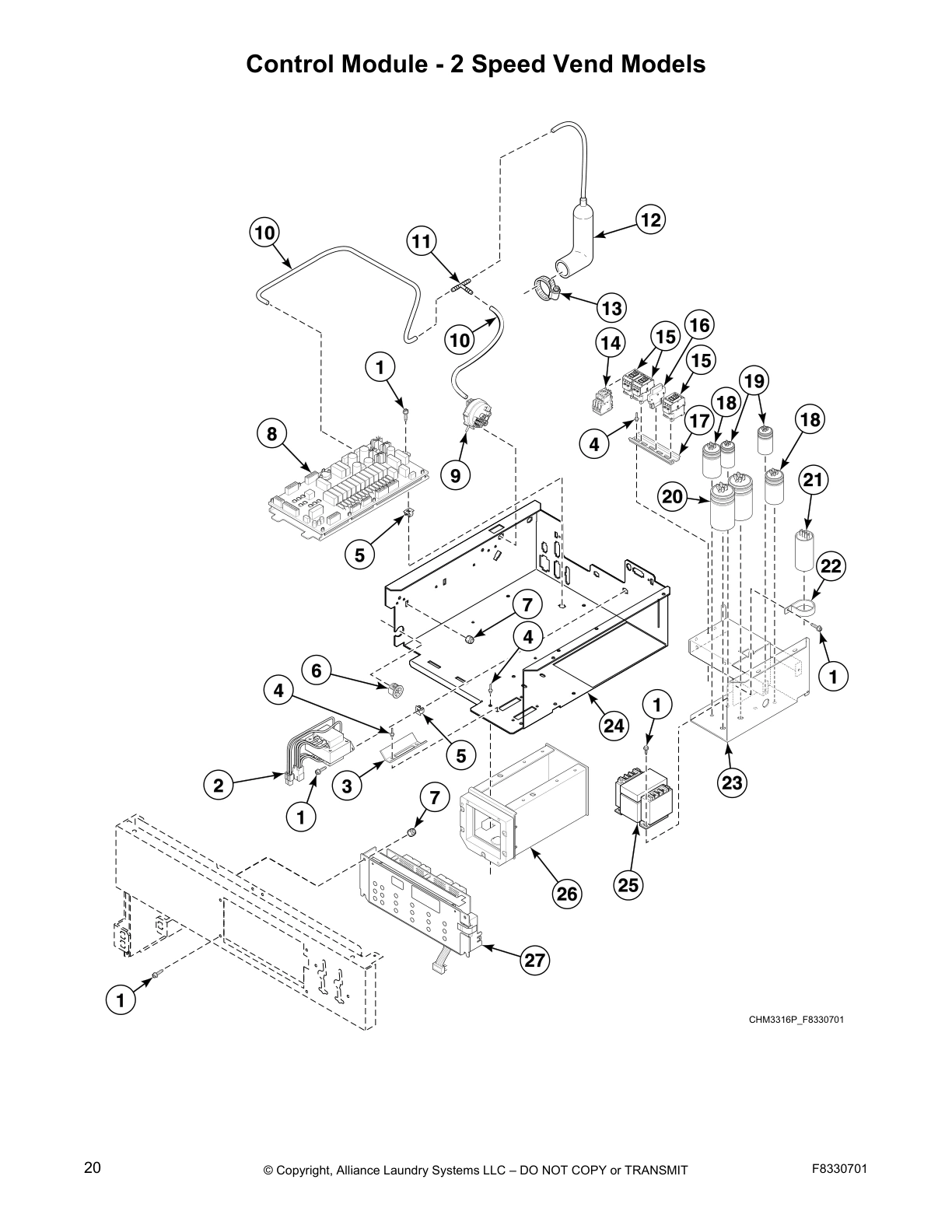

Control Module - 2 Speed Vend Models

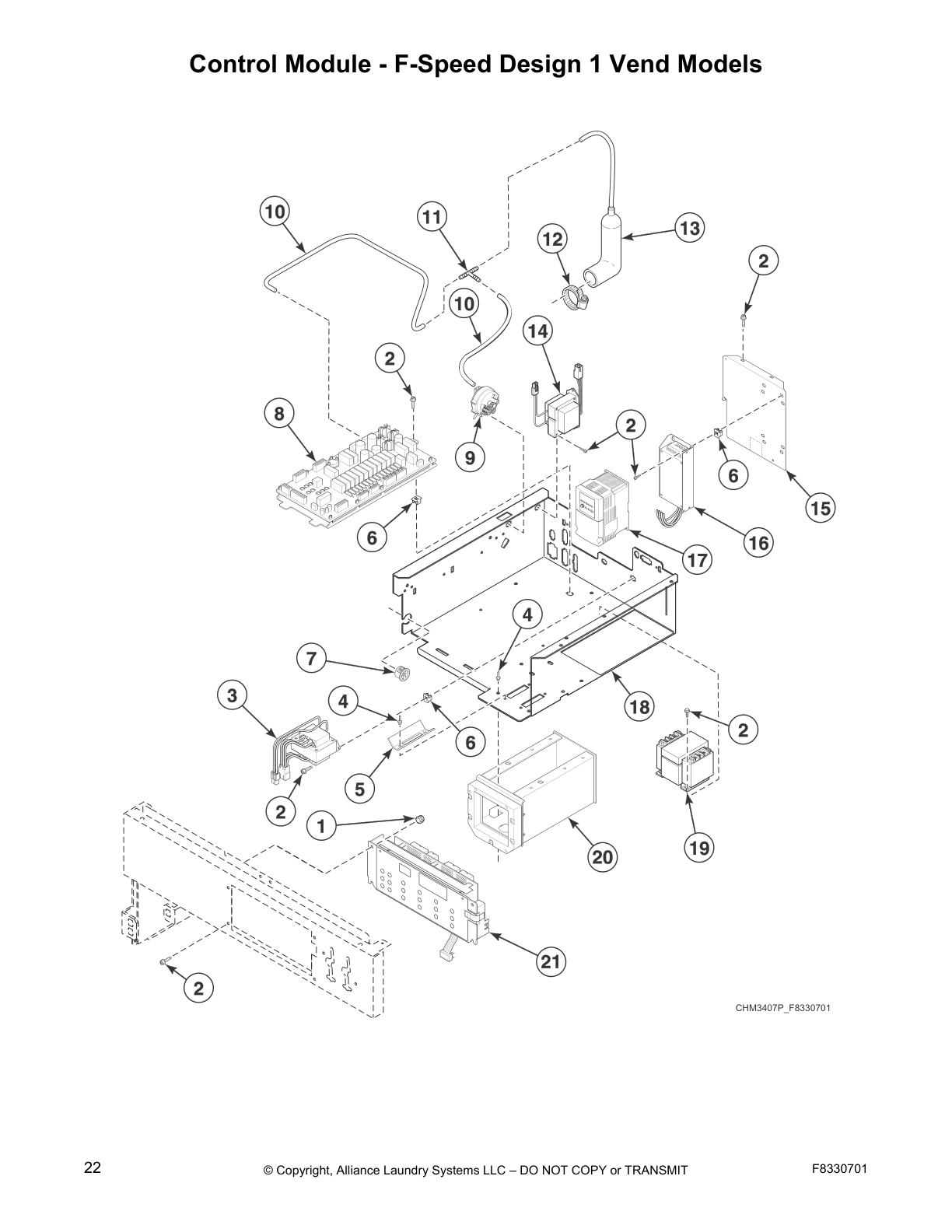

Control Module - F-Speed Design 1 Vend Models

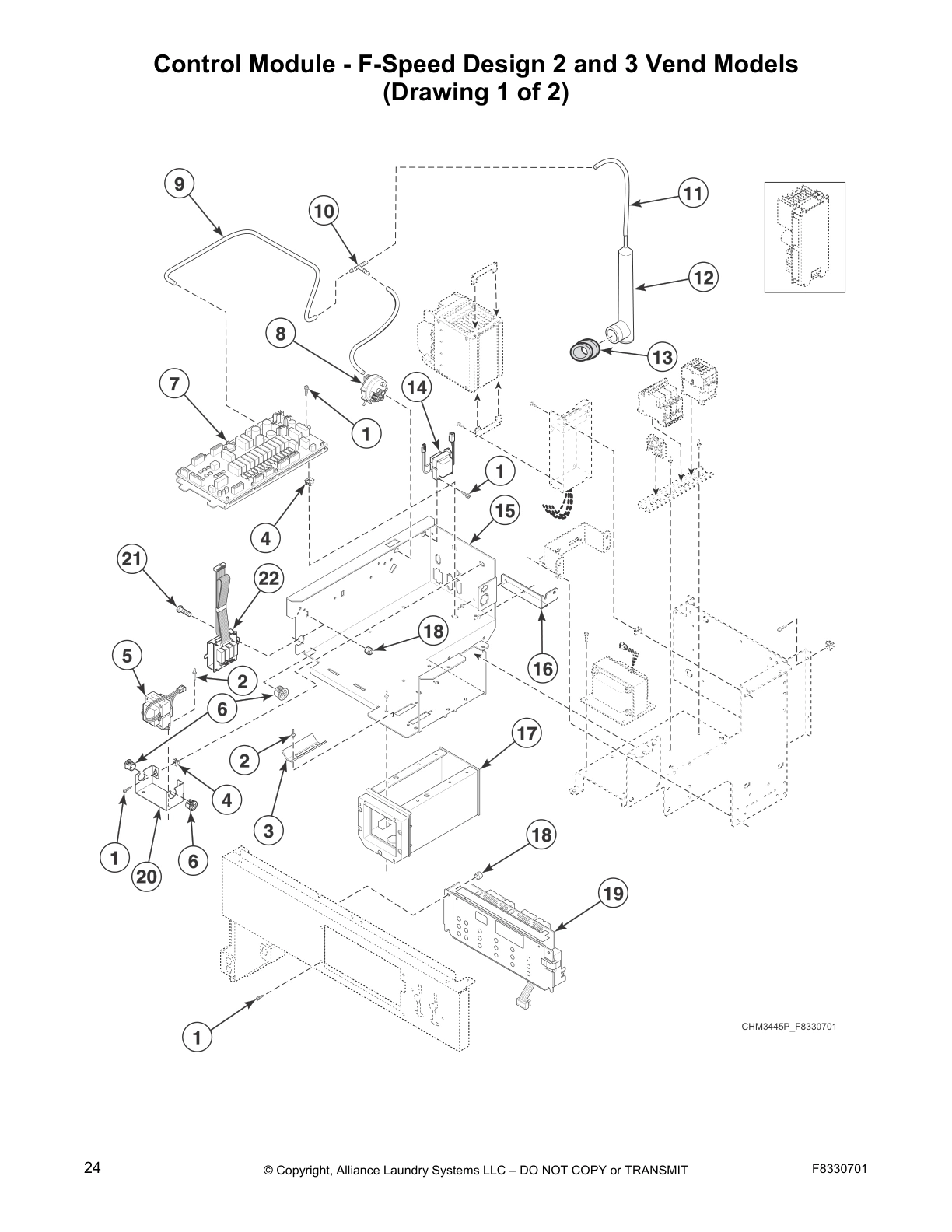

Control Module - F-Speed Design 2 and 3 Vend Models
(Drawing 1 of 2)

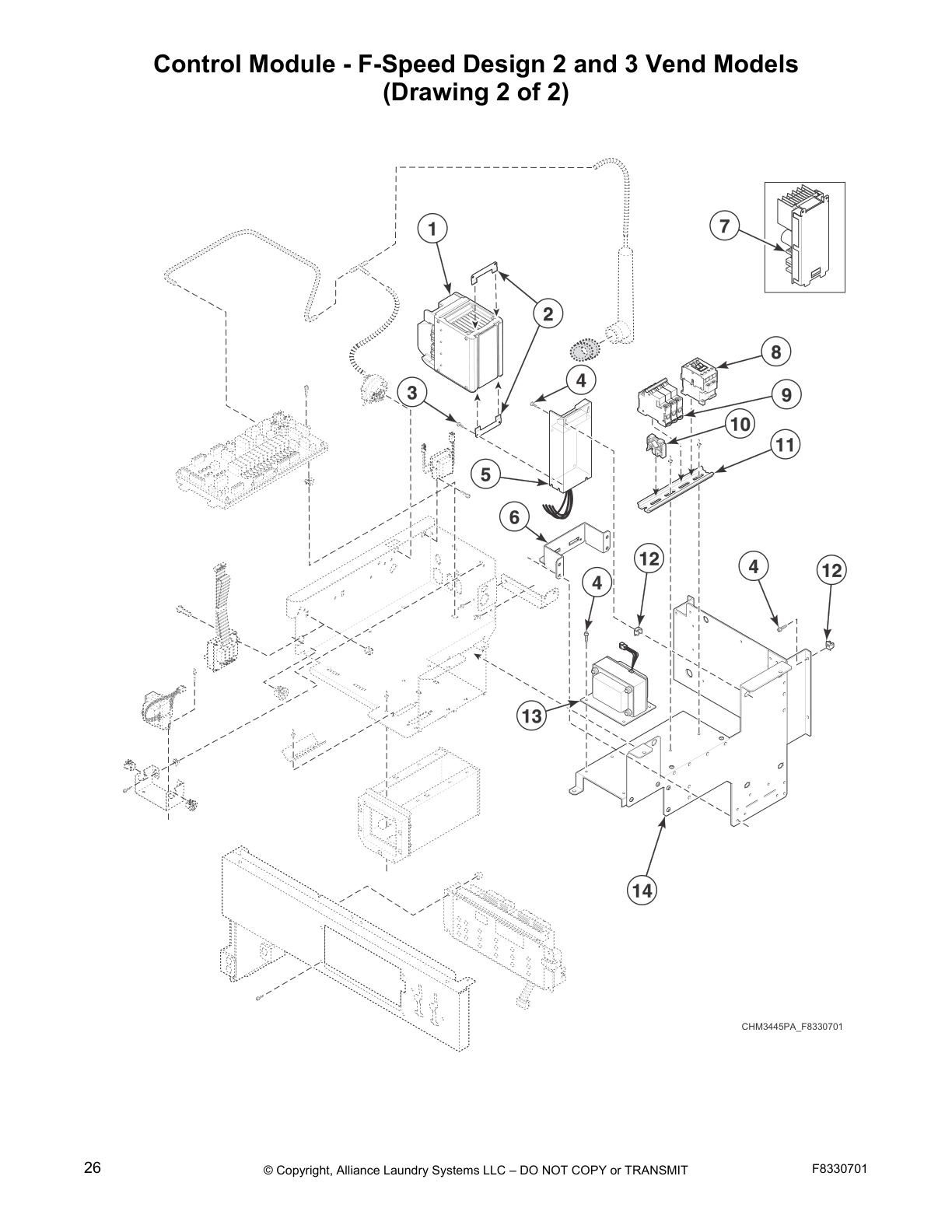

Control Module - F-Speed Design 2 and 3 Vend Models
(Drawing 2 of 2)

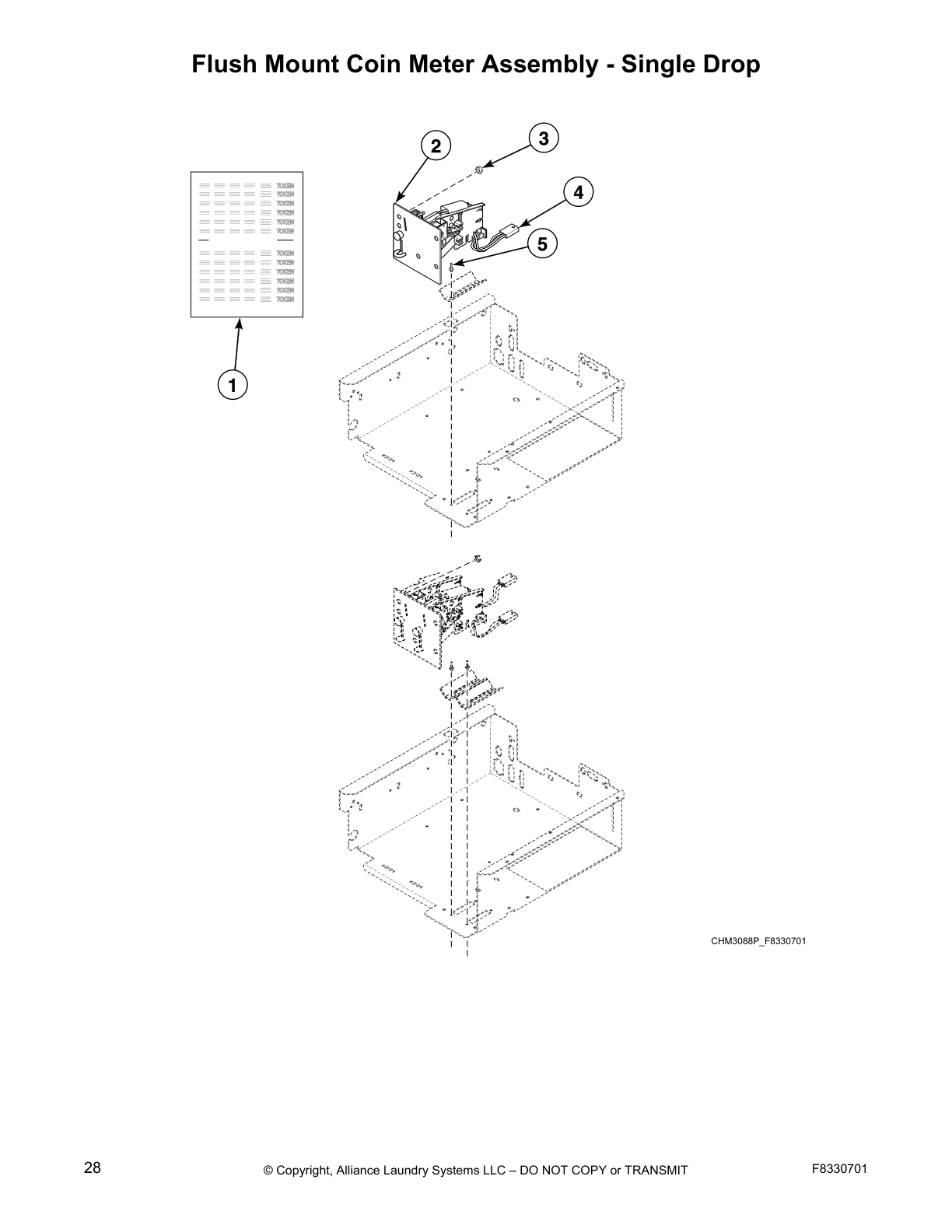

Flush Mount Coin Meter Assembly - Single Drop

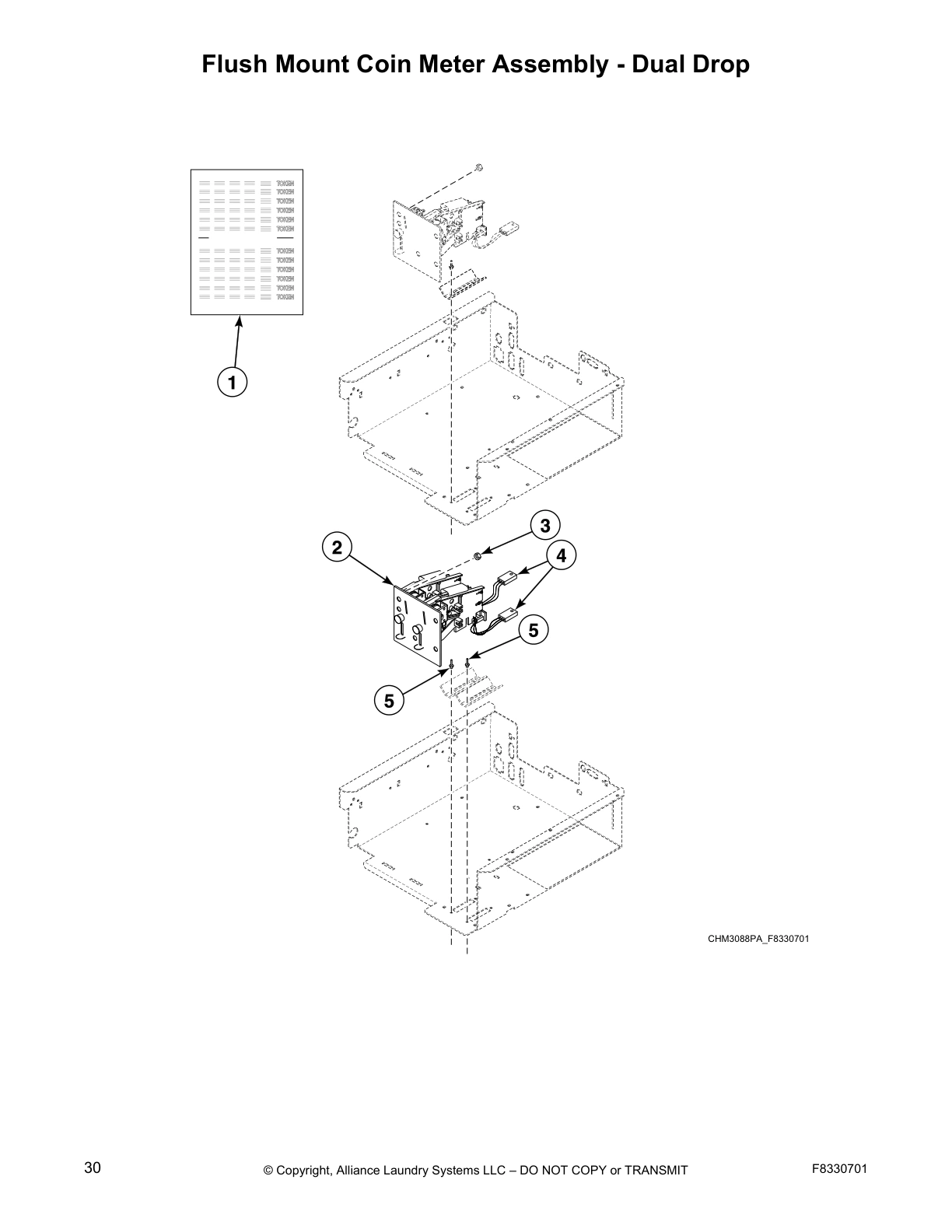

Flush Mount Coin Meter Assembly - Dual Drop

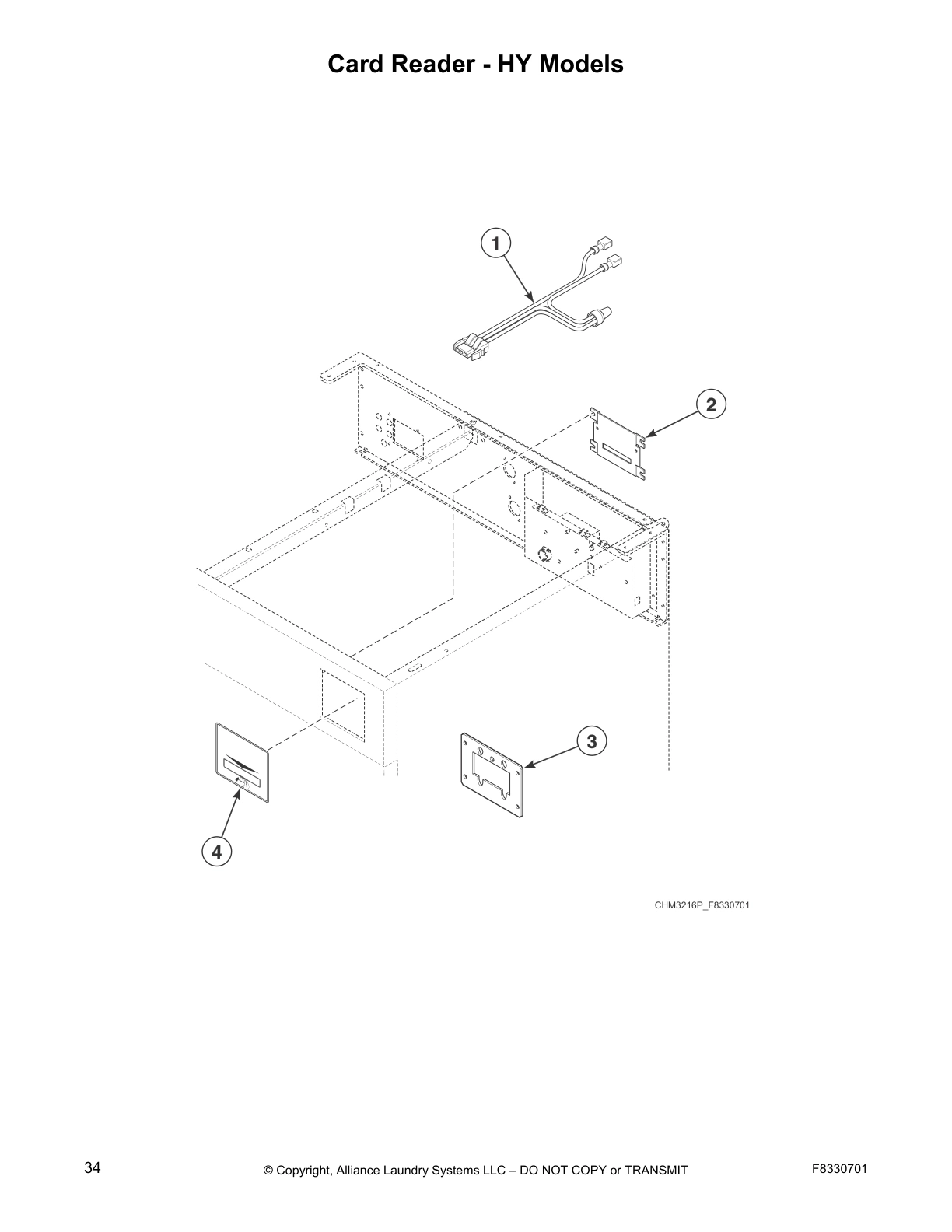

Card Reader - HY Models

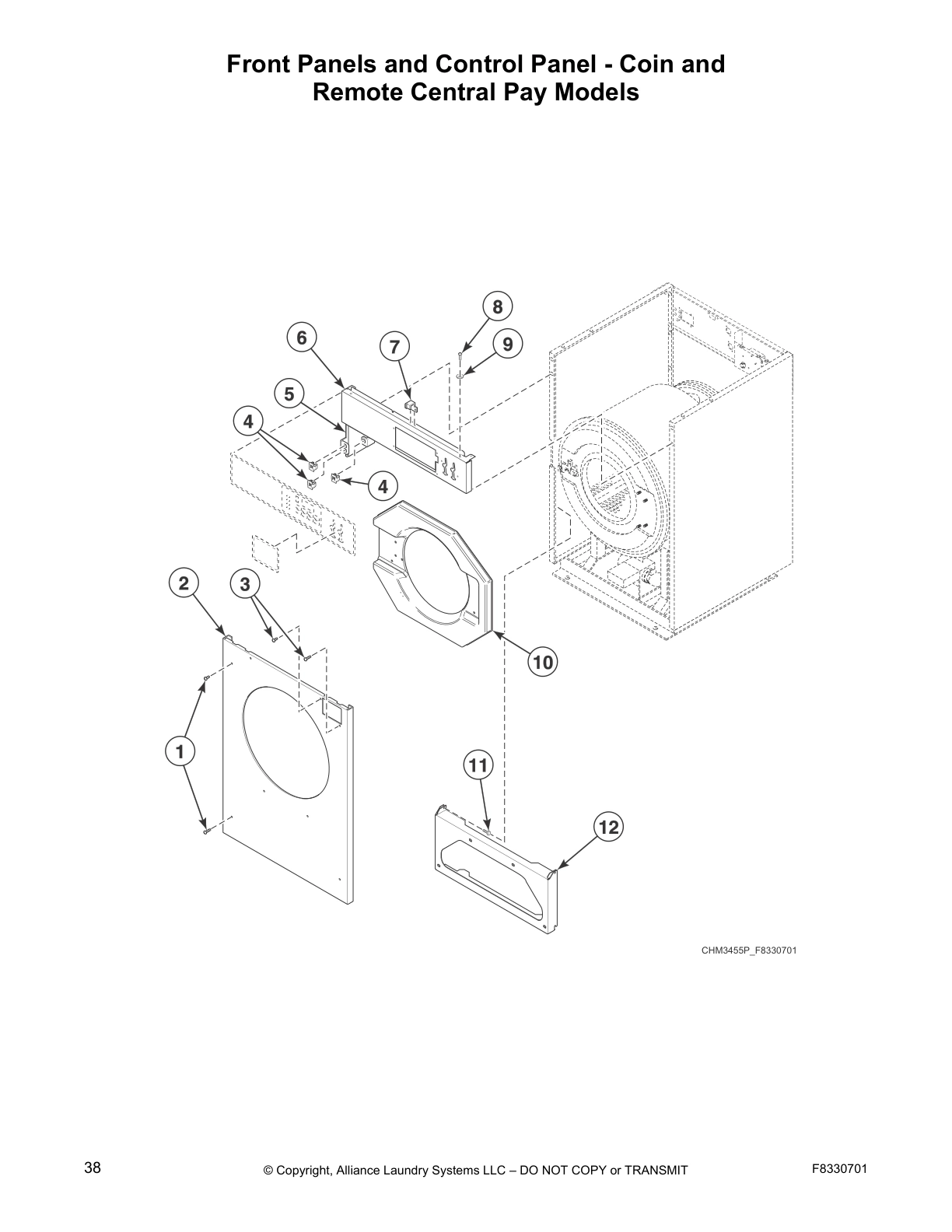

Front Panels and Control Panel - Coin and
Remote Central Pay Models

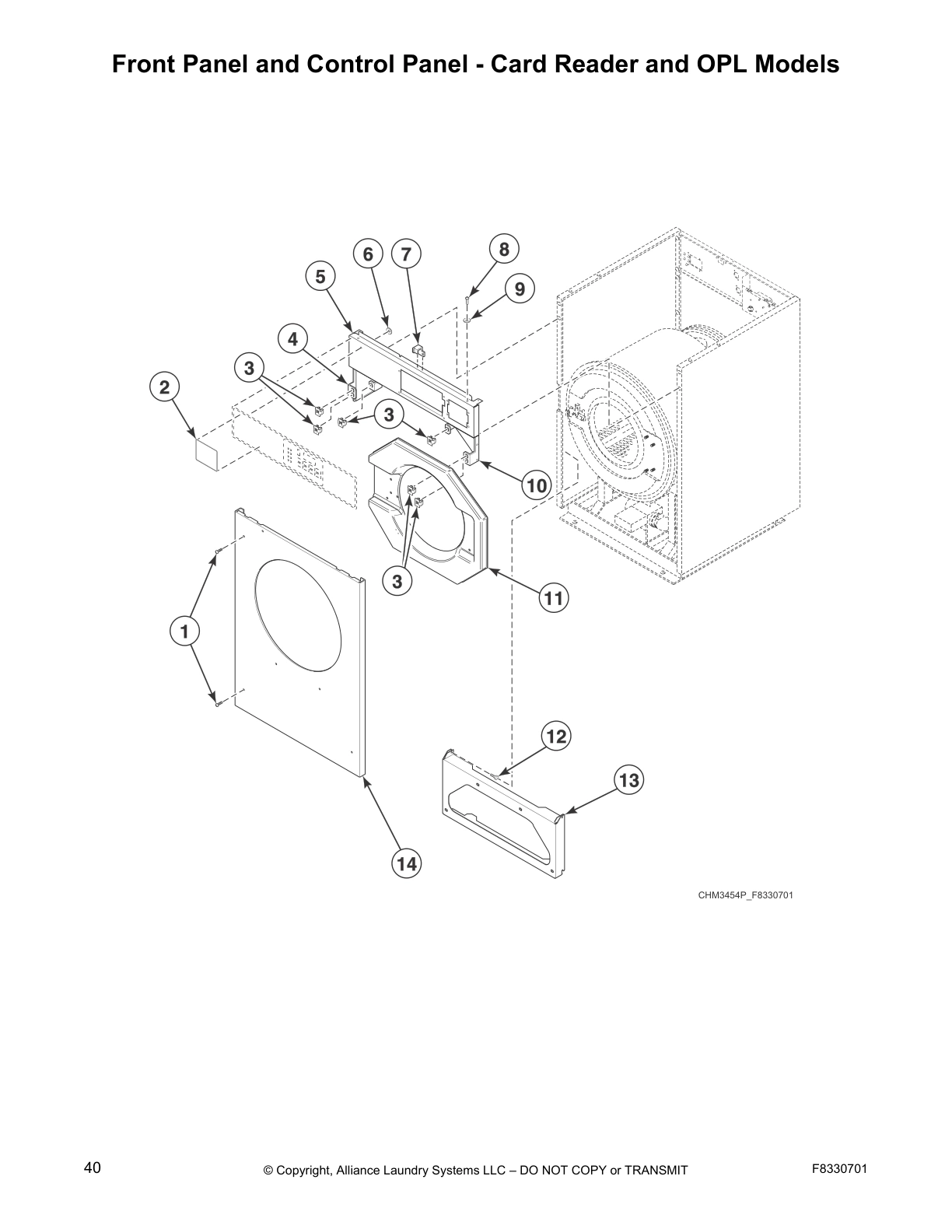

Front Panel and Control Panel - Card Reader and OPL Models

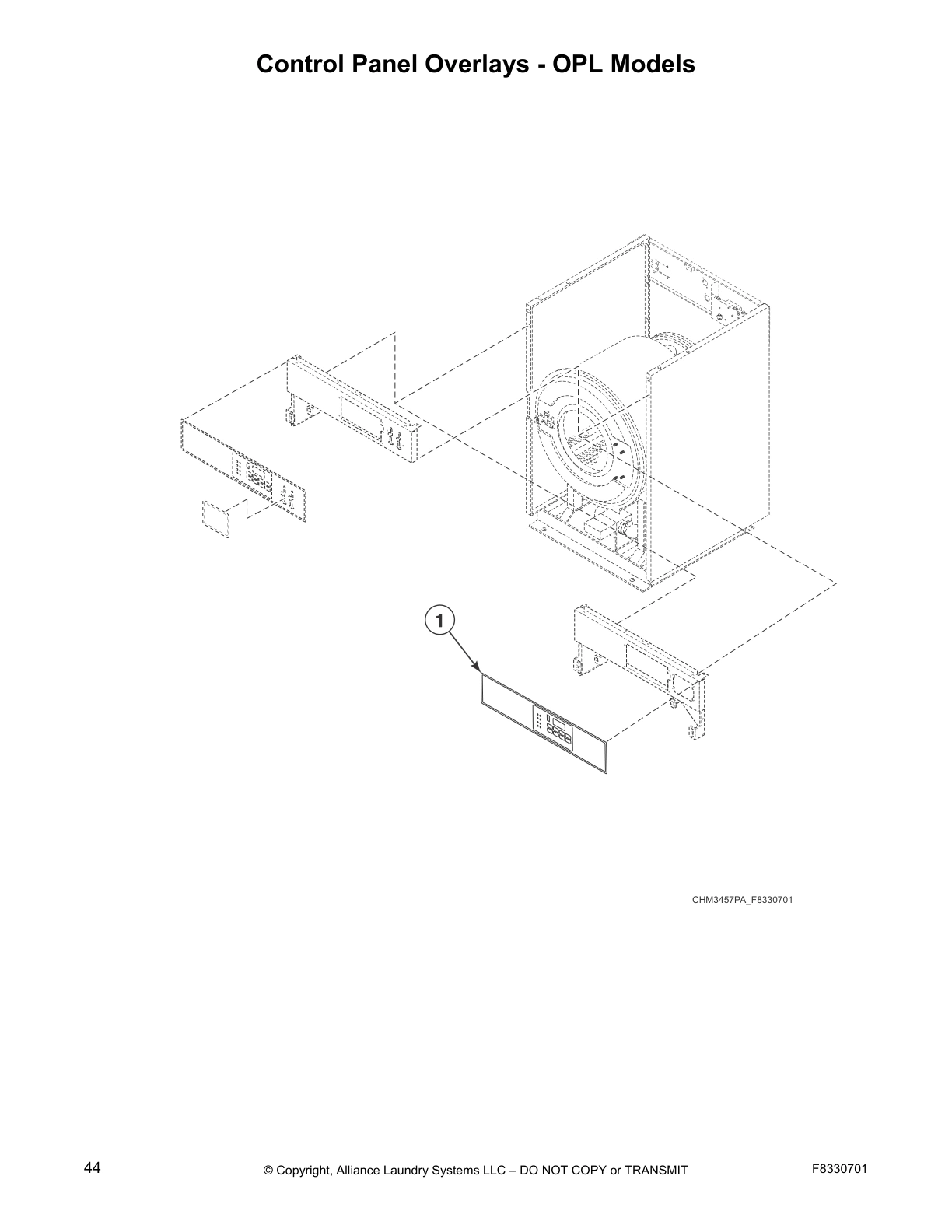

Control Panel Overlays - OPL Models

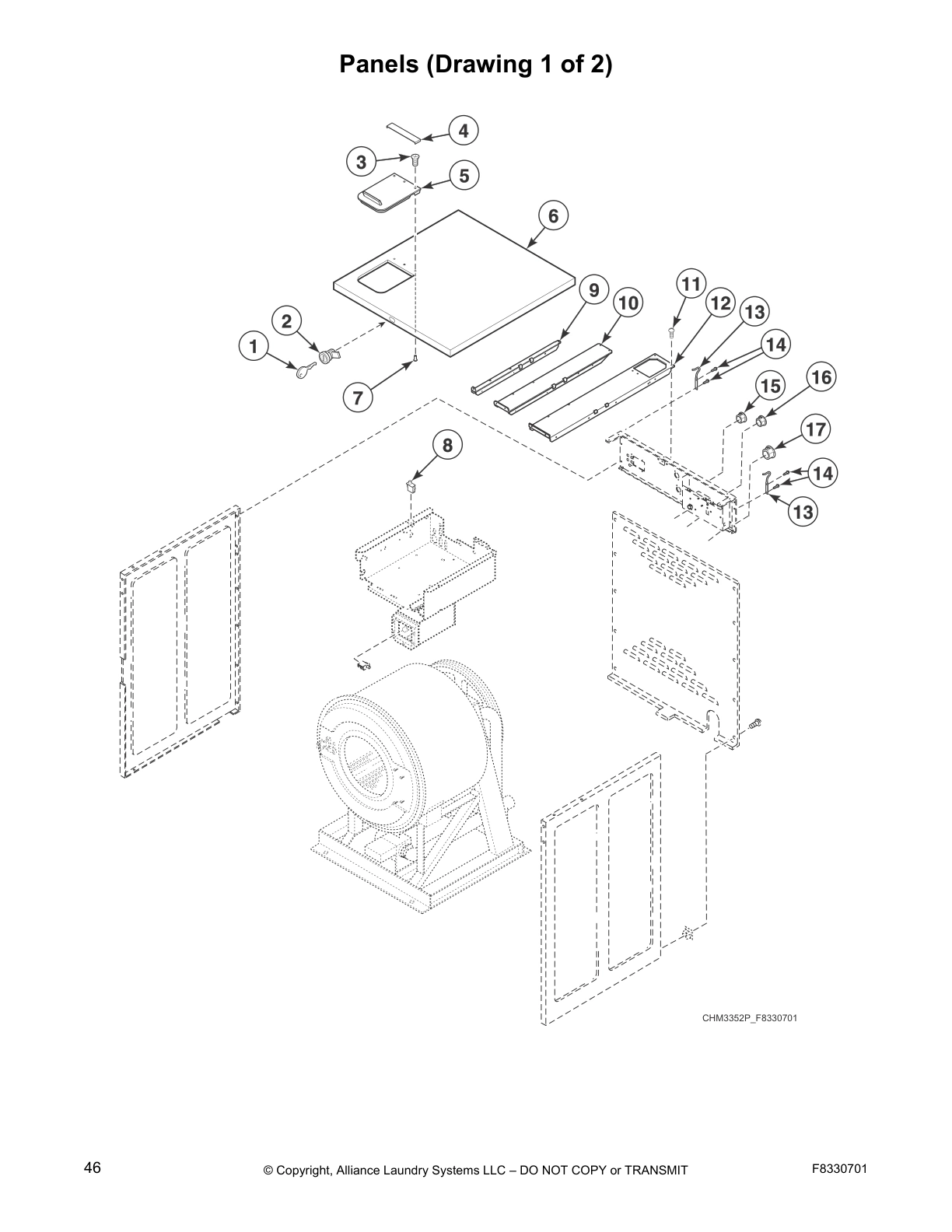

Panels (Drawing 1 of 2)

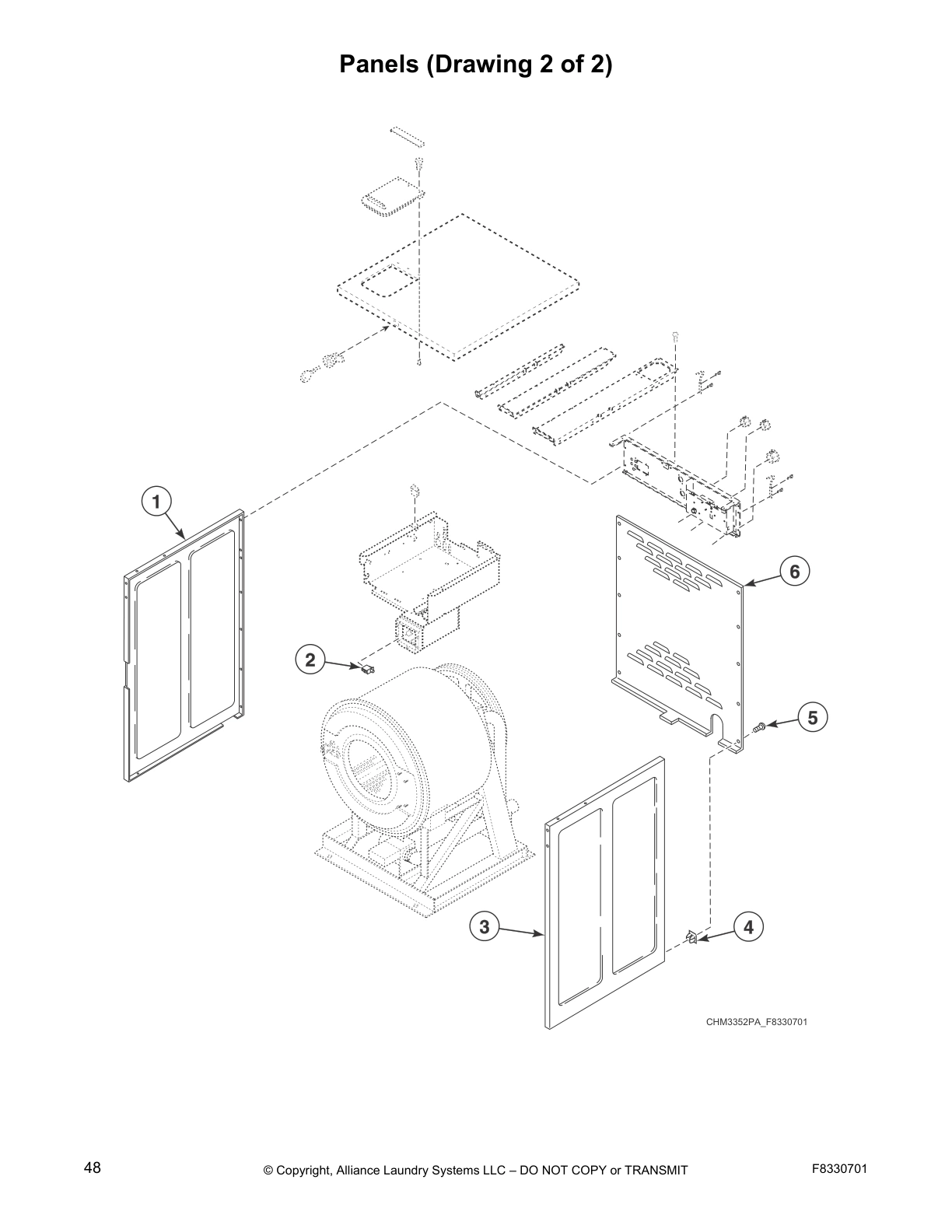

Panels (Drawing 2 of 2)

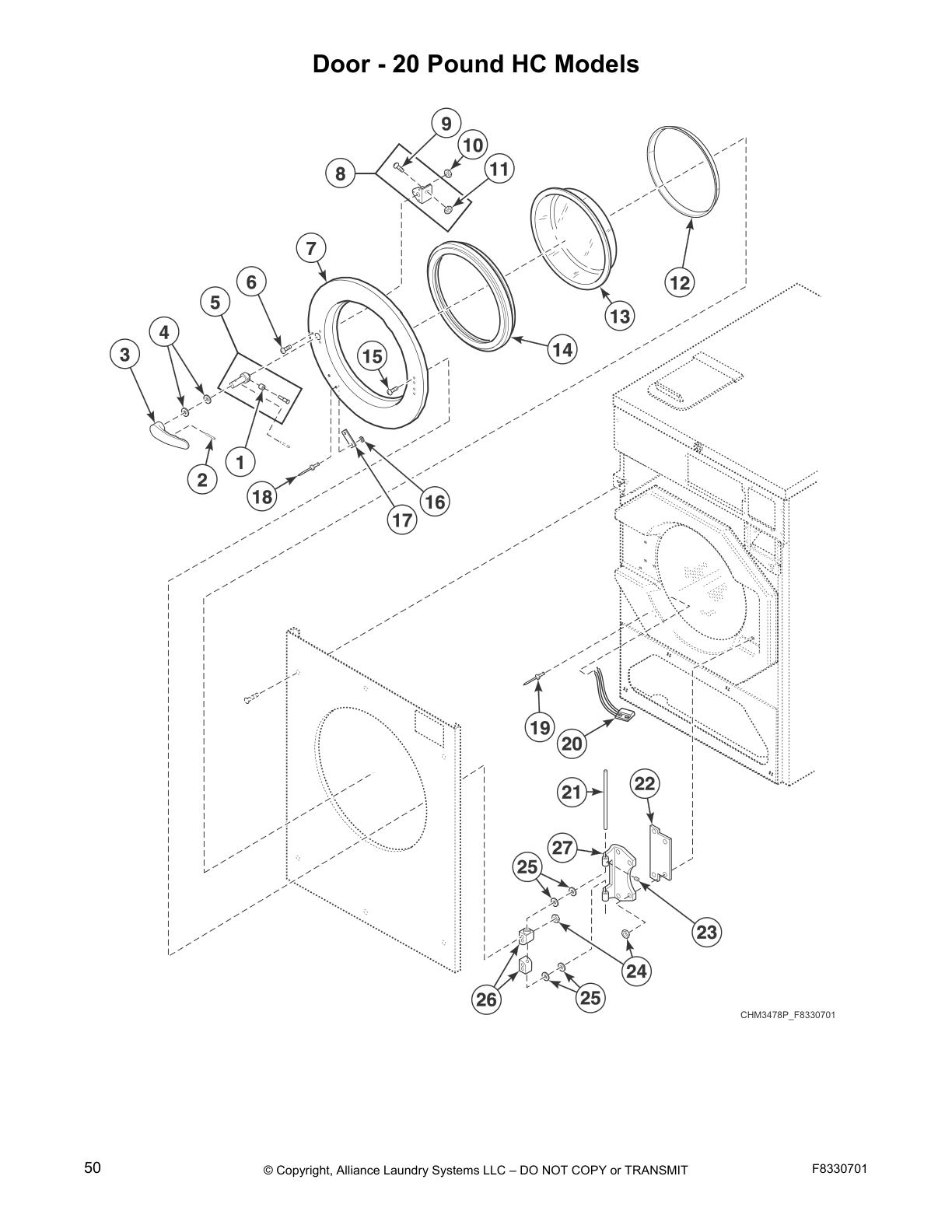

Door - 20 Pound HC Models
Door - 20 Pound CC, IC, SC and UC Models
Door - 30 Pound HC Models

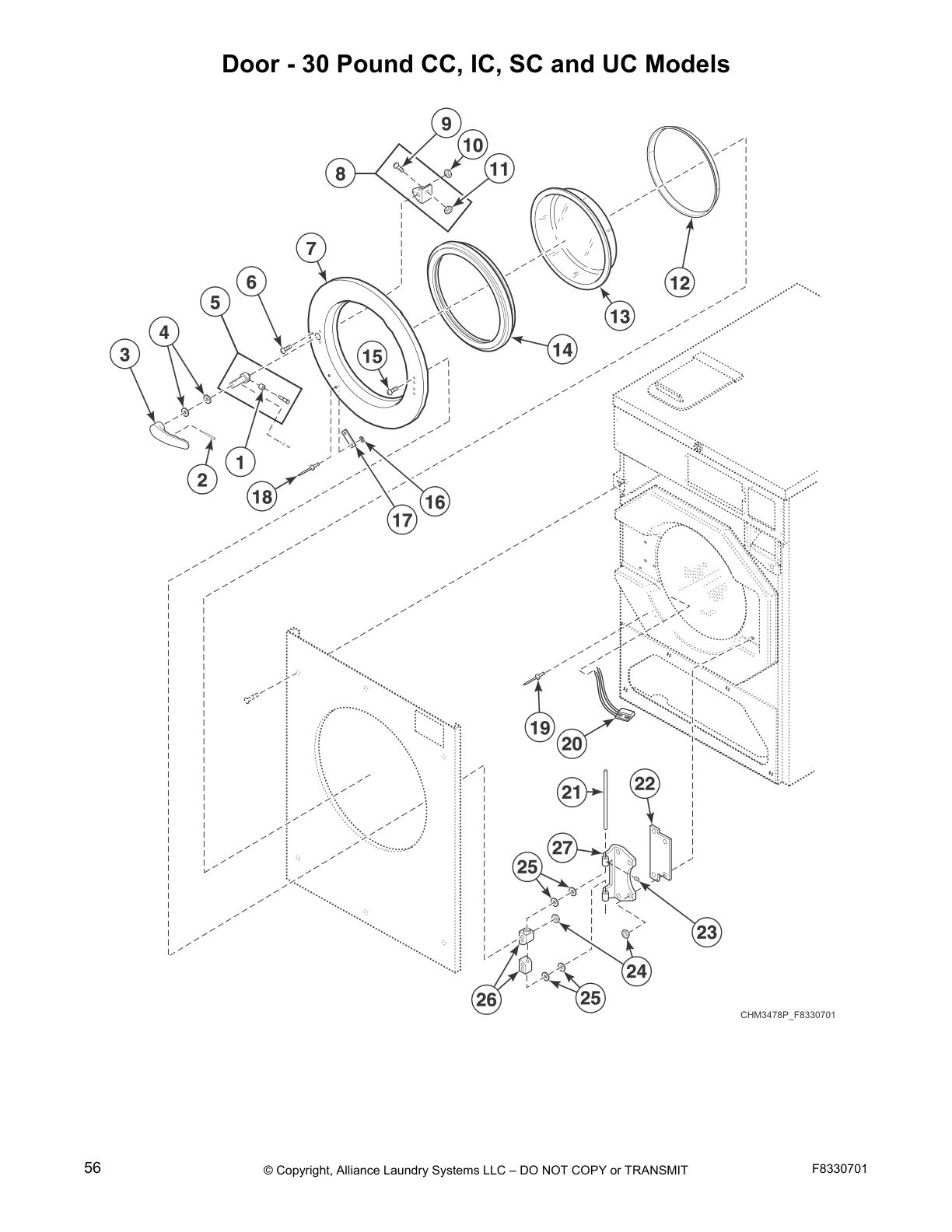

Door - 30 Pound CC, IC, SC and UC Models

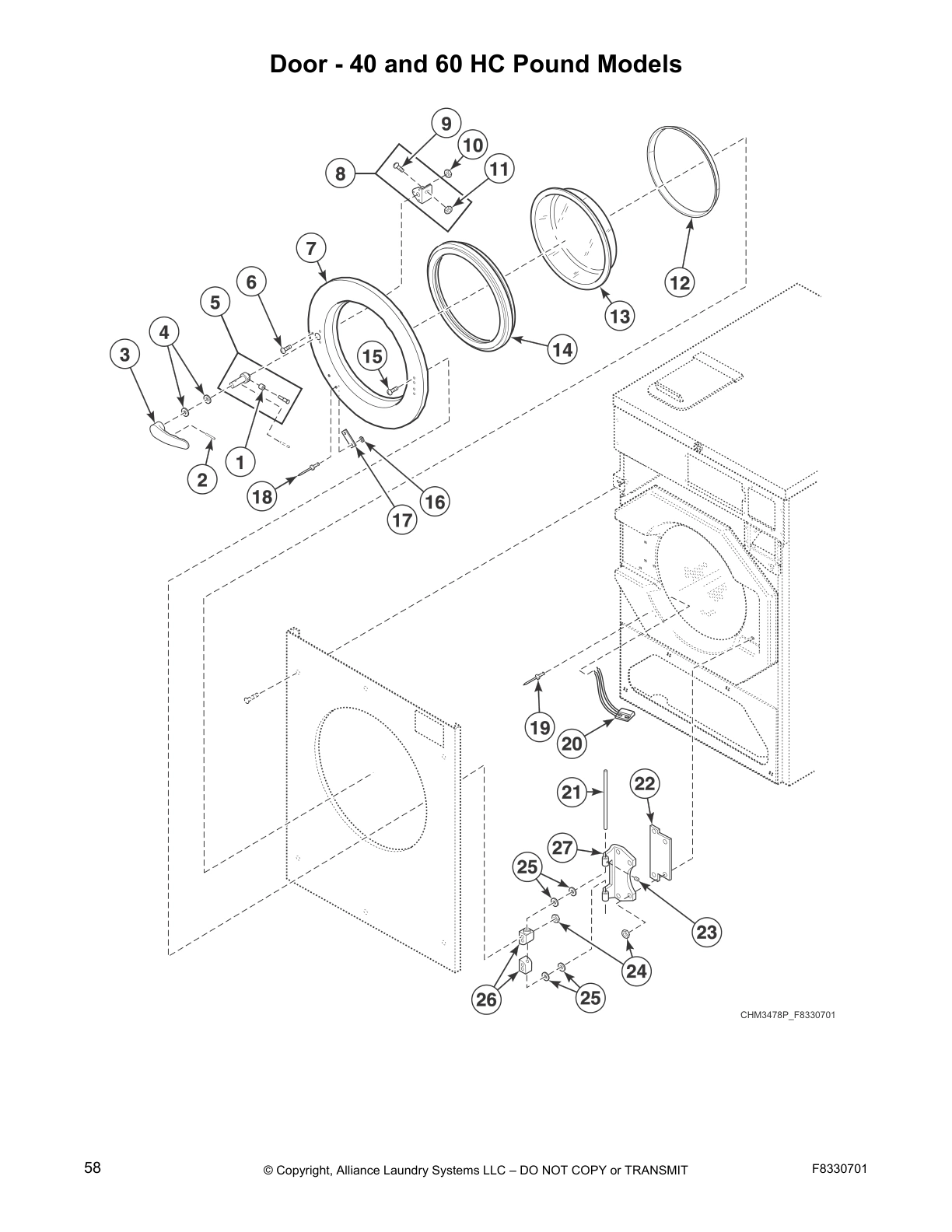

Door - 40 and 60 HC Pound Models

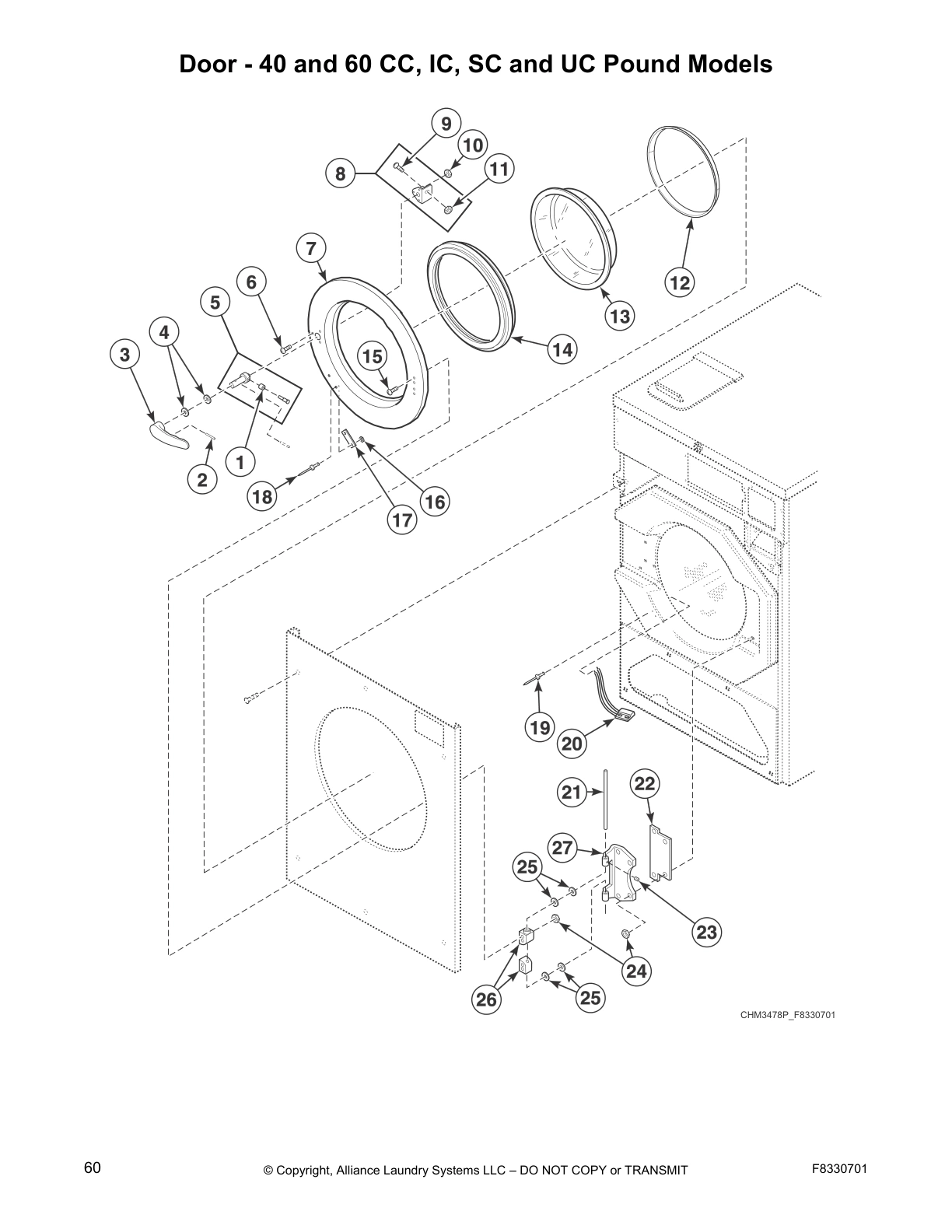

Door - 40 and 60 CC, IC, SC and UC Pound Models

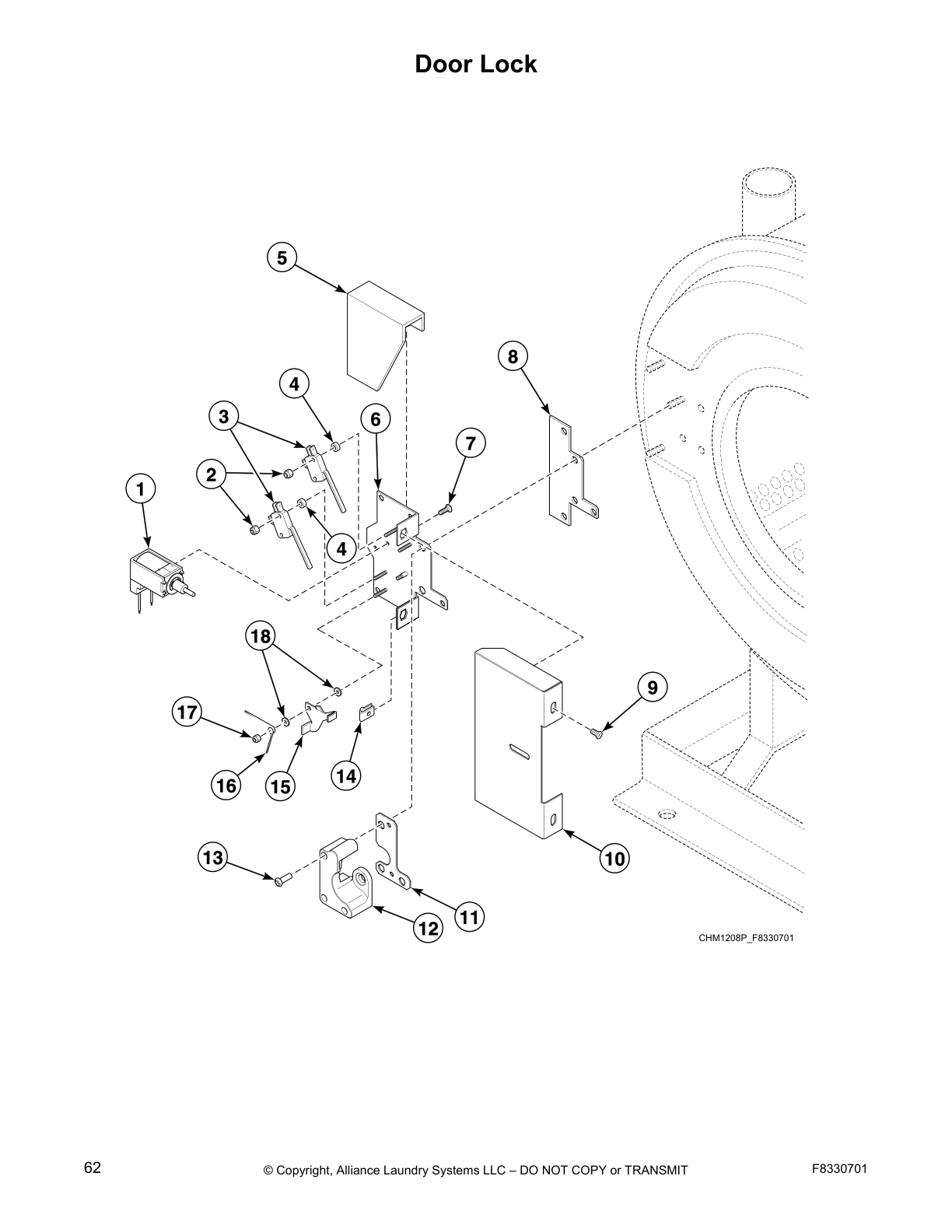

Door Lock

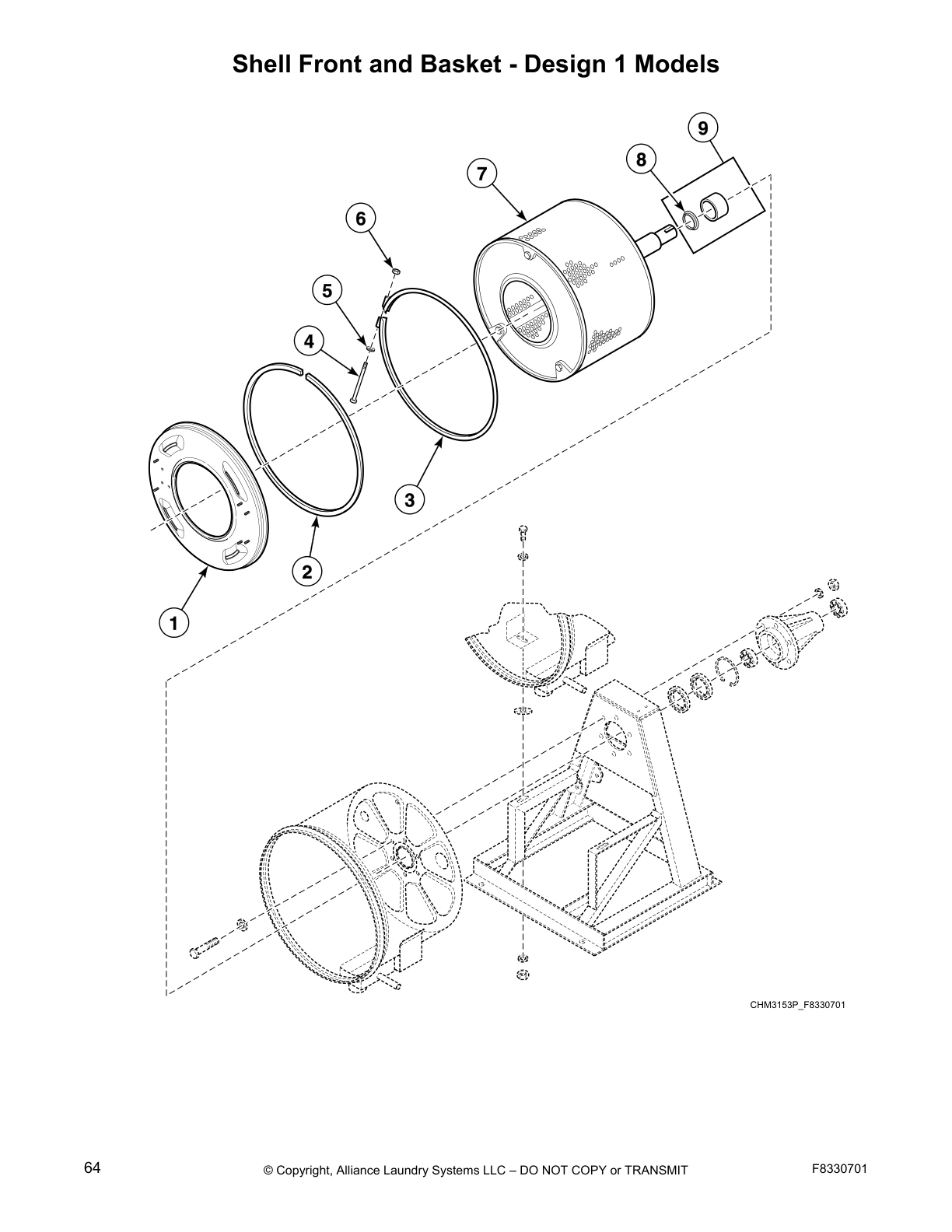

Shell Front and Basket - Design 1 Models

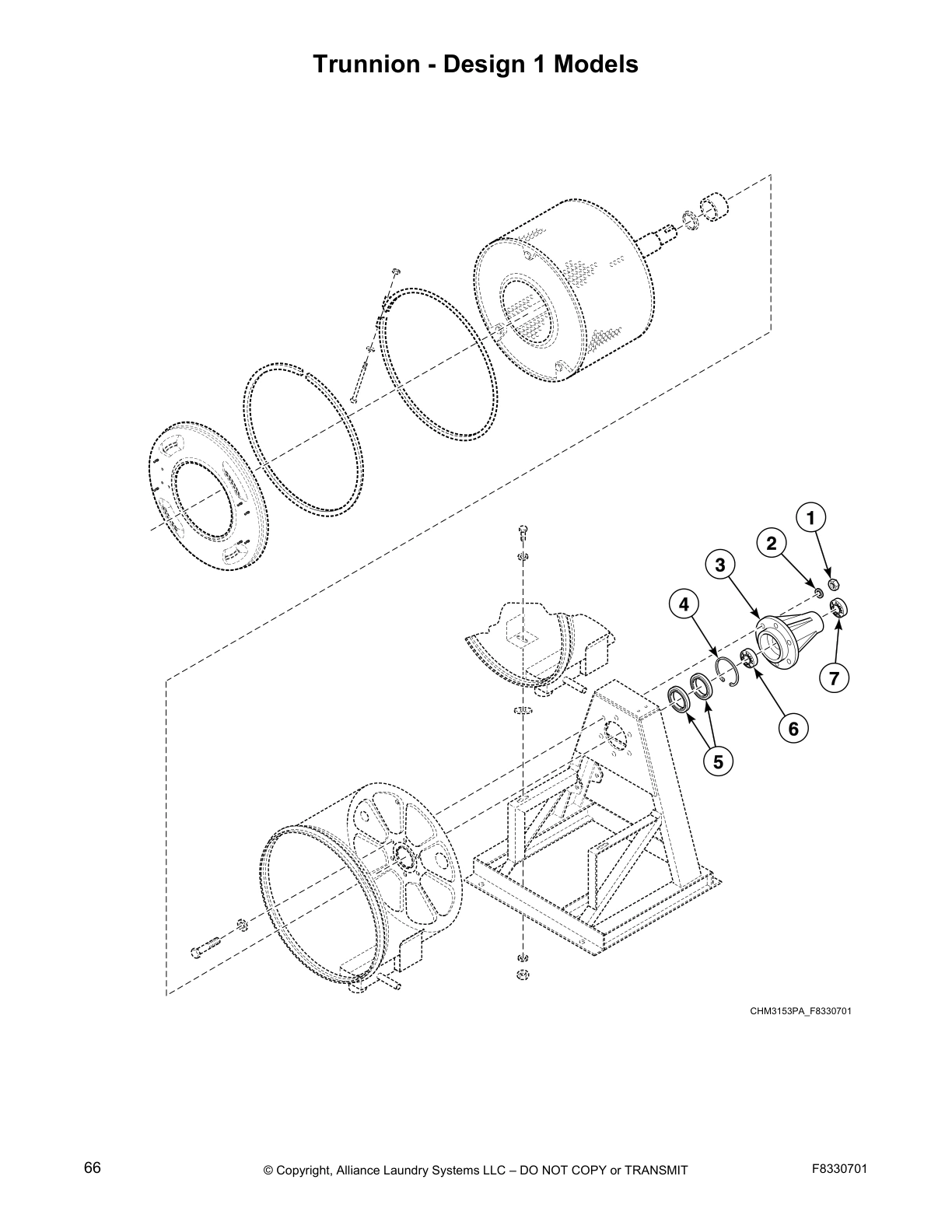

Trunnion - Design 1 Models

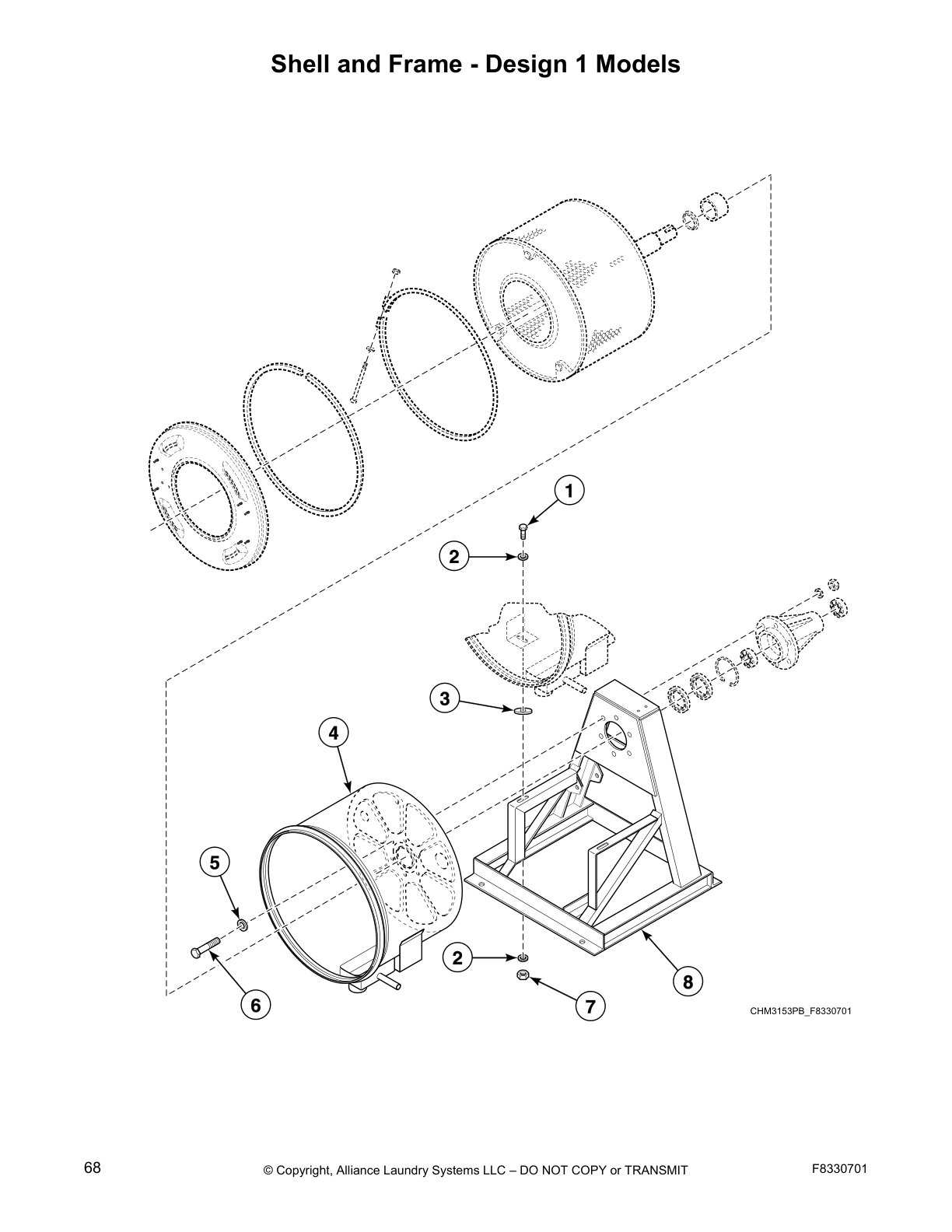

Shell and Frame - Design 1 Models

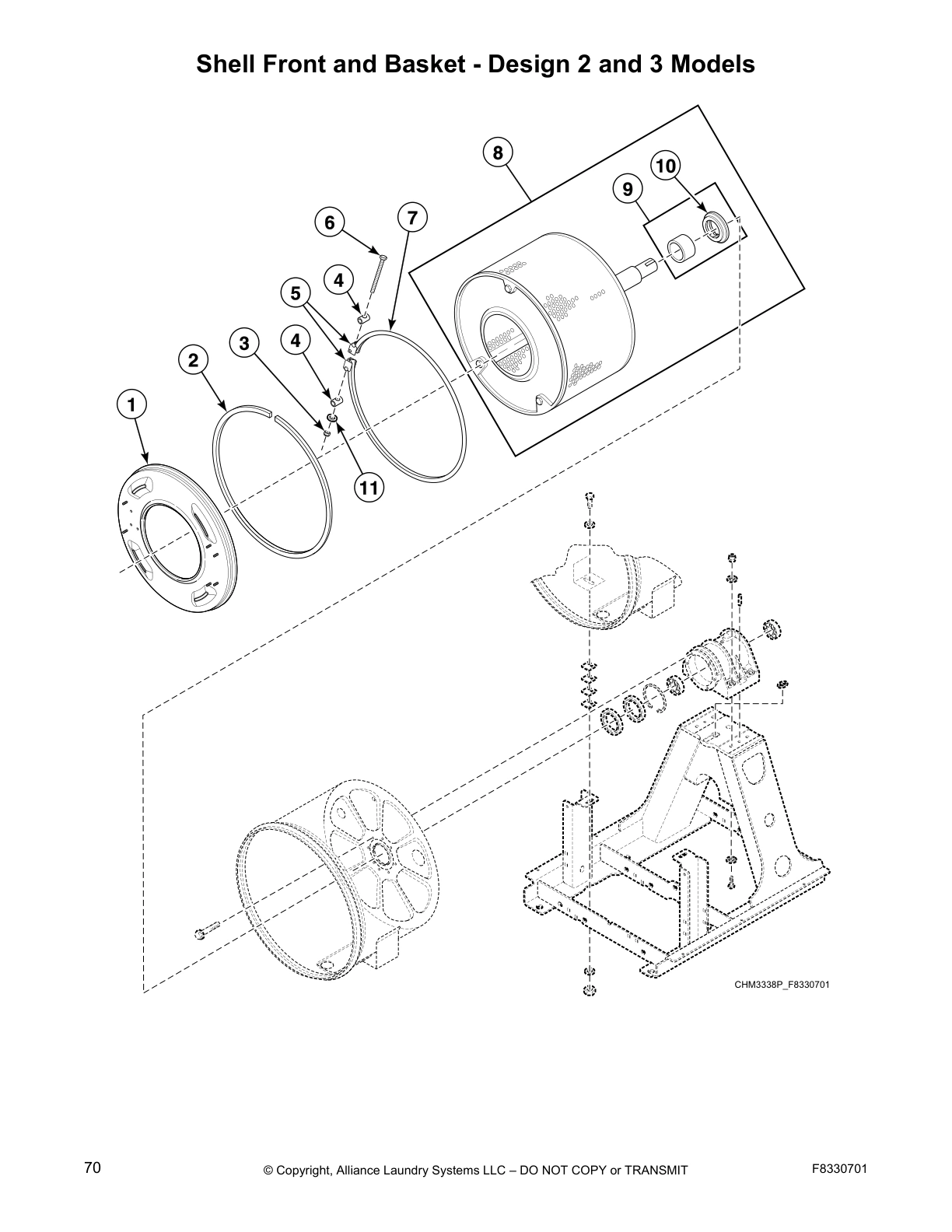

Shell Front and Basket - Design 2 and 3 Models

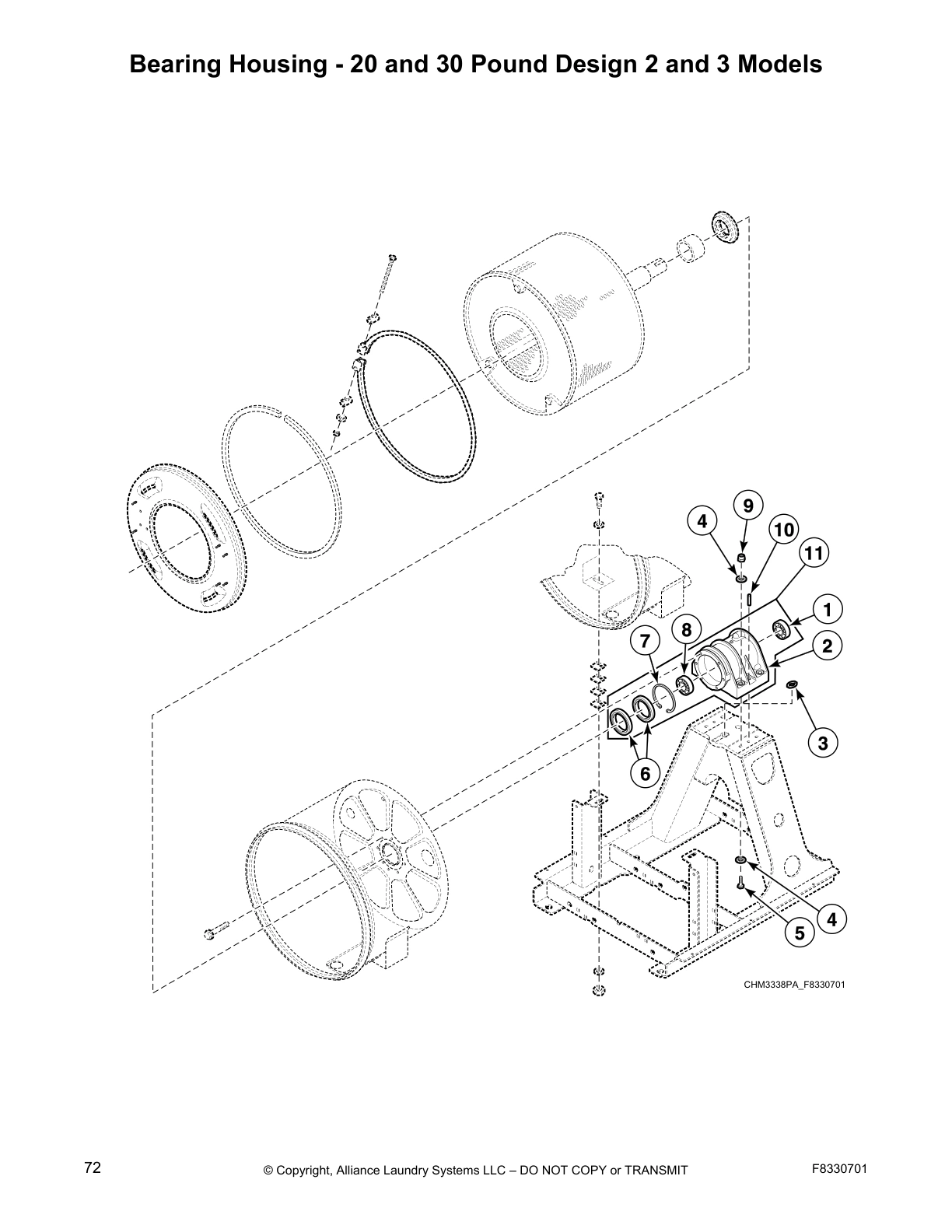

Bearing Housing - 20 and 30 Pound Design 2 and 3 Models
Bearing Housing - 40 and 60 Pound Design 2 and 3 Models

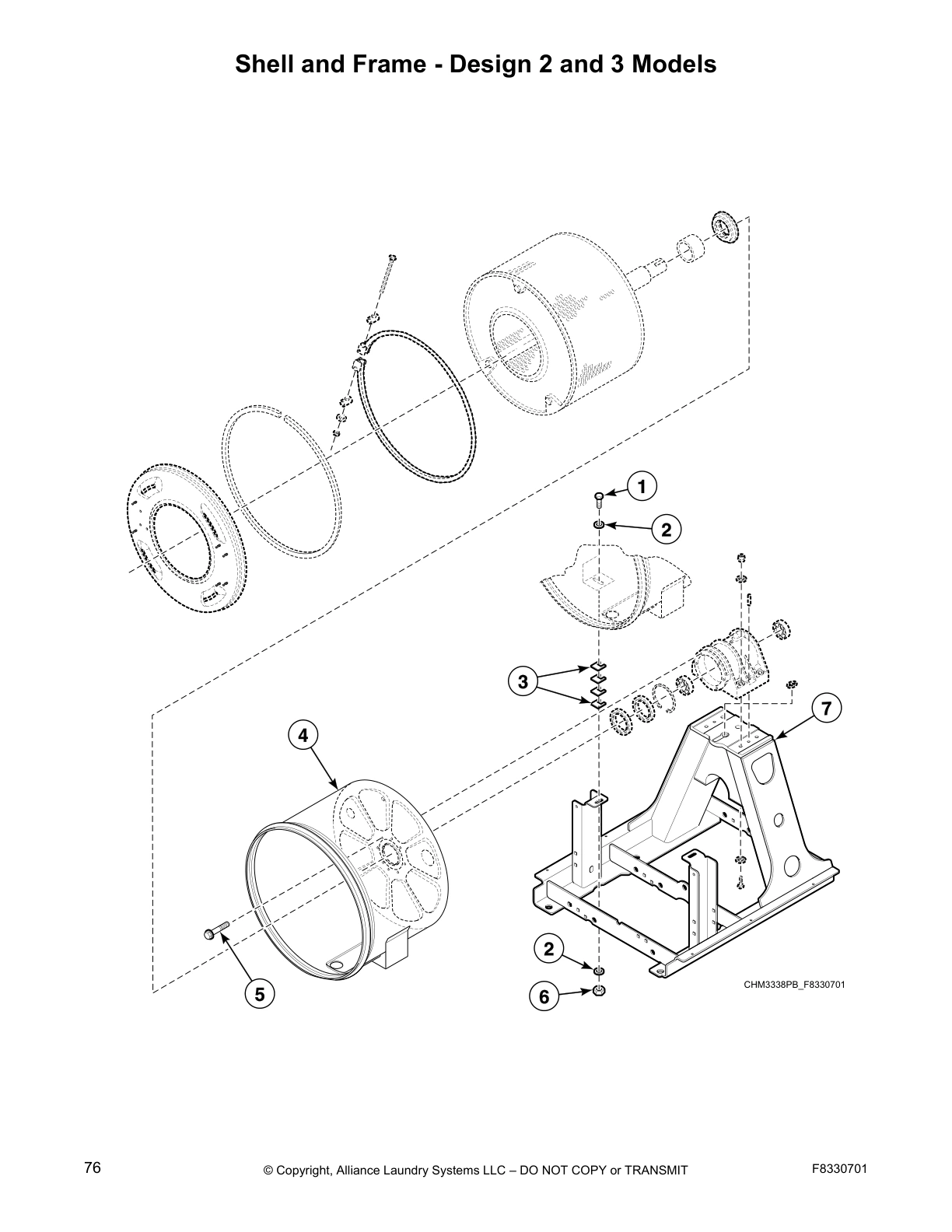

Shell and Frame - Design 2 and 3 Models

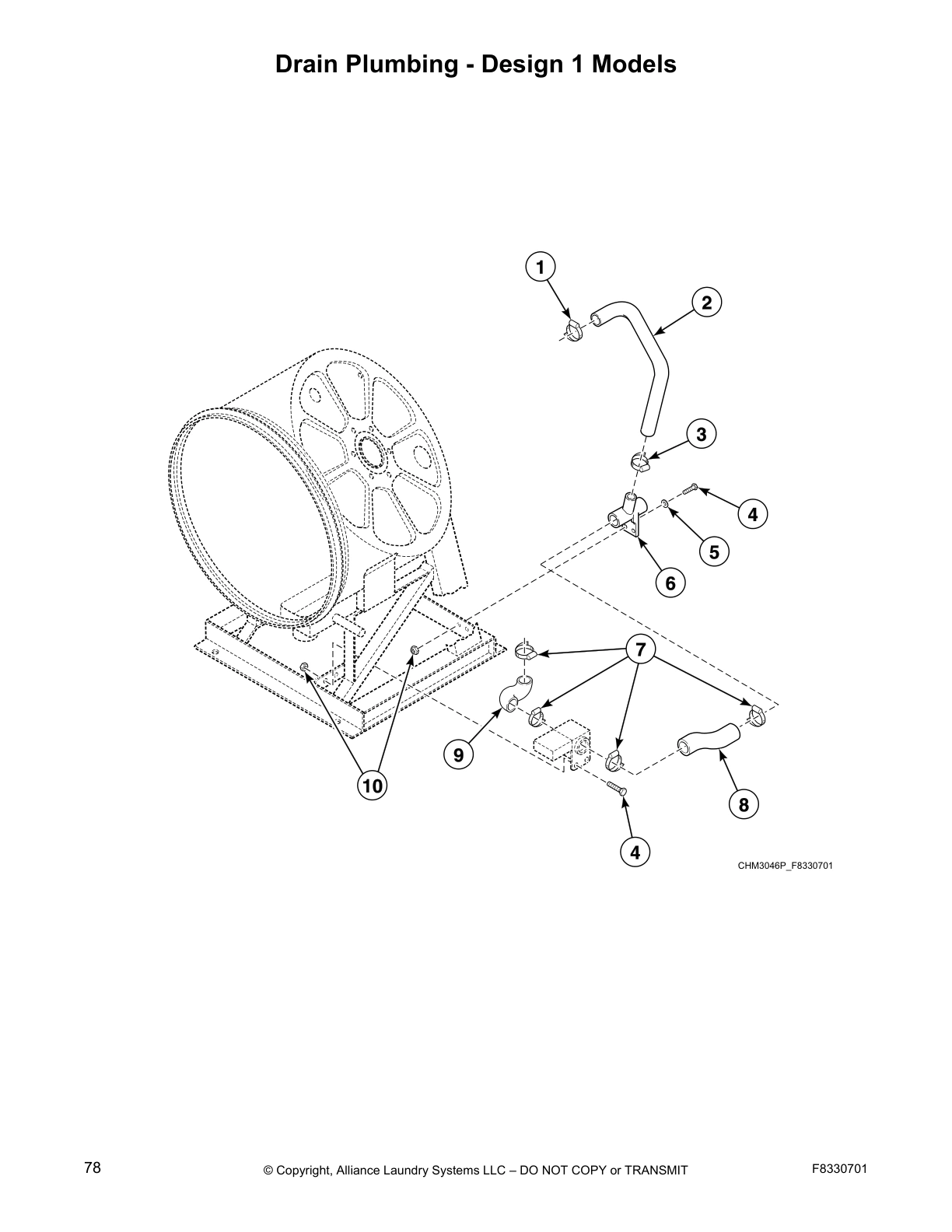

Drain Plumbing - Design 1 Models

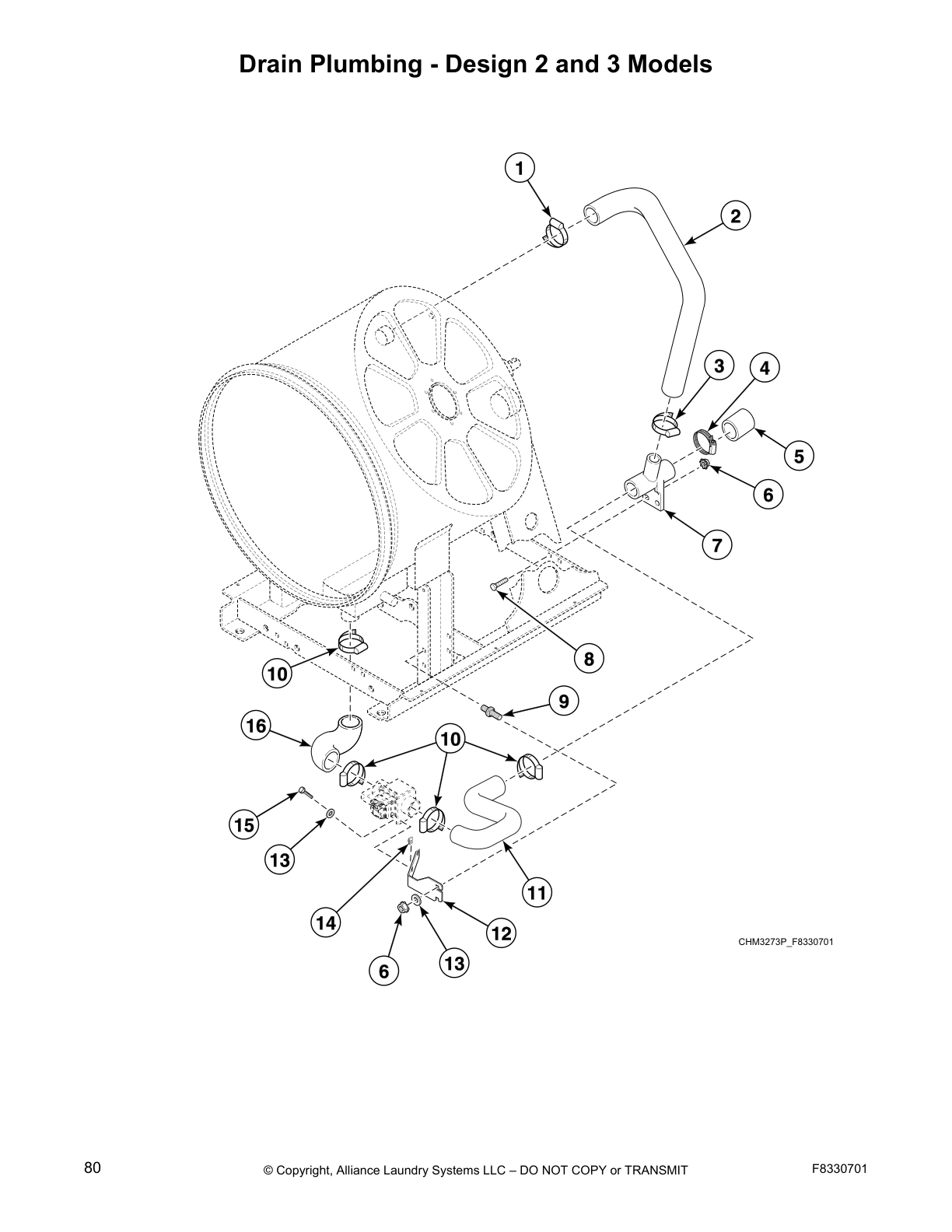

Drain Plumbing - Design 2 and 3 Models

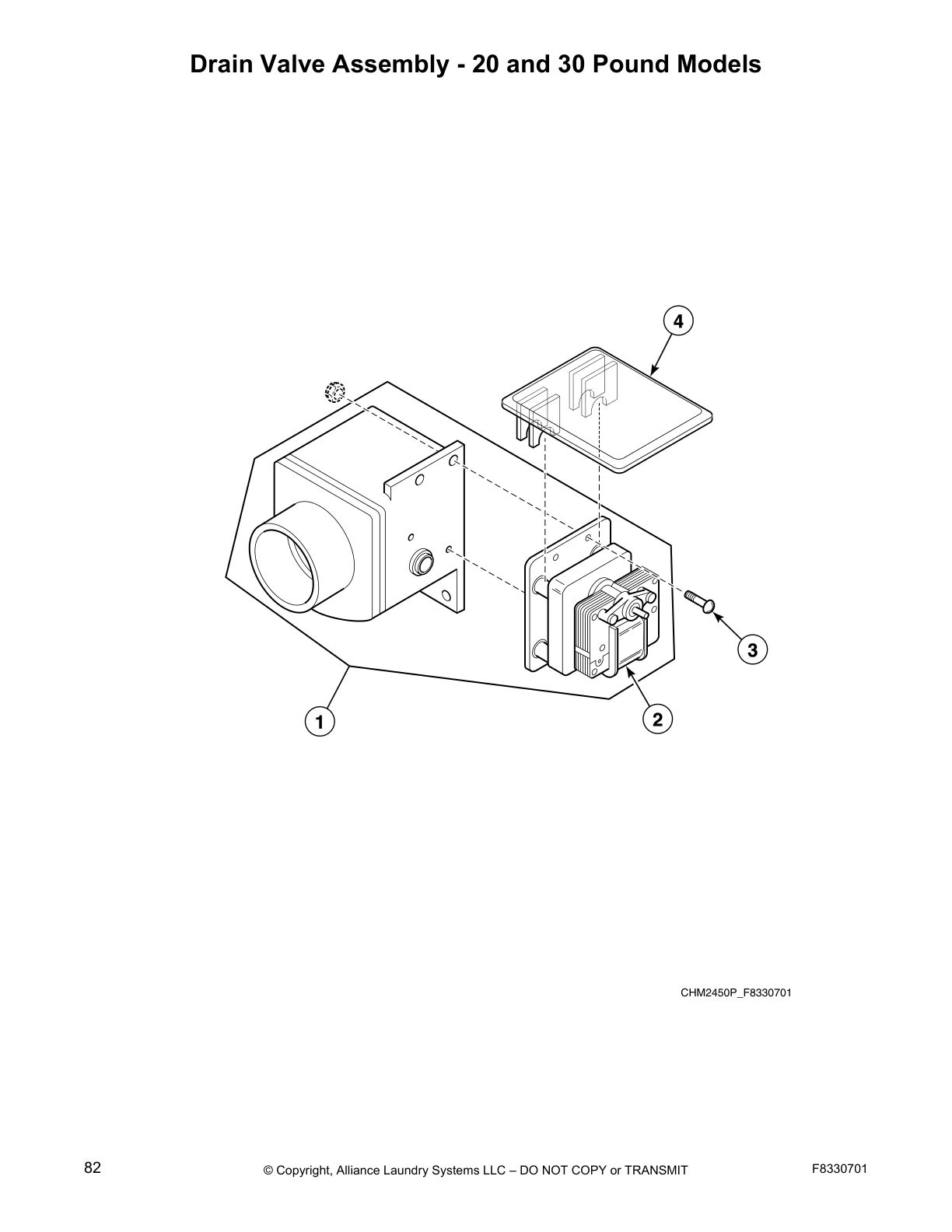

Drain Valve Assembly - 20 and 30 Pound Models

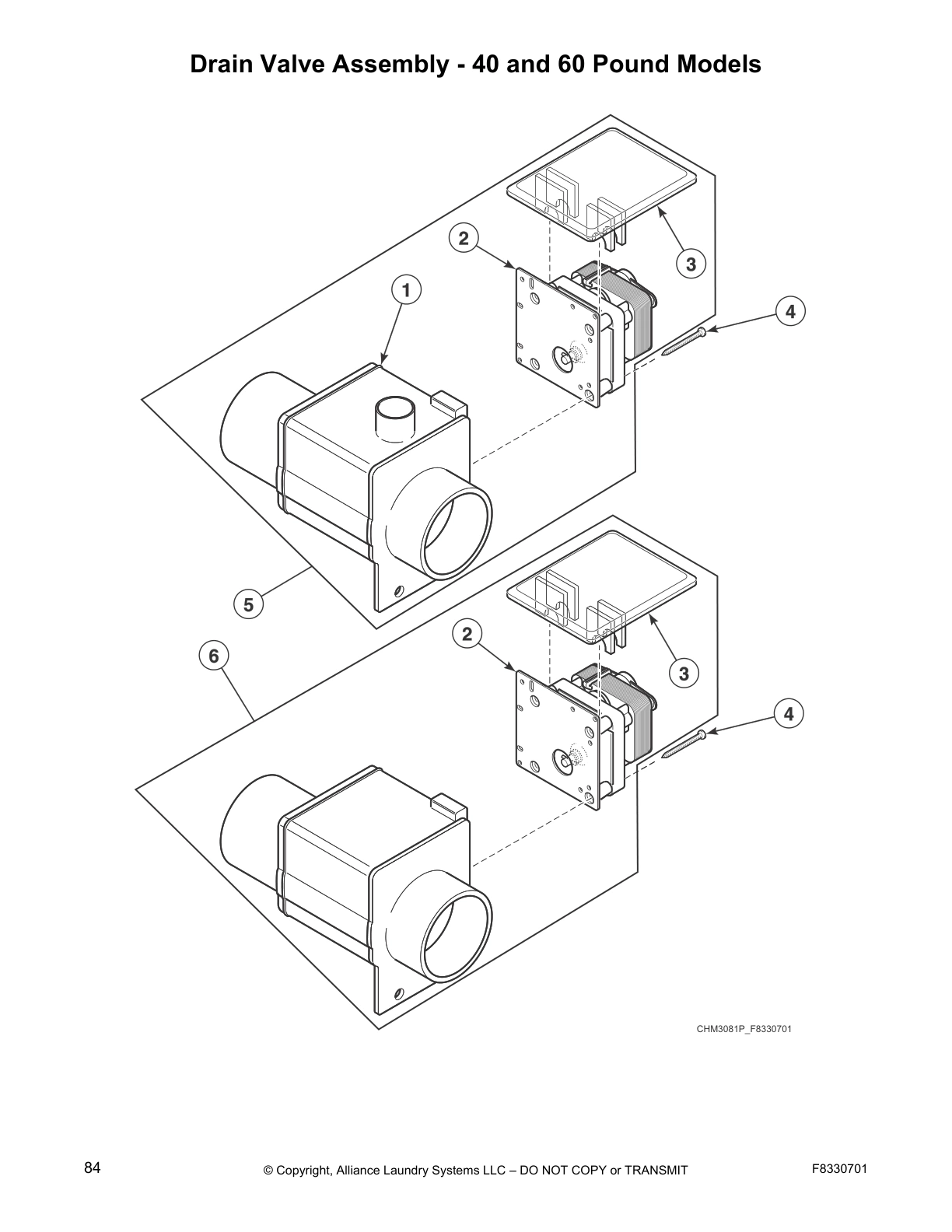

Drain Valve Assembly - 40 and 60 Pound Models

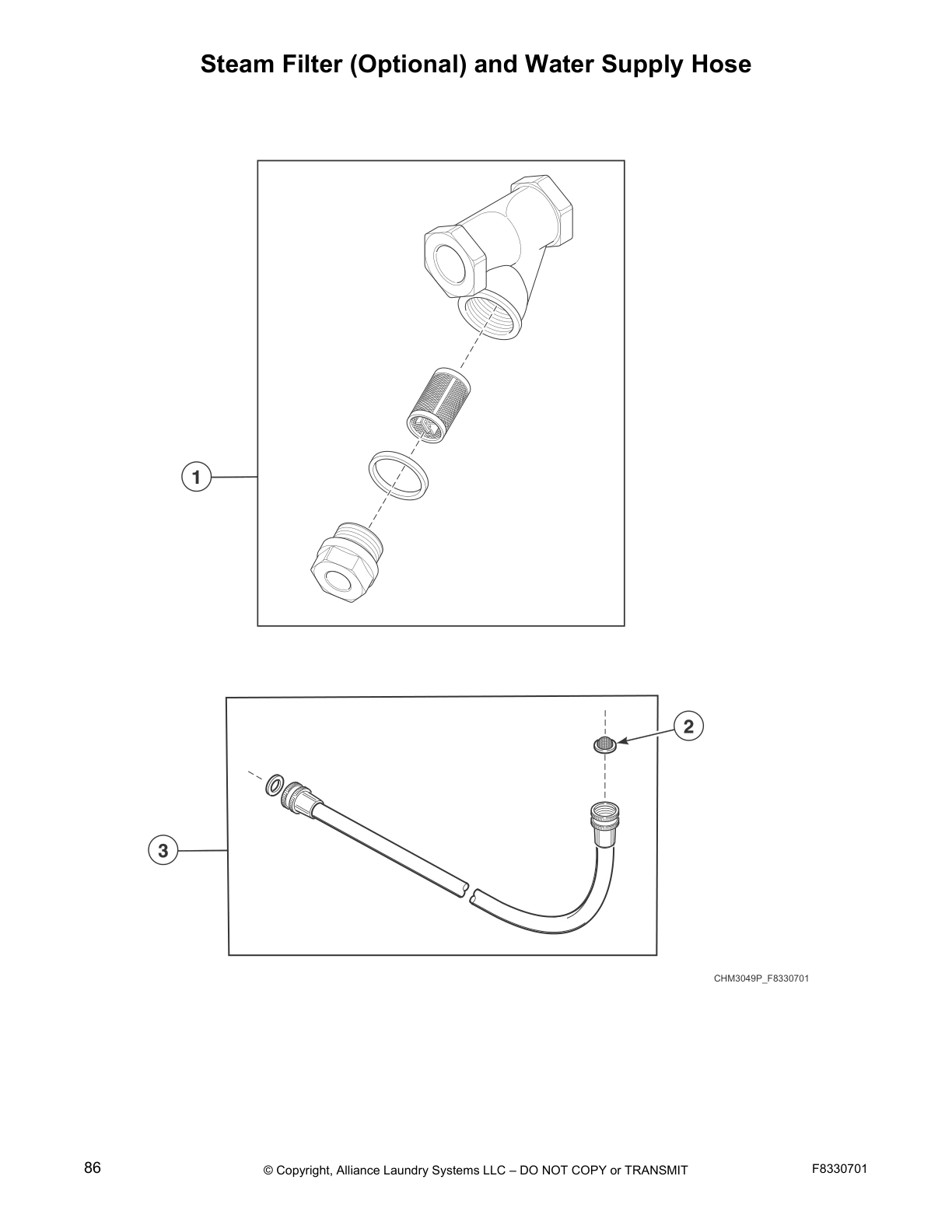

Steam Filter (Optional) and Water Supply Hose

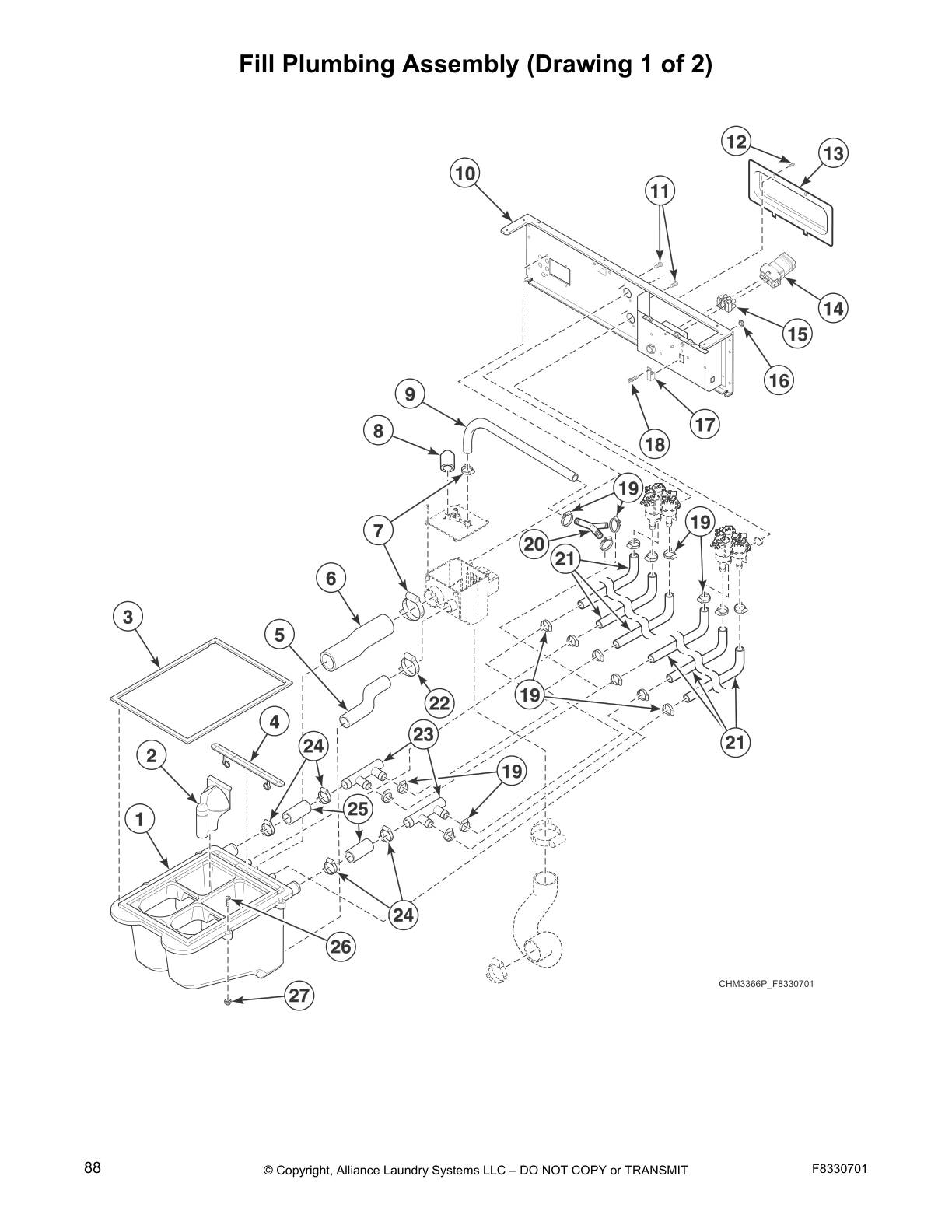

Fill Plumbing Assembly (Drawing 1 of 2)

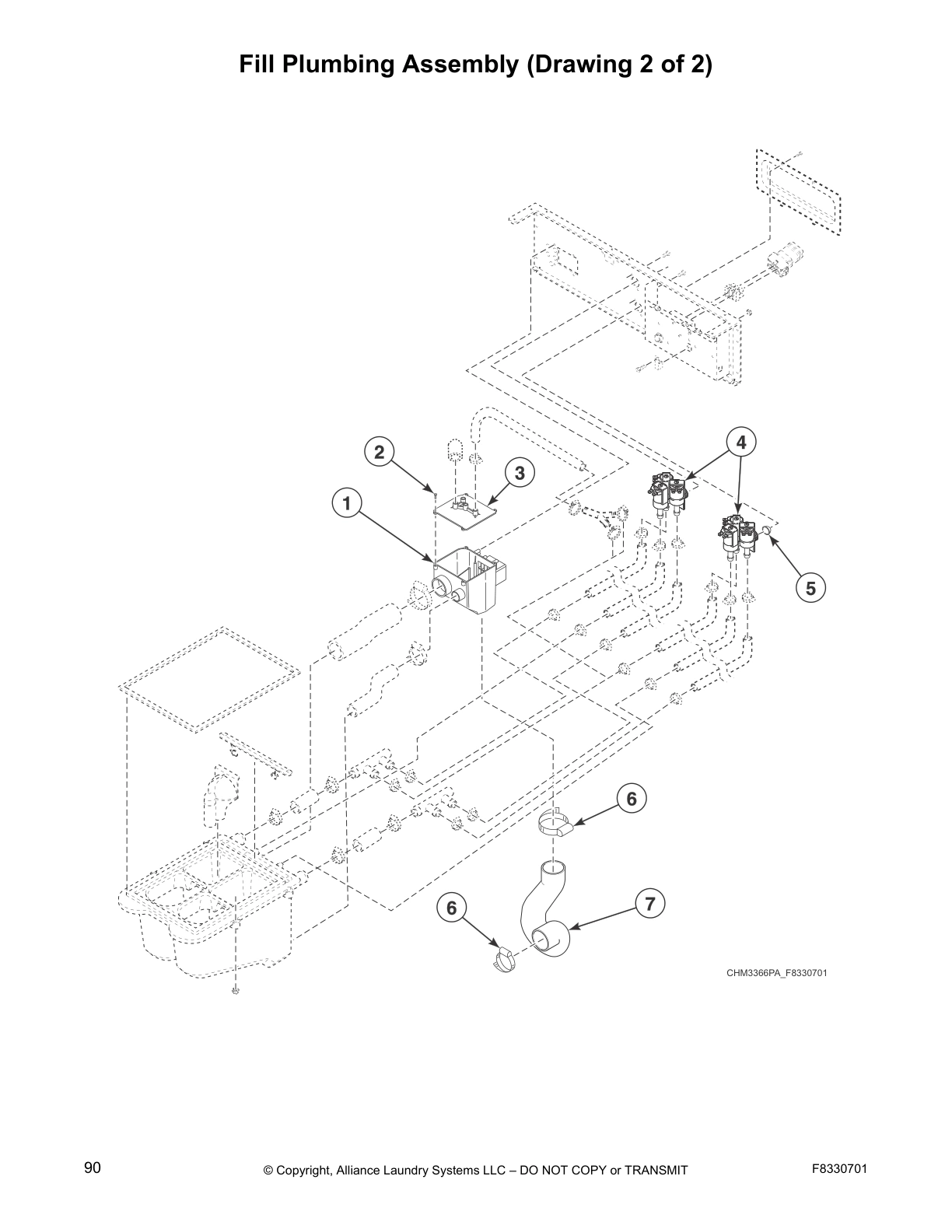

Fill Plumbing Assembly (Drawing 2 of 2)

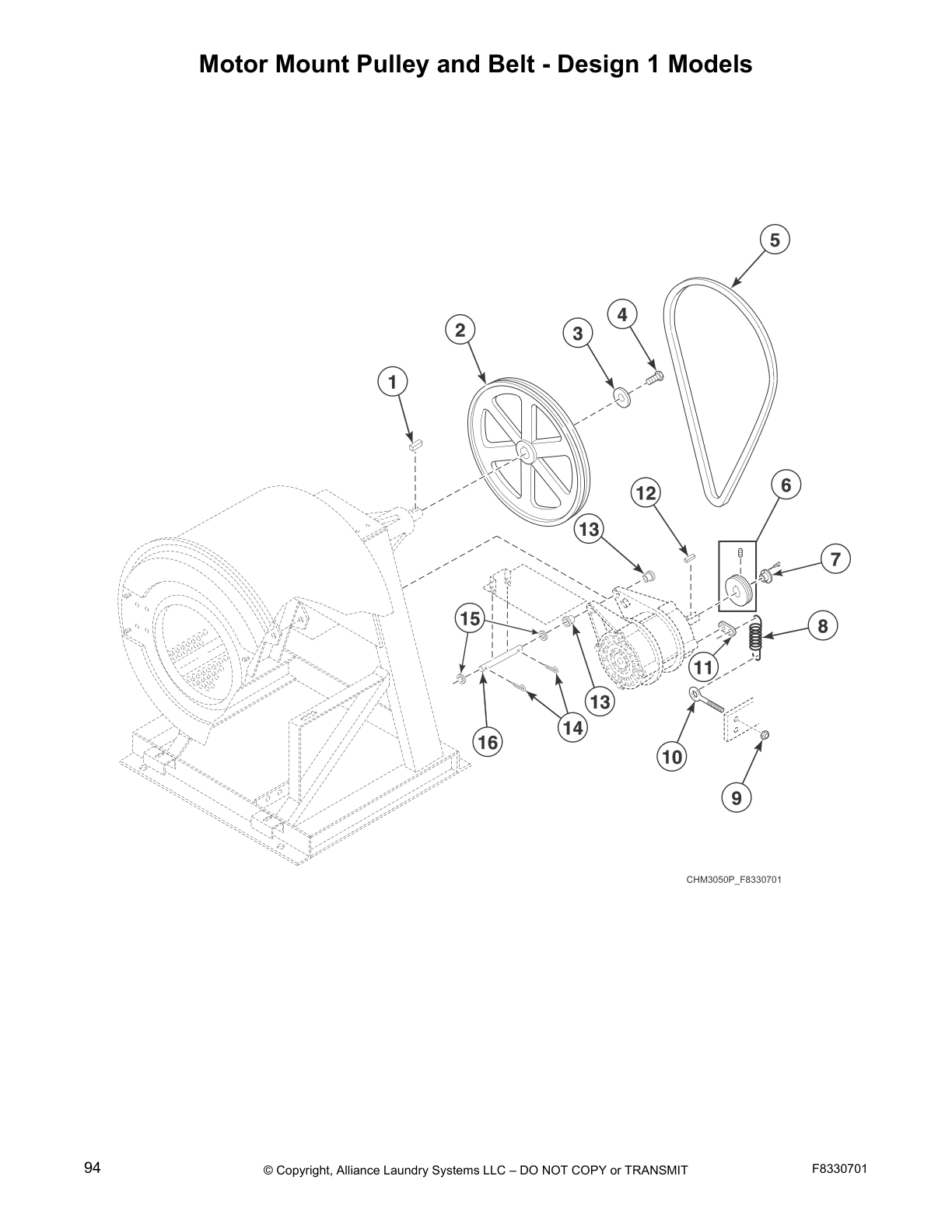

Motor Mount Pulley and Belt - Design 1 Models
Motor, Pulley and Belt (Drawing 1 of 2)

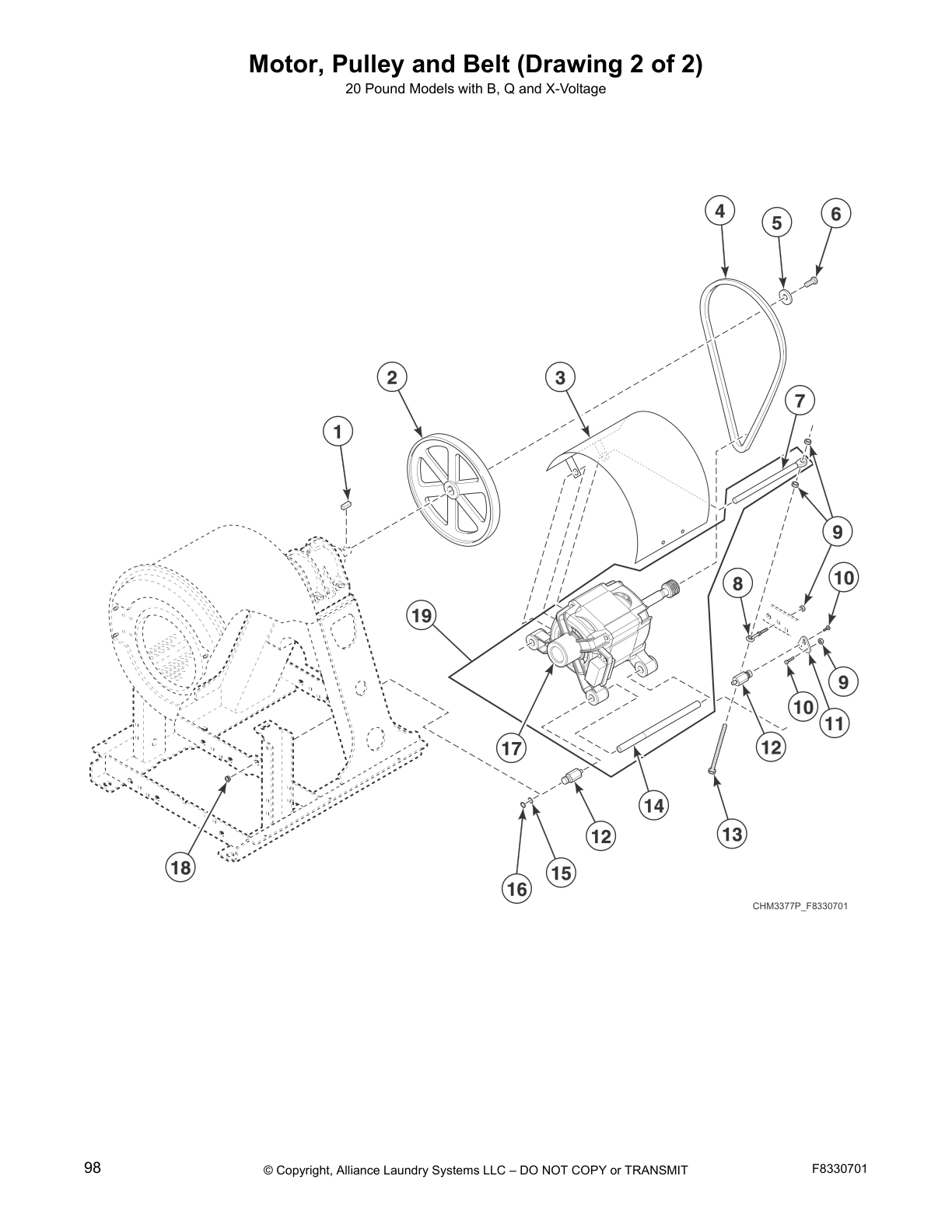

Motor, Pulley and Belt (Drawing 2 of 2)

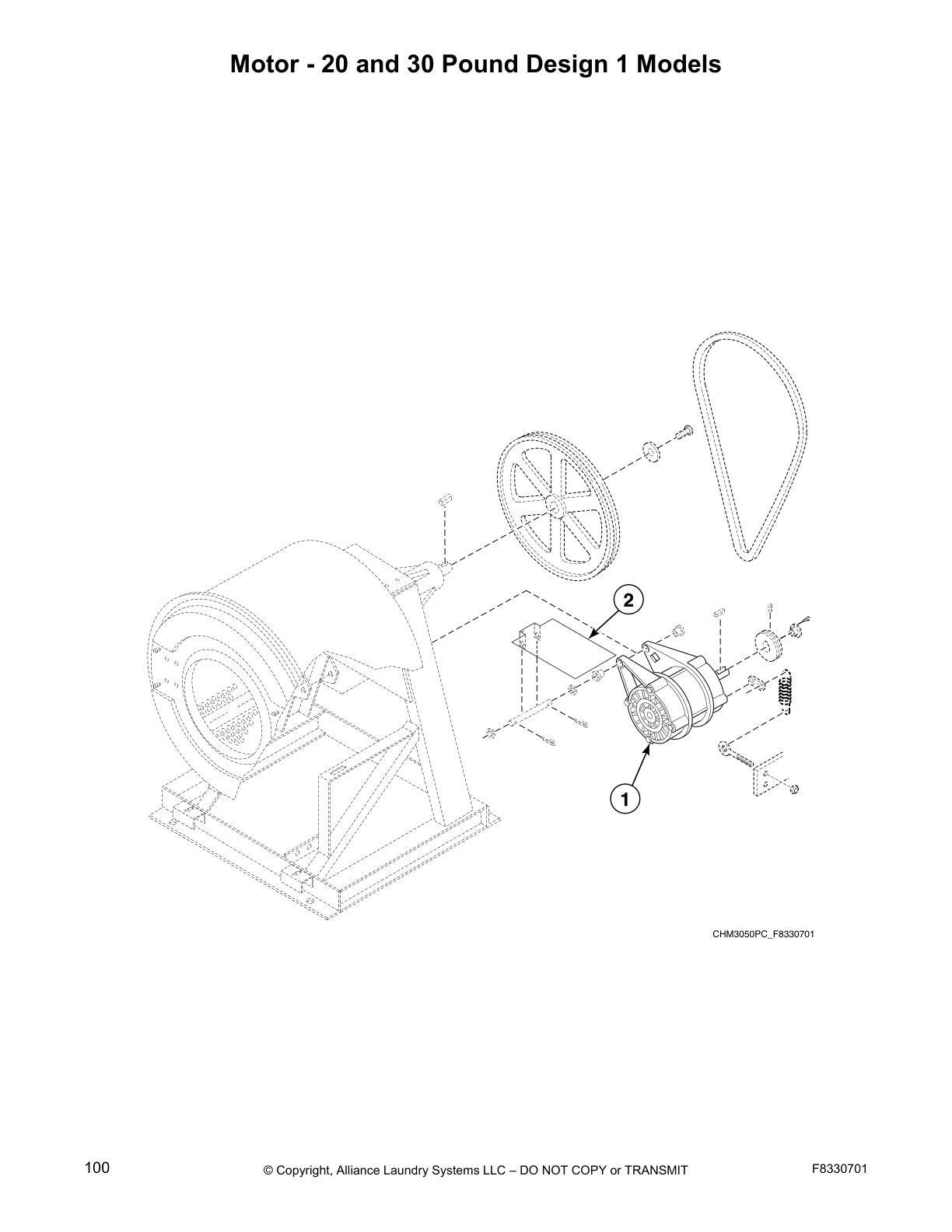

Motor - 20 and 30 Pound Design 1 Models

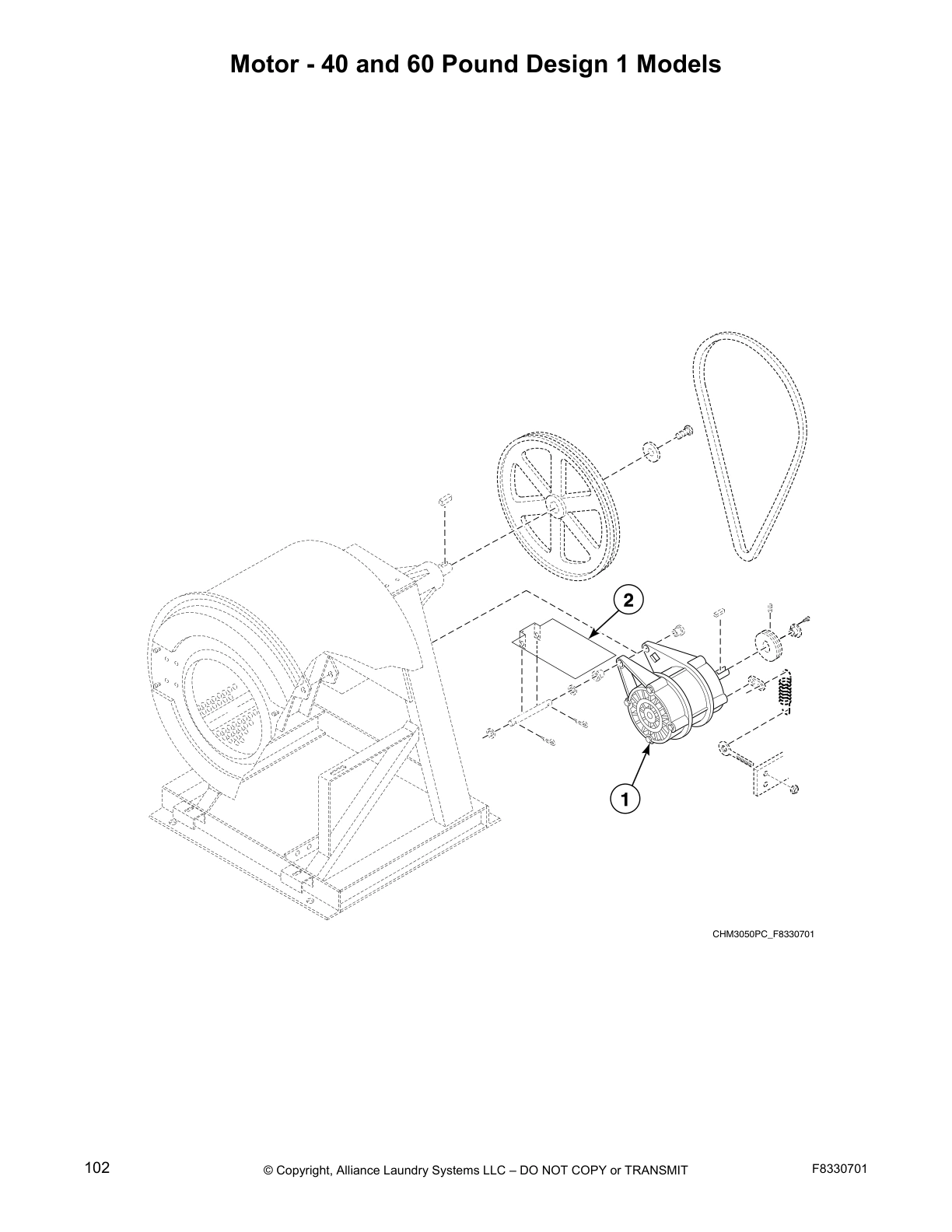

Motor - 40 and 60 Pound Design 1 Models

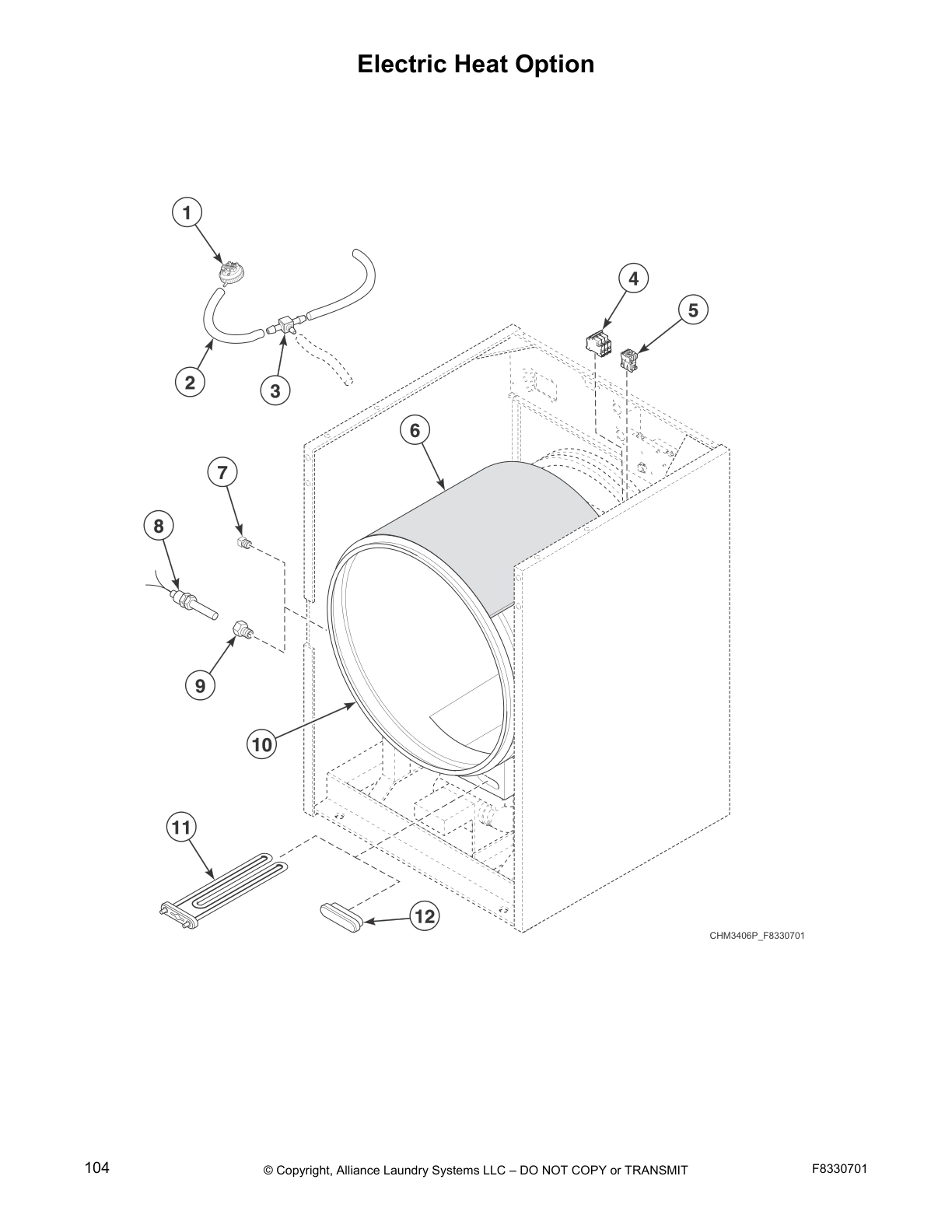

Electric Heat Option

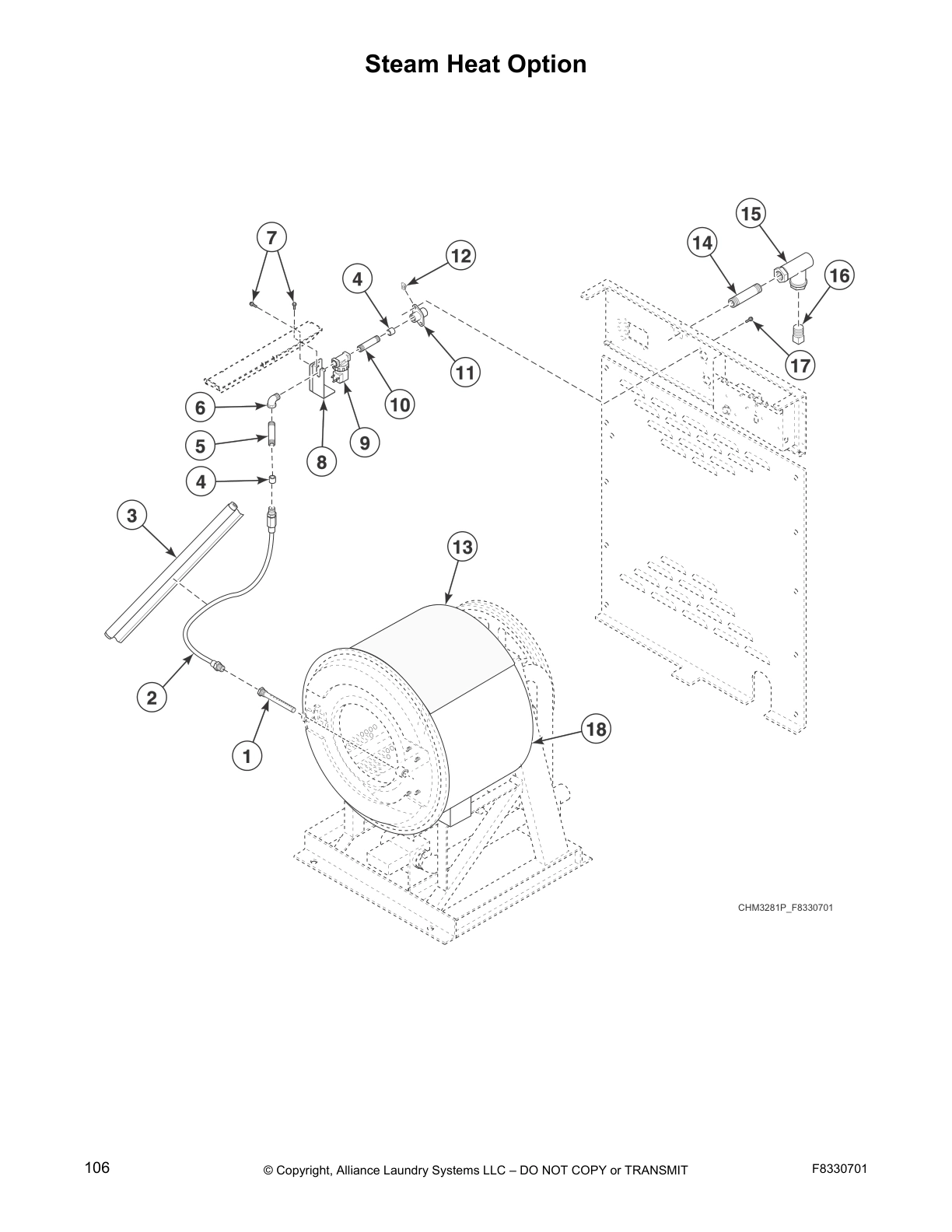

Steam Heat Option
Common parts from model UniMac UCZ030HN2 Washer
Output/Logic Harness SPQ F8028701 Contact Us For Availability
External Supply Kit SPQ F937P3 Contact Us For Availability
SPQ F8176301 SPQ F8176301 Contact Us For Availability
SPQ F8340001 SPQ F8340001 Contact Us For Availability
Basket Pulley Puller Tool SPQ F8608502P Contact Us For Availability
SPQ F8665603 SPQ F8665603 Contact Us For Availability
SPQ F8665601 SPQ F8665601 Contact Us For Availability
SPQ F0200244-02 SPQ F0200244-02 Contact Us For Availability
SPQ F370609 SPQ F370609 Contact Us For Availability
Valve Kit SPQ F8382301 Contact Us For Availability
SPQ F8514601P SPQ F8514601P Contact Us For Availability
1
Water Pressure Switch SPQ F8223001P Contact Us For Availability
1
Vault/FBS Bypass Harness SPQ F8191401P Contact Us For Availability
1
Screw SPQ F8117601 Contact Us For Availability
1
Control Panel Overlay SPQ F8224901 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Left Side Panel SPQ F8399304 Contact Us For Availability
1
Bearing Sleeve SPQ F8221701 Contact Us For Availability
1
Door Lock Solenoid Replacement SPQ F977P3 Contact Us For Availability
1
Shell Front Assembly SPQ F8229501 Contact Us For Availability
1
Nut SPQ F430240 Contact Us For Availability
1
Screw SPQ F430942 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Vacuum Breaker Assembly SPQ F8048601 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Motor SPQ F8597103P Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Motor Drip Shield SPQ F8597501P Contact Us For Availability
2
Dispenser Lid SPQ 44089303P Contact Us For Availability
2
Expansion Clip SPQ F8173008 Contact Us For Availability
2
Pushbutton Switch SPQ F8399302 Contact Us For Availability
2
Reed Switch Assembly SPQ F8245101 Contact Us For Availability
2
Spacer SPQ F431902 Contact Us For Availability
2
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
2
Street Elbow SPQ F8360702 Contact Us For Availability
2
Overflow Hose SPQ F150308 Contact Us For Availability
2
Y Connector SPQ M411283 Contact Us For Availability
2
Motor Bracket Weldment
20 and 30 pound models SPQ F150269 Contact Us For Availability
2
Motor Drip Shield SPQ F200216900 Contact Us For Availability
3
Control Panel Assembly SPQ F8443101 Contact Us For Availability
3
Top Cover SPQ F8230601 Contact Us For Availability
3
Right Side Panel SPQ F8043102P Contact Us For Availability
3
Door Handle Spacer Kit SPQ F190216P Contact Us For Availability
3
Door Lock Splash Shield SPQ F430225 Contact Us For Availability
3
Clamp Ring Assembly SPQ F8388002 Contact Us For Availability
3
Trunnion Kit SPQ F747002 Contact Us For Availability
3
Shell Weldment SPQ F430303 Contact Us For Availability
3
Screw SPQ F430107 Contact Us For Availability
3
Drain Valve Cover SPQ F200133600 Contact Us For Availability
3
Fill/External Supply Harness SPQ F606816-1 Contact Us For Availability
3
3-Way Valve SPQ F8286402P Contact Us For Availability
3
Tee SPQ F360205P Contact Us For Availability
3
Steam Bracket SPQ F200197 Contact Us For Availability
4
Door Lock Plate Assembly SPQ F200203200 Contact Us For Availability
4
Bolt SPQ F8091702 Contact Us For Availability
4
Expansion Clip SPQ 70413301 Contact Us For Availability
4
SPQ F8199401P SPQ F8199401P Contact Us For Availability
4
Screw SPQ F430518 Contact Us For Availability
4
Washer SPQ F430317 Contact Us For Availability
4
Nut SPQ F8179303 Contact Us For Availability
4
Bolt SPQ F200182700 Contact Us For Availability
4
SPQ F8535601 SPQ F8535601 Contact Us For Availability
4
Regulator SPQ F8286401P Contact Us For Availability
4
Circuit Breaker SPQ F360202 Contact Us For Availability
5
Triple Lip Seal SPQ F8203802 Contact Us For Availability
5
Pushbutton Switch SPQ F8048101 Contact Us For Availability
5
Contactor SPQ F8153901 Contact Us For Availability
5
Top Cover Latch SPQ F8186702 Contact Us For Availability
5
Screw SPQ F8043101P Contact Us For Availability
5
SPQ F8435501 SPQ F8435501 Contact Us For Availability
5
Screw SPQ F431901 Contact Us For Availability
5
Screw SPQ F8442702 Contact Us For Availability
5
Drain Hose SPQ F8233102 Contact Us For Availability
5
SPQ F0431807-00 SPQ F0431807-00 Contact Us For Availability
5
Washer SPQ F8402201 Contact Us For Availability
5
Washer SPQ F431115 Contact Us For Availability
6
Bearing SPQ F100123P Contact Us For Availability
6
Pipe Insulation SPQ F8246601 Contact Us For Availability
6
Fuse SPQ 44071501 Contact Us For Availability
6
Pop Rivet SPQ F8038606 Contact Us For Availability
6
SPQ F8017401 SPQ F8017401 Contact Us For Availability
6
Rear Panel SPQ F8399303 Contact Us For Availability
6
SPQ F431916 SPQ F431916 Contact Us For Availability
6
Door Lock Plate Shim SPQ F320200 Contact Us For Availability
6
SPQ F431131 SPQ F431131 Contact Us For Availability
6
SPQ F8308301 SPQ F8308301 Contact Us For Availability
6
Motor Pulley SPQ F280321 Contact Us For Availability
6
Motor Isolation Kit
20 and 30 pound models SPQ M400077 Contact Us For Availability
6
DIN Valve Kit SPQ H86070034 Contact Us For Availability
7
SPQ F100108 SPQ F100108 Contact Us For Availability
7
Valve SPQ F8206901 Contact Us For Availability
7
Plug SPQ 70256901P Contact Us For Availability
7
Washer SPQ M400977 Contact Us For Availability
7
SPQ F8230501 SPQ F8230501 Contact Us For Availability
7
External Door Lock Harness SPQ F8223202 Contact Us For Availability
7
Pressfit Upgrade Kit SPQ F936P3 Contact Us For Availability
7
Retaining Ring SPQ F8345001 Contact Us For Availability
7
P-Trap Hose SPQ F200213 Contact Us For Availability
7
SPQ F8233001 SPQ F8233001 Contact Us For Availability
7
SPQ F8047801 SPQ F8047801 Contact Us For Availability
7
Pulley SPQ H87520334 Contact Us For Availability
7
Includes F85350 and F8535201 Isolator SPQ F8362501 Contact Us For Availability
8
SPQ F8201001 SPQ F8201001 Contact Us For Availability
8
SPQ F8221403 SPQ F8221403 Contact Us For Availability
8
Door Lock Assembly SPQ F430977 Contact Us For Availability
8
SPQ F8043403 SPQ F8043403 Contact Us For Availability
8
Thermistor Sensor SPQ F330188P Contact Us For Availability
8
Steam Heat Kit SPQ F8490301 Contact Us For Availability
9
Water Pressure Switch SPQ F980P3 Contact Us For Availability
9
SPQ 70412601 SPQ 70412601 Contact Us For Availability
9
SPQ F8535501 SPQ F8535501 Contact Us For Availability
9
SPQ F0602837-02 SPQ F0602837-02 Contact Us For Availability
9
Door Lock Assembly Kit SPQ F8344401 Contact Us For Availability
9
Shaft Seal Sleeve SPQ F8312004P Contact Us For Availability
9
Shaft Seal Sleeve Kit SPQ F8343904P Contact Us For Availability
9
SPQ F8042803 SPQ F8042803 Contact Us For Availability
9
Extension Spring SPQ F280284 Contact Us For Availability
9
Motor Harness
30 and 40 pound models SPQ H8752006H Contact Us For Availability
9
DIN Valve Adapter Kit SPQ F8521501 Contact Us For Availability
10
Shell Weldment SPQ F8404401 Contact Us For Availability
10
Gusset Plate SPQ F8186701 Contact Us For Availability
10
Top Cabinet Brace SPQ F8043701 Contact Us For Availability
10
Nut SPQ F430215 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Excluder Seal SPQ F8336901 Contact Us For Availability
10
Bolt SPQ F8402801 Contact Us For Availability
10
Valve Panel SPQ F8047402 Contact Us For Availability
10
Motor
20, 30 and 40 pound models SPQ F8335001P Contact Us For Availability
10
Pipe Nipple SPQ 70263801 Contact Us For Availability
11
Bolt SPQ F431041 Contact Us For Availability
11
Shim SPQ F8484401 Contact Us For Availability
11
Screw SPQ F8398801 Contact Us For Availability
11
Screw SPQ 23222 Contact Us For Availability
11
Motor Rod Plate SPQ F8441101 Contact Us For Availability
11
Element SPQ F8179602 Contact Us For Availability
11
Coupling SPQ F8362701 Contact Us For Availability
12
Front Cabinet Brace SPQ F430174 Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Heating Element Plug SPQ F8179302 Contact Us For Availability
12
Terminal Tray Cover SPQ F8017501 Contact Us For Availability
12
Motor Support Bushing SPQ F200186100 Contact Us For Availability
12
Motor Conduit Mounting Bracket SPQ 70321701 Contact Us For Availability
12
Nut SPQ F8154501 Contact Us For Availability
13
Air Trap Hose SPQ F020014200 Contact Us For Availability
13
Front Panel SPQ F8173901 Contact Us For Availability
13
Top Cover Hinge SPQ F8258601 Contact Us For Availability
13
Bolt SPQ F8223601 Contact Us For Availability
13
Pipe Insulation SPQ 70030401 Contact Us For Availability
13
Harness SPQ F8230301 Contact Us For Availability
13
Cotter Pin SPQ F430401 Contact Us For Availability
14
Overload Contactor SPQ F8176101P Contact Us For Availability
14
Logo SPQ F8173002P Contact Us For Availability
14
Nut SPQ F8270701 Contact Us For Availability
14
Washer SPQ 901690 Contact Us For Availability
14
Steam Filter SPQ F410300 Contact Us For Availability
15
Door Lock Switch Lever SPQ F430264 Contact Us For Availability
15
Hole Plug SPQ M400985 Contact Us For Availability
15
Magnet SPQ F430974 Contact Us For Availability
15
Terminal Block SPQ F8177001 Contact Us For Availability
15
Extension Spring SPQ F310124 Contact Us For Availability
15
Motor Support Rod SPQ F603059 Contact Us For Availability
15
O-Ring SPQ F8441901 Contact Us For Availability
15
Plug SPQ 431486 Contact Us For Availability
16
Interlock Contactor SPQ F330186P Contact Us For Availability
16
Panel Lock SPQ F8223901 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8223401 Contact Us For Availability
16
Nut SPQ F8454601 Contact Us For Availability
16
Basket Pulley SPQ F602844 Contact Us For Availability
16
Spring Plate SPQ F8363901 Contact Us For Availability
16
Flanged Bushing SPQ F8333301 Contact Us For Availability
17
Emergency Stop Plate SPQ F8201301 Contact Us For Availability
17
DIN Rail SPQ F8200101 Contact Us For Availability
17
Lid Clamp SPQ F8223801 Contact Us For Availability
17
Pop Rivet SPQ F8508101 Contact Us For Availability
17
Washer SPQ F8070301 Contact Us For Availability
17
Ground Lug Connector SPQ F8454401 Contact Us For Availability
17
Shell Weldment SPQ F420409 Contact Us For Availability
18
Blind Rivet SPQ F8390801 Contact Us For Availability
18
Hose Clamp SPQ 430642 Contact Us For Availability
18
Nut SPQ F431017 Contact Us For Availability
18
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
18
Spacer SPQ F8451601 Contact Us For Availability
18
Steam Hose SPQ 20253 Contact Us For Availability
19
Capacitor SPQ F8411701 Contact Us For Availability
19
Screw SPQ F360157P Contact Us For Availability
19
Siphon Cover SPQ F430232 Contact Us For Availability
19
Spring Pin SPQ F431223 Contact Us For Availability
19
Basket Pulley
30 and 40 pound models SPQ F8387601 Contact Us For Availability
20
Door Hinge Shim Kit SPQ F431222 Contact Us For Availability
20
Motor Switch SPQ F370220 Contact Us For Availability
20
Contact Switch SPQ F997P3 Contact Us For Availability
20
Contact Block Switch
Includes item 21 and F85 SPQ F8538101 Contact Us For Availability
20
Hose SPQ F430909 Contact Us For Availability
20
Spacer SPQ F8441601 Contact Us For Availability
21
Contact Switch SPQ F200233401P Contact Us For Availability
21
Auxiliary Control Assembly SPQ F430903 Contact Us For Availability
21
Switch Clamp SPQ F340002 Contact Us For Availability
22
Screw SPQ F8069501 Contact Us For Availability
22
Expansion Clip SPQ F8189401P Contact Us For Availability
22
Contactor Tray Assembly SPQ F0340722-00 Contact Us For Availability
22
Screw SPQ F602813-2 Contact Us For Availability
22
Dispenser Gasket SPQ F8047901 Contact Us For Availability
23
Capacitor Tray Assembly SPQ F8343401 Contact Us For Availability
23
Washer SPQ F200131000P Contact Us For Availability
23
Access Cover SPQ F422816 Contact Us For Availability
24
Door Mount SPQ F430536 Contact Us For Availability
24
Dispenser Overflow Hose SPQ F8232001 Contact Us For Availability
25
Pop Rivet SPQ F8199901 Contact Us For Availability
26
Door Handle SPQ F431929 Contact Us For Availability
26
Cap SPQ F8333201 Contact Us For Availability
27
Door Latch Arm Assembly SPQ F150271 Contact Us For Availability
27
Vacuum Breaker Hose SPQ F200222 Contact Us For Availability
NI
SPQ F8567501 SPQ F8567501 Contact Us For Availability
NI
SPQ F380984P SPQ F380984P Contact Us For Availability
NI
Jumper Harness Assembly SPQ M413506 Contact Us For Availability
NI
External Supply Harness SPQ F8191201P Contact Us For Availability
NI
Machine Size Configuration Harness SPQ F8028103P Contact Us For Availability
NI
SPQ F8261501P SPQ F8261501P Contact Us For Availability
NI
USB IR Interface Kit SPQ F8060501 Contact Us For Availability
NI
USB IR Interface Kit SPQ 203346 Contact Us For Availability
NI
SPQ F8201101 SPQ F8201101 Contact Us For Availability
NI
SPQ F8532201 SPQ F8532201 Contact Us For Availability
NI
SPQ F8399301 SPQ F8399301 Contact Us For Availability
NI
SPQ F8352801 SPQ F8352801 Contact Us For Availability
NI
SPQ F430533 SPQ F430533 Contact Us For Availability
NI
SPQ F8187308 SPQ F8187308 Contact Us For Availability
NI
SPQ F8059701 SPQ F8059701 Contact Us For Availability
NI
SPQ F8632401 SPQ F8632401 Contact Us For Availability
NI
SPQ F8626501 SPQ F8626501 Contact Us For Availability
NI
Basket Rental Tool Kit SPQ 390P4-1 Contact Us For Availability
NI
Basket Puller Tool SPQ F460129P Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
NI
Fill Hose Kit SPQ F8665604 Contact Us For Availability
NI
SPQ F8665602 SPQ F8665602 Contact Us For Availability
NI
SPQ F8544601 SPQ F8544601 Contact Us For Availability
NI
SPQ F8197701 SPQ F8197701 Contact Us For Availability
NI
SPQ F8182401P SPQ F8182401P Contact Us For Availability
NI
Diaphragm and Guide Kit SPQ F8042202 Contact Us For Availability
NI
SPQ G582P3 SPQ G582P3 Contact Us For Availability
NI
Nut SPQ H87529111P Contact Us For Availability
NI
Q and X-voltage SPQ F8562501 Contact Us For Availability
NI
Motor Harness
30 and 40 pound models with N a SPQ F8384901 Contact Us For Availability
NI
SPQ F8396601 SPQ F8396601 Contact Us For Availability
NI
Jumper Wire SPQ F421507 Contact Us For Availability
NI
SPQ F200202600 SPQ F200202600 Contact Us For Availability
NI
SPQ F421936 SPQ F421936 Contact Us For Availability
NI
SPQ F8056001 SPQ F8056001 Contact Us For Availability
NI
Steam Valve Repair Kit SPQ F8322801P Contact Us For Availability
NI
Coil SPQ F953P3 Contact Us For Availability
NI
SPQ F8379501P SPQ F8379501P Contact Us For Availability
× ![]()
