Model Unimac UCN040HNF Washer – Common Parts & Diagrams
Decals
Control Module - 2 Speed OPL Models (Drawing 1 of 2)

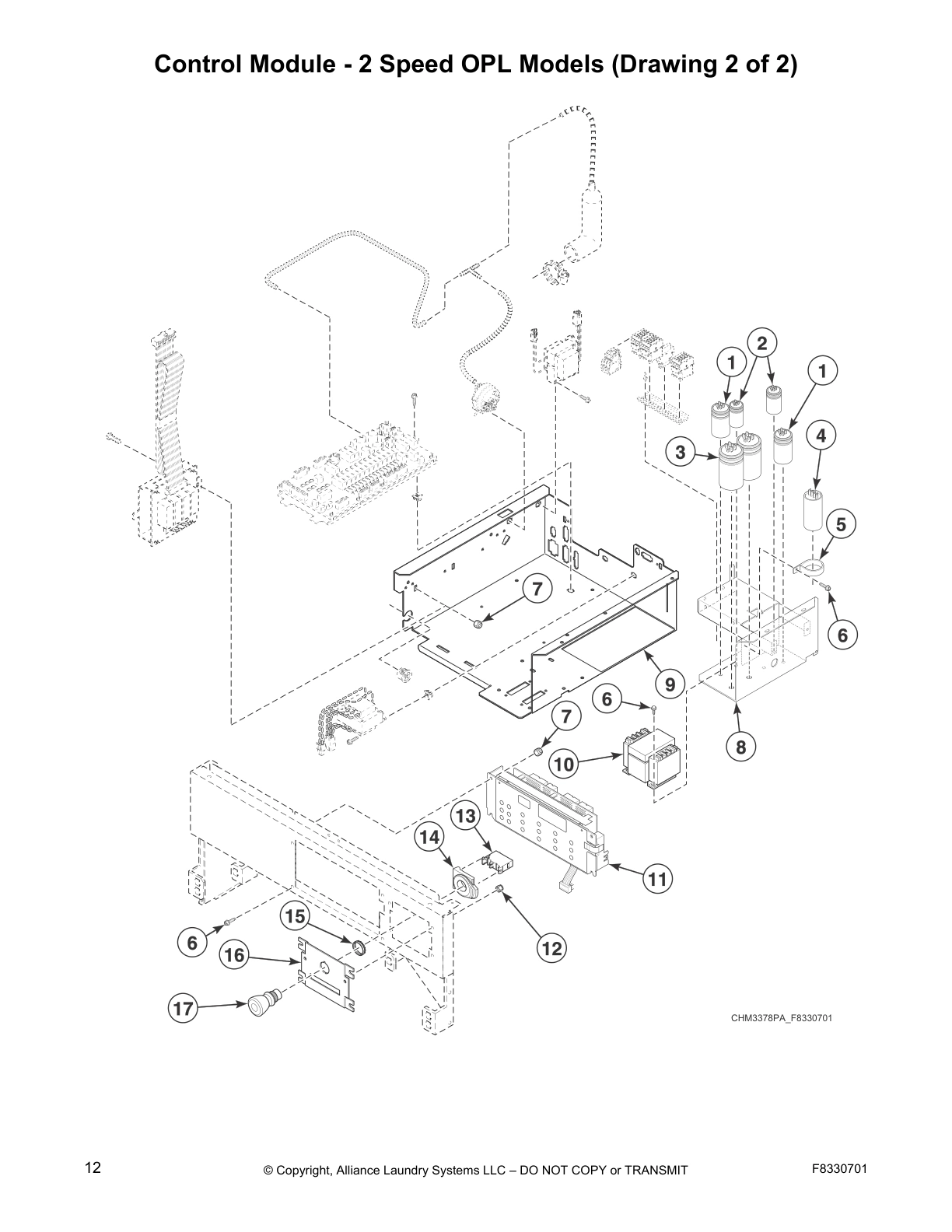

Control Module - 2 Speed OPL Models (Drawing 2 of 2)

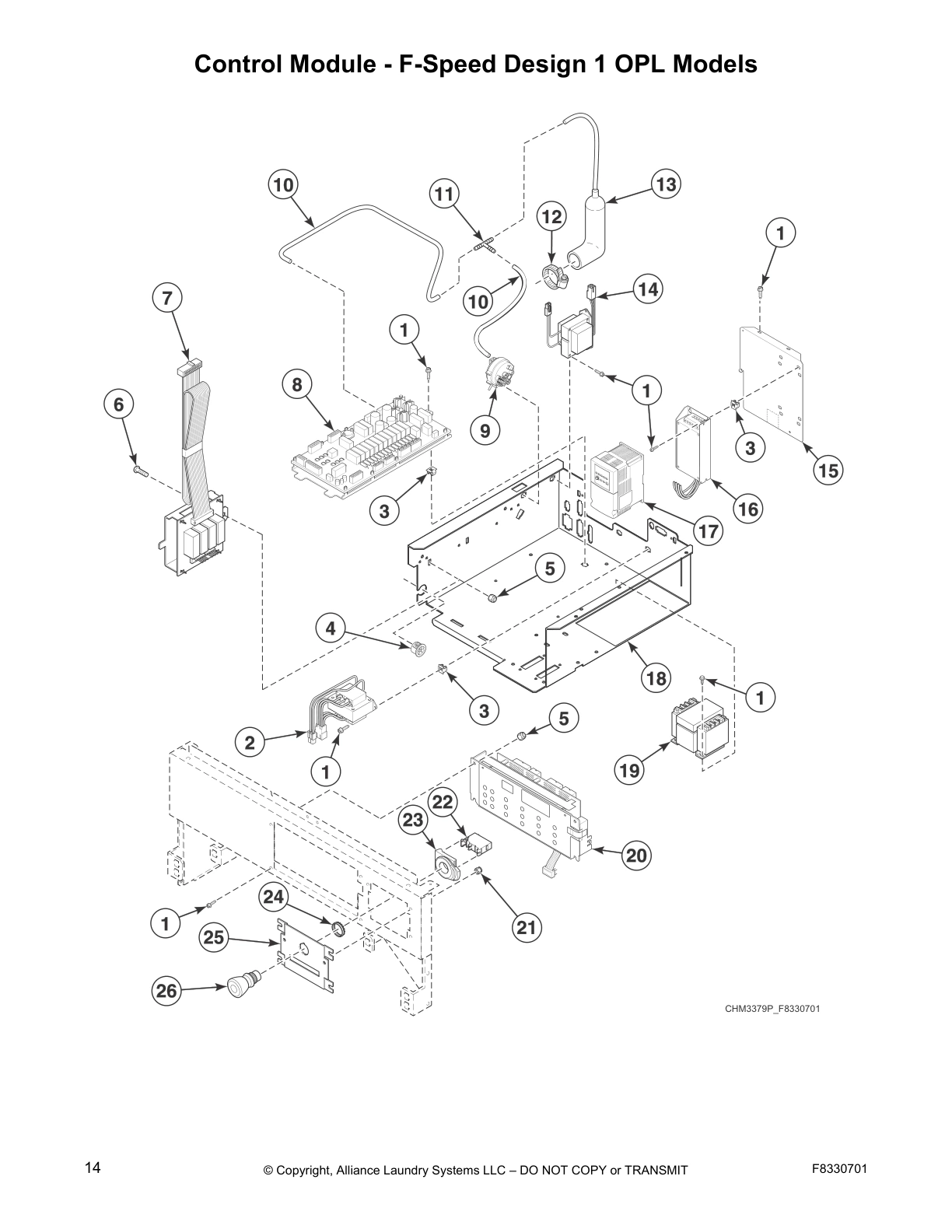

Control Module - F-Speed Design 1 OPL Models

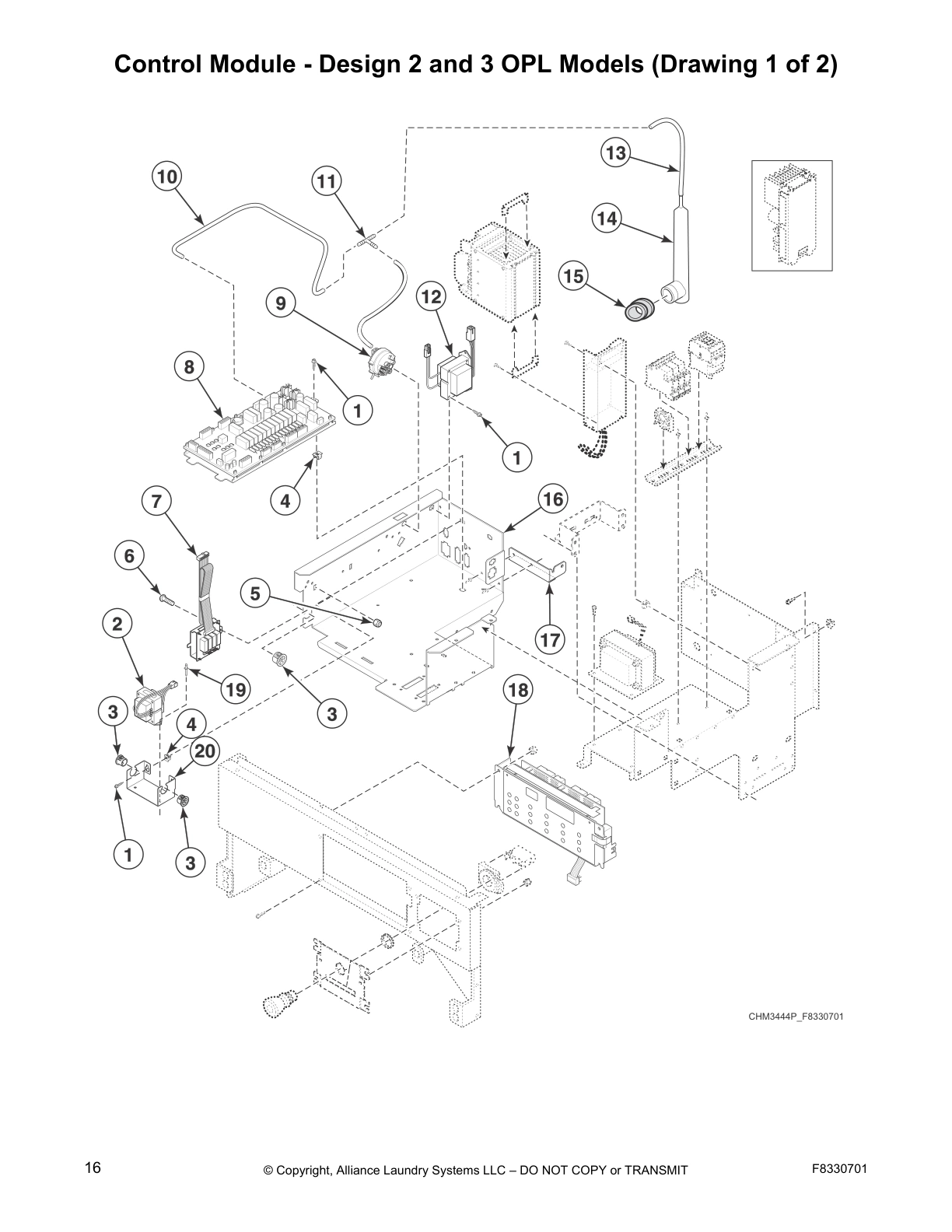

Control Module - Design 2 and 3 OPL Models (Drawing 1 of 2)

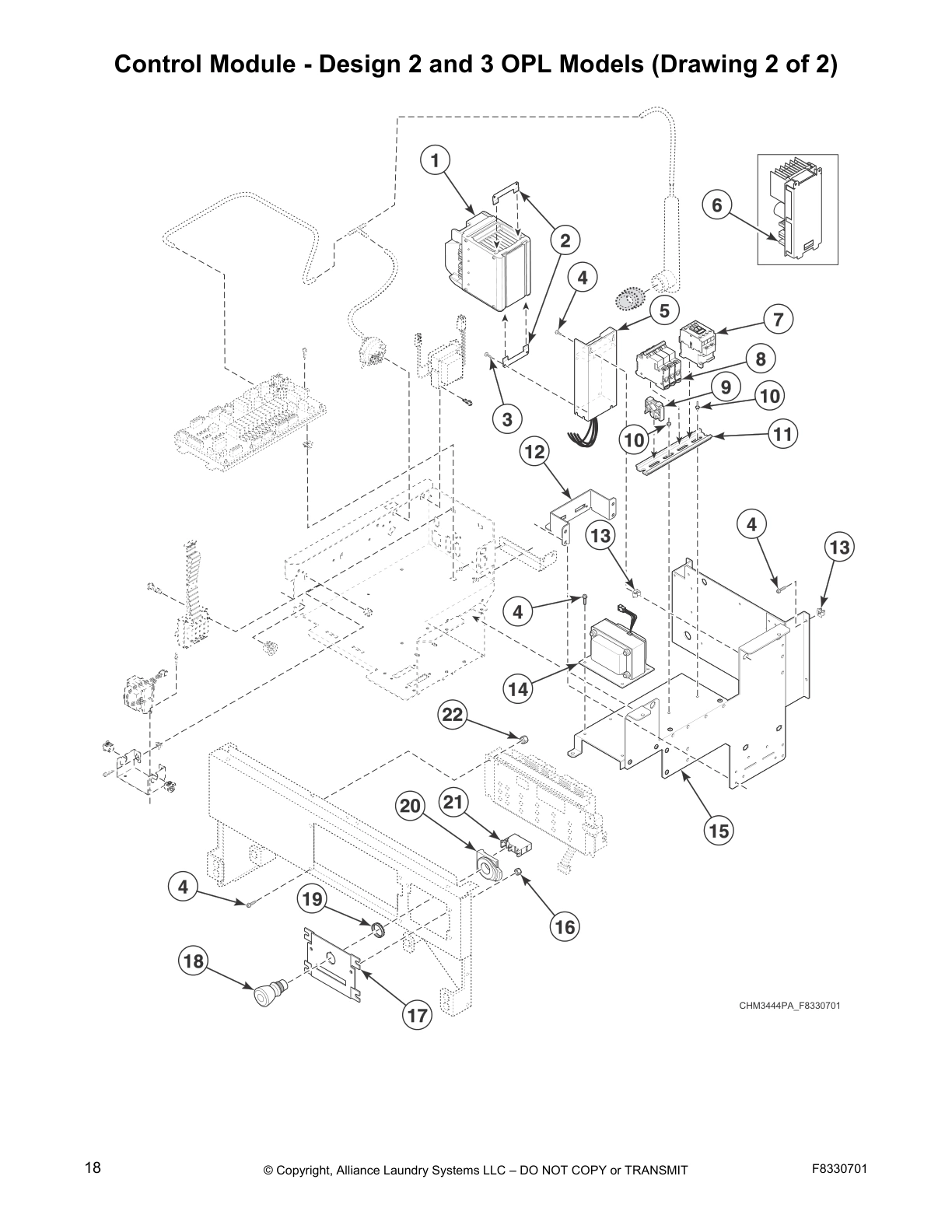

Control Module - Design 2 and 3 OPL Models (Drawing 2 of 2)

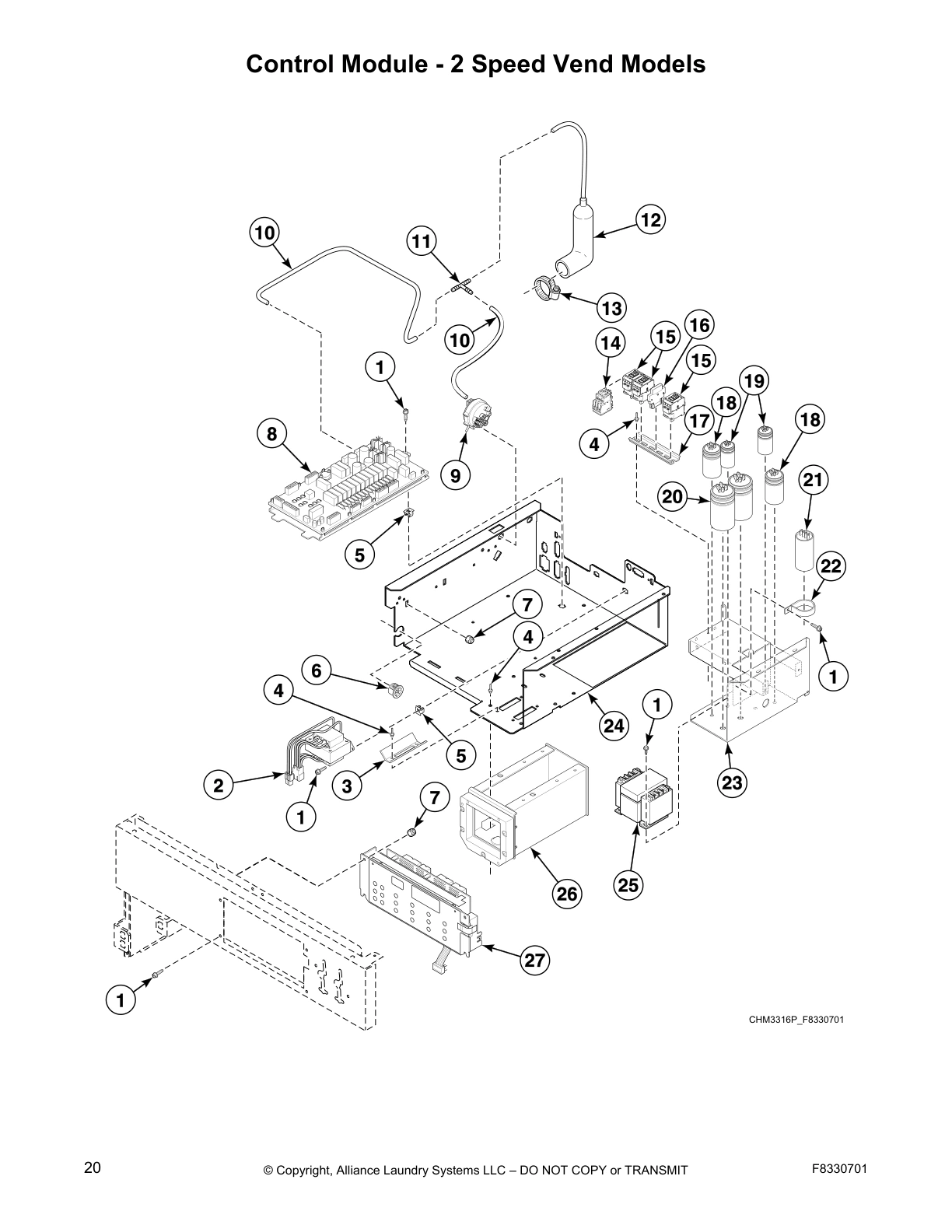

Control Module - 2 Speed Vend Models

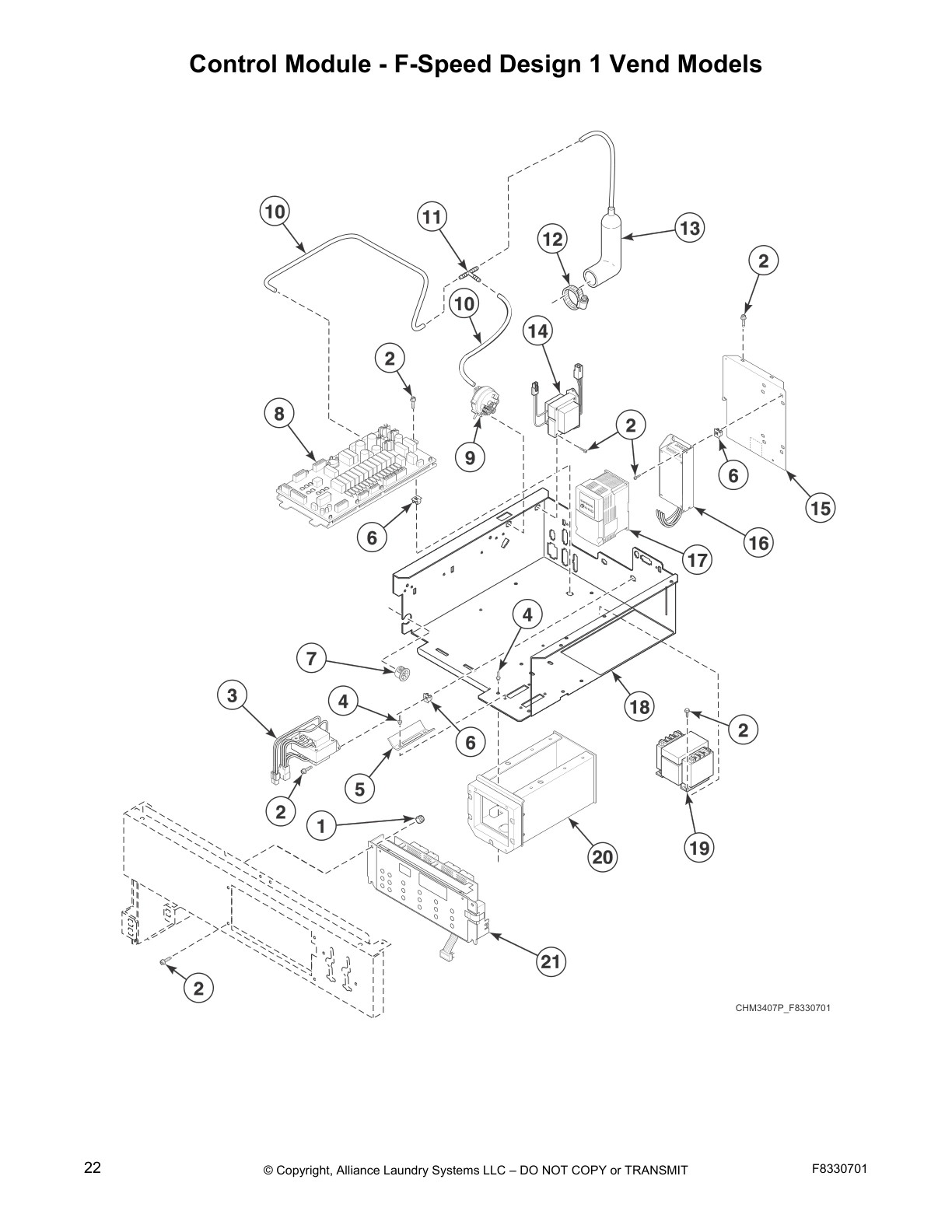

Control Module - F-Speed Design 1 Vend Models

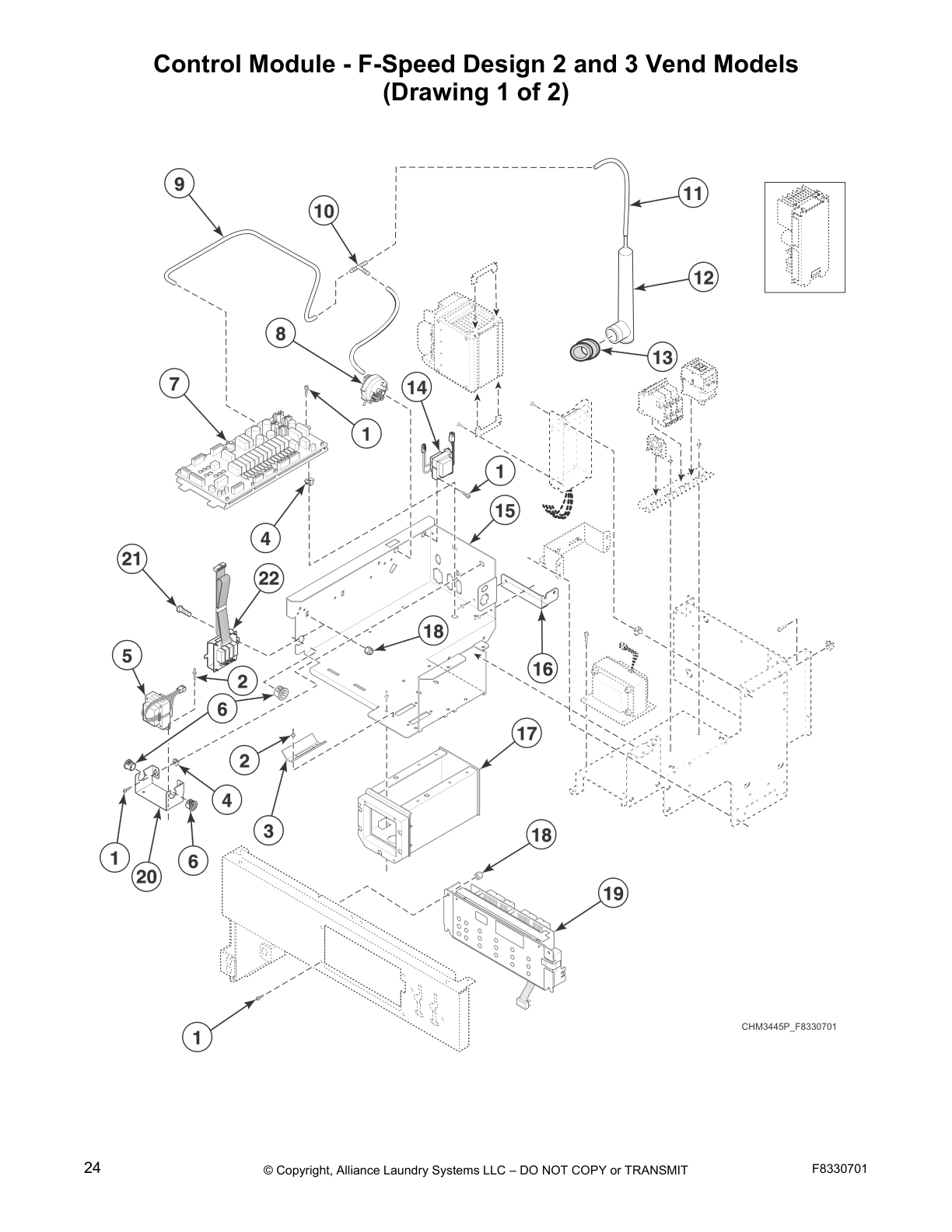

Control Module - F-Speed Design 2 and 3 Vend Models
(Drawing 1 of 2)

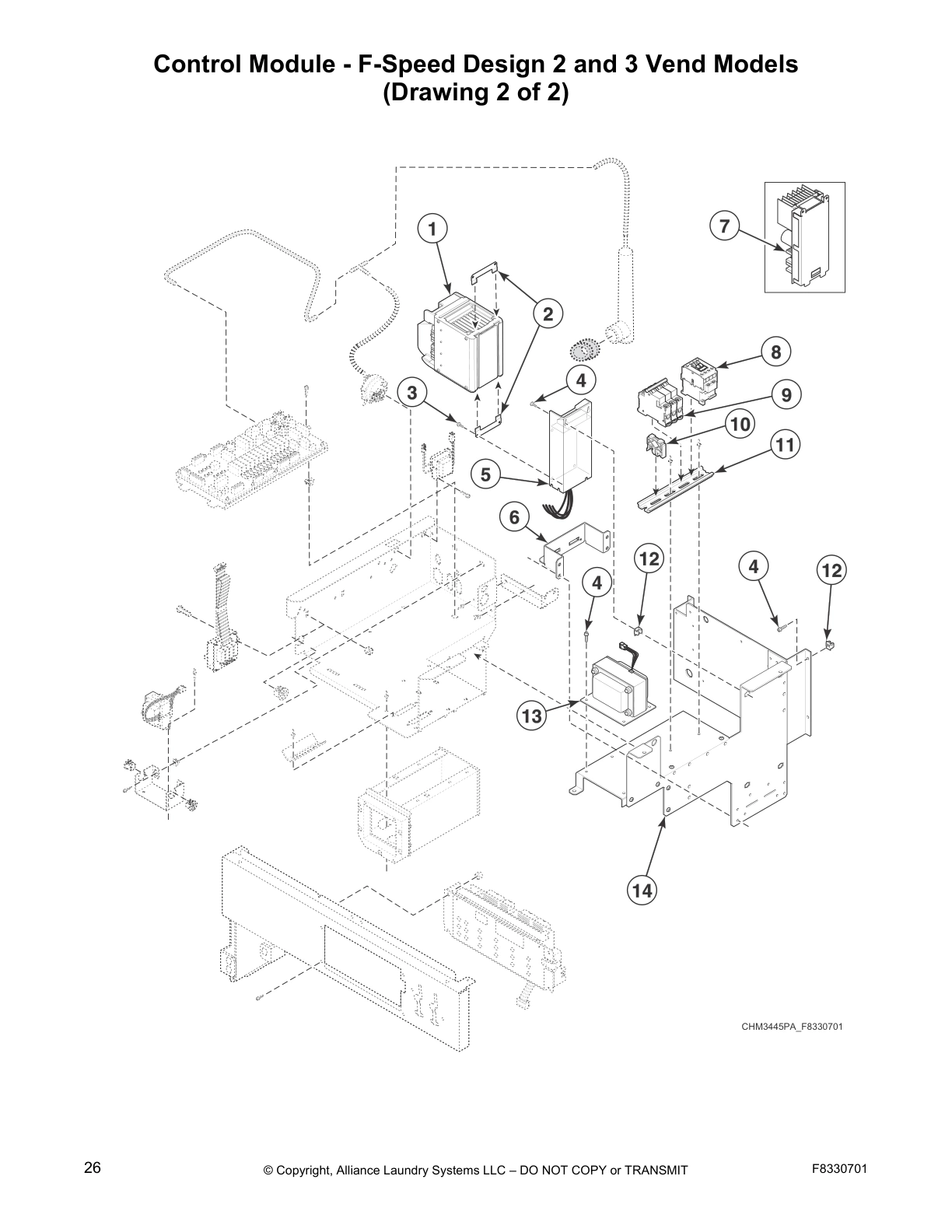

Control Module - F-Speed Design 2 and 3 Vend Models
(Drawing 2 of 2)

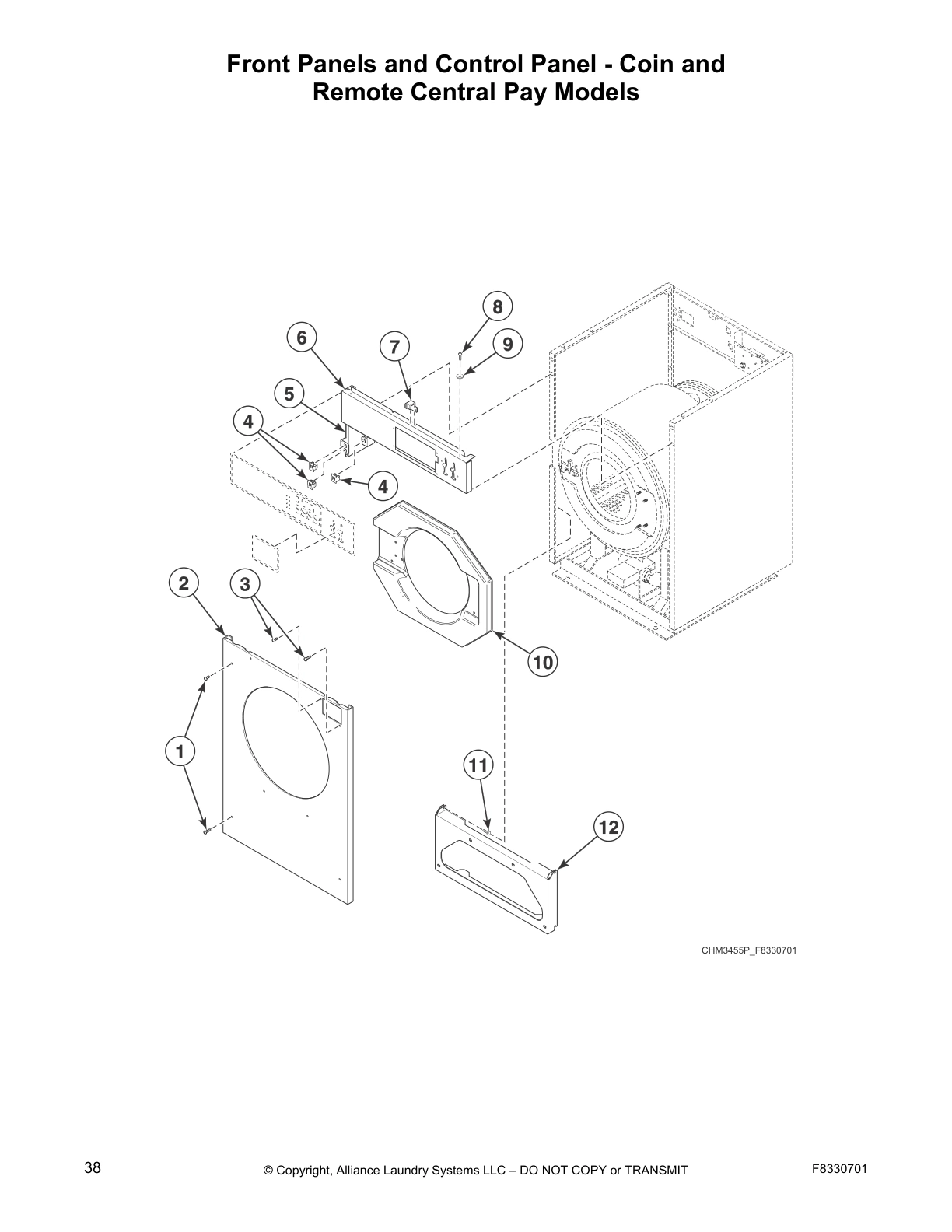

Front Panels and Control Panel - Coin and
Remote Central Pay Models

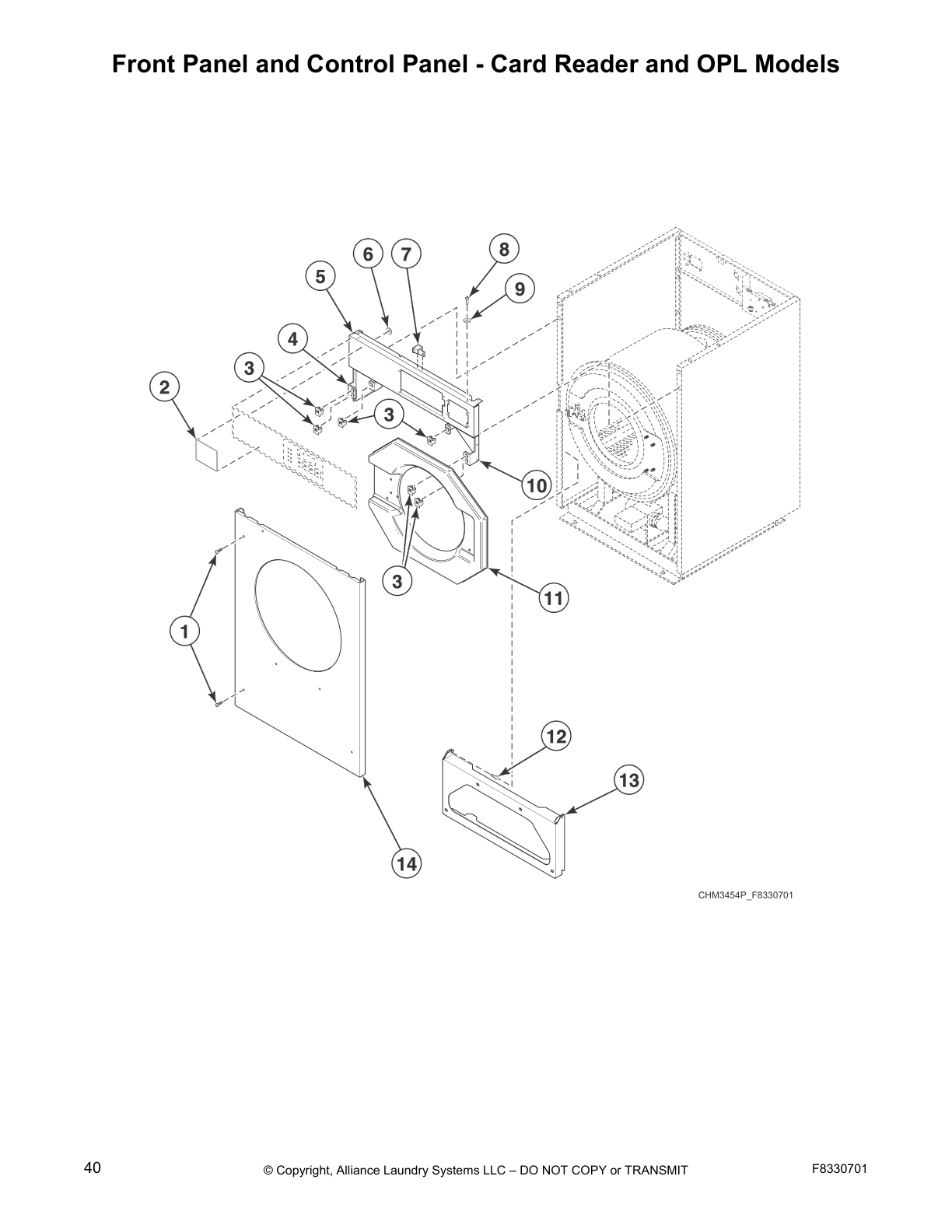

Front Panel and Control Panel - Card Reader and OPL Models

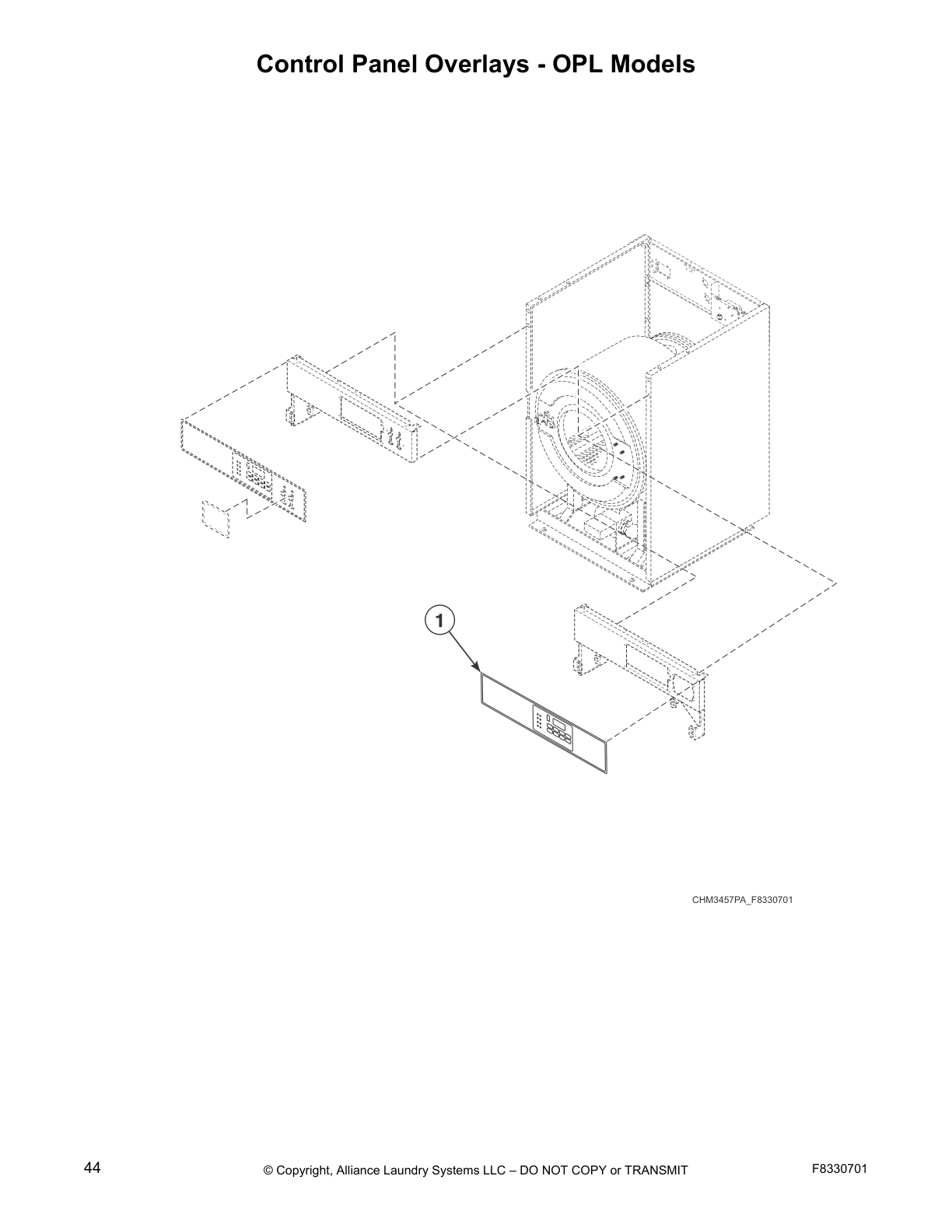

Control Panel Overlays - OPL Models

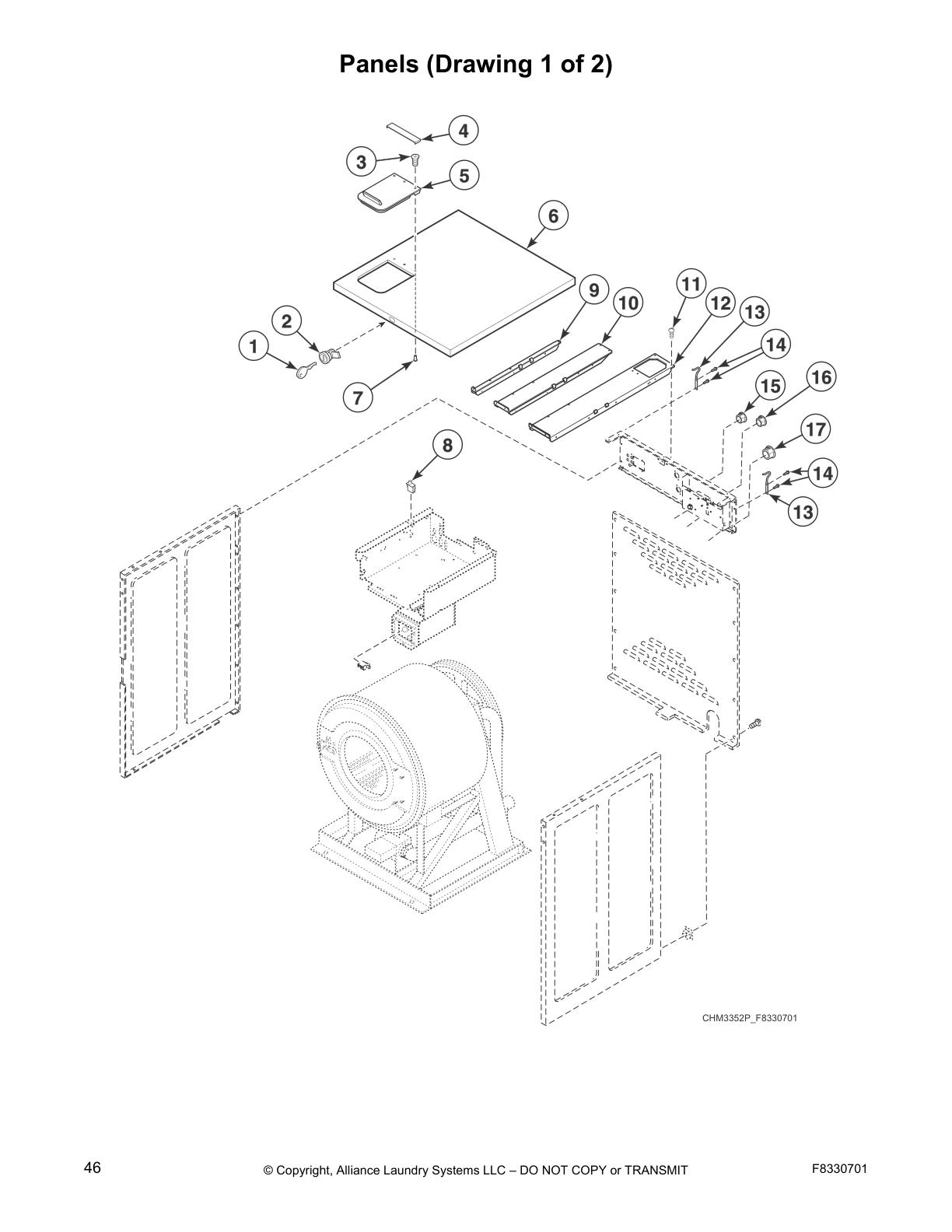

Panels (Drawing 1 of 2)

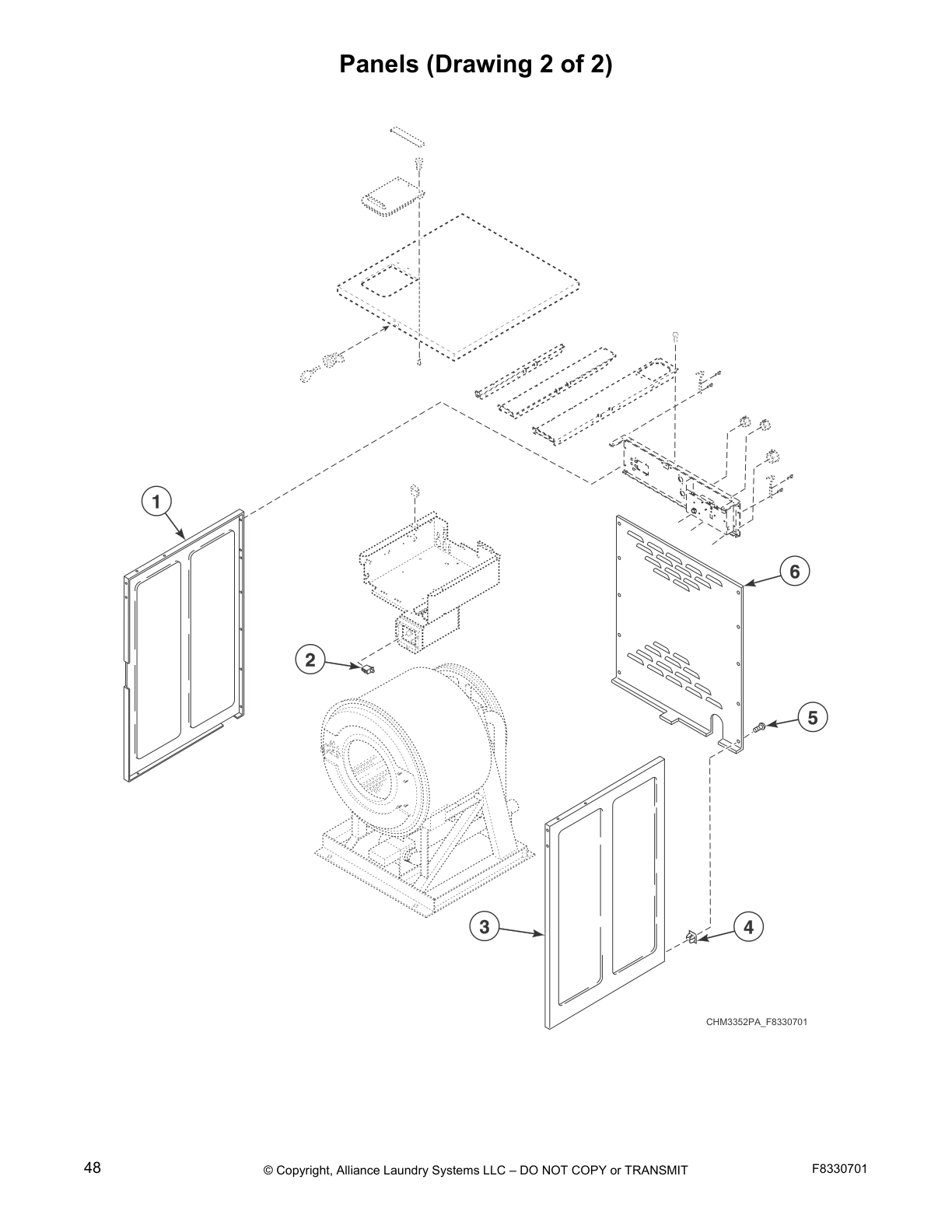

Panels (Drawing 2 of 2)

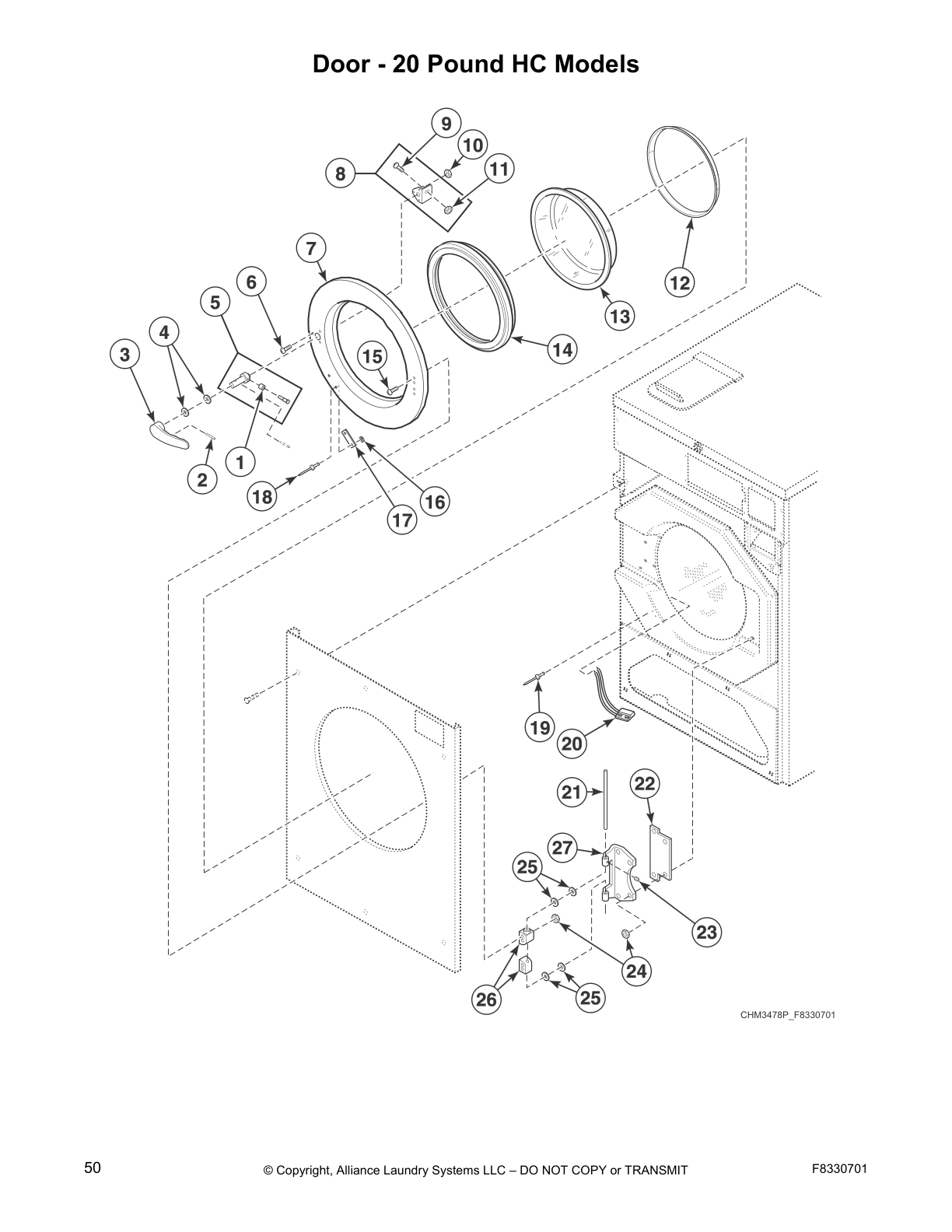

Door - 20 Pound HC Models

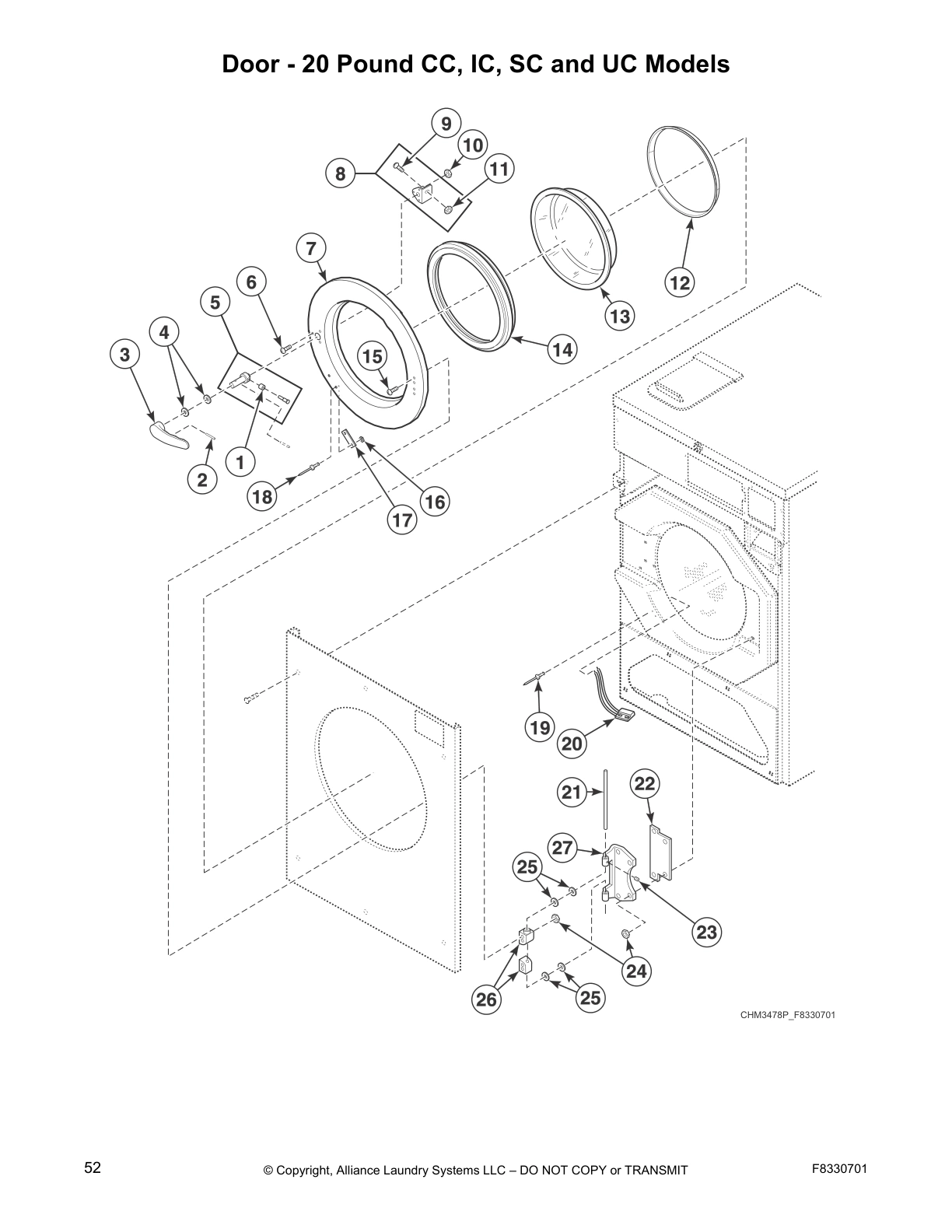

Door - 20 Pound CC, IC, SC and UC Models
Door - 30 Pound HC Models
Door - 30 Pound CC, IC, SC and UC Models

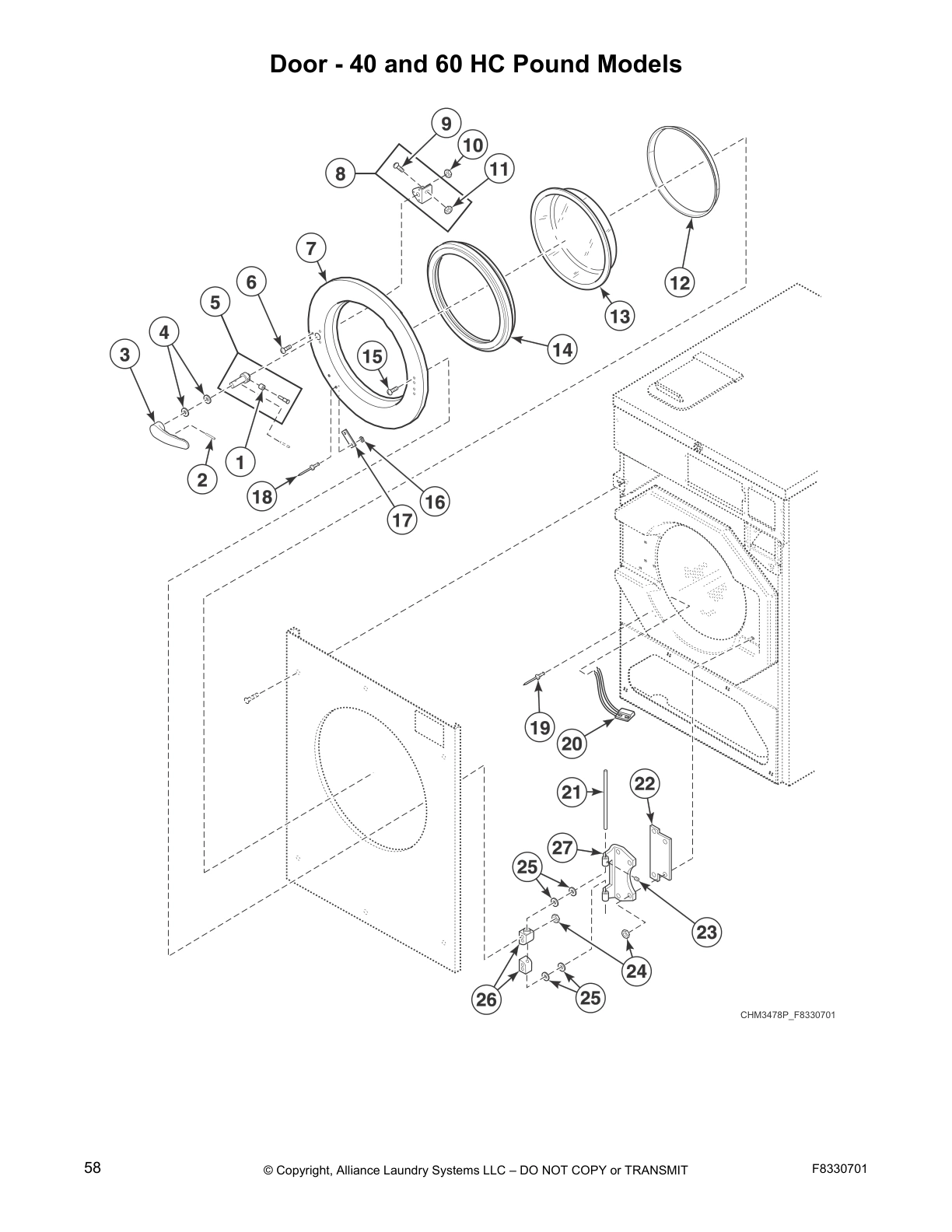

Door - 40 and 60 HC Pound Models

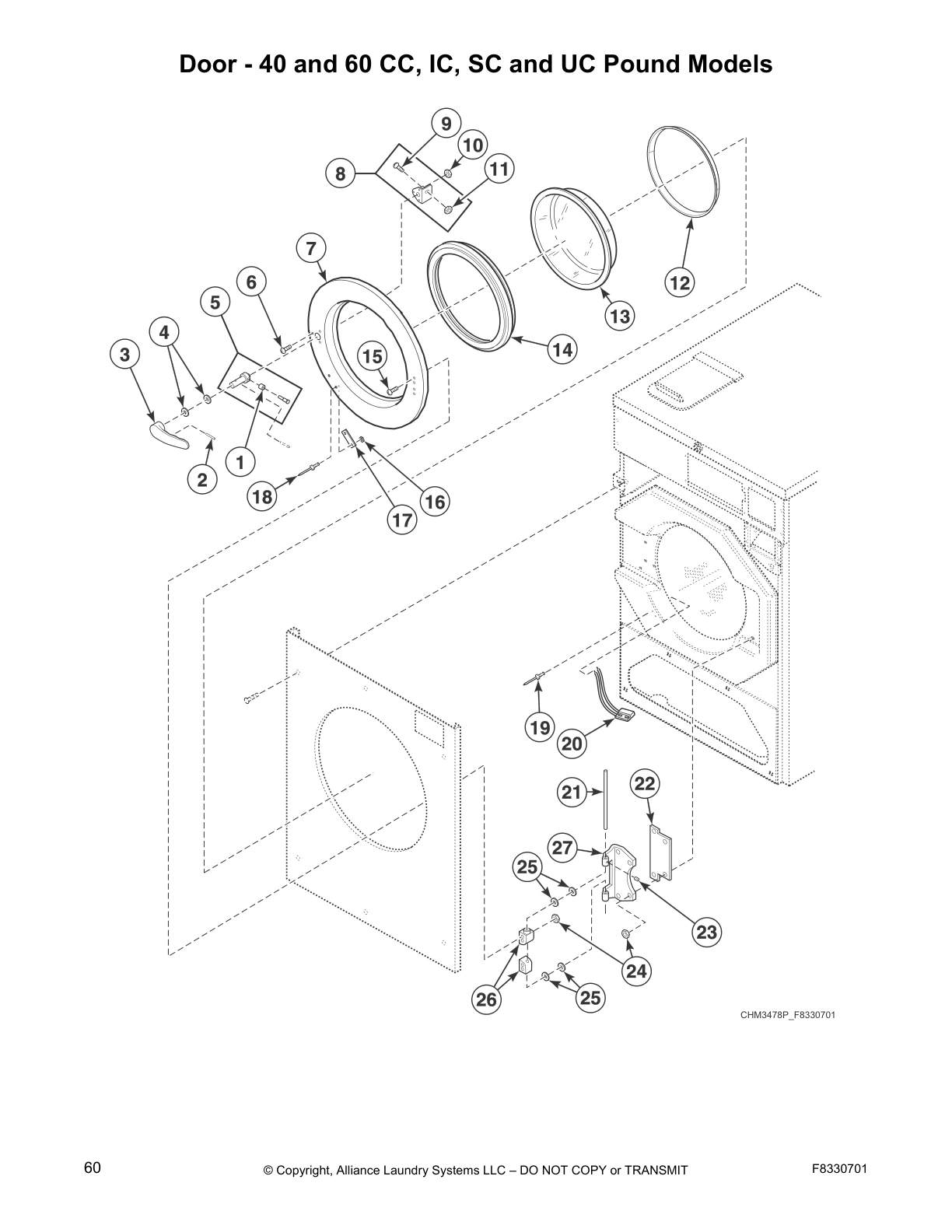

Door - 40 and 60 CC, IC, SC and UC Pound Models

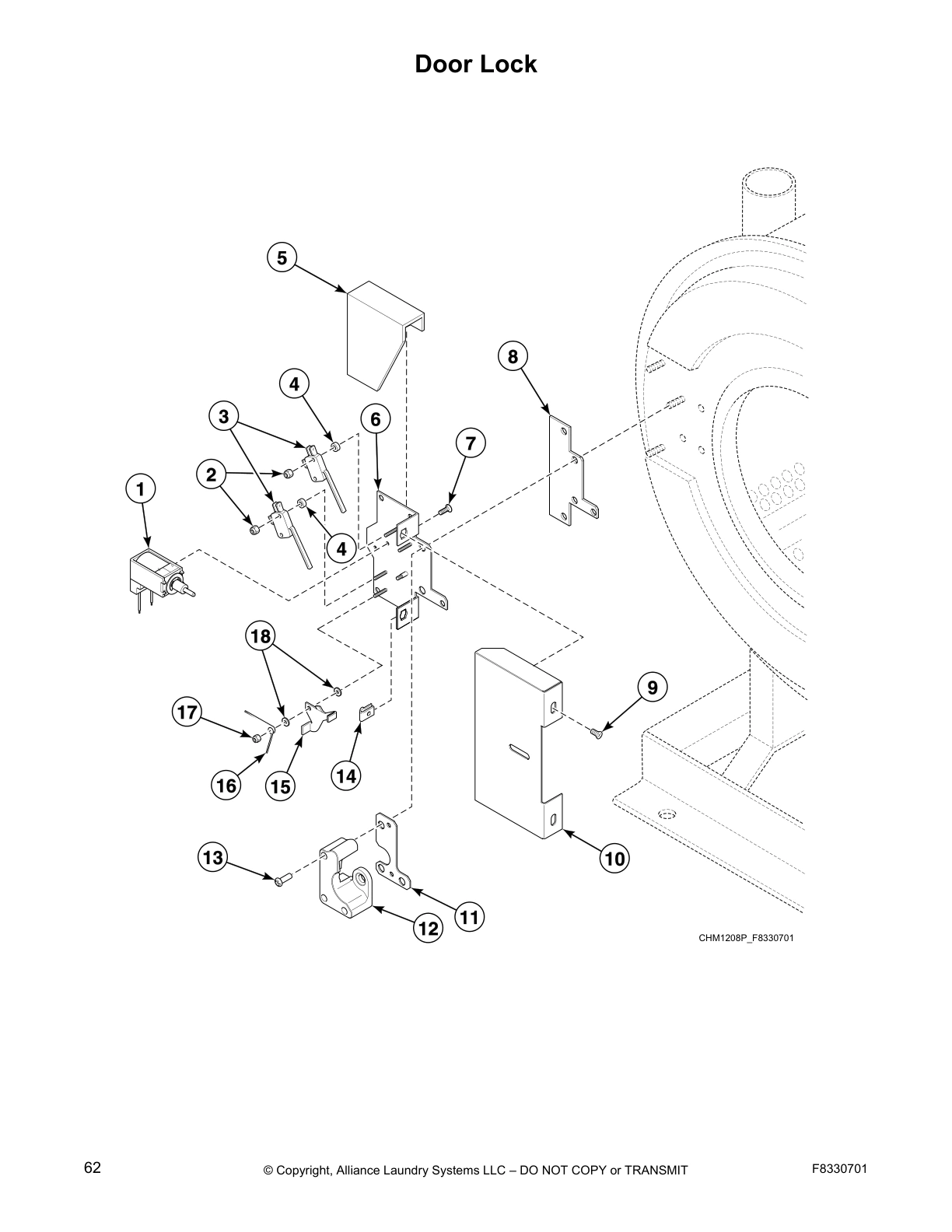

Door Lock

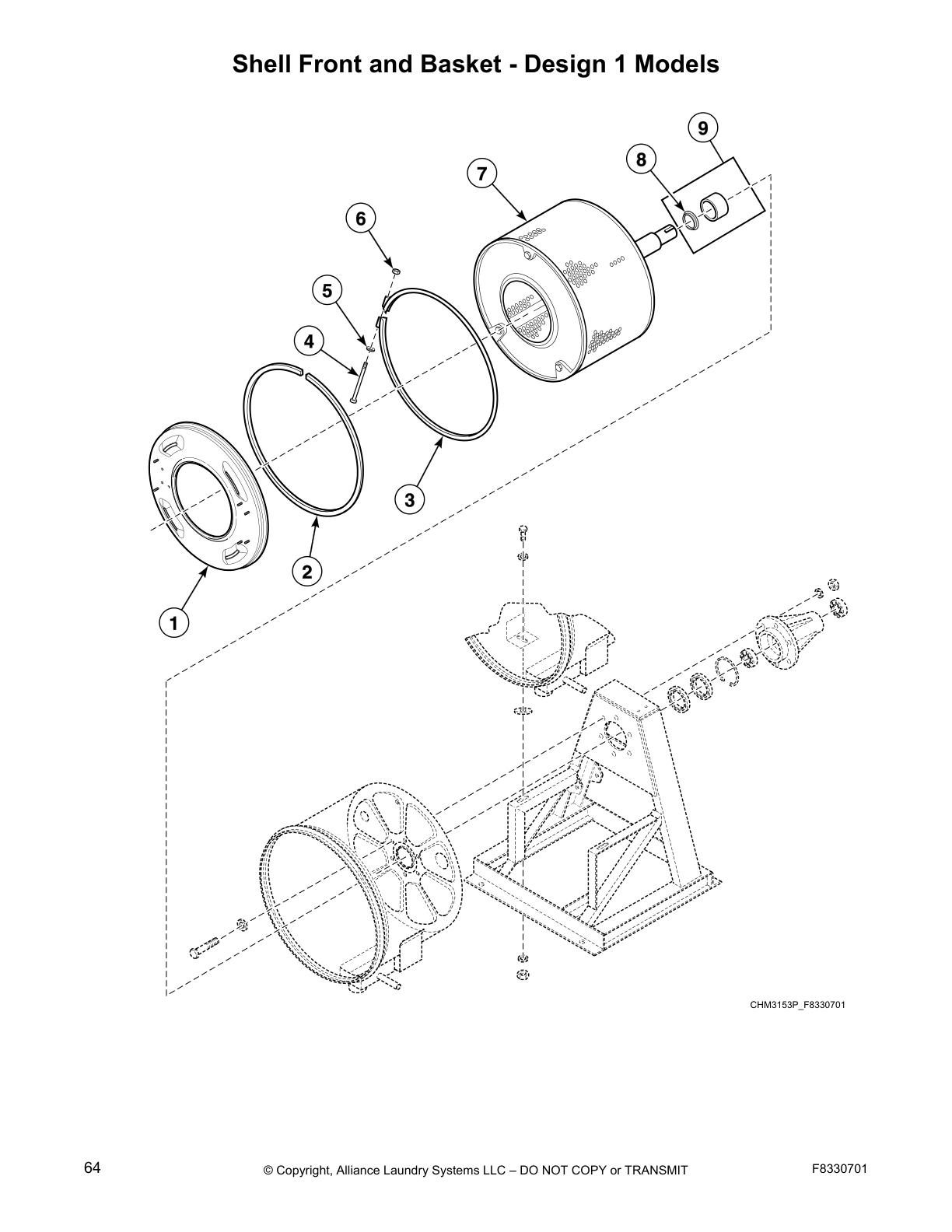

Shell Front and Basket - Design 1 Models

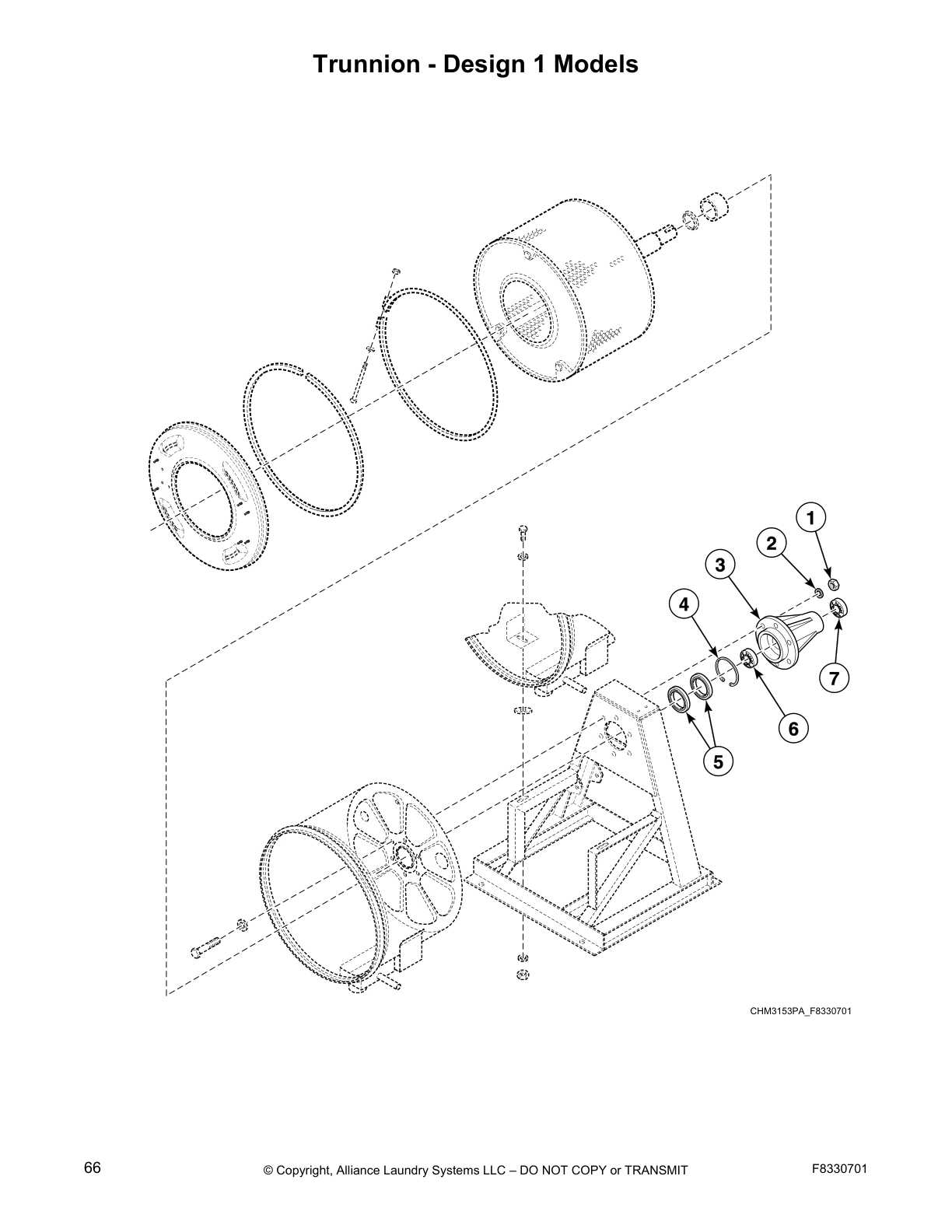

Trunnion - Design 1 Models

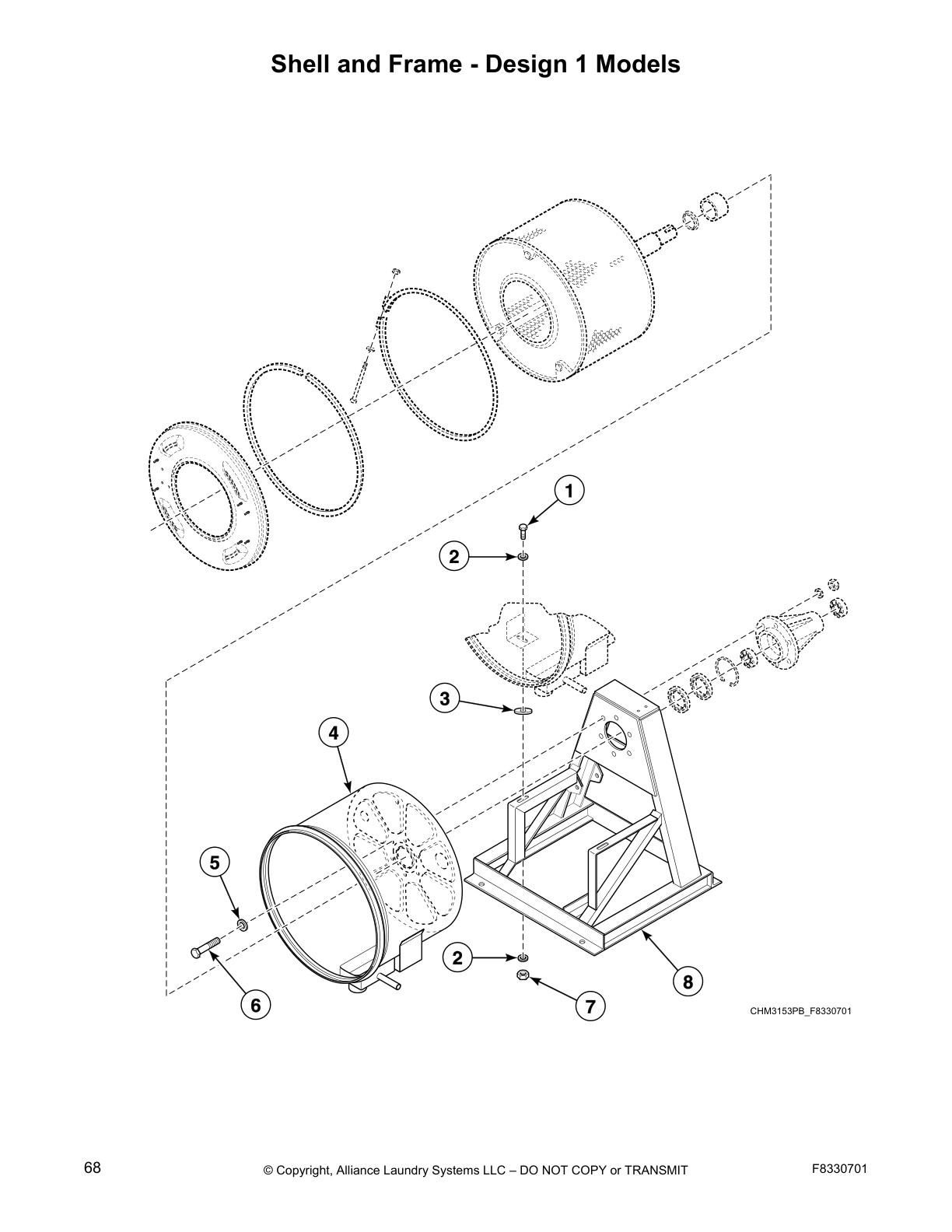

Shell and Frame - Design 1 Models

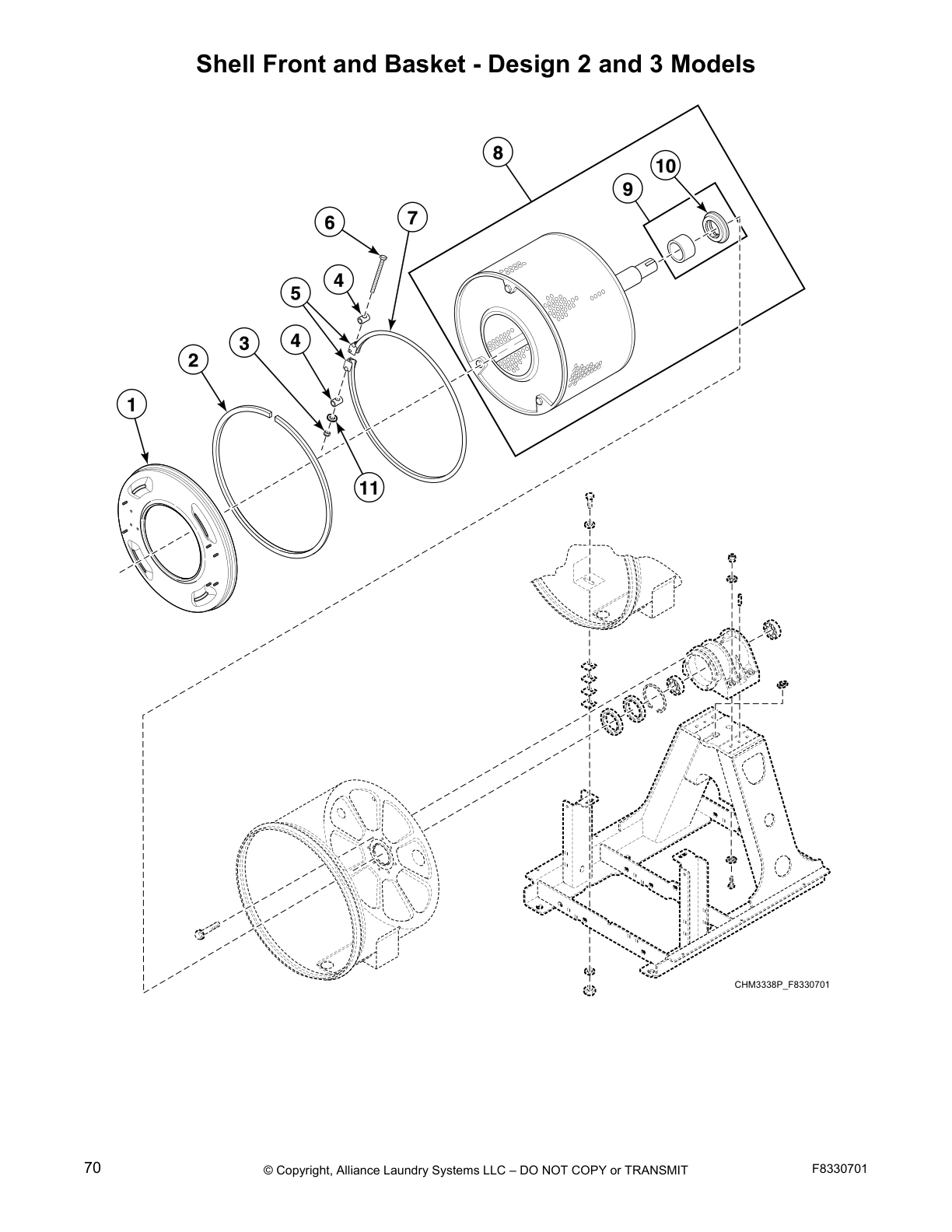

Shell Front and Basket - Design 2 and 3 Models
Bearing Housing - 20 and 30 Pound Design 2 and 3 Models

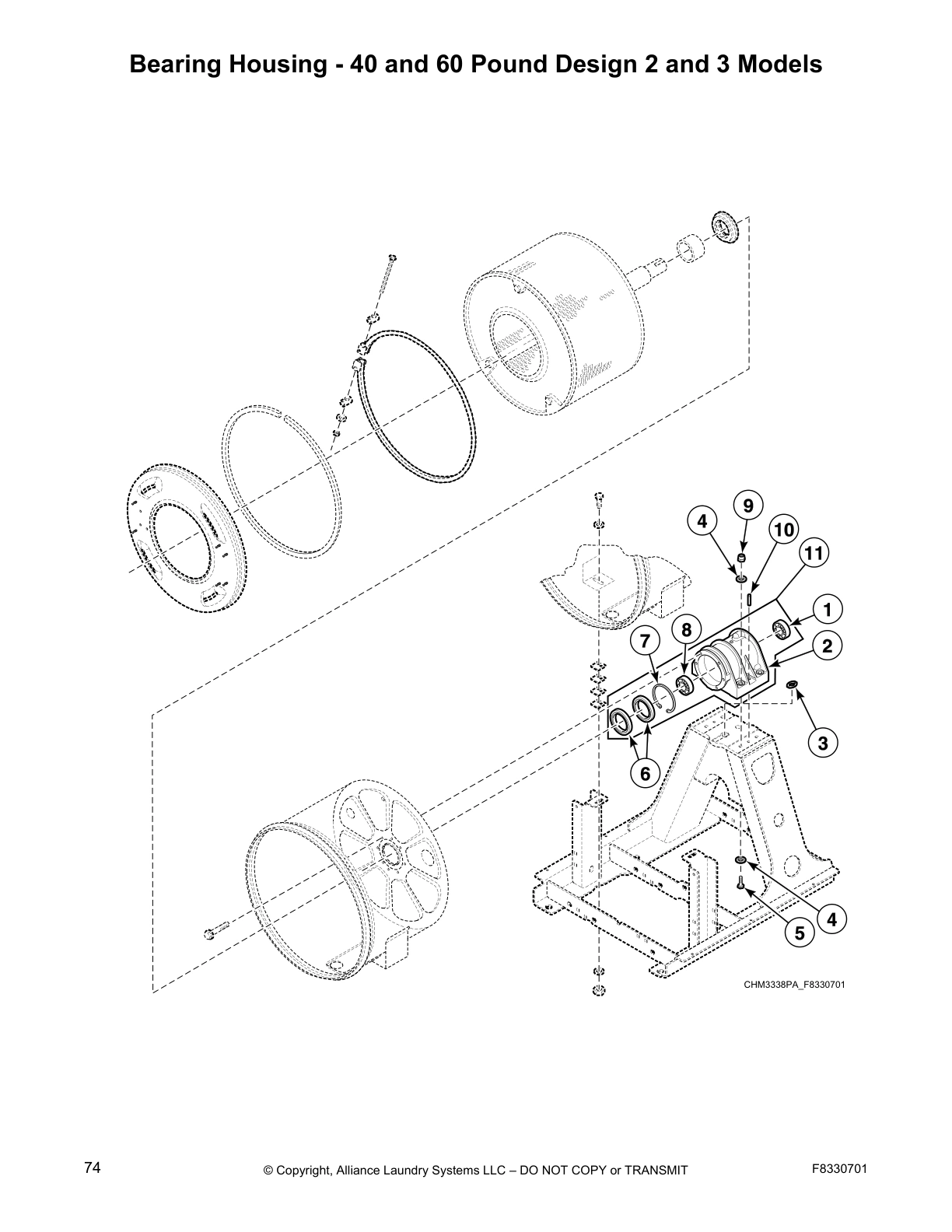

Bearing Housing - 40 and 60 Pound Design 2 and 3 Models

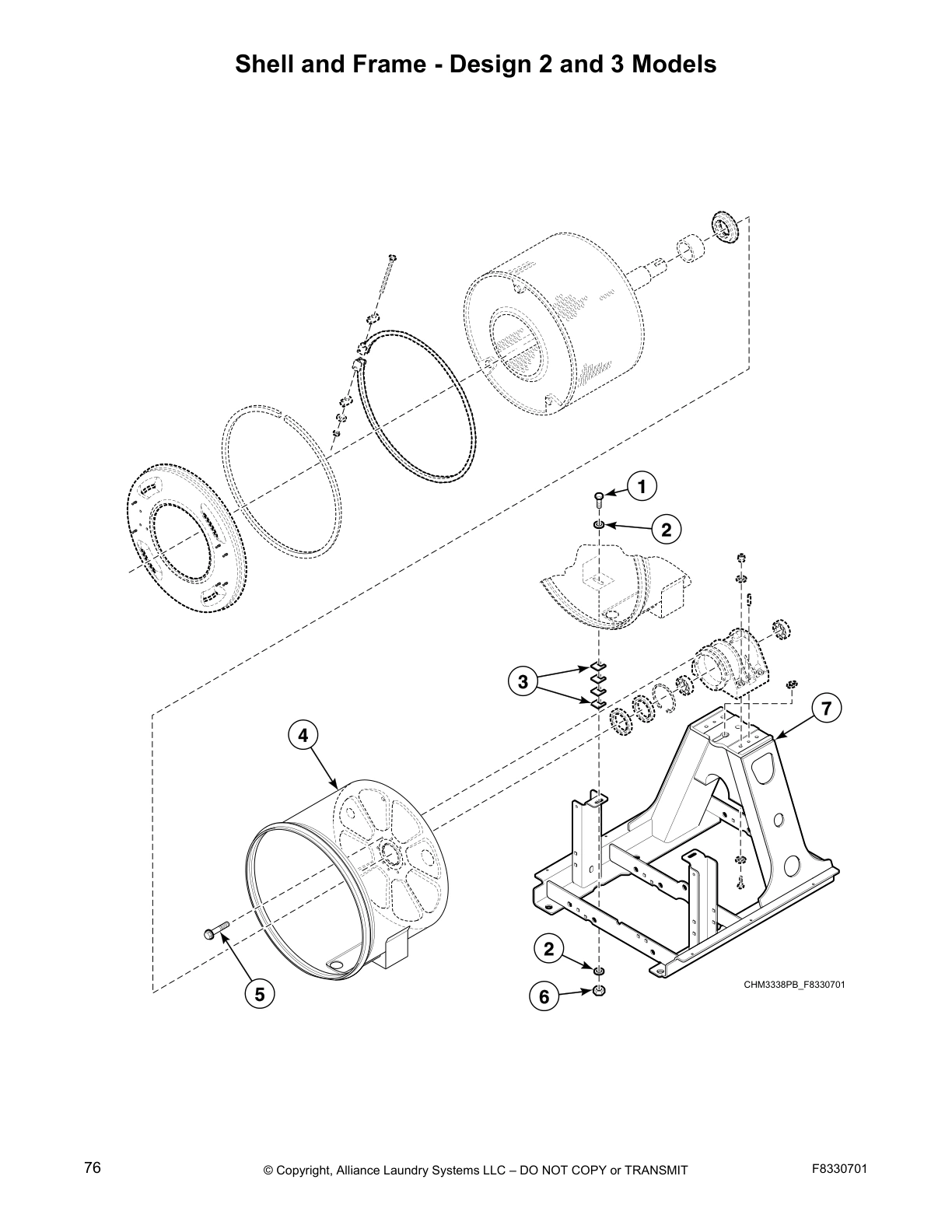

Shell and Frame - Design 2 and 3 Models

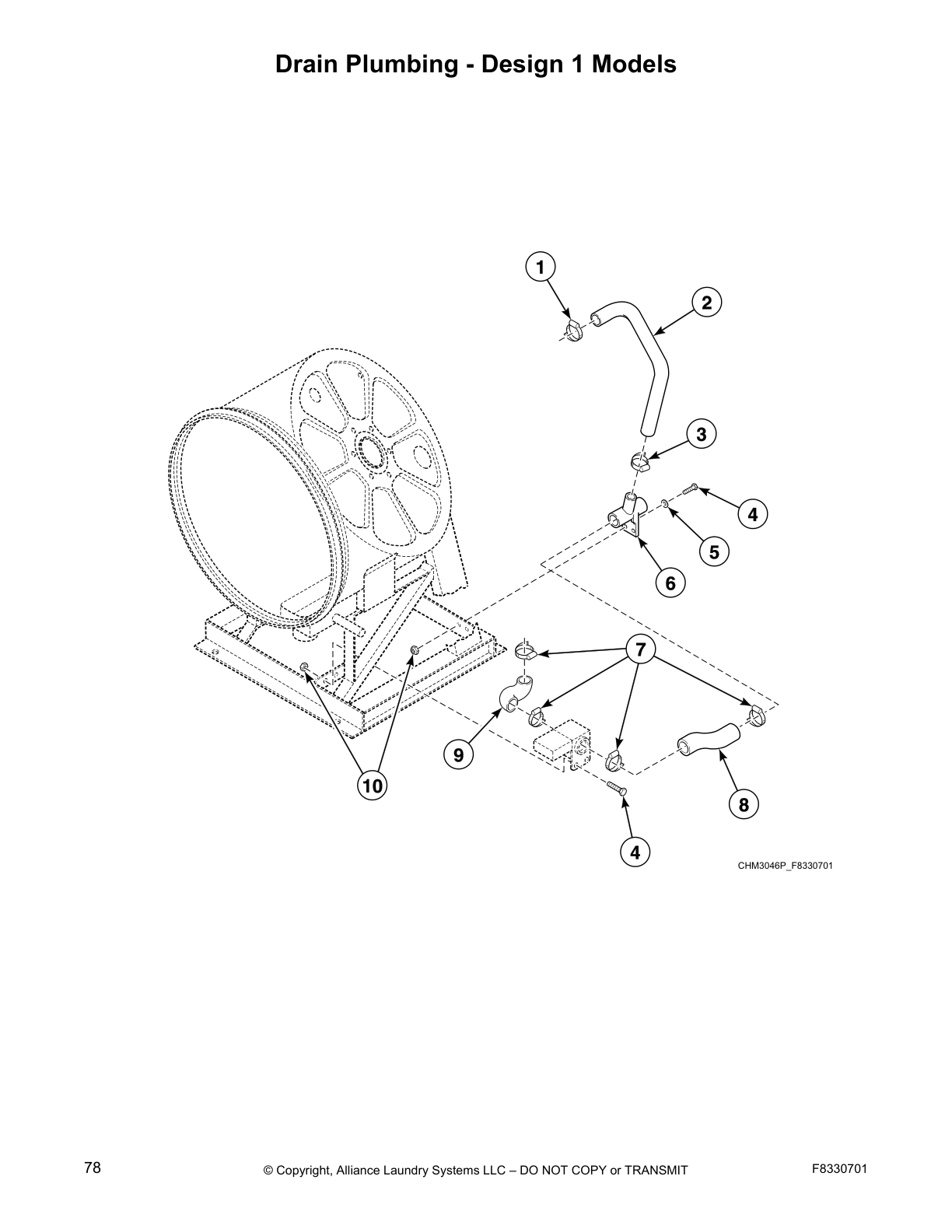

Drain Plumbing - Design 1 Models

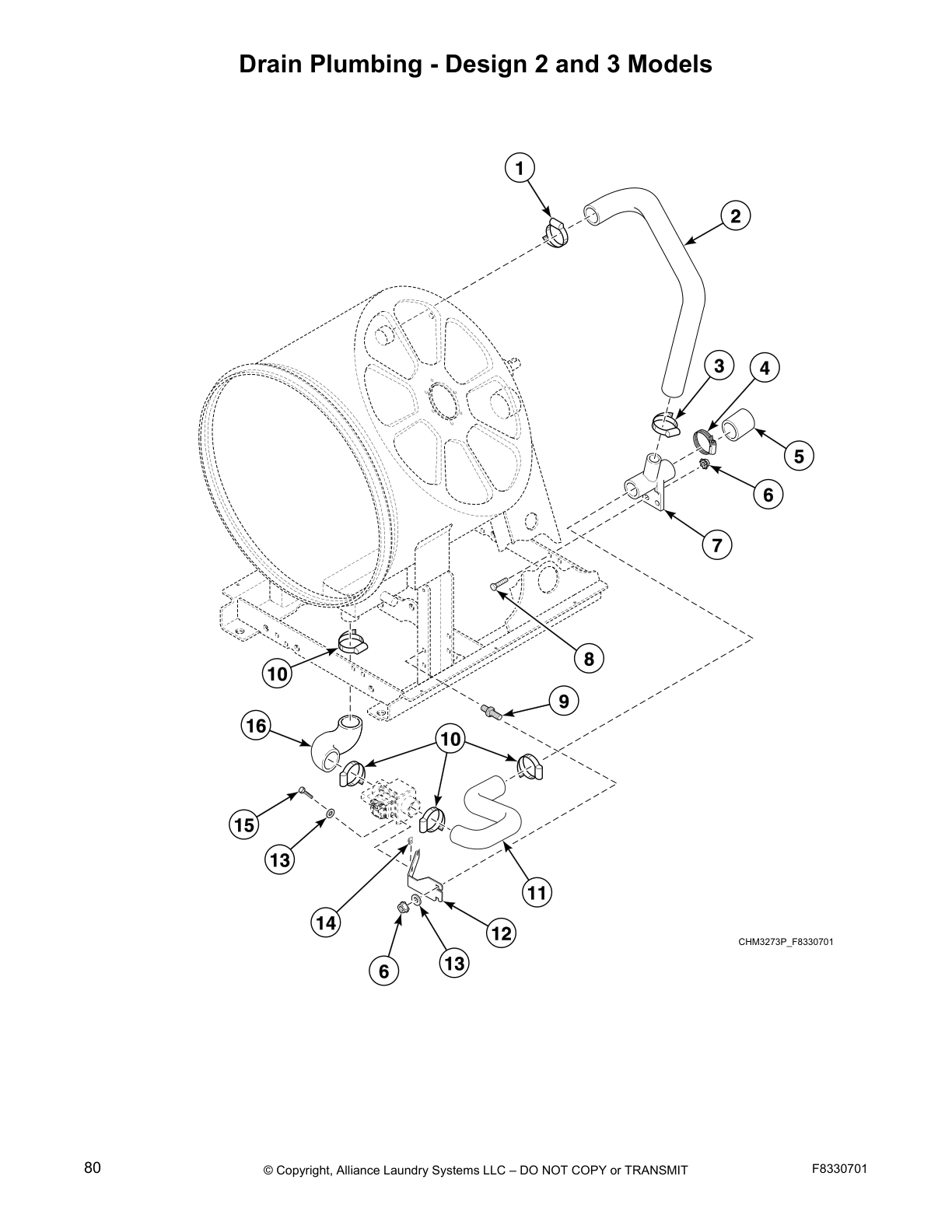

Drain Plumbing - Design 2 and 3 Models

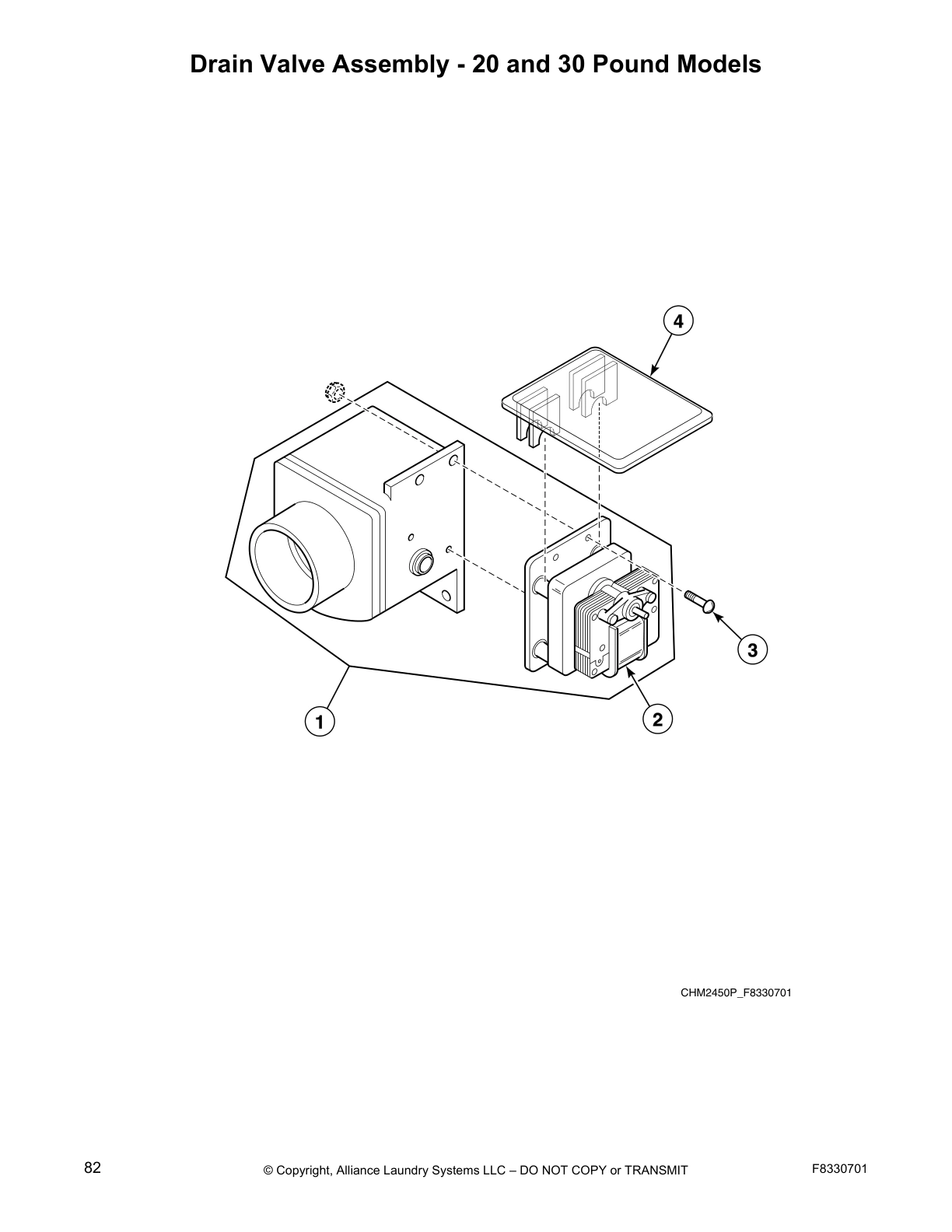

Drain Valve Assembly - 20 and 30 Pound Models

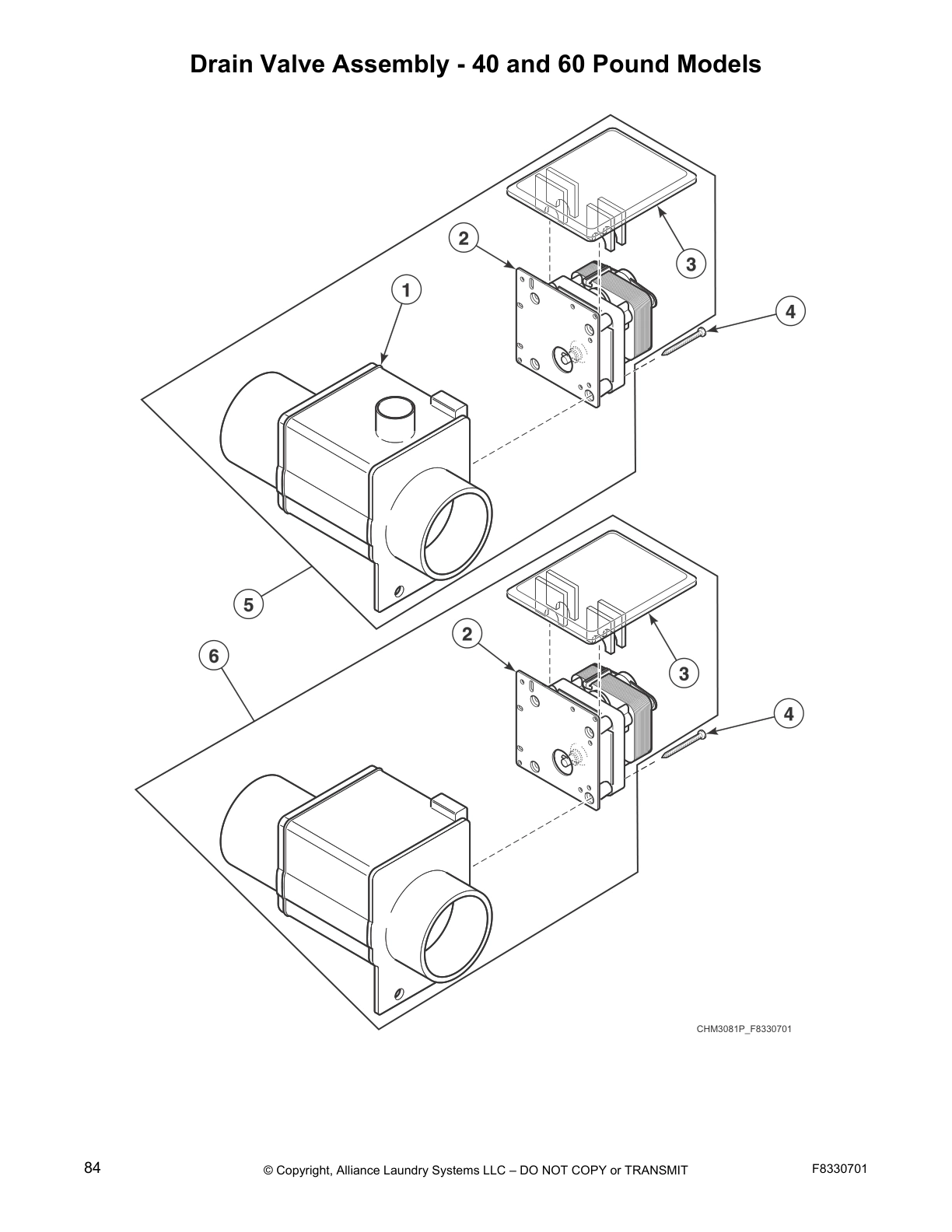

Drain Valve Assembly - 40 and 60 Pound Models

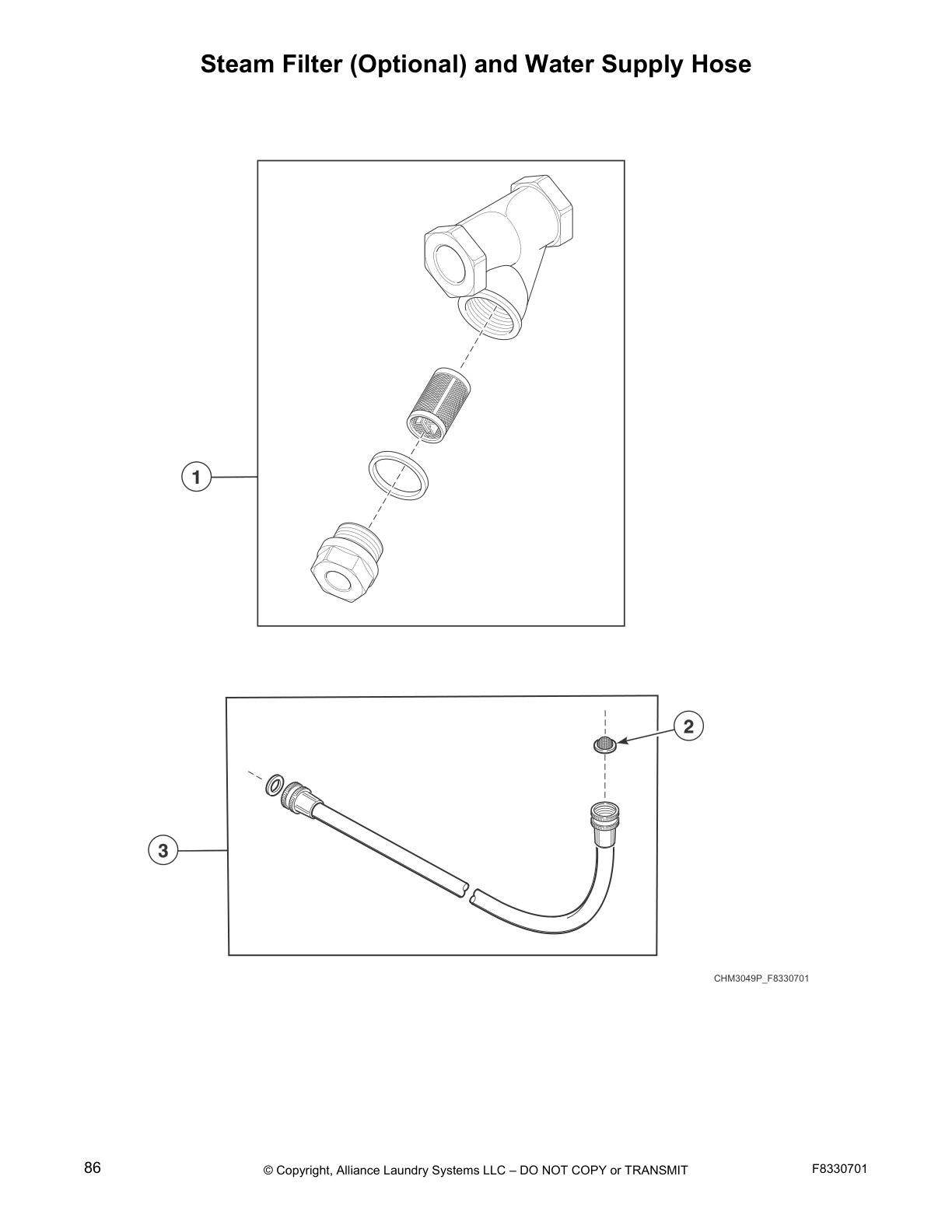

Steam Filter (Optional) and Water Supply Hose

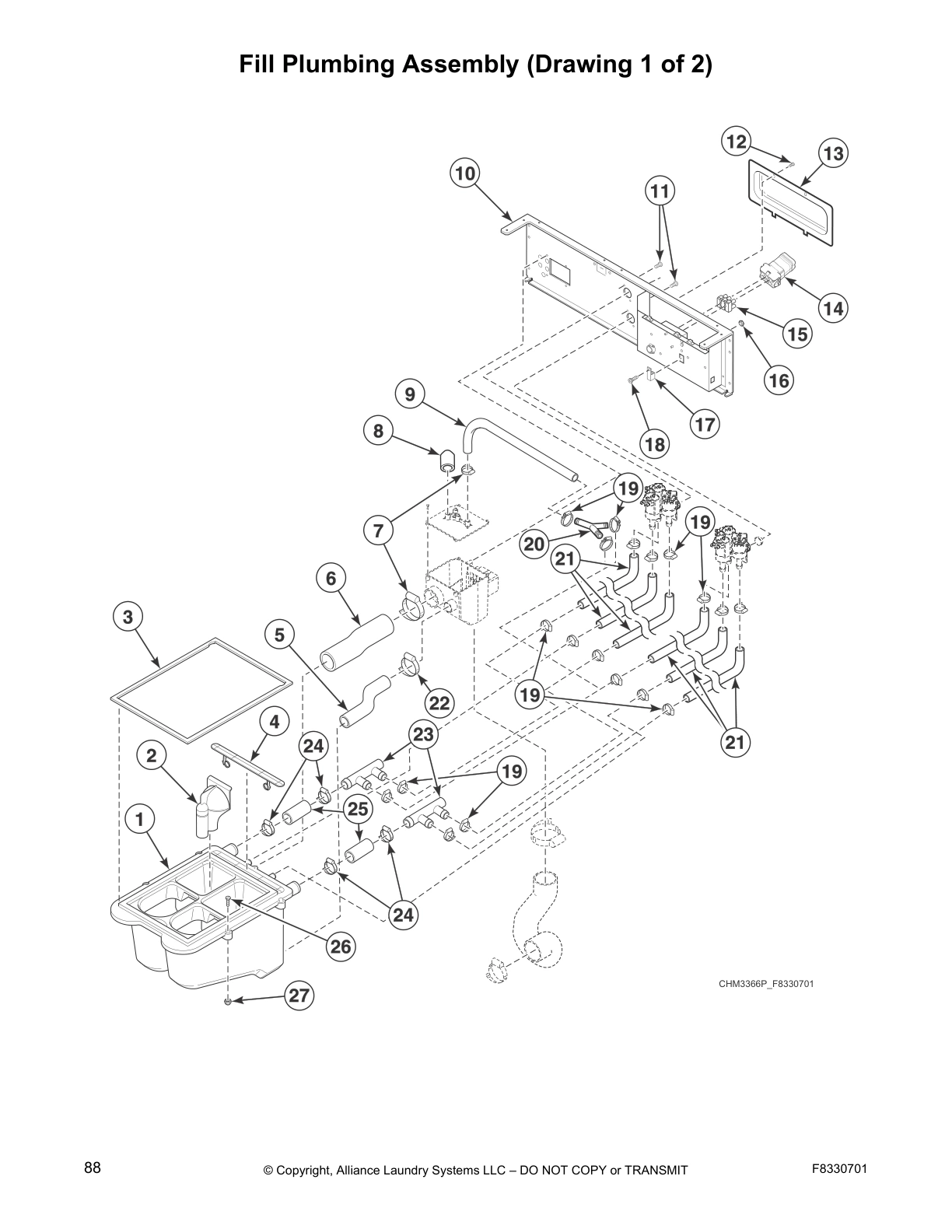

Fill Plumbing Assembly (Drawing 1 of 2)

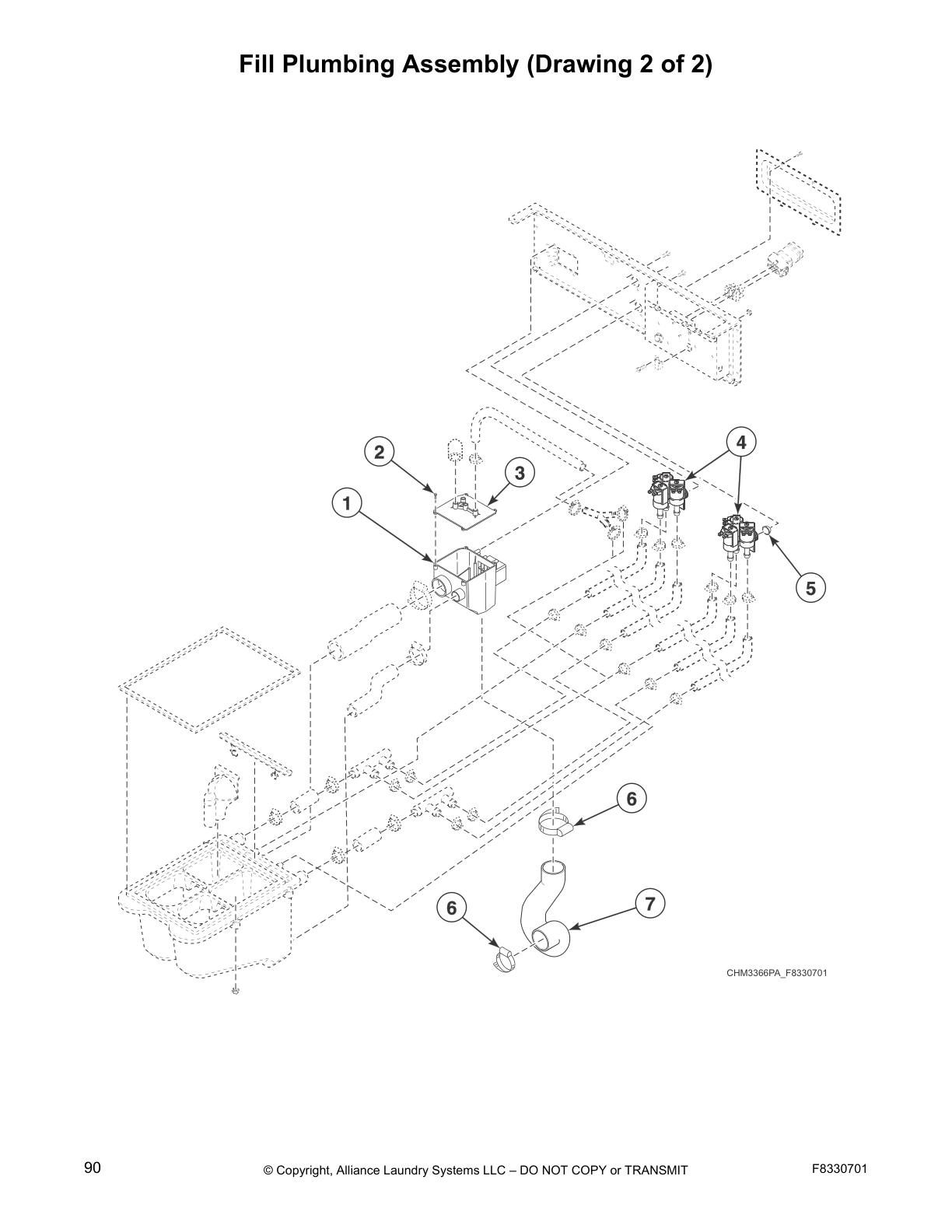

Fill Plumbing Assembly (Drawing 2 of 2)

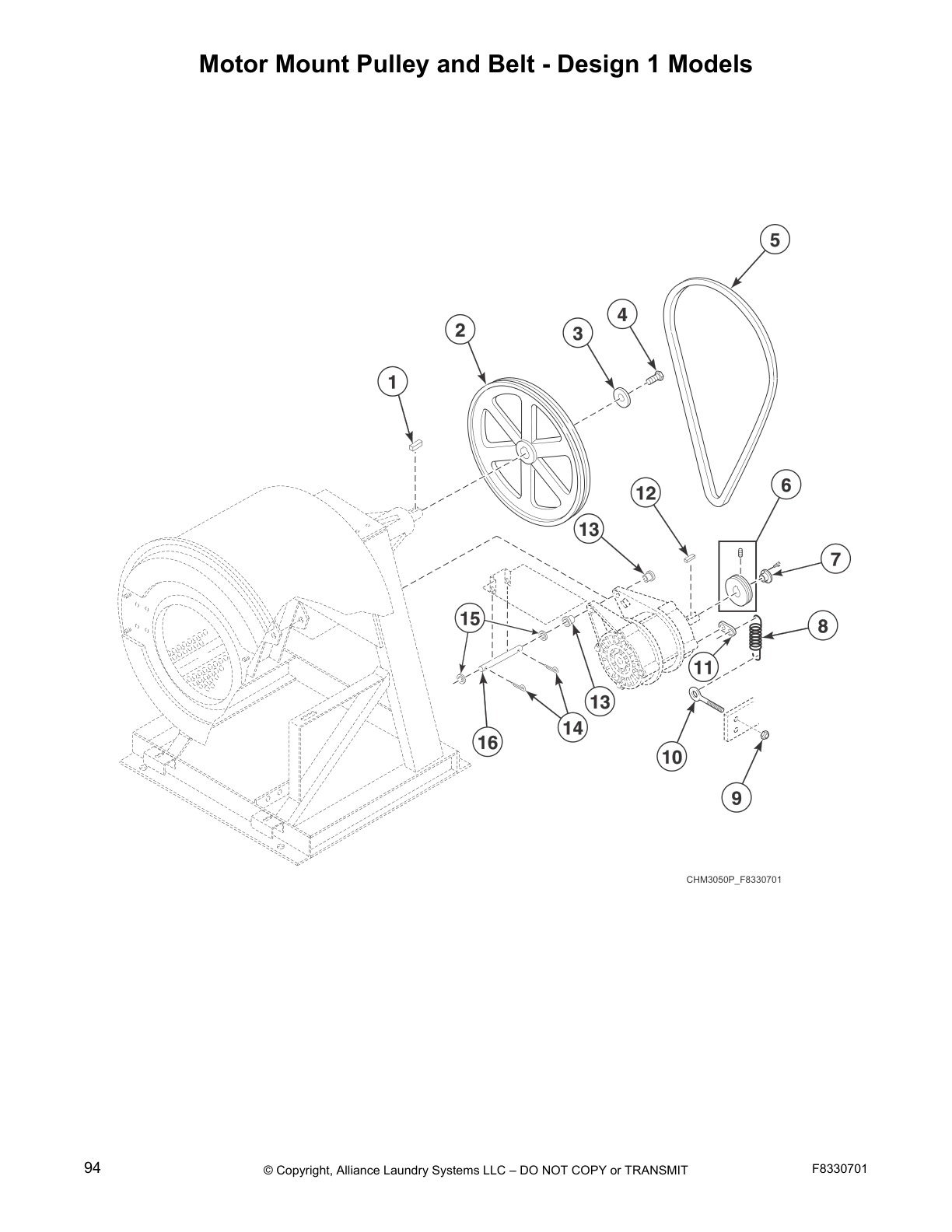

Motor Mount Pulley and Belt - Design 1 Models
Motor, Pulley and Belt (Drawing 1 of 2)

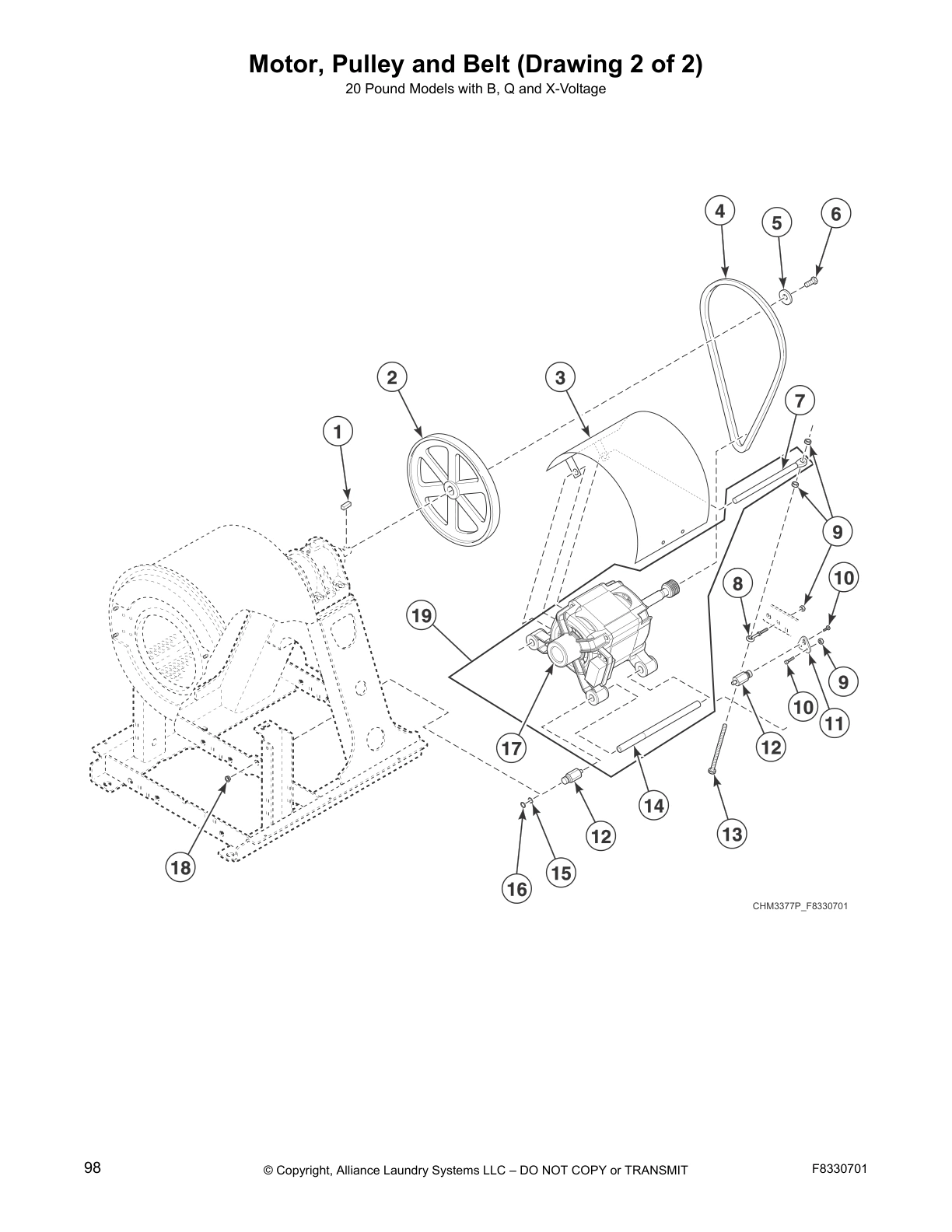

Motor, Pulley and Belt (Drawing 2 of 2)

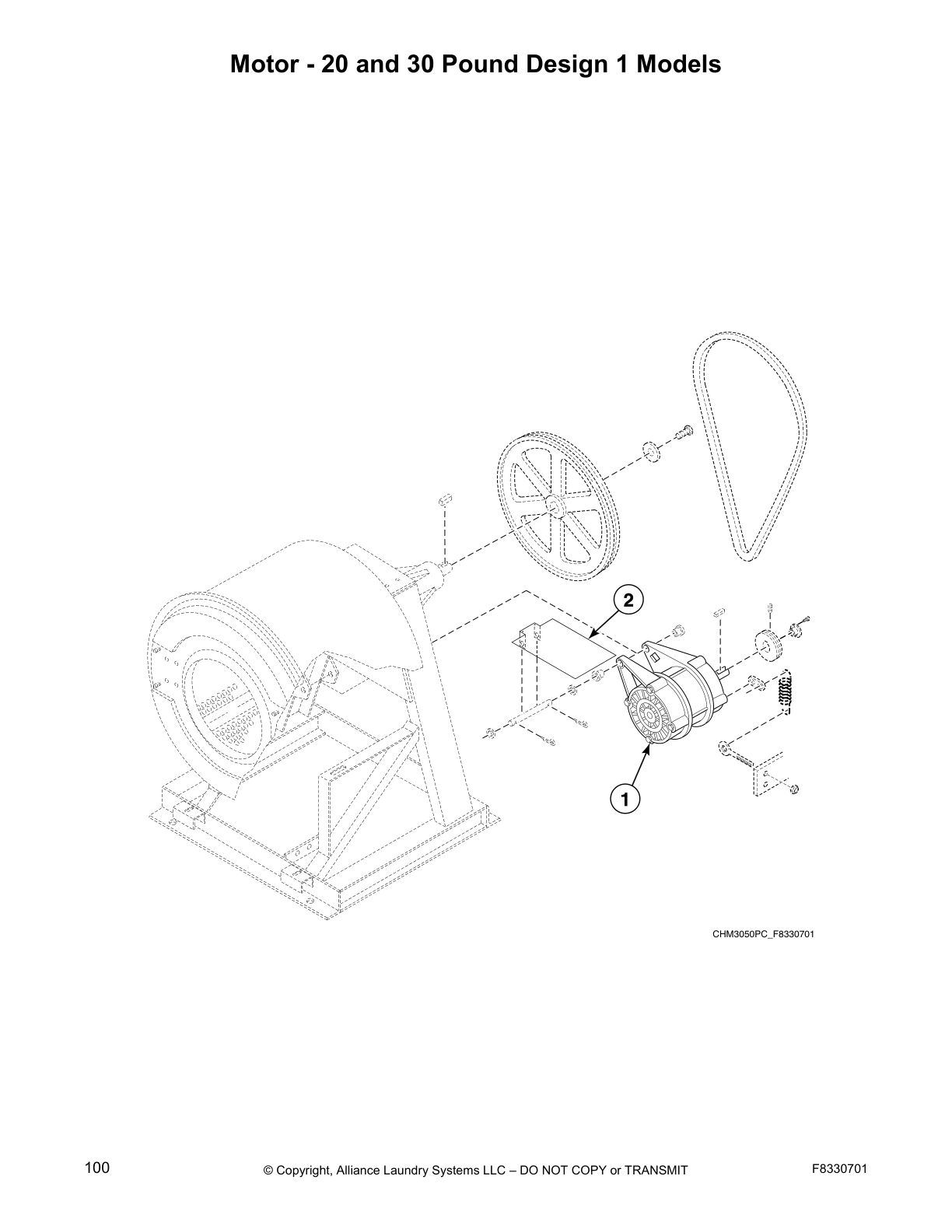

Motor - 20 and 30 Pound Design 1 Models

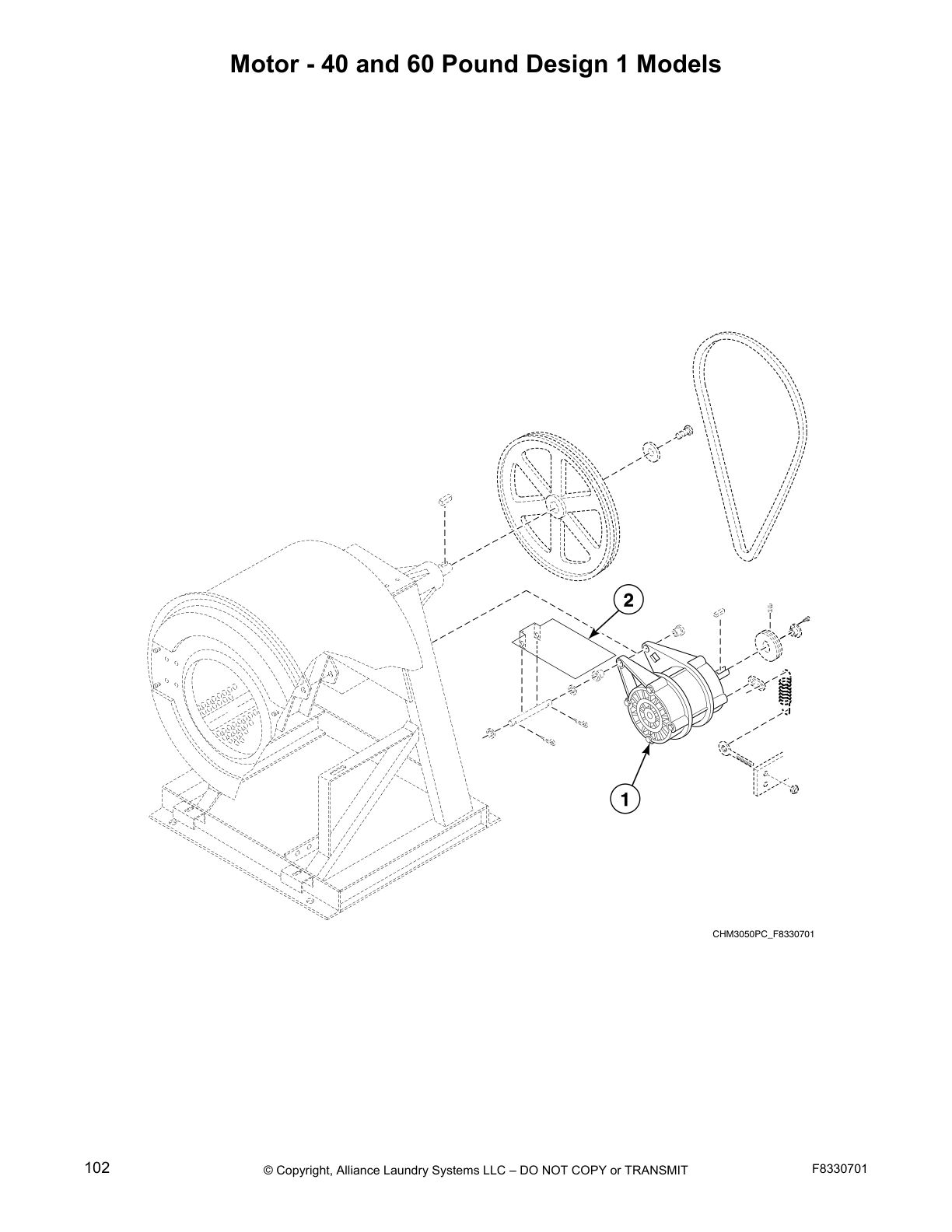

Motor - 40 and 60 Pound Design 1 Models

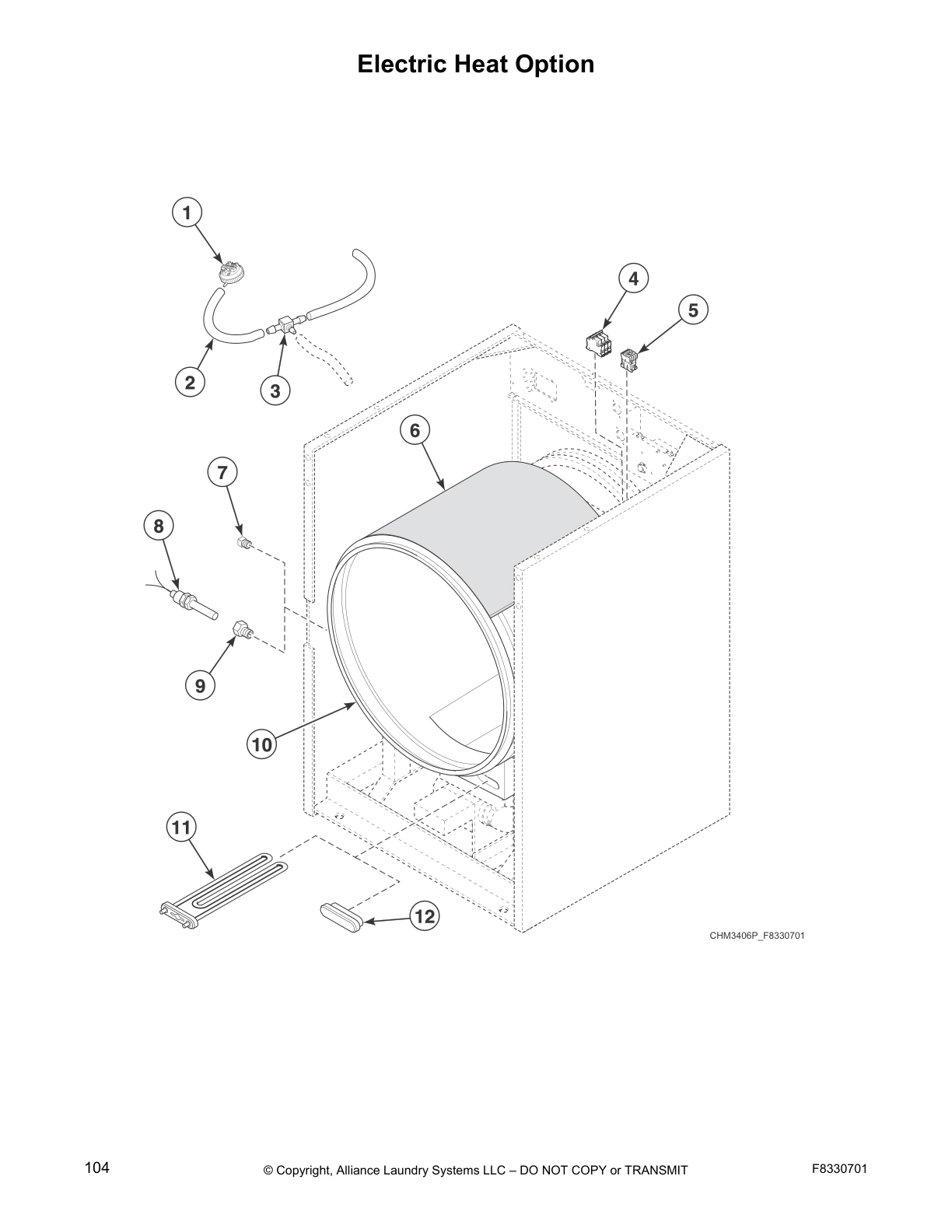

Electric Heat Option

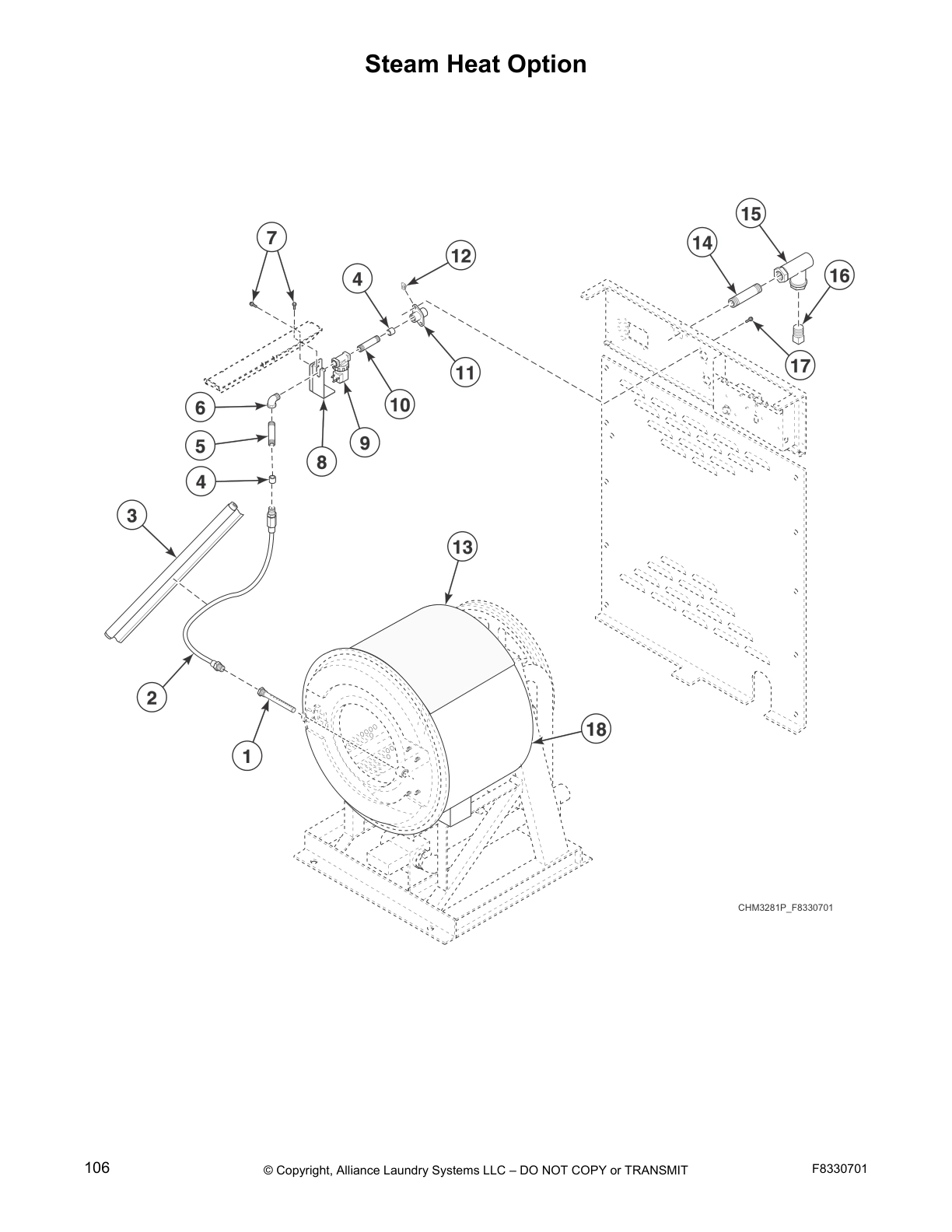

Steam Heat Option
Common parts from model Unimac UCN040HNF Washer
Output/Logic Harness SPQ M413506 Contact Us For Availability
USB IR Interface Kit SPQ F8191201P Contact Us For Availability
USB IR Interface Kit SPQ F8060501 Contact Us For Availability
SPQ F8385102 SPQ F8385102 Contact Us For Availability
SPQ F8177701P SPQ F8177701P Contact Us For Availability
SPQ F8340001 SPQ F8340001 Contact Us For Availability
SPQ F370609 SPQ F370609 Contact Us For Availability
1
Water Pressure Switch SPQ F8223001P Contact Us For Availability
1
Drive Assembly SPQ F8303601P Contact Us For Availability
1
Screw SPQ F8117601 Contact Us For Availability
1
Control Panel Overlay SPQ F8225001 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Left Side Panel SPQ F8043202P Contact Us For Availability
1
Bearing Sleeve SPQ F8221701 Contact Us For Availability
1
Door Lock Solenoid Replacement SPQ F977P3 Contact Us For Availability
1
Shell Front Assembly SPQ F8229601 Contact Us For Availability
1
Nut SPQ F430240 Contact Us For Availability
1
Bearing SPQ F100137P Contact Us For Availability
1
Screw SPQ F430942 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Vacuum Breaker Assembly SPQ F8048601 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Spring Pin SPQ F431222 Contact Us For Availability
2
Panel Lock SPQ 44089303P Contact Us For Availability
2
Front End Control Kit SPQ F120P3 Contact Us For Availability
2
Drive Mounting Bracket SPQ F8322401 Contact Us For Availability
2
Expansion Clip SPQ F8169438 Contact Us For Availability
2
Pushbutton Switch SPQ F8399404 Contact Us For Availability
2
Spacer SPQ F431902 Contact Us For Availability
2
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
2
Overflow Hose SPQ F8337701 Contact Us For Availability
2
Bolt SPQ F8464701 Contact Us For Availability
2
Drain Valve Motor SPQ F380933P Contact Us For Availability
2
Basket Pulley SPQ F280197 Contact Us For Availability
2
Basket Pulley
30 and 40 pound models SPQ F150269 Contact Us For Availability
2
Motor Drip Shield SPQ F200280700 Contact Us For Availability
2
Street Elbow SPQ F200197 Contact Us For Availability
3
Snap Bushing SPQ F8205903 Contact Us For Availability
3
Lid Clamp SPQ F8230601 Contact Us For Availability
3
Right Side Panel SPQ F8399402 Contact Us For Availability
3
Door Latch Arm Assembly SPQ F8199401P Contact Us For Availability
3
Door Lock Splash Shield SPQ F430225 Contact Us For Availability
3
Trunnion Kit SPQ F747003 Contact Us For Availability
3
Shell Weldment SPQ F430303 Contact Us For Availability
3
Seal Scupper Pad SPQ F8350302 Contact Us For Availability
3
Shell Weldment SPQ F8402701 Contact Us For Availability
3
Screw SPQ F0200238-00 Contact Us For Availability
3
Stud SPQ F8367201 Contact Us For Availability
3
Drain Valve Cover SPQ F200133600 Contact Us For Availability
3
SPQ F8535601 SPQ F8535601 Contact Us For Availability
3
3-Way Valve SPQ F8286402P Contact Us For Availability
3
Belt
40 pound models SPQ F8382804 Contact Us For Availability
3
Tee SPQ F360205P Contact Us For Availability
3
Steam Bracket SPQ H86070034 Contact Us For Availability
4
Door Lock Plate Assembly SPQ F200203200 Contact Us For Availability
4
Expansion Clip SPQ F8189401P Contact Us For Availability
4
Dispenser Lid SPQ F8091701 Contact Us For Availability
4
Expansion Clip SPQ 70413301 Contact Us For Availability
4
Screw SPQ F430518 Contact Us For Availability
4
Nut SPQ F8179403 Contact Us For Availability
4
Frame Weldment SPQ F8360801 Contact Us For Availability
4
SPQ F200215 SPQ F200215 Contact Us For Availability
4
Bolt SPQ F200182700 Contact Us For Availability
4
SPQ F8308301 SPQ F8308301 Contact Us For Availability
4
Washer SPQ F8286401P Contact Us For Availability
5
Top Cover SPQ F8048101 Contact Us For Availability
5
Jumper Configuration Assembly SPQ F8053902 Contact Us For Availability
5
Top Cover Latch SPQ F8038704 Contact Us For Availability
5
Screw SPQ F8043201P Contact Us For Availability
5
Door SPQ F8221403 Contact Us For Availability
5
Door Lock Plate Shim SPQ F431901 Contact Us For Availability
5
Screw SPQ F8368801 Contact Us For Availability
5
Drain Hose SPQ F430107 Contact Us For Availability
5
Drain Valve Kit SPQ F200166400 Contact Us For Availability
5
SPQ F8047801 SPQ F8047801 Contact Us For Availability
5
Washer SPQ F431115 Contact Us For Availability
5
Contactor SPQ F360202 Contact Us For Availability
6
Pipe Insulation SPQ F8153901 Contact Us For Availability
6
Control Assembly Kit SPQ F360157P Contact Us For Availability
6
DIN Valve Kit SPQ F8206901 Contact Us For Availability
6
Bolt SPQ F8040301 Contact Us For Availability
6
Rear Panel SPQ F8399403 Contact Us For Availability
6
Screw SPQ F320200 Contact Us For Availability
6
Triple Lip Seal SPQ F8203803 Contact Us For Availability
6
P-Trap Hose SPQ F200213 Contact Us For Availability
6
Drain Valve Kit SPQ F200166402 Contact Us For Availability
6
SPQ F8043404 SPQ F8043404 Contact Us For Availability
6
Bushing SPQ F280369P Contact Us For Availability
7
Pressfit Upgrade Kit SPQ F938P3 Contact Us For Availability
7
Fuse SPQ 44071501 Contact Us For Availability
7
Plug SPQ F8246601 Contact Us For Availability
7
Jumper Harness Assembly SPQ F8053901P Contact Us For Availability
7
SPQ F8201001 SPQ F8201001 Contact Us For Availability
7
Pushbutton Switch SPQ F8230501 Contact Us For Availability
7
Door Handle Spacer Kit SPQ F602842-2 Contact Us For Availability
7
Shell Band Kit SPQ F8537803 Contact Us For Availability
7
SPQ F430317 SPQ F430317 Contact Us For Availability
7
SPQ F431131 SPQ F431131 Contact Us For Availability
7
Retaining Ring SPQ F8337801 Contact Us For Availability
7
SPQ F8360803 SPQ F8360803 Contact Us For Availability
7
SPQ F8042804 SPQ F8042804 Contact Us For Availability
7
SPQ F8042202 SPQ F8042202 Contact Us For Availability
7
Pulley Bushing SPQ F280287P Contact Us For Availability
7
Motor Pulley SPQ F8362501 Contact Us For Availability
7
Steam Heat Kit SPQ F8490301 Contact Us For Availability
8
SPQ F8567501 SPQ F8567501 Contact Us For Availability
8
Fuse SPQ F980P3 Contact Us For Availability
8
External Door Lock Harness SPQ F8223202 Contact Us For Availability
8
Basket Assembly SPQ F8391701P Contact Us For Availability
8
Basket Tool Kit SPQ F100134 Contact Us For Availability
8
Tension Spring SPQ M412995P Contact Us For Availability
8
Eye Bolt SPQ F8404501 Contact Us For Availability
8
Thermistor Sensor SPQ F330188P Contact Us For Availability
8
Steam Valve Repair Kit SPQ F8521501 Contact Us For Availability
9
Door Lock Assembly SPQ F8344401 Contact Us For Availability
9
Shaft Seal Sleeve Kit SPQ F8343906P Contact Us For Availability
9
SPQ F8231901 SPQ F8231901 Contact Us For Availability
9
SPQ 70334702 SPQ 70334702 Contact Us For Availability
9
SPQ F8197701 SPQ F8197701 Contact Us For Availability
9
Extension Spring SPQ F280298P Contact Us For Availability
9
SPQ F953P3 SPQ F953P3 Contact Us For Availability
10
Shell Weldment SPQ F8404401 Contact Us For Availability
10
Nut SPQ F430215 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Excluder Seal SPQ F8337001 Contact Us For Availability
10
Rear Drain Hose SPQ F200201 Contact Us For Availability
10
Bolt SPQ F8402801 Contact Us For Availability
10
Valve Panel SPQ F8039601 Contact Us For Availability
10
Screw SPQ F430537 Contact Us For Availability
10
Motor
20, 30 and 40 pound models SPQ F8335001P Contact Us For Availability
10
Pipe Nipple SPQ 70263801 Contact Us For Availability
11
DIN Rail SPQ F8385301 Contact Us For Availability
11
Door Bezel SPQ F8659101 Contact Us For Availability
11
Bearing Housing Assembly SPQ F8271801P Contact Us For Availability
11
Bracket SPQ F8231904 Contact Us For Availability
11
Screw SPQ F8398901 Contact Us For Availability
11
Element SPQ F8179602 Contact Us For Availability
11
Coupling SPQ F8154501 Contact Us For Availability
12
Front Cabinet Brace SPQ F430174 Contact Us For Availability
12
Top Cabinet Brace SPQ F8043801 Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Heating Element Plug SPQ F8179402 Contact Us For Availability
12
Nut SPQ F8434601 Contact Us For Availability
12
Nut SPQ 70030401 Contact Us For Availability
12
Terminal Tray Cover SPQ F8230301 Contact Us For Availability
12
Motor Support Bushing SPQ F430802 Contact Us For Availability
13
Air Trap Hose SPQ F020014200 Contact Us For Availability
13
Hose Barb Connector SPQ F8431001 Contact Us For Availability
13
Front Panel SPQ F8174001 Contact Us For Availability
13
Top Cover Hinge SPQ F8258601 Contact Us For Availability
13
Door Glass SPQ F8485401P Contact Us For Availability
13
Bolt SPQ F8223601 Contact Us For Availability
13
Cotter Pin SPQ F200186100 Contact Us For Availability
13
Pipe Insulation SPQ F410300 Contact Us For Availability
14
Door Gasket SPQ F170124 Contact Us For Availability
14
Grommet SPQ F8433001 Contact Us For Availability
14
Drive Tray Assembly SPQ F8359803 Contact Us For Availability
14
Expansion Clip SPQ F8173102P Contact Us For Availability
14
Nut SPQ F8270701 Contact Us For Availability
14
Washer SPQ F430401 Contact Us For Availability
14
Steam Filter SPQ 431486 Contact Us For Availability
15
Door Lock Switch Lever SPQ F430264 Contact Us For Availability
15
Support Bracket SPQ F8195803 Contact Us For Availability
15
Nut SPQ F8177001 Contact Us For Availability
15
Extension Spring SPQ F310124 Contact Us For Availability
15
Motor Support Rod SPQ 901690 Contact Us For Availability
15
O-Ring SPQ F8441901 Contact Us For Availability
16
Ground Lug Connector SPQ 430642 Contact Us For Availability
16
Washer SPQ F431113 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8223401 Contact Us For Availability
16
Overflow Hose SPQ F8232901 Contact Us For Availability
16
Pulley SPQ F603059 Contact Us For Availability
16
Spring Plate SPQ F8363901 Contact Us For Availability
16
Flanged Bushing SPQ F8333301 Contact Us For Availability
16
Screw SPQ F420409 Contact Us For Availability
17
Magnet SPQ F8390801 Contact Us For Availability
17
Hose Clamp SPQ F430232 Contact Us For Availability
17
Control Tray Assembly SPQ F8359703 Contact Us For Availability
17
Nut SPQ F8201301 Contact Us For Availability
17
Washer SPQ F8070301 Contact Us For Availability
17
Shell Weldment SPQ 20253 Contact Us For Availability
18
Control Tray Assembly SPQ F8169406 Contact Us For Availability
18
Tray Support Bracket SPQ F8375201 Contact Us For Availability
18
Emergency Stop Plate SPQ F200233500 Contact Us For Availability
18
Steam Hose SPQ F8360802 Contact Us For Availability
18
Siphon Cover SPQ M411283 Contact Us For Availability
18
Spacer SPQ F8451601 Contact Us For Availability
19
Screw SPQ F8169405 Contact Us For Availability
19
Blind Rivet SPQ F8245101 Contact Us For Availability
19
Y Connector SPQ F430909 Contact Us For Availability
20
Contact Block Switch
Includes item 21 and F85 SPQ F200233401P Contact Us For Availability
20
Reed Switch Assembly SPQ F8066802 Contact Us For Availability
20
Manifold SPQ F8047901 Contact Us For Availability
21
Nut SPQ F431017 Contact Us For Availability
21
Contact Switch SPQ F8069501 Contact Us For Availability
21
Rod SPQ F602813-3 Contact Us For Availability
21
Dispenser Gasket SPQ F422816 Contact Us For Availability
22
Auxiliary Control Assembly SPQ F430903 Contact Us For Availability
22
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
22
Access Cover SPQ F8232002 Contact Us For Availability
23
Screw SPQ F430536 Contact Us For Availability
24
Vacuum Supply Hose SPQ F8333201 Contact Us For Availability
25
Cap SPQ F200222 Contact Us For Availability
26
Door Hinge SPQ F150271 Contact Us For Availability
26
Vacuum Breaker Hose SPQ F606816-1 Contact Us For Availability
27
Door Handle SPQ F190216P Contact Us For Availability
NI
SPQ F380984P SPQ F380984P Contact Us For Availability
NI
Machine Size Configuration Harness SPQ F8028701 Contact Us For Availability
NI
SPQ F8028104P SPQ F8028104P Contact Us For Availability
NI
Communication Harness SPQ F937P3 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
External Supply Kit SPQ F8327301P Contact Us For Availability
NI
SPQ F8399401 SPQ F8399401 Contact Us For Availability
NI
SPQ F8365201 SPQ F8365201 Contact Us For Availability
NI
Door Lock Assembly Kit SPQ F8059701 Contact Us For Availability
NI
SPQ F8632401 SPQ F8632401 Contact Us For Availability
NI
SPQ F8626501 SPQ F8626501 Contact Us For Availability
NI
Shaft Seal Sleeve SPQ F8312006P Contact Us For Availability
NI
SPQ 389P4 SPQ 389P4 Contact Us For Availability
NI
SPQ F8196101 SPQ F8196101 Contact Us For Availability
NI
SPQ F8249001 SPQ F8249001 Contact Us For Availability
NI
SPQ F8577201 SPQ F8577201 Contact Us For Availability
NI
SPQ F0200244-02 SPQ F0200244-02 Contact Us For Availability
NI
Nut SPQ F310148 Contact Us For Availability
NI
Motor Harness
30 and 40 pound models SPQ F8384901 Contact Us For Availability
NI
Q and X-voltage SPQ F8396601 Contact Us For Availability
NI
Motor Drip Shield SPQ F200216900 Contact Us For Availability
NI
SPQ F421507 SPQ F421507 Contact Us For Availability
NI
SPQ F421936 SPQ F421936 Contact Us For Availability
× ![]()
