Model Unimac UCN030KN2 Washer – Common Parts & Diagrams
Decals

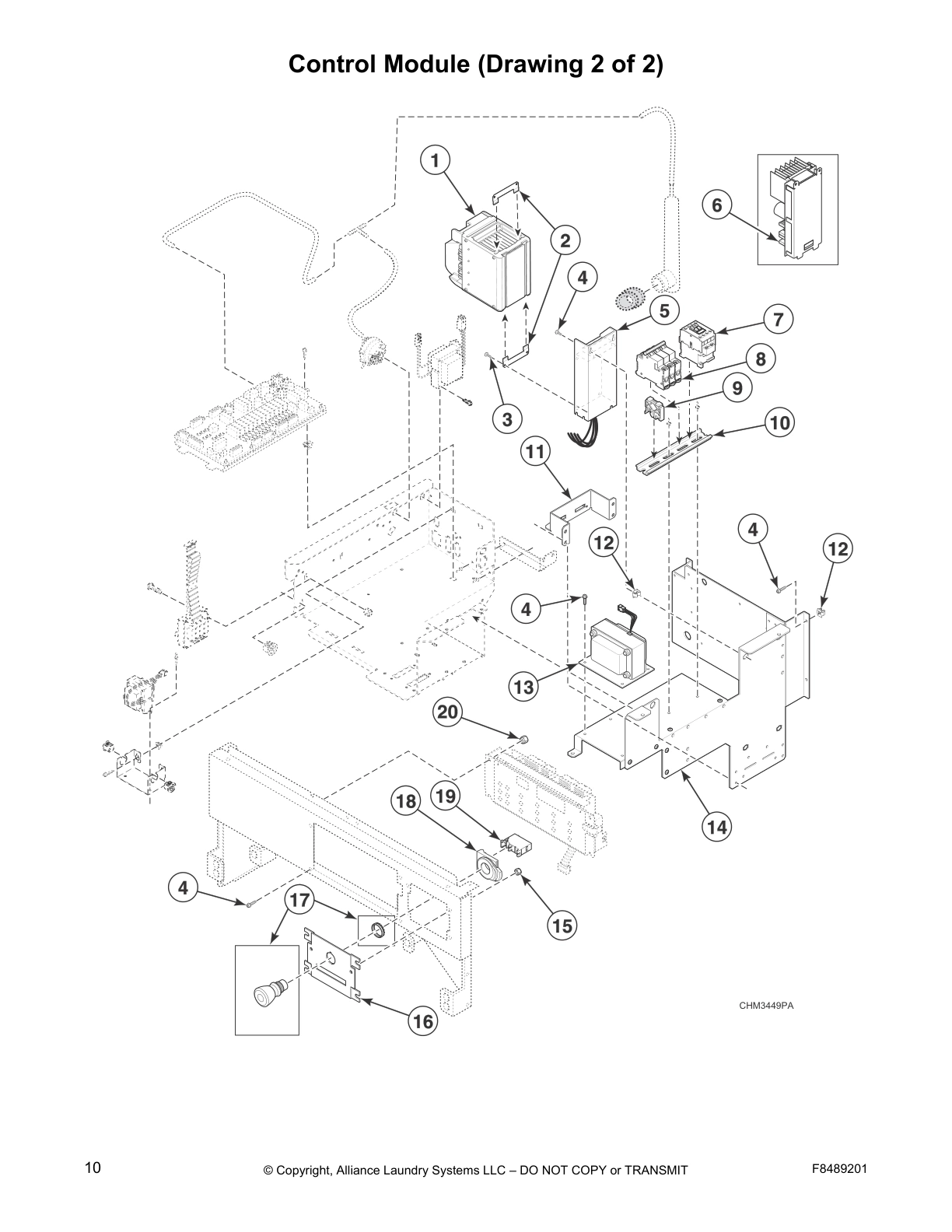

Control Module (Drawing 1 of 2)
Control Module (Drawing 2 of 2)

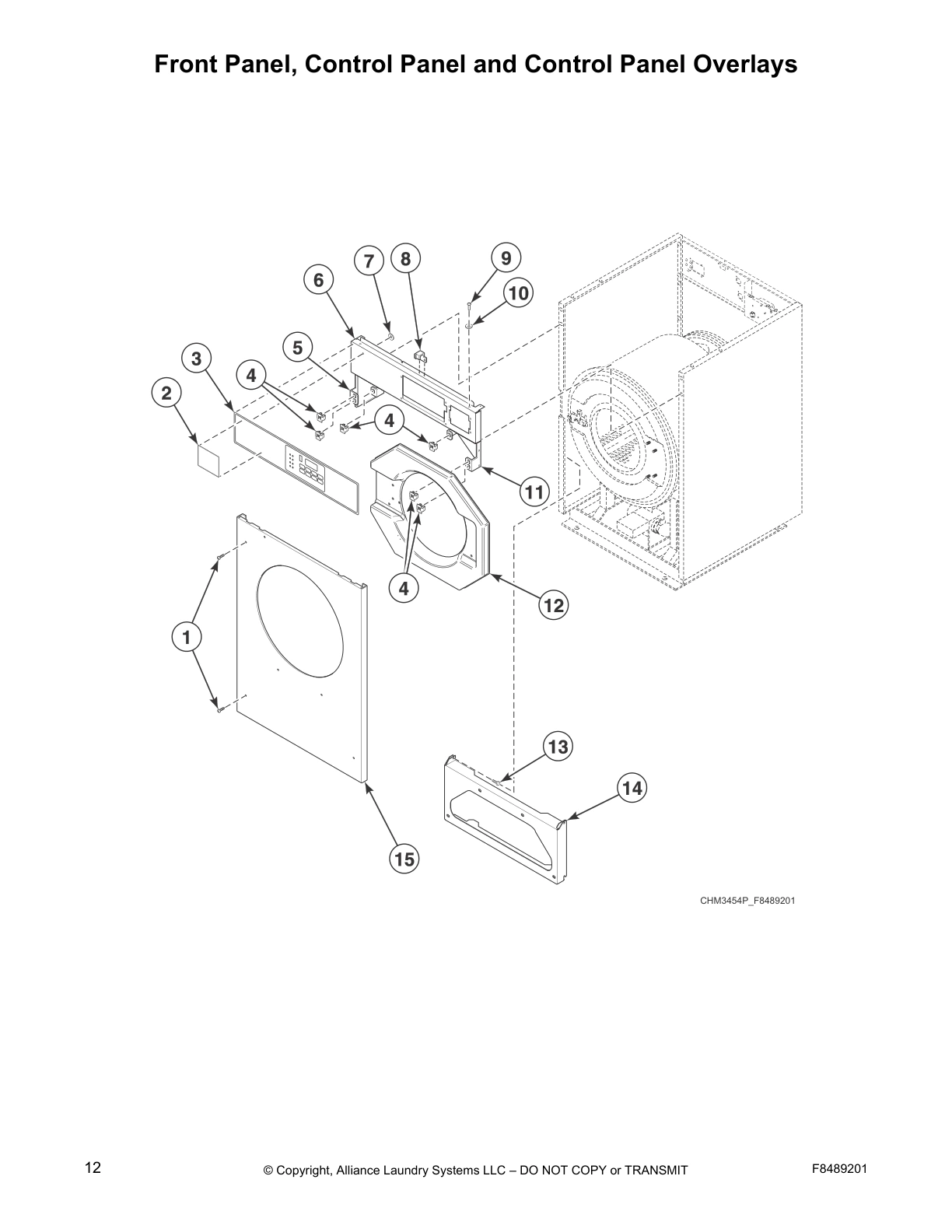

Front Panel, Control Panel and Control Panel Overlays

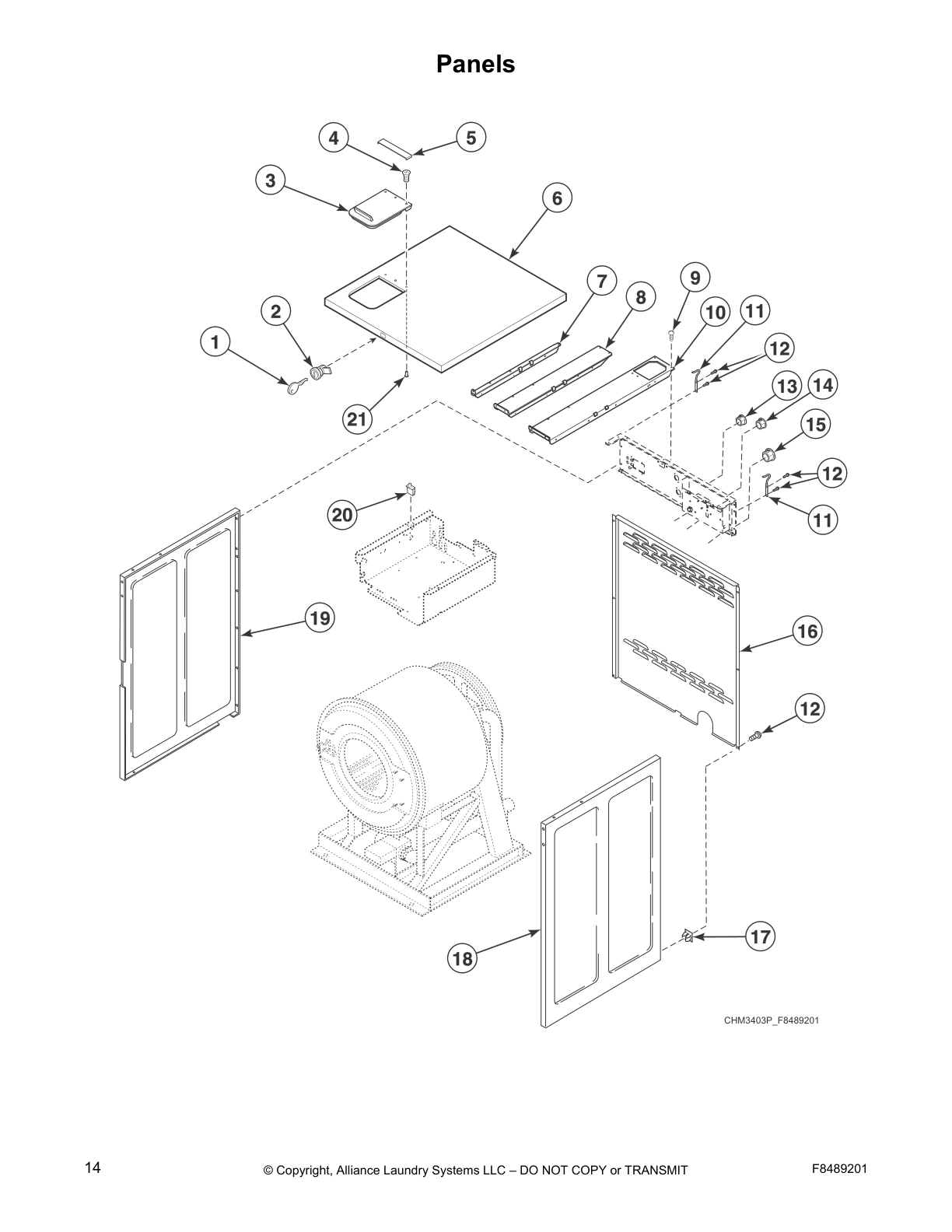

Panels

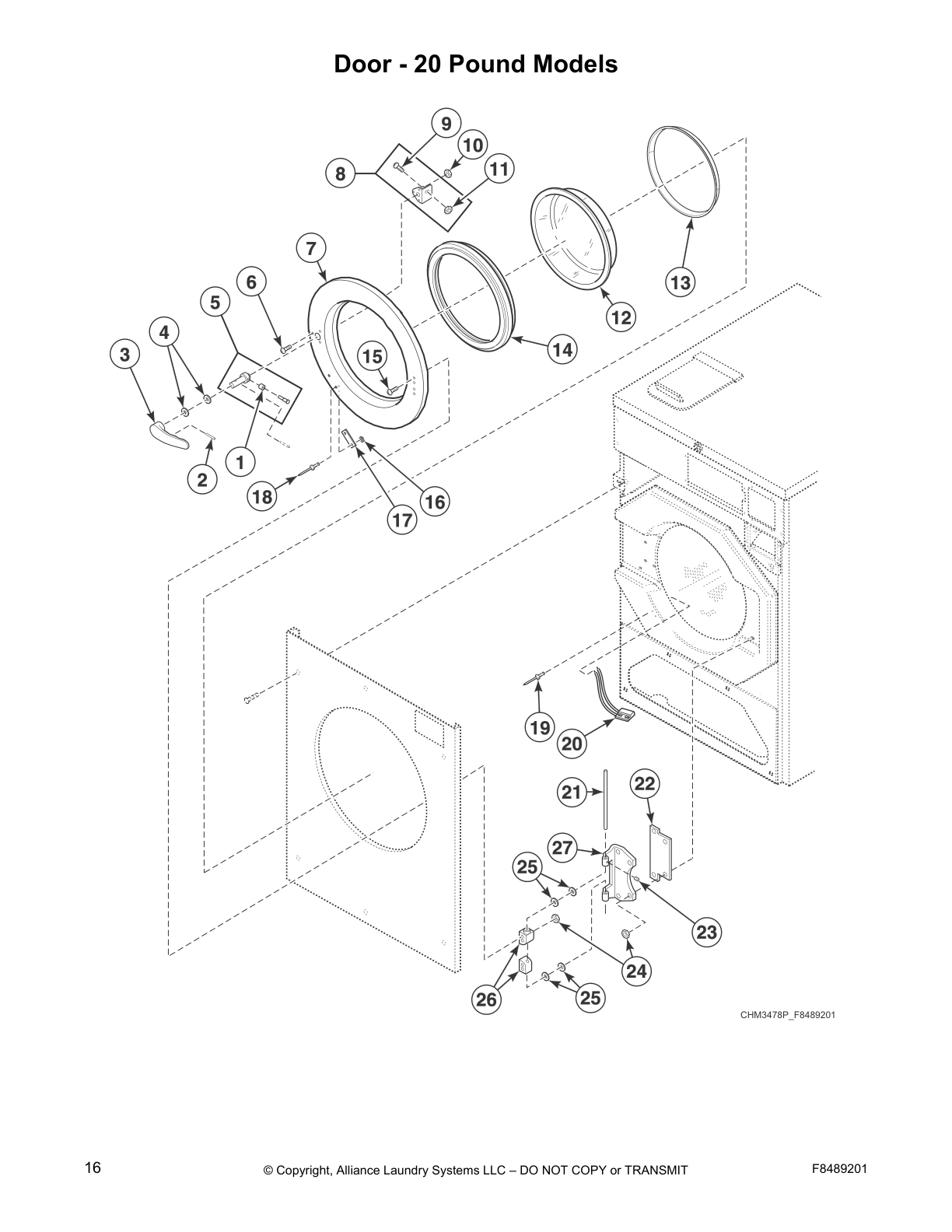

Door - 20 Pound Models
Door - 30 Pound Models

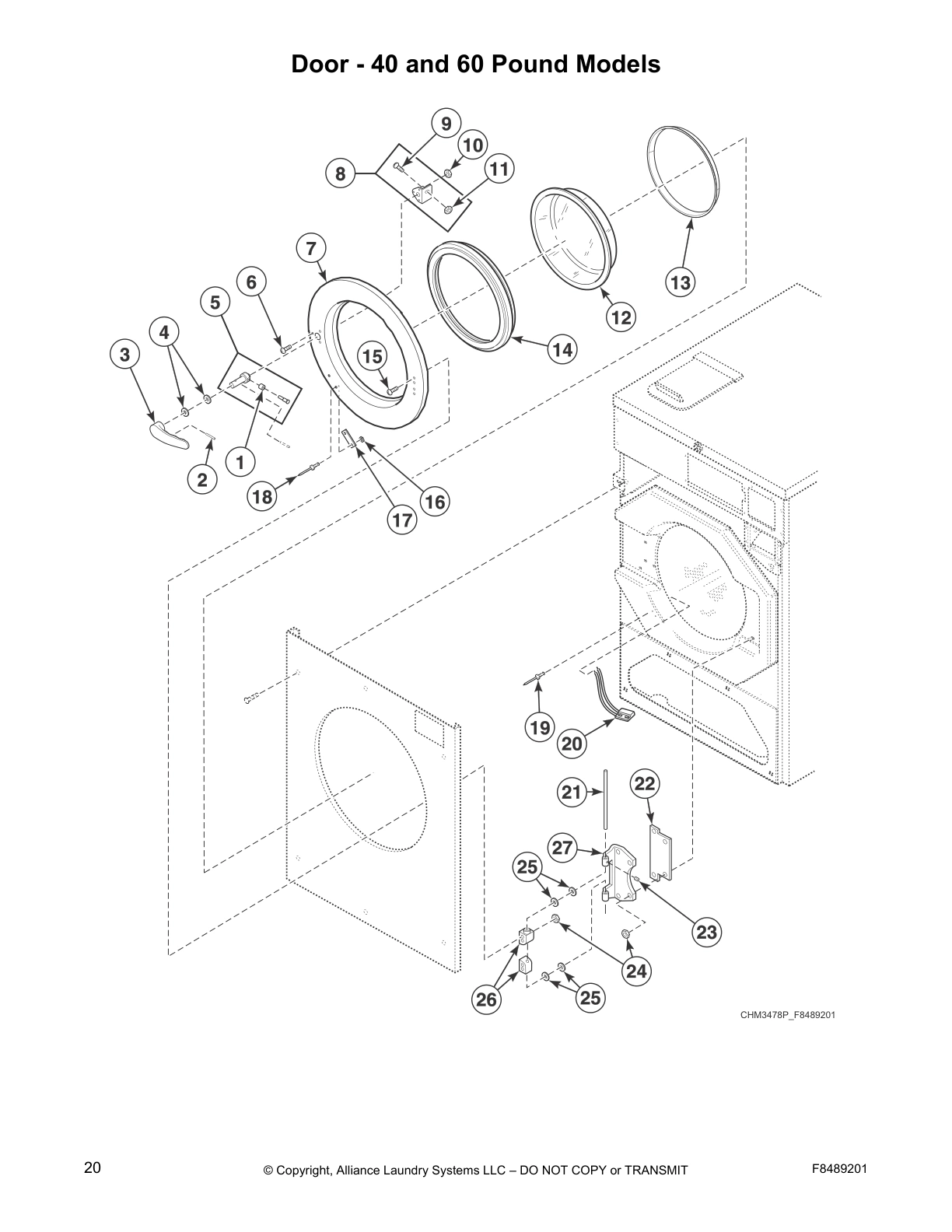

Door - 40 and 60 Pound Models

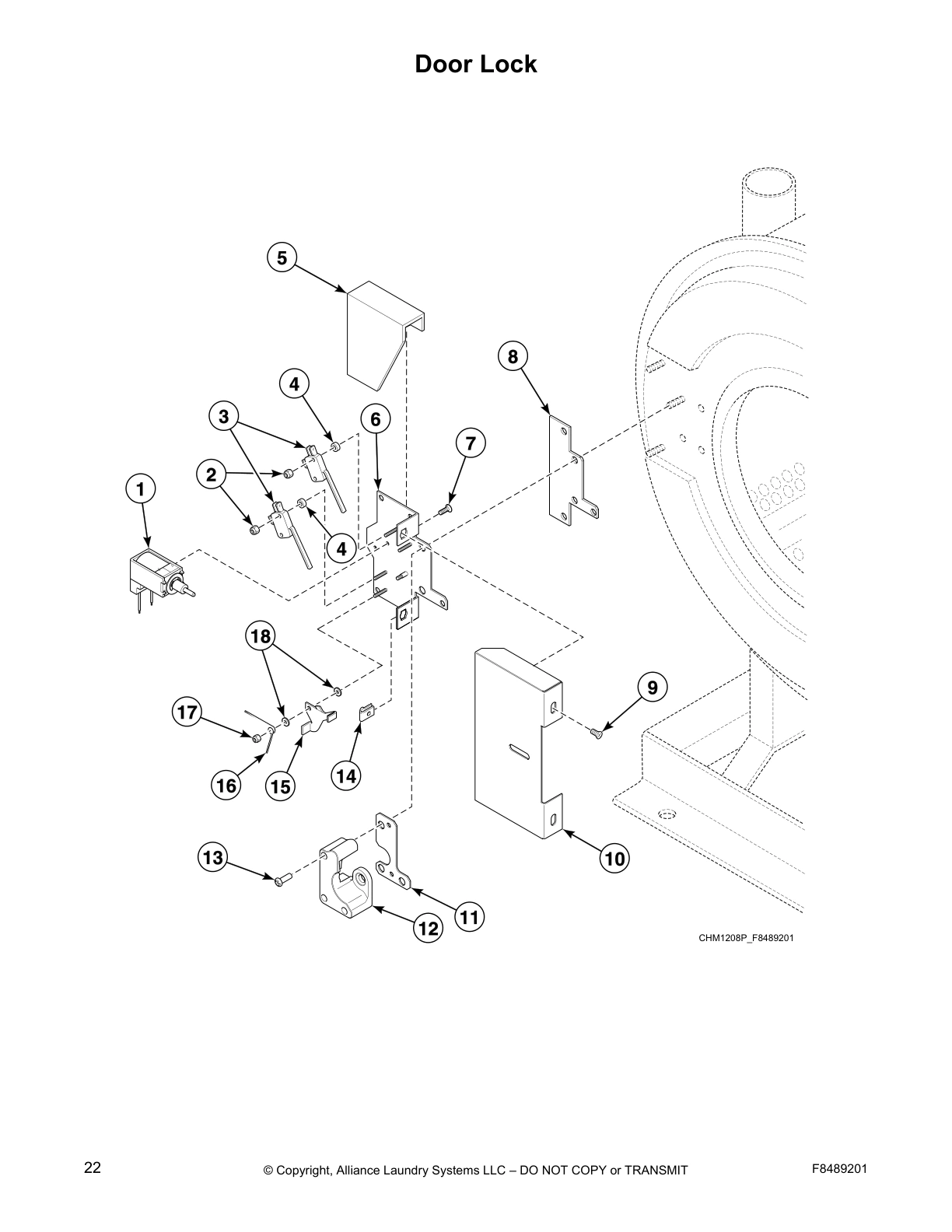

Door Lock

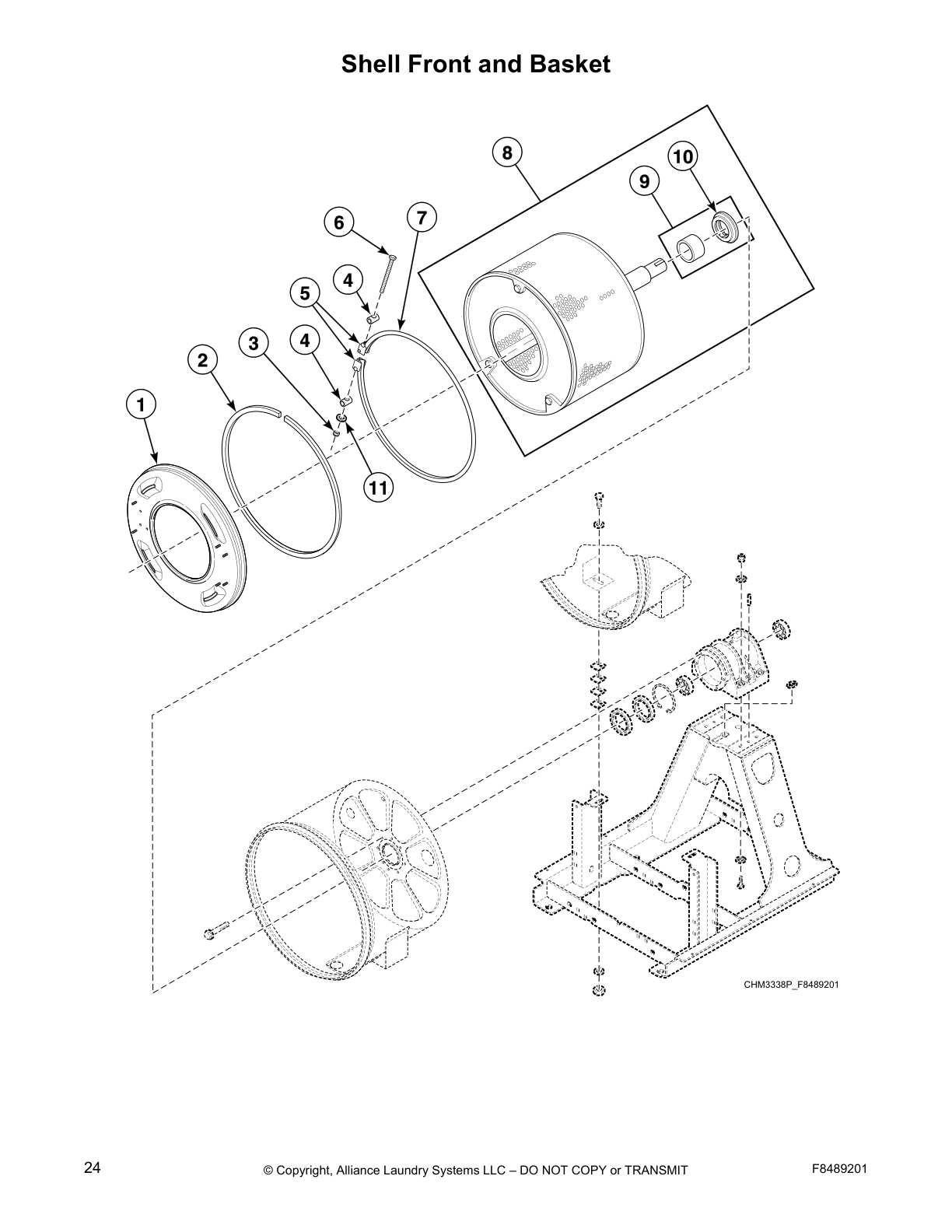

Shell Front and Basket

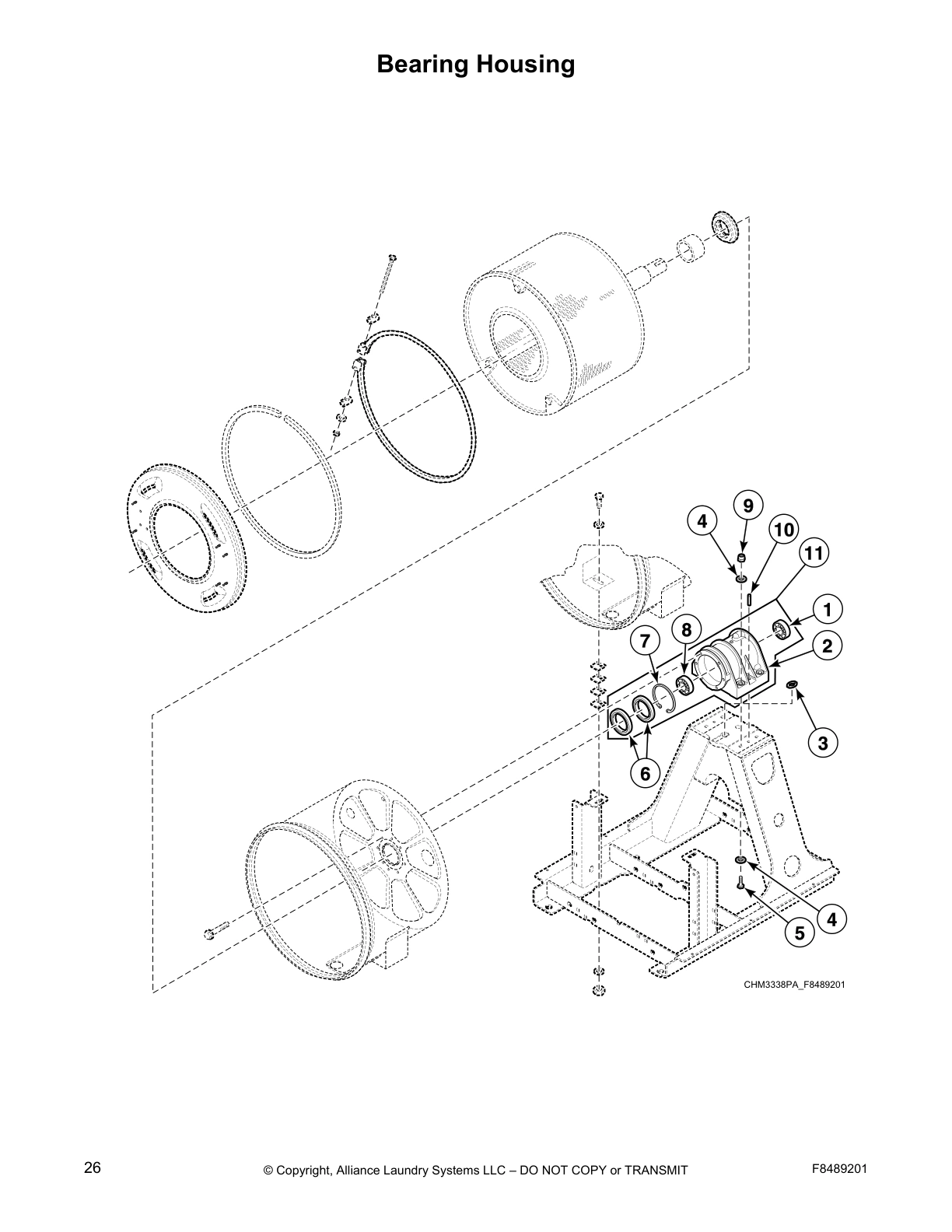

Bearing Housing

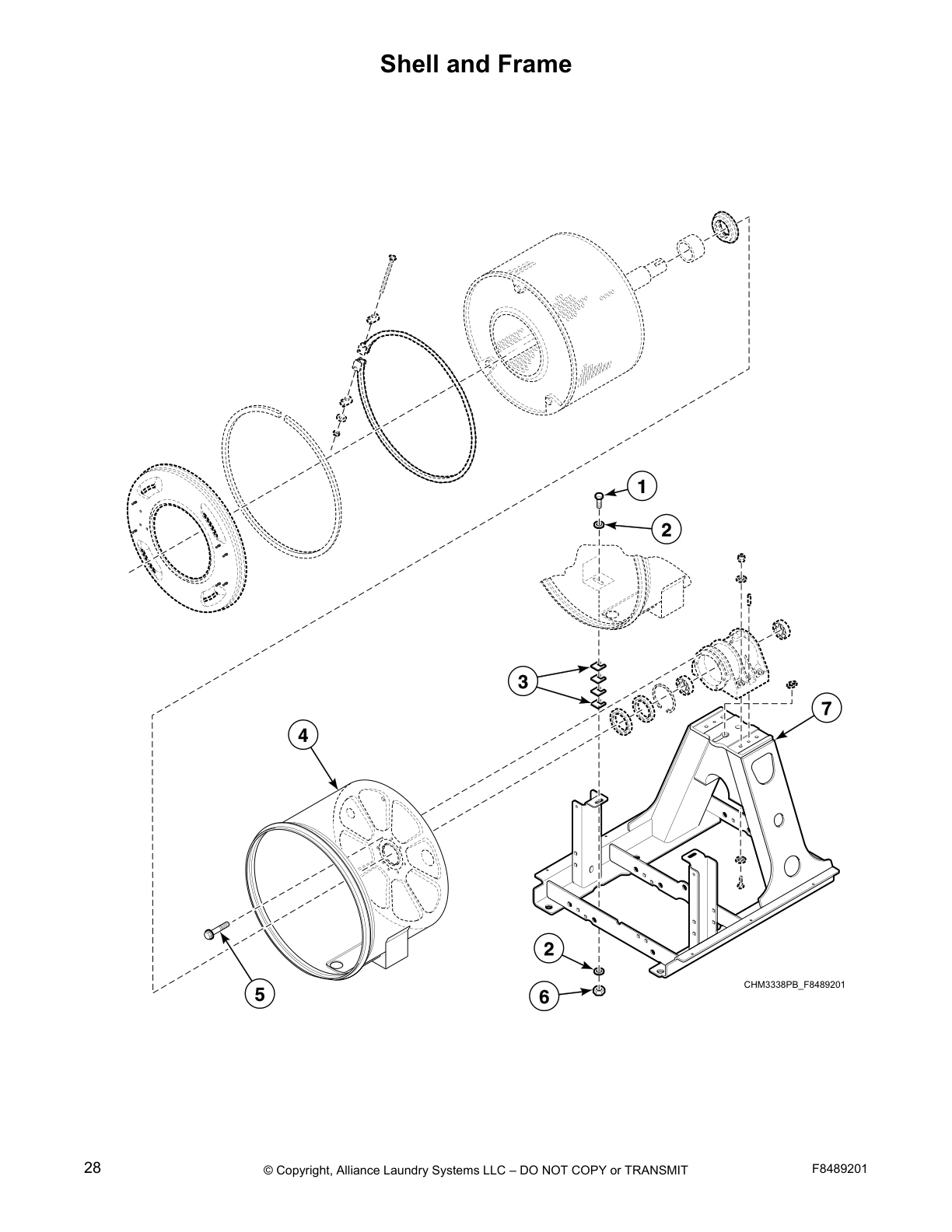

Shell and Frame

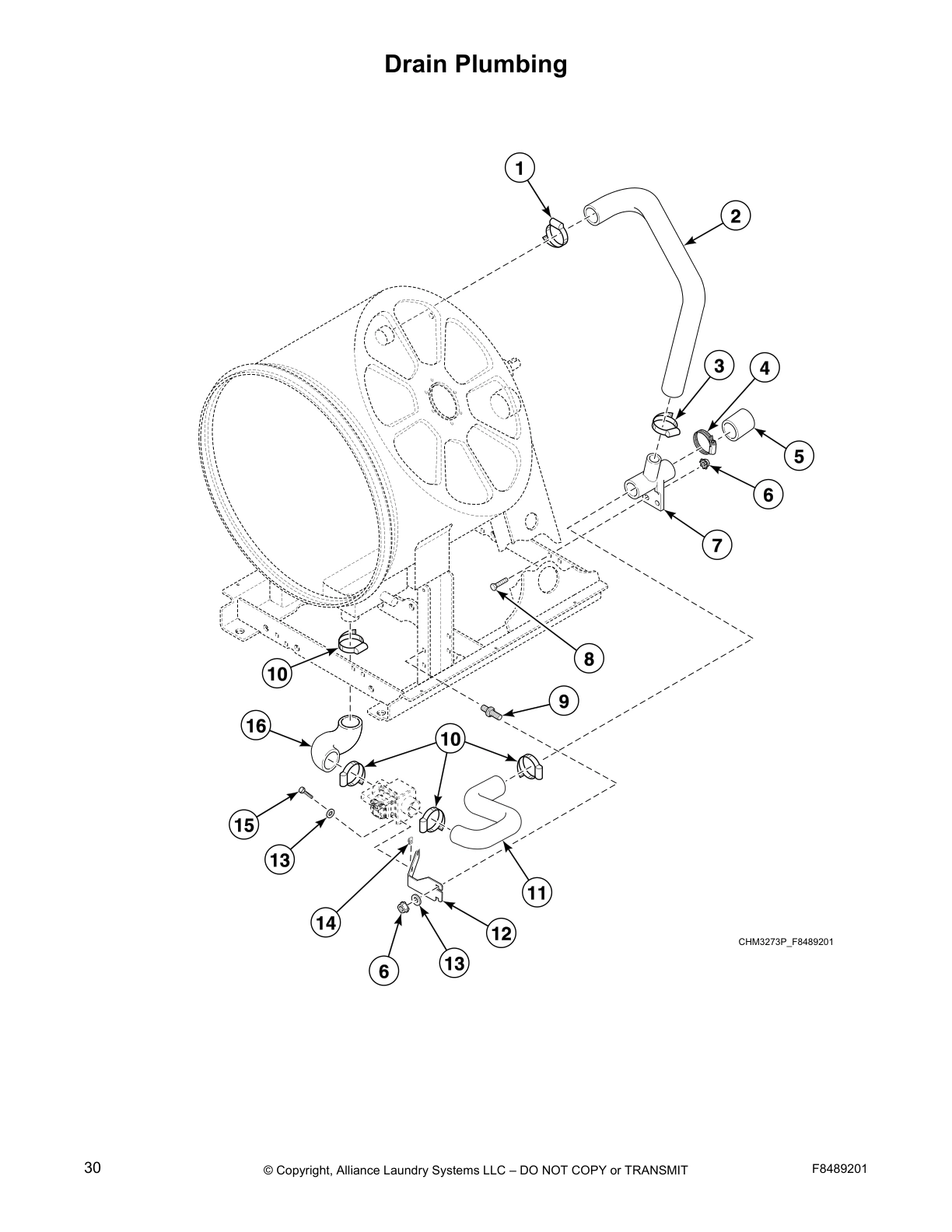

Drain Plumbing

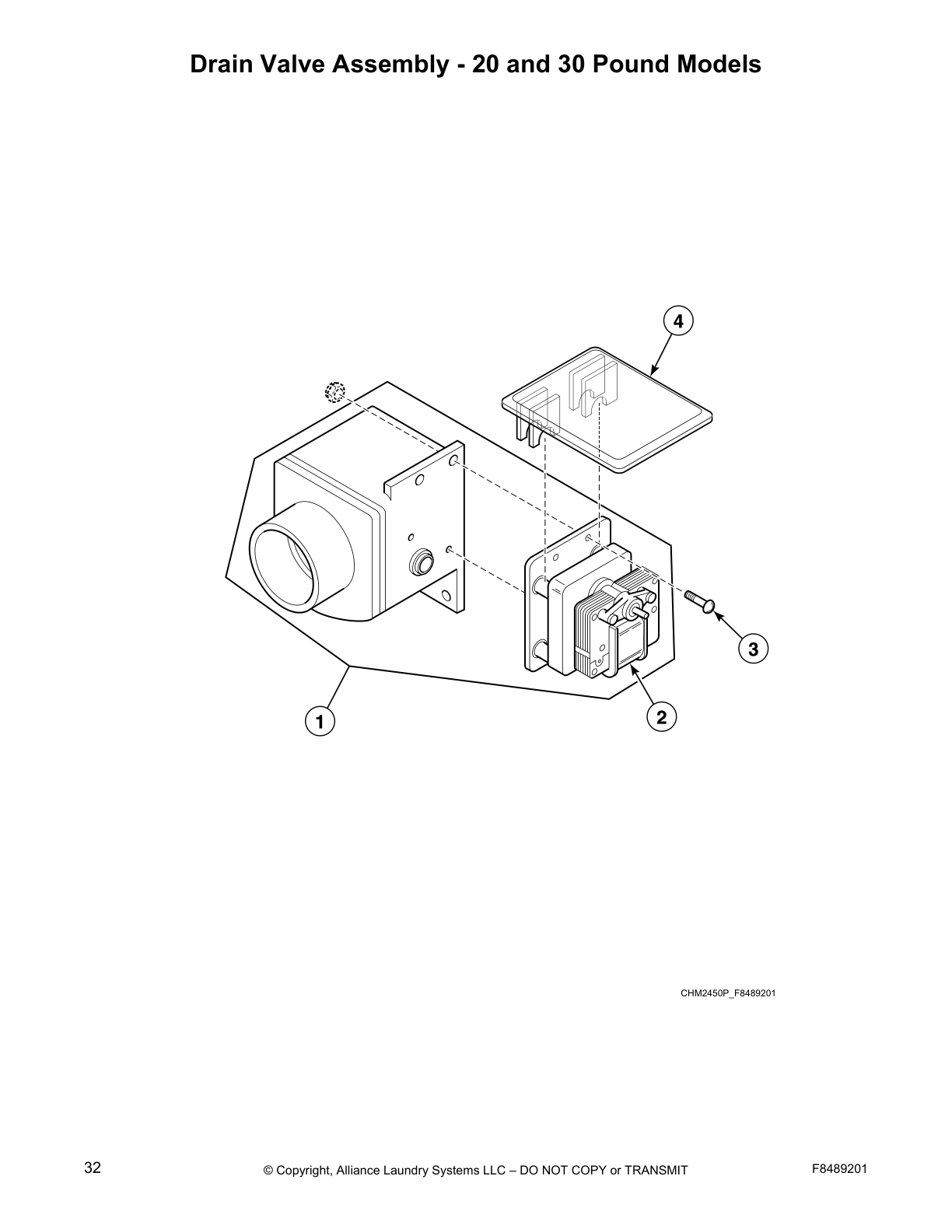

Drain Valve Assembly - 20 and 30 Pound Models

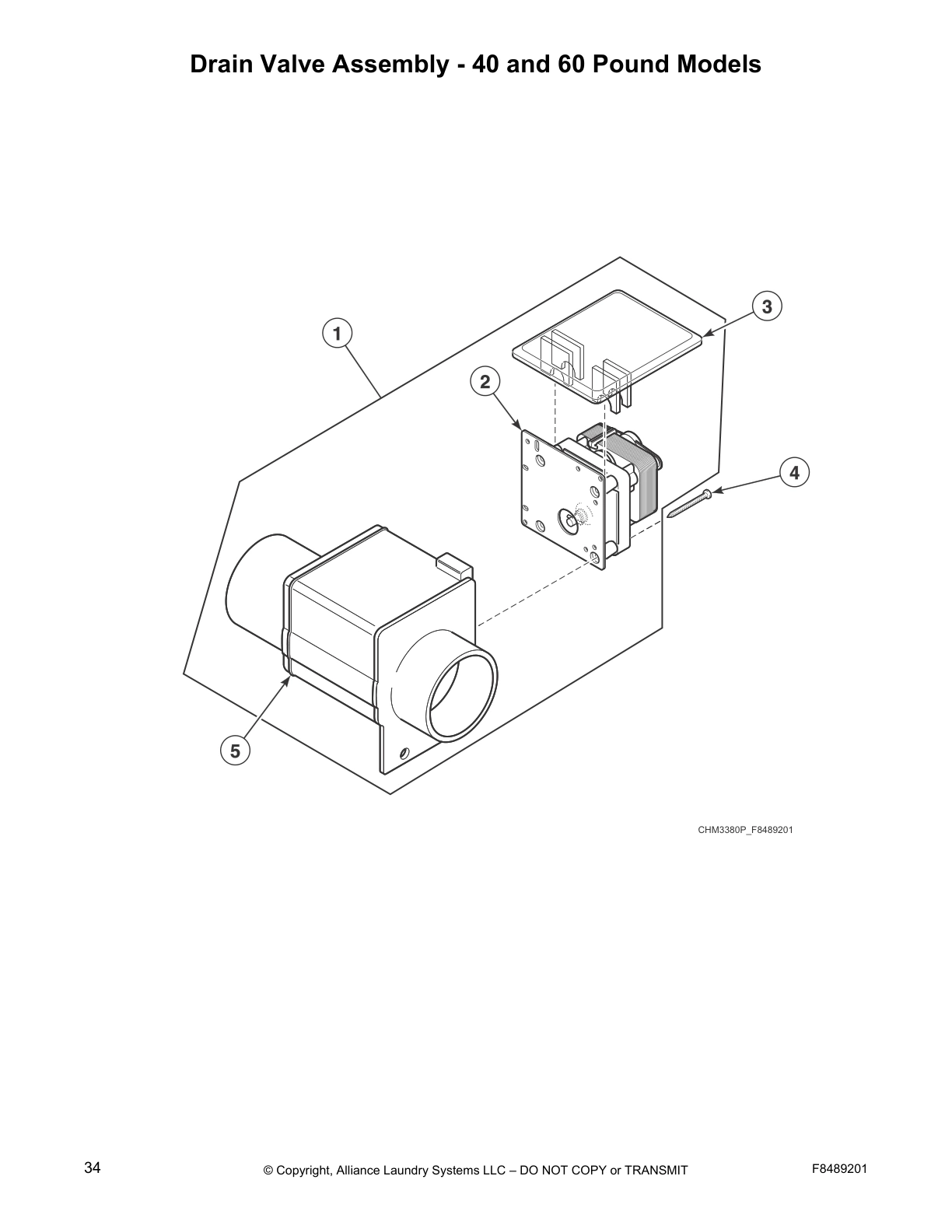

Drain Valve Assembly - 40 and 60 Pound Models

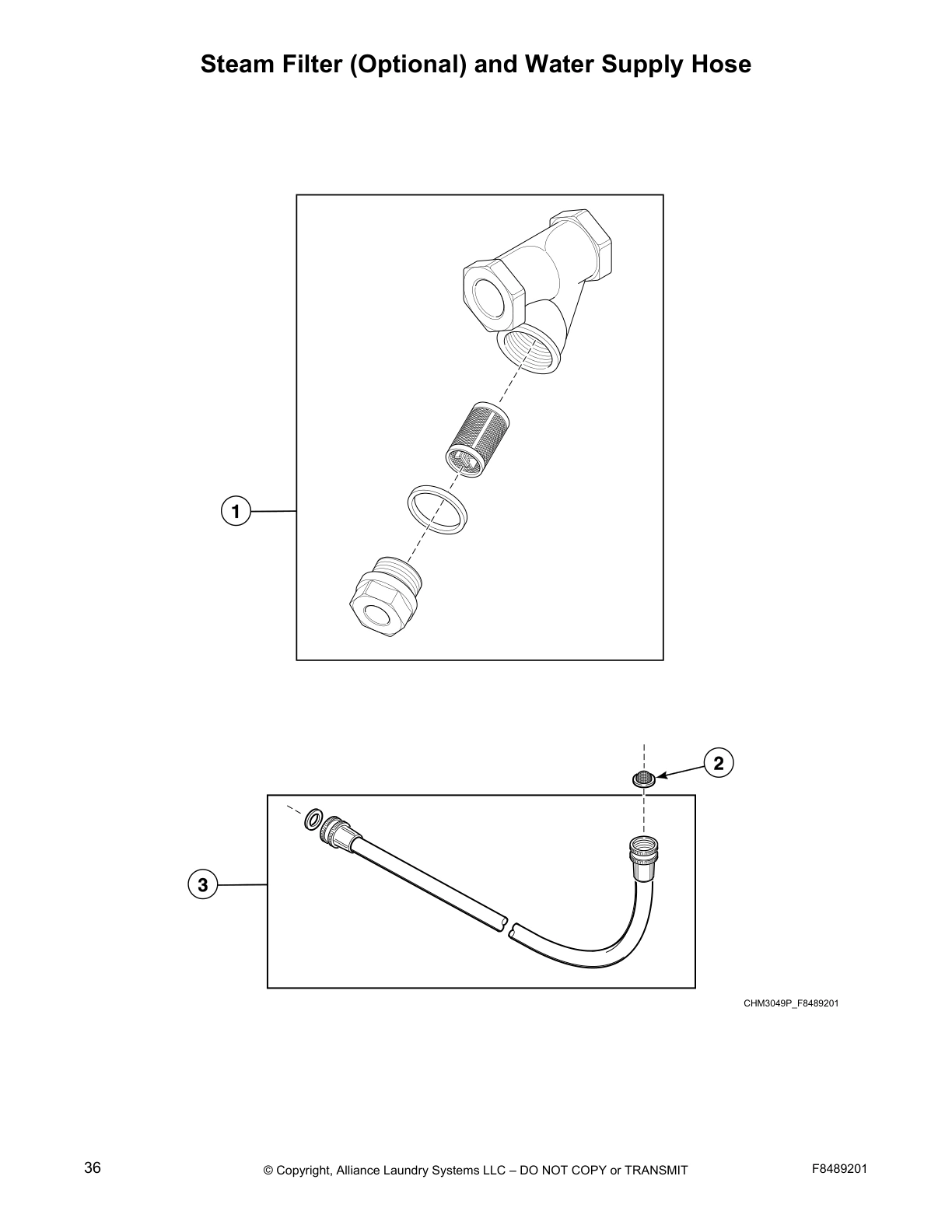

Steam Filter (Optional) and Water Supply Hose

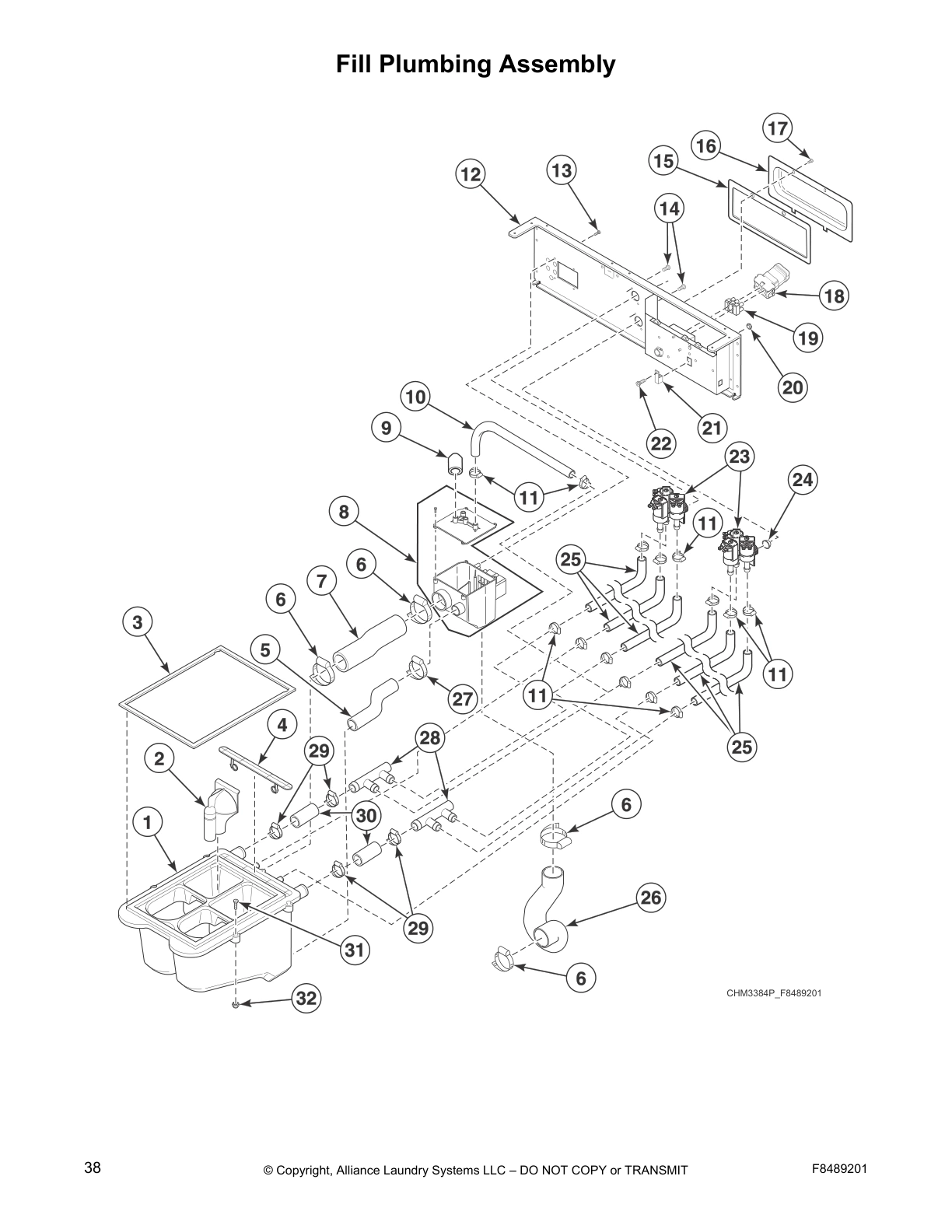

Fill Plumbing Assembly

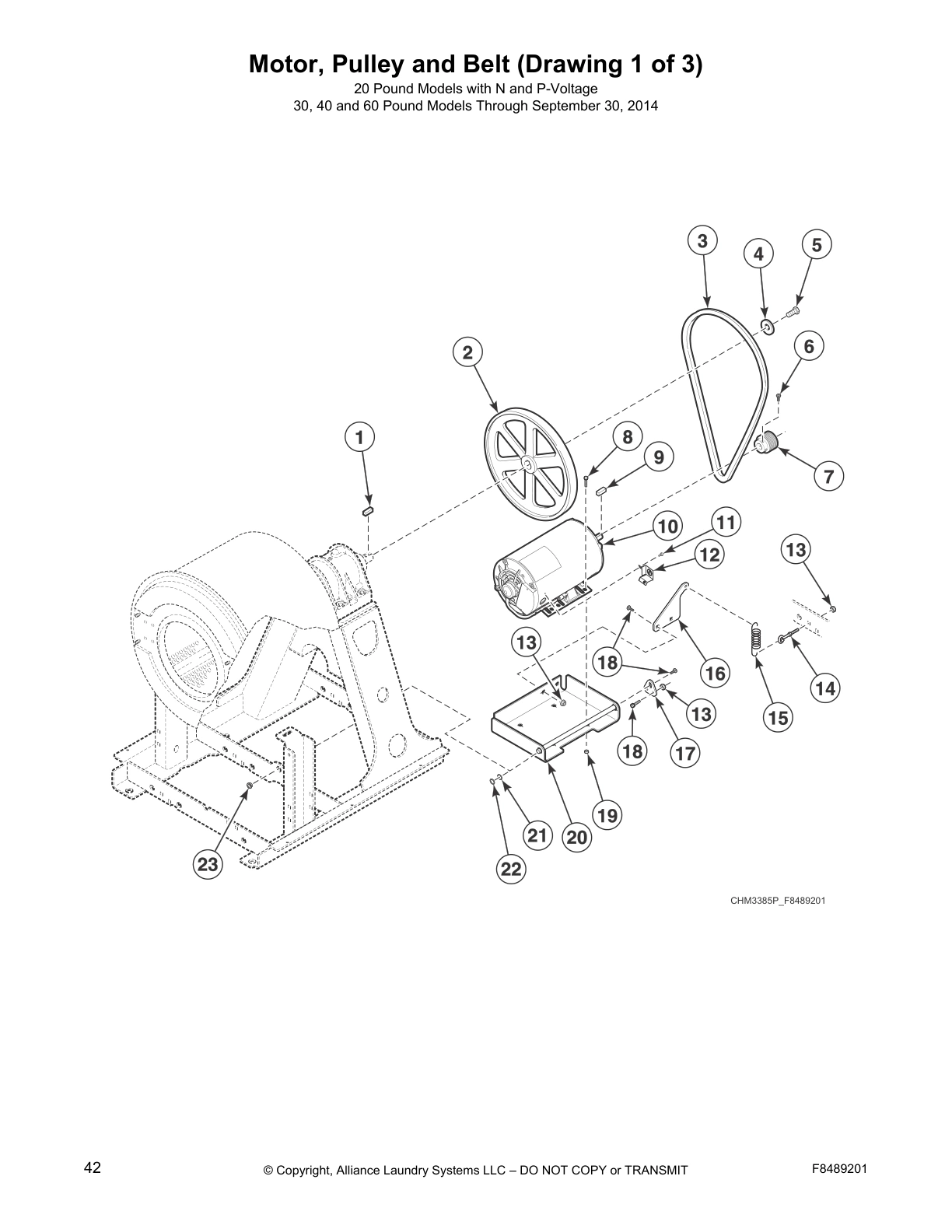

Motor, Pulley and Belt (Drawing 1 of 3)

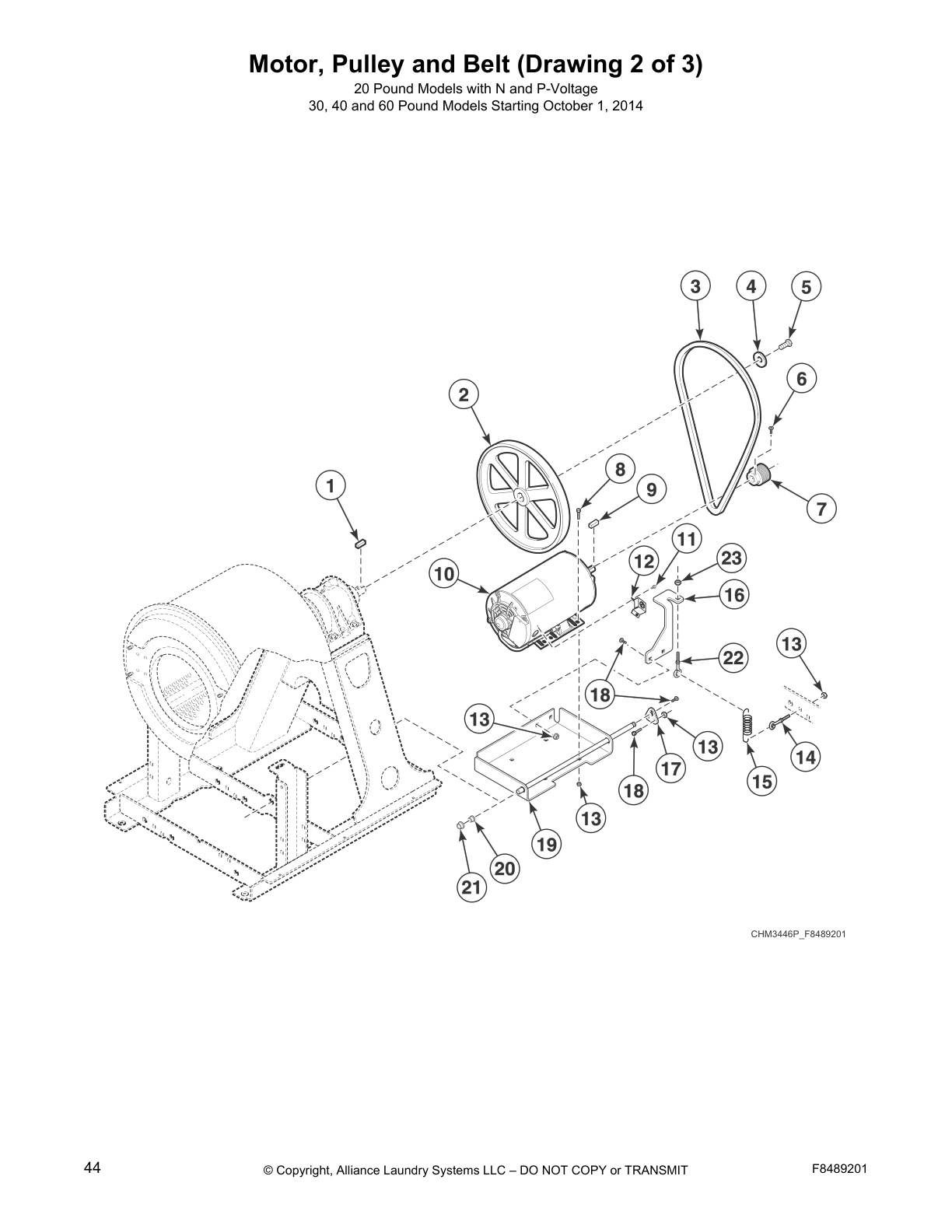

Motor, Pulley and Belt (Drawing 2 of 3)

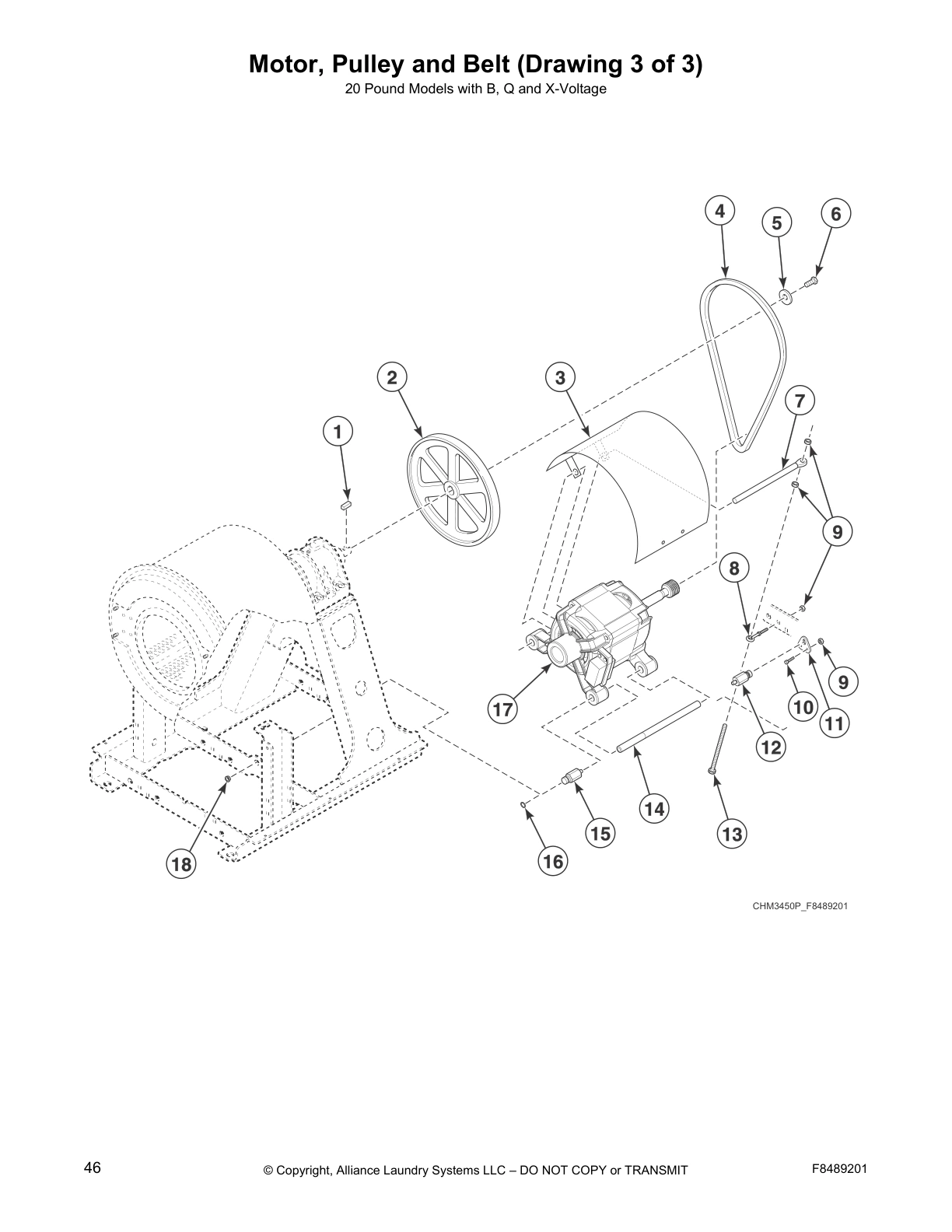

Motor, Pulley and Belt (Drawing 3 of 3)

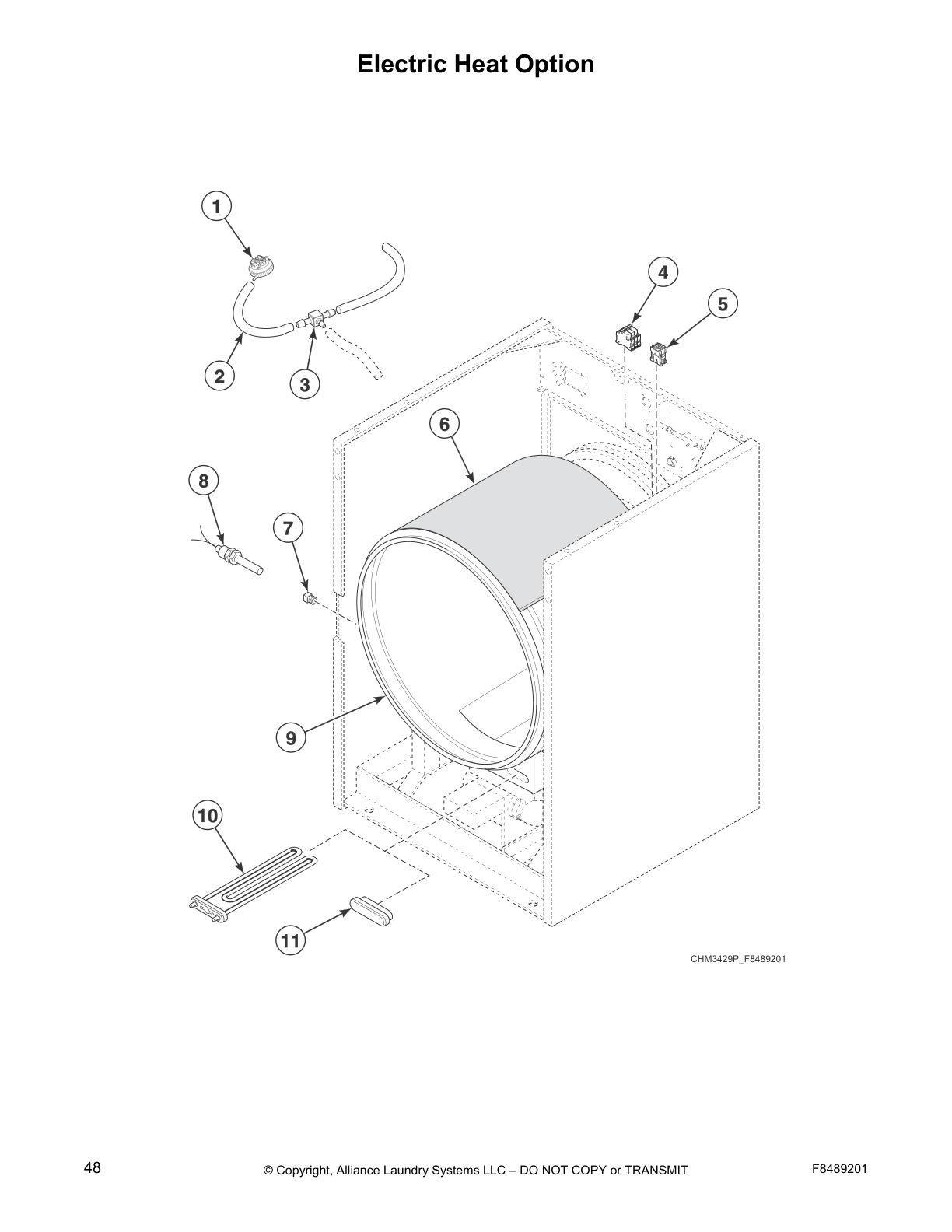

Electric Heat Option

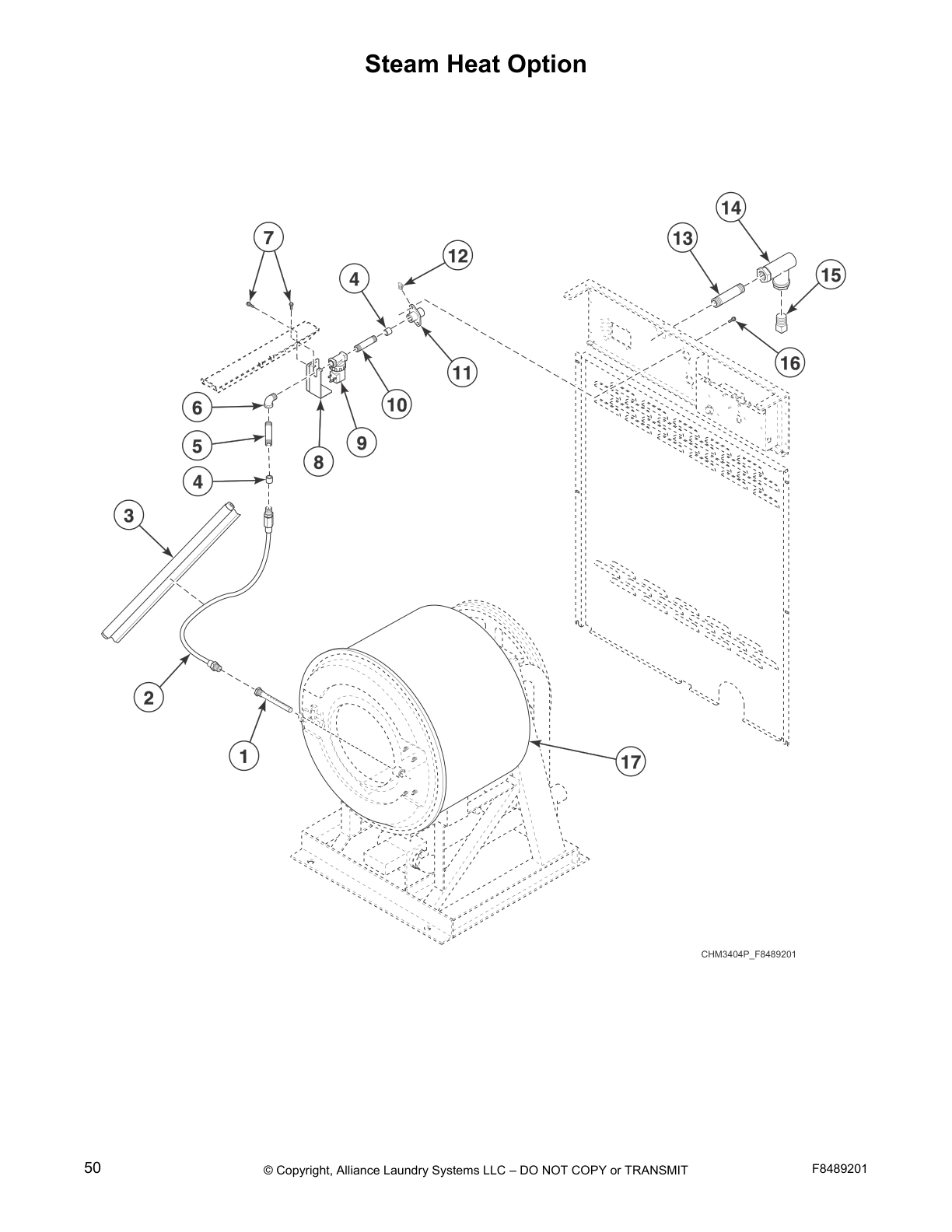

Steam Heat Option
Common parts from model Unimac UCN030KN2 Washer
1
Bearing SPQ F100123P Contact Us For Availability
1
Screw SPQ F8117601 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Bearing Sleeve SPQ F8221701 Contact Us For Availability
1
Door Lock Solenoid Replacement K SPQ F977P3 Contact Us For Availability
1
Shell Front Assembly SPQ F8229501 Contact Us For Availability
1
Drain Valve Kit SPQ F8577201 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Panel Lock SPQ 44089303P Contact Us For Availability
2
Spring Pin SPQ F431222 Contact Us For Availability
2
Spacer SPQ F430225 Contact Us For Availability
2
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
2
Drain Valve Motor SPQ F380933P Contact Us For Availability
2
Ground Lug Connector SPQ F8047901 Contact Us For Availability
2
Tubing SPQ F8153901 Contact Us For Availability
2
Pipe Insulation SPQ F200197 Contact Us For Availability
3
Door Lock Splash Shield SPQ F200203200 Contact Us For Availability
3
Dispenser Lid SPQ F8048101 Contact Us For Availability
3
Expansion Clip SPQ F8226401 Contact Us For Availability
3
Door Latch Arm Assembly SPQ F8199401P Contact Us For Availability
3
Drain Valve Motor SPQ F8618901P Contact Us For Availability
3
Cap SPQ F200222 Contact Us For Availability
3
Motor Drip Shield SPQ F200216900 Contact Us For Availability
3
Tee SPQ F8246601 Contact Us For Availability
3
Street Elbow SPQ F410300 Contact Us For Availability
4
Lid Clamp SPQ F8230601 Contact Us For Availability
4
Door Lock Plate Assembly SPQ F431901 Contact Us For Availability
4
Drain Valve Cover SPQ F200133600 Contact Us For Availability
4
SPQ F8535601 SPQ F8535601 Contact Us For Availability
5
Top Cover SPQ F8091701 Contact Us For Availability
5
Door Handle Spacer Kit SPQ F8221403 Contact Us For Availability
5
Door Lock Plate Shim SPQ F320200 Contact Us For Availability
5
SPQ F8047801 SPQ F8047801 Contact Us For Availability
5
Washer SPQ F431115 Contact Us For Availability
5
Contactor SPQ F330188P Contact Us For Availability
6
Triple Lip Seal SPQ F8203802 Contact Us For Availability
6
Top Cover Latch SPQ F8038604 Contact Us For Availability
6
Top Cabinet Brace SPQ F8017401 Contact Us For Availability
6
Screw SPQ F8223202 Contact Us For Availability
6
SPQ F8043403 SPQ F8043403 Contact Us For Availability
6
Steam Bracket SPQ H86070034 Contact Us For Availability
7
Door Handle Spacer Kit SPQ F0602837-02 Contact Us For Availability
7
Retaining Ring SPQ F8345001 Contact Us For Availability
7
SPQ F200213 SPQ F200213 Contact Us For Availability
8
Basket Tool Kit SPQ F100108 Contact Us For Availability
8
Jumper Configuration Assembly SPQ F980P3 Contact Us For Availability
8
Door Assembly SPQ F8567501 Contact Us For Availability
8
SPQ F8201001 SPQ F8201001 Contact Us For Availability
8
SPQ F8043701 SPQ F8043701 Contact Us For Availability
8
External Door Lock Harness SPQ F8344401 Contact Us For Availability
8
SPQ F8042803 SPQ F8042803 Contact Us For Availability
8
Thermistor Sensor SPQ F370609 Contact Us For Availability
8
Steam Heat Kit SPQ F8490301 Contact Us For Availability
9
Shaft Seal Sleeve Kit SPQ F8343904P Contact Us For Availability
9
SPQ F8048601 SPQ F8048601 Contact Us For Availability
9
Steam Valve Repair Kit SPQ F8521501 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Excluder Seal SPQ F8336901 Contact Us For Availability
10
Vacuum Breaker Hose SPQ F0200244-02 Contact Us For Availability
10
Element SPQ F360205P Contact Us For Availability
10
Pipe Nipple SPQ 70263801 Contact Us For Availability
11
Top Cover Hinge SPQ F8258601 Contact Us For Availability
11
Heating Element Plug SPQ F360202 Contact Us For Availability
12
Door Glass SPQ F8485301P Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Nut SPQ 70030401 Contact Us For Availability
13
Front Cabinet Brace SPQ F430174 Contact Us For Availability
13
Bolt SPQ F8270701 Contact Us For Availability
13
Steam Filter SPQ 431486 Contact Us For Availability
14
Nut SPQ F430264 Contact Us For Availability
14
Front Panel SPQ F8173901 Contact Us For Availability
14
Terminal Tray Cover SPQ F8230301 Contact Us For Availability
15
Nut SPQ F431017 Contact Us For Availability
15
Control Panel Overlay SPQ F8173002P Contact Us For Availability
15
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
15
Extension Spring SPQ F310124 Contact Us For Availability
15
Screw SPQ F420409 Contact Us For Availability
16
Emergency Stop Plate SPQ F8201301 Contact Us For Availability
16
Washer SPQ F431113 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
16
Terminal Block SPQ F8177001 Contact Us For Availability
16
Steam Hose SPQ 20253 Contact Us For Availability
17
Magnet SPQ F8390801 Contact Us For Availability
17
Siphon Cover SPQ F8206901 Contact Us For Availability
17
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
18
Door Lock Microswitch SPQ F431902 Contact Us For Availability
19
Nut SPQ 430642 Contact Us For Availability
19
Contact Switch SPQ F8069501 Contact Us For Availability
19
Blind Rivet SPQ F8245101 Contact Us For Availability
20
3-Way Valve SPQ F430232 Contact Us For Availability
20
Pushbutton Switch SPQ 70413301 Contact Us For Availability
21
Bolt SPQ F8230501 Contact Us For Availability
21
Rod SPQ F602813-2 Contact Us For Availability
21
Washer SPQ M411283 Contact Us For Availability
22
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
22
Hose SPQ F430909 Contact Us For Availability
23
Screw SPQ F430536 Contact Us For Availability
23
Manifold SPQ F8286402P Contact Us For Availability
24
Door Mount SPQ F430215 Contact Us For Availability
24
Dispenser Gasket SPQ F8286401P Contact Us For Availability
26
Door Hinge SPQ F150271 Contact Us For Availability
27
Door Handle SPQ F190216P Contact Us For Availability
27
Dispenser Overflow Hose SPQ F8232001 Contact Us For Availability
29
Vacuum Breaker Assembly SPQ F8333201 Contact Us For Availability
30
SPQ F8308301 SPQ F8308301 Contact Us For Availability
31
SPQ F606816-1 SPQ F606816-1 Contact Us For Availability
NI
SPQ F380984P SPQ F380984P Contact Us For Availability
NI
SPQ F8028103P SPQ F8028103P Contact Us For Availability
NI
SPQ F8187302 SPQ F8187302 Contact Us For Availability
NI
SPQ F8340001 SPQ F8340001 Contact Us For Availability
NI
SPQ F8632401 SPQ F8632401 Contact Us For Availability
NI
Clamp Ring Assembly SPQ F8388002 Contact Us For Availability
NI
SPQ 389P4 SPQ 389P4 Contact Us For Availability
NI
Bolt SPQ F200182700 Contact Us For Availability
NI
SPQ F8197701 SPQ F8197701 Contact Us For Availability
NI
SPQ F953P3 SPQ F953P3 Contact Us For Availability
× ![]()
