Model Unimac UCL080HNF Washer – Common Parts & Diagrams
Decals
Control Module - Design 1 Models
Control Module - Design 2 F-Speed Models

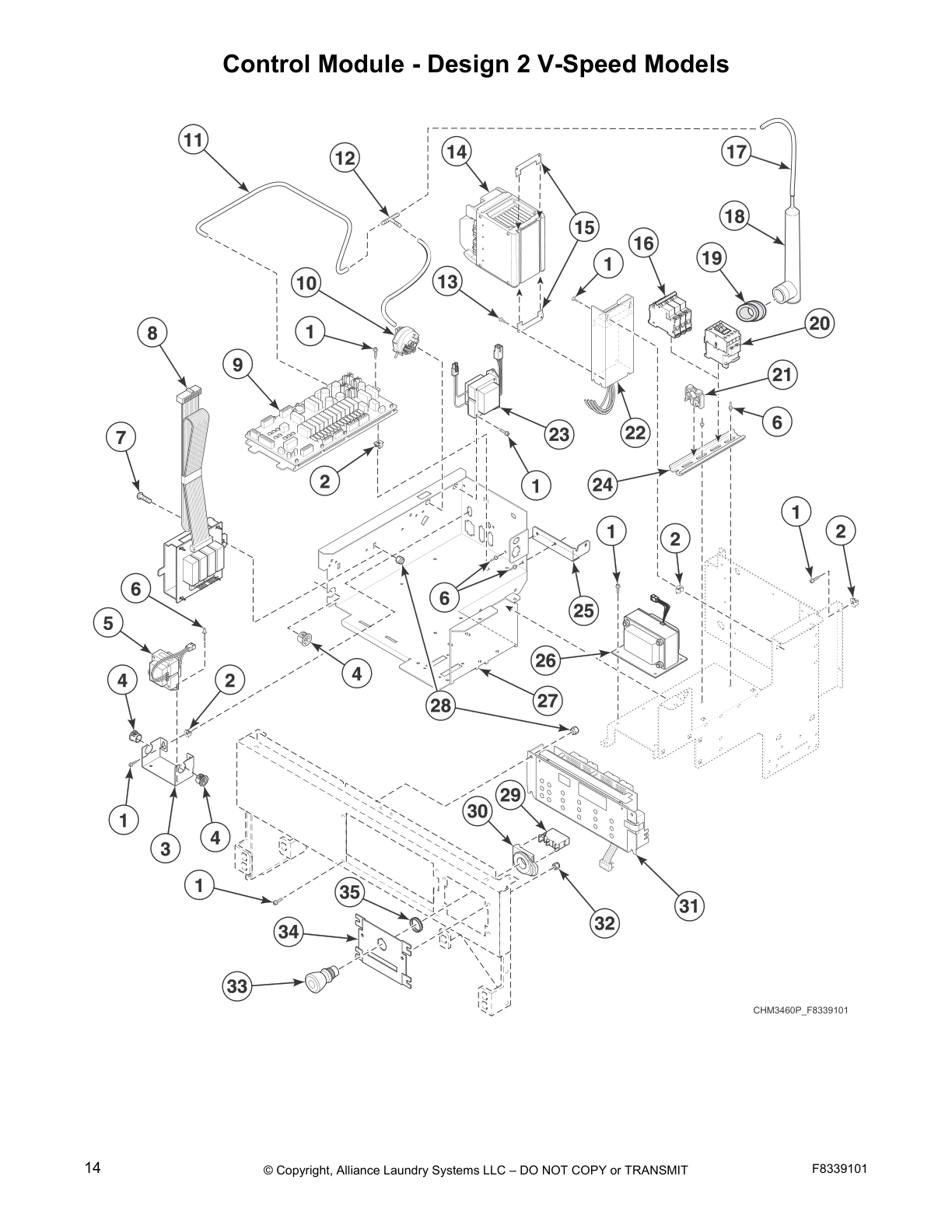

Control Module - Design 2 V-Speed Models

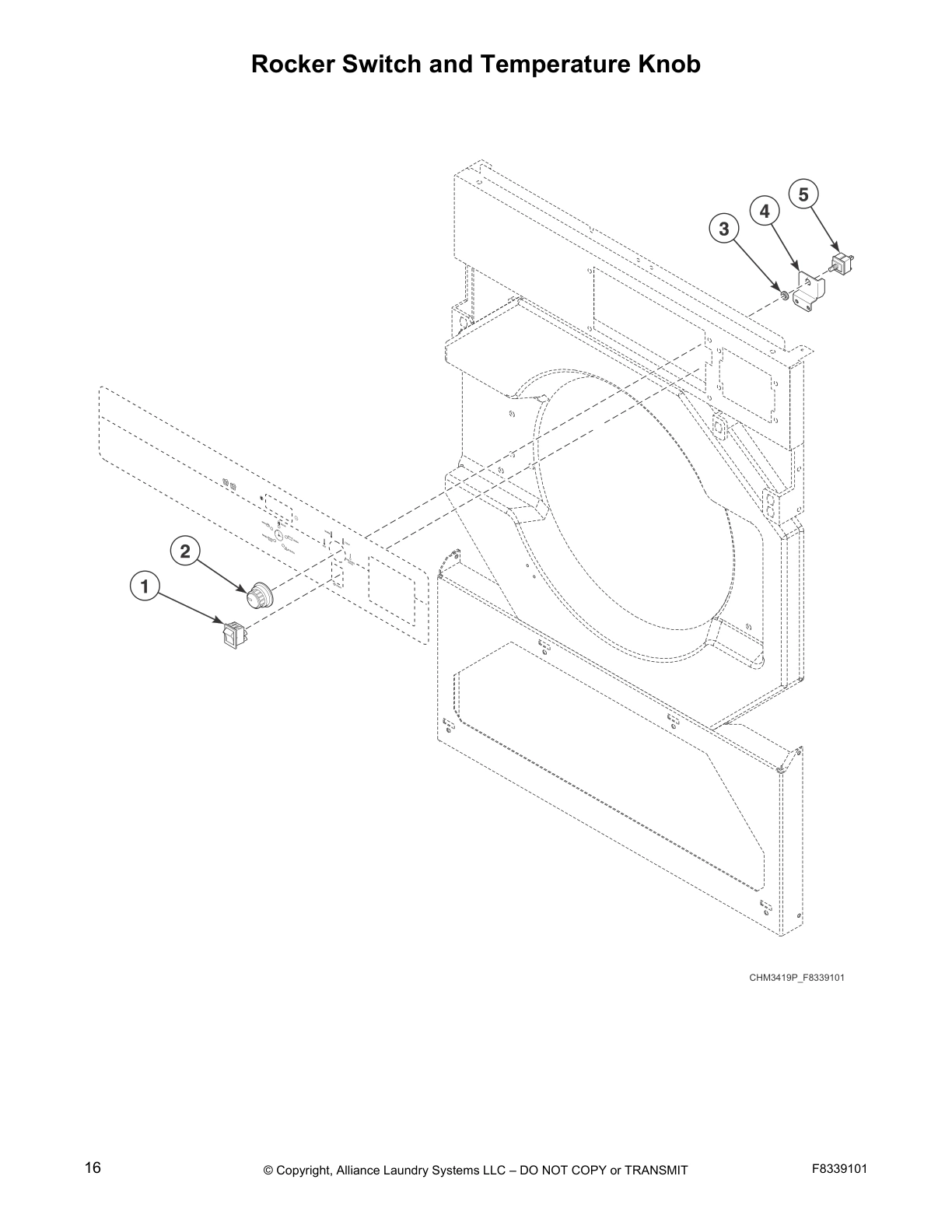

Rocker Switch and Temperature Knob

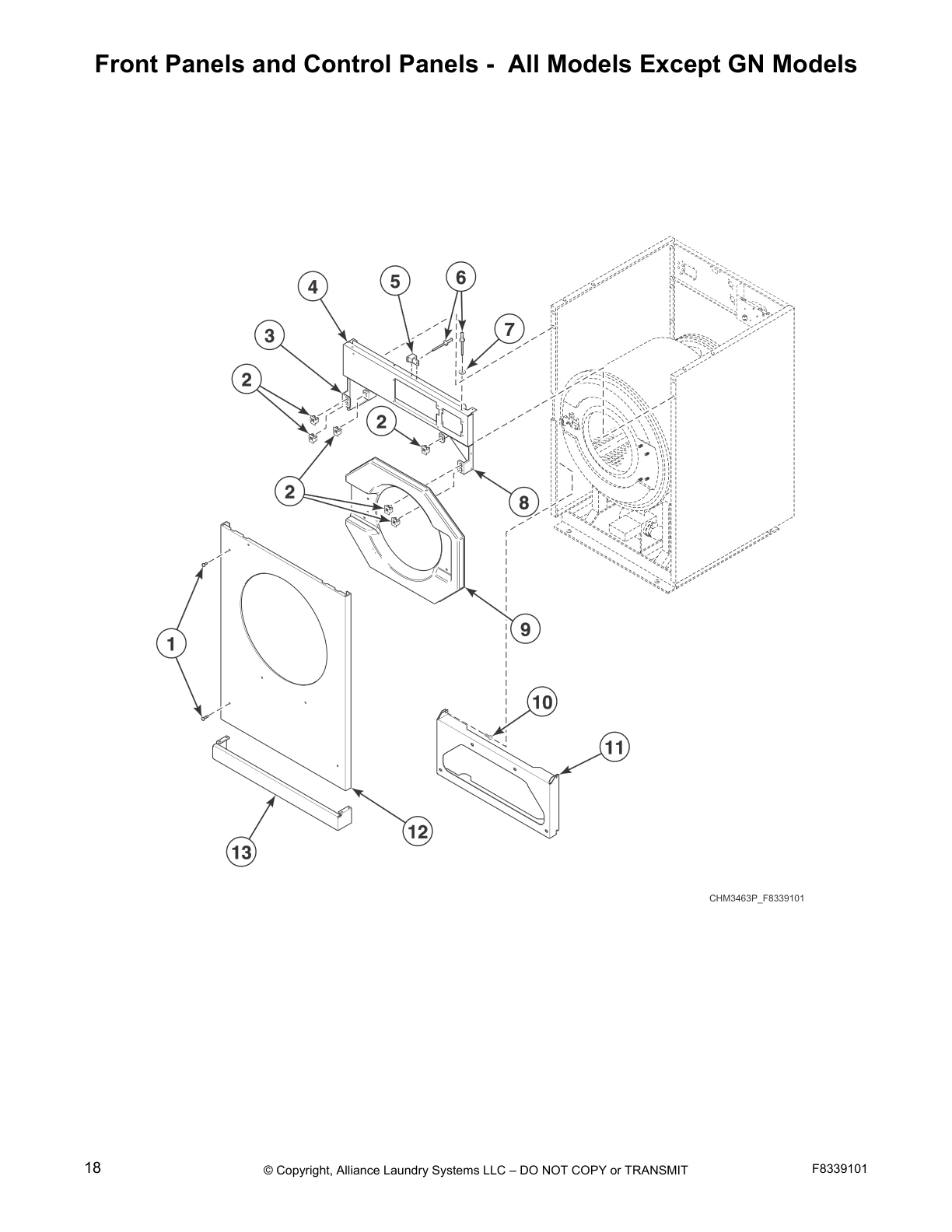

Front Panels and Control Panels - All Models Except GN Models

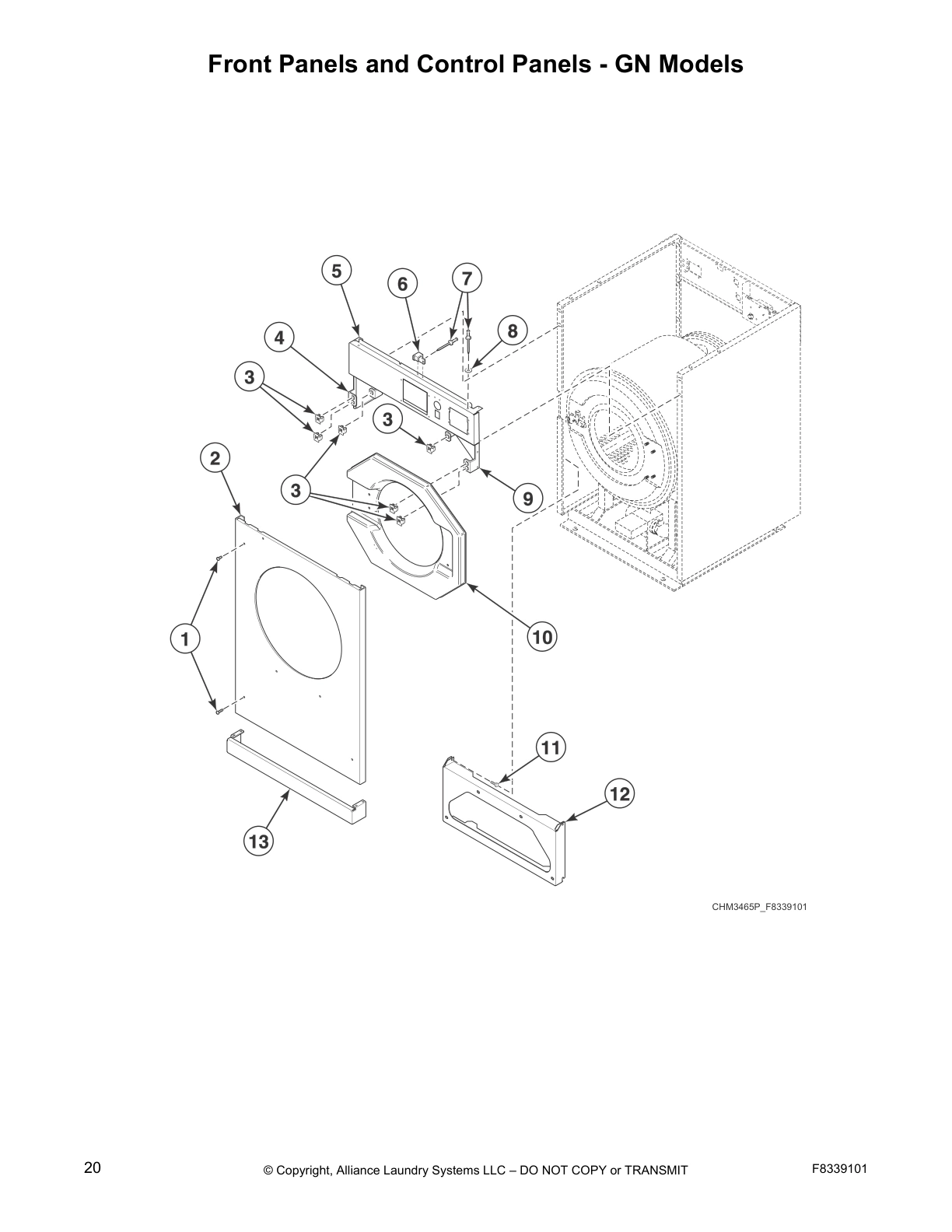

Front Panels and Control Panels - GN Models

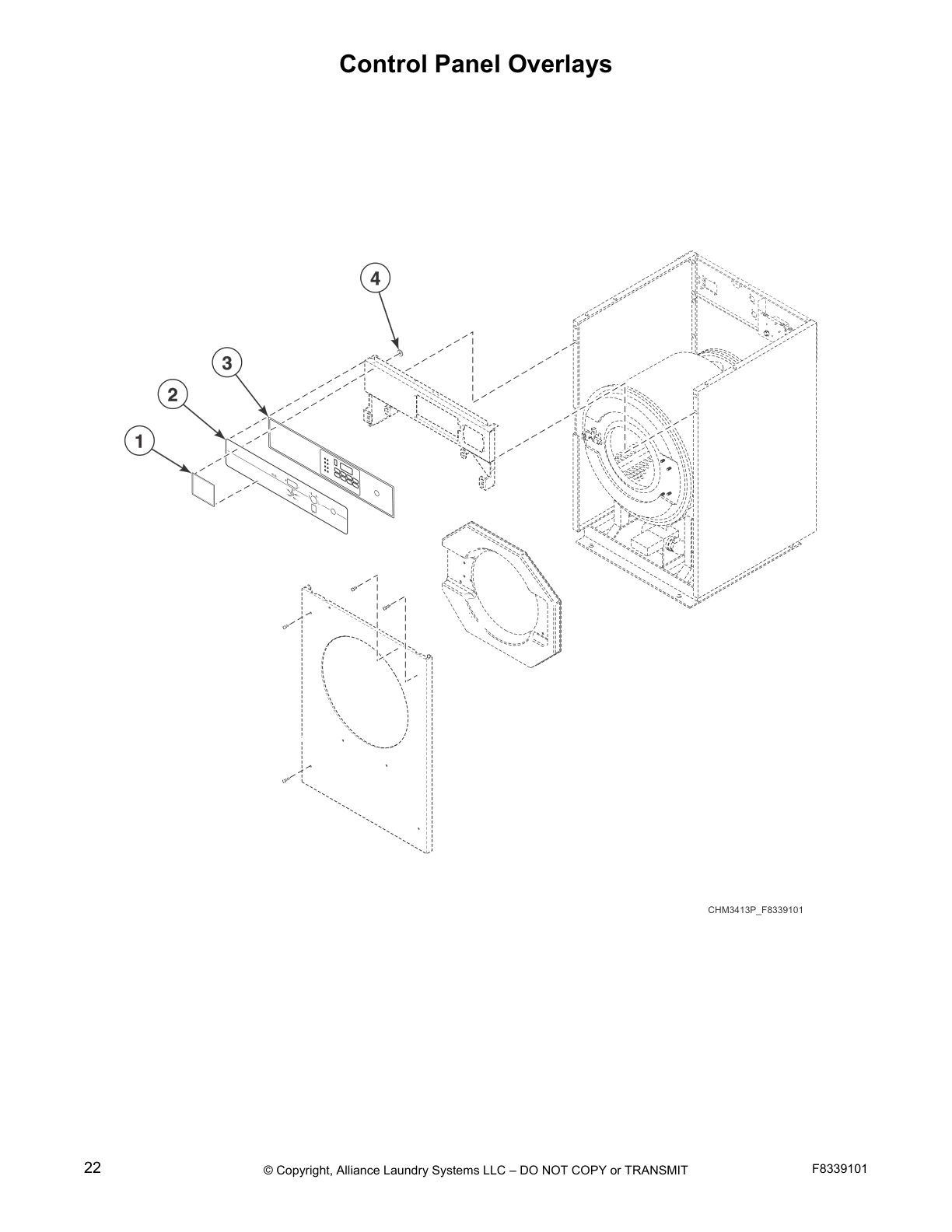

Control Panel Overlays

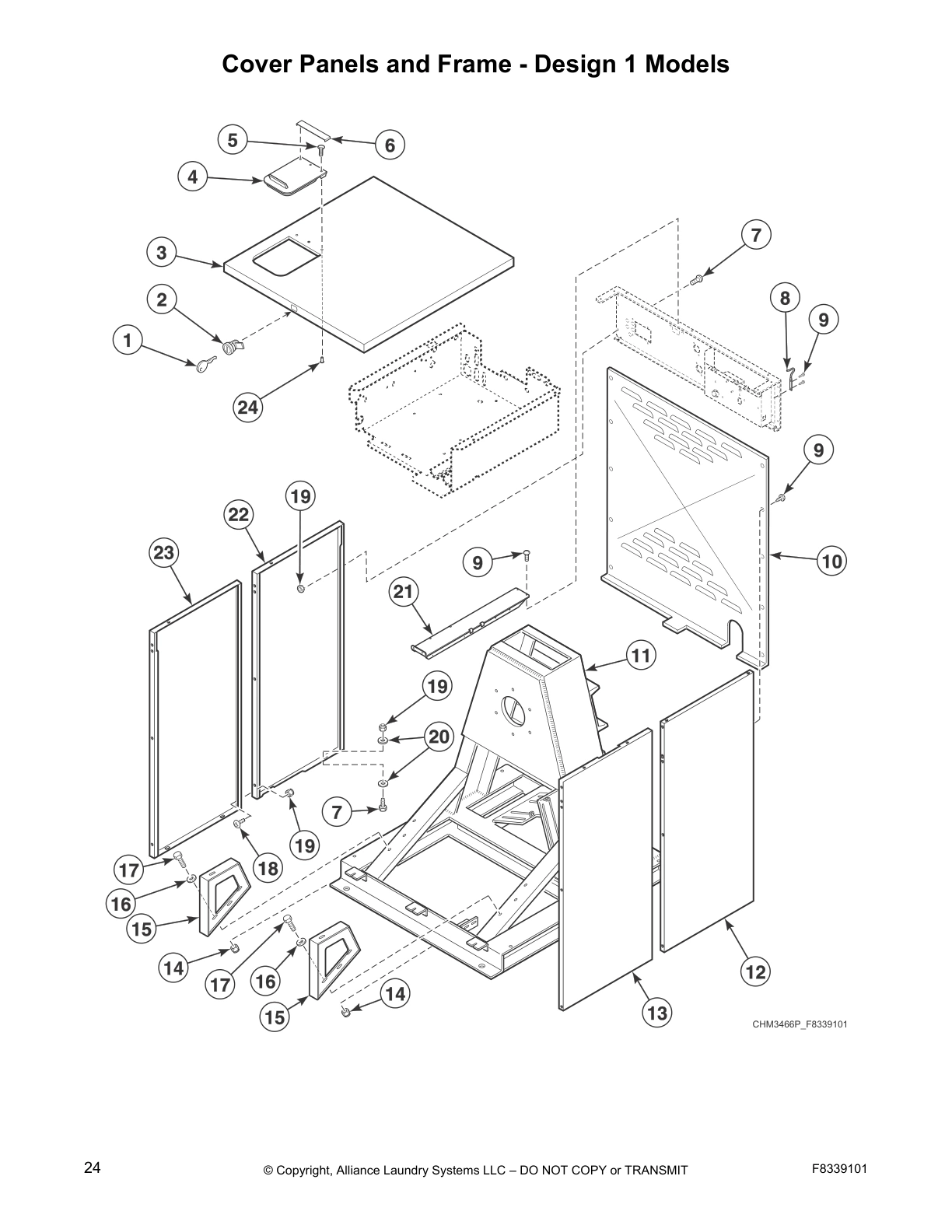

Cover Panels and Frame - Design 1 Models

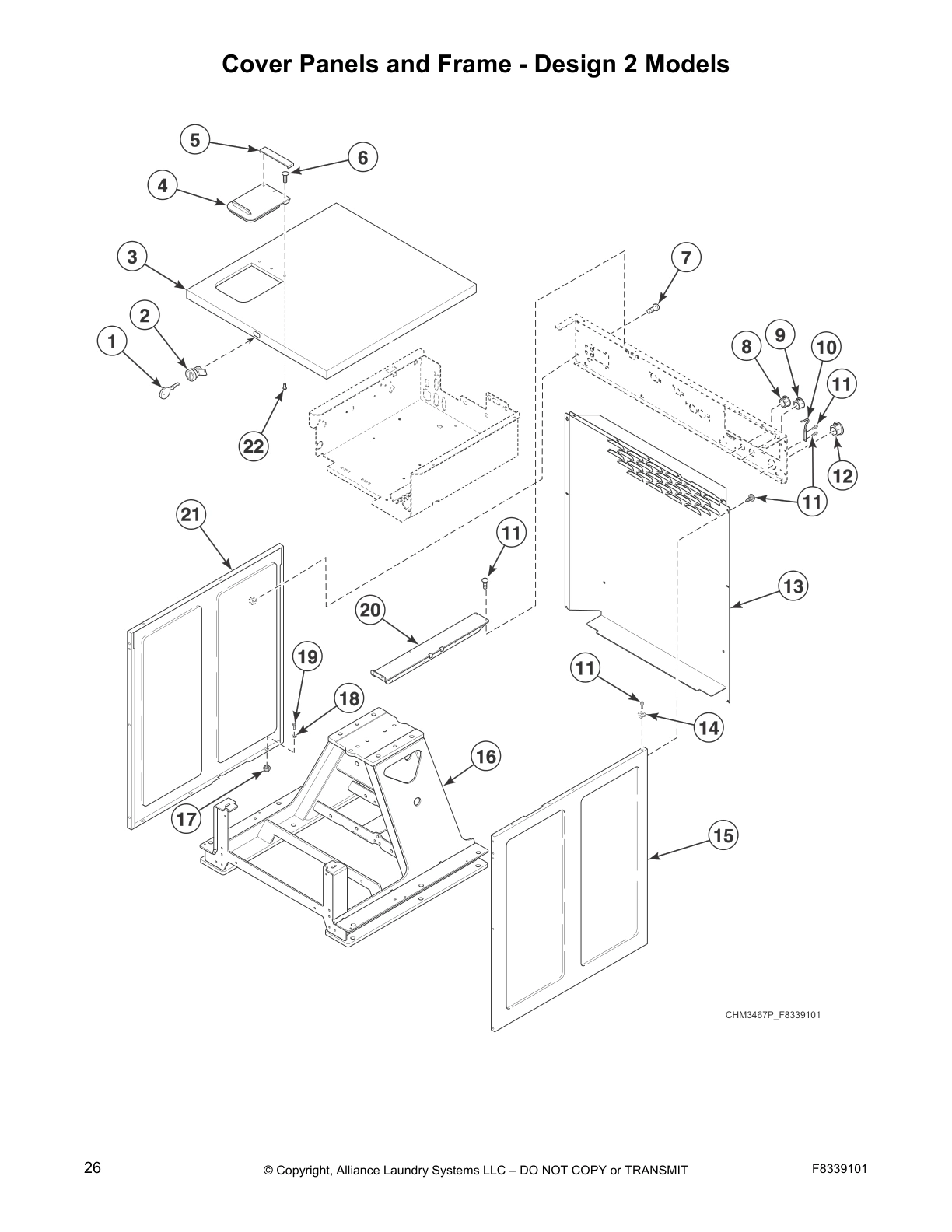

Cover Panels and Frame - Design 2 Models

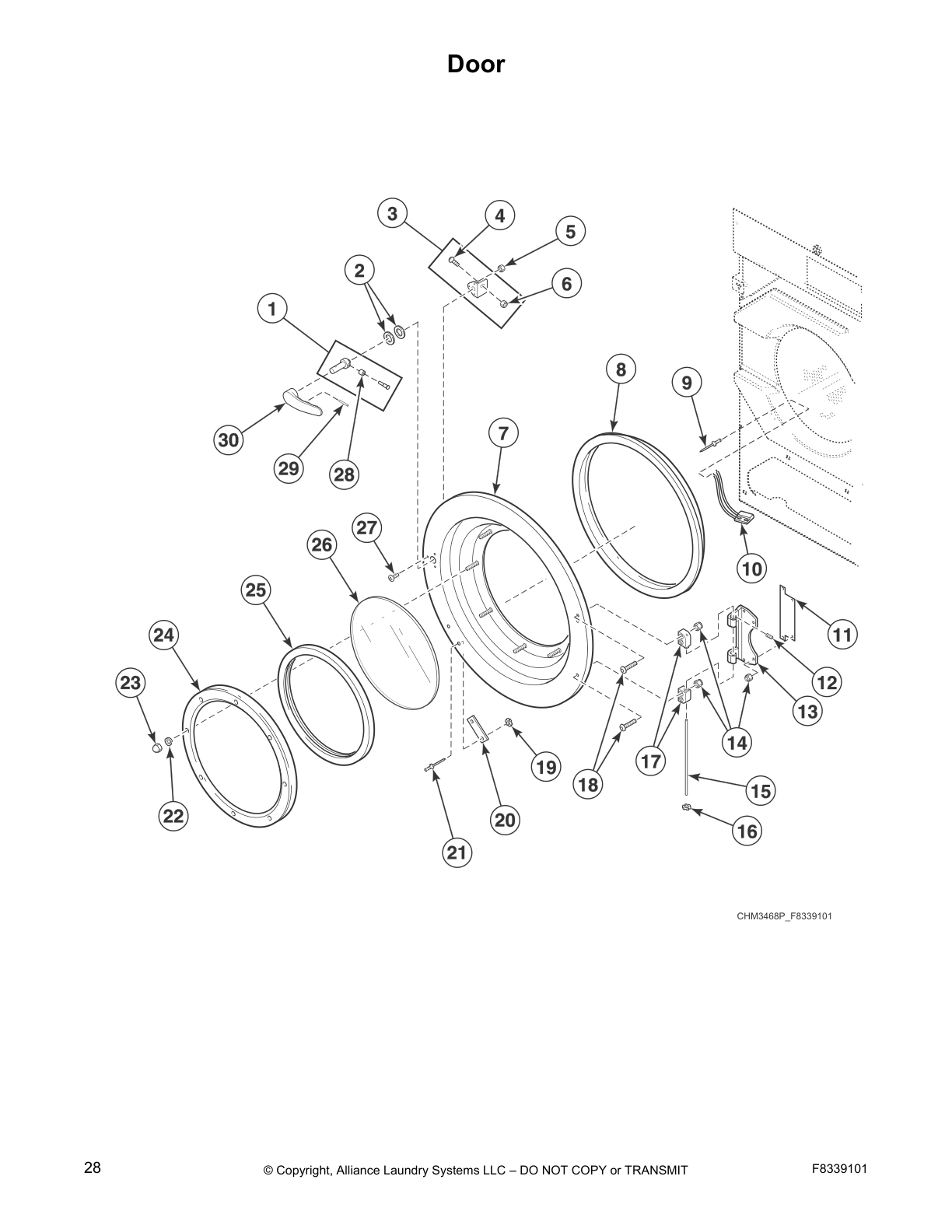

Door

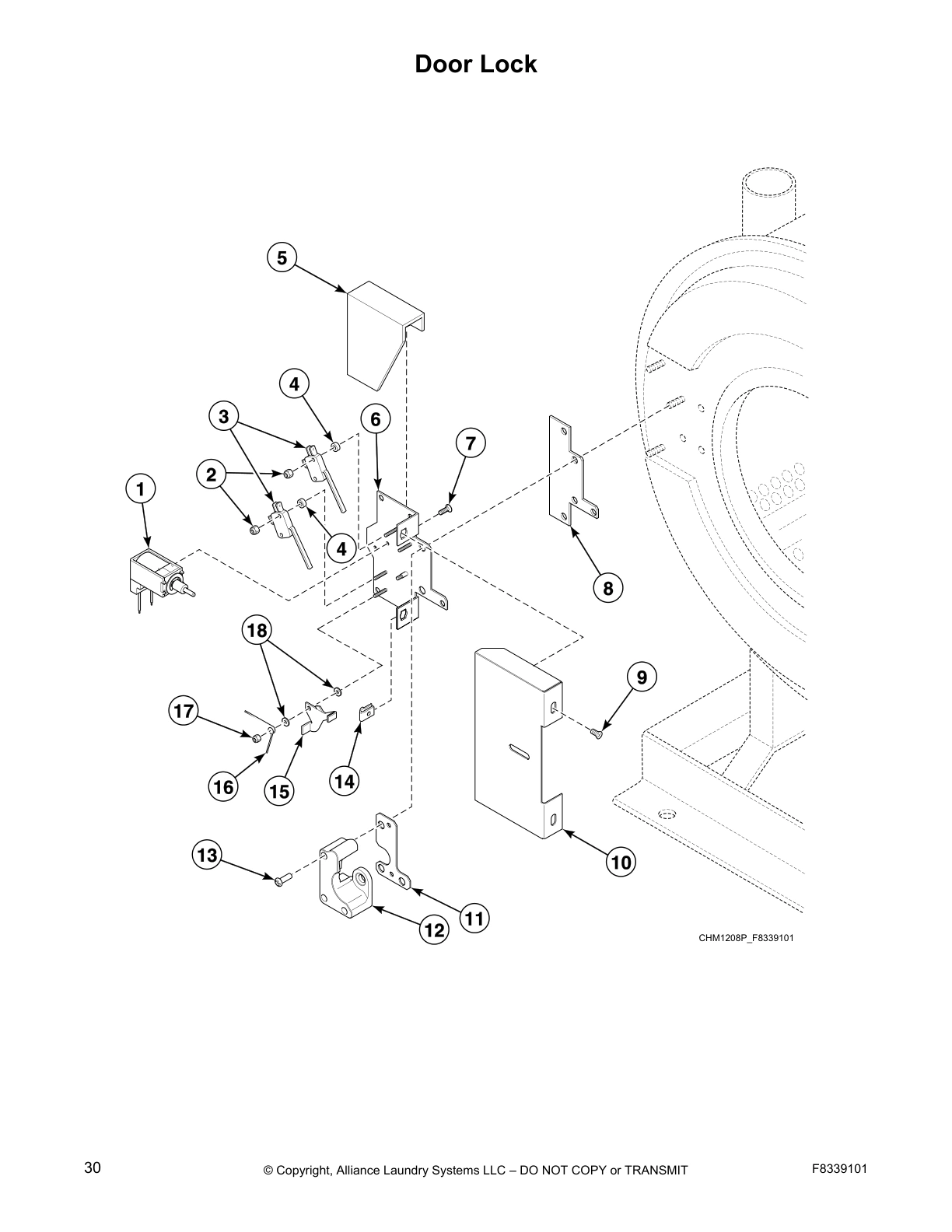

Door Lock

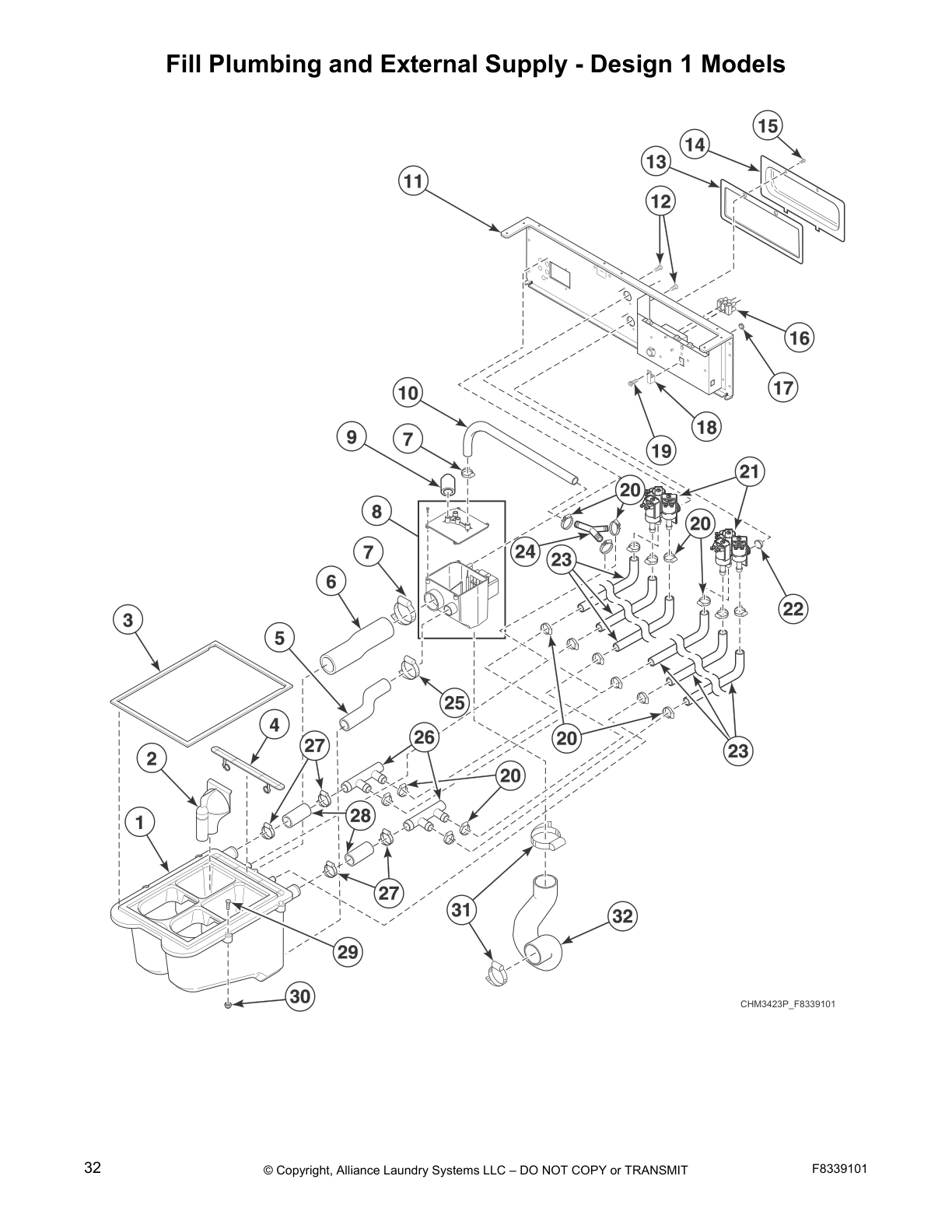

Fill Plumbing and External Supply - Design 1 Models

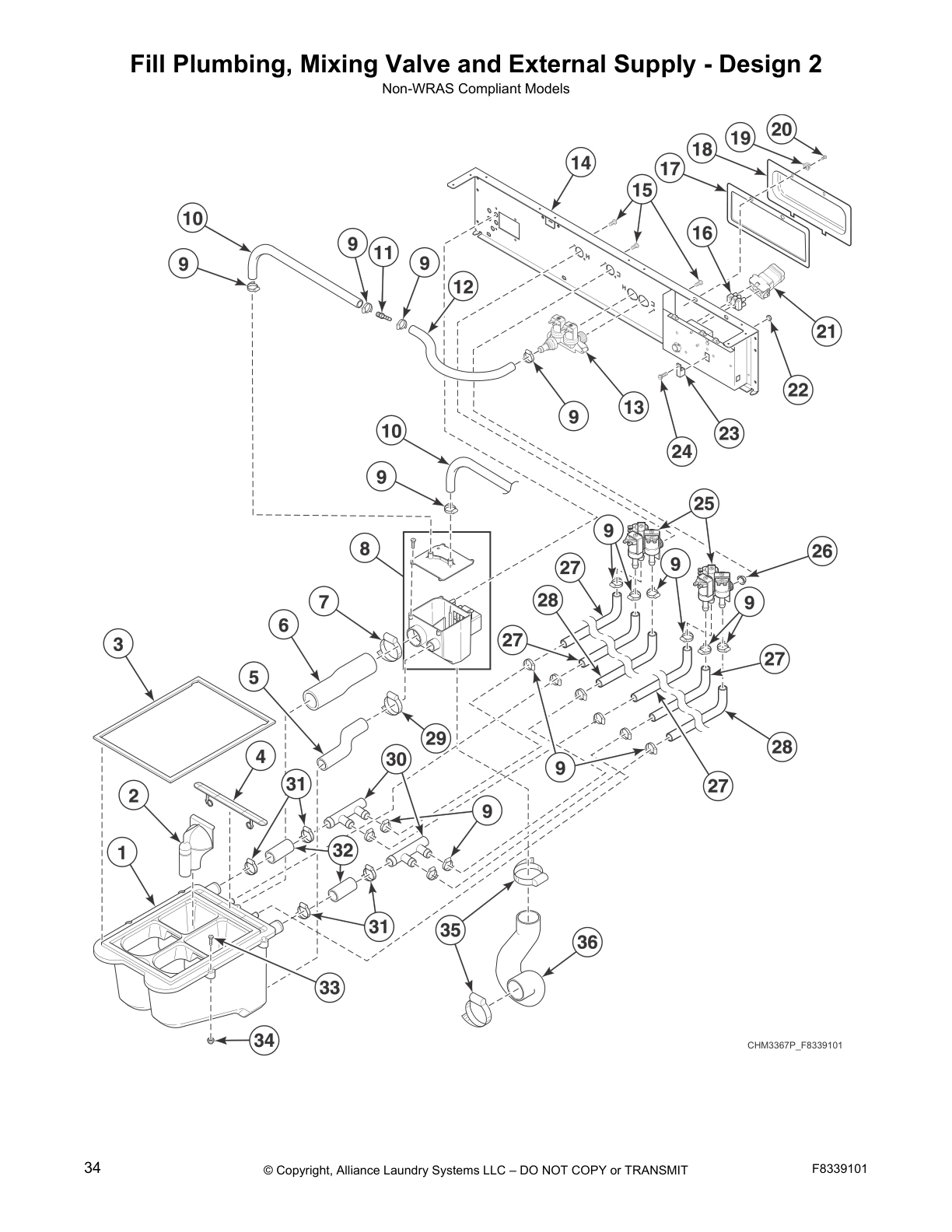

Fill Plumbing, Mixing Valve and External Supply - Design 2

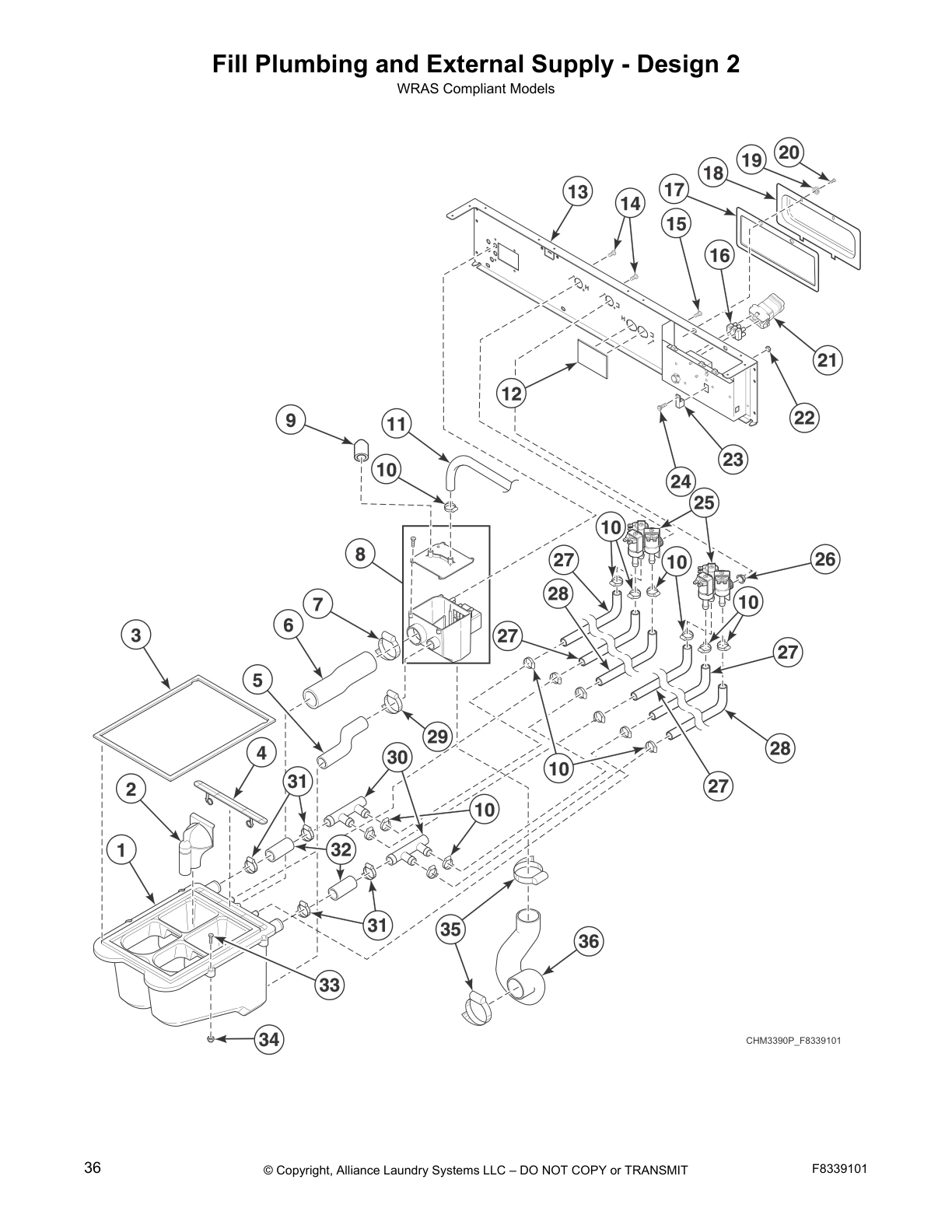

Fill Plumbing and External Supply - Design 2

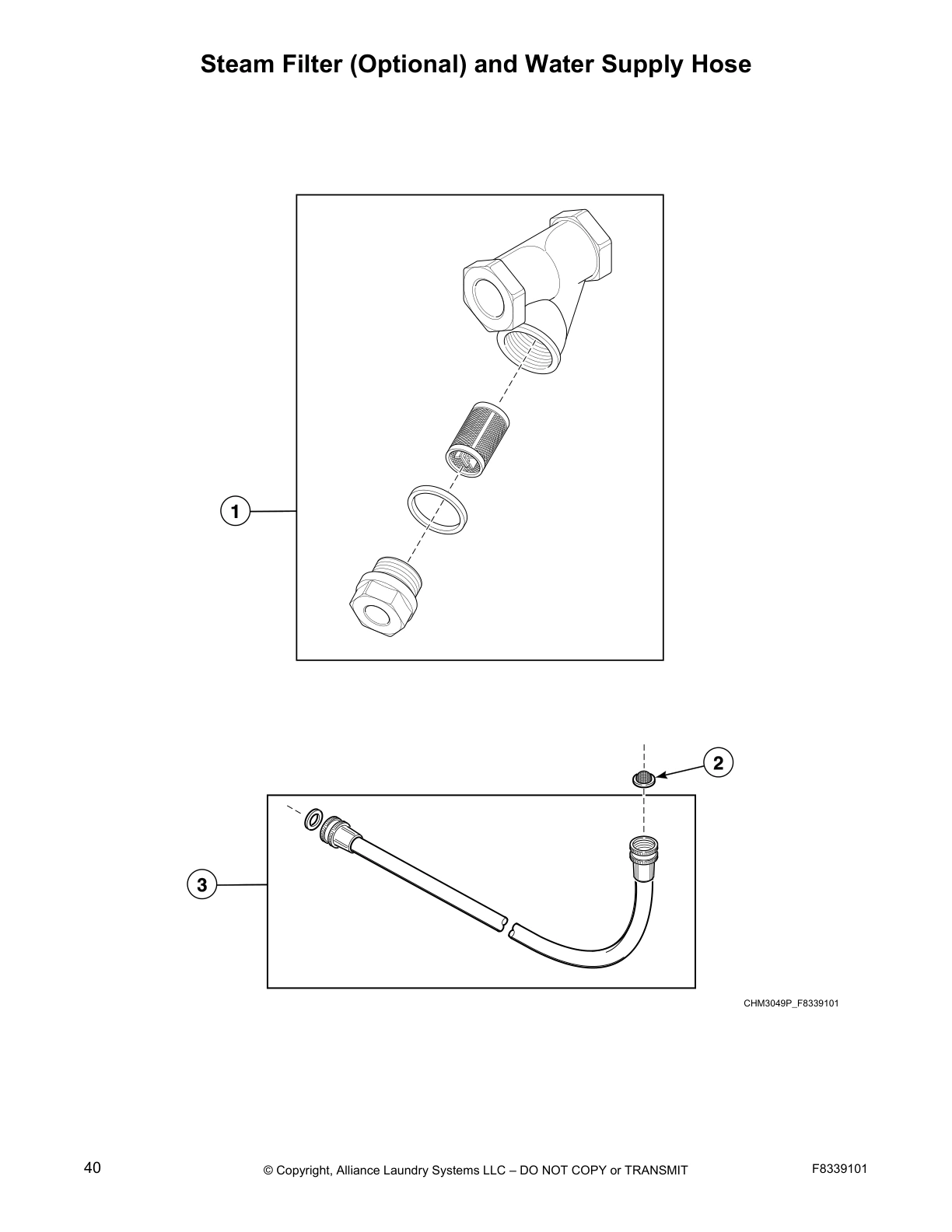

Steam Filter (Optional) and Water Supply Hose

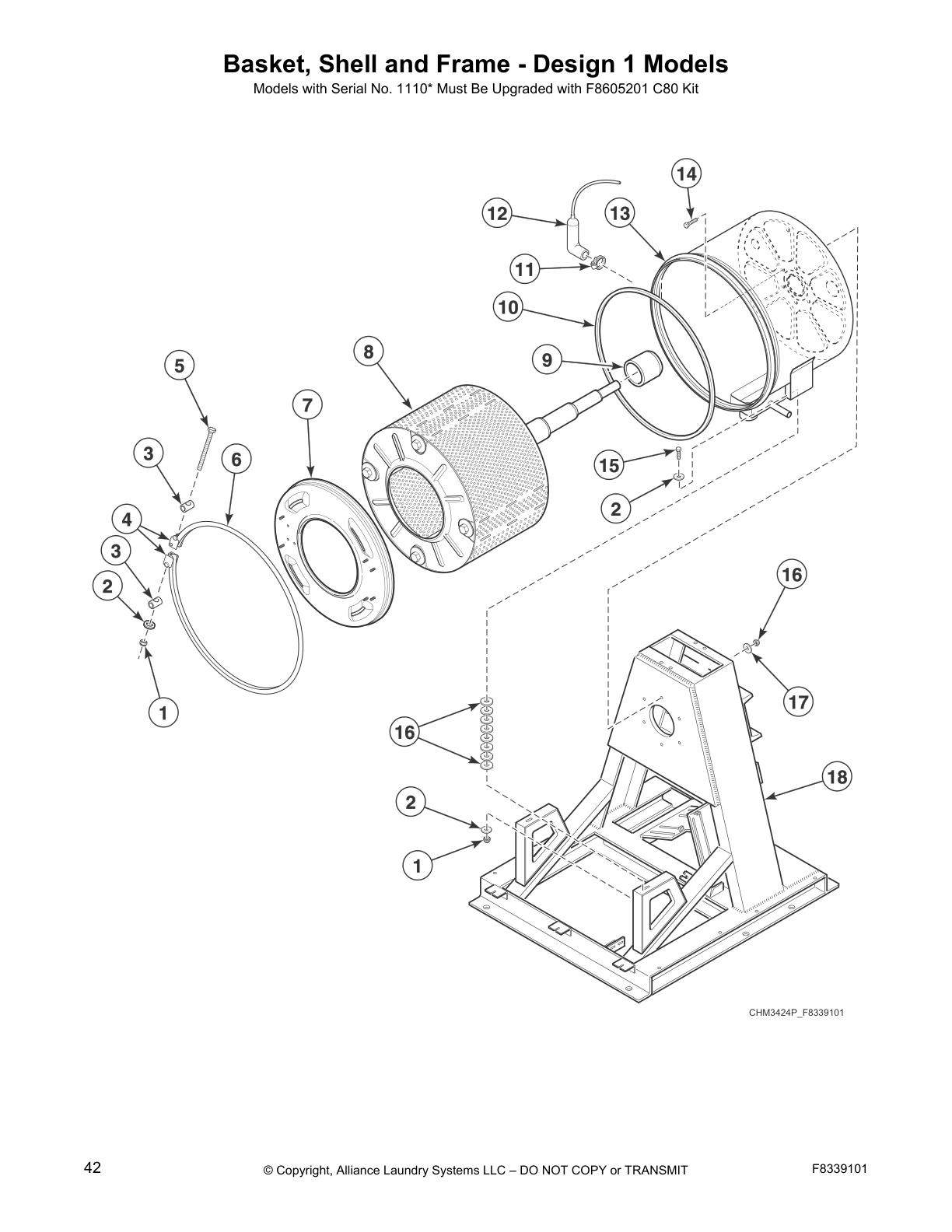

Basket, Shell and Frame - Design 1 Models

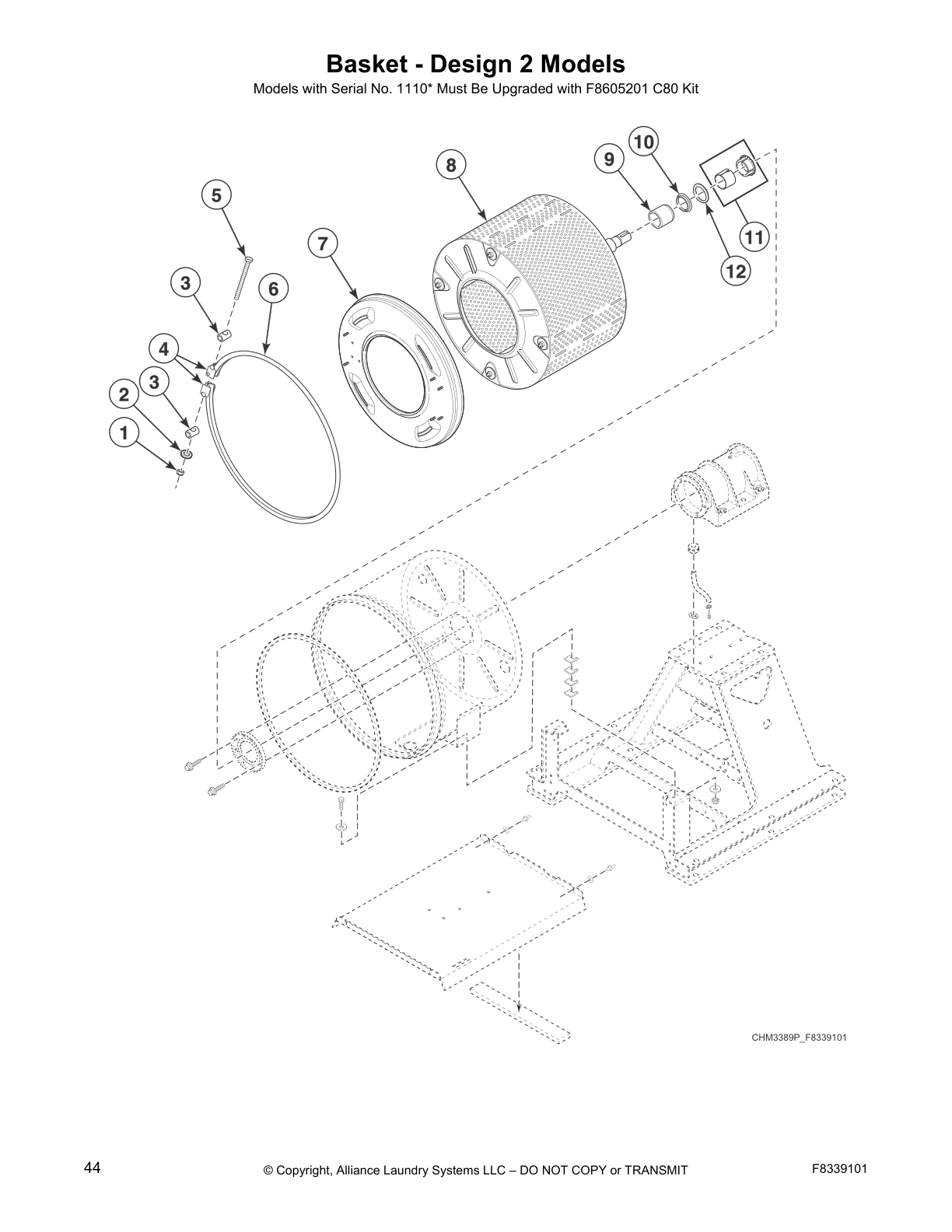

Basket - Design 2 Models

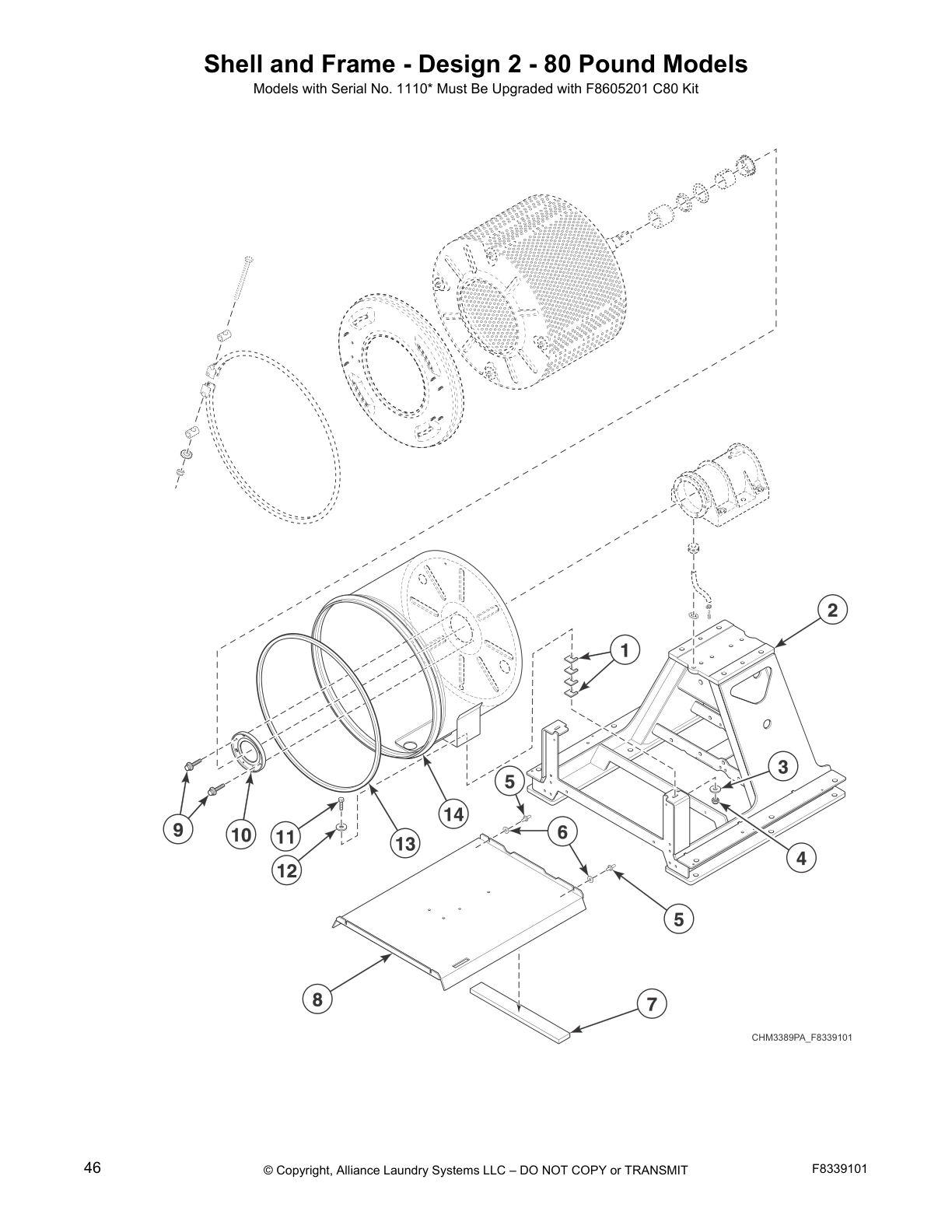

Shell and Frame - Design 2 - 80 Pound Models

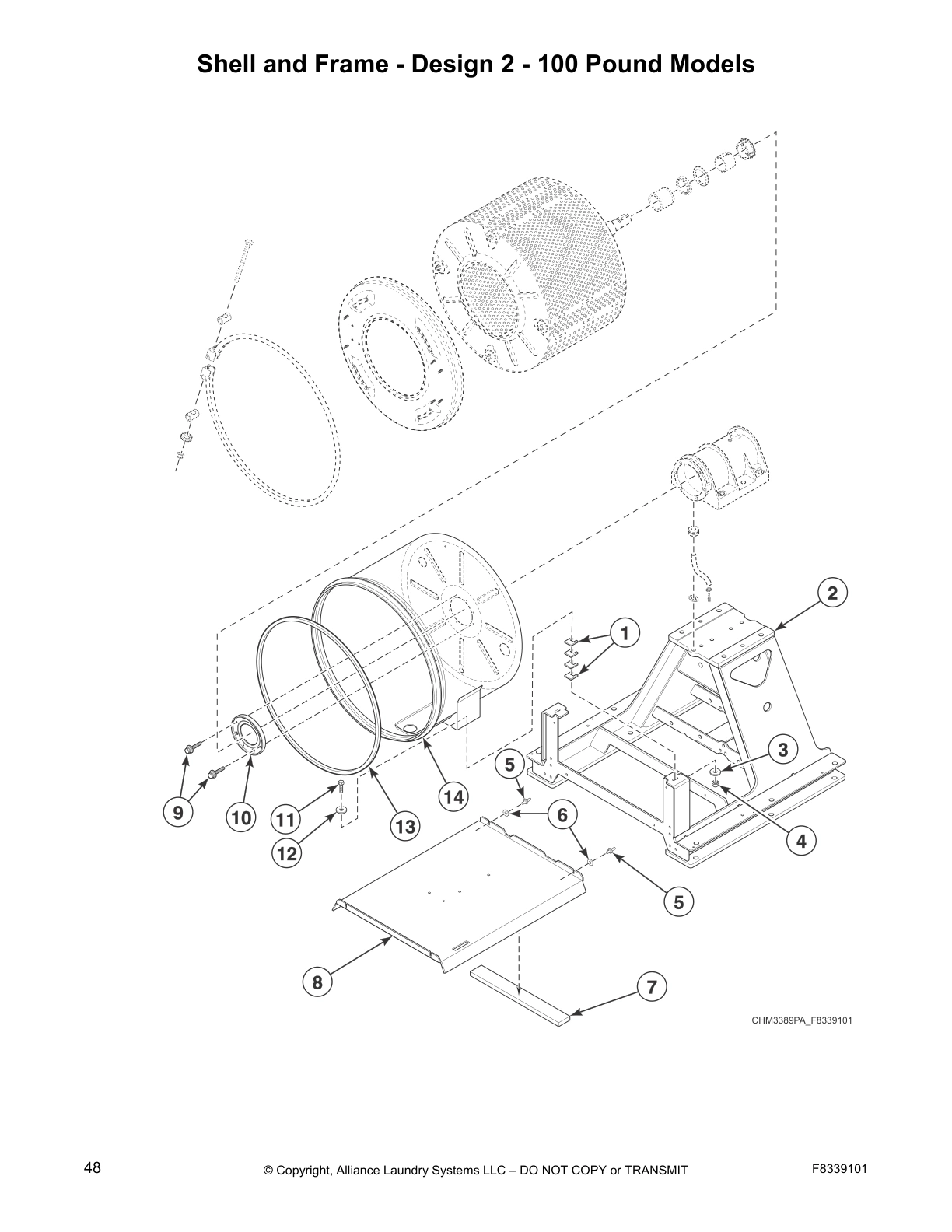

Shell and Frame - Design 2 - 100 Pound Models

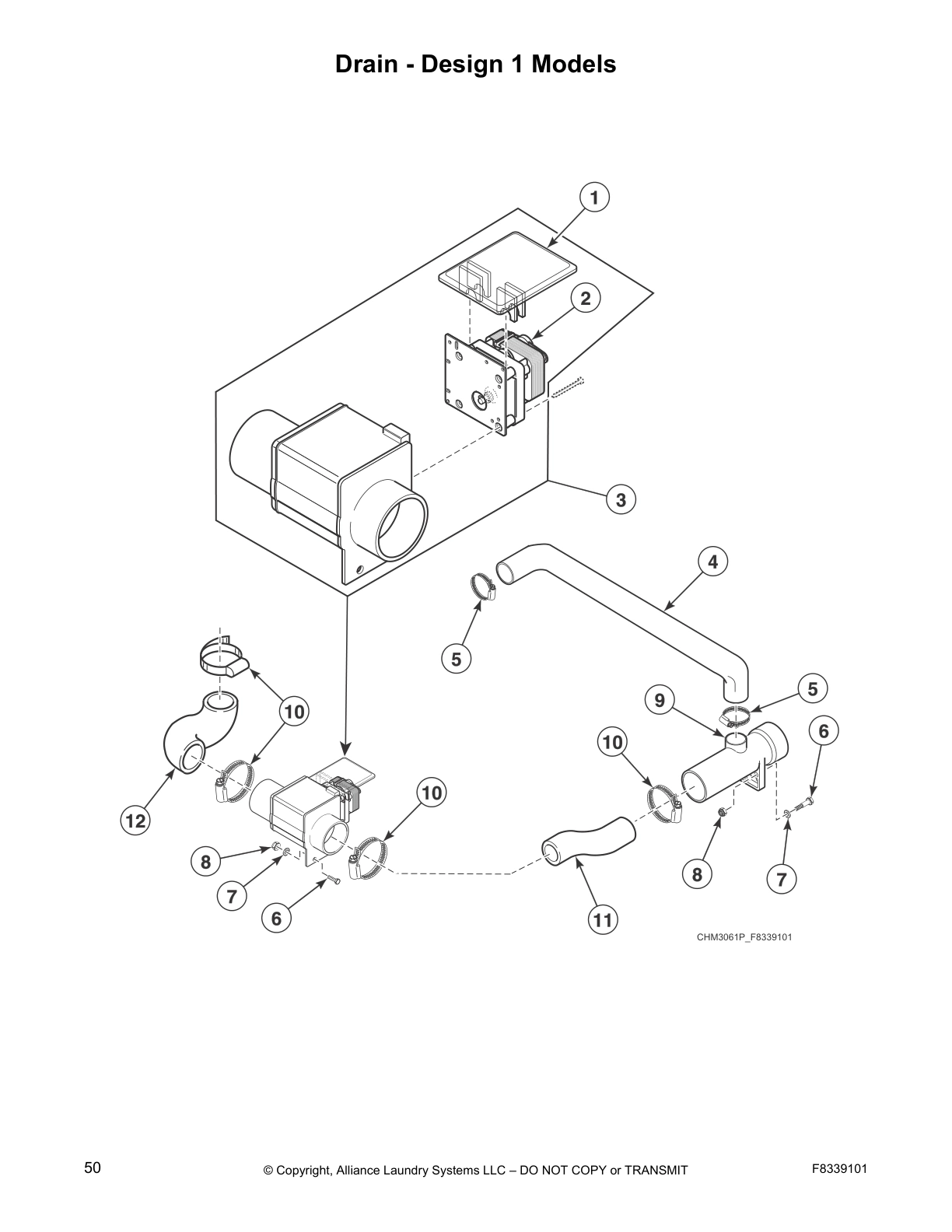

Drain - Design 1 Models

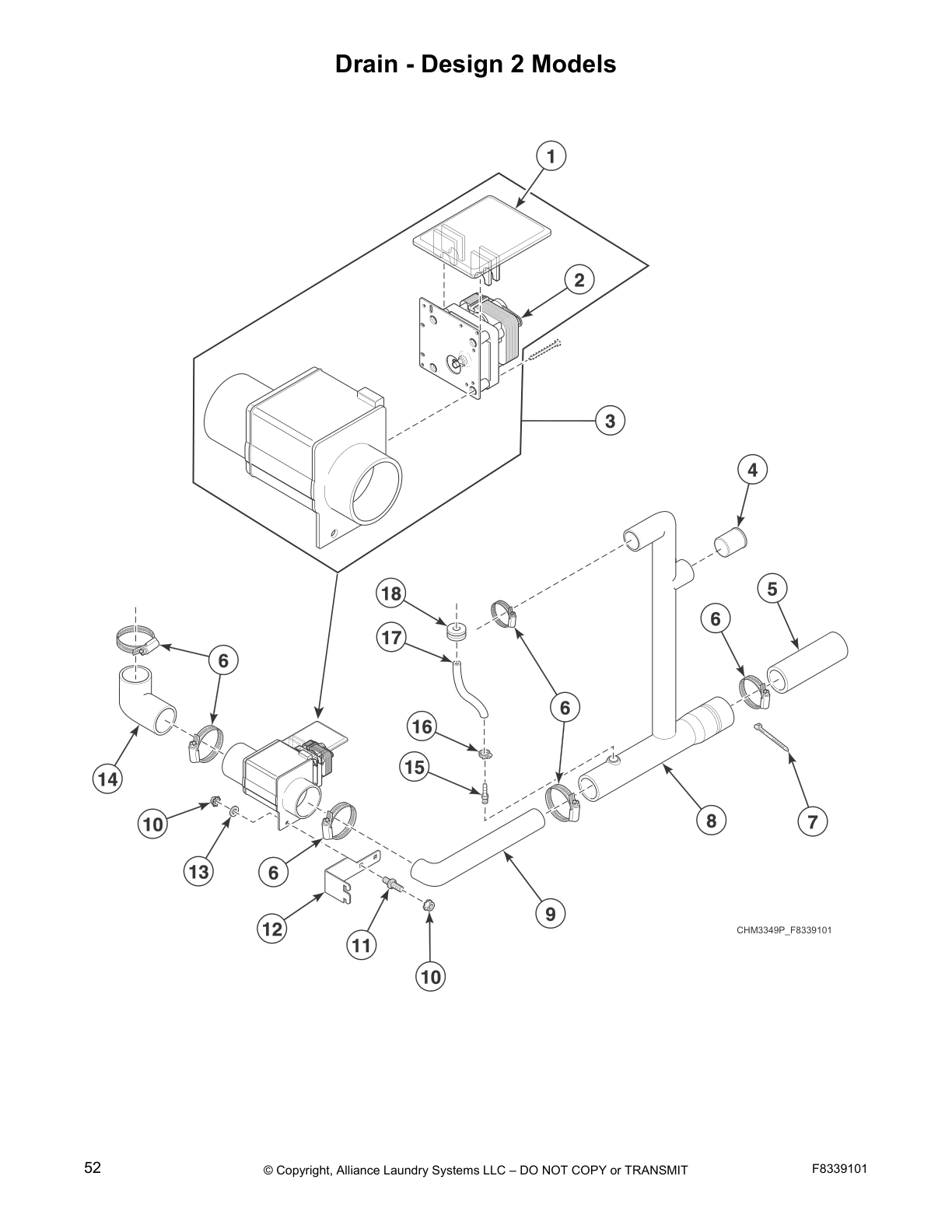

Drain - Design 2 Models

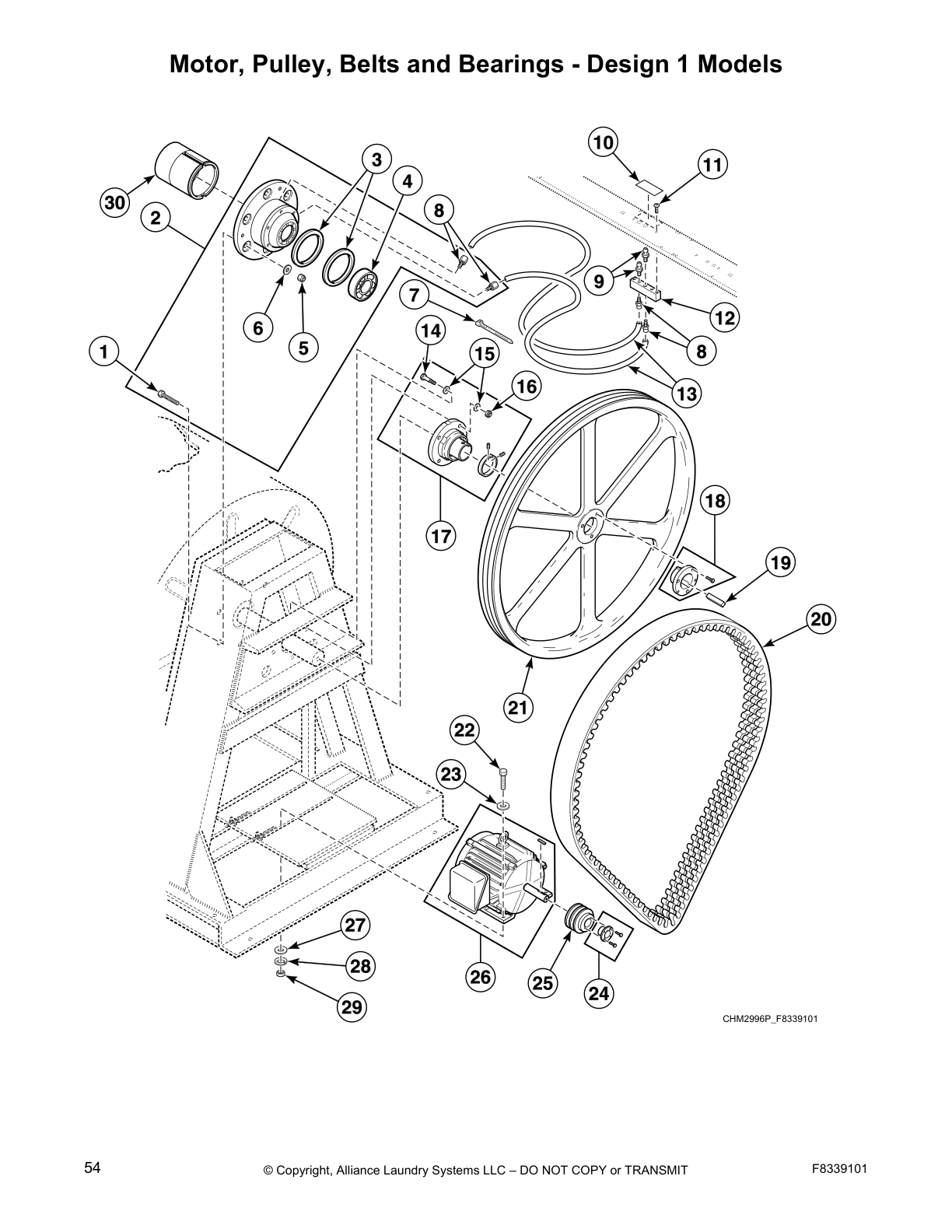

Motor, Pulley, Belts and Bearings - Design 1 Models

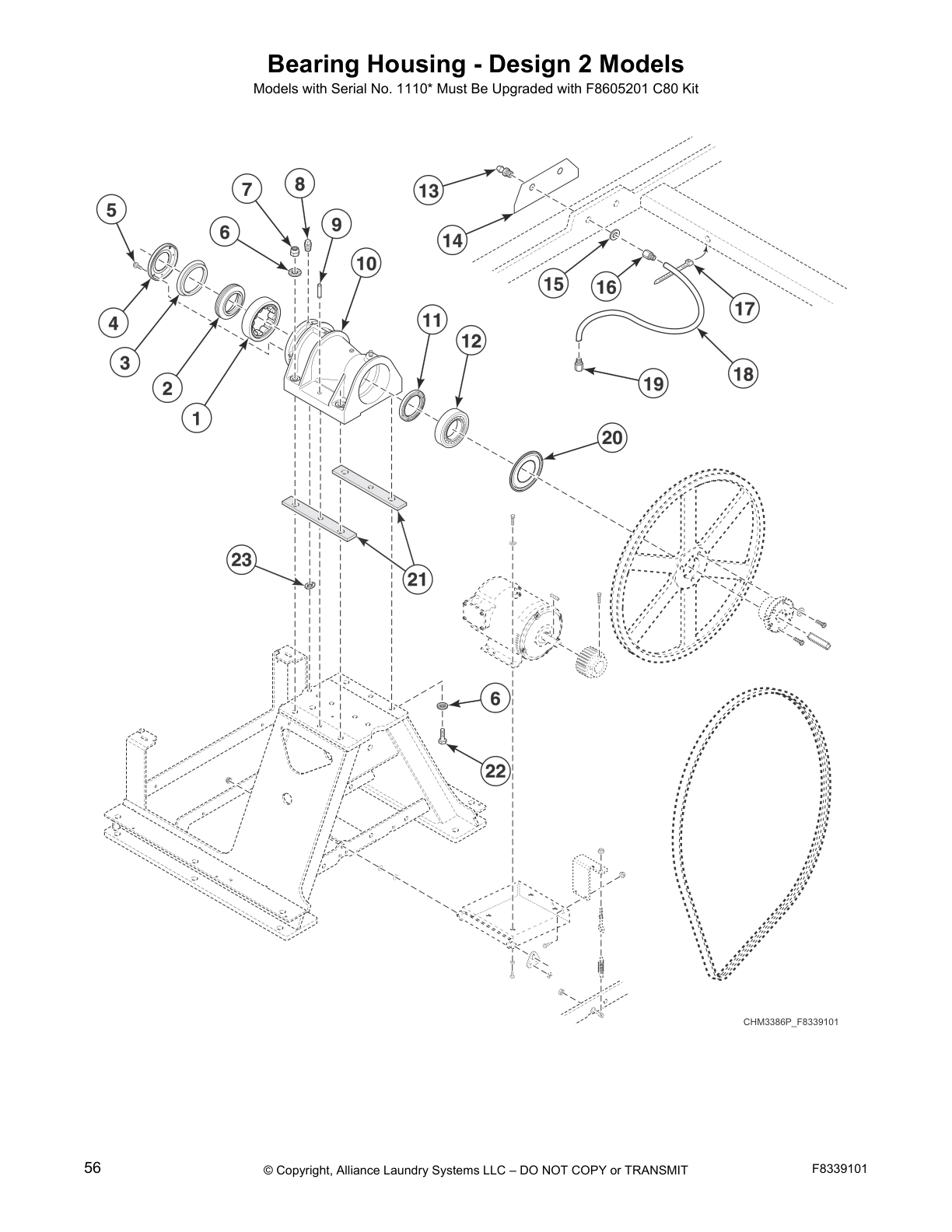

Bearing Housing - Design 2 Models

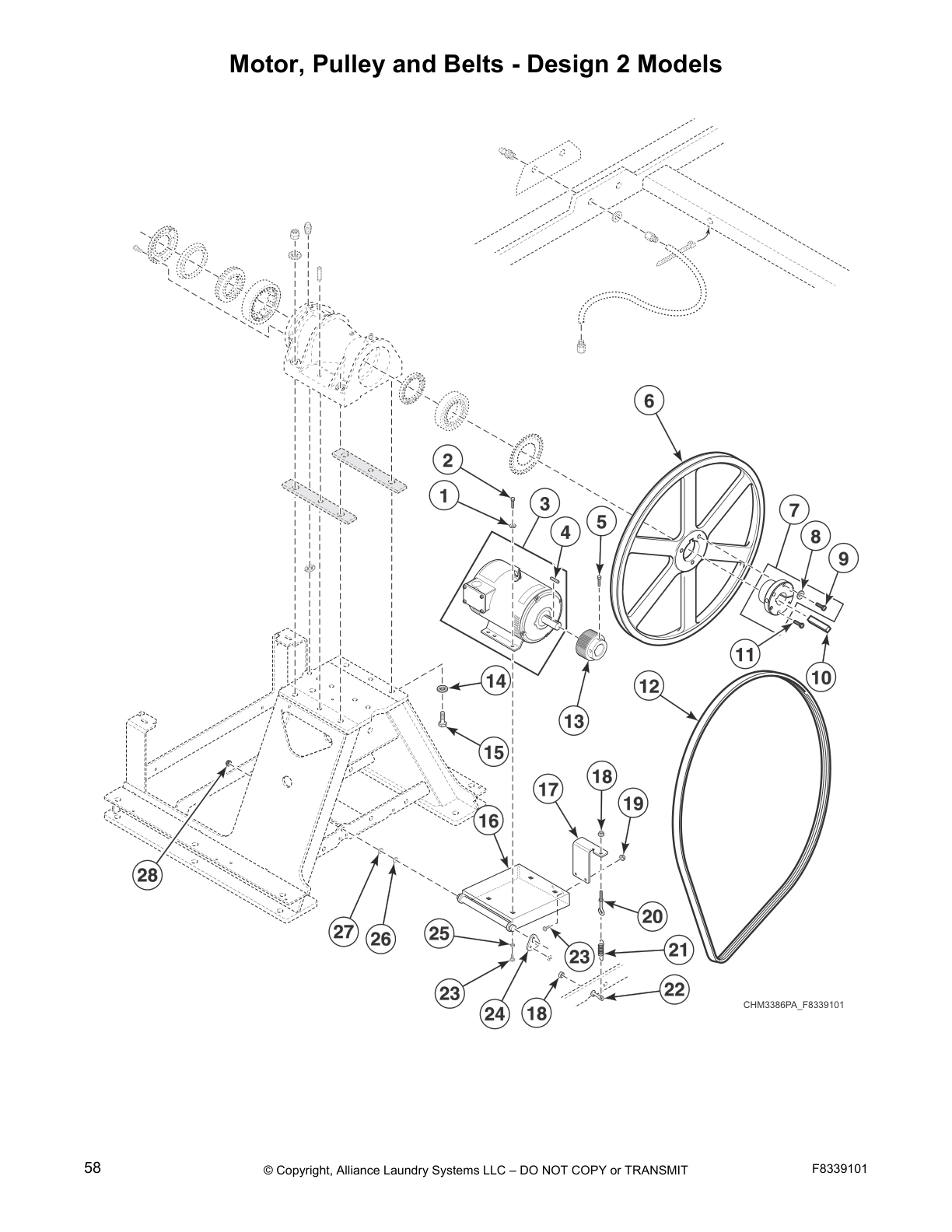

Motor, Pulley and Belts - Design 2 Models

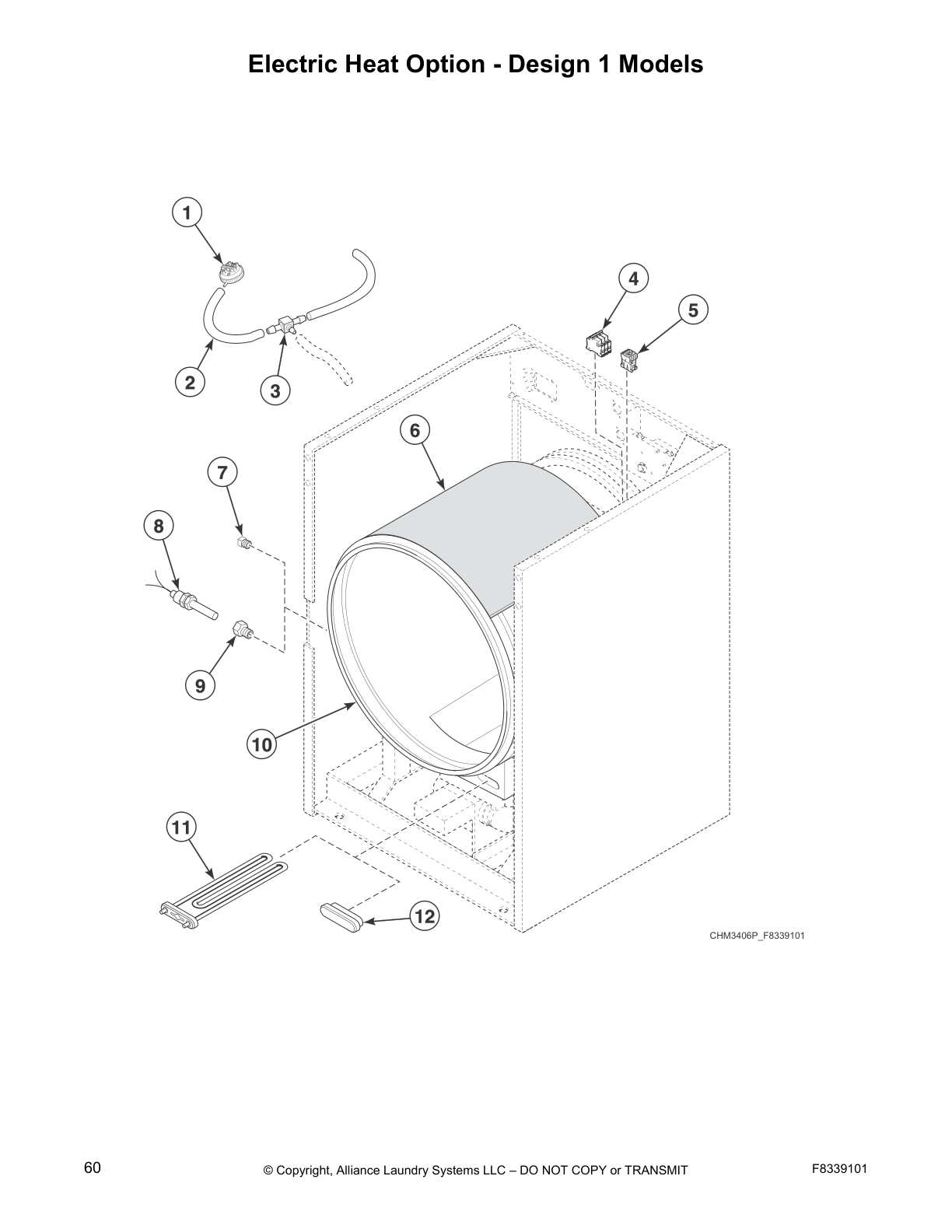

Electric Heat Option - Design 1 Models

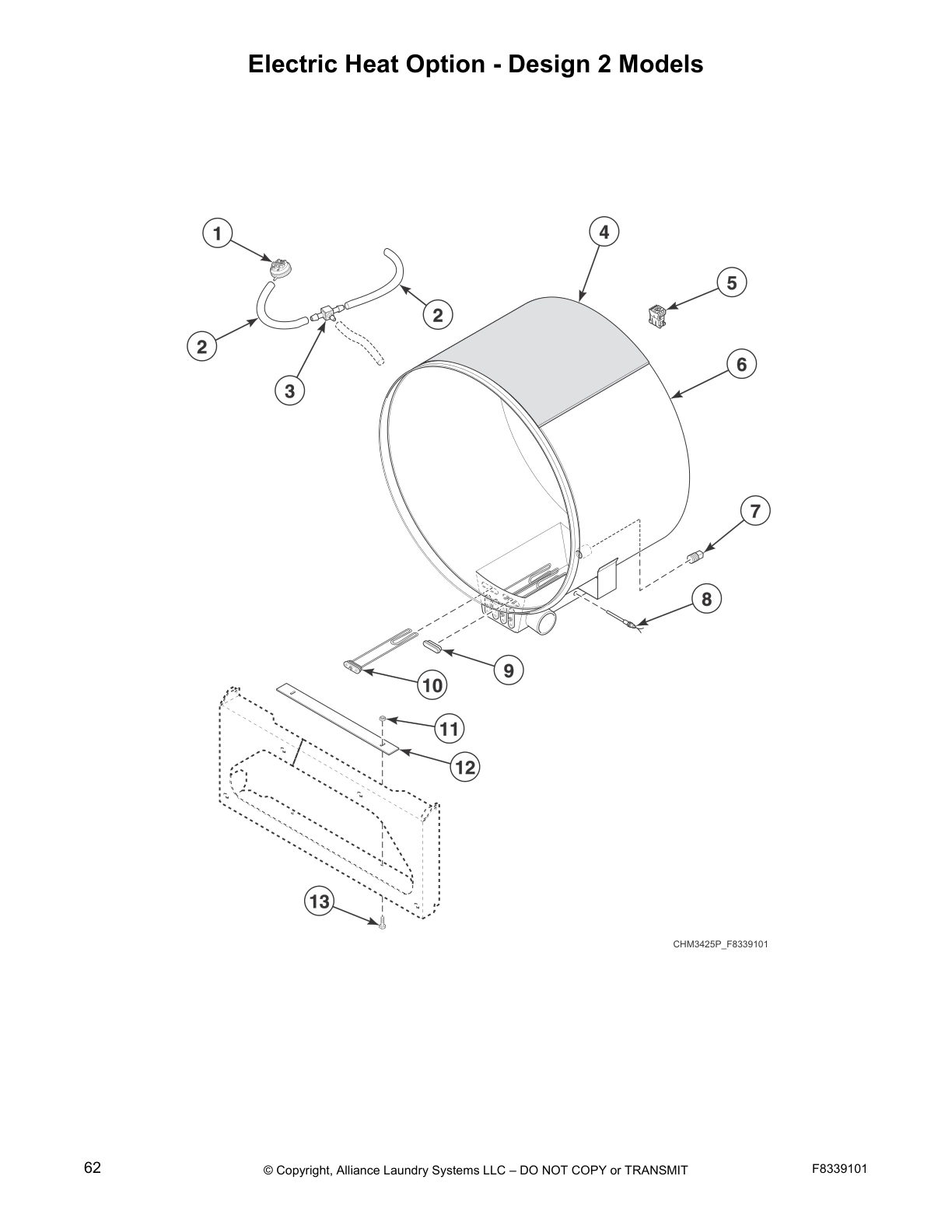

Electric Heat Option - Design 2 Models

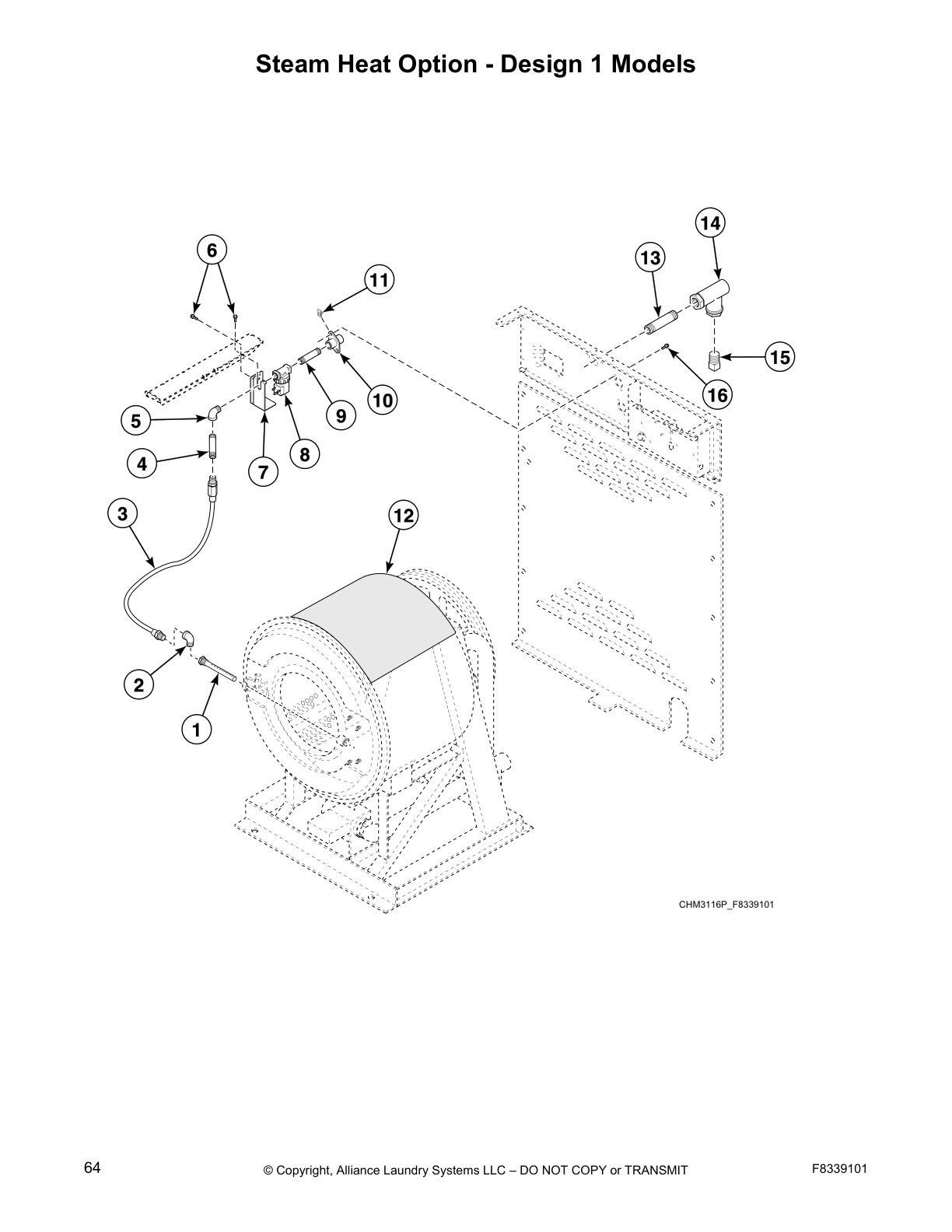

Steam Heat Option - Design 1 Models

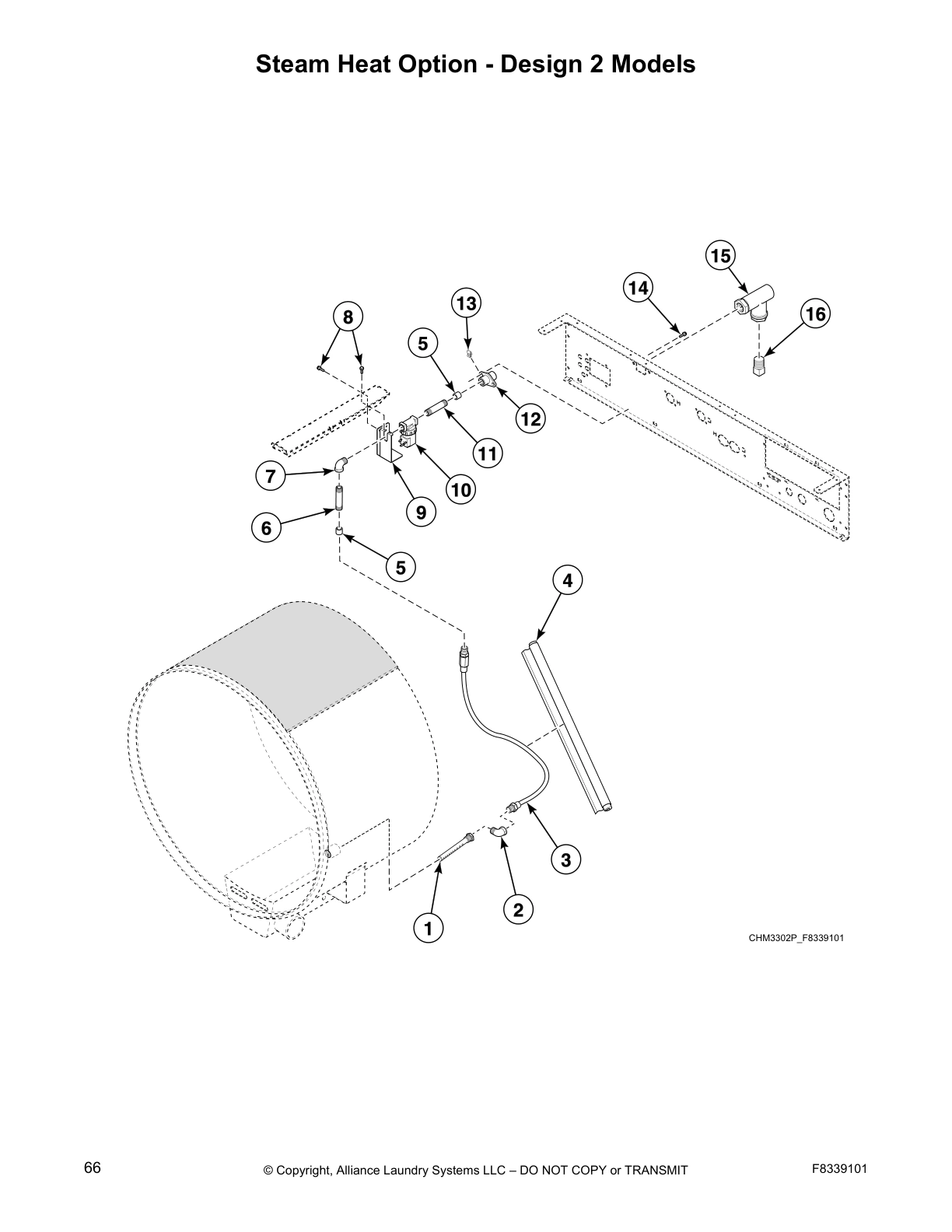

Steam Heat Option - Design 2 Models

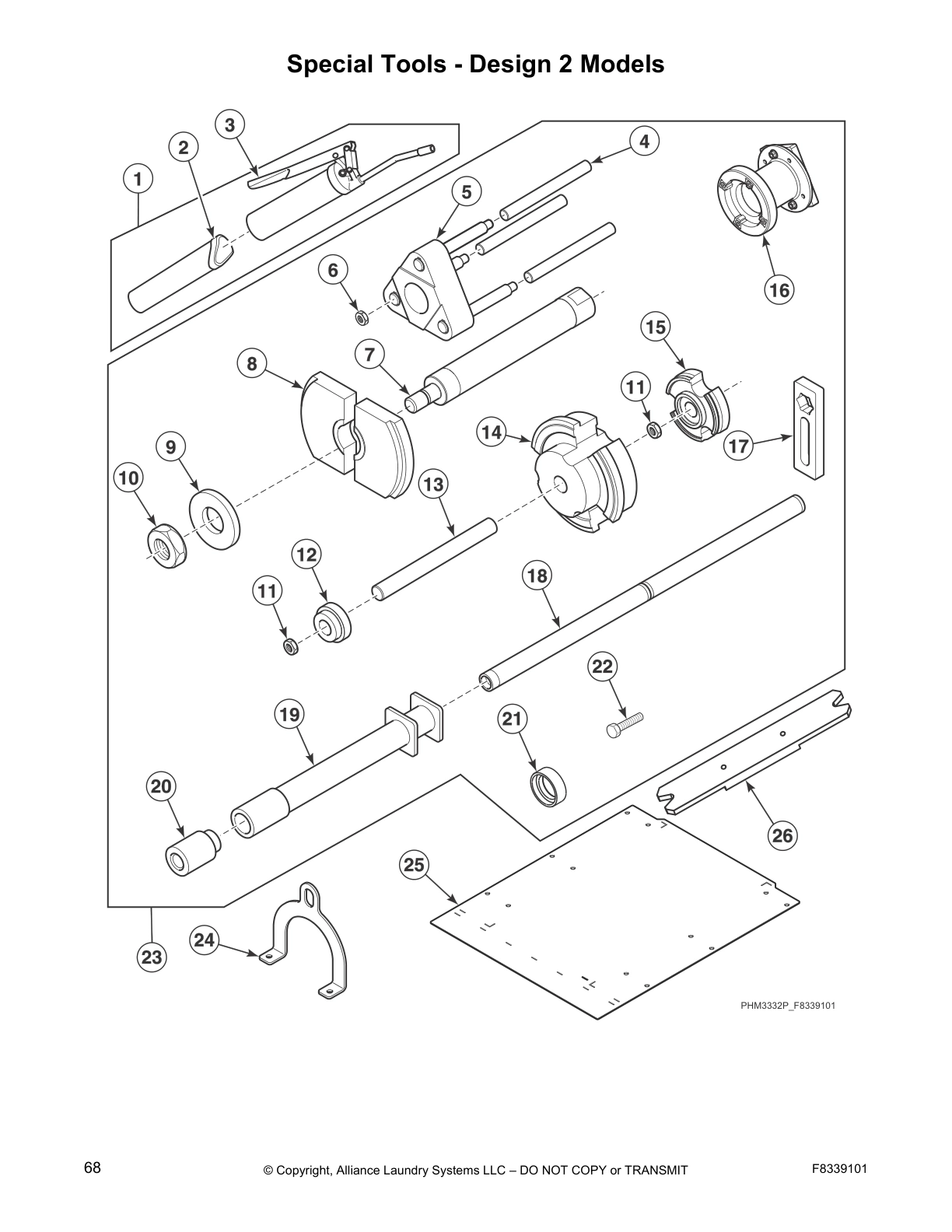

Special Tools - Design 2 Models
Common parts from model Unimac UCL080HNF Washer
SPQ M413506 SPQ M413506 Contact Us For Availability
SPQ F8182403 SPQ F8182403 Contact Us For Availability
SPQ F8340001 SPQ F8340001 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Door Latch Arm Assembly SPQ F8221403 Contact Us For Availability
1
Door Lock Solenoid Replacement Kit SPQ F977P3 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Washer SPQ F8402701 Contact Us For Availability
1
Drain Valve Cover SPQ F200133600 Contact Us For Availability
1
Screw SPQ F430942 Contact Us For Availability
1
Bearing
Front SPQ F8280504 Contact Us For Availability
1
Washer SPQ F8366601 Contact Us For Availability
1
Water Pressure Switch SPQ F8223001P Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Temperature Knob SPQ 44104601 Contact Us For Availability
2
Expansion Clip SPQ F8433001 Contact Us For Availability
2
Panel Lock SPQ 44089303P Contact Us For Availability
2
Tubing SPQ F8153901 Contact Us For Availability
2
Front Panel SPQ F8173302 Contact Us For Availability
2
Pop Rivet SPQ F431916 Contact Us For Availability
2
Door Lock Microswitch SPQ F431902 Contact Us For Availability
2
Siphon Cover SPQ F8047901 Contact Us For Availability
2
Drain Valve Motor SPQ F8618901P Contact Us For Availability
2
Basket Pulley SPQ F745015-1 Contact Us For Availability
2
Grease Fitting SPQ F8203807 Contact Us For Availability
2
Street Elbow SPQ F421703 Contact Us For Availability
3
Door Gasket SPQ F8567501 Contact Us For Availability
3
Tee SPQ F8246601 Contact Us For Availability
3
Nut SPQ F431017 Contact Us For Availability
3
Expansion Clip SPQ F8388402 Contact Us For Availability
3
Control Panel Overlay SPQ F8225201 Contact Us For Availability
3
SPQ F8040501 SPQ F8040501 Contact Us For Availability
3
Top Cover SPQ F8383401P Contact Us For Availability
3
Spacer SPQ F430225 Contact Us For Availability
3
Access Cover SPQ F8308301 Contact Us For Availability
3
Overflow Hose SPQ F200166402 Contact Us For Availability
3
Drain Valve Kit SPQ F8577201 Contact Us For Availability
3
Connector SPQ F430205 Contact Us For Availability
3
Nut SPQ F8335201P Contact Us For Availability
3
Steam Hose SPQ F200197 Contact Us For Availability
4
Door Lock Splash Shield SPQ F200203200 Contact Us For Availability
4
Dispenser Lid SPQ F8048101 Contact Us For Availability
4
Control Assembly Kit SPQ F8201301 Contact Us For Availability
4
Temperature Selector Switch Bracket SPQ 70391701 Contact Us For Availability
4
SPQ F8042701 SPQ F8042701 Contact Us For Availability
4
SPQ F8047801 SPQ F8047801 Contact Us For Availability
4
Tubing SPQ F8550101 Contact Us For Availability
4
Screw SPQ F150401 Contact Us For Availability
4
SPQ F100307 SPQ F100307 Contact Us For Availability
5
Contactor SPQ F330188P Contact Us For Availability
5
Top Cover Latch SPQ F8041804 Contact Us For Availability
5
Lid Clamp SPQ F8091701 Contact Us For Availability
5
Door Lock Plate Assembly SPQ F431901 Contact Us For Availability
5
SPQ F8043406 SPQ F8043406 Contact Us For Availability
5
Washer SPQ F200213 Contact Us For Availability
5
SPQ F100155 SPQ F100155 Contact Us For Availability
6
SPQ F8230601 SPQ F8230601 Contact Us For Availability
6
Basket Assembly SPQ F8208101 Contact Us For Availability
6
Door Lock Plate Shim SPQ F320200 Contact Us For Availability
6
SPQ F8042806 SPQ F8042806 Contact Us For Availability
6
Shell Band Kit SPQ F8537808 Contact Us For Availability
6
SPQ F430201 SPQ F430201 Contact Us For Availability
6
Nut SPQ F430913 Contact Us For Availability
6
Cable Tie SPQ F200201 Contact Us For Availability
6
O-Ring SPQ F8381801 Contact Us For Availability
6
Pipe Nipple SPQ 70263801 Contact Us For Availability
7
Jumper Configuration Assembly SPQ 44071501 Contact Us For Availability
7
SPQ F430108 SPQ F430108 Contact Us For Availability
7
SPQ F608782-2 SPQ F608782-2 Contact Us For Availability
7
SPQ F8048601 SPQ F8048601 Contact Us For Availability
7
Shell Front Assembly SPQ F8229801 Contact Us For Availability
7
SPQ F431147 SPQ F431147 Contact Us For Availability
7
SPQ F431134 SPQ F431134 Contact Us For Availability
7
Plug SPQ F421507 Contact Us For Availability
7
Steam Bracket SPQ H86070034 Contact Us For Availability
8
SPQ F430215 SPQ F430215 Contact Us For Availability
8
SPQ F8440801P SPQ F8440801P Contact Us For Availability
8
Screw SPQ F8223202 Contact Us For Availability
8
SPQ F8197701 SPQ F8197701 Contact Us For Availability
8
SPQ F140606 SPQ F140606 Contact Us For Availability
8
Connector SPQ F8406502 Contact Us For Availability
8
Thermistor Sensor SPQ F370609 Contact Us For Availability
8
SPQ F8521501 SPQ F8521501 Contact Us For Availability
9
Output/Logic Harness SPQ F430903 Contact Us For Availability
9
External Door Lock Harness SPQ F8344401 Contact Us For Availability
9
SPQ F8407401 SPQ F8407401 Contact Us For Availability
9
Seal Sleeve SPQ F8343911 Contact Us For Availability
9
Radial Seal
Standard SPQ F8474601 Contact Us For Availability
9
Reducer Bushing SPQ F421936 Contact Us For Availability
9
Heating Element Plug SPQ F360202 Contact Us For Availability
9
SPQ F8490301 SPQ F8490301 Contact Us For Availability
10
Top Cover Hinge SPQ F8258601 Contact Us For Availability
10
Rear Panel SPQ F8177601 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Shell Weldment SPQ F8179602 Contact Us For Availability
10
Heating Element SPQ F360203P Contact Us For Availability
10
Coupling SPQ F8154501 Contact Us For Availability
11
Screw SPQ F430174 Contact Us For Availability
11
Grease Manifold SPQ F430925 Contact Us For Availability
11
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
11
Vacuum Breaker Hose SPQ F0200244-00 Contact Us For Availability
11
Valve Panel SPQ F8039701 Contact Us For Availability
11
Hose Clamp SPQ F200222 Contact Us For Availability
11
Hose Barb Connector SPQ F8429401 Contact Us For Availability
11
Sleeve Adapter SPQ F8382501 Contact Us For Availability
11
Stud SPQ 70334702 Contact Us For Availability
11
Drain Hose SPQ F8231903 Contact Us For Availability
11
Cylindrical SPQ F8440001 Contact Us For Availability
12
Lower Cabinet Brace SPQ F8174201 Contact Us For Availability
12
Right Side Panel SPQ F8047103 Contact Us For Availability
12
Screw SPQ F430536 Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
12
Air Trap Hose SPQ F020014200 Contact Us For Availability
12
Drain Valve Motor SPQ F8232901 Contact Us For Availability
12
Bracket SPQ F8387401 Contact Us For Availability
12
Tubing SPQ F320326 Contact Us For Availability
12
Includes basket sleeve and b SPQ F8375401 Contact Us For Availability
12
Belt
80 pound models through 3/31/2015 SPQ F8382807 Contact Us For Availability
12
Pipe Insulation SPQ F410300 Contact Us For Availability
13
Nut SPQ F8047203 Contact Us For Availability
13
Door Hinge SPQ F190216P Contact Us For Availability
13
Bolt SPQ F8223601 Contact Us For Availability
13
Mixing Valve SPQ F8434002 Contact Us For Availability
13
Valve Panel SPQ F8399101 Contact Us For Availability
13
Shell Weldment SPQ F8361003 Contact Us For Availability
13
Radial Lip Seal
Double Lip SPQ F190701 Contact Us For Availability
13
100 starting 11/15/2013 through 3/31/15 SPQ F8362601 Contact Us For Availability
13
Nut SPQ 70030401 Contact Us For Availability
13
Pipe Nipple SPQ 431486 Contact Us For Availability
14
Drive Assembly SPQ F8204801P Contact Us For Availability
14
Expansion Clip SPQ F8270701 Contact Us For Availability
14
Screw SPQ F8230301 Contact Us For Availability
14
Valve Panel SPQ F8434001 Contact Us For Availability
14
Screw SPQ F8179601 Contact Us For Availability
14
Drain Hose SPQ F8395801 Contact Us For Availability
14
Models through 8/20/2014 SPQ F8229901 Contact Us For Availability
14
Nut SPQ F430185 Contact Us For Availability
14
Screw SPQ 20253 Contact Us For Availability
15
Drive Mounting Bracket SPQ F8303601P Contact Us For Availability
15
Washer SPQ F603947 Contact Us For Availability
15
Right Side Panel SPQ F8383203 Contact Us For Availability
15
Rod SPQ F602813-3 Contact Us For Availability
15
Washer SPQ F430947 Contact Us For Availability
15
Hose Barb SPQ F8402301 Contact Us For Availability
15
Rear Bearing Kit SPQ F430339 Contact Us For Availability
16
Terminal Block SPQ 430642 Contact Us For Availability
16
Washer SPQ F431929 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8223401 Contact Us For Availability
16
Basket Pulley Bushing
Includes screws SPQ F430239 Contact Us For Availability
16
Plug SPQ F420409 Contact Us For Availability
17
Door Mount SPQ F150271 Contact Us For Availability
17
Nut SPQ F8070301 Contact Us For Availability
17
Key SPQ F745016-1 Contact Us For Availability
17
Motor Pulley
3GRV-3V-3.15 SPQ F8342201 Contact Us For Availability
18
Bolt SPQ F430974 Contact Us For Availability
18
Terminal Tray Cover SPQ F8177001 Contact Us For Availability
18
Shell Front Assembly SPQ 901690 Contact Us For Availability
18
Bearing
Rear SPQ C000628P Contact Us For Availability
18
Front Bearing Kit
Includes items 1, 3-6 and 8 SPQ F280290 Contact Us For Availability
19
Grommet SPQ F8322401 Contact Us For Availability
19
Magnet SPQ F431133 Contact Us For Availability
19
Spherical SPQ J1408004 Contact Us For Availability
19
Belt SPQ F608824-1 Contact Us For Availability
20
Door Glass Retainer SPQ F8390801 Contact Us For Availability
20
Emergency Stop Pushbutton SPQ F8169409 Contact Us For Availability
20
Nut SPQ F8206901 Contact Us For Availability
20
Top Cover SPQ F430317 Contact Us For Availability
20
Cabinet Top Brace SPQ F8383301 Contact Us For Availability
20
Motor Pulley Bushing
Includes screws SPQ F200140300P Contact Us For Availability
20
Grease Instruction Label SPQ F8379301 Contact Us For Availability
21
Emergency Stop Plate SPQ F8169432 Contact Us For Availability
21
Dispenser Lid SPQ F0636549-00 Contact Us For Availability
21
Left Side Panel SPQ F8383204 Contact Us For Availability
21
Glass SPQ F431223 Contact Us For Availability
21
Water Hose SPQ F0381750-00P Contact Us For Availability
21
Drive Motor Pulley
3GRV-3V-3.15 SPQ F150268 Contact Us For Availability
21
HC, S pound models through 11/13/2013 SPQ F8440701 Contact Us For Availability
22
Expansion Clip SPQ F8205903 Contact Us For Availability
22
Ground Lug Connector SPQ F430232 Contact Us For Availability
22
Lid Clamp SPQ F8047104P Contact Us For Availability
22
Bolt SPQ F8230501 Contact Us For Availability
22
Bearing Sleeve SPQ F431100 Contact Us For Availability
22
Y Connector SPQ F0381737-00P Contact Us For Availability
23
Transformer SPQ F8053902 Contact Us For Availability
23
Top Cover Hinge SPQ F8047204P Contact Us For Availability
23
Washer SPQ M411283 Contact Us For Availability
23
Motor Spring Bracket SPQ F8402801 Contact Us For Availability
24
Auxiliary Control Assembly SPQ F998P3 Contact Us For Availability
24
DIN Rail SPQ F8053901P Contact Us For Availability
24
Spring Pin SPQ F8504901 Contact Us For Availability
24
Water Hose SPQ F430909 Contact Us For Availability
24
AC drive parameters compatible with the moto SPQ F280211P Contact Us For Availability
25
Dispenser Gasket SPQ F422816 Contact Us For Availability
25
Motor
Models that have been retrofitted with SPQ F280289P Contact Us For Availability
25
Screw SPQ F8387601 Contact Us For Availability
26
Door Handle Spacer Kit SPQ F290210P Contact Us For Availability
26
Triple Lip Seal SPQ F8356401 Contact Us For Availability
26
Extension Spring SPQ F8441901 Contact Us For Availability
27
Control Tray Assembly SPQ F8385301 Contact Us For Availability
27
Dispenser Gasket SPQ F8232003 Contact Us For Availability
27
Bearing Adapter Sleeve SPQ F8334601P Contact Us For Availability
27
Bolt SPQ F8451601 Contact Us For Availability
28
Nut SPQ F8375201 Contact Us For Availability
28
Door Handle SPQ F8221701 Contact Us For Availability
28
Manifold SPQ F602586-36 Contact Us For Availability
28
Bearing SPQ F430300 Contact Us For Availability
29
Door Weldment SPQ F431222 Contact Us For Availability
30
Door Assembly SPQ F8199401P Contact Us For Availability
30
Dispenser Overflow Hose SPQ F8333201 Contact Us For Availability
30
Grease Fitting SPQ F8203804 Contact Us For Availability
32
Emergency Stop Pushbutton SPQ F8359703 Contact Us For Availability
32
Vacuum Breaker Assembly SPQ F8137504 Contact Us For Availability
33
Emergency Stop Plate SPQ F121P3 Contact Us For Availability
33
Cap SPQ F8535601 Contact Us For Availability
35
Auxiliary Control Assembly SPQ F200233500 Contact Us For Availability
35
SPQ F8405001 SPQ F8405001 Contact Us For Availability
NI
USB IR Interface Kit SPQ F980P3 Contact Us For Availability
NI
SPQ F380984P SPQ F380984P Contact Us For Availability
NI
Fill Harness SPQ F8189401P Contact Us For Availability
NI
SPQ F937P3 SPQ F937P3 Contact Us For Availability
NI
SPQ F8028701 SPQ F8028701 Contact Us For Availability
NI
SPQ F8028106P SPQ F8028106P Contact Us For Availability
NI
USB IR Interface Kit SPQ 203346 Contact Us For Availability
NI
SPQ F8201001 SPQ F8201001 Contact Us For Availability
NI
SPQ F8505101 SPQ F8505101 Contact Us For Availability
NI
Door Lock Assembly SPQ F8059701 Contact Us For Availability
NI
SPQ F8632401 SPQ F8632401 Contact Us For Availability
NI
SPQ F8626501 SPQ F8626501 Contact Us For Availability
NI
SPQ F200165 SPQ F200165 Contact Us For Availability
NI
SPQ F8312007P SPQ F8312007P Contact Us For Availability
NI
Clamp Ring Assembly SPQ F8397301 Contact Us For Availability
NI
SPQ F953P3 SPQ F953P3 Contact Us For Availability
× ![]()
