Model Unimac UCL060KNF Washer – Common Parts & Diagrams
Decals
Control Module (Drawing 1 of 2)

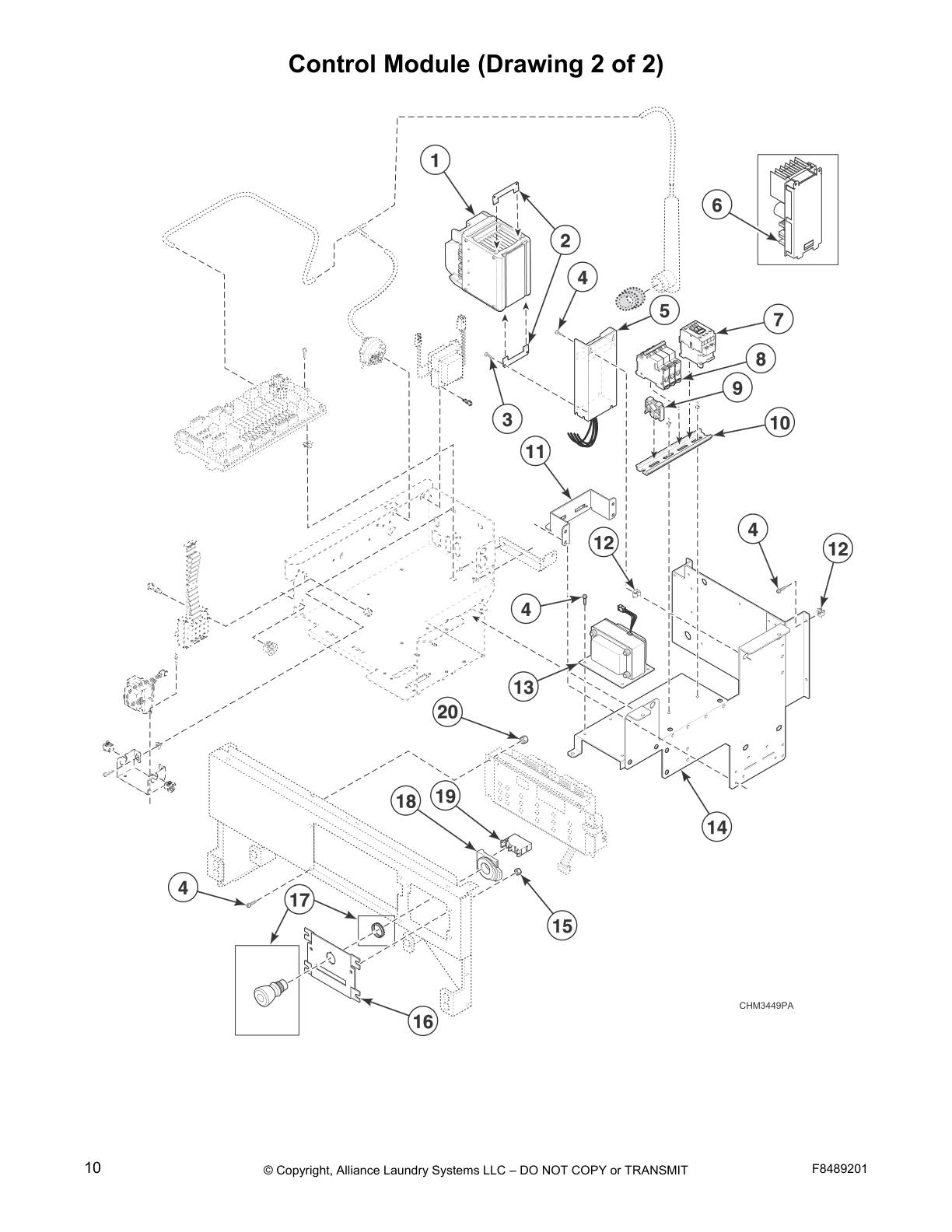

Control Module (Drawing 2 of 2)

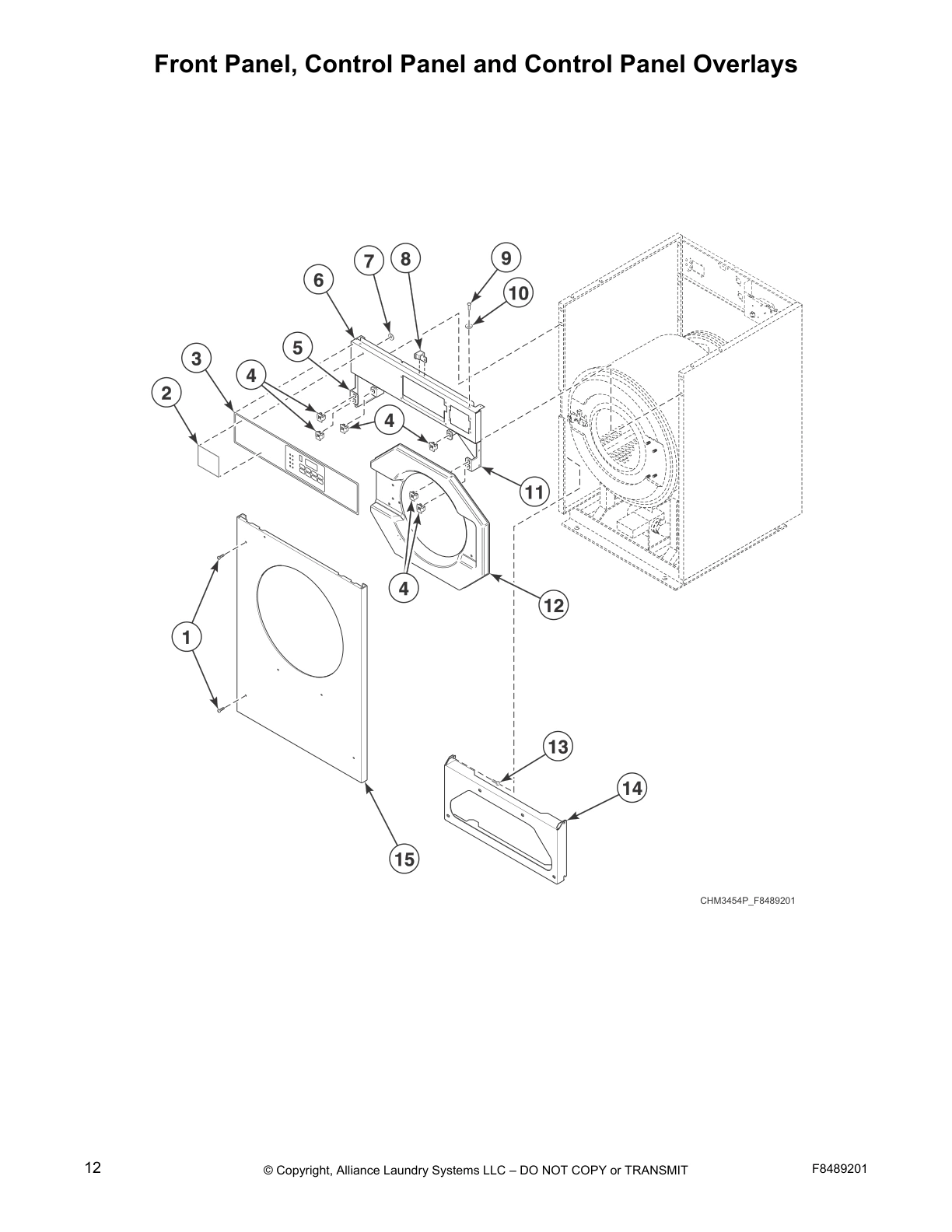

Front Panel, Control Panel and Control Panel Overlays

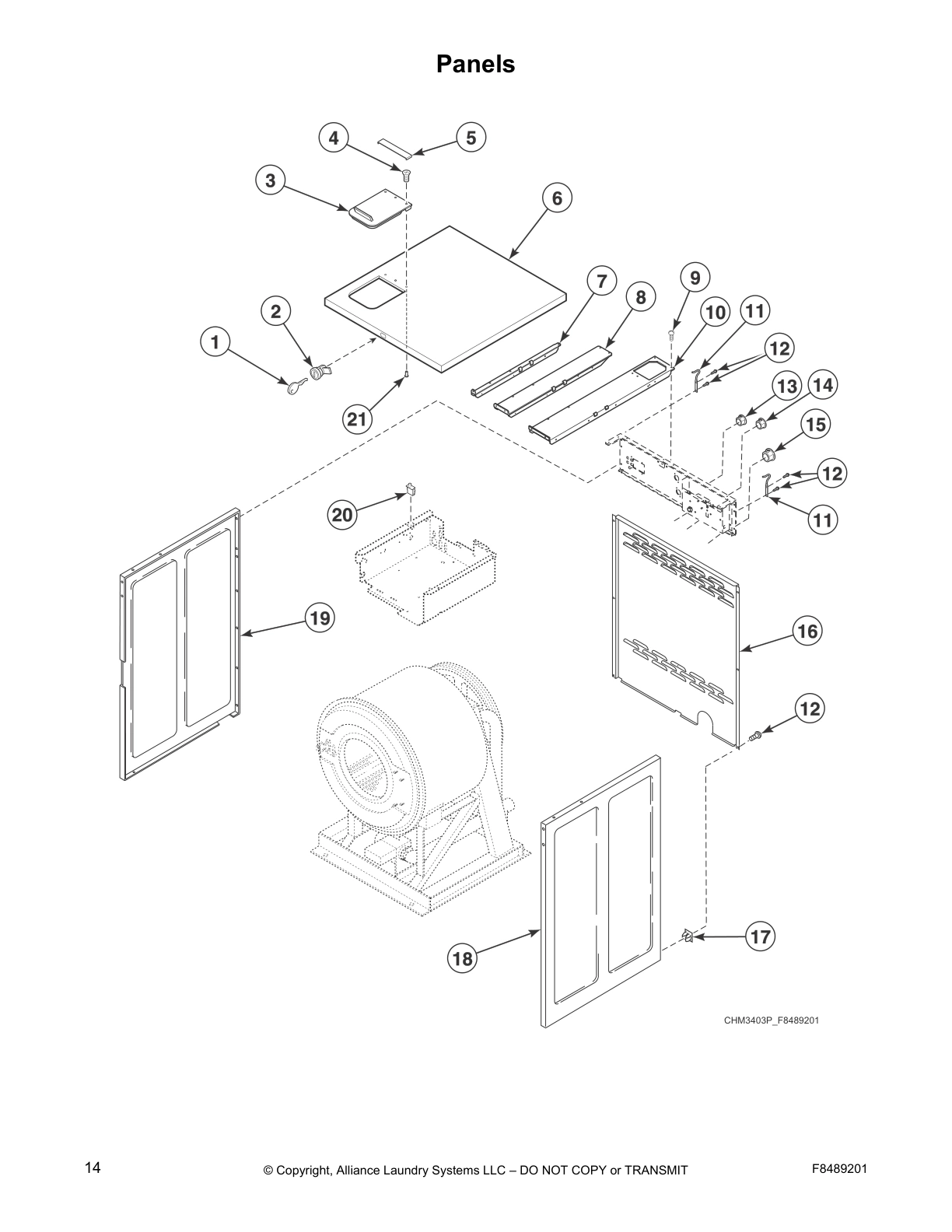

Panels

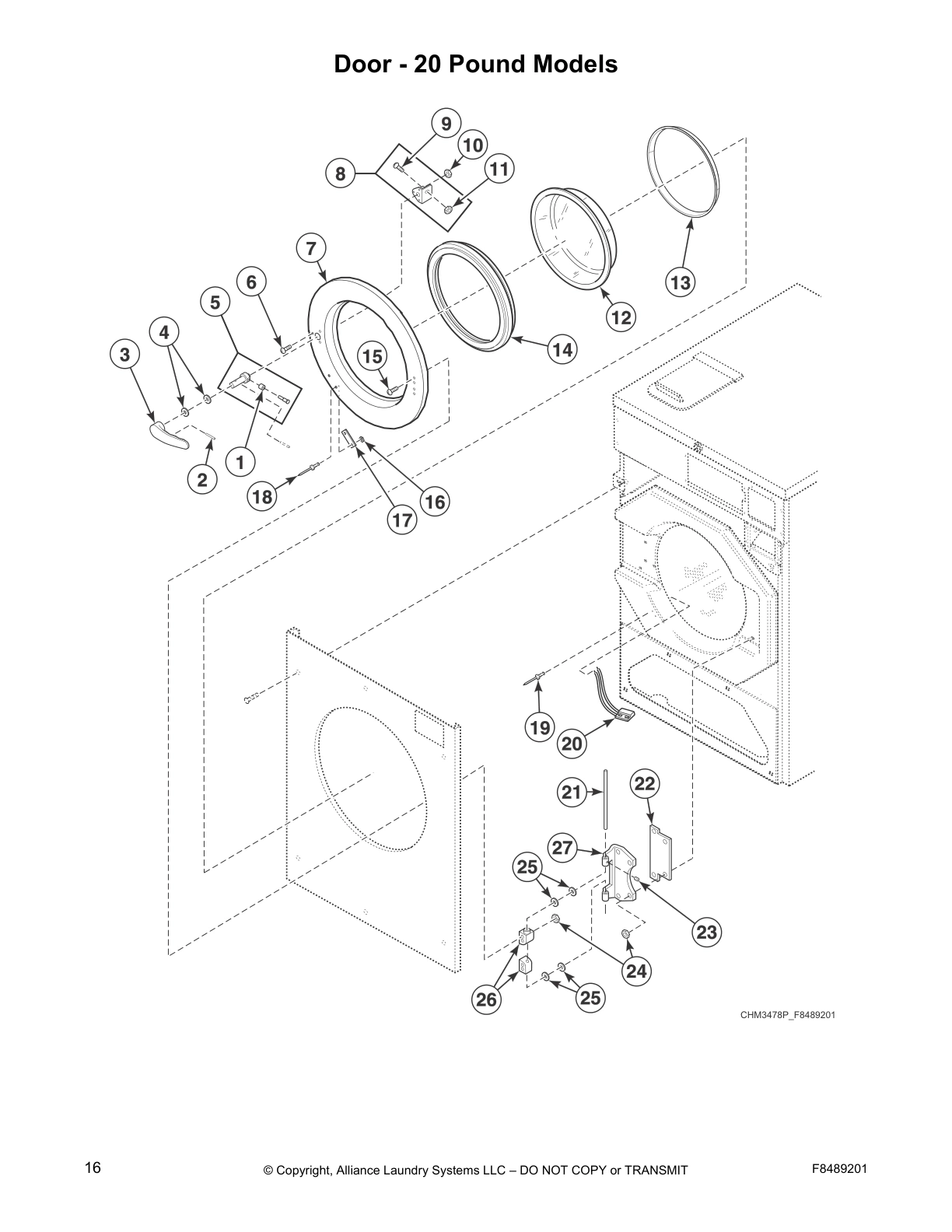

Door - 20 Pound Models
Door - 30 Pound Models

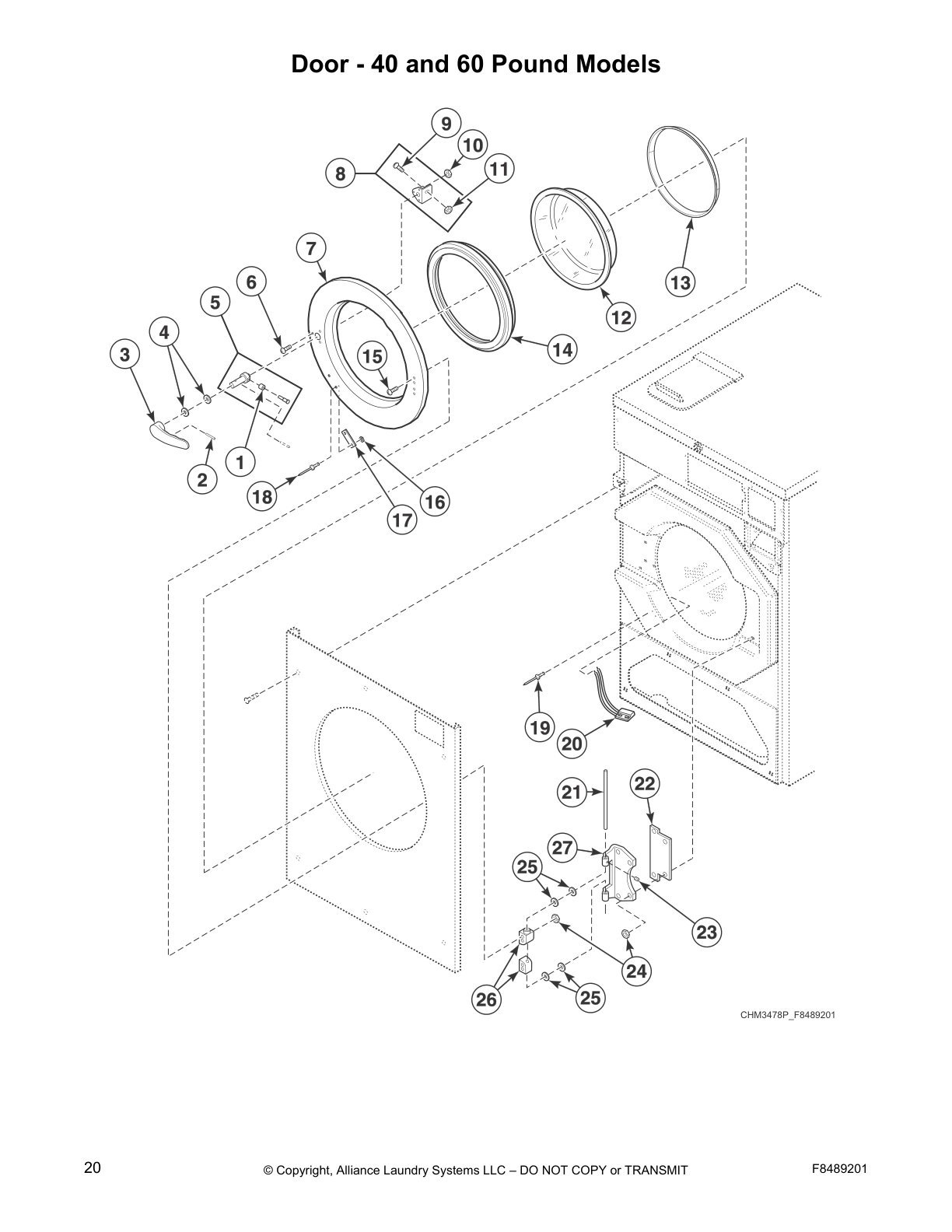

Door - 40 and 60 Pound Models

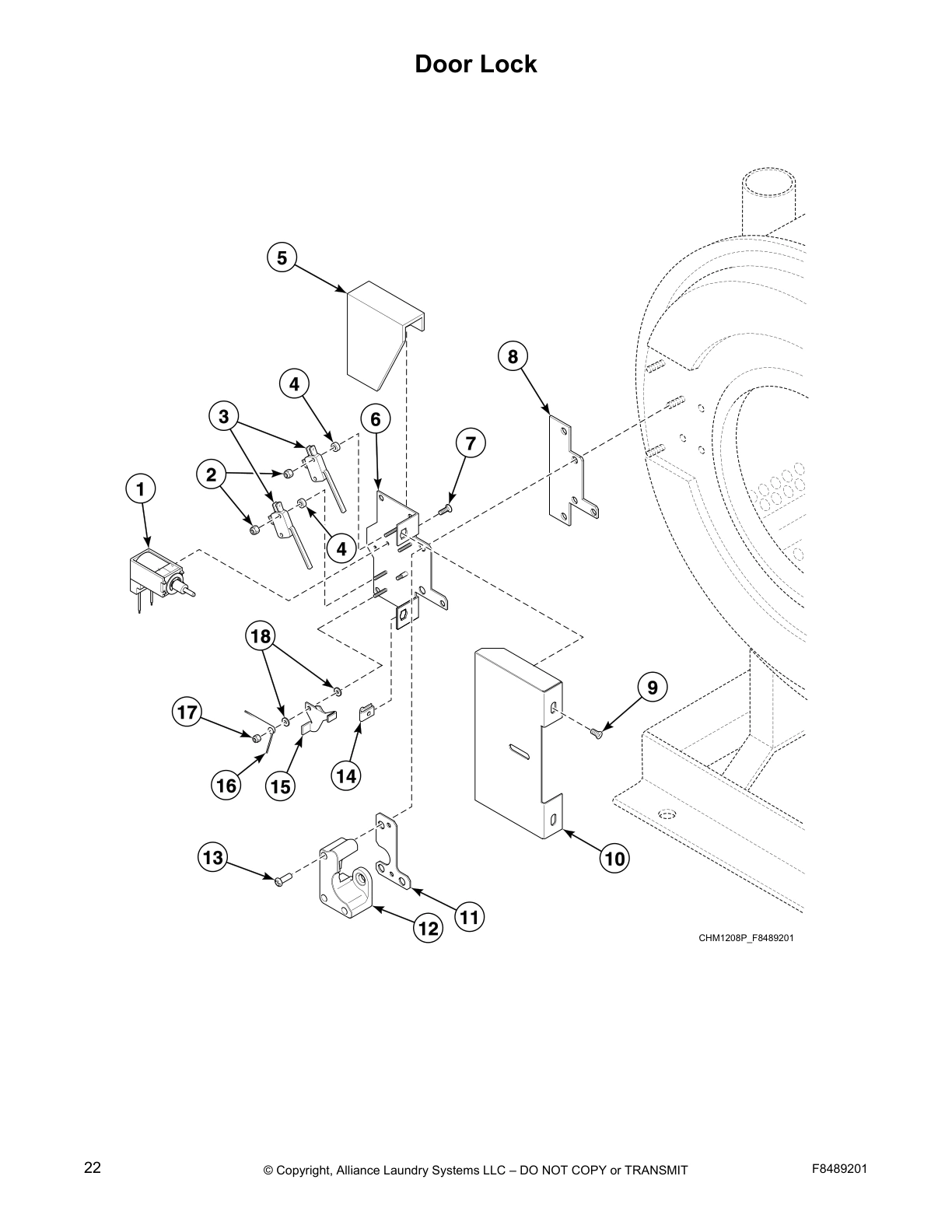

Door Lock

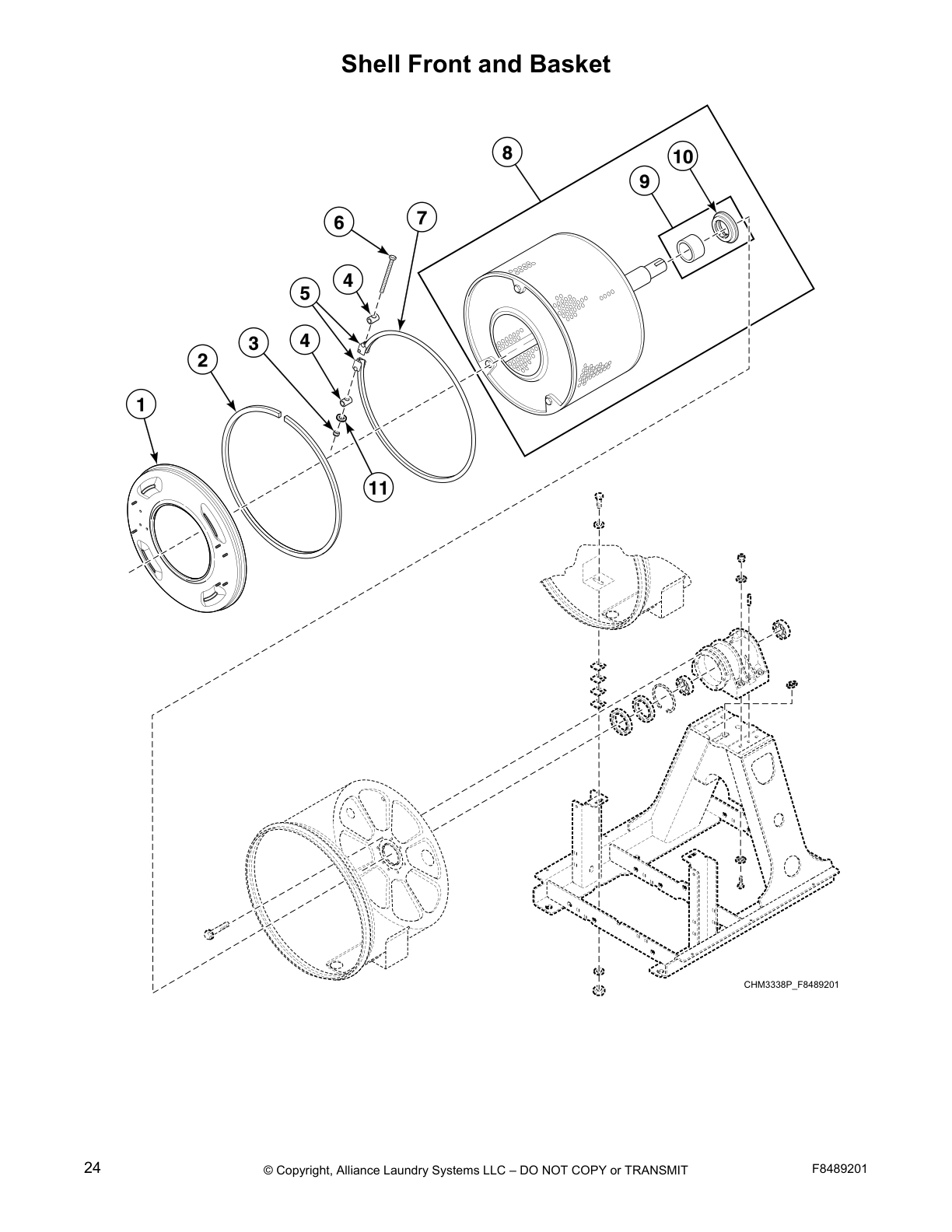

Shell Front and Basket

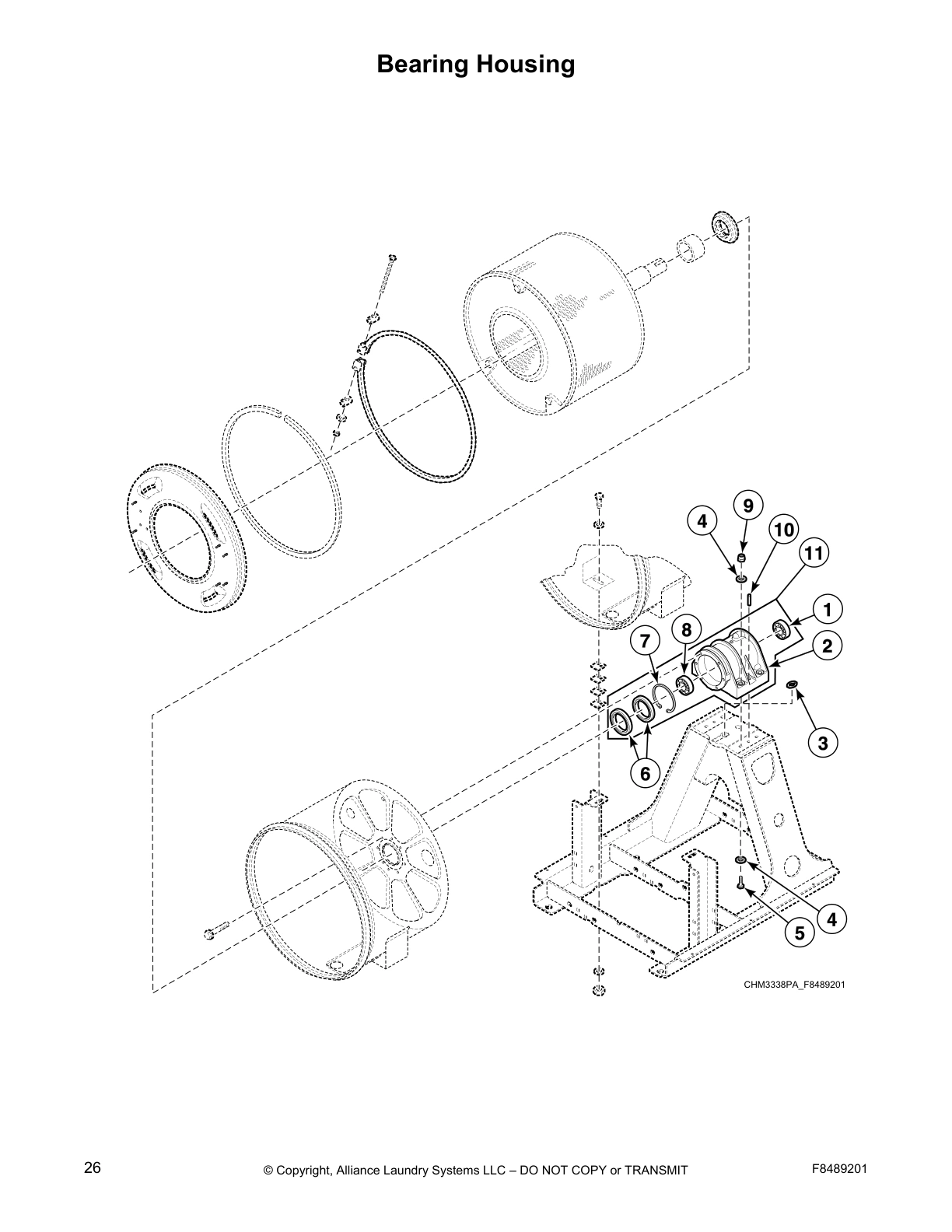

Bearing Housing

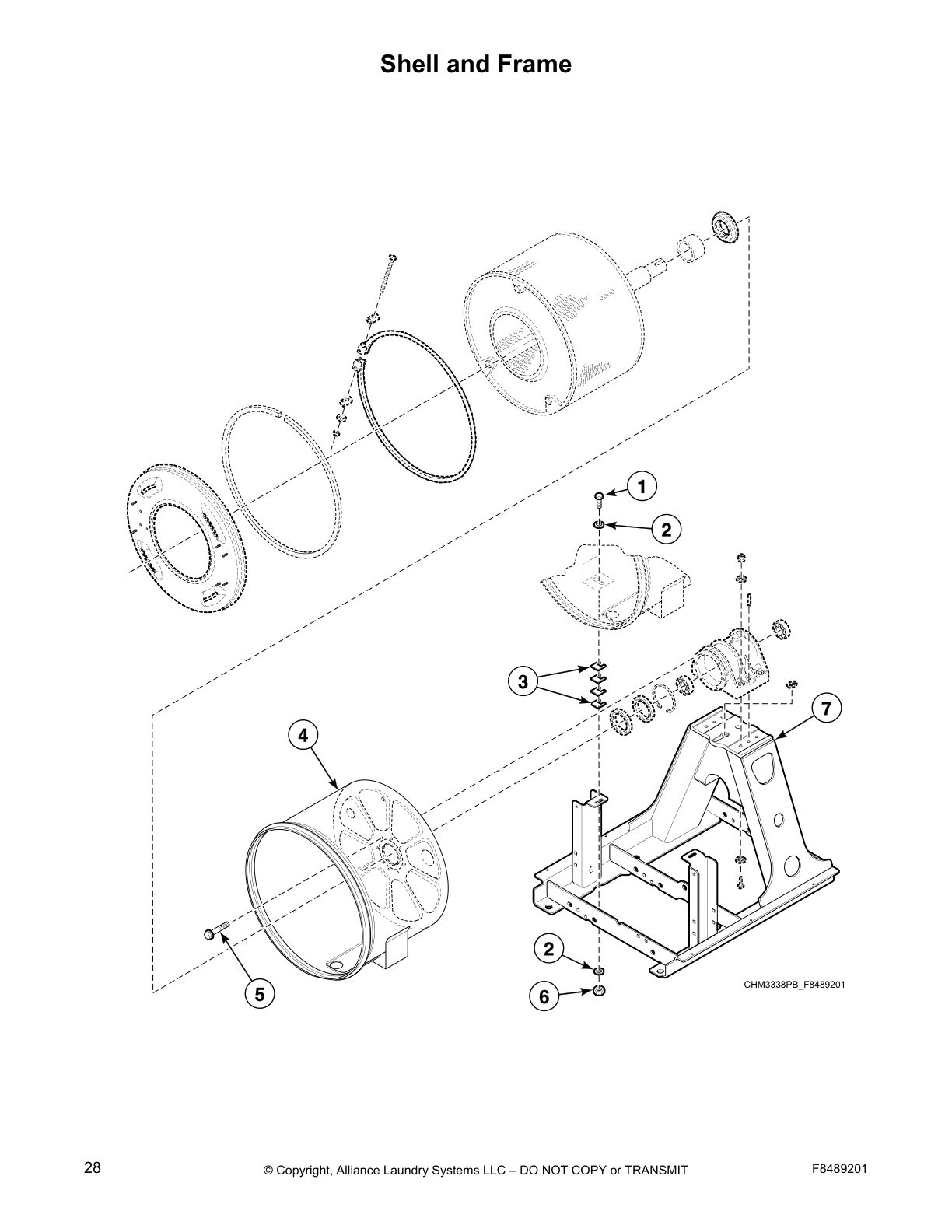

Shell and Frame

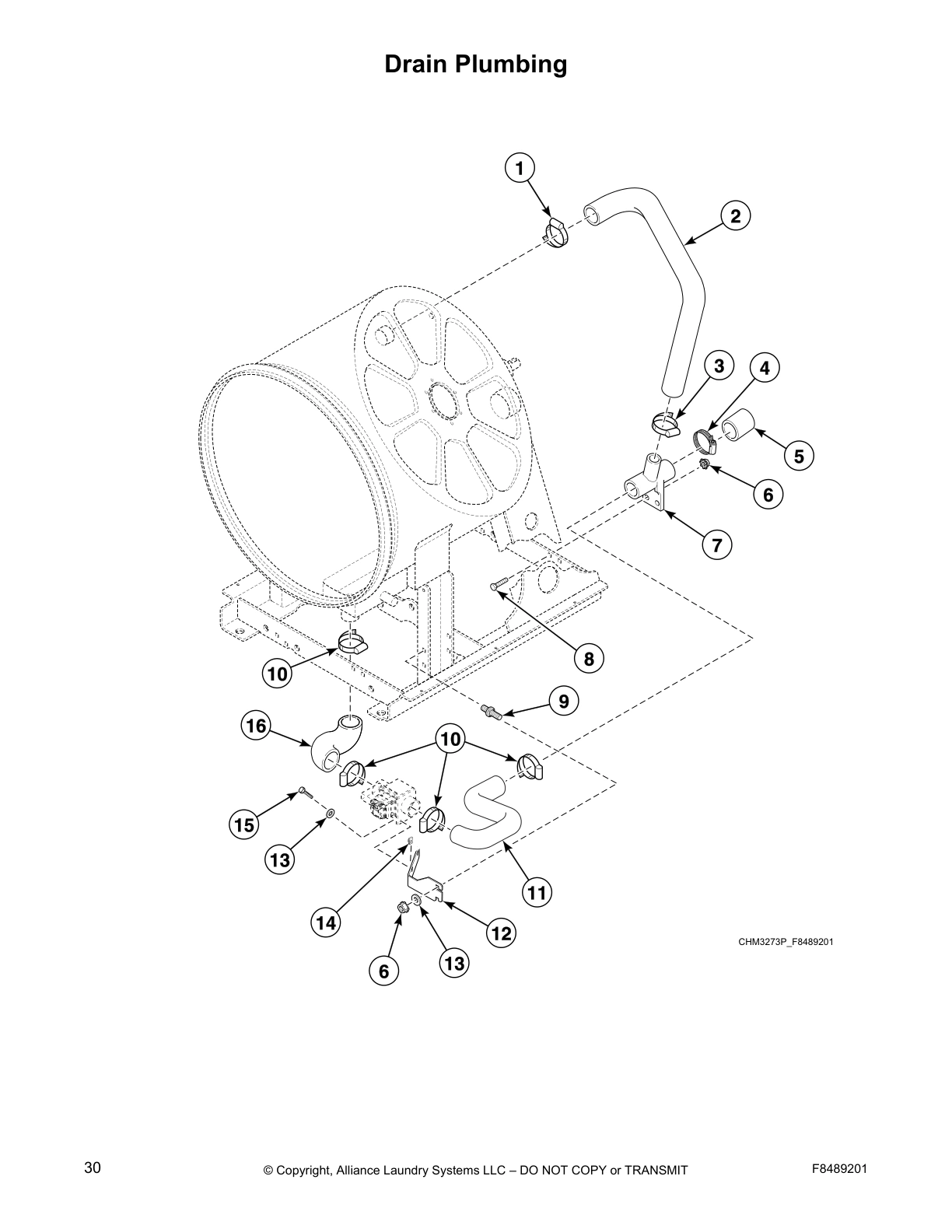

Drain Plumbing

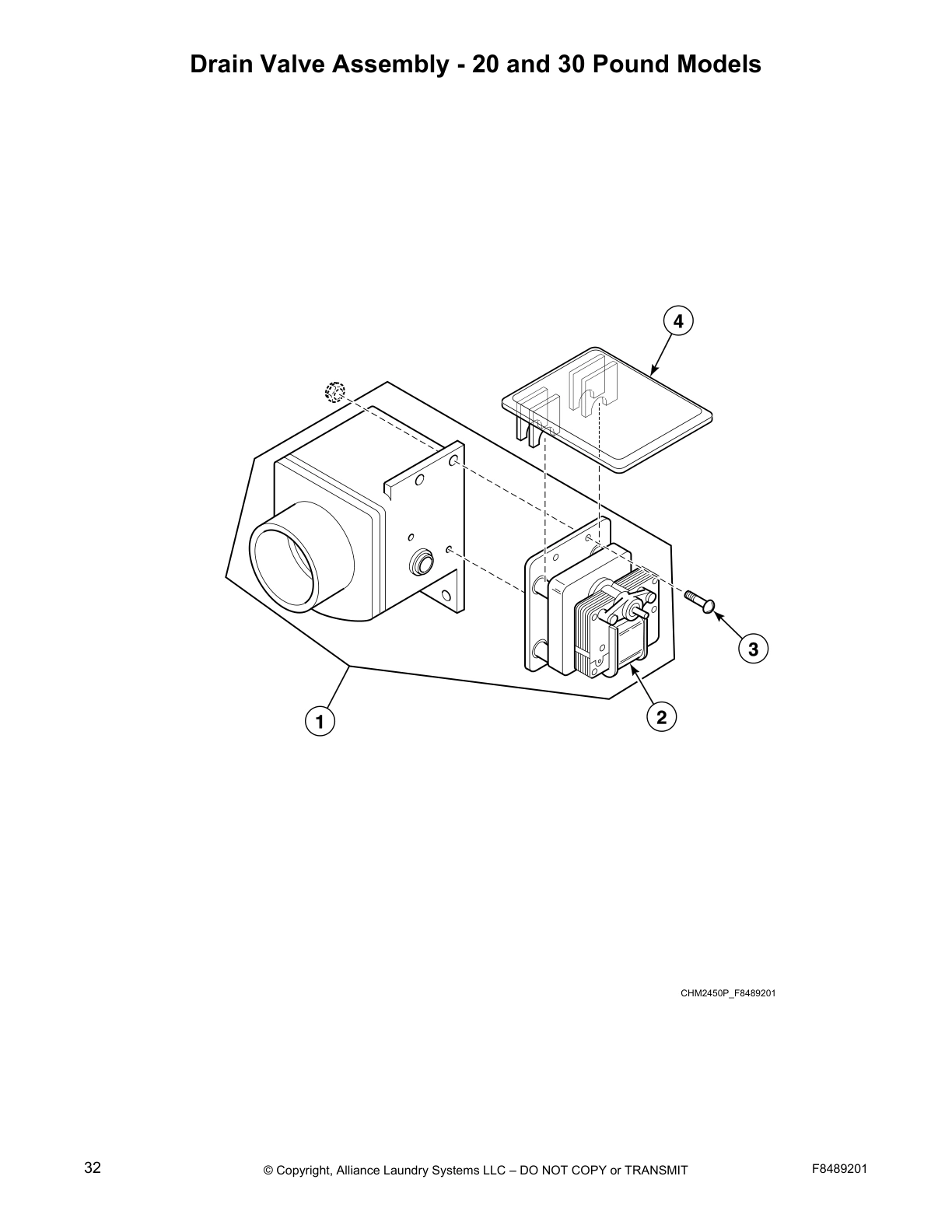

Drain Valve Assembly - 20 and 30 Pound Models

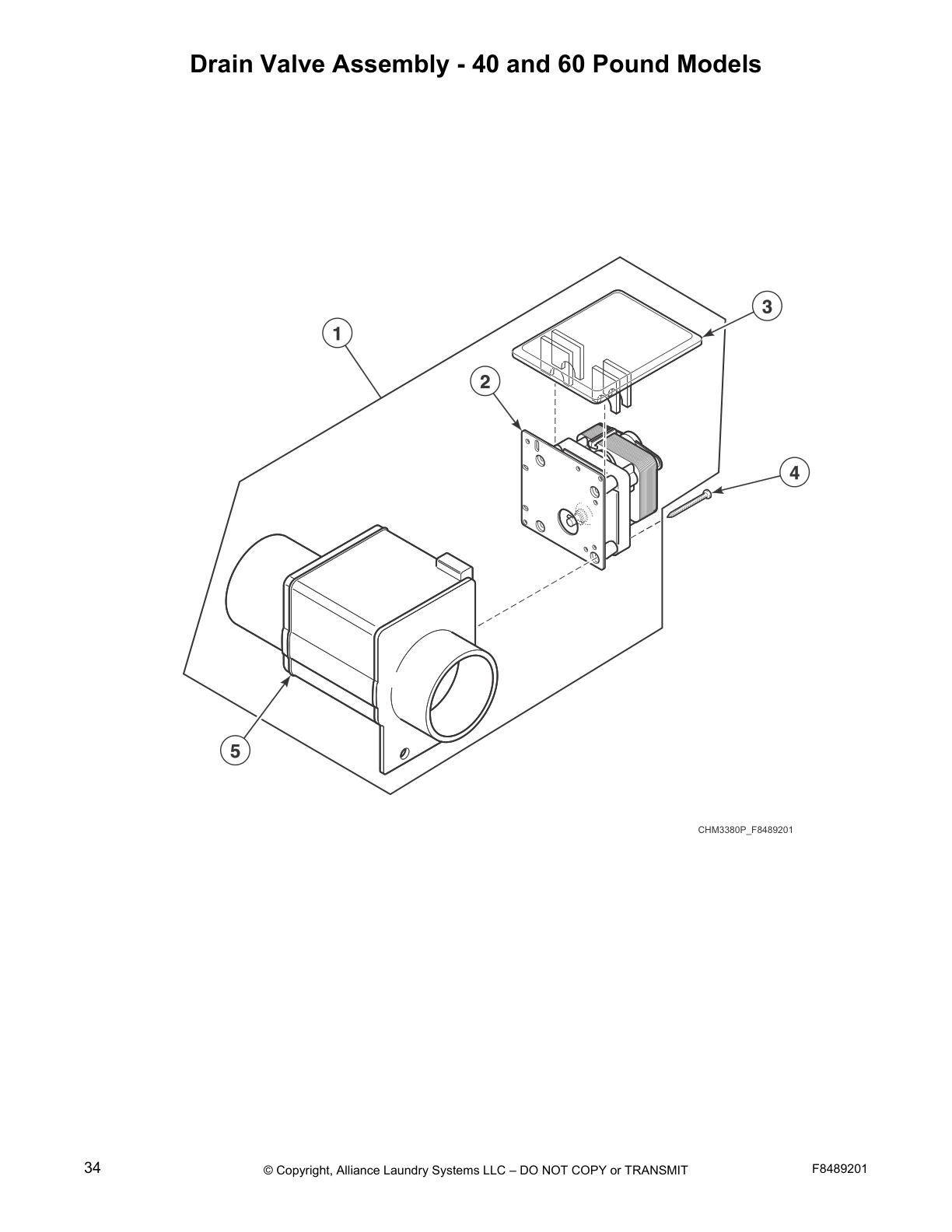

Drain Valve Assembly - 40 and 60 Pound Models

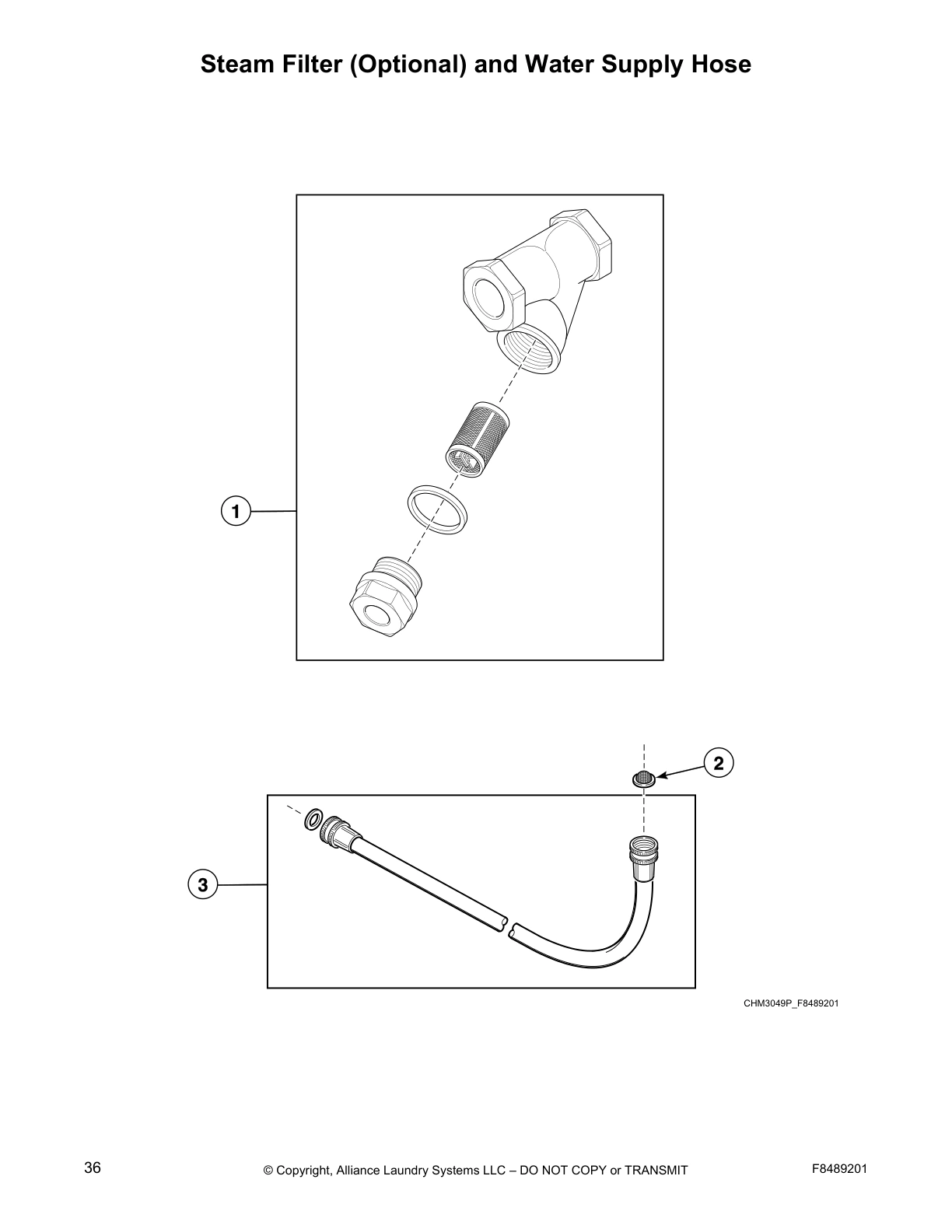

Steam Filter (Optional) and Water Supply Hose

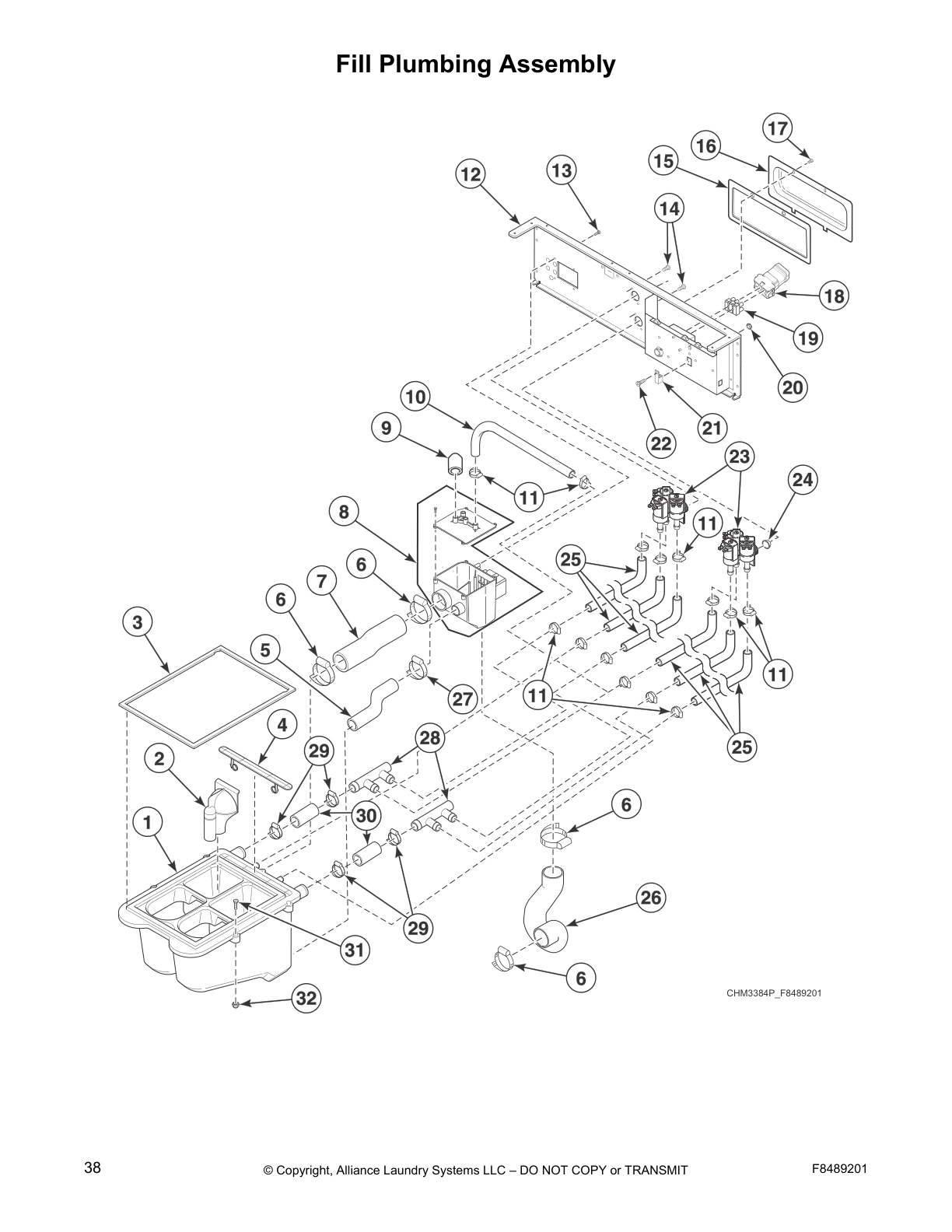

Fill Plumbing Assembly

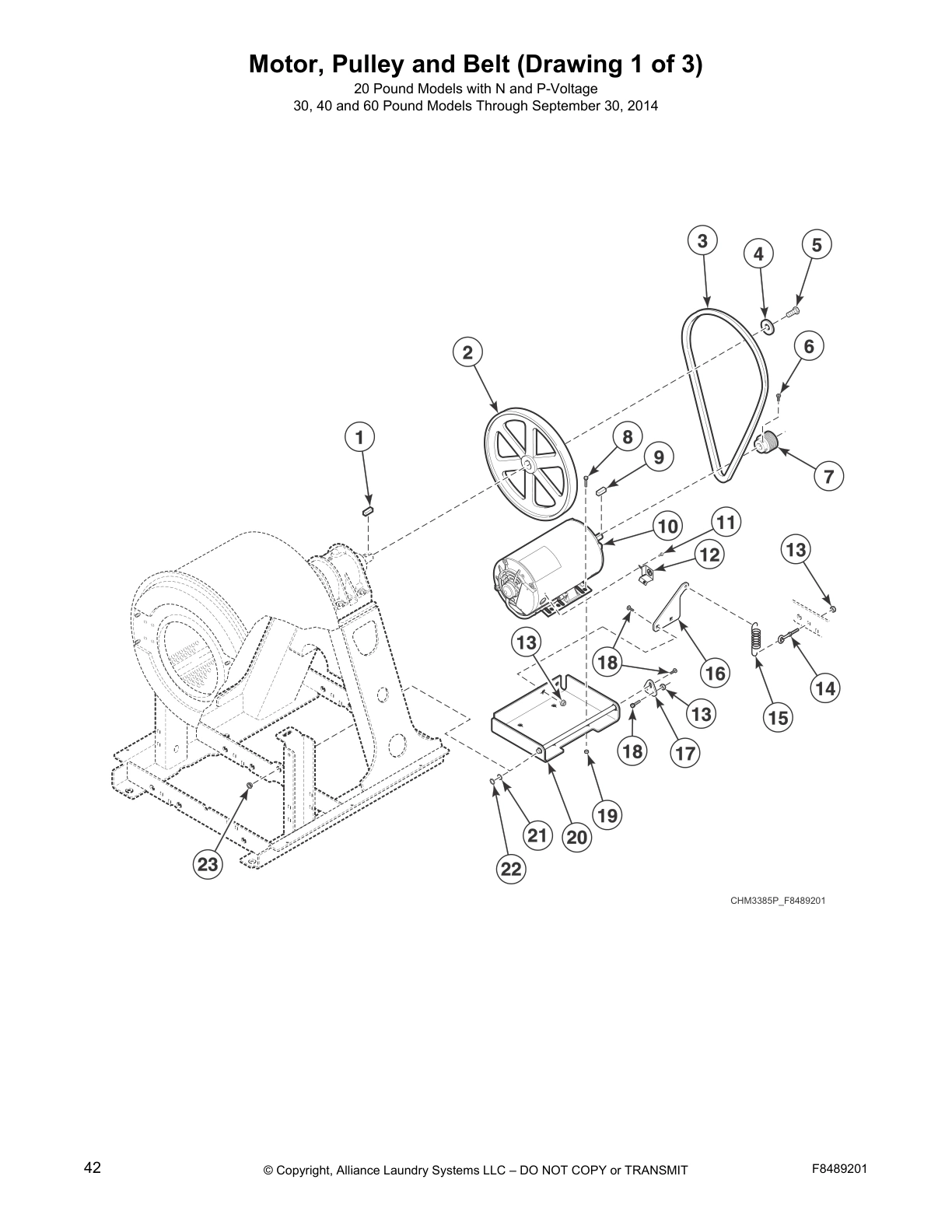

Motor, Pulley and Belt (Drawing 1 of 3)

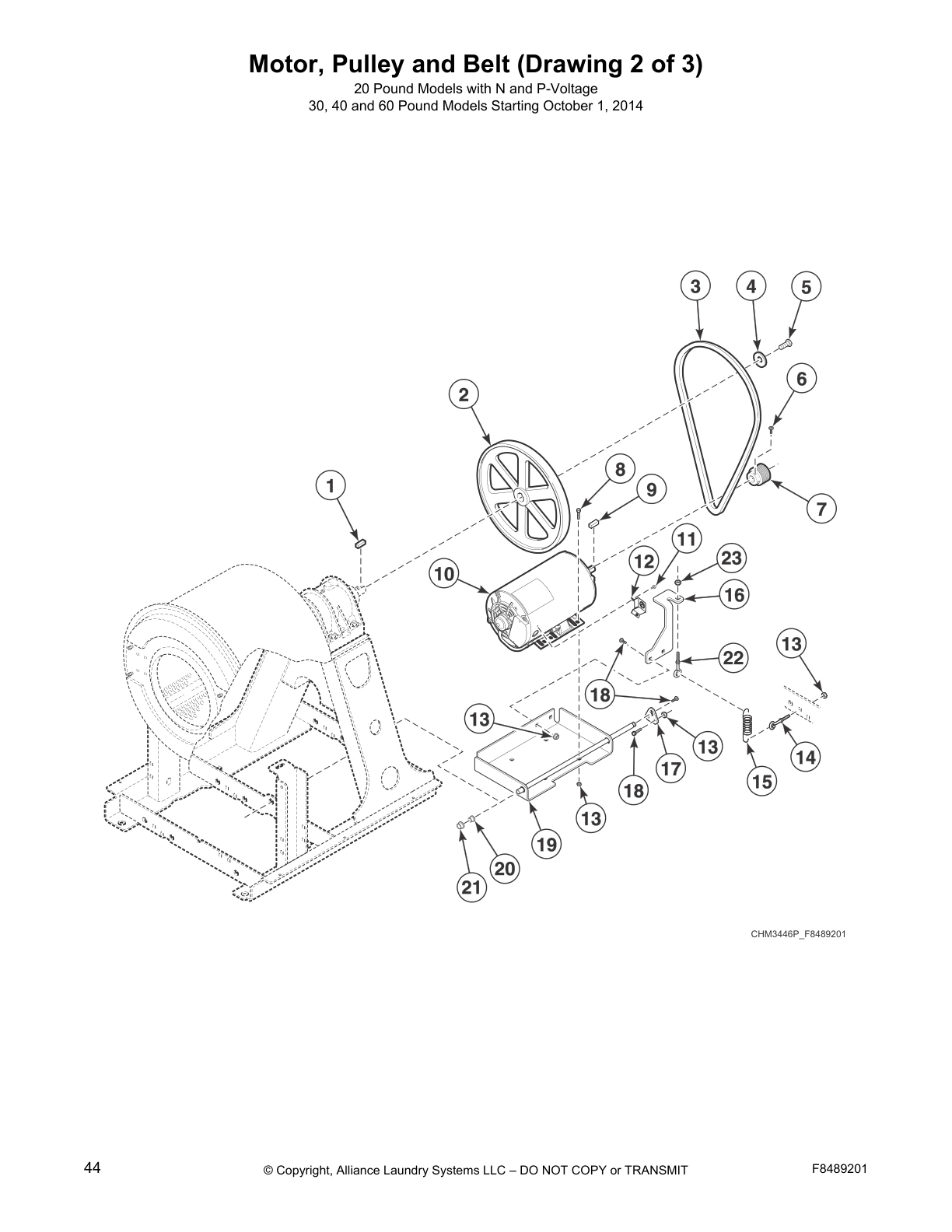

Motor, Pulley and Belt (Drawing 2 of 3)

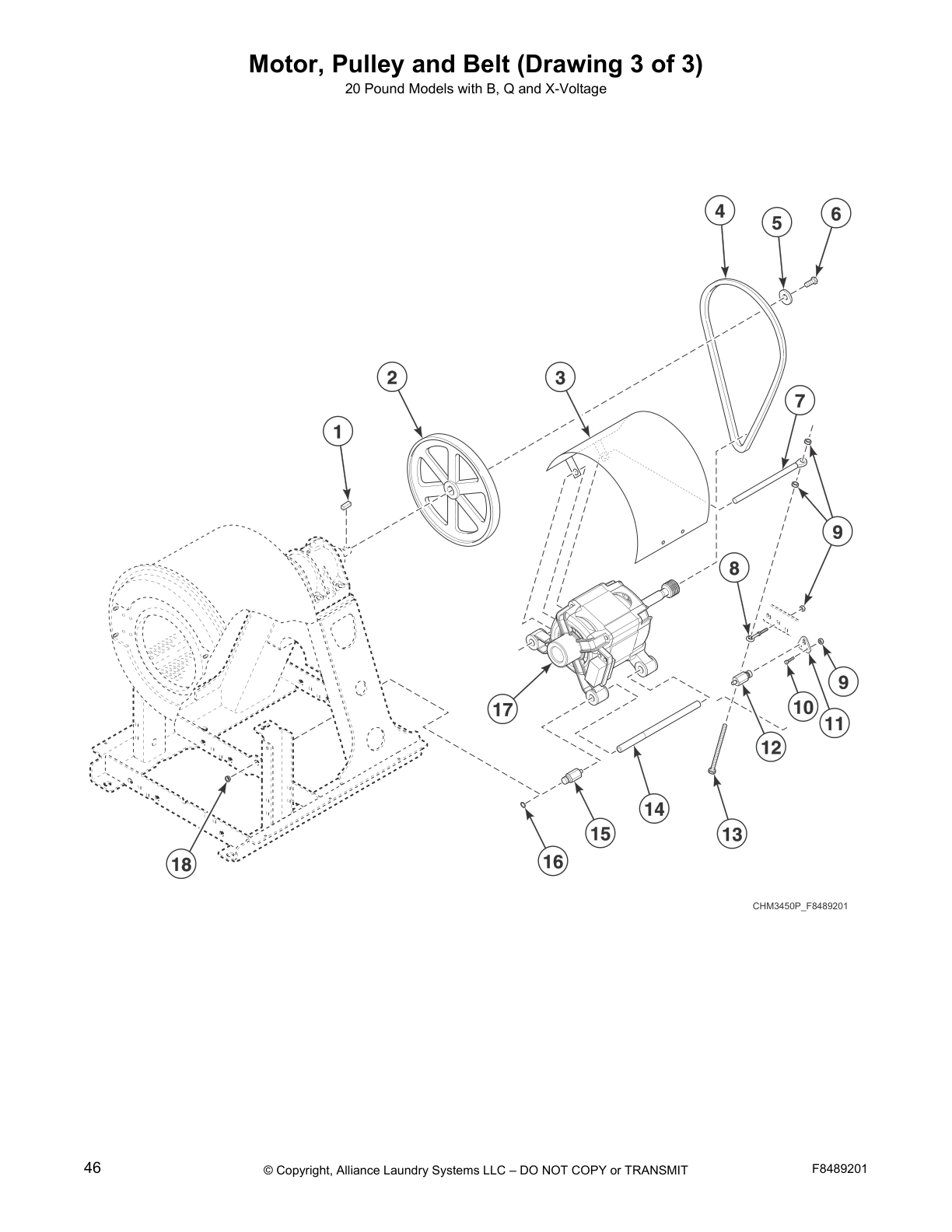

Motor, Pulley and Belt (Drawing 3 of 3)
Electric Heat Option

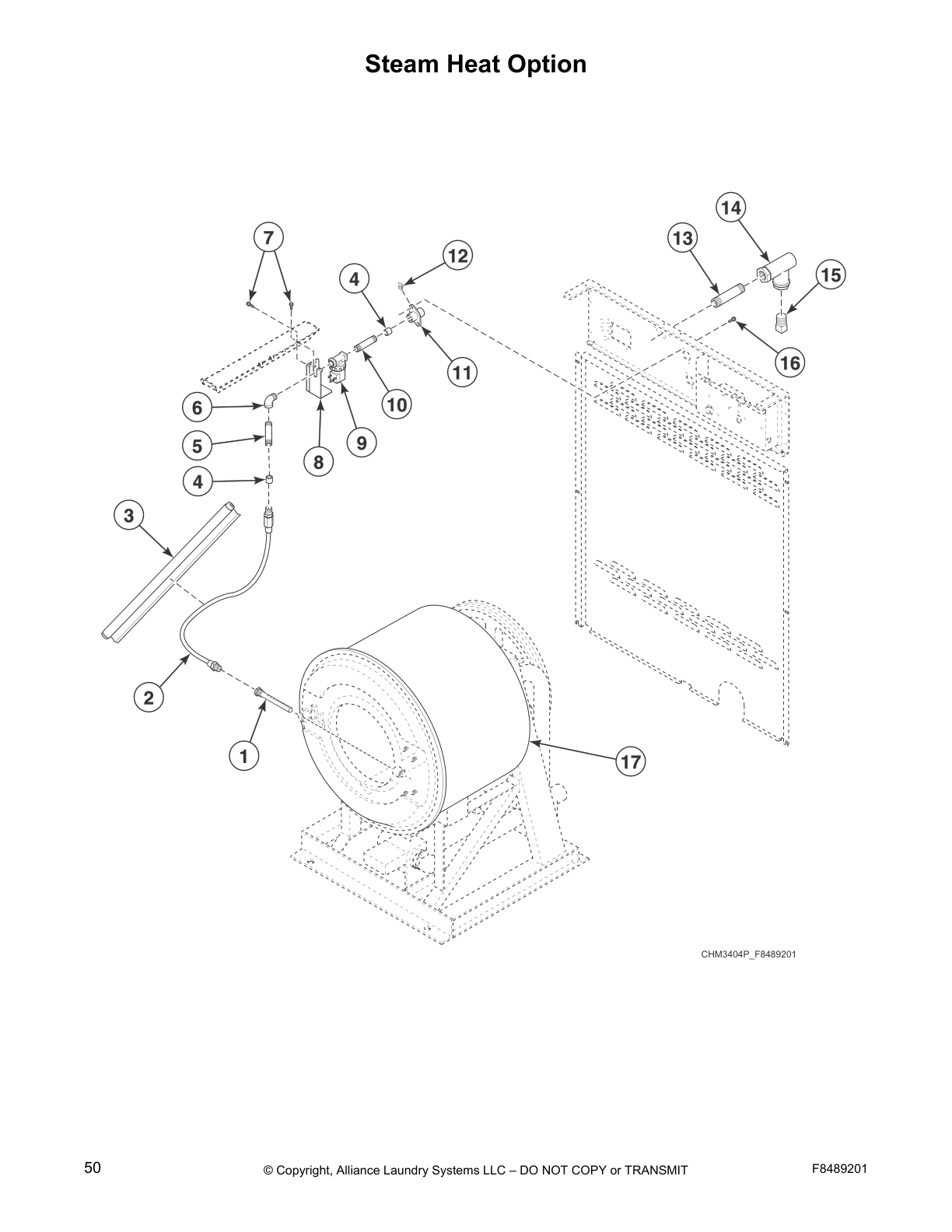

Steam Heat Option
Common parts from model Unimac UCL060KNF Washer
1
Drive Assembly SPQ F8303601P Contact Us For Availability
1
Screw SPQ F8117601 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Bearing Sleeve SPQ F8221701 Contact Us For Availability
1
Door Lock Solenoid Replacement K SPQ F977P3 Contact Us For Availability
1
Shell Front Assembly SPQ F8229701 Contact Us For Availability
1
Bearing SPQ F100135 Contact Us For Availability
1
Drain Valve Kit SPQ F8577201 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Spring Pin SPQ F431222 Contact Us For Availability
2
Drive Mounting Bracket SPQ F8069501 Contact Us For Availability
2
Left Side Panel SPQ F8399502P Contact Us For Availability
2
Spacer SPQ F430225 Contact Us For Availability
2
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
2
Bolt SPQ F8367201 Contact Us For Availability
2
Drain Valve Motor SPQ F380933P Contact Us For Availability
2
Drain Valve Motor SPQ F8618901P Contact Us For Availability
2
Ground Lug Connector SPQ F8047901 Contact Us For Availability
2
Basket Pulley
60 pound models SPQ F200299700 Contact Us For Availability
2
Tubing SPQ F8153901 Contact Us For Availability
2
Pipe Insulation SPQ F200197 Contact Us For Availability
3
Door Lock Splash Shield SPQ F200203200 Contact Us For Availability
3
Expansion Clip SPQ F8226601 Contact Us For Availability
3
Bolt SPQ 70413301 Contact Us For Availability
3
Door Latch Arm Assembly SPQ F8199401P Contact Us For Availability
3
Seal Scupper Pad SPQ F8350303 Contact Us For Availability
3
Shell Weldment SPQ F8402701 Contact Us For Availability
3
Drain Valve Cover SPQ F200133600 Contact Us For Availability
3
Cap SPQ F200222 Contact Us For Availability
3
Belt
60 pound models SPQ F8382805 Contact Us For Availability
3
Motor Drip Shield SPQ F200216900 Contact Us For Availability
3
Tee SPQ F8246601 Contact Us For Availability
3
Street Elbow SPQ F410300 Contact Us For Availability
4
Dispenser Lid SPQ F8230501 Contact Us For Availability
4
Door Lock Plate Assembly SPQ F431901 Contact Us For Availability
4
Frame Weldment SPQ F8360903 Contact Us For Availability
4
SPQ 70334702 SPQ 70334702 Contact Us For Availability
4
Bolt SPQ F200182700 Contact Us For Availability
4
SPQ F8535601 SPQ F8535601 Contact Us For Availability
5
Lid Clamp SPQ F8048101 Contact Us For Availability
5
Door SPQ F8221403 Contact Us For Availability
5
Door Lock Plate Shim SPQ F320200 Contact Us For Availability
5
Drain Valve SPQ F8602602 Contact Us For Availability
5
SPQ F8047801 SPQ F8047801 Contact Us For Availability
5
Washer SPQ F431115 Contact Us For Availability
5
Contactor SPQ F330188P Contact Us For Availability
6
Top Cover Latch SPQ F8038804 Contact Us For Availability
6
Top Cover SPQ F8230601 Contact Us For Availability
6
Screw SPQ F8223202 Contact Us For Availability
6
Triple Lip Seal SPQ F8203806 Contact Us For Availability
6
SPQ F8043405 SPQ F8043405 Contact Us For Availability
6
Steam Bracket SPQ H86070034 Contact Us For Availability
7
Door Handle Spacer Kit SPQ F602842-2 Contact Us For Availability
7
Shell Band Kit SPQ F8537804 Contact Us For Availability
7
Retaining Ring SPQ F8337901 Contact Us For Availability
7
SPQ F200213 SPQ F200213 Contact Us For Availability
7
Motor Pulley SPQ F8362501 Contact Us For Availability
8
SPQ F8567501 SPQ F8567501 Contact Us For Availability
8
SPQ F8201001 SPQ F8201001 Contact Us For Availability
8
External Door Lock Harness SPQ F8344401 Contact Us For Availability
8
Basket Assembly SPQ F8502801P Contact Us For Availability
8
Basket Tool Kit SPQ F100134 Contact Us For Availability
8
SPQ F8042805 SPQ F8042805 Contact Us For Availability
8
Motor Harness
30 and 40 pound models N and P- SPQ F8396601 Contact Us For Availability
8
Thermistor Sensor SPQ F370609 Contact Us For Availability
8
Steam Heat Kit SPQ F8490301 Contact Us For Availability
9
Shaft Seal Sleeve Kit SPQ F8343909P Contact Us For Availability
9
SPQ F8048601 SPQ F8048601 Contact Us For Availability
9
Steam Valve Repair Kit SPQ F8521501 Contact Us For Availability
10
DIN Rail SPQ F8204701P Contact Us For Availability
10
Top Cabinet Brace SPQ F8043901 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Excluder Seal SPQ F8337101 Contact Us For Availability
10
Bolt SPQ F8402801 Contact Us For Availability
10
Rear Drain Hose SPQ F200201 Contact Us For Availability
10
Vacuum Breaker Hose SPQ F0200244-01 Contact Us For Availability
10
Element SPQ F360205P Contact Us For Availability
10
Pipe Nipple SPQ 70263801 Contact Us For Availability
11
Top Cover Hinge SPQ F8258601 Contact Us For Availability
11
Bearing Housing Assembly SPQ F8271901P Contact Us For Availability
11
Bracket SPQ F8231905 Contact Us For Availability
11
Heating Element Plug SPQ F360202 Contact Us For Availability
12
Expansion Clip SPQ F8385301 Contact Us For Availability
12
Door Bezel SPQ F8659101 Contact Us For Availability
12
Door Glass SPQ F8485401P Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Nut SPQ F8434701 Contact Us For Availability
12
Nut SPQ 70030401 Contact Us For Availability
12
Valve Panel SPQ F8399001 Contact Us For Availability
13
Lower Cabinet Brace SPQ F430174 Contact Us For Availability
13
Bolt SPQ F8270701 Contact Us For Availability
13
Steam Filter SPQ 431486 Contact Us For Availability
14
Nut SPQ F430264 Contact Us For Availability
14
Front Panel SPQ F8174101 Contact Us For Availability
14
Terminal Tray Cover SPQ F8230301 Contact Us For Availability
15
Nut SPQ F8359803 Contact Us For Availability
15
Control Panel Overlay SPQ F8173202P Contact Us For Availability
15
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
15
Extension Spring SPQ F310124 Contact Us For Availability
15
Screw SPQ F420409 Contact Us For Availability
16
Grommet SPQ F8433001 Contact Us For Availability
16
Emergency Stop Plate SPQ F431017 Contact Us For Availability
16
Rear Panel SPQ F8367101 Contact Us For Availability
16
Washer SPQ F431113 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
16
Overflow Hose SPQ F8232901 Contact Us For Availability
16
Terminal Block SPQ F8177001 Contact Us For Availability
16
Spring Plate SPQ F8363901 Contact Us For Availability
16
Shell Weldment SPQ 20253 Contact Us For Availability
17
Magnet SPQ F8390801 Contact Us For Availability
17
Control Tray Assembly SPQ F8359603 Contact Us For Availability
17
Siphon Cover SPQ F8206901 Contact Us For Availability
17
Emergency Stop Pushbutton SPQ F8201301 Contact Us For Availability
17
Steam Hose SPQ F8360902 Contact Us For Availability
18
RIght Side Panel SPQ F8399503 Contact Us For Availability
18
Door Lock Microswitch SPQ F431902 Contact Us For Availability
18
Spacer SPQ F8451601 Contact Us For Availability
19
Nut SPQ 430642 Contact Us For Availability
19
Contact Switch SPQ F200233500 Contact Us For Availability
19
Right Side Panel SPQ F8399501 Contact Us For Availability
19
Blind Rivet SPQ F8245101 Contact Us For Availability
19
Motor
60 pound models SPQ F8335101P Contact Us For Availability
20
3-Way Valve SPQ F430232 Contact Us For Availability
20
Screw SPQ F8322401 Contact Us For Availability
20
Panel Lock SPQ F8399504 Contact Us For Availability
20
Reed Switch Assembly SPQ F8066802 Contact Us For Availability
21
Pushbutton Switch SPQ 44089303P Contact Us For Availability
21
Rod SPQ F602813-3 Contact Us For Availability
21
Washer SPQ M411283 Contact Us For Availability
21
O-Ring SPQ F8441901 Contact Us For Availability
22
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
22
Hose SPQ F430909 Contact Us For Availability
23
Screw SPQ F430536 Contact Us For Availability
23
P-Trap Hose SPQ F8286402P Contact Us For Availability
24
Door Mount SPQ F430215 Contact Us For Availability
24
Manifold SPQ F8286401P Contact Us For Availability
26
Door Hinge SPQ F150271 Contact Us For Availability
26
Access Cover SPQ F8232002 Contact Us For Availability
27
Door Handle SPQ F190216P Contact Us For Availability
27
Supply Overflow Hose SPQ F8042301 Contact Us For Availability
29
Vacuum Breaker Assembly SPQ F8333201 Contact Us For Availability
30
SPQ F8308301 SPQ F8308301 Contact Us For Availability
31
SPQ F606816-1 SPQ F606816-1 Contact Us For Availability
NI
Jumper Configuration Assembly SPQ F980P3 Contact Us For Availability
NI
SPQ F380984P SPQ F380984P Contact Us For Availability
NI
External Supply Harness SPQ M413506 Contact Us For Availability
NI
Output/Logic Harness SPQ F8191201P Contact Us For Availability
NI
Machine Size Configuration Harness SPQ F8028701 Contact Us For Availability
NI
SPQ F8028105P SPQ F8028105P Contact Us For Availability
NI
SPQ F8053902 SPQ F8053902 Contact Us For Availability
NI
SPQ F8053901P SPQ F8053901P Contact Us For Availability
NI
SPQ F8385102 SPQ F8385102 Contact Us For Availability
NI
SPQ F8091701 SPQ F8091701 Contact Us For Availability
NI
SPQ F8040401P SPQ F8040401P Contact Us For Availability
NI
SPQ F8340001 SPQ F8340001 Contact Us For Availability
NI
SPQ F8632401 SPQ F8632401 Contact Us For Availability
NI
Clamp Ring Assembly SPQ F8388004 Contact Us For Availability
NI
SPQ 389P4 SPQ 389P4 Contact Us For Availability
NI
SPQ F8250002 SPQ F8250002 Contact Us For Availability
NI
SPQ F8197701 SPQ F8197701 Contact Us For Availability
NI
SPQ F953P3 SPQ F953P3 Contact Us For Availability
× ![]()
