Model Whirlpool TS22AWXBN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

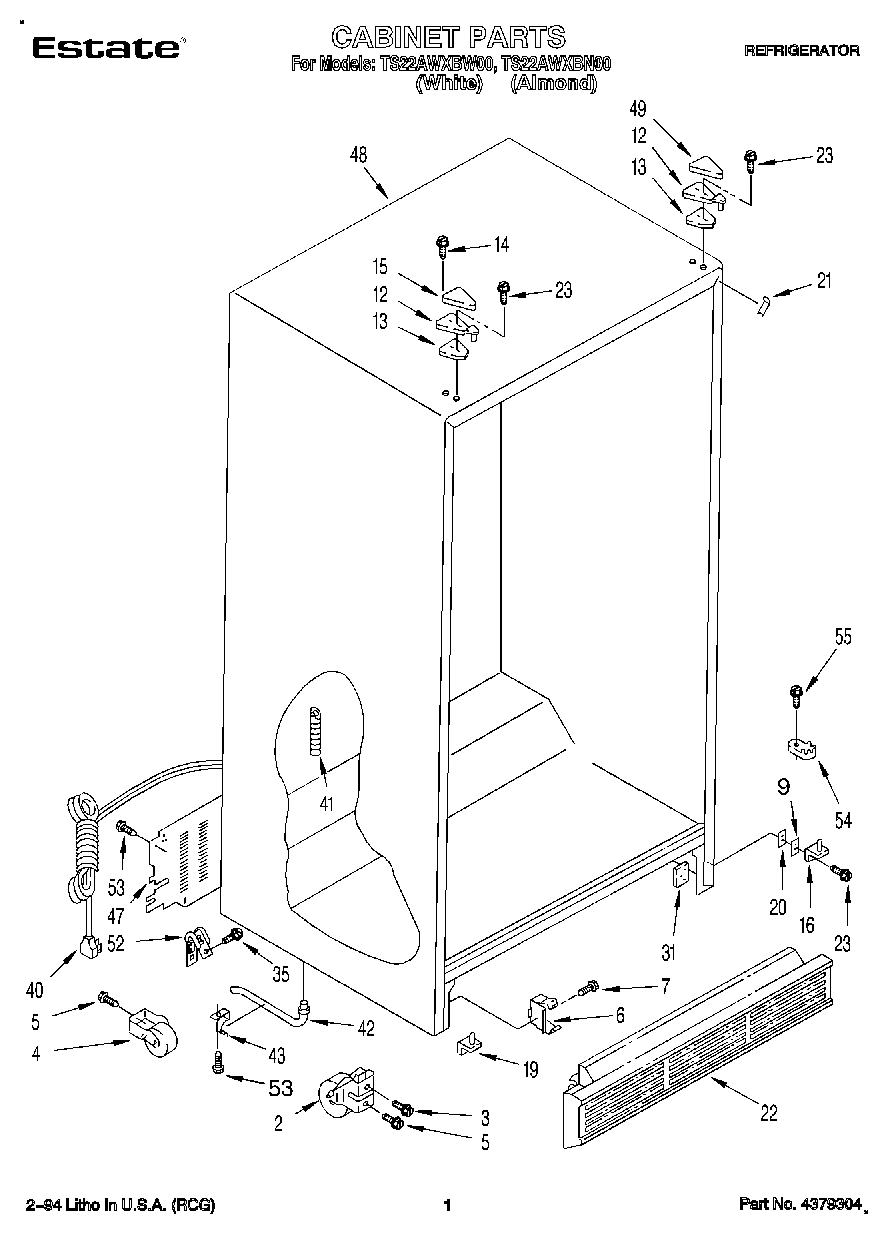

01 - CABINET
12 - ICEMAKER, LIT/OPTIONAL
06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT
09 - UNIT
11 - CONTROL
05 - FREEZER INTERIOR
07 - FREEZER DOOR
03 - REFRIGERATOR SHELF
10 - AIR FLOW
02 - REFRIGERATOR LINER
04 - FREEZER LINER
Common parts from model Whirlpool TS22AWXBN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2147450 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2147452 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI131963A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI131964A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Handle, Center (White) WPL 2147470 Contact Us For Availability
3
Handle, Center (Almond) WPL 2170066 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 2173116 Contact Us For Availability
4
Shelf, Compartment WPL 1116707 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Reinforcement, Handle WPL 1127465 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Shelf Bin (3) WPL 2163644 Contact Us For Availability
6
Clip, Handle WPL 849445 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI131965A Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
6
Shelf Assembly, Cantilever (3) WPL 2163572 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Shim WPL 2147097 Contact Us For Availability
7
Glass, Crisper Cover WPL 2163673 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Retainer, Gasket WPL 1117766 Contact Us For Availability
8
Shelf, Large (2) WPL 2163618 Contact Us For Availability
8
Shelf, Small (1) WPL 2163619 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Retainer, Gasket WPL 1117767 Contact Us For Availability
9
Retainer, Glass WPL 1125594 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Glass WPL 2163573 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Ladder, Shelf WPL 1108433 Contact Us For Availability
10
Grommet WPL 1110779 Contact Us For Availability
11
Foam Insullation (Required When Replacing Ext WPL 876029 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Bin, Freezer WPL 2148194 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Stud, Support WPL 946355 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Stud, Front WPL 946356 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI131966A Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover WPL 2163519 Contact Us For Availability
17
Panel, Interior Door WPL 2160928 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Running Capacitor WPL 2154565 Contact Us For Availability
17
Harness, Door WPL 1116960 Contact Us For Availability
17
Meat Pan WPL 2173136 Contact Us For Availability
17
Slide, Freezer Bin WPL 1115383 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Stud, Rear WPL 1106982 Contact Us For Availability
19
Screw WPL 488892 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2155816 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163622 Contact Us For Availability
25
Conduit, Water Tube WPL 2147080 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
27
Glass Stop (Almond) WPL 1125978 Contact Us For Availability
27
Glass Stop (White) WPL 2147480 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154558 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Bracket, Door Stop WPL 2155332 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
32
Retainer, Top WPL 2147898 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Screw WPL 488280 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
Insert, Handle WPL 2147581 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Light Lens WPL 1114624 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Unit, Harness WPL 2149199 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Retainer (Bottom) WPL 2147896 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2159199 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2173146 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2173092 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2173093 Contact Us For Availability
40
Extension, Top (White) WPL 2147472 Contact Us For Availability
40
Extension, Top (Almond) WPL 2170067 Contact Us For Availability
40
Retainer, Gasket WPL 1118301 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2173105 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2173106 Contact Us For Availability
41
Door, Shelf (4) WPL 2163645 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
44
Extension, Bottom (White) WPL 2147471 Contact Us For Availability
44
Extension, Bottom (Almond) WPL 2170068 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
46
Light Switch WPL 851386 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
