Model GE TFG24PRSMBB Refrigerator – Common Parts & Diagrams
0
1

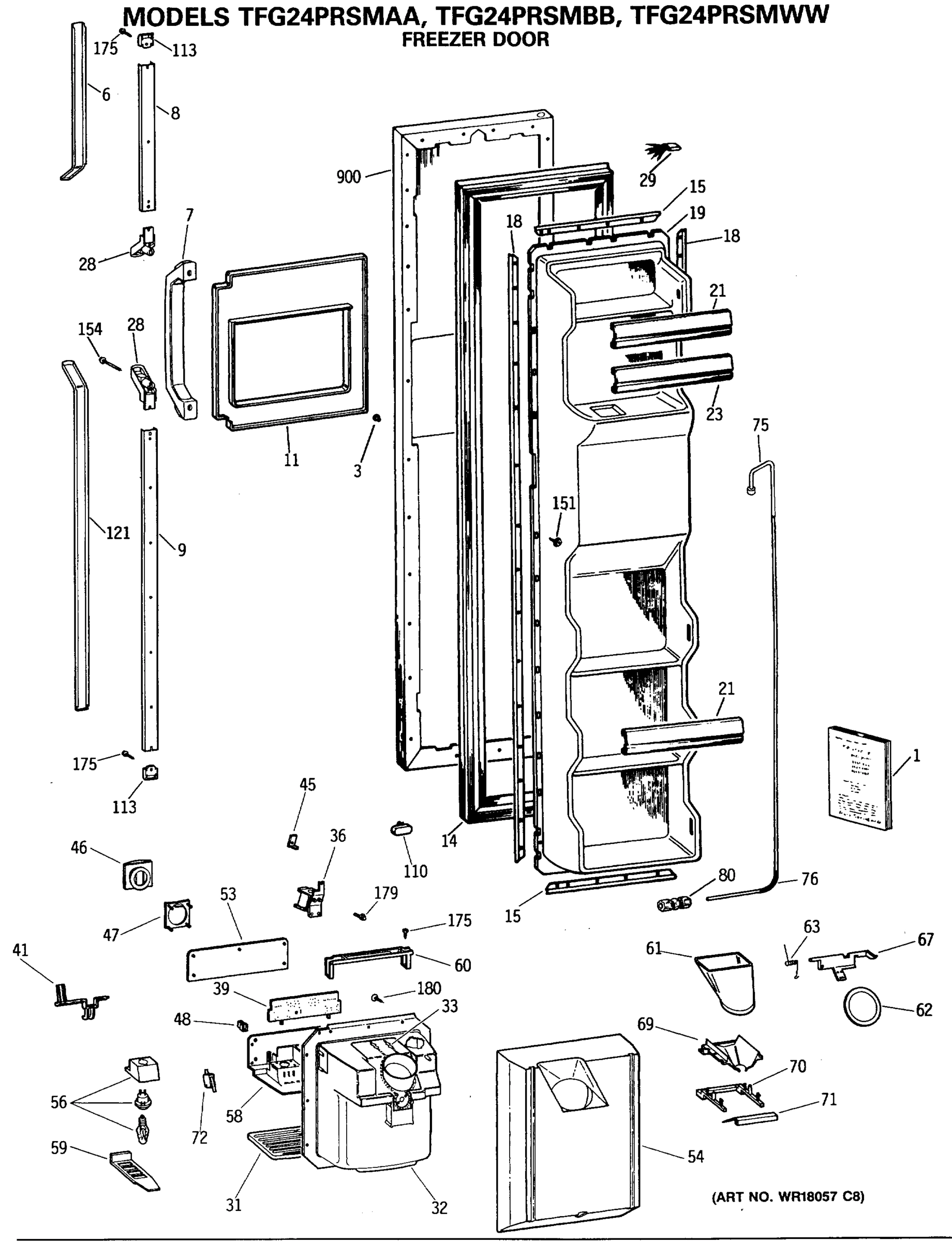

FREEZER DOOR

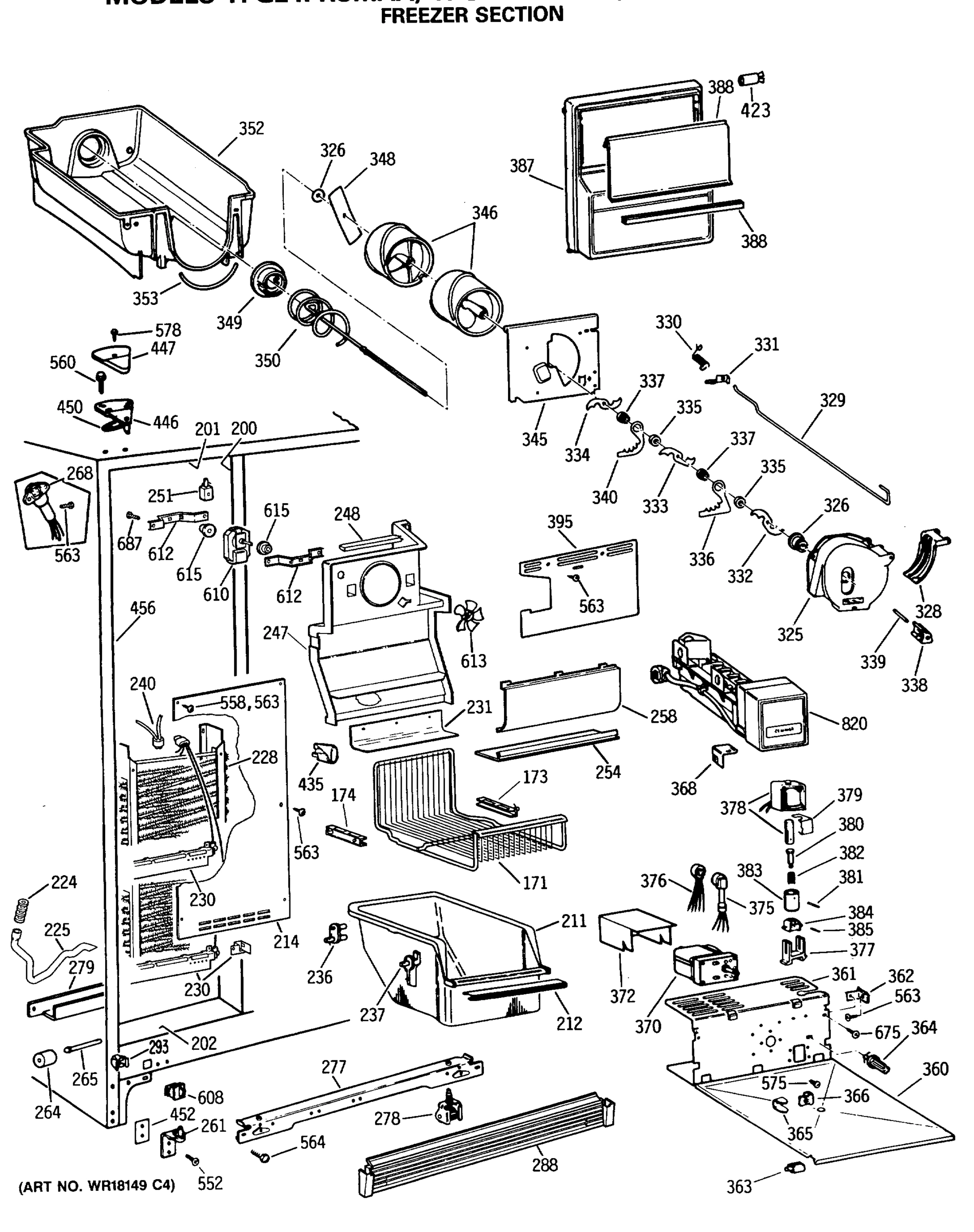

FREEZER SECTION

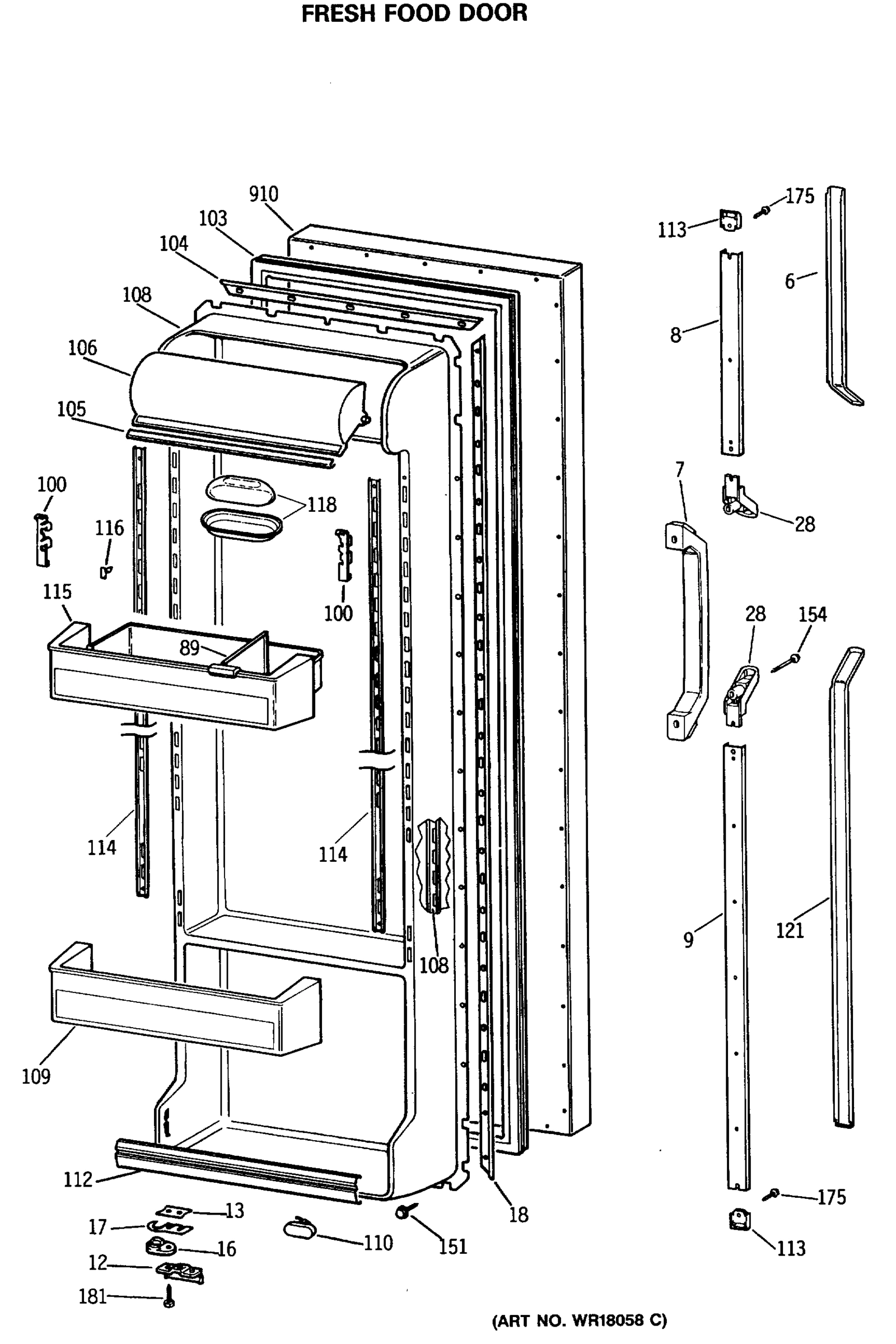

FRESH FOOD DOOR

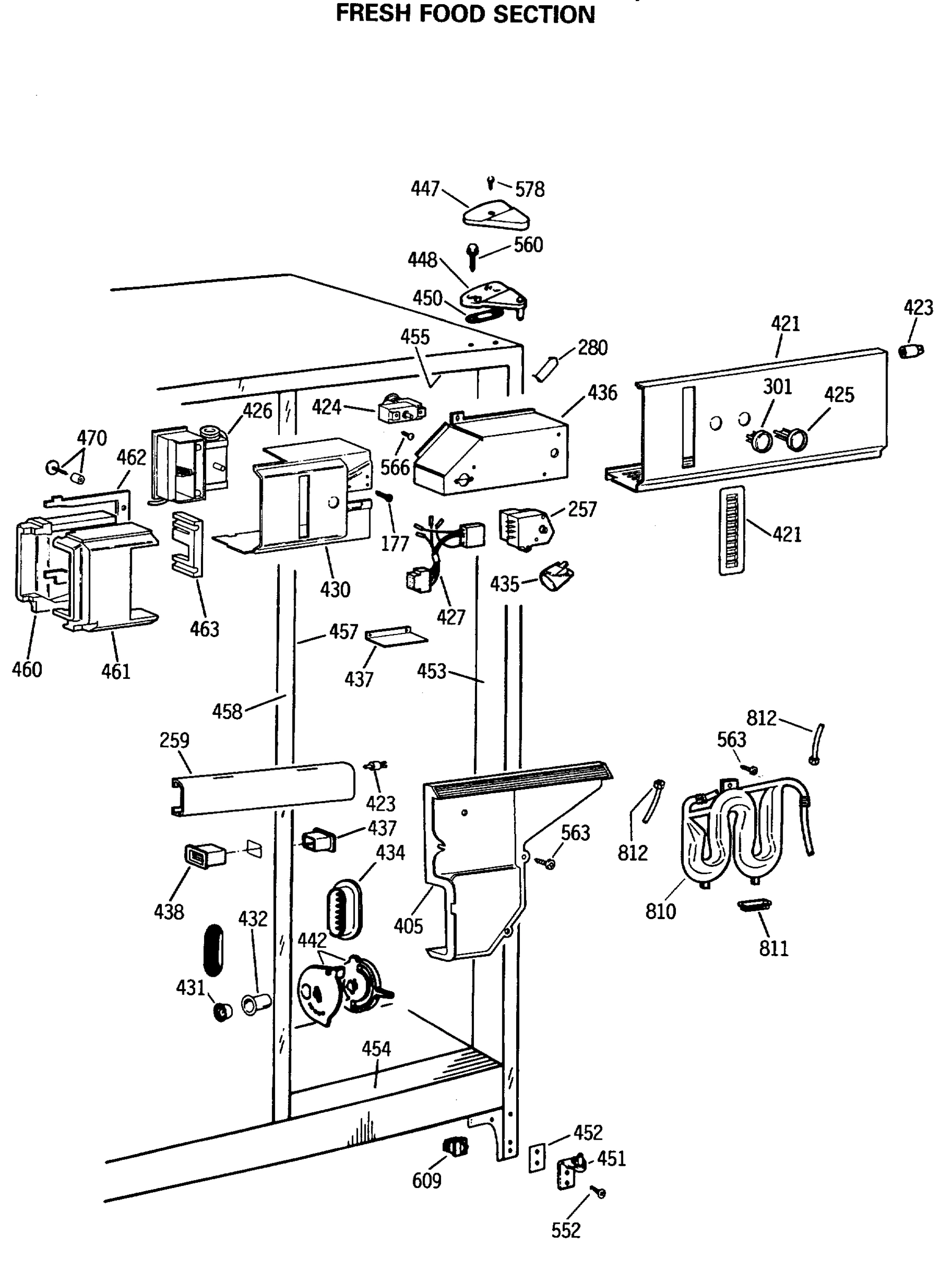

FRESH FOOD SECTION
Common parts from model GE TFG24PRSMBB Refrigerator
1
GEN 31-45060 GEN 31-45060 Contact Us For Availability
1
GEN 49-6738 GEN 49-6738 Contact Us For Availability
3
GEN WR02X8669 GEN WR02X8669 Contact Us For Availability
6
GEN WR12X0858 GEN WR12X0858 Contact Us For Availability
7
GEN WR12X0871 GEN WR12X0871 Contact Us For Availability
8
GEN WR12X0872 GEN WR12X0872 Contact Us For Availability
9
GEN WR12X0873 GEN WR12X0873 Contact Us For Availability
11
GEN WR38X1925 GEN WR38X1925 Contact Us For Availability
12
GEN WR02X7213 GEN WR02X7213 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
13
GEN WR02X7490 GEN WR02X7490 Contact Us For Availability
14
GASKET DOOR FRZ BK GEN WR24X0537 Contact Us For Availability
15
GEN WR17X1167 GEN WR17X1167 Contact Us For Availability
17
GEN WR02X7491 GEN WR02X7491 Contact Us For Availability
17
GEN WR02X9147 GEN WR02X9147 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0601 GEN WR77X0601 Contact Us For Availability
21
GEN WR17X3094 GEN WR17X3094 Contact Us For Availability
23
GEN WR17X3211 GEN WR17X3211 Contact Us For Availability
28
GEN WR02X8576 GEN WR02X8576 Contact Us For Availability
29
GEN WR49X0357 GEN WR49X0357 Contact Us For Availability
31
GEN WR02X8656 GEN WR02X8656 Contact Us For Availability
32
GEN WR17X3335 GEN WR17X3335 Contact Us For Availability
33
GEN WR51X0364 GEN WR51X0364 Contact Us For Availability
36
GEN WR62X0077 GEN WR62X0077 Contact Us For Availability
39
GEN WR55X0065 GEN WR55X0065 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
46
GEN WR02X8702 GEN WR02X8702 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
48
GEN WR02X8723 GEN WR02X8723 Contact Us For Availability
53
GEN WR17X3213 GEN WR17X3213 Contact Us For Availability
54
GEN WR17X3153 GEN WR17X3153 Contact Us For Availability
56
GEN 10S6/10BB GEN 10S6/10BB Contact Us For Availability
56
GEN WR02X8686 GEN WR02X8686 Contact Us For Availability
56
GEN WR02X8932 GEN WR02X8932 Contact Us For Availability
58
GEN WR17X3463 GEN WR17X3463 Contact Us For Availability
59
GEN WR02X9132 GEN WR02X9132 Contact Us For Availability
60
GEN WR02X8685 GEN WR02X8685 Contact Us For Availability
61
GEN WR17X3145 GEN WR17X3145 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
GEN WR02X8943 GEN WR02X8943 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
75
GROMMET & TUBE ASM GEN WR17X3670 Contact Us For Availability
76
GEN WR02X8933 GEN WR02X8933 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
86
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
89
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
98
SCREW & WASHER ASM GEN WR01X1928 Contact Us For Availability
100
GEN WR02X8409 GEN WR02X8409 Contact Us For Availability
100
GEN WR02X8410 GEN WR02X8410 Contact Us For Availability
103
GEN WR24X0535 GEN WR24X0535 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X1768 GEN WR38X1768 Contact Us For Availability
106
GEN WR22X0383 GEN WR22X0383 Contact Us For Availability
108
GEN WR72X0170 GEN WR72X0170 Contact Us For Availability
108
GEN WR77X0575 GEN WR77X0575 Contact Us For Availability
109
GEN WR71X2120 GEN WR71X2120 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
112
GEN WR17X2583 GEN WR17X2583 Contact Us For Availability
113
GEN WR02X7871 GEN WR02X7871 Contact Us For Availability
114
GEN WR72X0237 GEN WR72X0237 Contact Us For Availability
115
GEN WR71X2117 GEN WR71X2117 Contact Us For Availability
116
GEN WR02X7829 GEN WR02X7829 Contact Us For Availability
121
GEN WR12X0859 GEN WR12X0859 Contact Us For Availability
154
GEN WR01X1765 GEN WR01X1765 Contact Us For Availability
154
GEN WR01X1971 GEN WR01X1971 Contact Us For Availability
171
GEN WR71X2352 GEN WR71X2352 Contact Us For Availability
174
GEN WR02X8667 GEN WR02X8667 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
GEN WR40X1729 GEN WR40X1729 Contact Us For Availability
201
GEN WR40X1727 GEN WR40X1727 Contact Us For Availability
202
GEN WR40X1725 GEN WR40X1725 Contact Us For Availability
211
GEN WR21X0190 GEN WR21X0190 Contact Us For Availability
212
GEN WR17X3103 GEN WR17X3103 Contact Us For Availability
214
GEN WR02X8950 GEN WR02X8950 Contact Us For Availability
214
GEN WR14X0455 GEN WR14X0455 Contact Us For Availability
214
GEN WR17X3650 GEN WR17X3650 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
230
GEN WR02X8647 GEN WR02X8647 Contact Us For Availability
230
GEN WR51X0351 GEN WR51X0351 Contact Us For Availability
230
GEN WR51X0352 GEN WR51X0352 Contact Us For Availability
230
GEN WR51X0398 GEN WR51X0398 Contact Us For Availability
231
GEN WR01X1987 GEN WR01X1987 Contact Us For Availability
231
GEN WR17X3651 GEN WR17X3651 Contact Us For Availability
234
GEN WR23X0394 GEN WR23X0394 Contact Us For Availability
234
GEN WR23X0395 GEN WR23X0395 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR17X3488 GEN WR17X3488 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
254
GEN WR17X3668 GEN WR17X3668 Contact Us For Availability
257
GEN WR09X0516 GEN WR09X0516 Contact Us For Availability
258
GEN WR17X3489 No Longer Available
259
GEN WR17X2555 GEN WR17X2555 Contact Us For Availability
260
GEN WR32X1427 GEN WR32X1427 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
269
GEN WR02X7927 GEN WR02X7927 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X3661 GEN WR17X3661 Contact Us For Availability
280
GEN WR02X8524 GEN WR02X8524 Contact Us For Availability
288
GEN WR74X0199 GEN WR74X0199 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
301
KNOB DAMPER CONT. GEN WR02X8913 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
324
GEN WR02X7069 GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X2740 GEN WR17X2740 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
GEN WR71X2465 GEN WR71X2465 Contact Us For Availability
361
GEN WR71X2353 GEN WR71X2353 Contact Us For Availability
362
GEN WR02X8839 GEN WR02X8839 Contact Us For Availability
363
GEN WR02X8952 GEN WR02X8952 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
370
GEN WR60X0201 GEN WR60X0201 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X2964 GEN WR17X2964 Contact Us For Availability
388
GEN WR17X2874 GEN WR17X2874 Contact Us For Availability
388
GEN WR38X1524 GEN WR38X1524 Contact Us For Availability
395
GEN WR17X2905 GEN WR17X2905 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
407
GEN WR32X1221 GEN WR32X1221 Contact Us For Availability
408
GEN WR32X1222 GEN WR32X1222 Contact Us For Availability
421
GEN WR14X0443 GEN WR14X0443 Contact Us For Availability
421
GEN WR17X3414 GEN WR17X3414 Contact Us For Availability
421
GEN WR17X3457 GEN WR17X3457 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR02X8914 GEN WR02X8914 Contact Us For Availability
424
GEN WR09X0530 GEN WR09X0530 Contact Us For Availability
425
KNOB FRZ CONTROL GEN WR02X8475 Contact Us For Availability
426
GEN WR09X0522 GEN WR09X0522 Contact Us For Availability
427
GEN WR23X0357 GEN WR23X0357 Contact Us For Availability
430
GEN WR17X3416 GEN WR17X3416 Contact Us For Availability
431
GEN WR02X8722 GEN WR02X8722 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
434
GEN WR02X9021 GEN WR02X9021 Contact Us For Availability
436
GEN WR02X8909 GEN WR02X8909 Contact Us For Availability
437
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
437
GEN WR02X8934 GEN WR02X8934 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
440
GEN WR17X3364 GEN WR17X3364 Contact Us For Availability
442
GEN WR02X8651 GEN WR02X8651 Contact Us For Availability
446
GEN WR13X0647 GEN WR13X0647 Contact Us For Availability
447
GEN WR02X8523 GEN WR02X8523 Contact Us For Availability
448
GEN WR13X0646 GEN WR13X0646 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR0 GEN WR0 Contact Us For Availability
452
GEN WR02X4497 GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
453
GEN WR40X1717 GEN WR40X1717 Contact Us For Availability
454
GEN WR40X1714 GEN WR40X1714 Contact Us For Availability
455
GEN WR40X1720 GEN WR40X1720 Contact Us For Availability
457
GEN WR40X1728 GEN WR40X1728 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR02X8721 GEN WR02X8721 Contact Us For Availability
458
GEN WR40X1688 GEN WR40X1688 Contact Us For Availability
460
GEN WR02X8911 GEN WR02X8911 Contact Us For Availability
461
GEN WR02X8910 GEN WR02X8910 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
462
GEN WR14X0442 GEN WR14X0442 Contact Us For Availability
463
GEN WR82X0338 GEN WR82X0338 Contact Us For Availability
470
GEN WR01X1929 GEN WR01X1929 Contact Us For Availability
470
GEN WR14X0420 GEN WR14X0420 Contact Us For Availability
479
GEN WR72X0230 GEN WR72X0230 Contact Us For Availability
480
GEN WR72X0208 GEN WR72X0208 Contact Us For Availability
480
GEN WR72X0209 GEN WR72X0209 Contact Us For Availability
500
GEN WR71X2242 GEN WR71X2242 Contact Us For Availability
501
GEN WR32X1266 GEN WR32X1266 Contact Us For Availability
502
GEN WR38X1791 GEN WR38X1791 Contact Us For Availability
503
GEN WR02X8573 GEN WR02X8573 Contact Us For Availability
504
GEN WR14X0413 GEN WR14X0413 Contact Us For Availability
505
GEN WR02X8574 GEN WR02X8574 Contact Us For Availability
505
GEN WR02X8575 GEN WR02X8575 Contact Us For Availability
510
GEN WR71X2244 GEN WR71X2244 Contact Us For Availability
520
GEN WR71X2247 GEN WR71X2247 Contact Us For Availability
521
GEN WR32X1267 GEN WR32X1267 Contact Us For Availability
522
GEN WR38X1792 GEN WR38X1792 Contact Us For Availability
523
GEN WR71X2248 GEN WR71X2248 Contact Us For Availability
525
GEN WR72X0220 GEN WR72X0220 Contact Us For Availability
525
GEN WR72X0221 GEN WR72X0221 Contact Us For Availability
526
GEN WR32X1269 GEN WR32X1269 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
554
SCR 10-24 BP PA 1 1/2 S GEN WR01X1483 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
560
GEN WR01X1806 GEN WR01X1806 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
609
GEN WR23X0397 GEN WR23X0397 Contact Us For Availability
616
GEN WR82X0342 GEN WR82X0342 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
626
GEN WR01X1930 GEN WR01X1930 Contact Us For Availability
626
GEN WR23X0414 GEN WR23X0414 Contact Us For Availability
627
GEN WR17X3415 GEN WR17X3415 Contact Us For Availability
630
GEN WR02X8525 GEN WR02X8525 Contact Us For Availability
636
GEN WH02X0765 GEN WH02X0765 Contact Us For Availability
650
GEN WR60X0200 GEN WR60X0200 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR60X0220 GEN WR60X0220 Contact Us For Availability
655
GEN WR50X0132 GEN WR50X0132 Contact Us For Availability
656
GEN WR17X3419 GEN WR17X3419 Contact Us For Availability
657
GEN WR62X0075 GEN WR62X0075 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
689
GEN WR01X1598 GEN WR01X1598 Contact Us For Availability
691
GEN WX02X0560 GEN WX02X0560 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
725
GEN WR87X0430 GEN WR87X0430 Contact Us For Availability
730
GEN WR84X0189 GEN WR84X0189 Contact Us For Availability
731
GEN WR02X8951 GEN WR02X8951 Contact Us For Availability
733
GEN WR07X0221 GEN WR07X0221 Contact Us For Availability
734
GEN WR02X7928 GEN WR02X7928 Contact Us For Availability
734
GEN WR02X7929 GEN WR02X7929 Contact Us For Availability
735
GEN WR08X0129 GEN WR08X0129 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0170 GEN WR84X0170 Contact Us For Availability
747
GEN WR17X3643 GEN WR17X3643 Contact Us For Availability
749
GEN WR17X3648 GEN WR17X3648 Contact Us For Availability
751
GEN WR17X3645 GEN WR17X3645 Contact Us For Availability
753
GEN WB01K5052 GEN WB01K5052 Contact Us For Availability
762
GEN WR02X7493 GEN WR02X7493 Contact Us For Availability
765
GEN WR01X1985 GEN WR01X1985 Contact Us For Availability
788
GEN WB17X5079 GEN WB17X5079 Contact Us For Availability
801
GEN WR02X8935 GEN WR02X8935 Contact Us For Availability
804
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
806
GEN WR17X3456 GEN WR17X3456 Contact Us For Availability
810
GEN WR17X3105 GEN WR17X3105 Contact Us For Availability
811
GEN WR02X8659 GEN WR02X8659 Contact Us For Availability
830
COVER WIRING CASE RR BK GEN WR17X3167 Contact Us For Availability
900
GEN WR78X8525 GEN WR78X8525 Contact Us For Availability
910
GEN WR78X8556 GEN WR78X8556 Contact Us For Availability
941
GEN WD01X1391 GEN WD01X1391 Contact Us For Availability
942
GEN WD01X1395 GEN WD01X1395 Contact Us For Availability
1458
GEN WB17X5061 GEN WB17X5061 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
× ![]()
