Model GE TFF22RBD Refrigerator – Common Parts & Diagrams
0
1
FREEZER SECTION

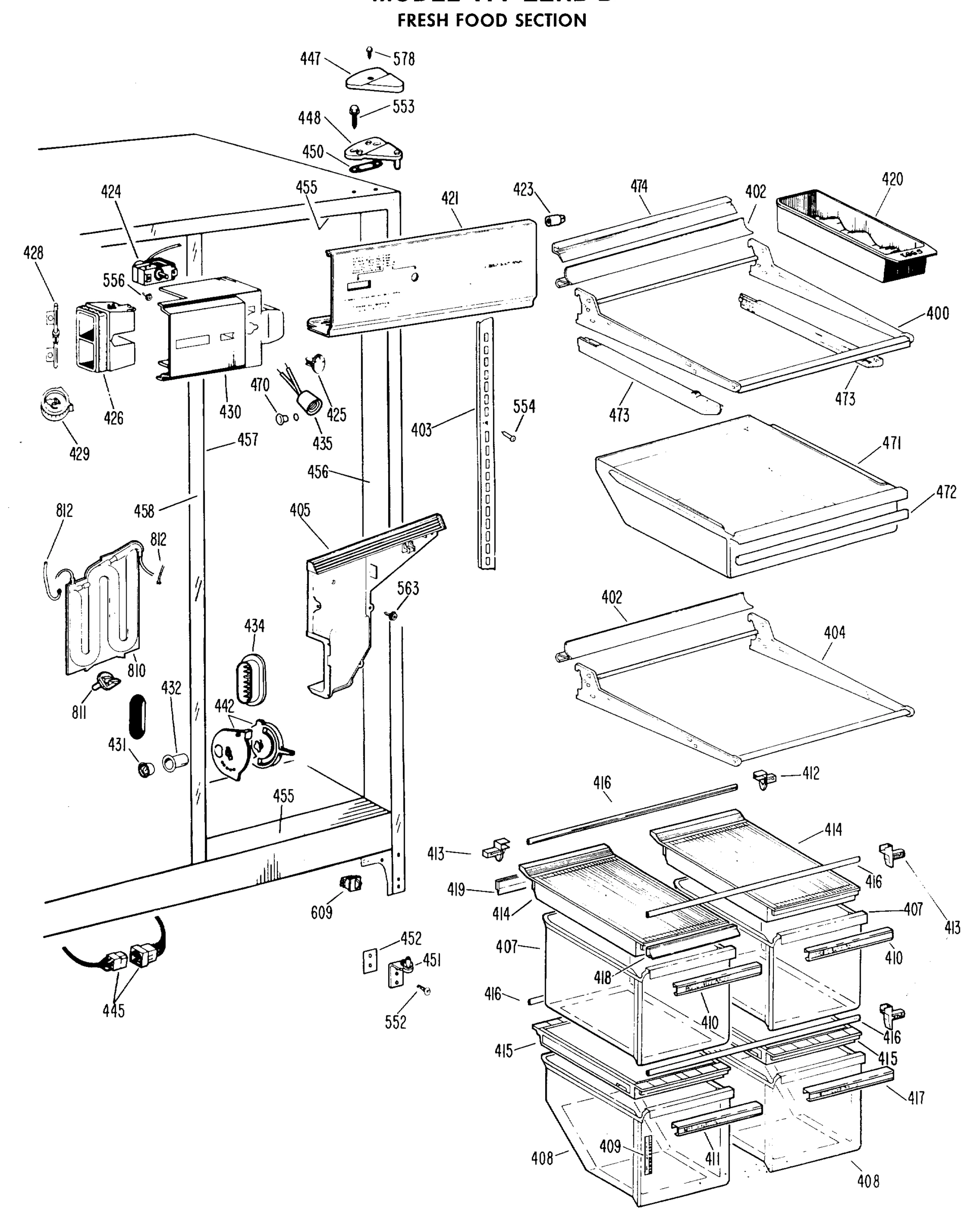

FRESH FOOD SECTION
Common parts from model GE TFF22RBD Refrigerator
7
GEN WR01X1246 GEN WR01X1246 Contact Us For Availability
10
GEN WR12X0440 GEN WR12X0440 Contact Us For Availability
11
GEN WR01X5469 GEN WR01X5469 Contact Us For Availability
11
GEN WR02X4608 GEN WR02X4608 Contact Us For Availability
11
GEN WR38X0860 GEN WR38X0860 Contact Us For Availability
12
STOP DOOR CHROME GEN WR02X4537 Contact Us For Availability
13
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
13
SHIM CAM DOOR STOP GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0296 GEN WR24X0296 Contact Us For Availability
15
GEN WR17X1231 GEN WR17X1231 Contact Us For Availability
17
GEN WR02X6043 GEN WR02X6043 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0393 GEN WR77X0393 Contact Us For Availability
20
GEN WR23X0161 GEN WR23X0161 Contact Us For Availability
21
GEN WR71X1456 GEN WR71X1456 Contact Us For Availability
22
GEN WR01X5015 GEN WR01X5015 Contact Us For Availability
22
GEN WR17X1524 GEN WR17X1524 Contact Us For Availability
24
GEN WR38X0907 GEN WR38X0907 Contact Us For Availability
25
GEN WR02X4979 GEN WR02X4979 Contact Us For Availability
26
GEN WR02X4980 GEN WR02X4980 Contact Us For Availability
28
CLIP SPEED GEN WR01X5351 Contact Us For Availability
28
GEN WR17X1469 GEN WR17X1469 Contact Us For Availability
29
GEN WR49X0201 GEN WR49X0201 Contact Us For Availability
30
GEN WR38X0953 GEN WR38X0953 Contact Us For Availability
31
GEN WR02X5997 GEN WR02X5997 Contact Us For Availability
32
GEN WR14X0245 GEN WR14X0245 Contact Us For Availability
32
GEN WR17X1409 GEN WR17X1409 Contact Us For Availability
33
GEN WR51X0259 GEN WR51X0259 Contact Us For Availability
34
GEN WR02X3951 GEN WR02X3951 Contact Us For Availability
35
PLUNGER SCREW SLEEVE GEN WR02X4822 Contact Us For Availability
36
GEN WR02X4235 GEN WR02X4235 Contact Us For Availability
37
CLIP-TIME DELAY GEN WR02X4248 Contact Us For Availability
39
TIME DELAY ASM. GEN WR09X0268 Contact Us For Availability
40
GEN WR23X0177 GEN WR23X0177 Contact Us For Availability
41
CRANK RIVET ASM DISP GEN WR17X1048 Contact Us For Availability
42
GEN WR02X4234 GEN WR02X4234 Contact Us For Availability
43
KEEPER LANYARD DISP GEN WR02X4069 Contact Us For Availability
43
LANYARD DISPENSER GEN WR02X4237 Contact Us For Availability
44
GEN WR02X4833 GEN WR02X4833 Contact Us For Availability
45
GEN WR02X4240 GEN WR02X4240 Contact Us For Availability
46
GEN WR02X3950 GEN WR02X3950 Contact Us For Availability
47
GEN WR02X3948 GEN WR02X3948 Contact Us For Availability
48
GEN WR02X4236 GEN WR02X4236 Contact Us For Availability
49
GEN WR02X4592 GEN WR02X4592 Contact Us For Availability
50
GEN WR02X4591 GEN WR02X4591 Contact Us For Availability
51
SELECT SWITCH-CUBES/DISP GEN WR23X0144 Contact Us For Availability
51
GEN WR23X0190 GEN WR23X0190 Contact Us For Availability
52
GEN WR02X4832 GEN WR02X4832 Contact Us For Availability
53
GEN WR17X1565 GEN WR17X1565 Contact Us For Availability
54
GEN WR02X4231 GEN WR02X4231 Contact Us For Availability
55
GEN WR38X0851 GEN WR38X0851 Contact Us For Availability
60
GEN WR17X1269 GEN WR17X1269 Contact Us For Availability
61
GEN WR17X1261 GEN WR17X1261 Contact Us For Availability
62
DOOR RECESS DUCT ASM GEN WR17X1586 Contact Us For Availability
63
GEN WR17X1457 GEN WR17X1457 Contact Us For Availability
64
ARM TIME DELAY DISP GEN WR17X1045 Contact Us For Availability
65
GEN WR02X4595 GEN WR02X4595 Contact Us For Availability
66
GEN WR01X1385 GEN WR01X1385 Contact Us For Availability
67
GEN WR02X4814 GEN WR02X4814 Contact Us For Availability
68
GEN WR14X0246 GEN WR14X0246 Contact Us For Availability
68
GEN WR14X0247 GEN WR14X0247 Contact Us For Availability
68
GEN WR17X1410 GEN WR17X1410 Contact Us For Availability
69
GEN WR17X1256 GEN WR17X1256 Contact Us For Availability
75
GEN WR17X1433 GEN WR17X1433 Contact Us For Availability
76
GEN WR02X4633 GEN WR02X4633 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
81
INSERT 5/16 GEN WR02X4046 Contact Us For Availability
101
GEN WR03X0396 GEN WR03X0396 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GEN WR24X0295 GEN WR24X0295 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X0905 GEN WR38X0905 Contact Us For Availability
106
GEN WR22X0256 GEN WR22X0256 Contact Us For Availability
108
GEN WR77X0392 GEN WR77X0392 Contact Us For Availability
109
GEN WR71X1503 GEN WR71X1503 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
111
GEN WR38X0906 GEN WR38X0906 Contact Us For Availability
112
GEN WR71X1452 GEN WR71X1452 Contact Us For Availability
113
GEN WR38X0859 GEN WR38X0859 Contact Us For Availability
114
GEN WR17X1391 GEN WR17X1391 Contact Us For Availability
115
GEN WR02X4992 GEN WR02X4992 Contact Us For Availability
116
GEN WR02X4661 GEN WR02X4661 Contact Us For Availability
116
GEN WR02X4993 GEN WR02X4993 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
152
GEN WZ04X0355 GEN WZ04X0355 Contact Us For Availability
154
GEN WR01X5477 GEN WR01X5477 Contact Us For Availability
175
SCREW SW. CRADLE GEN WR01X1464 Contact Us For Availability
176
GEN WZ05X0166 GEN WZ05X0166 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
179
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
BREAKER STRIP-FZ MULLION GEN WR40X1574 Contact Us For Availability
201
BREAKER STRIP-TOP & BTM. GEN WR40X5371 Contact Us For Availability
203
RETNR BRKR-TOP FF & FZ GEN WR02 Contact Us For Availability
206
SHELF FZ GEN WR71X1356 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X0949 GEN WR38X0949 Contact Us For Availability
210
GEN WR02X4944 GEN WR02X4944 Contact Us For Availability
211
BASKET FRZ GEN WR21X0116 Contact Us For Availability
212
TRIM HANDLE GEN WR17X1522 Contact Us For Availability
215
GEN WR17X1415 GEN WR17X1415 Contact Us For Availability
216
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
218
PLUG HOLE GEN WR02X6008 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
PLUG RECESSED GEN WR02X3025 Contact Us For Availability
221
TROUGH DRAIN GEN WR17X1238 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR02X7088 GEN WR02X7088 Contact Us For Availability
228
LOW SIDE ASM GEN WR85X0102 Contact Us For Availability
230
HEATER DEF ASM GEN WR51X0231 Contact Us For Availability
231
BRACKET DEF HTR GEN WR02X4837 Contact Us For Availability
232
GEN WR02X4971 GEN WR02X4971 Contact Us For Availability
233
SHIELD DEF HTR END GEN WR17X1276 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
235
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
247
GEN WR17X1413 GEN WR17X1413 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
BAFFLE AIR OUTLET FZ GEN WR17X1414 Contact Us For Availability
251
SUPPORT SHELF GEN WR02X2880 Contact Us For Availability
256
GEN WR02X4839 GEN WR02X4839 Contact Us For Availability
257
BRACKET DEF CONTROL GEN WR02X4527 Contact Us For Availability
257
SCR 6-32 D TR 3/8 SS GEN WZ05X0160 Contact Us For Availability
258
GEN WR17X1407 GEN WR17X1407 Contact Us For Availability
259
GEN WR17X1468 GEN WR17X1468 Contact Us For Availability
260
GEN WR02X7074 GEN WR02X7074 Contact Us For Availability
260
PAN WATER DISPOSAL ASM GEN WR32X0755 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
HARNESS IM ASM GEN WR23X0191 Contact Us For Availability
269
GEN WR01X1543 GEN WR01X1543 Contact Us For Availability
269
GEN WR02X4816 GEN WR02X4816 Contact Us For Availability
269
GEN WR17X1058 GEN WR17X1058 Contact Us For Availability
270
GROMMET WATER FILL GEN WR02X6268 Contact Us For Availability
277
GEN WR17X1492 GEN WR17X1492 Contact Us For Availability
279
GEN WR17X1493 GEN WR17X1493 Contact Us For Availability
288
GEN WR02X7079 GEN WR02X7079 Contact Us For Availability
288
GEN WR74X0163 GEN WR74X0163 Contact Us For Availability
289
GEN WR02X7090 GEN WR02X7090 Contact Us For Availability
290
GROMMET CAP-GRILLE GEN WR02X7080 Contact Us For Availability
290
GEN WR02X7091 GEN WR02X7091 Contact Us For Availability
325
GROMMET-PLUG BUTTON GEN WR02X4396 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
327
BUSHING HELIX DISP GEN WR02X4142 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X1248 Contact Us For Availability
329
GEN WR17X1374 GEN WR17X1374 Contact Us For Availability
330
SPRING DEFLECTOR GEN WR02X4145 Contact Us For Availability
331
GEN WR02X5961 GEN WR02X5961 Contact Us For Availability
335
SPACER CRUSHER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
GEN WR17X5649 GEN WR17X5649 Contact Us For Availability
346
HELIX FRONT DISP GEN WR17X1004 Contact Us For Availability
347
BLADE HELIX DISP GEN WR02X4136 Contact Us For Availability
348
BLADE IN DISP GEN WR02X4137 Contact Us For Availability
351
CONE AUGER DISP GEN WR02X4144 Contact Us For Availability
352
GEN WR30X5090 GEN WR30X5090 Contact Us For Availability
354
TAB BUCKET RETAINER DISP GEN WR02X4562 Contact Us For Availability
354
GEN WR02X4563 GEN WR02X4563 Contact Us For Availability
354
GEN WR02X4564 GEN WR02X4564 Contact Us For Availability
355
GEN WR02X5934 GEN WR02X5934 Contact Us For Availability
360
GEN WR71X5737 GEN WR71X5737 Contact Us For Availability
361
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
361
GEN WR71X1422 GEN WR71X1422 Contact Us For Availability
363
GEN WR02X4465 GEN WR02X4465 Contact Us For Availability
364
GEN WR02X4783 GEN WR02X4783 Contact Us For Availability
365
DRIVE AUGER DISP GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
370
MOTOR CRUSHER DISP GEN WR60X0111 Contact Us For Availability
371
GEN WR02X4254 GEN WR02X4254 Contact Us For Availability
371
GEN WR17X1062 GEN WR17X1062 Contact Us For Availability
372
GEN WR02X4782 GEN WR02X4782 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
RECEPTACLE HARNESS GEN WR23X0189 Contact Us For Availability
377
GEN WR02X4784 GEN WR02X4784 Contact Us For Availability
379
GEN WR17 GEN WR17 Contact Us For Availability
400
GEN WR71X1509 GEN WR71X1509 Contact Us For Availability
402
GEN WR38X0959 GEN WR38X0959 Contact Us For Availability
403
GEN WR72X0062 GEN WR72X0062 Contact Us For Availability
404
GEN WR71X1504 GEN WR71X1504 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
407
GEN WR32X0649 GEN WR32X0649 Contact Us For Availability
408
GEN WR32X0650 GEN WR32X0650 Contact Us For Availability
409
GEN WR02X4796 GEN WR02X4796 Contact Us For Availability
410
GEN WR17X1556 GEN WR17X1556 Contact Us For Availability
411
GEN WR17X1558 GEN WR17X1558 Contact Us For Availability
412
SUPPORT-R. REAR/L. FRONT GEN WR02X4941 Contact Us For Availability
413
SUPPORT-L.REAR/R. FRONT GEN WR02X4942 Contact Us For Availability
414
GEN WR32X0675 GEN WR32X0675 Contact Us For Availability
415
GEN WR02X7034 GEN WR02X7034 Contact Us For Availability
415
GEN WR32X0676 GEN WR32X0676 Contact Us For Availability
416
GEN WR02X4790 GEN WR02X4790 Contact Us For Availability
417
GEN WR17X1557 GEN WR17X1557 Contact Us For Availability
418
GEN WR14X0287 GEN WR14X0287 Contact Us For Availability
419
GEN WR14X0288 GEN WR14X0288 Contact Us For Availability
420
GEN WR32X0653 GEN WR32X0653 Contact Us For Availability
421
GEN WR17X1572 GEN WR17X1572 Contact Us For Availability
423
SUPPORT SHIELD-TOP GEN WR02X6347 Contact Us For Availability
424
CONTROL TEMP GEN WR09X5131 Contact Us For Availability
425
KNOB TEMP CONT GEN WR02X4943 Contact Us For Availability
426
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GASKET FOAM GEN WR14X0271 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X4836 GEN WR02X4836 Contact Us For Availability
430
HOUSING CONT GEN WR17X1412 Contact Us For Availability
431
CAP MULLION DUCT GEN WR02X4799 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
435
SOCKET LAMP GEN WR02X4049 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
445
R-E-D SERVICE PKG. GEN WR49X0233 Contact Us For Availability
447
COVER HINGE GEN WR02X4574 Contact Us For Availability
447
INSULATION HINGE COVER GEN WR02X4575 Contact Us For Availability
448
HINGE TOP ASM GEN WR13X0500 Contact Us For Availability
452
SHIM HINGE BTM. GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7011 GEN WR02X7011 Contact Us For Availability
455
BREAKER STRIP-TOP & BTM. GEN WR40X5378 Contact Us For Availability
456
RETAINER BREAKER GEN WR02X5926 Contact Us For Availability
456
BREAKER STRIP-HINGE SIDE GEN WR40X5376 Contact Us For Availability
457
BREAKER STRIP-FF MULLION GEN WR40X1575 Contact Us For Availability
458
MULLION & TAB ASM(WH) GEN WR40X1576 Contact Us For Availability
471
GEN WR32X0709 GEN WR32X0709 Contact Us For Availability
472
GEN WR38X0954 GEN WR38X0954 Contact Us For Availability
473
GEN WR17X1515 GEN WR17X1515 Contact Us For Availability
473
GEN WR17X1516 GEN WR17X1516 Contact Us For Availability
474
GEN WR14X0282 GEN WR14X0282 Contact Us For Availability
552
SCR 12-24 HXW 1 1/64 SPP GEN WR01X1587 Contact Us For Availability
553
SCR 12-24 HXW 7/8 S PP GEN WR01X1188 Contact Us For Availability
554
SCR 10-24 BP PA 11/8 S GEN WR01X1483 Contact Us For Availability
554
SCR 8-32 D PA 3/8 S GEN WZ05X0194 Contact Us For Availability
556
SCR 8-32 MA TR 1/4 SS GEN WZ02X0460 Contact Us For Availability
563
GROMMET SCR CLOSED GEN WR01X1326 Contact Us For Availability
564
SCR 1/4-14 BA HX 3/4 SN GEN WR01X1194 Contact Us For Availability
616
BAFFLE SOUND REAR ASM GEN WR82X0220 Contact Us For Availability
627
BAFFLE & GRT ASM.COND FA GEN WR17X1632 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
651
BLADE COND FAN GEN WR60X0042 Contact Us For Availability
653
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
654
GEN WR02X7106 GEN WR02X7106 Contact Us For Availability
683
SCREW(MOTOR) 8-36 X 3/8 GEN WZ05X0164 Contact Us For Availability
730
GEN WR84X0050 GEN WR84X0050 Contact Us For Availability
731
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
732
CUP & BRACKET ASM-R.SIDE GEN WR02X1864 Contact Us For Availability
732
CUP & BRACKET ASM-L.SIDE GEN WR02X1865 Contact Us For Availability
734
GEN WR02X3583 GEN WR02X3583 Contact Us For Availability
734
COVER RELAY GEN WR02X3867 Contact Us For Availability
734
RELAY COMP GEN WR07X0138 Contact Us For Availability
735
GEN WR08X0044 GEN WR08X0044 Contact Us For Availability
737
SLEEVE COMP MTG GEN WR02X2202 Contact Us For Availability
738
TUBE COND LOOP ASM GEN WR84X0045 Contact Us For Availability
743
EXT COMP MTG GEN WR02X6157 Contact Us For Availability
745
NUTSTRIP COMP MTG D/J GEN WR02X3904 Contact Us For Availability
746
BAFFLE COMP FRT GEN WR17X1489 Contact Us For Availability
747
BAFFLE COMP FLR GEN WR17X1494 Contact Us For Availability
800
WATER VALVE ASM GEN WR57X0074 Contact Us For Availability
801
GEN WR62X0025 GEN WR62X0025 Contact Us For Availability
801
COIL ASM-WATER(BLUE) GEN WR62X0027 Contact Us For Availability
802
ELBOW WATER FITTING GEN WR57X0052 Contact Us For Availability
803
GEN WR57X0040 GEN WR57X0040 Contact Us For Availability
803
GEN WR57X0046 GEN WR57X0046 Contact Us For Availability
803
GEN WR57X0049 GEN WR57X0049 Contact Us For Availability
803
FITTING HOSE GEN WR57X0050 Contact Us For Availability
810
WATER TANK ASM DISP GEN WR17X1505 Contact Us For Availability
811
GEN WR02X4464 GEN WR02X4464 Contact Us For Availability
811
GEN WR02X4469 GEN WR02X4469 Contact Us For Availability
× ![]()
