Model Whirlpool TER20W0DW0 ELECTRIC RANGE – Common Parts & Diagrams

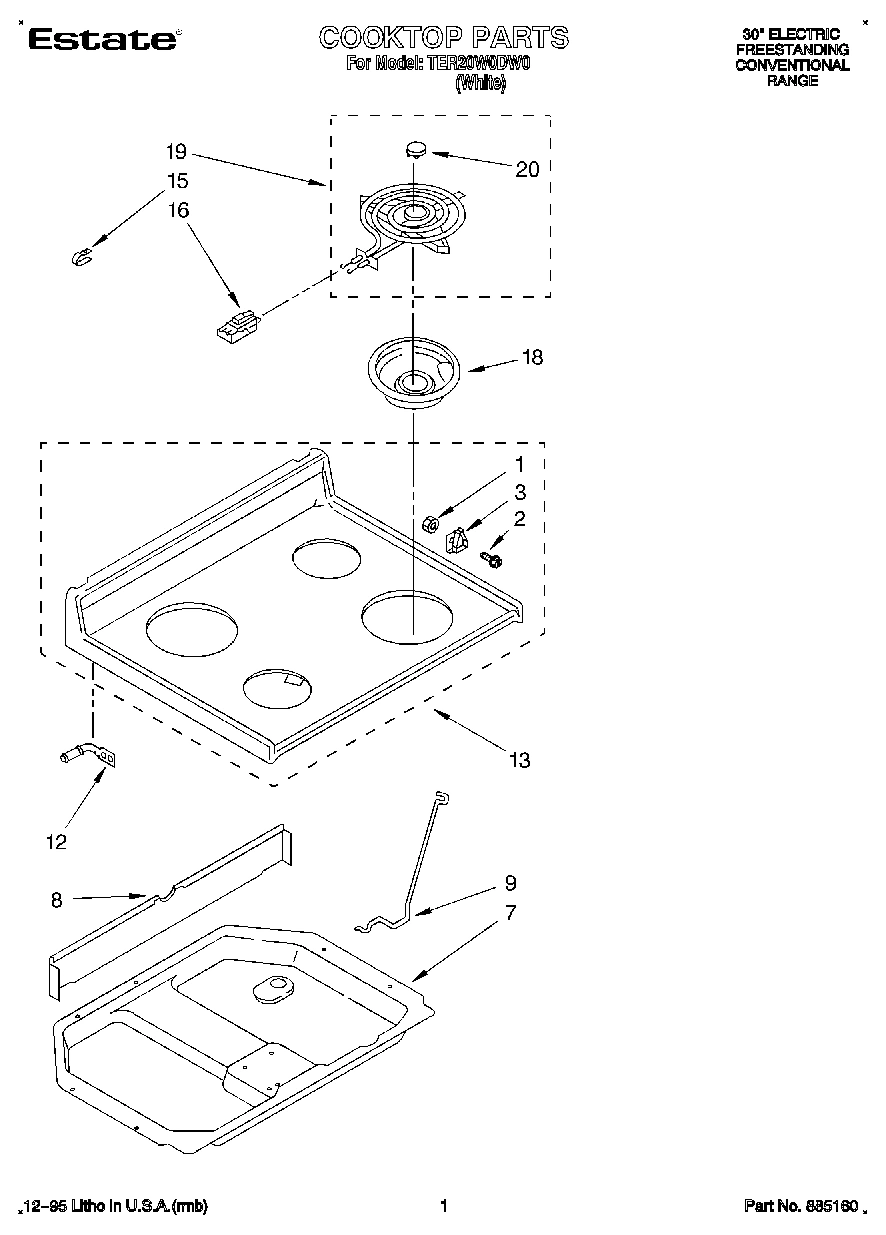

01 - COOKTOP

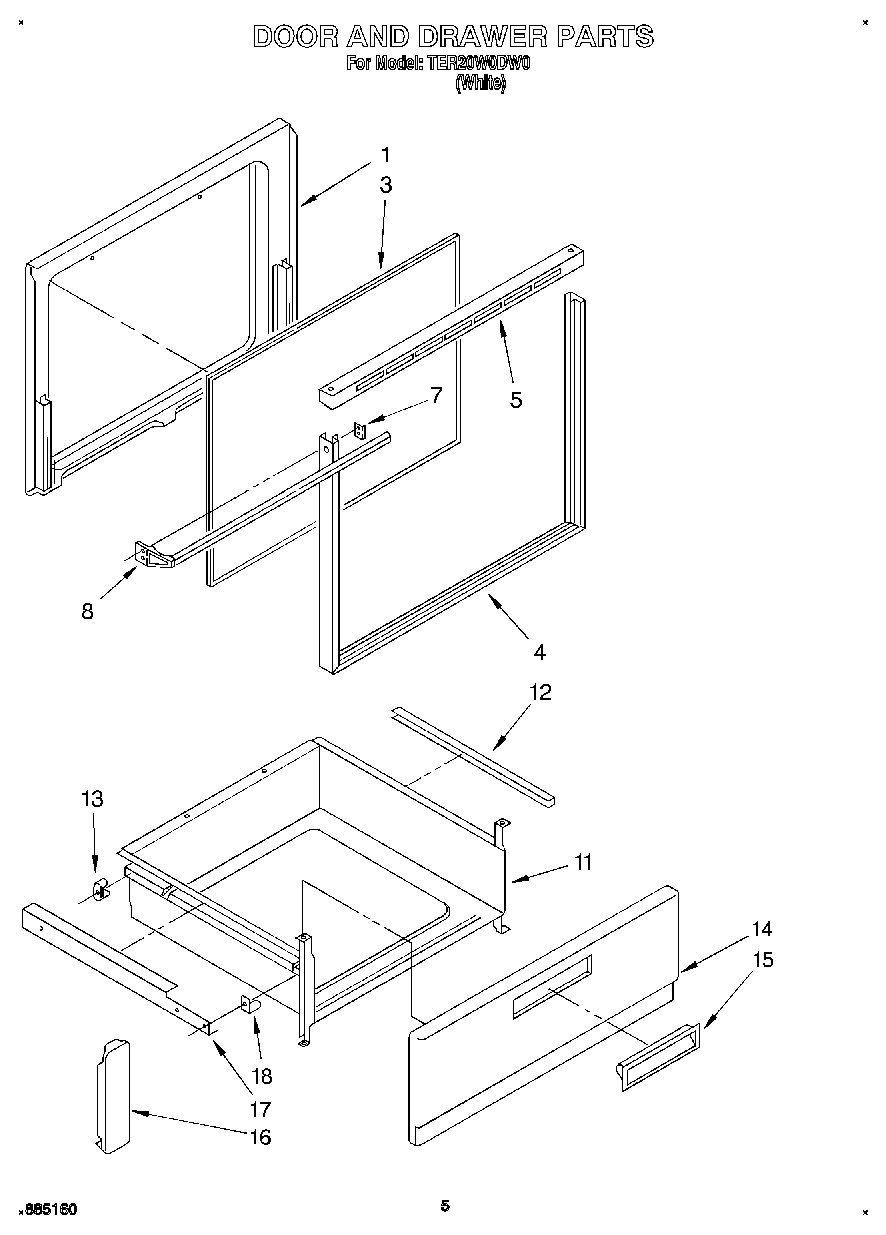

04 - DOOR AND DRAWER
05 - WIRING HARNESS, LIT/OPTIONAL
02 - CONTROL PANEL
03 - OVEN
Common parts from model Whirlpool TER20W0DW0 ELECTRIC RANGE
WPL LIT3150400 WPL LIT3150400 Contact Us For Availability
WPL LIT3169413 WPL LIT3169413 Contact Us For Availability
WPL LIT3189985 WPL LIT3189985 Contact Us For Availability
WPL LIT3190496 WPL LIT3190496 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability
1
End Trim R.H. WPL 3187671 Contact Us For Availability
1
End Trim L.H. WPL 3187672 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3190492 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
3
Clip, Snap-In WPL 3169449 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
4
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
4
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
4
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
4
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
4
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
4
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
4
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
4
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
4
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
4
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
4
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
4
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
4
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
4
Grease WPL 261582 Contact Us For Availability
4
Coffee WPL 261886 Contact Us For Availability
4
New Avocado WPL 261888 Contact Us For Availability
4
Harvest Gold WPL 261890 Contact Us For Availability
4
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
4
Toast WPL 285365 Contact Us For Availability
4
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
4
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
4
Platinum (Uncut) WPL 285368 Contact Us For Availability
4
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
4
WPL 72112 WPL 72112 Contact Us For Availability
4
WPL 799832 WPL 799832 Contact Us For Availability
4
WPL 978883 WPL 978883 Contact Us For Availability
4
Sleeve, Adaptor WPL 3169525 Contact Us For Availability
4
Screw WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
5
Screw (2) WPL 3149333 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
7
Clip, Handle (2) WPL 3148282 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Handle, Door (Black color) WPL 3188695 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Oven (30`` Conv.) WPL 3176612 Contact Us For Availability
10
Timer, Clock WPL 3169298 Contact Us For Availability
11
Motor, Timer WPL 309822 Contact Us For Availability
12
Glass, Timer WPL 3148852 Contact Us For Availability
12
Plug Button WPL 308535 Contact Us For Availability
13
Shield (2) WPL 313608 Contact Us For Availability
13
Seal, Heat WPL 3169283 Contact Us For Availability
15
Panel, Control WPL 3169196 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
17
Rail, Slide (L.H. (Includes No. 18)) WPL 3149256 Contact Us For Availability
18
Switch, Selector WPL 3150430 Contact Us For Availability
18
Glide, Front (2) WPL 3149257 Contact Us For Availability
18
Screw, 8-32 x 1/4 (2) WPL 308119 Contact Us For Availability
18
Spring, Stop WPL 308207 Contact Us For Availability
19
Thermostat, Oven WPL 3169302 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
20
Light, Indicator (Oven) WPL 314031 Contact Us For Availability
21
Light, Indicator (Surface Unit) WPL 3150662 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Door (2) WPL 308127 Contact Us For Availability
24
Support, Channel (L.H.) WPL 313196 Contact Us For Availability
24
Support, Channel (R.H.) WPL 313197 Contact Us For Availability
25
Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability
25
Support, Foot (2) WPL 3169418 Contact Us For Availability
26
Cover, Foot (2) WPL 3169448 Contact Us For Availability
27
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
28
Lens, Amber (2) WPL 313101 Contact Us For Availability
28
Plate, Service WPL 307972 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Cover, Rear WPL 3148975 Contact Us For Availability
31
Knob, Selector WPL 3149984 Contact Us For Availability
34
Oven Rack (2) WPL 308173 Contact Us For Availability
35
Screw (2) WPL 98884 Contact Us For Availability
36
Bracket, Service WPL 3150190 Contact Us For Availability
37
Ground Strap WPL 308498 Contact Us For Availability
37
Clip WPL 313660 Contact Us For Availability
39
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
42
Insulation, Oven Wrap WPL 309961 Contact Us For Availability
42
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
