Model LG T1490SEHTC.ABWETUS – Common Parts & Diagrams
TOP COVER ASSEMBLY
OUTER CASE ASSEMBLY

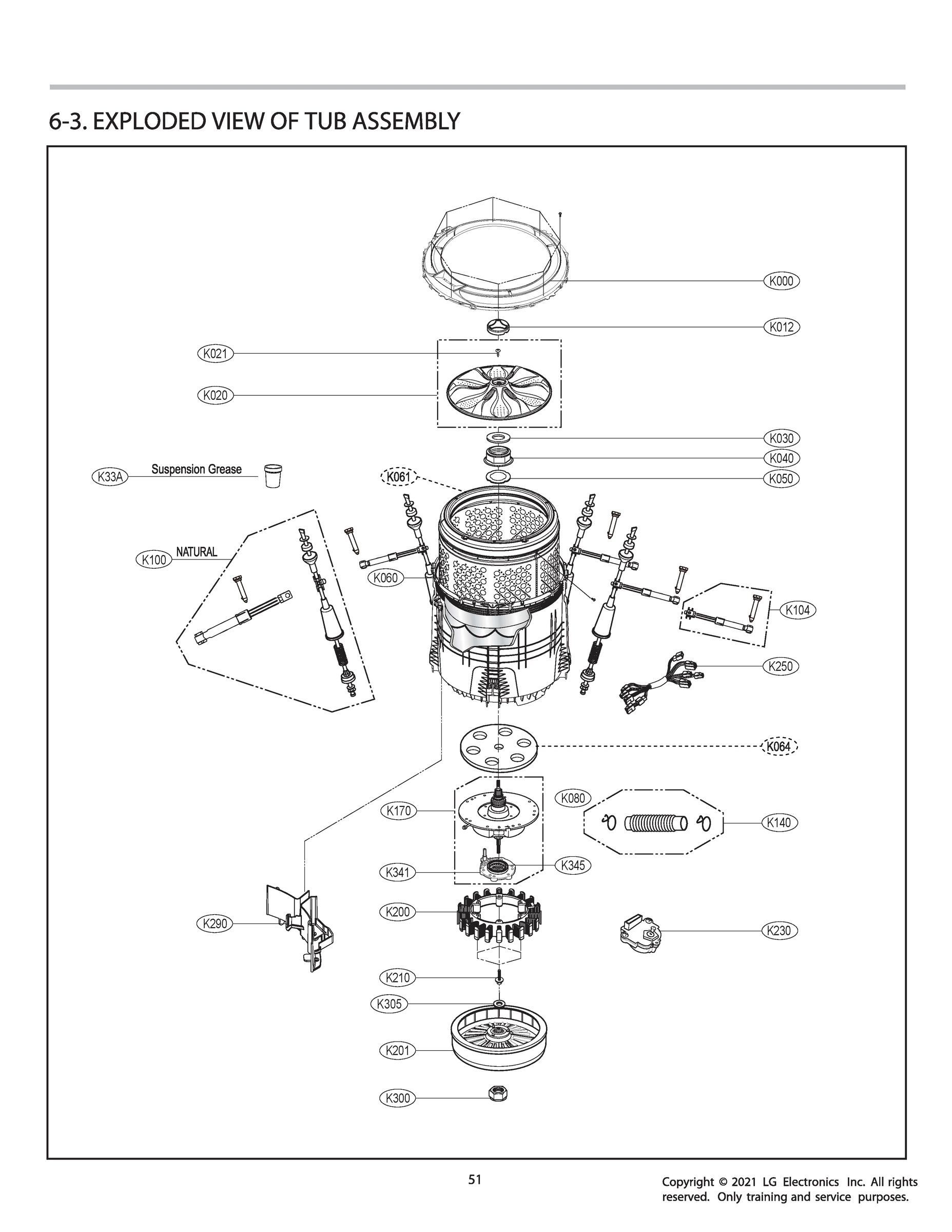

TUB ASSEMBLY
Common parts from model LG T1490SEHTC.ABWETUS
A056
Knob Assembly LGE AEZ73913405 Contact Us For Availability
A063
Cover,Protect LGE MCK66959301 Contact Us For Availability
A125
Cover,Guide LGE MCK62185701 Contact Us For Availability
A140
Switch Assembly LGE EBF61674804 Contact Us For Availability
A150
Box Assembly,Detergent LGE AAZ73855914 Contact Us For Availability
A241
Filter Assembly LGE 6201EC2002V Contact Us For Availability
F005
Damper LGE MCQ67395225 Contact Us For Availability
F020
Base Assembly,Cabinet LGE AAN73431031 Contact Us For Availability
F023
Damper LGE 5040FA4226E Contact Us For Availability
F027
Leg Assembly LGE 4263FA3933E Contact Us For Availability
F032
Holder LGE 4930EA3002A Contact Us For Availability
F032
Holder LGE 4930EA3002F Contact Us For Availability
F040
Cover Assembly,Base LGE 3551FA1886H Contact Us For Availability
F070
Cover,Rear LGE MCK67652502 Contact Us For Availability
F070
Cover,Rear LGE MCK67652501 Contact Us For Availability
F070
Cover,Rear LGE MCK67652507 Contact Us For Availability
F080
Pump Assembly,Drain LGE AHA75673404 Contact Us For Availability
F086
Harness,Single LGE EAD64205502 Contact Us For Availability
F090
Connector,Drain Hose LGE MCD62647002 Contact Us For Availability
F100
Hose Assembly,Drain LGE AEM73732909 Contact Us For Availability
F100
Hose Assembly,Drain LGE AEM73732912 Contact Us For Availability
K000
Cover,Tub LGE MCK71191001 Contact Us For Availability
K000
Cover,Tub LGE MCK71191003 Contact Us For Availability
K012
Cap,Pulsator LGE MBL68680501 Contact Us For Availability
K020
Pulsator,Washing LGE MGP62563001 Contact Us For Availability
K020
Pulsator,Washing LGE MGP62563002 Contact Us For Availability
K040
Nut,Common LGE 4020FA4208S Contact Us For Availability
K040
Nut,Common LGE 4020FA4208V Contact Us For Availability
K050
Washer,Common LGE 4040FA4045C Contact Us For Availability
K060
Tub Assembly,Inner LGE AJQ75153804 Contact Us For Availability
K080
Gasket LGE 4036FA4364B Contact Us For Availability
K33A
Packing Assembly LGE 3921FZ4033A Contact Us For Availability
K100
Suspension Assembly LGE AJK73229707 Contact Us For Availability
K104
Damper,Parts Assembly,SVC LGE AGM74269801 Contact Us For Availability
K140
Bellows Assembly LGE AAS73229402 Contact Us For Availability
K170
Housing Assembly,Clutch Coupling LGE AEN74532607 Contact Us For Availability
K170
Housing Assembly,Clutch Coupling LGE AEN74532611 Contact Us For Availability
K200
Stator Assembly LGE AJB73816015 Contact Us For Availability
K200
Stator Assembly,Combined LGE AJB76315015 Contact Us For Availability
K200
Stator Assembly,Combined LGE AJB76315035 Contact Us For Availability
K201
Rotor Assembly LGE AHL73894503 Contact Us For Availability
K201
Rotor Assembly,Combined LGE AHL76195103 Contact Us For Availability
K201
Rotor Assembly,Combined LGE AHL76195121 Contact Us For Availability
K210
Bolt,Common LGE FAA30850701 Contact Us For Availability
K230
Motor Assembly,DC,Clutch LGE EAU63743301 Contact Us For Availability
K230
Motor Assembly,DC,Clutch LGE EAU64283201 Contact Us For Availability
K250
Harness,Multi LGE EAD64149705 Contact Us For Availability
K290
Guide,Water LGE 4974EA2004B Contact Us For Availability
K300
Nut,Common LGE FAD33190601 Contact Us For Availability
K305
Washer,Common LGE 1WZZEA4002C Contact Us For Availability
K341
Coupling Assembly LGE ACP73009001 Contact Us For Availability
K345
Coupling LGE MCJ61861207 Contact Us For Availability
× ![]()
