Model Speed Queen SSE107*G3018 Dryer – Common Parts & Diagrams

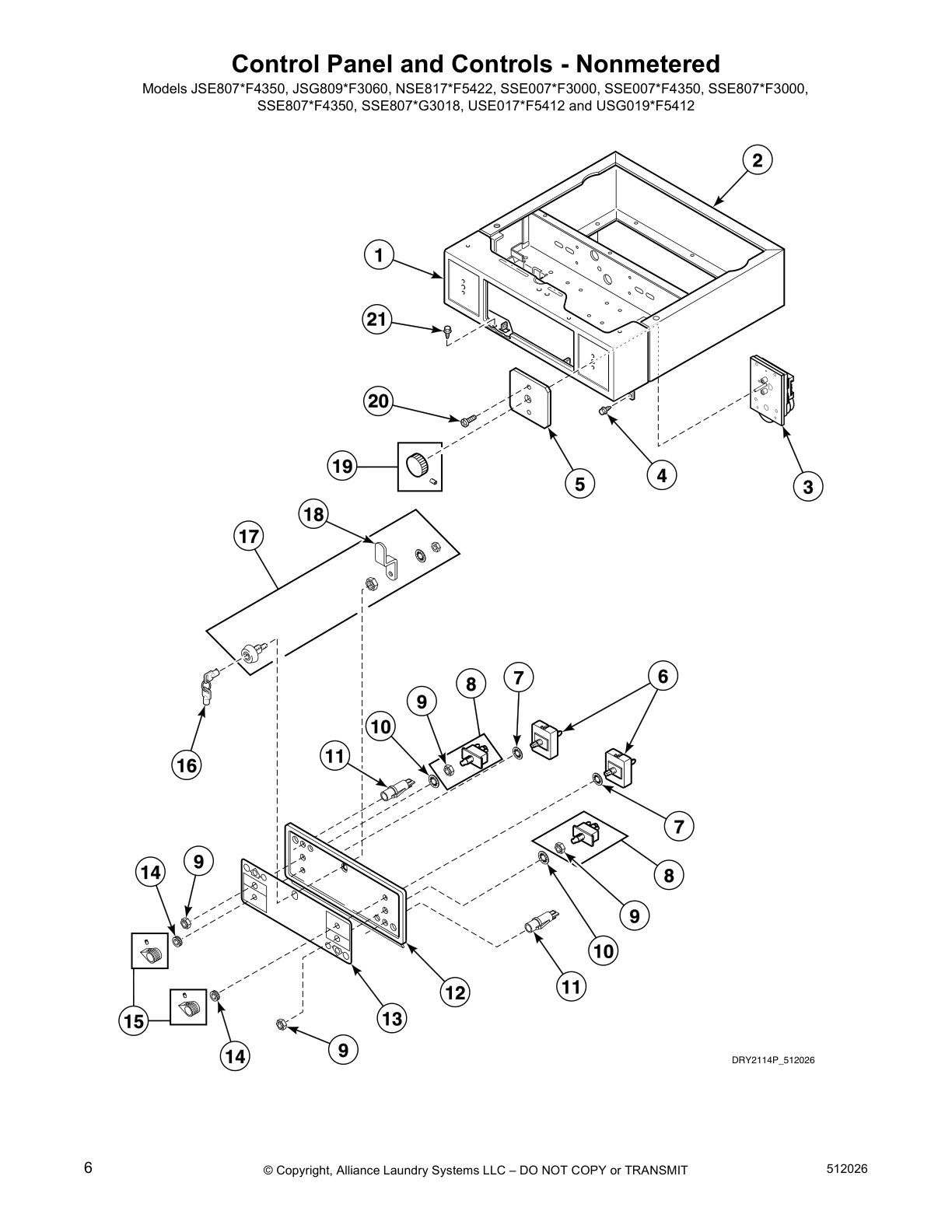

Control Panel and Controls - Nonmetered

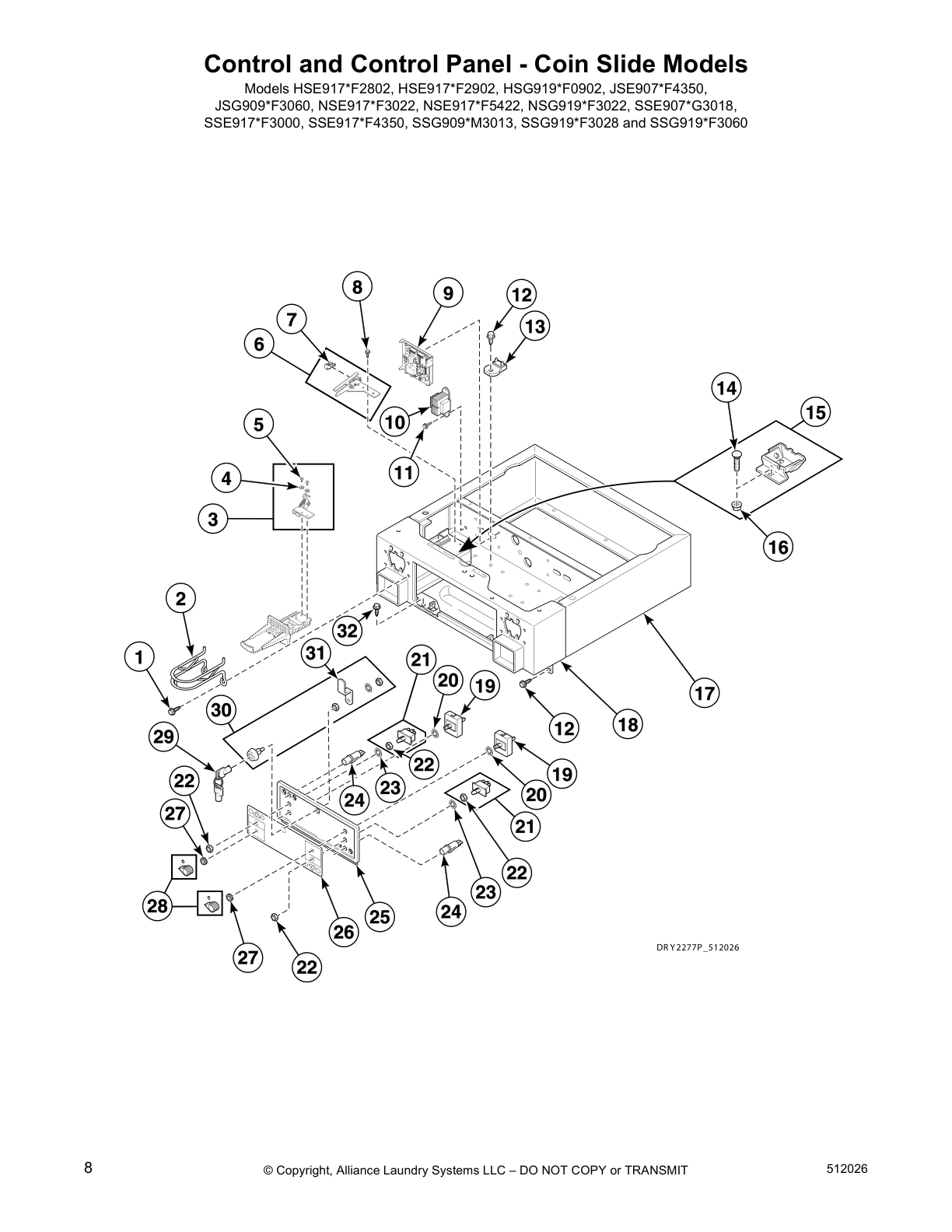

Control and Control Panel - Coin Slide Models

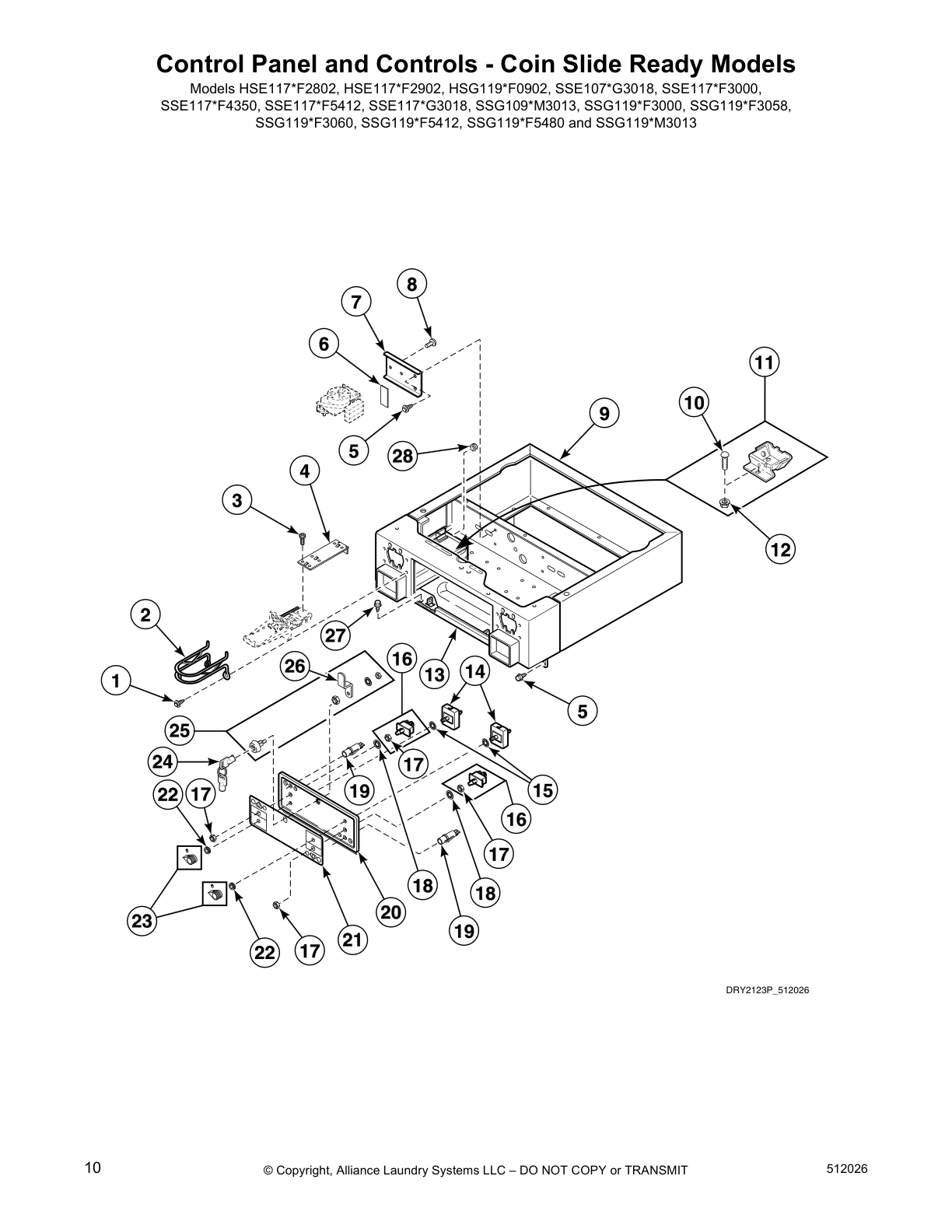

Control Panel and Controls - Coin Slide Ready Models

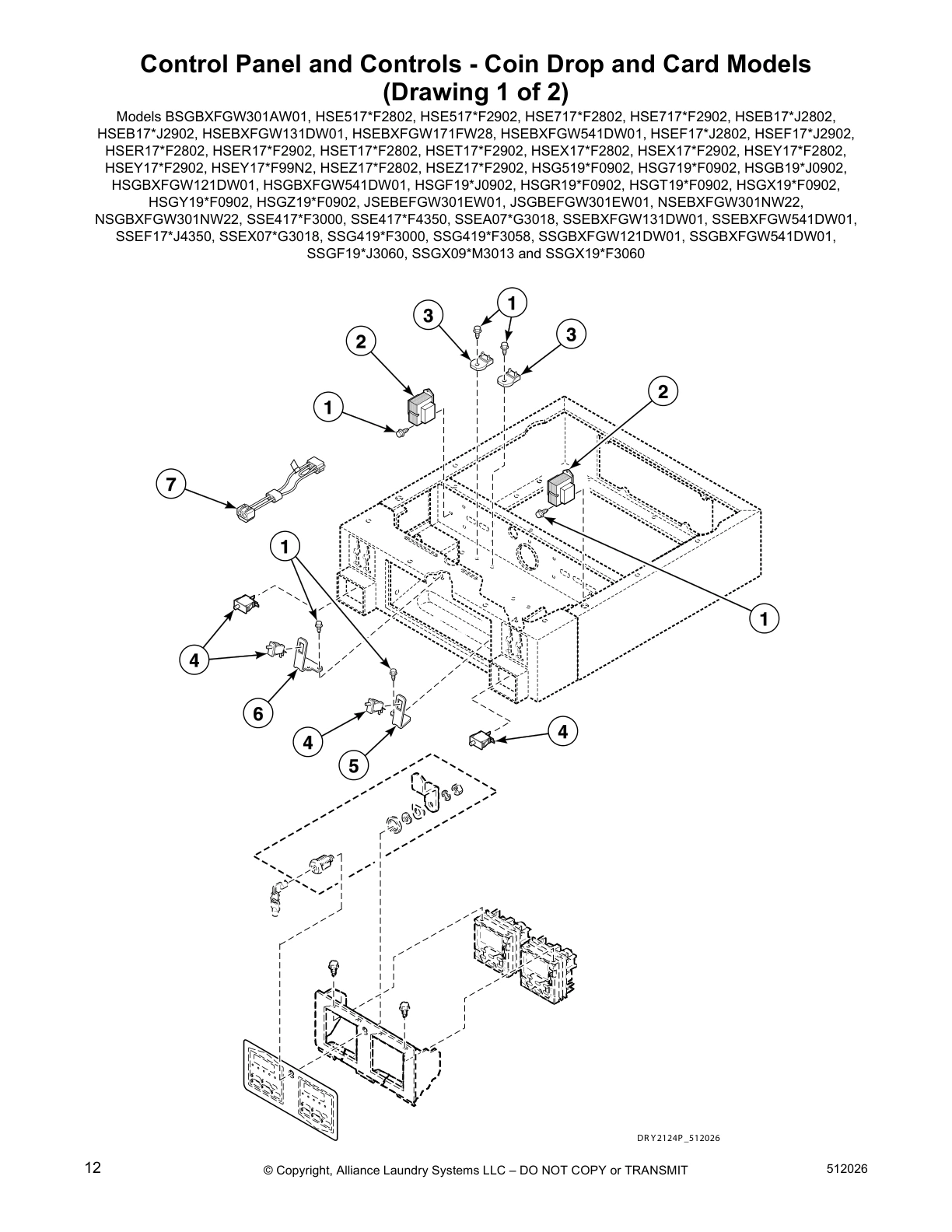

Control Panel and Controls - Coin Drop and Card Models
(Drawing 1 of 2)

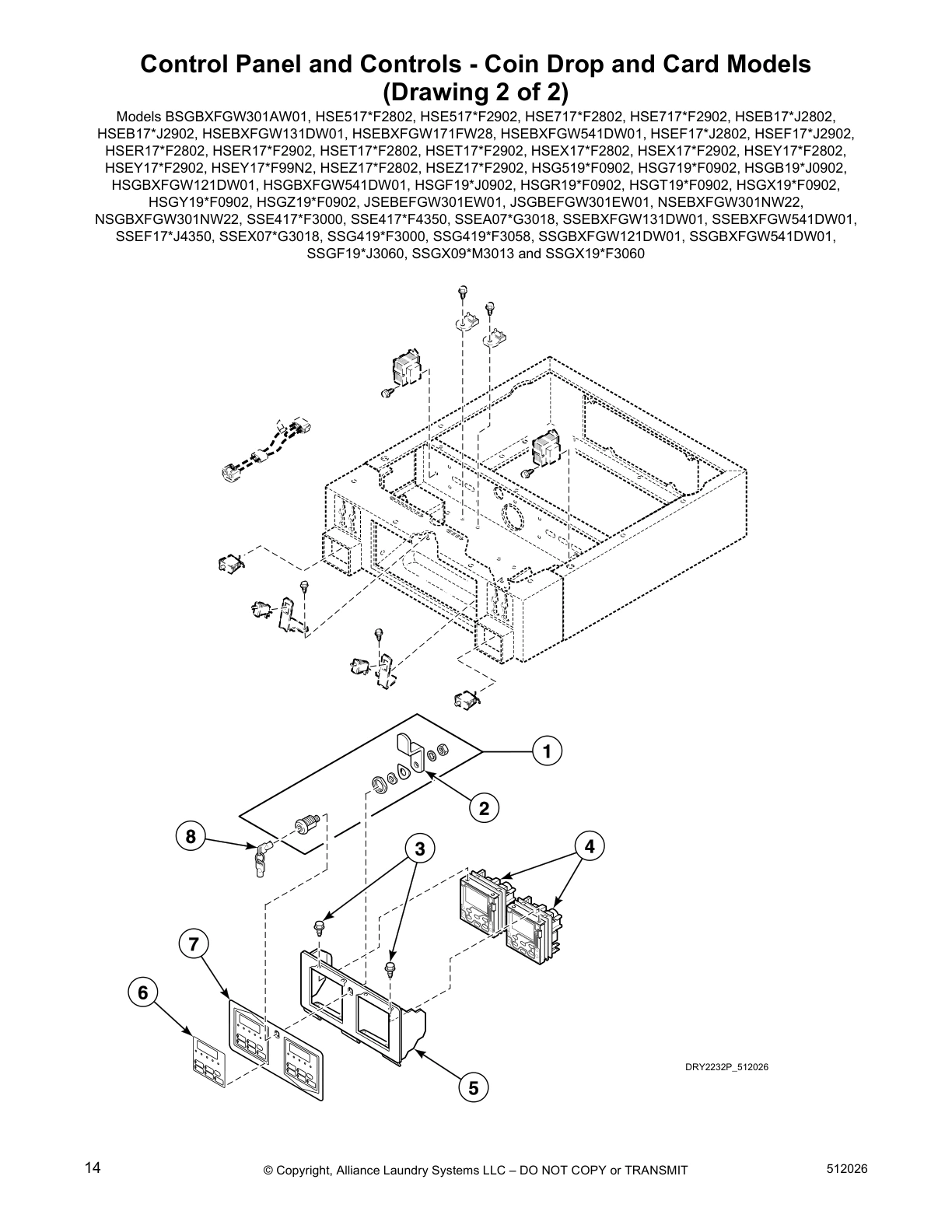

Control Panel and Controls - Coin Drop and Card Models
(Drawing 2 of 2)

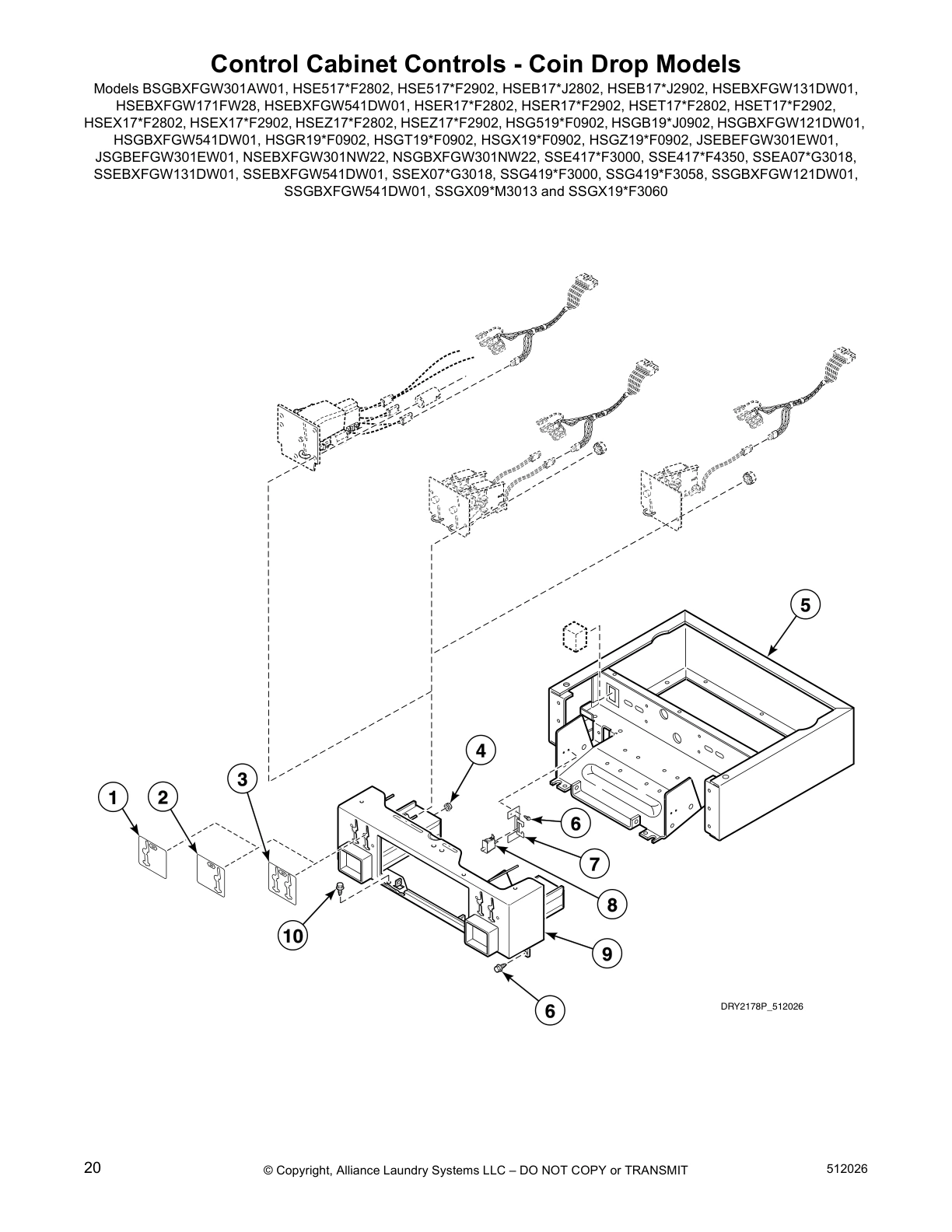

Control Cabinet Controls - Coin Drop Models

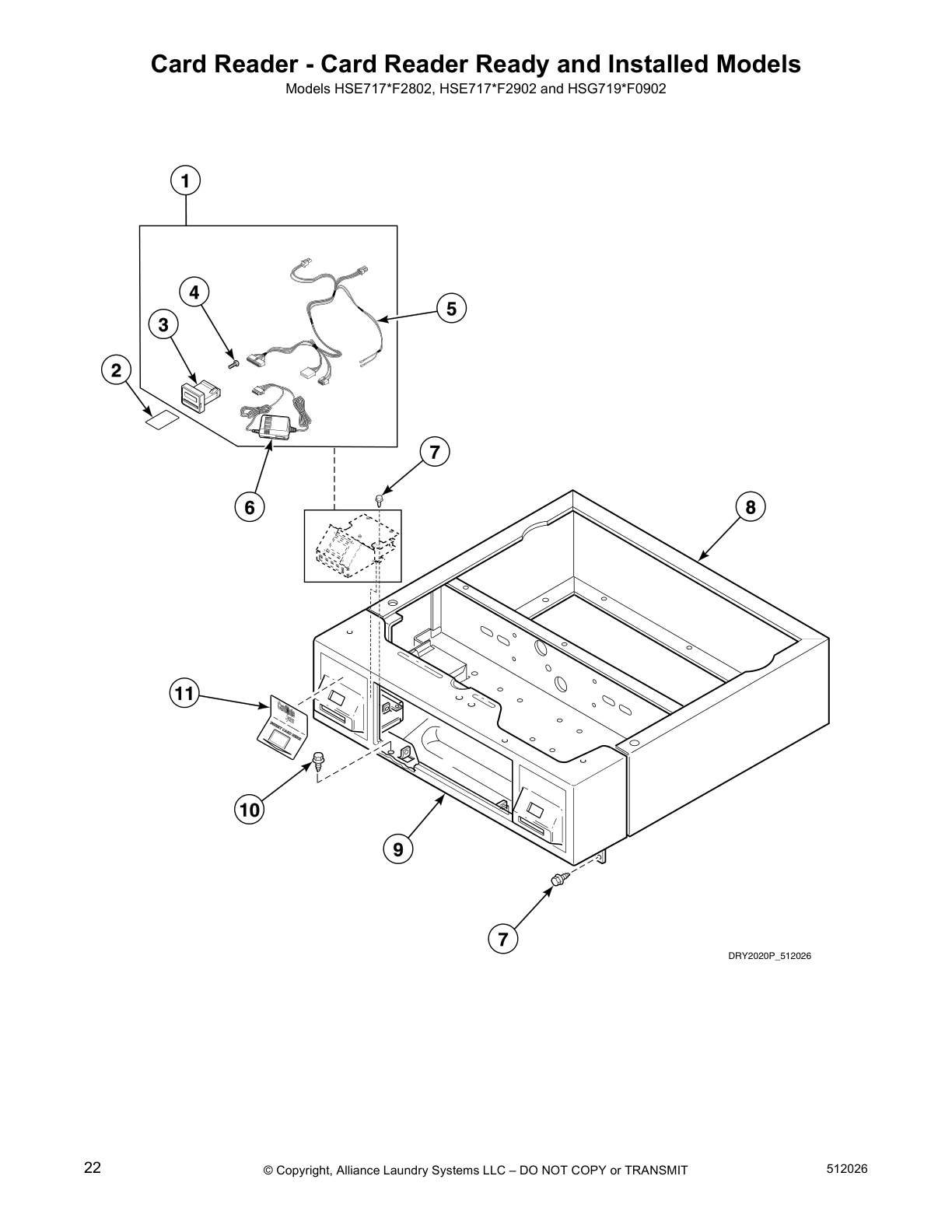

Card Reader - Card Reader Ready and Installed Models

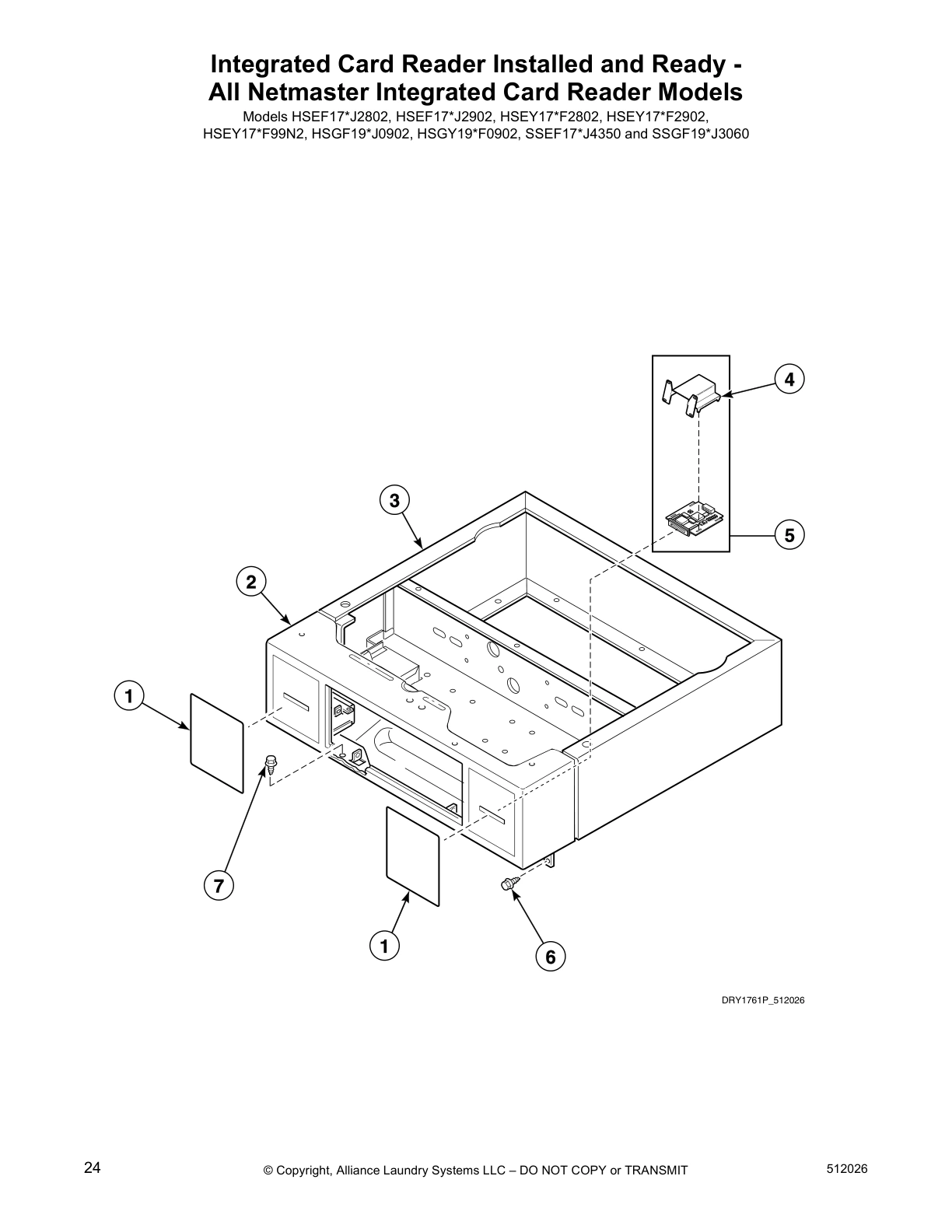

Integrated Card Reader Installed and Ready -
All Netmaster Integrated Card Reader Models

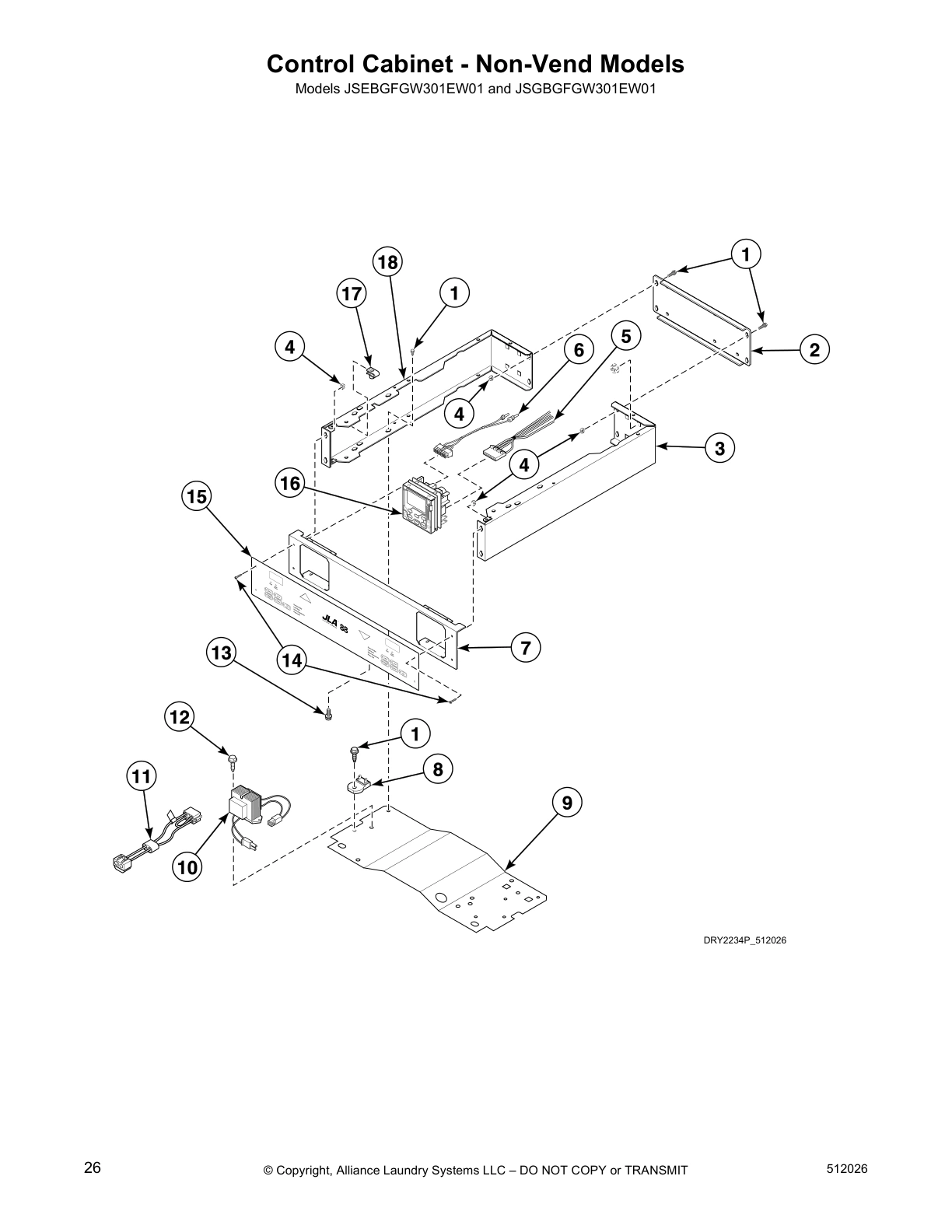

Control Cabinet - Non-Vend Models

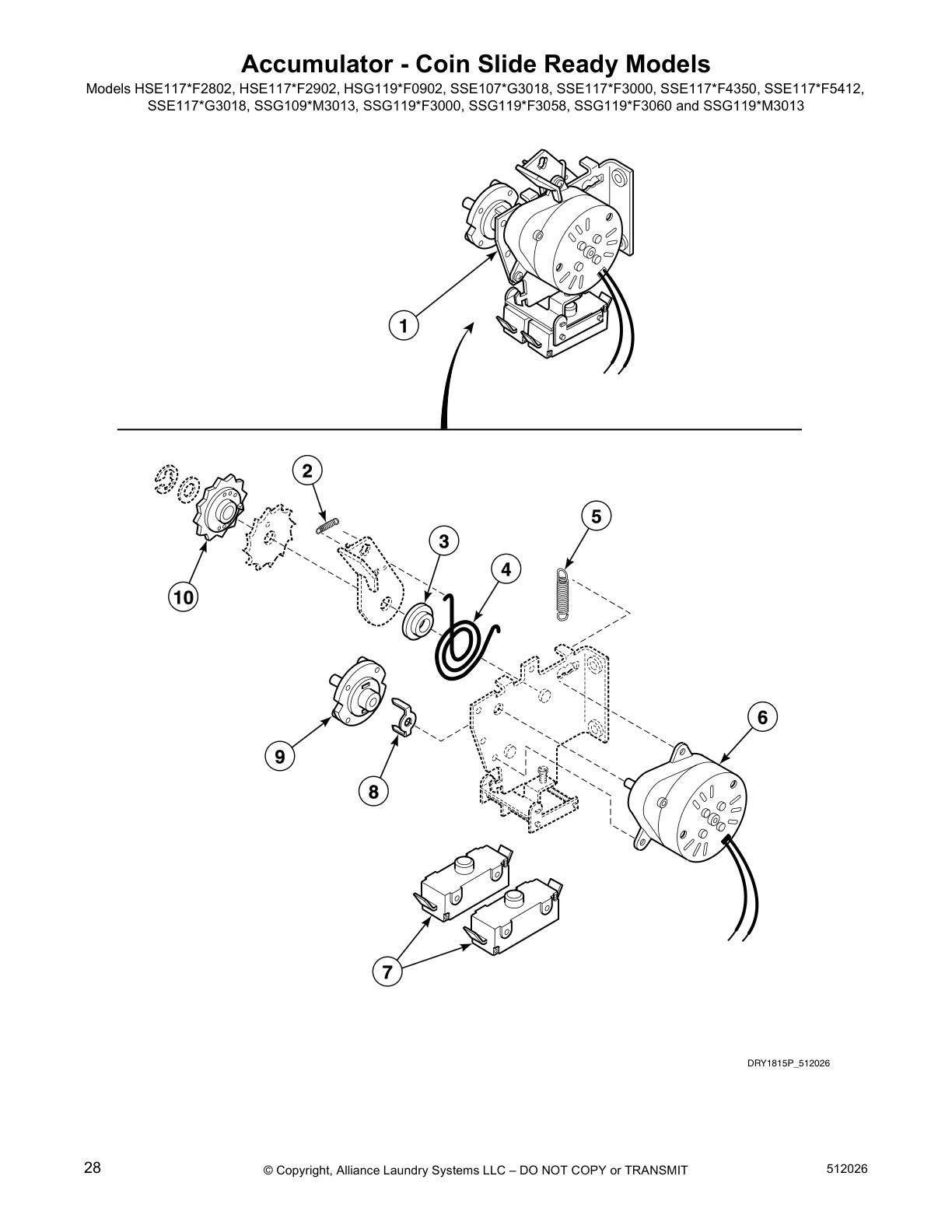

Accumulator - Coin Slide Ready Models

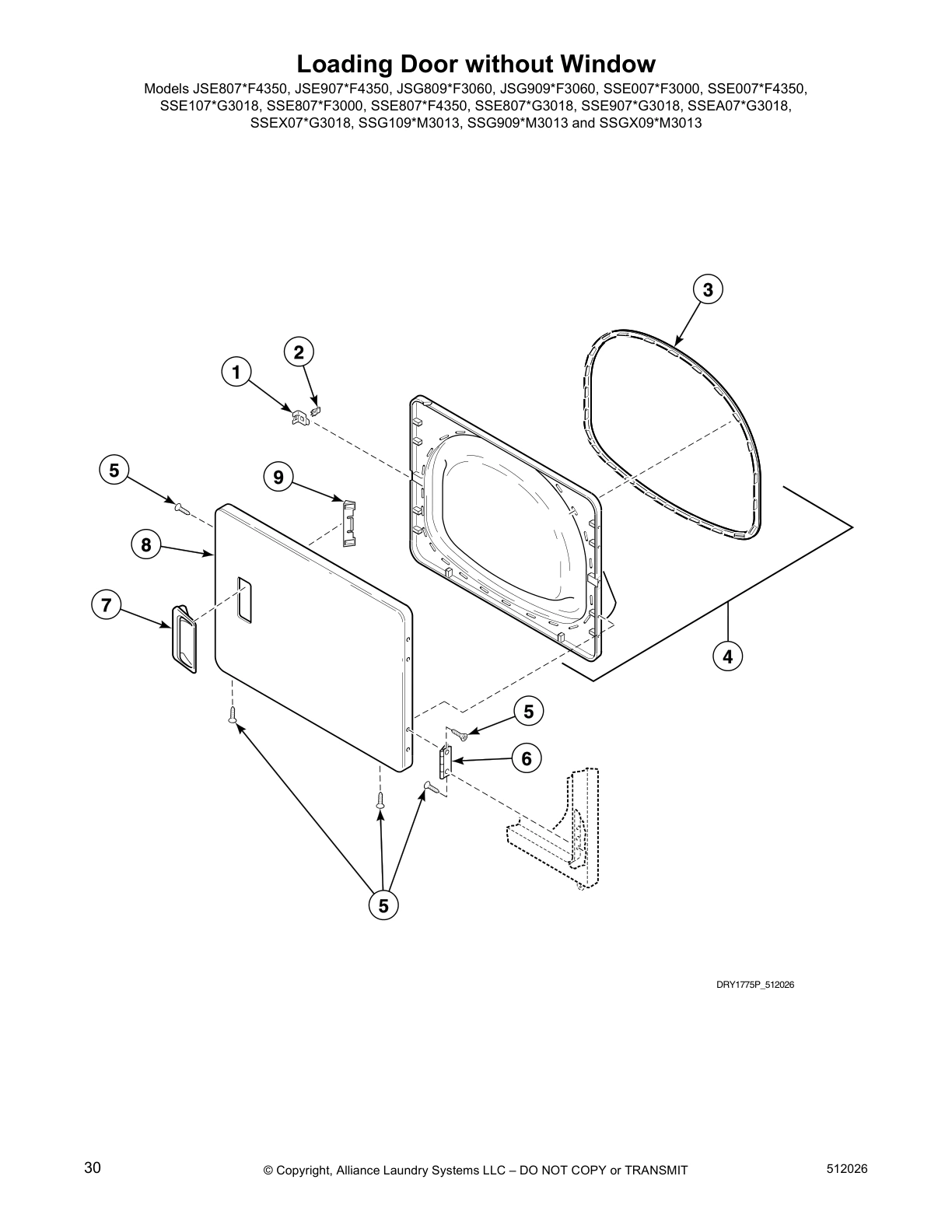

Loading Door without Window

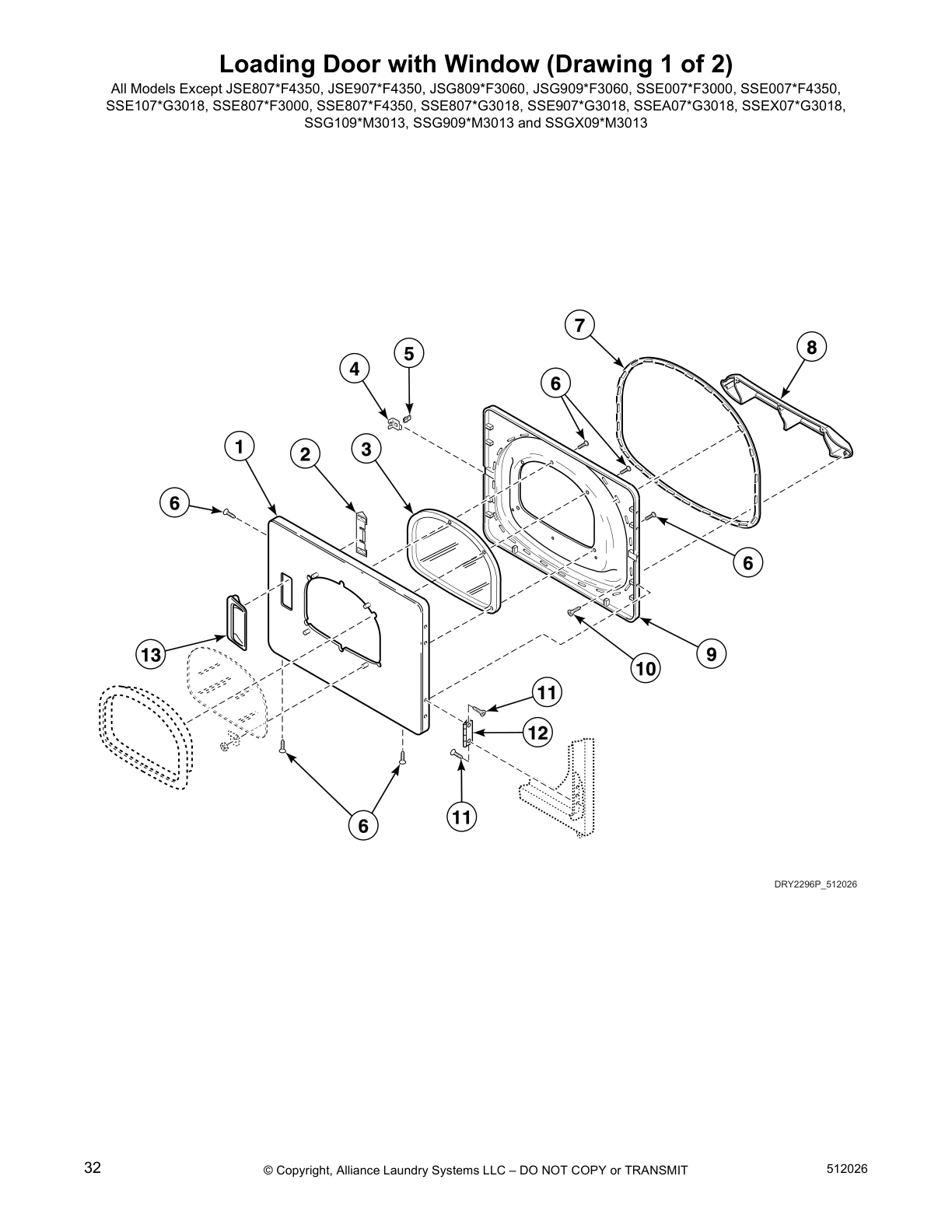

Loading Door with Window (Drawing 1 of 2)

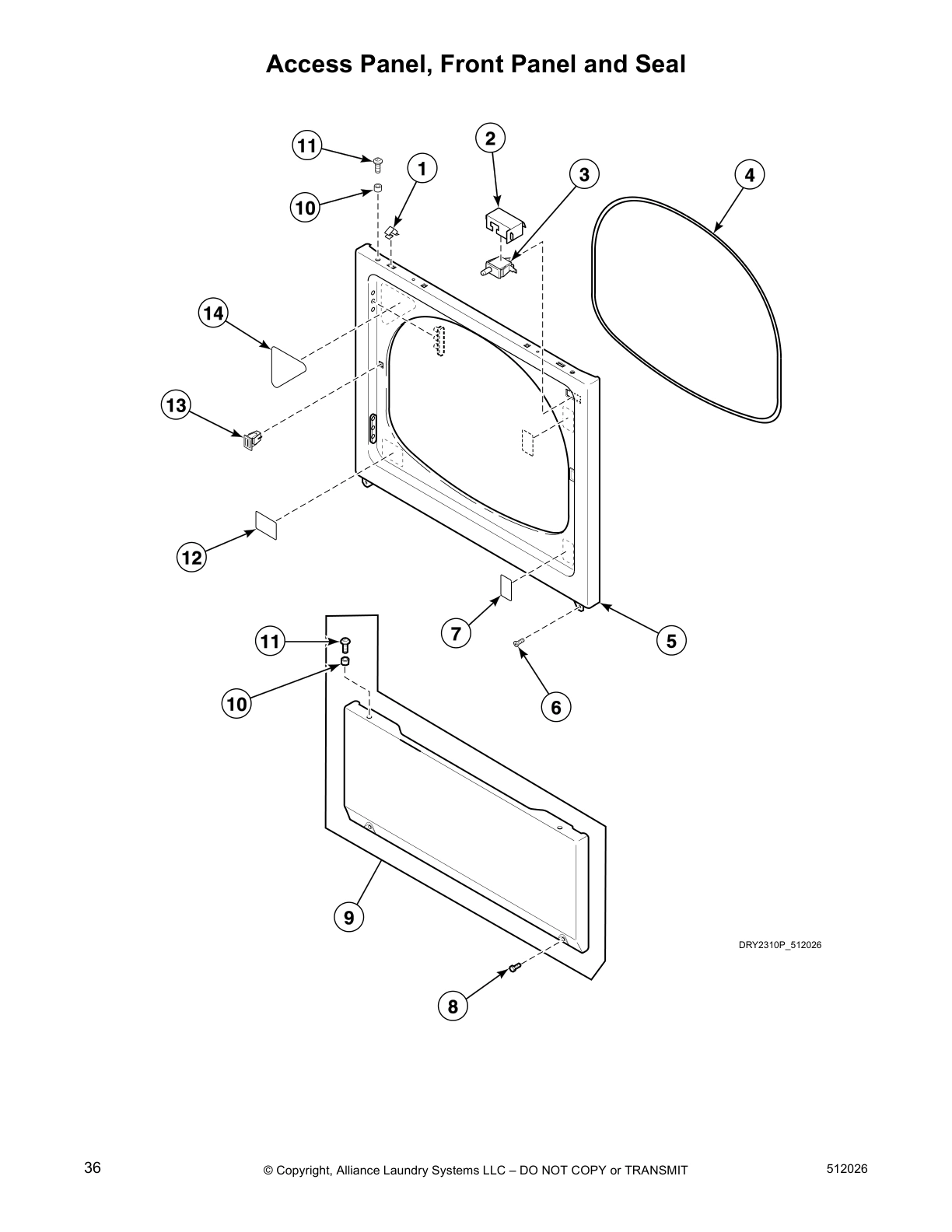

Access Panel, Front Panel and Seal
Common parts from model Speed Queen SSE107*G3018 Dryer
2
Door Handle Wedge SPQ 510103LP Contact Us For Availability
5
Door Strike SPQ 510129 Contact Us For Availability
6
Screw SPQ 510066LP Contact Us For Availability
7
Access Panel SPQ 510066WP Contact Us For Availability
NI
SPQ 62853 SPQ 62853 Contact Us For Availability
NI
SPQ 91176 SPQ 91176 Contact Us For Availability
NI
SPQ 510069LP SPQ 510069LP Contact Us For Availability
× ![]()
