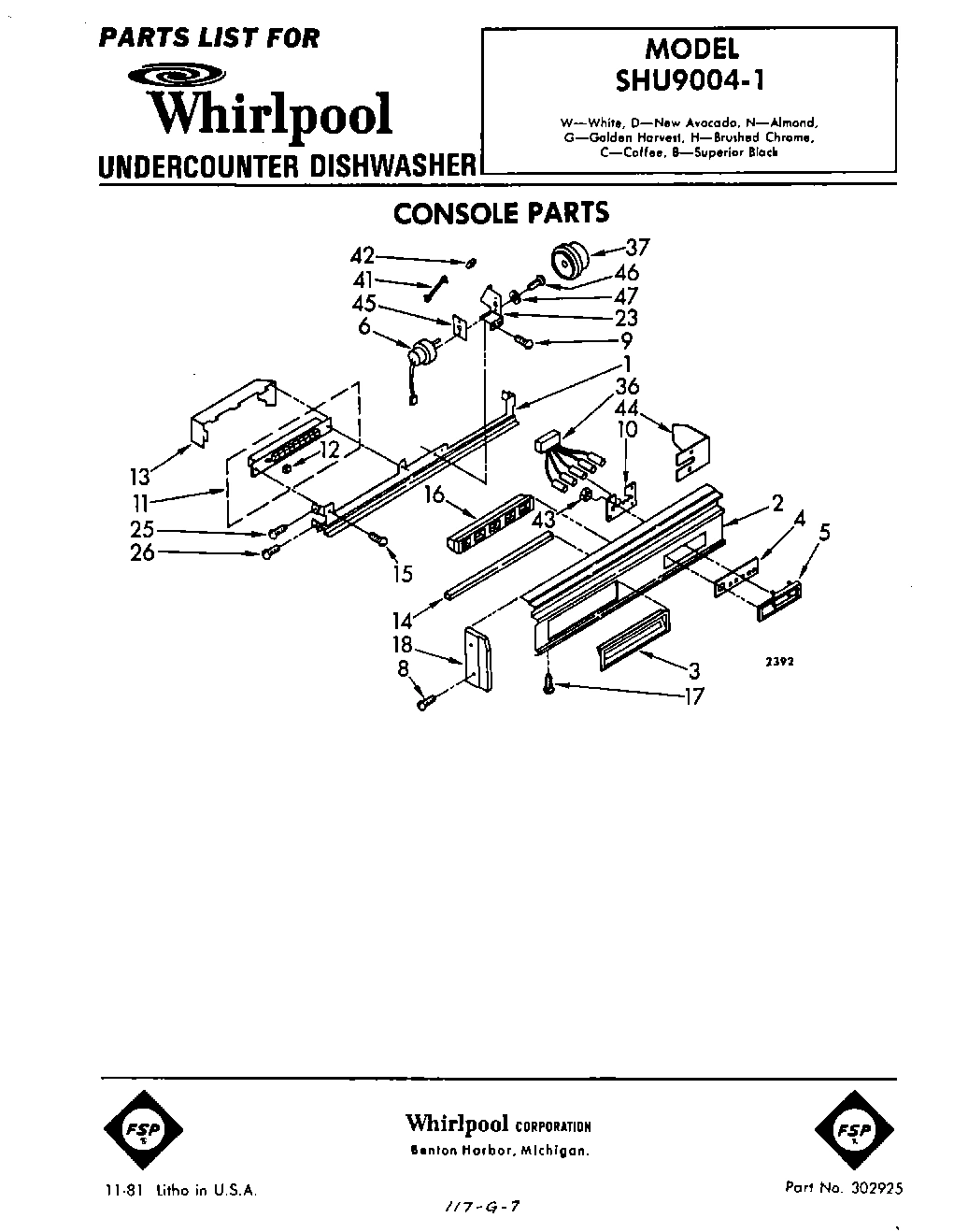

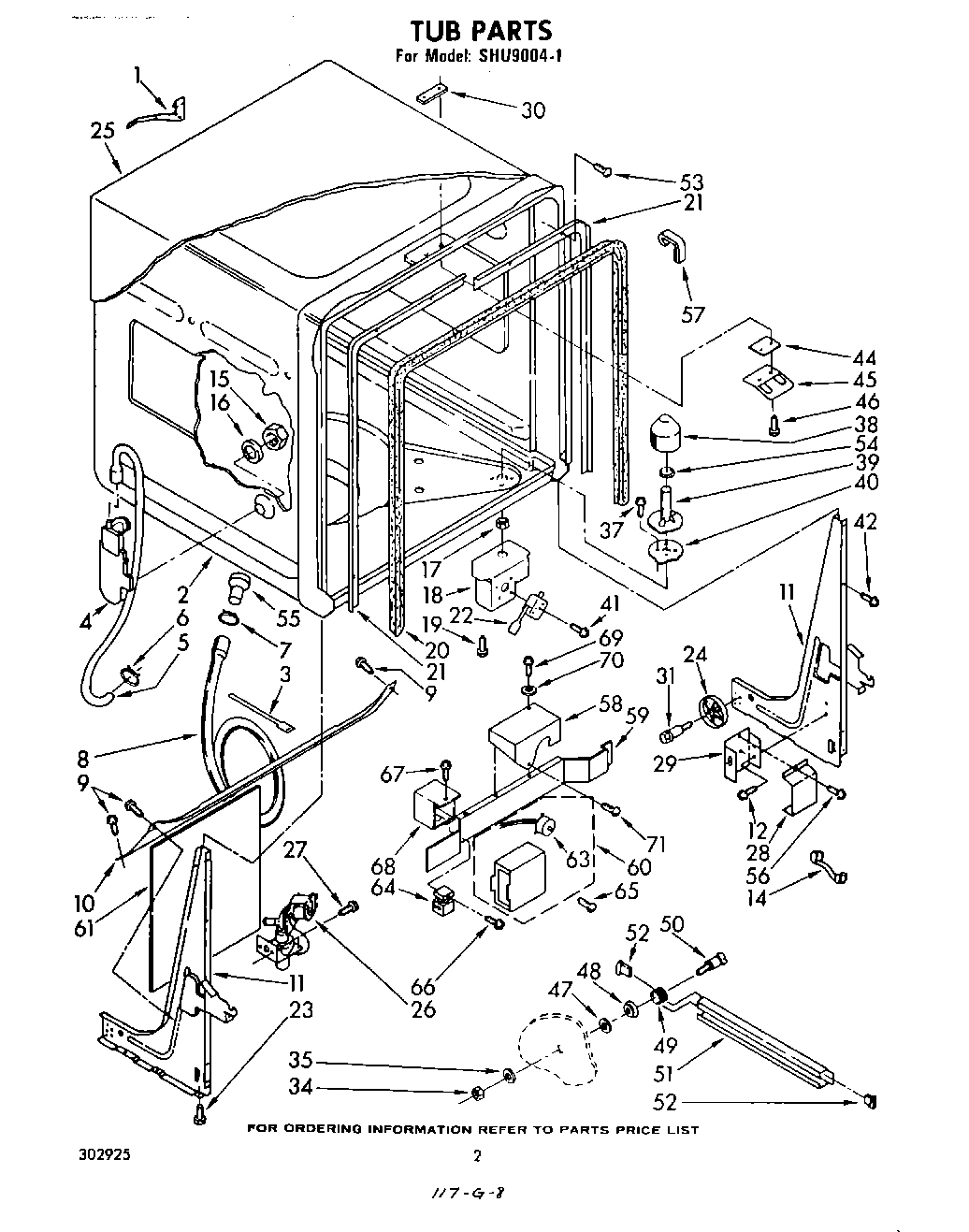

Model Whirlpool SHU90041 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

1

Bracket, Mounting (2) WPL 300796 Contact Us For Availability

1

Wheel & Gear Assembly (4) WPL 302025 Contact Us For Availability

1

Door, Inner (Includes Illus. 4) WPL 302036 Contact Us For Availability

1

Pump Housing, Upper WPL 301558 Contact Us For Availability

2

4317933 Whirlpool Lower Rack Wheels In Stock WPL 4317933 $14.55

2

Terminal, Female WPL 352088 Contact Us For Availability

2

Seal, Ring WPL 718259 Contact Us For Availability

2

Tub Assembly WPL 303110 Contact Us For Availability

2

Support, Door (R.H.) WPL 301946 Contact Us For Availability

2

Support, Door (L.H.) WPL 301947 Contact Us For Availability

3

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

3

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

3

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

3

Gasket, Door WPL 717921 Contact Us For Availability

3

Screw, 10-32 x .75 WPL 718326 Contact Us For Availability

4

Inlet, Water WPL 300974 Contact Us For Availability

4

Cover, Housing (2) WPL 302029 Contact Us For Availability

4

Liner, Door WPL 302031 Contact Us For Availability

4

Impeller WPL 719949 Contact Us For Availability

4

Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

5

Hose, Inlet WPL 301054 Contact Us For Availability

5

Housing, Gear (2) WPL 302028 Contact Us For Availability

5

Retainer, Check Valve WPL 300797 Contact Us For Availability

6

353424 Whirlpool Connector Backorder WPL 353424 $10.76

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

Worm, Dishrack (2) WPL 302026 Contact Us For Availability

6

Button, Retainer (5) WPL 300239 Contact Us For Availability

6

Pump Housing, Lower WPL 718222 Contact Us For Availability

7

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

7

Screw, 8-18 x 3/8 Hi-Lo (5) WPL 300250 Contact Us For Availability

7

Plug, Terminal WPL 353425 Contact Us For Availability

8

675544 Whirlpool Drain Hose Backorder WPL 675544 $48.15

8

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

8

Bumper (1) WPL 715779 Contact Us For Availability

9

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

9

Coverplate WPL 300084 Contact Us For Availability

9

Receptacle (5-Circuit) WPL 719585 Contact Us For Availability

Brace WPL 303111 Contact Us For Availability

Shelf, Cup (Right Side) WPL 302071 Contact Us For Availability

Shelf, Cup (Left Side) WPL 302072 Contact Us For Availability

Spacer WPL 301619 Contact Us For Availability

Harness, Wiring WPL 303153 Contact Us For Availability

Leg & Hinge Assembly, L.H. (Includes Illus. 1 WPL 302822 Contact Us For Availability

Leg & Hinge Assembly, R.H. WPL 302823 Contact Us For Availability

Screen, Vent WPL 300246 Contact Us For Availability

Kit, Impeller Drain WPL 675297 Contact Us For Availability

Plug, Terminal WPL 94611 Contact Us For Availability

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

Screw, 8-32 x 3/8 WPL 718178 Contact Us For Availability

Latch Assembly WPL 300235 Contact Us For Availability

Screw, 13-16 (4) WPL 301817 Contact Us For Availability

Cap, Terminal WPL 94612 Contact Us For Availability

13

Adapter, Rack WPL 302052 Contact Us For Availability

13

Base, Pump WPL 301812 Contact Us For Availability

13

Disconnect, Block Timer WPL 352090 Contact Us For Availability

Relief, Strain WPL 717563 Contact Us For Availability

Bumper (2) WPL 719964 Contact Us For Availability

Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability

Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability

Support, Pump (4) WPL 718260 Contact Us For Availability

Connector, Block (Alternate) WPL 300708 Contact Us For Availability

Connector Block (Alternate) WPL 374230 Contact Us For Availability

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

Nut, 7/8-16 WPL 713799 Contact Us For Availability

Tower WPL 302030 Contact Us For Availability

Pin, Pivot WPL 300234 Contact Us For Availability

Connector Block WPL 301219 Contact Us For Availability

Gasket WPL 713878 Contact Us For Availability

Panel, R.S. WPL ARI130469A Contact Us For Availability

Motor (Emerson) WPL 301811 Contact Us For Availability

Motor (General Electric) WPL 301858 Contact Us For Availability

Terminal, Insulator WPL 358736 Contact Us For Availability

17

Nut, .125 WPL 717488 Contact Us For Availability

17

Silverware Basket Assembly WPL 301994 Contact Us For Availability

17

Bleeder Assembly WPL 718629 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Bracket, Overflow WPL 719342 Contact Us For Availability

Pump & Motor Assembly (Alternate) WPL 301829 Contact Us For Availability

Pump & Motor Assembly (Alternate) WPL 301860 Contact Us For Availability

Pump & Motor Assembly (Alternate) WPL 301861 Contact Us For Availability

19

Handle, Basket WPL 300086 Contact Us For Availability

19

Dispenser, Wetting Agent WPL 719341 Contact Us For Availability

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

Gasket, Tub (Alternate) WPL 302090 Contact Us For Availability

Gasket, Tub (Alternate) WPL 302091 Contact Us For Availability

Utensil Basket Assembly WPL 301998 Contact Us For Availability

Washer (2) WPL 713080 Contact Us For Availability

Retainer (R.H.) WPL 302093 Contact Us For Availability

Retainer (L.H.) WPL 302094 Contact Us For Availability

Trim, Basket WPL 717528 Contact Us For Availability

Nut, 1-14 Buttress Thread (1) WPL 718575 Contact Us For Availability

675238 Whirlpool Check Valve In Stock WPL 675238 $28.04

Switch, Pressure WPL 301671 Contact Us For Availability

Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability

Cap WPL 718577 Contact Us For Availability

23

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

23

``O`` Ring WPL 95080 Contact Us For Availability

24

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

25

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

26

Valve, Water Inlet WPL 300453 Contact Us For Availability

26

Cap, Nozzle WPL 302816 Contact Us For Availability

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

27

Arm, Lower Spray WPL 302767 Contact Us For Availability

28

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

28

Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability

28

Guard, Screen WPL 303069 Contact Us For Availability

29

Box, Terminal WPL 300067 Contact Us For Availability

29

Screen, Sump WPL 303070 Contact Us For Availability

30

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

30

Nut, Twin Spring WPL 303080 Contact Us For Availability

31

Screw, Shoulder (2) WPL 302818 Contact Us For Availability

31

Thermostat WPL 303071 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

32

Bracket, Thermostat WPL 303072 Contact Us For Availability

33

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

33

Seal, Lever WPL 300105 Contact Us For Availability

34

Locknut (8) WPL 718829 Contact Us For Availability

35

Washer (8) WPL 717624 Contact Us For Availability

35

Retainer, Seal WPL 300104 Contact Us For Availability

35

Nut, Terminal 7/16-20 (2) WPL 718537 Contact Us For Availability

Heater (Alternate) WPL 302113 Contact Us For Availability

Heater (Alternate) WPL 302562 Contact Us For Availability

Heater (Alternate) WPL 717141 Contact Us For Availability

Heater (Alternate) WPL 719687 Contact Us For Availability

37

Support, Heater (2) WPL 717096 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

38

Washer, Retainer (2) WPL 717289 Contact Us For Availability

39

Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

39

Washer (2) WPL 14351 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

40

Washer (2) WPL 711284 Contact Us For Availability

41

Screw, 4-40 x 3/4 WPL 98086 Contact Us For Availability

42

Clip, Retainer (2) WPL 301058 Contact Us For Availability

42

Nut, 10-32 (2) WPL 120614 Contact Us For Availability

43

Barrier, Panel WPL 301959 Contact Us For Availability

43

Key, Pump Housing WPL 301936 Contact Us For Availability

44

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

44

Shim WPL 712302 Contact Us For Availability

45

Barrier, Delay Timer WPL 302158 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

45

Panel Edging, Door WPL 301971 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

Screw, 6-32 x 5/16 WPL 302252 Contact Us For Availability

47

Spacer, Timer WPL 301522 Contact Us For Availability

47

Washer (8) WPL 718750 Contact Us For Availability

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

Panel, Front WPL ARI130467A Contact Us For Availability

49

Wheel Tub (8) WPL 300844 Contact Us For Availability

49

Trim, Door WPL 301956 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track WPL 300845 Contact Us For Availability

53

Screw, 8-18 x 5/8 (10) WPL 719266 Contact Us For Availability

54

Gasket WPL 301662 Contact Us For Availability

55

Insert, Cup-Hose WPL 301656 Contact Us For Availability

57

Clip, Gasket WPL 301663 Contact Us For Availability

58

Bracket, Timer WPL 301930 Contact Us For Availability

59

Mounting Bracket, Timer WPL 301931 Contact Us For Availability

60

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

60

Timer, 60 Hz. WPL 302847 Contact Us For Availability

61

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

61

Shield, Timer WPL 302086 Contact Us For Availability

63

Motor, Timer (Alternate) WPL 301068 Contact Us For Availability

63

Motor, Timer (Alternate) WPL 301069 Contact Us For Availability

64

Relay, Start WPL 302331 Contact Us For Availability

65

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

66

Sc WPL 301588 Contact Us For Availability

67

WPL 354239 WPL 354239 Contact Us For Availability

67

Cap, Drip WPL 718576 Contact Us For Availability

68

WPL 302332 WPL 302332 Contact Us For Availability

68

Panel, Access WPL ARI130468A Contact Us For Availability

69

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

70

Plate, Toe WPL 303144 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WPL 206925 WPL 206925 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 302780 WPL 302780 Contact Us For Availability

WPL 302925 WPL 302925 Contact Us For Availability

WPL 302958 WPL 302958 Contact Us For Availability

WPL 303023 WPL 303023 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

72

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer WPL 300237 Contact Us For Availability

81

Spring, Conical WPL 718592 Contact Us For Availability

82

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

84

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

85

Acutator Assembly WPL 718646 Contact Us For Availability

86

Plate WPL 718596 Contact Us For Availability

87

Diahpragm, Pin Ass WPL 718595 Contact Us For Availability

89

WPL 300230 WPL 300230 Contact Us For Availability

90

WPL 301957 WPL 301957 Contact Us For Availability

91

WPL 301857 WPL 301857 Contact Us For Availability

92

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59

94

WPL 303121 WPL 303121 Contact Us For Availability

96

WPL 301815 WPL 301815 Contact Us For Availability

97

WPL 301814 WPL 301814 Contact Us For Availability

98

WPL 301816 WPL 301816 Contact Us For Availability

99

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64
