Model Whirlpool SHU90002 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
01 - CONSOLE
03 - DOOR

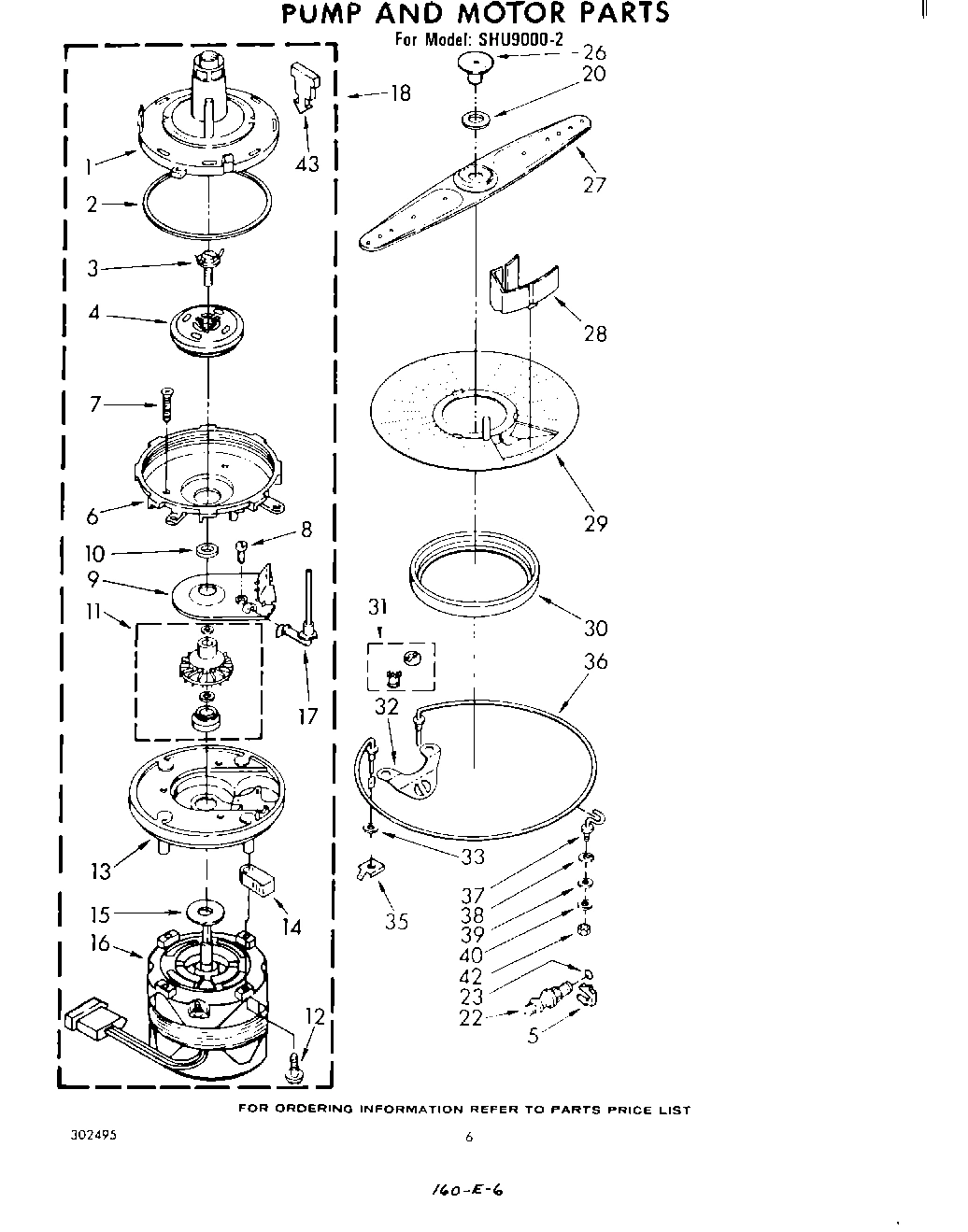

04 - PUMP AND MOTOR

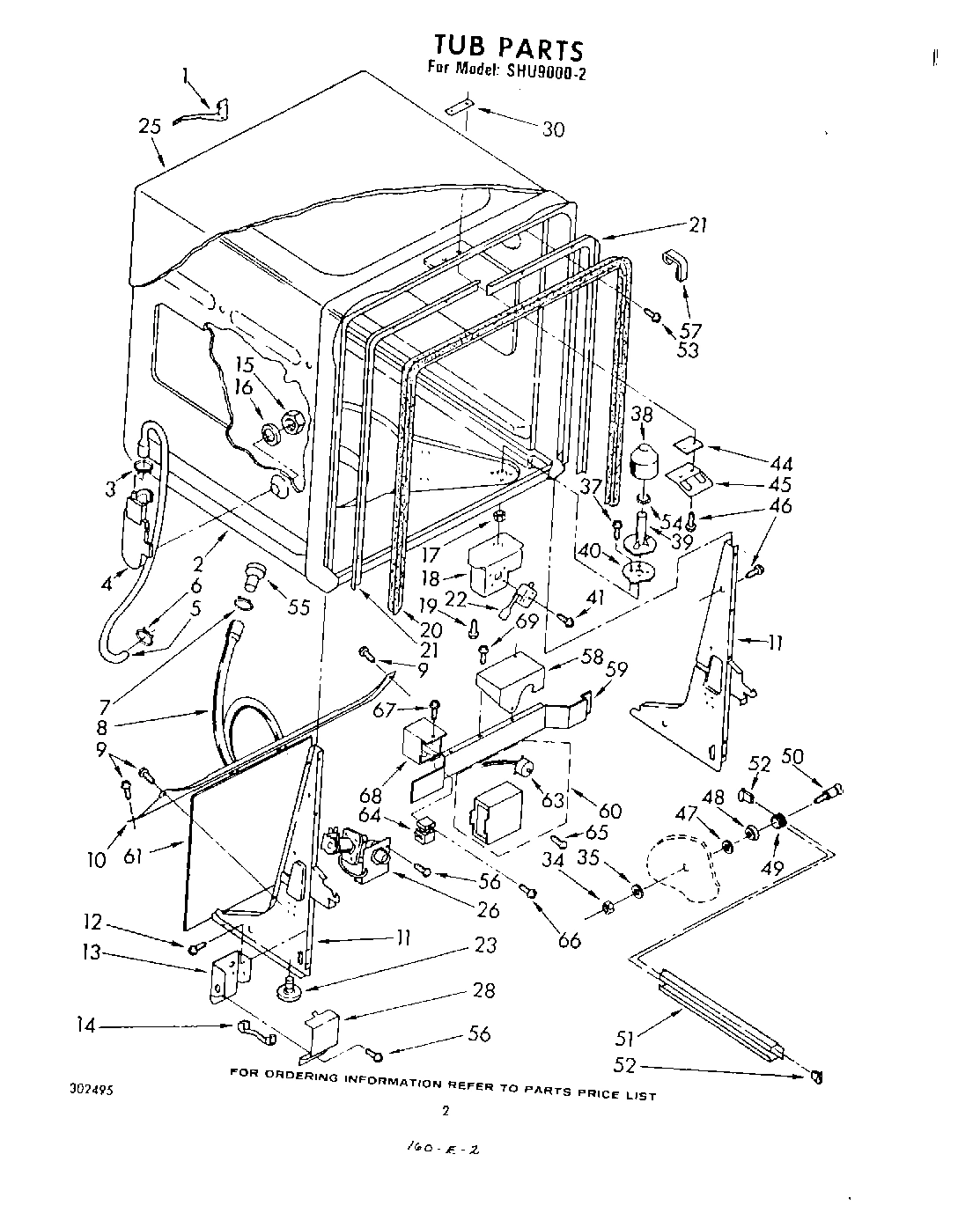

02 - TUB , LIT/OPTIONAL

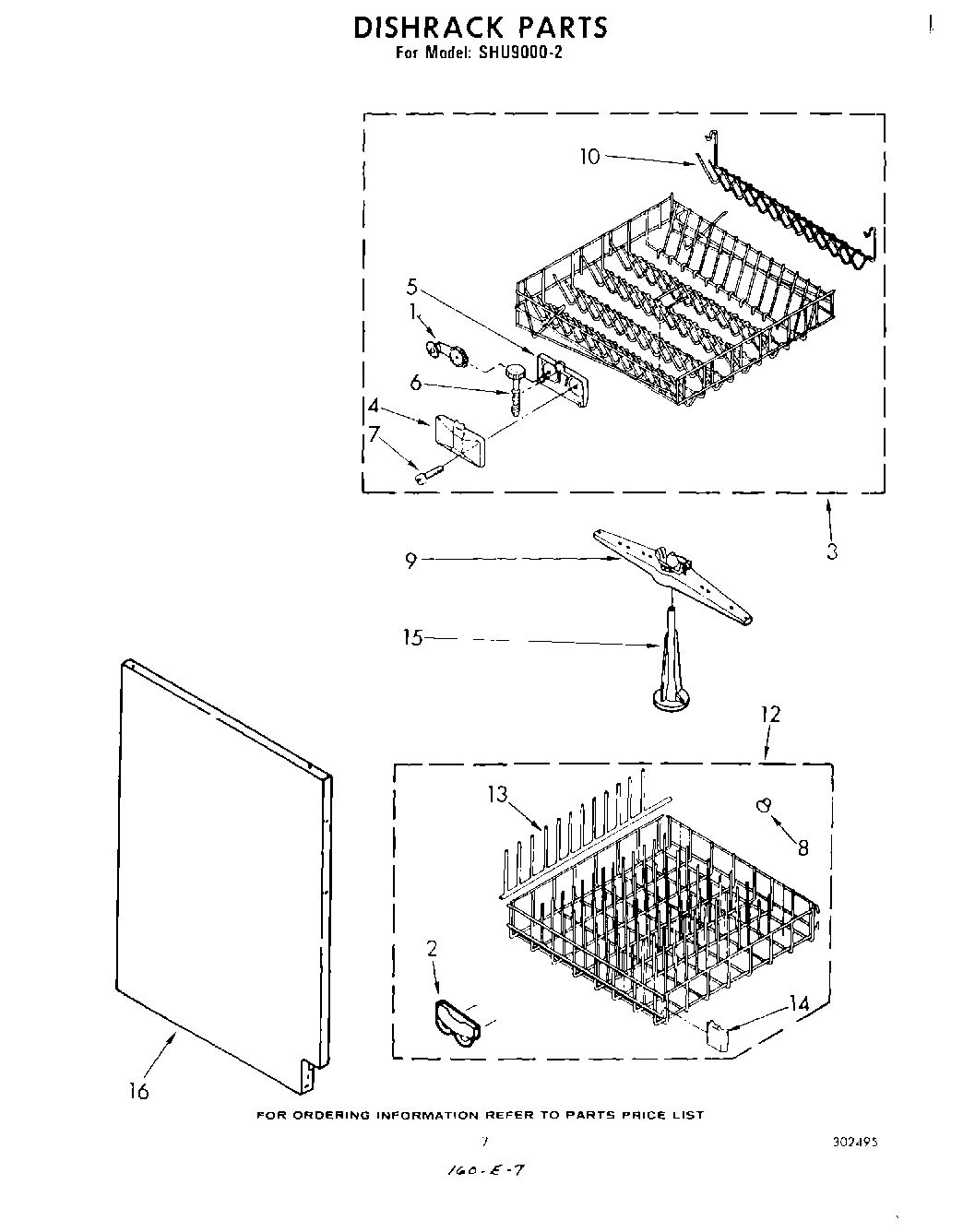

05 - DISHRACK
Common parts from model Whirlpool SHU90002 UNDERCOUNTER DISHWASHER
WPL ARI130461A WPL ARI130461A Contact Us For Availability
WPL ARI130462A WPL ARI130462A Contact Us For Availability
WPL ARI130463A WPL ARI130463A Contact Us For Availability
1
Door, Inner (Includes Illus. 4) WPL 302036 Contact Us For Availability
1
Pump Housing, Upper WPL 301558 Contact Us For Availability
1
Bracket, Mounting WPL 300796 Contact Us For Availability
1
Wheel & Gear Assembly (4) WPL 302025 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Support, Door (R.H.) WPL 301946 Contact Us For Availability
2
Support, Door (L.H.) WPL 301947 Contact Us For Availability
2
Tub Assembly WPL 302095 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
3
Screw, 10-32 x .75 WPL 718326 Contact Us For Availability
4
Liner, Door WPL 302031 Contact Us For Availability
4
Impeller WPL 719949 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
4
Cover, Housing WPL 302029 Contact Us For Availability
5
Retainer, Check Valve WPL 300797 Contact Us For Availability
5
Hose, Inlet WPL 301054 Contact Us For Availability
5
Housing, Gear WPL 302028 Contact Us For Availability
6
Spacer WPL 301957 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
6
Worm, Dishrack WPL 302026 Contact Us For Availability
7
Flange, Access Panel Frame WPL 301816 Contact Us For Availability
8
Frame, Lower Panel WPL 301814 Contact Us For Availability
8
Bumper (1) WPL 715779 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
10
Handle, Basket WPL 300086 Contact Us For Availability
10
Spacer WPL 301619 Contact Us For Availability
10
Brace WPL 300739 Contact Us For Availability
10
Shelf, Cup (Right Side) WPL 302071 Contact Us For Availability
10
Shelf, Cup (Left Side) WPL 302072 Contact Us For Availability
11
Screen, Vent WPL 300246 Contact Us For Availability
11
Kit, Impeller Drain WPL 675297 Contact Us For Availability
11
Leg & Hinge Assembly, (R.H.) WPL 718987 Contact Us For Availability
11
Leg & Hinge Assembly, (L.H.) WPL 718988 Contact Us For Availability
12
Latch Assembly WPL 300235 Contact Us For Availability
12
Screw, 13-16 (4) WPL 301817 Contact Us For Availability
12
Screw, 8-32 x 3/8 WPL 718178 Contact Us For Availability
13
Pin, Pivot WPL 300234 Contact Us For Availability
13
Base, Pump WPL 301812 Contact Us For Availability
13
Box, Terminal WPL 300067 Contact Us For Availability
13
Adapter, Rack WPL 302052 Contact Us For Availability
14
Switch, Interlock WPL 300232 Contact Us For Availability
14
Support, Pump WPL 718260 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
14
Bumper (2) WPL 719964 Contact Us For Availability
15
Clip, Wire WPL 301857 Contact Us For Availability
15
Nut, 7/8-16 WPL 713799 Contact Us For Availability
15
Tower WPL 302030 Contact Us For Availability
16
Motor (Emerson) WPL 301811 Contact Us For Availability
16
Motor (General Electric) WPL 301858 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
16
Panel, R.S. WPL ARI130466A Contact Us For Availability
17
Nut, .125 WPL 717488 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
18
Pump & Motor Assembly WPL 301829 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
19
Dispenser, Wetting Agent WPL 301935 Contact Us For Availability
19
Screw, 8 x 1/2 WPL 718250 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
20
Washer WPL 713080 Contact Us For Availability
20
Gasket, Tub (Alternate) WPL 302090 Contact Us For Availability
20
Gasket, Tub (Alternate) WPL 302091 Contact Us For Availability
20
Gasket, Tub (Alternate) WPL 302092 Contact Us For Availability
21
Terminal, Female (Disconnect Block) WPL 352088 Contact Us For Availability
21
Nut, 1-14 WPL 718575 Contact Us For Availability
21
Retainer (R.H.) WPL 302093 Contact Us For Availability
21
Retainer (L.H.) WPL 302094 Contact Us For Availability
22
Cap WPL 718577 Contact Us For Availability
22
Switch, Pressure WPL 301671 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability
23
Bracket, Timer Mounting WPL 301869 Contact Us For Availability
23
Button, Retainer WPL 300239 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Screw, Leveling WPL 719168 Contact Us For Availability
24
Screw, 8-18 x 3/8 WPL 300250 Contact Us For Availability
26
Connector, Terminal (Motor) WPL 719585 Contact Us For Availability
26
Cap, Nozzle WPL 300992 Contact Us For Availability
26
Valve, Water Inlet WPL 300453 Contact Us For Availability
27
Plug, Terminal (Timer Motor) WPL 727253 Contact Us For Availability
27
Spray Arm, Lower WPL 719691 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Screw, 6-32 x 1 WPL 301582 Contact Us For Availability
28
Guard, Screen WPL 300988 Contact Us For Availability
29
Screen, Sump WPL 718226 Contact Us For Availability
30
Gasket, Pump WPL 717000 Contact Us For Availability
30
Nut, Twin Spring WPL 719455 Contact Us For Availability
31
Receptacle (Wetting Agent Dispenser) WPL 353425 Contact Us For Availability
31
Thermostat WPL 717206 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Bracket, Thermostat WPL 715073 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut WPL 718829 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
35
Nut, Terminal WPL 718537 Contact Us For Availability
35
Washer WPL 717624 Contact Us For Availability
36
Light Assembly WPL 301975 Contact Us For Availability
36
Heater WPL 717141 Contact Us For Availability
36
Heater (Alternate) WPL 719687 Contact Us For Availability
37
Dial Assembly, Delay Timer WPL 301970 Contact Us For Availability
37
Support, Heater WPL 717096 Contact Us For Availability
38
Actuator Assembly WPL 300109 Contact Us For Availability
38
Retainer, Harness WPL 302162 Contact Us For Availability
38
Washer, Retainer WPL 717289 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Block, Connector WPL 300708 Contact Us For Availability
39
Washer WPL 14351 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Bracket, End Cap WPL 301872 Contact Us For Availability
40
Washer WPL 711284 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Hanger, Harness WPL 302111 Contact Us For Availability
41
Screw, 4-40 x 3/4 WPL 98086 Contact Us For Availability
42
Bumper WPL 297535 Contact Us For Availability
42
Clip, Retainer WPL 301058 Contact Us For Availability
42
Nut, 30-32 WPL 9420162 Contact Us For Availability
43
Nut WPL 98788 Contact Us For Availability
43
Barrier, Panel WPL 301959 Contact Us For Availability
43
Key, Pump Housing WPL 301936 Contact Us For Availability
44
Barrier, End Cap WPL 302157 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Barrier, Delay Timer WPL 302158 Contact Us For Availability
45
Edging, Panel WPL 301971 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Screw, 6-32 x 5/16 WPL 302252 Contact Us For Availability
47
Spacer, Timer WPL 301522 Contact Us For Availability
47
Washer WPL 718750 Contact Us For Availability
48
Panel, Front WPL ARI130464A Contact Us For Availability
48
Washer, Cup WPL 718817 Contact Us For Availability
49
Trim, Door (2) WPL 301956 Contact Us For Availability
49
Wheel, Tub WPL 300844 Contact Us For Availability
50
Screw, Shoulder WPL 712499 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track WPL 300845 Contact Us For Availability
53
Silverware Basket Assembly WPL 301994 Contact Us For Availability
53
Screw, 8-18 x 5/8 WPL 719266 Contact Us For Availability
54
Gasket WPL 301662 Contact Us For Availability
55
Insert, Cup-Hose WPL 301656 Contact Us For Availability
56
Utensil Basket Assembly WPL 301998 Contact Us For Availability
57
Trim, Basket WPL 717528 Contact Us For Availability
57
Clip, Gasket WPL 301663 Contact Us For Availability
58
Bracket, Timer WPL 301930 Contact Us For Availability
59
Mounting Bracket, Timer WPL 301931 Contact Us For Availability
60
Timer, 60 Hz. WPL 302434 Contact Us For Availability
61
Shield, Timer WPL 302086 Contact Us For Availability
63
Motor, Timer (Alternate) WPL 301068 Contact Us For Availability
63
Motor, Timer (Alternate) WPL 301069 Contact Us For Availability
64
Relay, Start WPL 302331 Contact Us For Availability
66
Screw WPL 301588 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
67
Rivet, Plastic WPL 354239 Contact Us For Availability
68
Barrier, Relay WPL 302332 Contact Us For Availability
69
WPL 799344 WPL 799344 Contact Us For Availability
69
(13 Oz.) (Leveler (Thinner) (2 Oz.)) WPL 206925 Contact Us For Availability
69
(13 Oz.) (Co WPL 261886 Contact Us For Availability
69
WPL 261887 WPL 261887 Contact Us For Availability
69
WPL 261888 WPL 261888 Contact Us For Availability
69
WPL 261889 WPL 261889 Contact Us For Availability
69
WPL 261890 WPL 261890 Contact Us For Availability
69
WPL 261891 WPL 261891 Contact Us For Availability
69
WPL 302080 WPL 302080 Contact Us For Availability
69
WPL 302452 WPL 302452 Contact Us For Availability
69
WPL 302469 WPL 302469 Contact Us For Availability
69
WPL 302495 WPL 302495 Contact Us For Availability
69
WPL 72108 WPL 72108 Contact Us For Availability
69
WPL 799351 WPL 799351 Contact Us For Availability
69
WPL 799640 WPL 799640 Contact Us For Availability
69
WPL 978883 WPL 978883 Contact Us For Availability
70
Plate, Toe WPL 302419 Contact Us For Availability
71
Panel, Access WPL ARI130465A Contact Us For Availability
73
Clip WPL 718607 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
83
Screw WPL 98617 Contact Us For Availability
85
Acutator Assembly WPL 718646 Contact Us For Availability
86
Plate WPL 718596 Contact Us For Availability
87
Diahpragm Assembly WPL 718595 Contact Us For Availability
89
Lever, Release WPL 300230 Contact Us For Availability
90
Flange, Accessory Panel WPL 301815 Contact Us For Availability
91
Barrier, Detergent Dispenser WPL 302159 Contact Us For Availability
× ![]()
