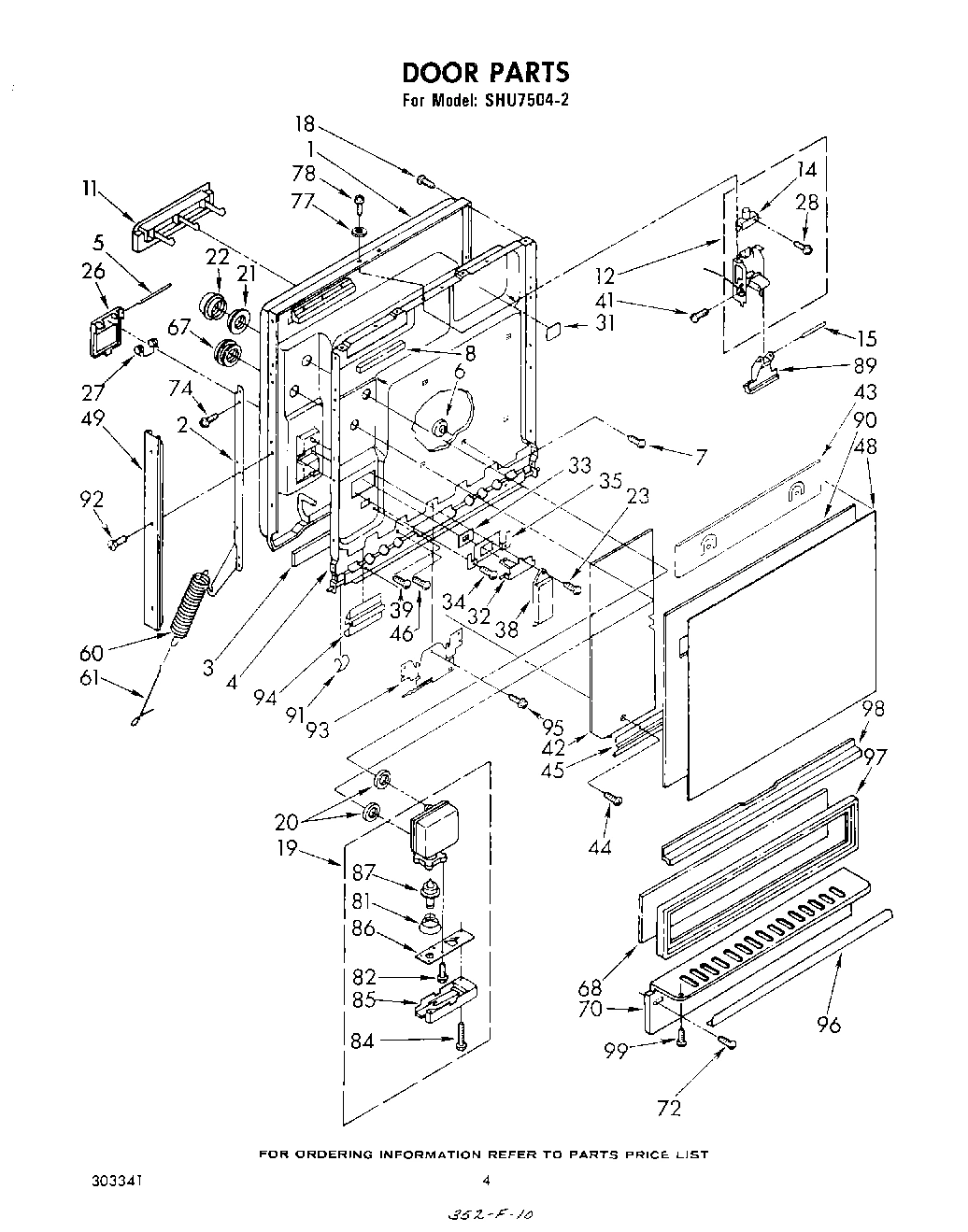

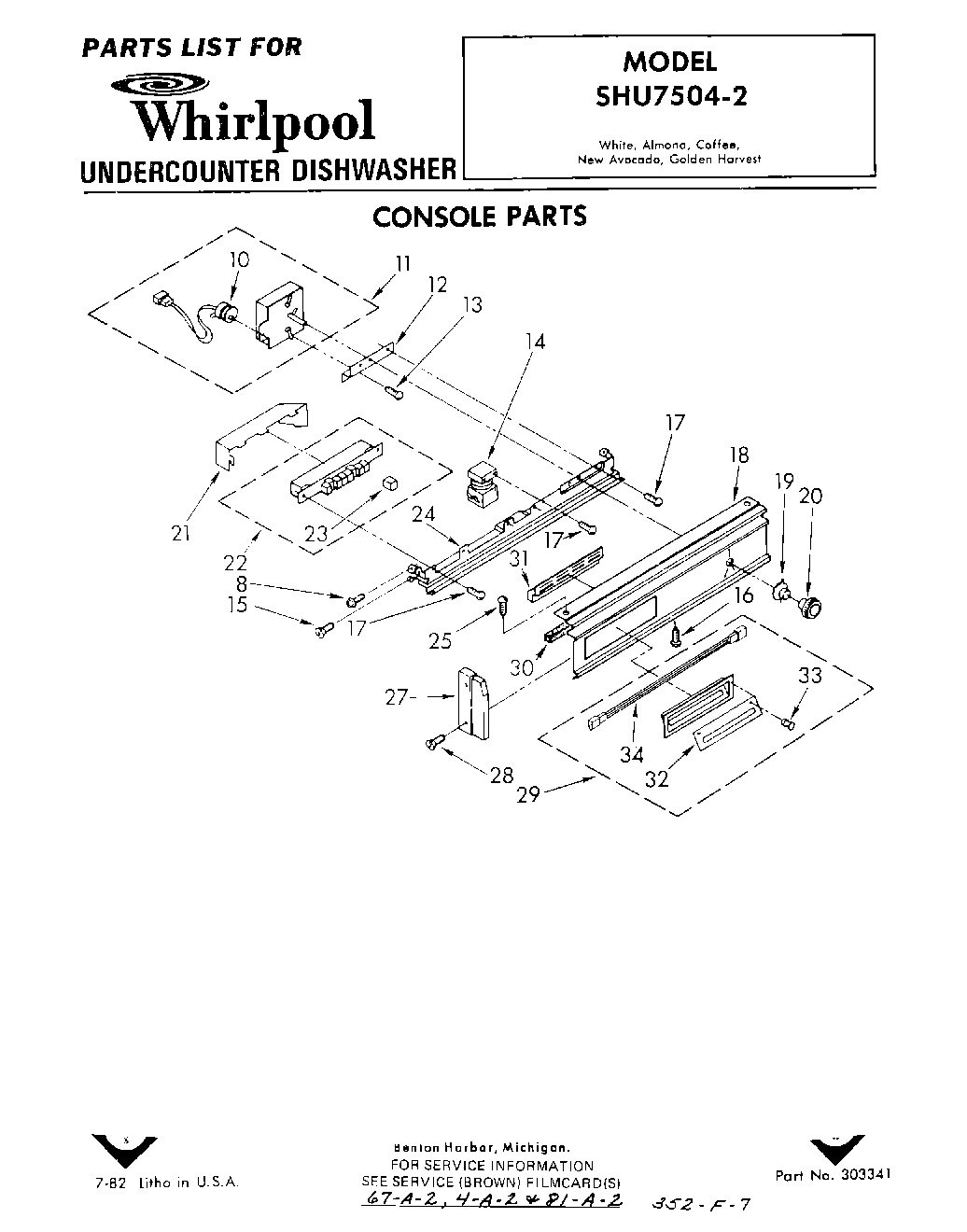

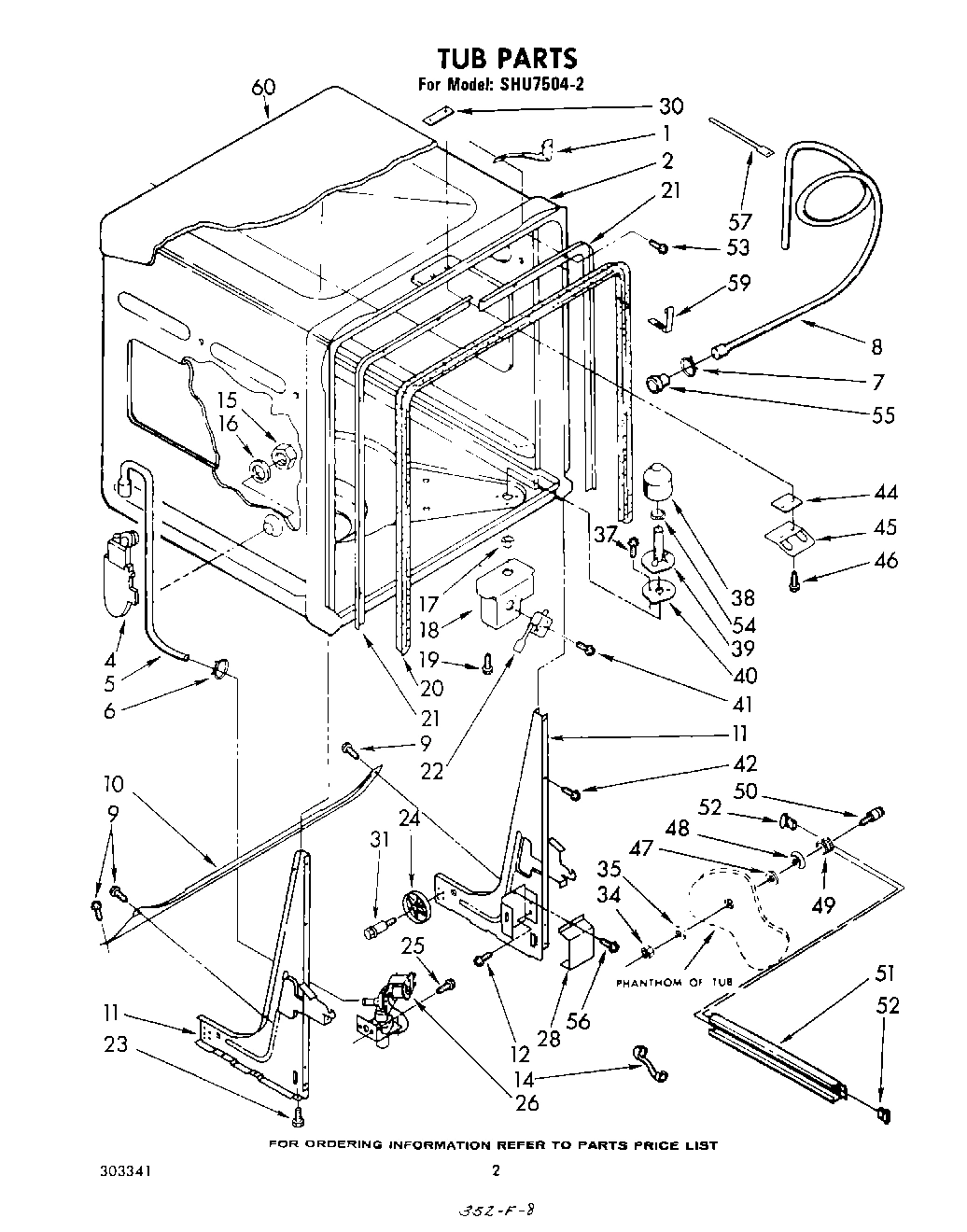

Model Whirlpool SHU75042 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

1

Bracket, Mounting (2) WPL 300796 Contact Us For Availability

1

Door, Inner (Includes Illus.4) WPL 303270 Contact Us For Availability

1

Wheel & Gear Assembly (4) WPL 302025 Contact Us For Availability

2

4317933 Whirlpool Lower Rack Wheels In Stock WPL 4317933 $14.55

2

Terminal, Female WPL 352088 Contact Us For Availability

2

Seal, Ring WPL 718259 Contact Us For Availability

2

Tub Assembly WPL 303110 Contact Us For Availability

2

Support Door (L.H.) WPL 303196 Contact Us For Availability

2

Support, Door (R.H.) WPL 303197 Contact Us For Availability

3

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

3

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

3

Gasket, Door WPL 717921 Contact Us For Availability

4

Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability

4

Inlet, Water WPL 300974 Contact Us For Availability

4

Liner, Door WPL 303202 Contact Us For Availability

4

Cover, Housing (2) WPL 302029 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

Hose, Inlet WPL 301054 Contact Us For Availability

5

Housing, Gear (2) WPL 302028 Contact Us For Availability

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability

6

Button, Retainer (5) WPL 300239 Contact Us For Availability

6

Worm, Dishrack (2) WPL 302026 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

7

Screw, 8-18 x 3/8 Hi-Lo (5) WPL 300250 Contact Us For Availability

8

675544 Whirlpool Drain Hose Backorder WPL 675544 $48.15

8

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

8

Screw, 8-18 x 5/8 (2) WPL 303090 Contact Us For Availability

8

Baffle WPL 719860 Contact Us For Availability

9

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

9

Receptacle (5-Circuit) WPL 719585 Contact Us For Availability

10

Harness, Wiring WPL 303047 Contact Us For Availability

10

Motor, Timer WPL 301062 Contact Us For Availability

10

Brace WPL 303111 Contact Us For Availability

Disconnect Block WPL 352090 Contact Us For Availability

Timer, Disconnect WPL 302837 Contact Us For Availability

Leg & Hinge Assembly, L.H. WPL 302822 Contact Us For Availability

Leg & Hinge Assembly, R.H. WPL 302823 Contact Us For Availability

Screen, Vent WPL 300246 Contact Us For Availability

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

Receptacle Terminal (2-Way) Red WPL 717251 Contact Us For Availability

Bracket, Timer WPL 301875 Contact Us For Availability

Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability

Latch Assembly WPL 300235 Contact Us For Availability

13

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

13

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

Connector Block WPL 301219 Contact Us For Availability

Relay, Start (Alternate) WPL 300516 Contact Us For Availability

Relay, Start (Alternate) WPL 301536 Contact Us For Availability

Relay, Start (Alternate) WPL 301620 Contact Us For Availability

Relief, Strain WPL 717563 Contact Us For Availability

Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability

Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability

Bumper (2) WPL 719964 Contact Us For Availability

Connector Block WPL 300708 Contact Us For Availability

Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability

Pin, Pivot WPL 300234 Contact Us For Availability

Tower WPL 302030 Contact Us For Availability

16

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

16

Gasket WPL 713878 Contact Us For Availability

16

Panel, R.S. WPL ARI130450A Contact Us For Availability

17

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

17

Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability

17

Silverware Basket Assembly WPL 301994 Contact Us For Availability

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

18

Panel, Escutcheon WPL 303038 Contact Us For Availability

18

Bracket, Overflow WPL 719342 Contact Us For Availability

19

Dial, Indicator WPL 302067 Contact Us For Availability

19

Dispenser, Wetting Agent WPL 719341 Contact Us For Availability

19

Handle, Basket WPL 300086 Contact Us For Availability

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

Knob, Timer WPL 302535 Contact Us For Availability

Gasket (Alternate) WPL 302090 Contact Us For Availability

Gasket (Alternate) WPL 302091 Contact Us For Availability

Washer (2) WPL 713080 Contact Us For Availability

Utensil Basket Assembly WPL 301998 Contact Us For Availability

Barrier, Pushbutton WPL 303129 Contact Us For Availability

Retainer (R.H.) WPL 302093 Contact Us For Availability

Retainer (L.H.) WPL 302094 Contact Us For Availability

Nut, 1-14 Buttress Thread (1) WPL 718575 Contact Us For Availability

Trim, Basket WPL 717528 Contact Us For Availability

Switch, Pushbutton WPL 303045 Contact Us For Availability

Switch, Pressure WPL 301671 Contact Us For Availability

Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability

Cap WPL 718577 Contact Us For Availability

23

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

23

Button (8) WPL 301978 Contact Us For Availability

24

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

24

Bracket, Control WPL 300750 Contact Us For Availability

26

Valve, Water Inlet WPL 300453 Contact Us For Availability

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

27

End Cap, R.H. WPL 303005 Contact Us For Availability

27

Cap, End (L.H.) WPL 303006 Contact Us For Availability

28

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

28

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

28

Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability

29

Bezel Assembly WPL 303043 Contact Us For Availability

30

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

30

Nut, Twin Spring WPL 303080 Contact Us For Availability

31

Grille, Vent WPL 301878 Contact Us For Availability

31

Screw, Shoulder WPL 302818 Contact Us For Availability

31

Pad, Rubber WPL 302460 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

32

Escutcheon, P.B. WPL 303042 Contact Us For Availability

33

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

33

Seal, Lever WPL 300105 Contact Us For Availability

33

Lens, Red WPL 302840 Contact Us For Availability

34

Light WPL 302857 Contact Us For Availability

34

Locknut, 10-32 (8) WPL 718829 Contact Us For Availability

35

Washer (8) WPL 717624 Contact Us For Availability

35

Retainer, Seal WPL 300104 Contact Us For Availability

36

Heater (Alternate) WPL 717141 Contact Us For Availability

36

Heater (Alternate) WPL 719687 Contact Us For Availability

37

Support, Heater (2) WPL 717096 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Washer, Retainer (2) WPL 717289 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

39

Washer (2) WPL 14351 Contact Us For Availability

39

Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

40

Washer (2) WPL 711284 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

41

Screw, 4-40 x 3/4 Hex Head Slotted Thread Cut WPL 98086 Contact Us For Availability

42

Nut, 10-32 (2) WPL 9420162 Contact Us For Availability

42

Barrier, Door WPL 303223 Contact Us For Availability

43

Barrier, Console WPL 303222 Contact Us For Availability

44

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

44

Thermostat WPL 302104 Contact Us For Availability

44

Shim WPL 712302 Contact Us For Availability

45

Bracket WPL 715073 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

45

Panel Edging, Door WPL 301971 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

Key, Pump Housing WPL 301936 Contact Us For Availability

47

Retainer, Check Valve WPL 300797 Contact Us For Availability

47

Washer (8) WPL 718750 Contact Us For Availability

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

Panel, Front WPL ARI130448A Contact Us For Availability

49

Wheel Assembly (8) WPL 300844 Contact Us For Availability

49

Trim, Door WPL 301956 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

53

Screw, 8-18 x 5/8 Indented Hex Head (10) WPL 719266 Contact Us For Availability

54

Gasket (2 WPL 301662 Contact Us For Availability

55

WPL 301656 WPL 301656 Contact Us For Availability

57

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

59

WPL 301663 WPL 301663 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

674744 Whirlpool Dishwasher Door Spring 3 3/4 Backorder WPL 674744 $39.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 206925 WPL 206925 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 302775 WPL 302775 Contact Us For Availability

WPL 302954 WPL 302954 Contact Us For Availability

WPL 303023 WPL 303023 Contact Us For Availability

WPL 303341 WPL 303341 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

61

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

67

Cap, Drip WPL 718576 Contact Us For Availability

68

Panel, Access WPL ARI130449A Contact Us For Availability

70

Plate, Toe WPL 717968 Contact Us For Availability

72

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer WPL 300237 Contact Us For Availability

81

Spring, Conical WPL 718592 Contact Us For Availability

82

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

84

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

85

Acuta WPL 718646 Contact Us For Availability

86

WPL 718596 WPL 718596 Contact Us For Availability

87

WPL 718595 WPL 718595 Contact Us For Availability

89

WPL 300230 WPL 300230 Contact Us For Availability

90

WPL 301957 WPL 301957 Contact Us For Availability

91

WPL 301857 WPL 301857 Contact Us For Availability

92

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59

93

WPL 303362 WPL 303362 Contact Us For Availability

94

WPL 303121 WPL 303121 Contact Us For Availability

95

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

96

WPL 301815 WPL 301815 Contact Us For Availability

97

WPL 301814 WPL 301814 Contact Us For Availability

98

WPL 301816 WPL 301816 Contact Us For Availability

99

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64
