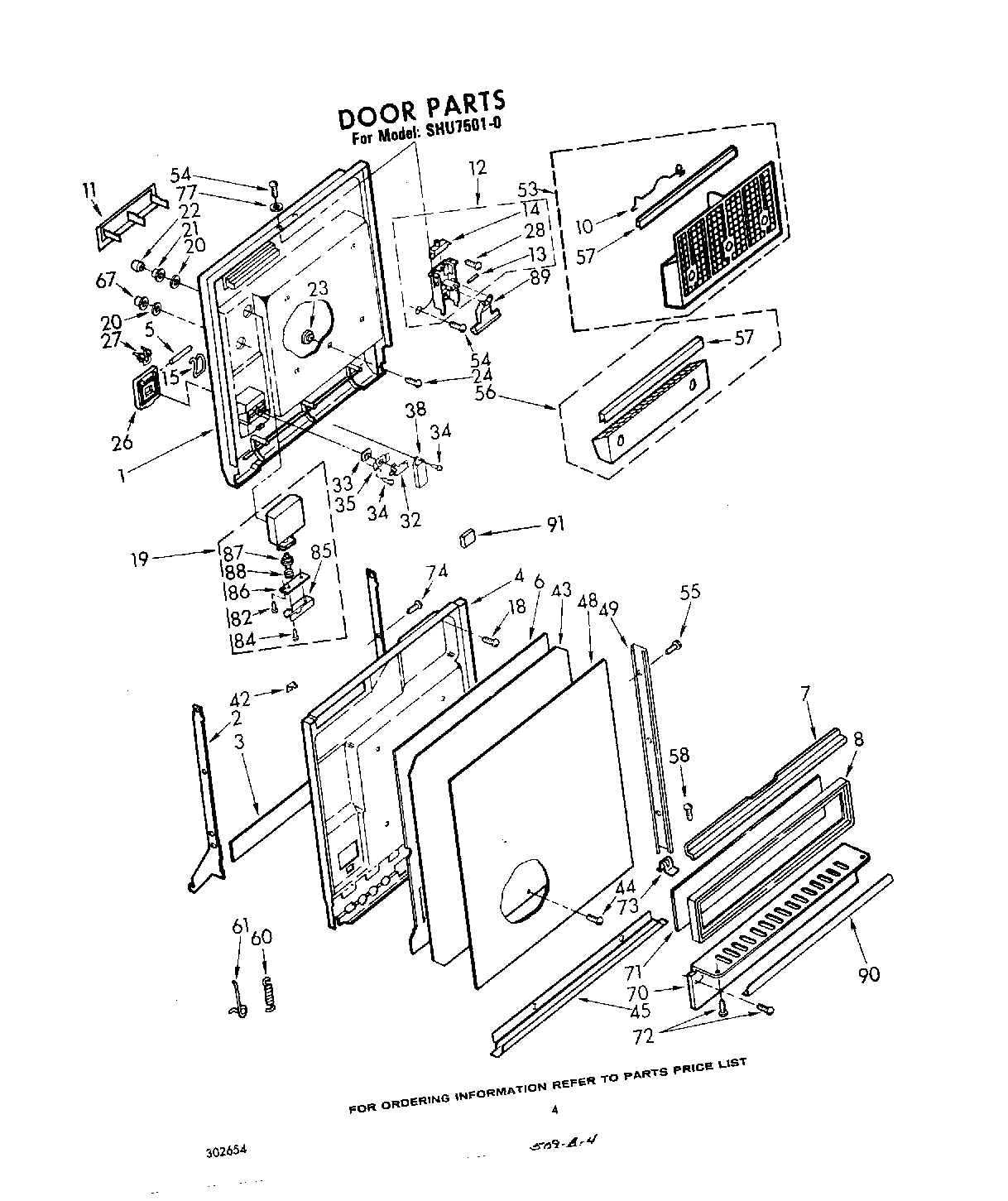

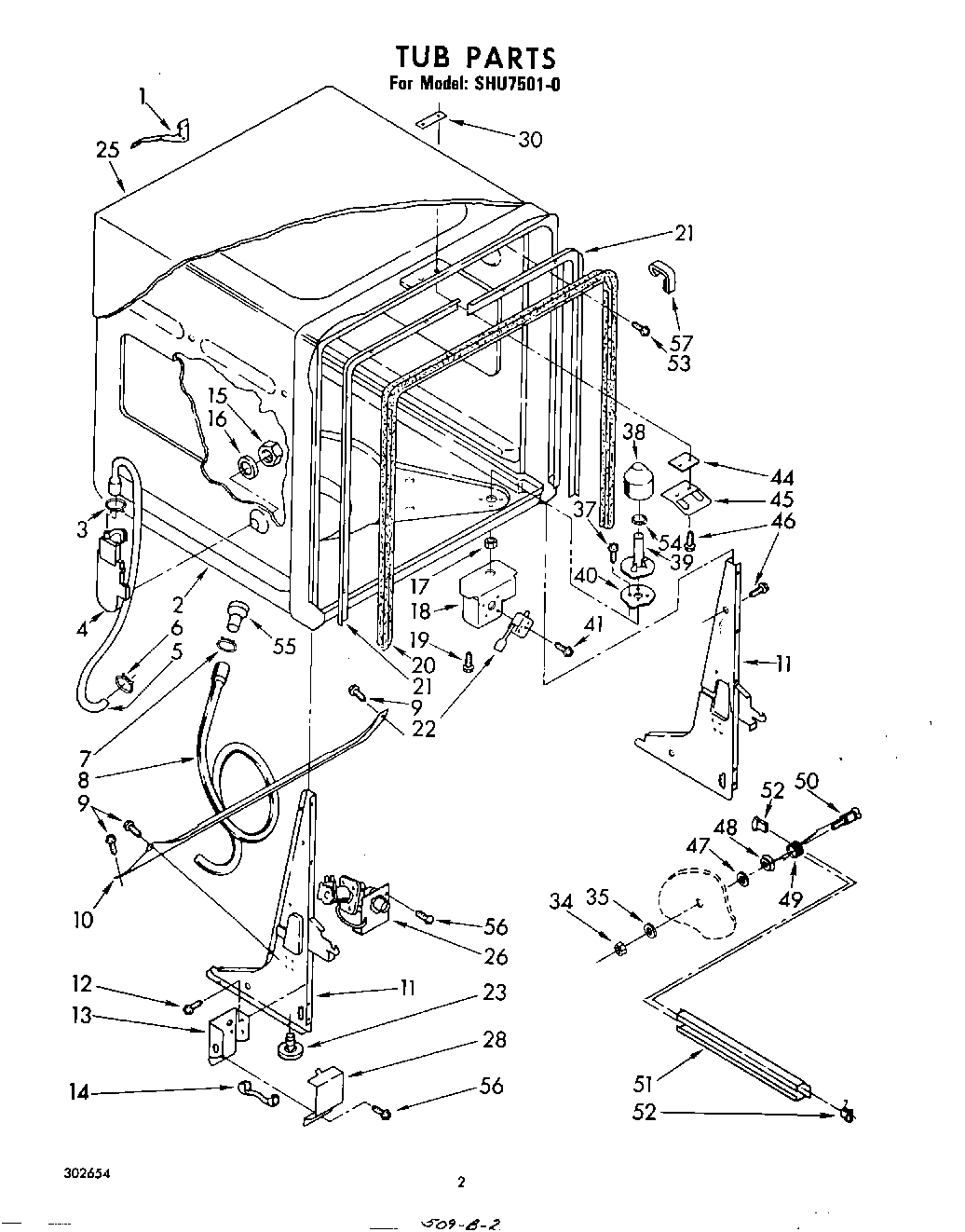

Model Whirlpool SHU75010 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

Door, Inner (Includes Illus. 4) WPL 302036 Contact Us For Availability

1

Wheel & Gear Assembly (4) WPL 302025 Contact Us For Availability

1

Pump Housing, Upper WPL 301558 Contact Us For Availability

1

Bracket, Console WPL 300750 Contact Us For Availability

2

4317933 Whirlpool Lower Rack Wheels In Stock WPL 4317933 $14.55

2

Seal, Ring WPL 718259 Contact Us For Availability

2

Support, Door (R.H.) WPL 301946 Contact Us For Availability

2

Support, Door (L.H.) WPL 301947 Contact Us For Availability

2

Panel, Escutcheon WPL 302526 Contact Us For Availability

3

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

3

Gasket, Door WPL 717921 Contact Us For Availability

3

Screw, 10-32 x .75 WPL 718326 Contact Us For Availability

3

Bezel Assembly, Pushbutton WPL 302527 Contact Us For Availability

4

Liner, Door WPL 302031 Contact Us For Availability

4

Cover, Housing WPL 302029 Contact Us For Availability

4

Impeller WPL 719949 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

Housing, Gear WPL 302028 Contact Us For Availability

5

Retainer, Check Valve WPL 300797 Contact Us For Availability

5

Motor, Timer WPL 301062 Contact Us For Availability

6

Spacer WPL 301957 Contact Us For Availability

6

Worm, Dishrack WPL 302026 Contact Us For Availability

6

Pump Housing, Lower WPL 718222 Contact Us For Availability

6

Timer, Disconnect WPL 302565 Contact Us For Availability

7

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

7

Flange, Access Panel Frame WPL 301816 Contact Us For Availability

7

Block, Disconnect (White) WPL 352090 Contact Us For Availability

8

Frame, Lower Panel WPL 301814 Contact Us For Availability

8

Screw, 8-18 WPL 358225 Contact Us For Availability

9

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

9

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

9

Coverplate WPL 300084 Contact Us For Availability

10

Handle, Basket WPL 300086 Contact Us For Availability

10

Spacer WPL 301619 Contact Us For Availability

11

Screen, Vent WPL 300246 Contact Us For Availability

11

Kit, Impeller Drain WPL 675297 Contact Us For Availability

11

Switch, Pushbutton WPL 302531 Contact Us For Availability

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

Latch Assembly WPL 300235 Contact Us For Availability

Screw, 13-16 (4) WPL 301817 Contact Us For Availability

Button (8) WPL 301978 Contact Us For Availability

13

Pin, Pivot WPL 300234 Contact Us For Availability

13

Base, Pump WPL 301812 Contact Us For Availability

13

Barrier, Pushbutton Switch WPL 300242 Contact Us For Availability

Switch, Interlock WPL 300232 Contact Us For Availability

Bumper (2) WPL 719964 Contact Us For Availability

Support, Pump WPL 718260 Contact Us For Availability

Baffle WPL 719860 Contact Us For Availability

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Clip, Wire WPL 301857 Contact Us For Availability

Tower WPL 302030 Contact Us For Availability

16

Motor (Emerson) WPL 301811 Contact Us For Availability

16

Motor (General Electric) WPL 301858 Contact Us For Availability

16

Grille, Vent WPL 301878 Contact Us For Availability

17

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

17

Nut, .125 WPL 717488 Contact Us For Availability

17

Bleeder Assembly WPL 718629 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Pump & Motor Assembly WPL 301829 Contact Us For Availability

Cap, End (R.H.) WPL 301877 Contact Us For Availability

Cap, End (L.H.) WPL 301934 Contact Us For Availability

19

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

19

Dispenser, Wetting Agent WPL 719341 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

Gasket, Tub (Alternate) WPL 302090 Contact Us For Availability

Gasket, Tub (Alternate) WPL 302091 Contact Us For Availability

Gasket, Tub (Alternate) WPL 302092 Contact Us For Availability

Washer WPL 713080 Contact Us For Availability

Terminal, Female (Disconnect Block) WPL 352088 Contact Us For Availability

Retainer (R.H.) WPL 302093 Contact Us For Availability

Retainer (L.H.) WPL 302094 Contact Us For Availability

Nut, 1-14 WPL 718575 Contact Us For Availability

675238 Whirlpool Check Valve In Stock WPL 675238 $28.04

Switch, Pressure WPL 301671 Contact Us For Availability

Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability

Cap WPL 718577 Contact Us For Availability

Receptacle, Terminal (Timer Motor) WPL 717252 Contact Us For Availability

Screw, Leveling WPL 719168 Contact Us For Availability

Button, Retainer WPL 300239 Contact Us For Availability

``O`` Ring WPL 95080 Contact Us For Availability

Bracket, Timer Mounting WPL 301875 Contact Us For Availability

24

Screw, 8-18 x 3/8 WPL 300250 Contact Us For Availability

25

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

25

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

26

Valve, Water Inlet WPL 300453 Contact Us For Availability

26

Cap, Assembly WPL 300992 Contact Us For Availability

26

Connector, Terminal (Motor) WPL 719585 Contact Us For Availability

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

27

Spray Arm, Lower WPL 719691 Contact Us For Availability

27

Plug, Terminal (Timer Motor) WPL 727253 Contact Us For Availability

28

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

28

Screw, 6-32 x 1 WPL 301582 Contact Us For Availability

28

Guard, Screen WPL 300988 Contact Us For Availability

29

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

29

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

29

Screen, Sump WPL 718226 Contact Us For Availability

30

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

30

Nut, Twin Spring WPL 719455 Contact Us For Availability

31

Thermostat WPL 302104 Contact Us For Availability

31

Receptacle (Wetting Agent Dispenser) WPL 353425 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

32

Bracket, Thermostat WPL 715073 Contact Us For Availability

33

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

33

Seal, Lever WPL 300105 Contact Us For Availability

34

Locknut WPL 718829 Contact Us For Availability

34

Screw, 8 x 1/2 WPL 718250 Contact Us For Availability

35

Washer WPL 717624 Contact Us For Availability

35

Retainer WPL 300104 Contact Us For Availability

35

Nut, Terminal WPL 718537 Contact Us For Availability

36

Heater WPL 717141 Contact Us For Availability

36

Heater (Alternate) WPL 719687 Contact Us For Availability

37

Support, Heater WPL 717096 Contact Us For Availability

37

Dial, Indicator WPL 302067 Contact Us For Availability

Actuator Assembly WPL 300109 Contact Us For Availability

Float WPL 718035 Contact Us For Availability

Washer, Retainer WPL 717289 Contact Us For Availability

Retainer, Harness WPL 302162 Contact Us For Availability

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

39

Washer WPL 14351 Contact Us For Availability

39

Block, Connector WPL 300708 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

40

Washer WPL 711284 Contact Us For Availability

40

Bracket, End Cap WPL 301872 Contact Us For Availability

41

Screw, 4-40 x 3/4 WPL 98086 Contact Us For Availability

41

Knob, Timer WPL 302535 Contact Us For Availability

42

Clip, Retainer WPL 301058 Contact Us For Availability

42

Nut, 10-32 WPL 9420162 Contact Us For Availability

Barrier, Panel WPL 301959 Contact Us For Availability

Key, Pump Housing WPL 301936 Contact Us For Availability

Relay (Alternate) WPL 300516 Contact Us For Availability

Relay (Alternate) WPL 301536 Contact Us For Availability

Relay, Start (Alternate) WPL 301620 Contact Us For Availability

44

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

44

Shim WPL 712302 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

45

Edging, Panel WPL 301971 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

47

Washer WPL 718750 Contact Us For Availability

48

Washer, Cup WPL 718817 Contact Us For Availability

48

Panel, Front WPL ARI130446A Contact Us For Availability

49

Wheel, Tub WPL 300844 Contact Us For Availability

49

Trim, Door WPL 301956 Contact Us For Availability

50

Screw, Shoulder WPL 712499 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track WPL 300845 Contact Us For Availability

53

Screw, 8-18 x 5/8 WPL 719266 Contact Us For Availability

53

Silverware Basket Assembly WPL 301994 Contact Us For Availability

54

Gasket WPL 301662 Contact Us For Availability

55

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59

55

Insert, Cup-Hose WPL 301656 Contact Us For Availability

56

Utensil Basket Assembly WPL 301998 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

(1/2 Oz.) (Leveler (Thinner) (2 Oz.) Paint, T WPL 206925 Contact Us For Availability

(1/2 Oz.) (Coffee) WPL 261886 Contact Us For Availability

(1/2 Oz.) (New Avocado) WPL 261888 Contact Us For Availability

(1/2 Oz.) (Golden Harvest) WPL 261890 Contact Us For Availability

Clip, Gasket WPL 301663 Contact Us For Availability

Guide, Use & Care WPL 302013 Contact Us For Availability

Instructions, Installation WPL 302080 Contact Us For Availability

Harn WPL 302532 Contact Us For Availability

WPL 302654 WPL 302654 Contact Us For Availability

WPL 302753 WPL 302753 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

Trim, Basket WPL 717528 Contact Us For Availability

58

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

60

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

61

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

67

Cap, Drip WPL 718576 Contact Us For Availability

70

Plate, Toe WPL 717968 Contact Us For Availability

71

Panel, Access WPL ARI130447A Contact Us For Availability

72

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

73

Clip, Access Panel WPL 718607 Contact Us For Availability

77

Washer WPL 300237 Contact Us For Availability

82

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

84

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

85

Acutator Assembly WPL 718646 Contact Us For Availability

86

Plate WPL 718596 Contact Us For Availability

87

Diaphragm Assembly WPL 718595 Contact Us For Availability

88

Spring, Conical WPL 718592 Contact Us For Availability

89

Lever, Release WPL 300230 Contact Us For Availability

90

Flange, Accessory Panel WPL 301815 Contact Us For Availability

91

Pad, Rubber WPL 302460 Contact Us For Availability
