Model Whirlpool SHU70052 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

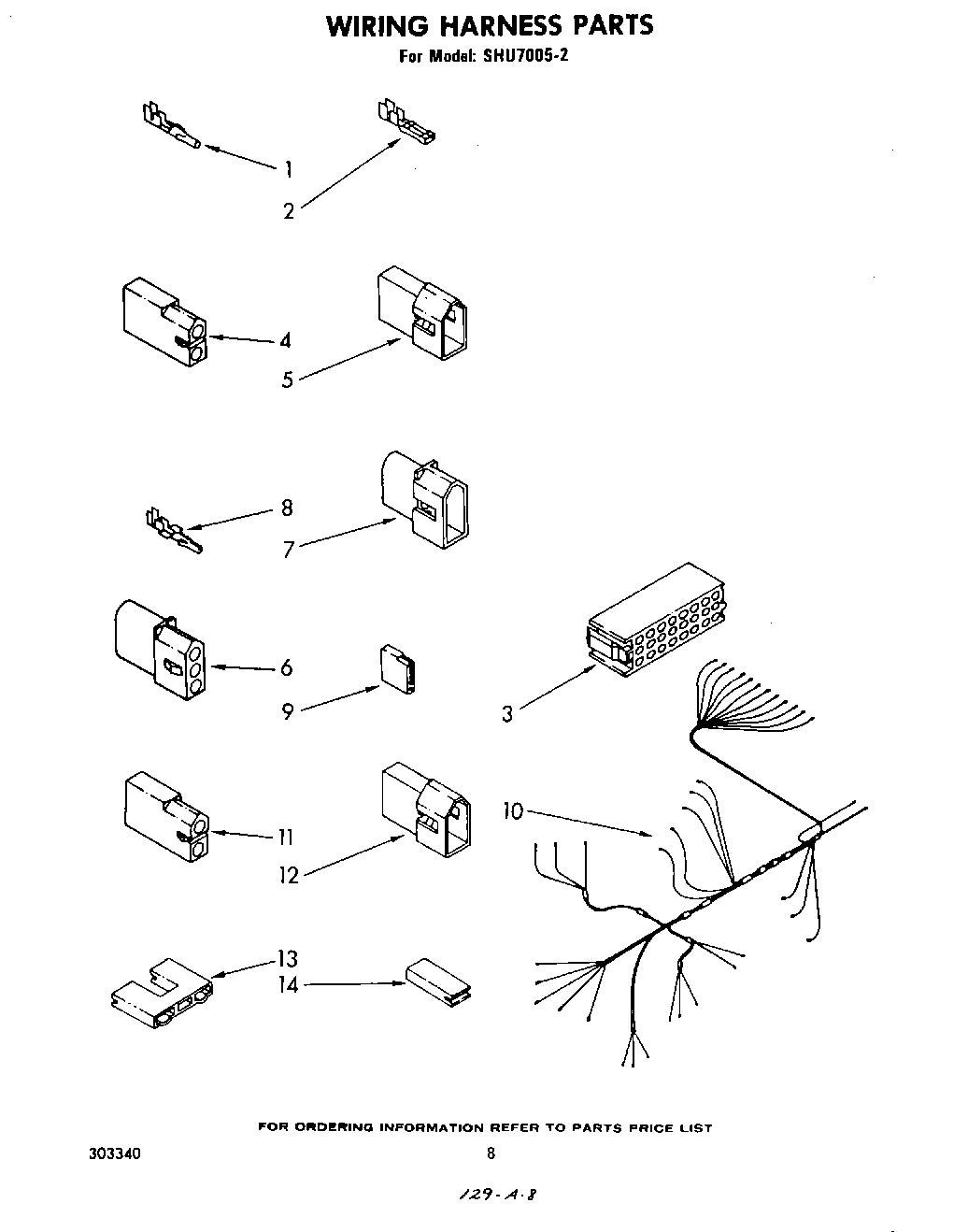

06 - WIRING HARNESS

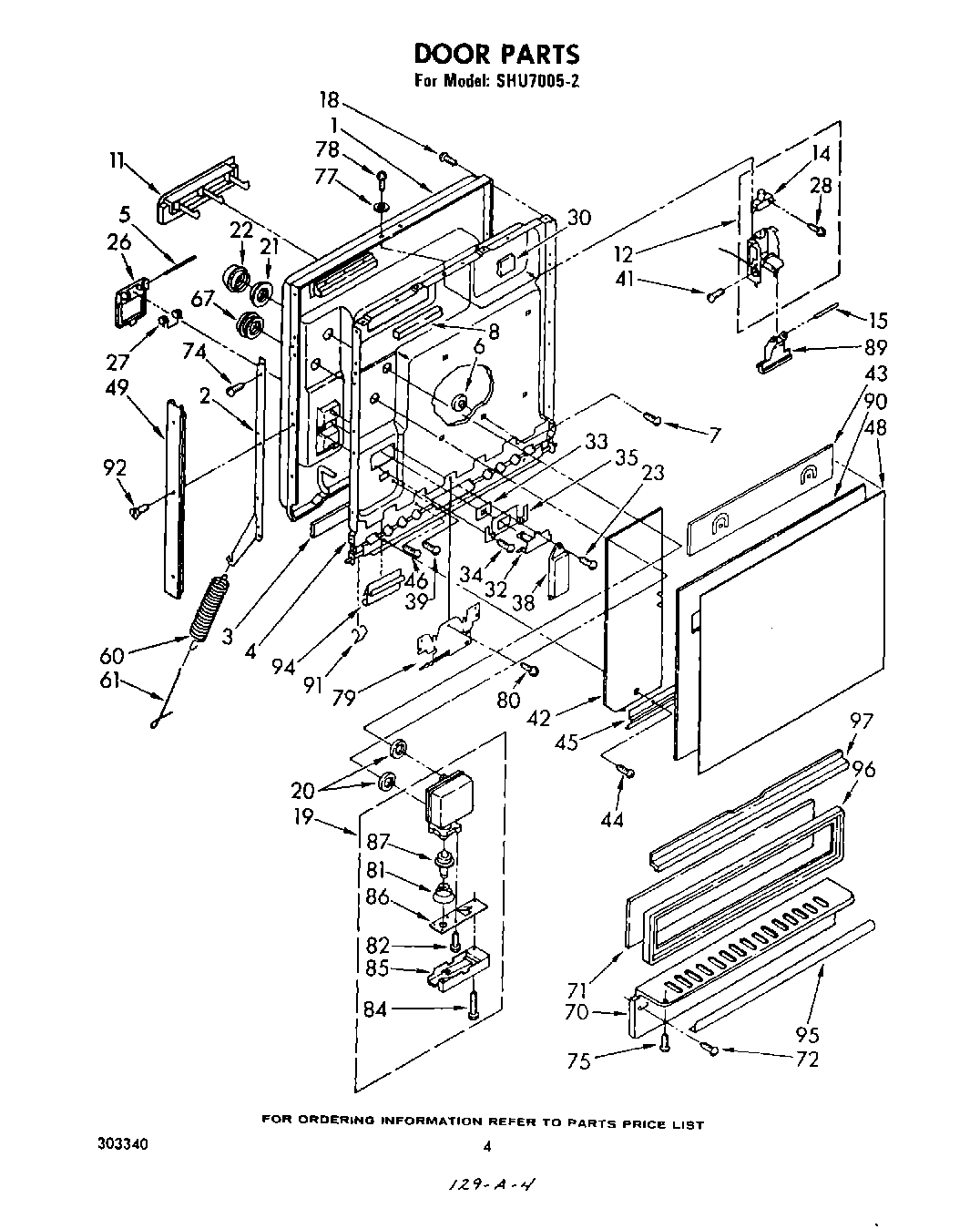

03 - DOOR

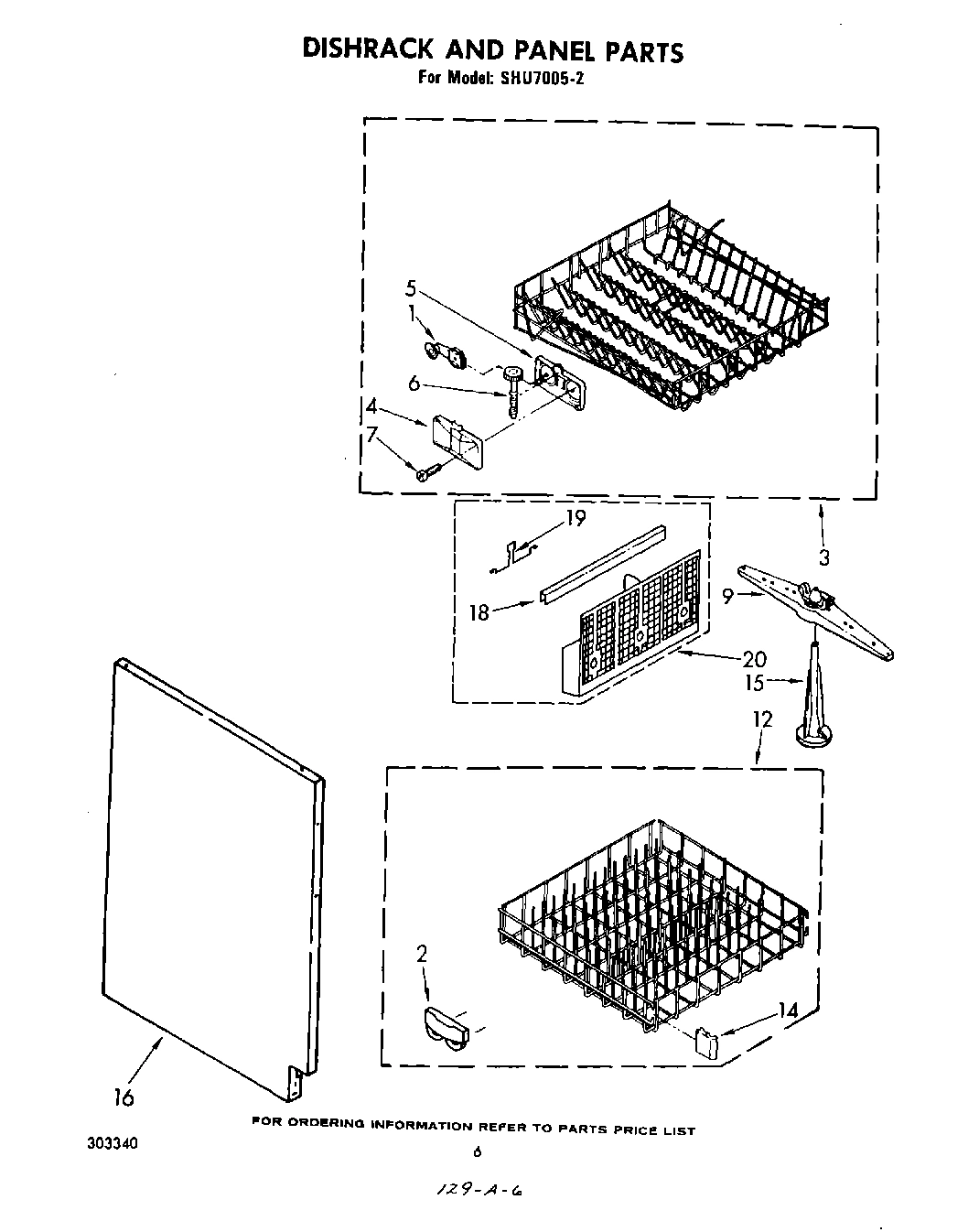

04 - DISHRACK AND PANEL

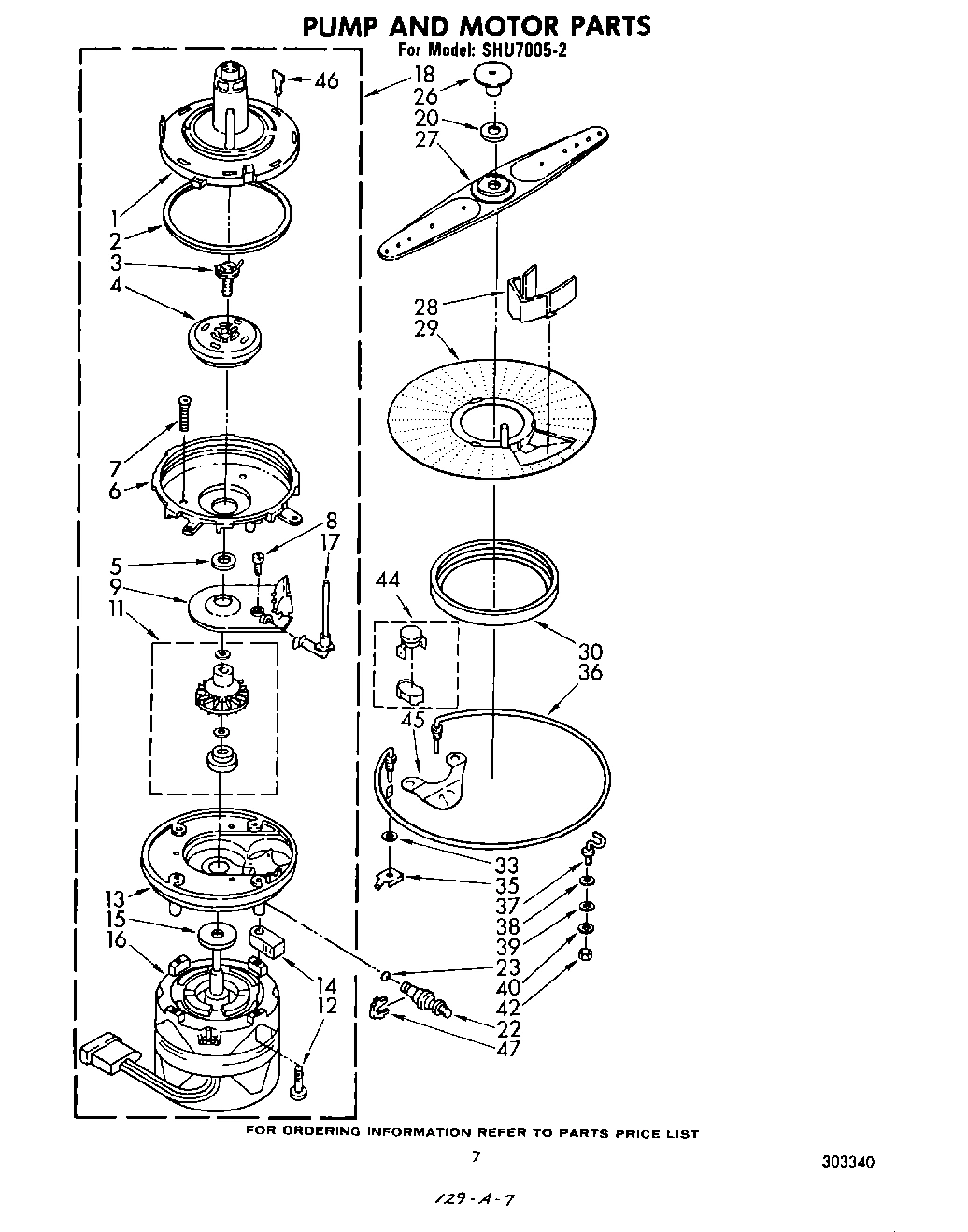

05 - PUMP AND MOTOR

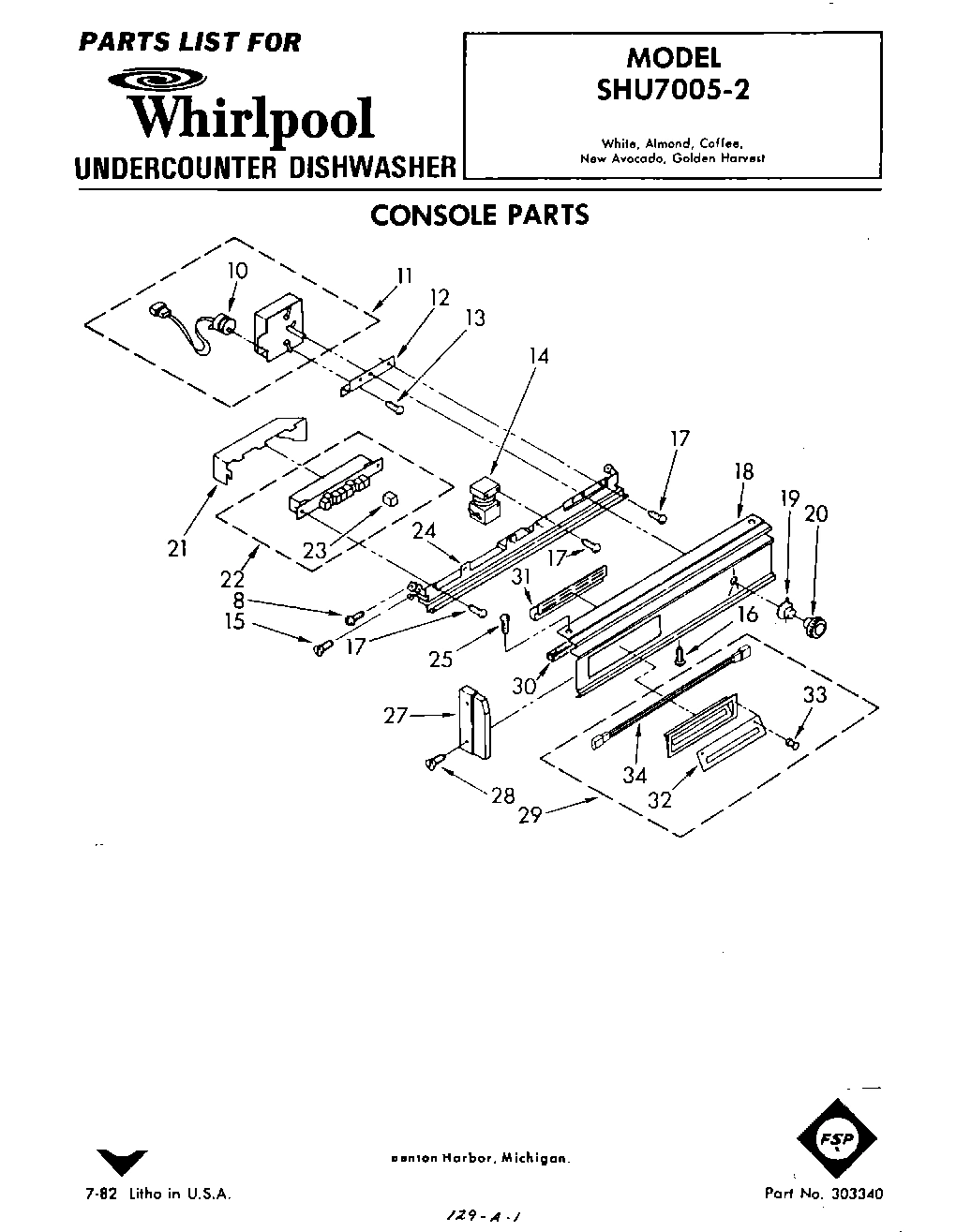

01 - CONSOLE

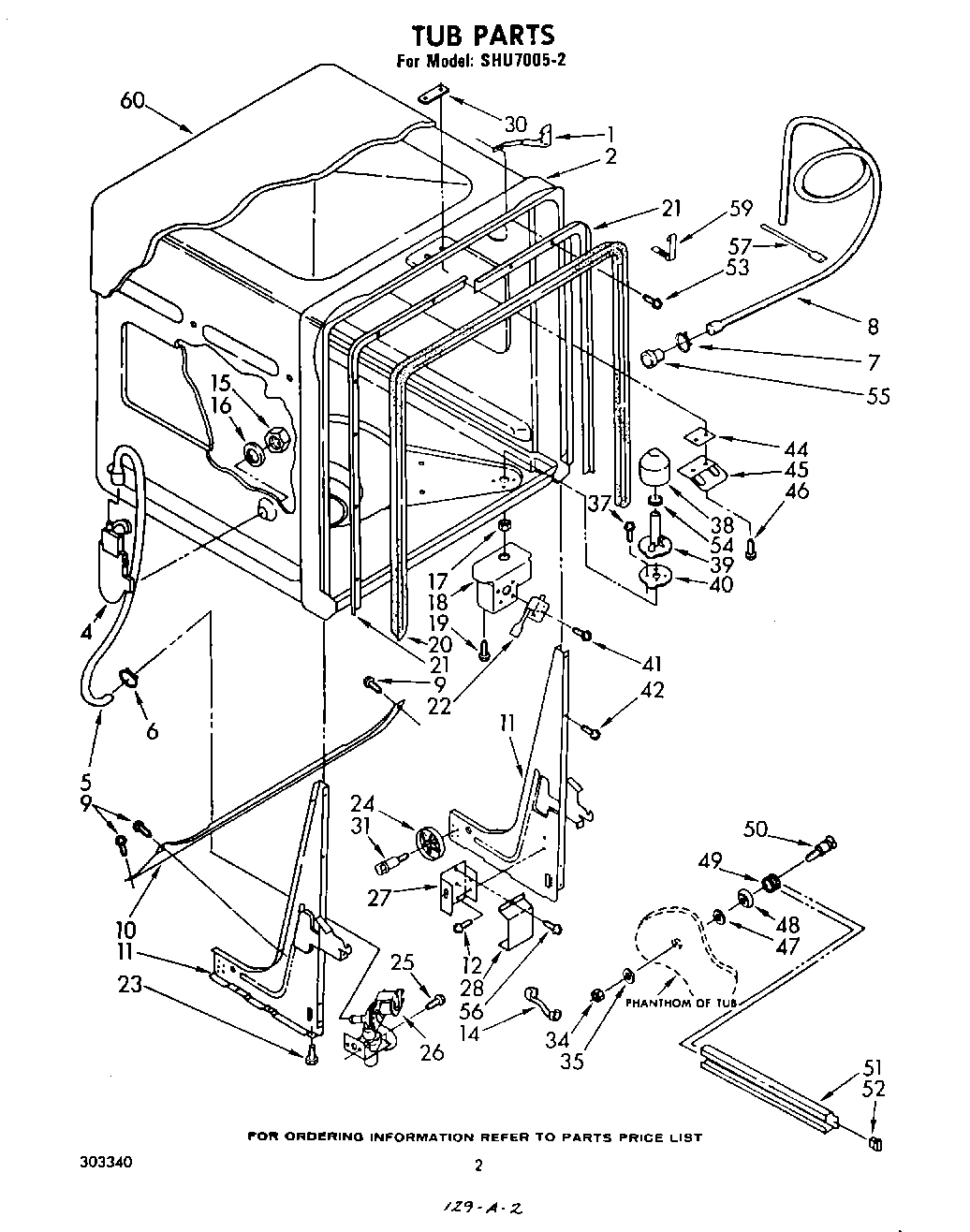

02 - TUB, LITERATURE AND OPTIONAL
Common parts from model Whirlpool SHU70052 UNDERCOUNTER DISHWASHER
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 799340 WPL 799340 Contact Us For Availability
1
Wheel & Gear Assembly (4) WPL 302025 Contact Us For Availability
1
Pump Housing, Upper WPL 301558 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Tub Assembly WPL 303110 Contact Us For Availability
3
Screw, 10-32 x .75 WPL 718326 Contact Us For Availability
4
Cover, Housing (2) WPL 302029 Contact Us For Availability
4
Impeller WPL 719949 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
5
Housing, Gear (2) WPL 302028 Contact Us For Availability
5
Spacer WPL 301619 Contact Us For Availability
5
Hose, Inlet WPL 301054 Contact Us For Availability
6
Worm, Dishrack (2) WPL 302026 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
10
Motor, Timer WPL 301062 Contact Us For Availability
10
Brace WPL 303111 Contact Us For Availability
11
Kit, Impeller Drain WPL 675297 Contact Us For Availability
11
Timer, Disconnect WPL 302844 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 302822 Contact Us For Availability
11
Leg & Hinge Assembly, R.H. WPL 302823 Contact Us For Availability
12
Screw, 13-16 (4) WPL 301817 Contact Us For Availability
12
Bracket, Timer WPL 301875 Contact Us For Availability
12
Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability
13
Base, Pump WPL 301812 Contact Us For Availability
14
Bumper (2) WPL 719964 Contact Us For Availability
14
Support, Pump (4) WPL 718260 Contact Us For Availability
14
Relay, Start (Alternate) WPL 300516 Contact Us For Availability
14
Relay, Start (Alternate) WPL 301536 Contact Us For Availability
14
Relay, Start (Alternate) WPL 301620 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
15
Tower WPL 302030 Contact Us For Availability
15
Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability
16
Panel, R.S. WPL ARI130444A Contact Us For Availability
16
Motor (Emerson) WPL 301811 Contact Us For Availability
16
Motor (General Electric) WPL 301858 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
18
Trim, Basket WPL 717528 Contact Us For Availability
18
Pump & Motor Assembly (Alternate) WPL 301829 Contact Us For Availability
18
Pump & Motor Assembly (Alternate) WPL 301860 Contact Us For Availability
18
Pump & Motor Assembly (Alternate) WPL 301861 Contact Us For Availability
18
Panel, Escutcheon WPL 303037 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
19
Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability
19
Handle, Basket WPL 300086 Contact Us For Availability
19
Dial, Indicator WPL 302067 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
20
Silverware Basket Assembly WPL 301994 Contact Us For Availability
20
Knob, Timer WPL 302180 Contact Us For Availability
20
Gasket (Alternate) WPL 302090 Contact Us For Availability
20
Gasket (Alternate) WPL 302091 Contact Us For Availability
21
Barrier, Pushbutton WPL 303129 Contact Us For Availability
21
Retainer (R.H.) WPL 302093 Contact Us For Availability
21
Retainer (L.H.) WPL 302094 Contact Us For Availability
22
Cap WPL 718577 Contact Us For Availability
22
Switch, Pushbutton WPL 303021 Contact Us For Availability
22
Switch, Pressure WPL 301671 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Button (7) WPL 301978 Contact Us For Availability
24
Wheel, Leg (2) WPL 302819 Contact Us For Availability
24
Bracket, Control WPL 300750 Contact Us For Availability
26
Cap, Nozzle WPL 302816 Contact Us For Availability
26
Valve, Water Inlet WPL 300453 Contact Us For Availability
27
Spray Arm, Lower WPL 302767 Contact Us For Availability
27
End Cap, R.H. WPL 303005 Contact Us For Availability
27
Cap, End (L.H.) WPL 303006 Contact Us For Availability
27
Box, Terminal WPL 300067 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability
28
Guard, Screen WPL 303069 Contact Us For Availability
29
Screen, Sump WPL 303070 Contact Us For Availability
29
Bezel Assembly WPL 303034 Contact Us For Availability
30
Gasket, Pump WPL 717000 Contact Us For Availability
30
Pad, Rubber WPL 302460 Contact Us For Availability
30
Baffle WPL 719860 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
Grille, Vent WPL 301878 Contact Us For Availability
31
Screw, Shoulder (2) WPL 302818 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Escutcheon, Pushbutton WPL 302842 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
33
Lens, Red WPL 302840 Contact Us For Availability
34
Light WPL 302857 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Retainer, Seal WPL 300104 Contact Us For Availability
35
Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
36
Heater (Alternate) WPL 302113 Contact Us For Availability
36
Heater (Alternate) WPL 302562 Contact Us For Availability
36
Heater (Alternate) WPL 717141 Contact Us For Availability
36
Heater (Alternate) WPL 719687 Contact Us For Availability
37
Support, Heater (2) WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Washer, Retainer (2) WPL 717289 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Washer (2) WPL 14351 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 4-40 x 3/4 Hex Head Slotted Thread Cut WPL 98086 Contact Us For Availability
42
Barrier, Door WPL 303223 Contact Us For Availability
42
Nut, 10-32 (2) WPL 9420162 Contact Us For Availability
43
Barrier, Console WPL 303222 Contact Us For Availability
44
Thermostat WPL 302104 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Panel Edging, Door WPL 301971 Contact Us For Availability
45
Bracket WPL 715073 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Key, Pump Housing WPL 301936 Contact Us For Availability
47
Retainer WPL 300797 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Panel, Front WPL ARI130442A Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
49
Trim, Door WPL 301956 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
50
Screw, Shoulder WPL 712499 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
53
Screw, 8-18 x 5/8 Indented Hex He WPL 719266 Contact Us For Availability
54
WPL 301662 WPL 301662 Contact Us For Availability
55
WPL 301656 WPL 301656 Contact Us For Availability
59
WPL 301663 WPL 301663 Contact Us For Availability
60
WPL 206925 WPL 206925 Contact Us For Availability
60
WPL 261886 WPL 261886 Contact Us For Availability
60
WPL 261888 WPL 261888 Contact Us For Availability
60
WPL 261890 WPL 261890 Contact Us For Availability
60
WPL 302966 WPL 302966 Contact Us For Availability
60
WPL 303023 WPL 303023 Contact Us For Availability
60
WPL 303204 WPL 303204 Contact Us For Availability
60
WPL 303340 WPL 303340 Contact Us For Availability
60
WPL 72108 WPL 72108 Contact Us For Availability
60
WPL 799351 WPL 799351 Contact Us For Availability
60
WPL 799640 WPL 799640 Contact Us For Availability
61
Retainer, Spring (2) WPL 716401 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
70
Plate, Toe WPL 303144 Contact Us For Availability
71
Panel, Access WPL ARI130443A Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
79
WPL 303362 WPL 303362 Contact Us For Availability
81
WPL 718592 WPL 718592 Contact Us For Availability
85
WPL 718646 WPL 718646 Contact Us For Availability
86
WPL 718596 WPL 718596 Contact Us For Availability
87
WPL 718595 WPL 718595 Contact Us For Availability
89
WPL 300230 WPL 300230 Contact Us For Availability
90
WPL 301957 WPL 301957 Contact Us For Availability
91
WPL 301857 WPL 301857 Contact Us For Availability
94
WPL 303121 WPL 303121 Contact Us For Availability
95
WPL 301815 WPL 301815 Contact Us For Availability
96
WPL 301814 WPL 301814 Contact Us For Availability
97
WPL 301816 WPL 301816 Contact Us For Availability
× ![]()
