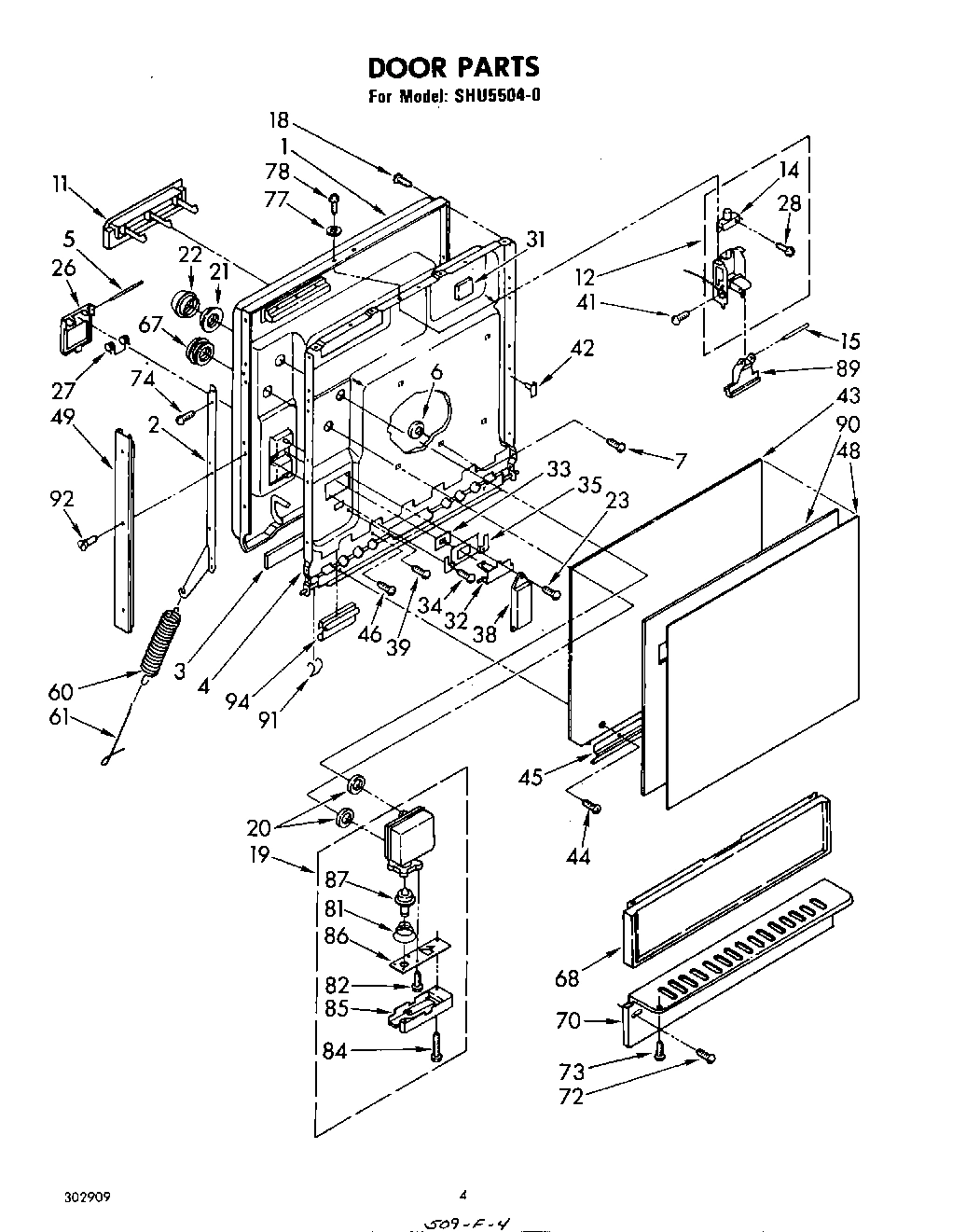

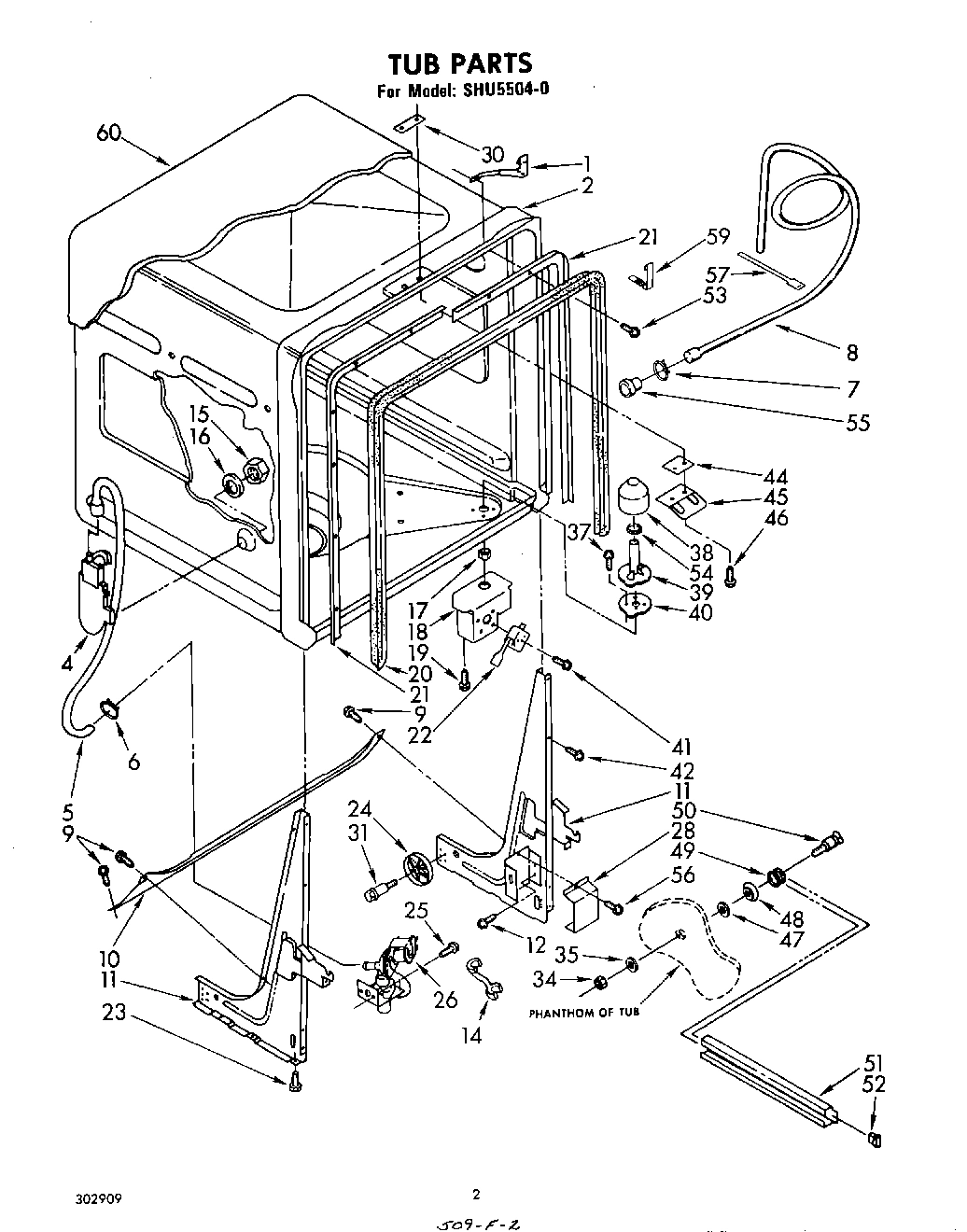

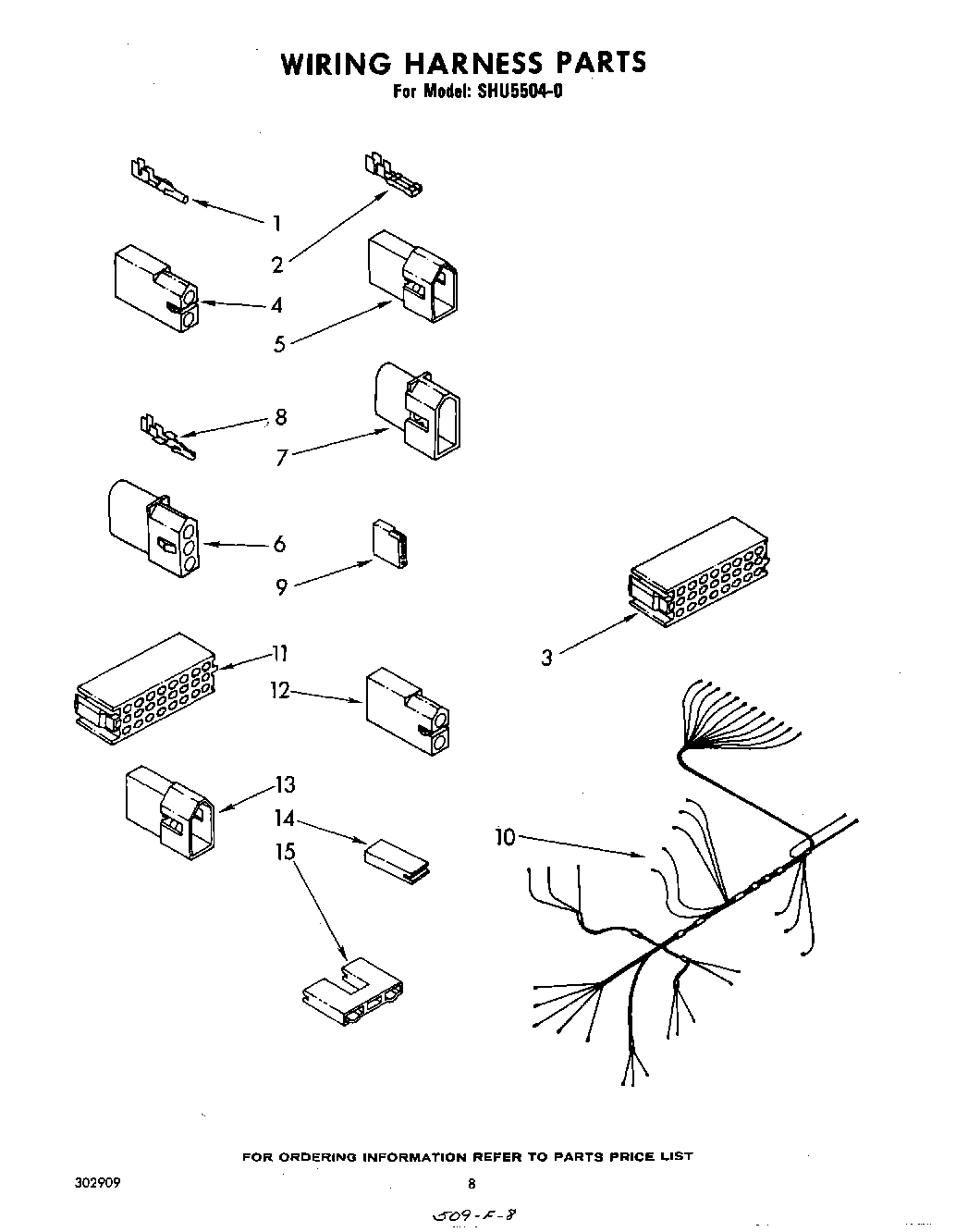

Model Whirlpool SHU55040 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

1

Wheel & Gear Assembly (4) WPL 302025 Contact Us For Availability

1

Bracket, Mounting (2) WPL 300796 Contact Us For Availability

1

Bracket, Control WPL 300754 Contact Us For Availability

1

Door, Inner (Includes Illus. 4) WPL 302035 Contact Us For Availability

2

4317933 Whirlpool Lower Rack Wheels In Stock WPL 4317933 $14.55

2

Terminal, Female WPL 352088 Contact Us For Availability

2

Seal, Ring WPL 718259 Contact Us For Availability

2

Tub Assembly WPL 303110 Contact Us For Availability

2

Console Assembly WPL 303012 Contact Us For Availability

2

Support, Door (R.H.) WPL 301946 Contact Us For Availability

2

Support, Door (L.H.) WPL 301947 Contact Us For Availability

3

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

3

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

3

Motor, Timer WPL 301062 Contact Us For Availability

3

Gasket, Door WPL 717921 Contact Us For Availability

4

Cover, Housing (2) WPL 302029 Contact Us For Availability

4

Inlet, Water WPL 300974 Contact Us For Availability

4

Relay, Start (Alternate) WPL 300516 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301536 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301620 Contact Us For Availability

4

Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability

4

Liner, Door WPL 302031 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

5

Housing, Gear (2) WPL 302028 Contact Us For Availability

5

Hose, Inlet WPL 301054 Contact Us For Availability

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

Worm, Dishrack (2) WPL 302026 Contact Us For Availability

6

Timer, Disconnect WPL 302846 Contact Us For Availability

6

Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability

6

Button, Retainer (5) WPL 300239 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

7

Screw, 8-18 x 3/8 Hi-Lo (5) WPL 300250 Contact Us For Availability

8

675544 Whirlpool Drain Hose Backorder WPL 675544 $48.15

8

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

9

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

9

Receptacle (5-Circuit) WPL 719585 Contact Us For Availability

10

Brace WPL 303111 Contact Us For Availability

10

Screw, 8-18 x 5/8 (2) WPL 303090 Contact Us For Availability

10

Harness, Wiring WPL 302166 Contact Us For Availability

Leg & Hinge Assembly, L.H. WPL 302822 Contact Us For Availability

Leg & Hinge Assembly, R.H. WPL 302823 Contact Us For Availability

Switch, Pushbutton WPL 302076 Contact Us For Availability

Disconnect Block WPL 352090 Contact Us For Availability

Screen, Vent WPL 300246 Contact Us For Availability

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability

Button (6) WPL 301977 Contact Us For Availability

Receptacle Terminal (2-Way) Red WPL 717251 Contact Us For Availability

Latch Assembly WPL 300235 Contact Us For Availability

13

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

13

Barrier, Pushbutton Switch WPL 300242 Contact Us For Availability

Bumper (2) WPL 719964 Contact Us For Availability

Relief, Strain WPL 717563 Contact Us For Availability

Connector Block WPL 301219 Contact Us For Availability

Switch, Interlock WPL 300232 Contact Us For Availability

Tower WPL 302030 Contact Us For Availability

Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability

Connector Block WPL 300708 Contact Us For Availability

Pin, Pivot WPL 300234 Contact Us For Availability

16

Panel, R.S. WPL ARI130425A Contact Us For Availability

16

Gasket WPL 713878 Contact Us For Availability

17

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

17

Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability

17

Silverware Basket Assembly WPL 301994 Contact Us For Availability

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

18

Trim, Basket WPL 717528 Contact Us For Availability

18

Bracket, Overflow WPL 719342 Contact Us For Availability

19

Handle, Basket WPL 300086 Contact Us For Availability

19

Dispenser, Wetting Agent WPL 719341 Contact Us For Availability

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

Gasket (Alternate) WPL 302090 Contact Us For Availability

Gasket (Alternate) WPL 302091 Contact Us For Availability

Washer (2) WPL 713080 Contact Us For Availability

21

Retainer (R.H.) WPL 302093 Contact Us For Availability

21

Retainer (L.H.) WPL 302094 Contact Us For Availability

21

Nut, 1-14 Buttress Thread (1) WPL 718575 Contact Us For Availability

22

Switch, Pressure WPL 301671 Contact Us For Availability

22

Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability

22

Cap WPL 718577 Contact Us For Availability

23

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $27.61

23

Insert WPL 303003 Contact Us For Availability

24

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

25

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

26

Valve, Water Inlet WPL 300453 Contact Us For Availability

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

28

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

28

Dial, Indicator WPL 300996 Contact Us For Availability

28

Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability

30

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

30

Nut, Twin Spring WPL 303080 Contact Us For Availability

30

Knob, Timer WPL 302541 Contact Us For Availability

31

Screw, Shoulder WPL 302818 Contact Us For Availability

31

Spacer, Timer WPL 302866 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

33

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

33

Seal, Lever WPL 300105 Contact Us For Availability

34

Locknut, 10-32 (8) WPL 718829 Contact Us For Availability

34

Trim, Console WPL 301624 Contact Us For Availability

35

Washer (8) WPL 717624 Contact Us For Availability

35

Retainer, Seal WPL 300104 Contact Us For Availability

36

Heater (Alternate) WPL 302562 Contact Us For Availability

36

Heater (Alternate) WPL 717141 Contact Us For Availability

36

Heater (Alternate) WPL 719687 Contact Us For Availability

37

Support, Heater (2) WPL 717096 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Washer, Retainer (2) WPL 717289 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

39

Washer (2) WPL 14351 Contact Us For Availability

39

Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

40

Washer (2) WPL 711284 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

41

Screw, 4-40 x 3/4 Hex Head Slotted Thread Cut WPL 98086 Contact Us For Availability

42

Nut, 10-32 (2) WPL 9420162 Contact Us For Availability

42

Clip, Retainer (2) WPL 301058 Contact Us For Availability

43

Barrier, Panel WPL 301959 Contact Us For Availability

44

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

44

Thermostat WPL 302104 Contact Us For Availability

44

Shim WPL 712302 Contact Us For Availability

45

Bracket WPL 715073 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

45

Panel Edging, Door WPL 301971 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

Key, Pump Housing WPL 301936 Contact Us For Availability

47

Retainer, Check Valve WPL 300797 Contact Us For Availability

47

Washer (8) WPL 718750 Contact Us For Availability

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

Panel, Front WPL ARI130424A Contact Us For Availability

49

Wheel Assembly (8) WPL 300844 Contact Us For Availability

49

Trim, Door WPL 301956 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

53

Screw, 8-18 x 5/8 Indented Hex Head (10) WPL 719266 Contact Us For Availability

54

Gasket (2 WPL 301662 Contact Us For Availability

55

WPL 301656 WPL 301656 Contact Us For Availability

57

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

59

WPL 301663 WPL 301663 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 206925 WPL 206925 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 302699 WPL 302699 Contact Us For Availability

WPL 302775 WPL 302775 Contact Us For Availability

WPL 302909 WPL 302909 Contact Us For Availability

WPL 303023 WPL 303023 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

61

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

67

Cap, Drip WPL 718576 Contact Us For Availability

68

WP3367793 Whirlpool Black Access Panel Backorder WPL WP3367793 $17.51

70

Plate, Toe WPL 717968 Contact Us For Availability

72

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

73

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer WPL 300237 Contact Us For Availability

81

Spring, Conical WPL 718592 Contact Us For Availability

82

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

84

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

85

Acutator Assembly WPL 718646 Contact Us For Availability

86

Plate WPL 718596 Contact Us For Availability

87

Diahp WPL 718595 Contact Us For Availability

89

WPL 300230 WPL 300230 Contact Us For Availability

90

WPL 301957 WPL 301957 Contact Us For Availability

91

WPL 301857 WPL 301857 Contact Us For Availability

92

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59

94

WPL 302162 WPL 302162 Contact Us For Availability
