Model Whirlpool SHU45020 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

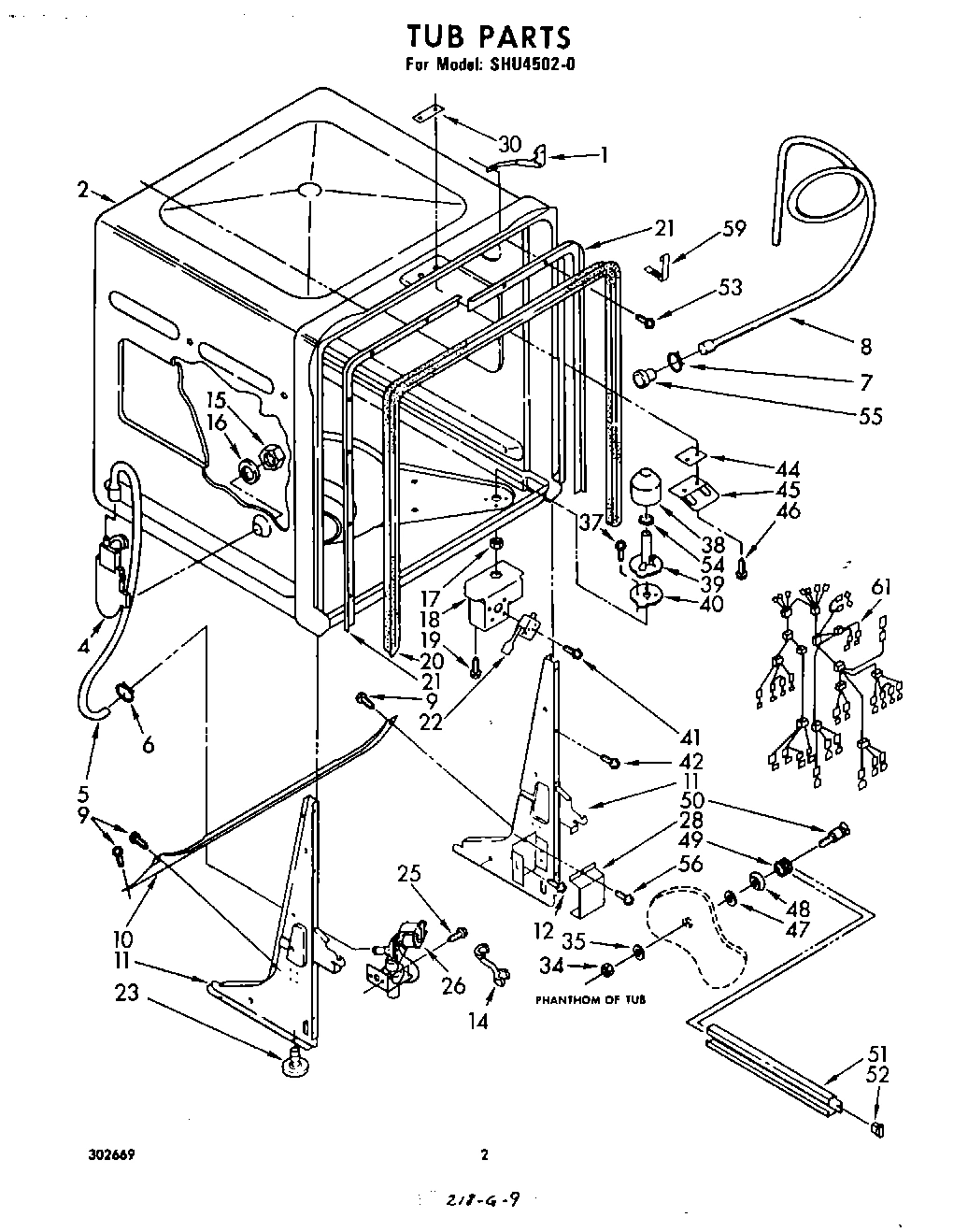

02 - TUB , LIT/OPTIONAL

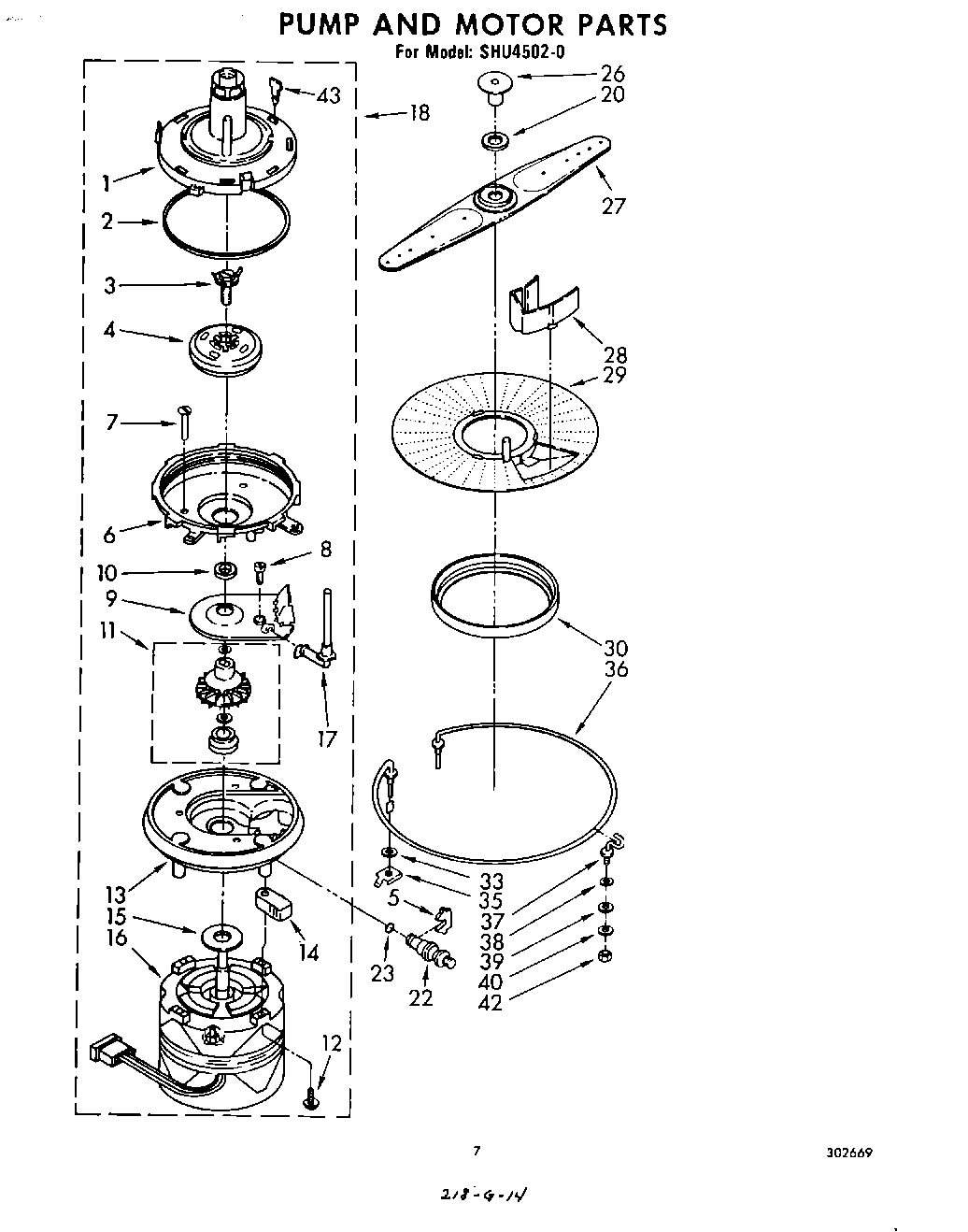

05 - PUMP AND MOTOR

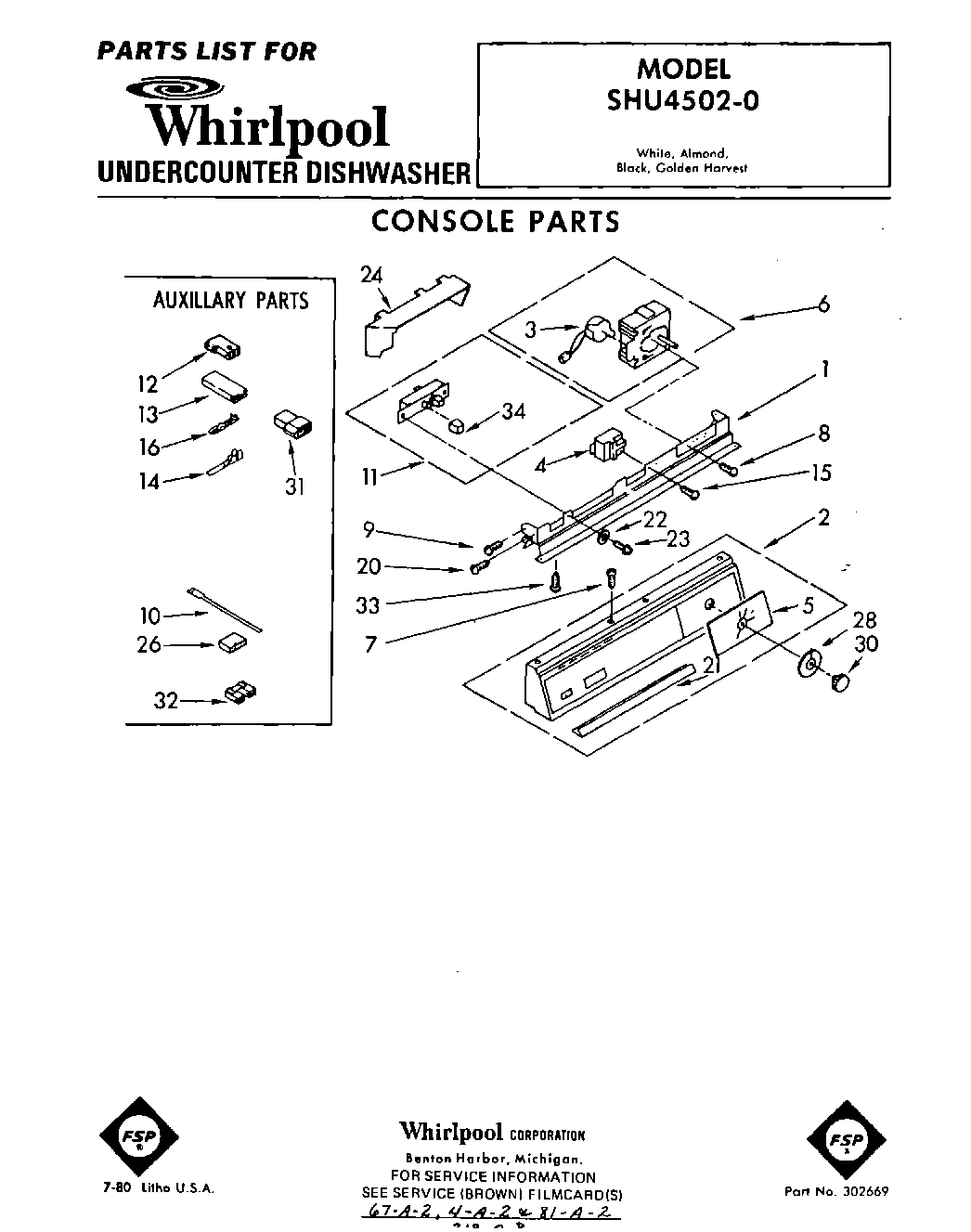

01 - CONSOLE

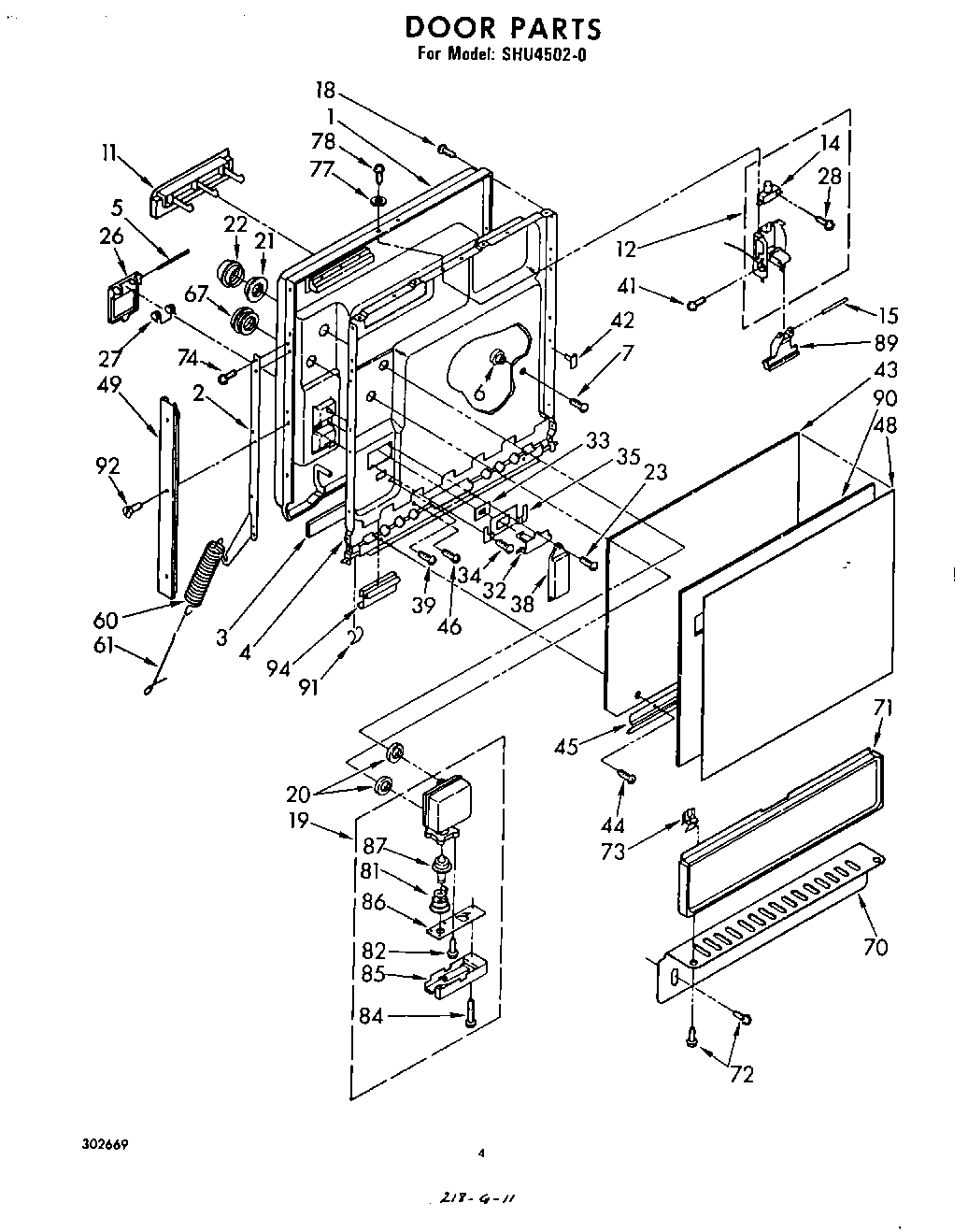

03 - DOOR

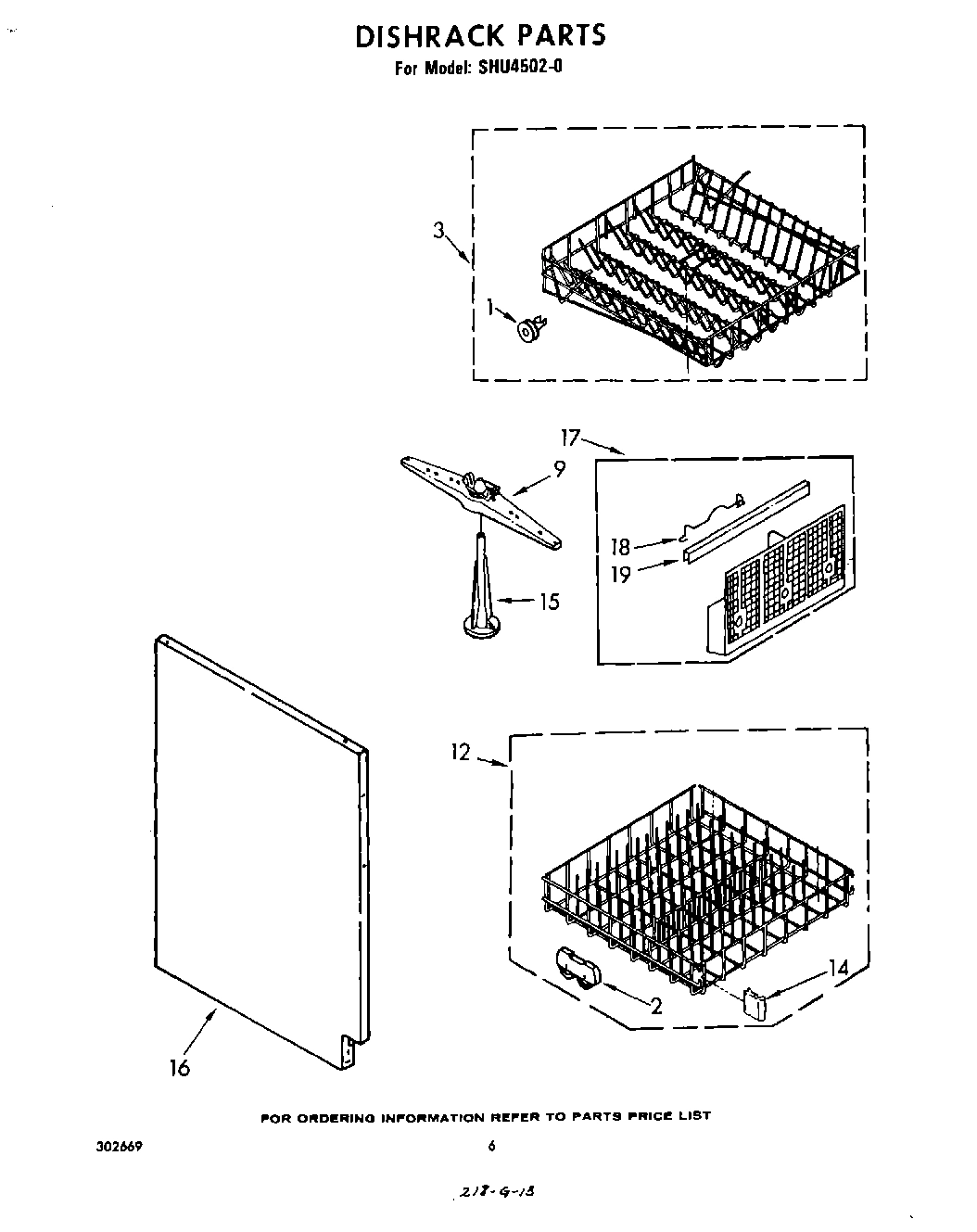

04 - DISHRACK
Common parts from model Whirlpool SHU45020 UNDERCOUNTER DISHWASHER
WPL 799344 WPL 799344 Contact Us For Availability
1
Pump Housing, Upper WPL 301558 Contact Us For Availability
1
Bracket, Console WPL 300754 Contact Us For Availability
1
Door, Inner (Includes Illus. 4) WPL 302035 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Console Assembly WPL 302365 Contact Us For Availability
2
Support, Door (R.H.) WPL 301946 Contact Us For Availability
2
Support, Door (L.H.) WPL 301947 Contact Us For Availability
3
Screw, 10-32 x 3/4 Hex Head Machine W/Keeper WPL 718326 Contact Us For Availability
3
Motor, Timer WPL 301062 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
4
Impeller WPL 719949 Contact Us For Availability
4
Relay, Start (Alternate) WPL 300516 Contact Us For Availability
4
Relay, Start (Alternate) WPL 301536 Contact Us For Availability
4
Relay, Start (Alternate) WPL 301620 Contact Us For Availability
4
Liner, Door WPL 302031 Contact Us For Availability
5
Retainer, Check Valve WPL 300797 Contact Us For Availability
5
Insert, Console WPL 302400 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
6
Timer WPL 302588 Contact Us For Availability
6
Button, Retainer (3) WPL 300239 Contact Us For Availability
7
Screw, 6-20 x 3/8 WPL 162400 Contact Us For Availability
7
Screw, 8-18 x 3/8 Hi-Lo Blunt Point (3) WPL 300250 Contact Us For Availability
8
Screw (2) WPL 339494 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
10
Spacer WPL 301619 Contact Us For Availability
11
Kit, Impeller Drain WPL 675297 Contact Us For Availability
11
Switch, Pushbutton WPL 302346 Contact Us For Availability
11
Screen, Vent WPL 300246 Contact Us For Availability
12
Screw, 13-16 Thread Hi-Lo Special Hex Washer WPL 301817 Contact Us For Availability
12
Receptacle (Wetting Agent Dispenser) WPL 353425 Contact Us For Availability
12
Latch Assembly WPL 300235 Contact Us For Availability
13
Base, Pump WPL 301812 Contact Us For Availability
13
Connector Block (2) (Timer Motor) WPL 301219 Contact Us For Availability
14
Support, Pump (4) WPL 718260 Contact Us For Availability
14
Switch, Interlock WPL 300232 Contact Us For Availability
14
Bumper WPL 719964 Contact Us For Availability
15
Pin, Pivot WPL 300234 Contact Us For Availability
15
Tower WPL 302030 Contact Us For Availability
16
Motor (Emerson) WPL 301811 Contact Us For Availability
16
Motor (General Electric) WPL 301858 Contact Us For Availability
16
Panel, R.S. WPL ARI130417A Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
17
Silverware Basket Assembly WPL 301994 Contact Us For Availability
18
Pump & Motor Assembly WPL 301829 Contact Us For Availability
18
Handle, Basket WPL 300086 Contact Us For Availability
19
Dispenser, Wetting Agent WPL 719341 Contact Us For Availability
19
Trim, Basket WPL 717528 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
20
Washer (2) WPL 713080 Contact Us For Availability
21
Retainer (L.H.) WPL 302094 Contact Us For Availability
21
Trim, Console WPL 301624 Contact Us For Availability
21
Nut, 1-14 Buttress Thread (1) WPL 718575 Contact Us For Availability
22
Switch, Pressure WPL 301671 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability
22
Washer (2) WPL 301503 Contact Us For Availability
22
Cap WPL 718577 Contact Us For Availability
23
Screw, Leveling WPL 719168 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Screw, 8-32 (2) WPL 301483 Contact Us For Availability
24
Barrier, Pushbutton Switch WPL 300242 Contact Us For Availability
26
Valve, Water Inlet WPL 300453 Contact Us For Availability
26
Cap, Assembly WPL 302816 Contact Us For Availability
26
Connector, Terminal (Motor) WPL 719585 Contact Us For Availability
27
Spray Arm, Lower WPL 719691 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Guard, Screen WPL 300988 Contact Us For Availability
28
Dial, Indicator WPL 300996 Contact Us For Availability
28
Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability
29
Screen, Sump WPL 718226 Contact Us For Availability
30
Gasket, Pump WPL 717000 Contact Us For Availability
30
Nut, Twin Spring WPL 719455 Contact Us For Availability
30
Knob WPL 301010 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Block, Connector WPL 300708 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
34
Button (2) WPL 302338 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
35
Nut, Terminal 7/16-20 (2) WPL 718537 Contact Us For Availability
35
Retainer, Seal WPL 300104 Contact Us For Availability
36
Heater WPL 717141 Contact Us For Availability
36
Heater (Alternate) WPL 719687 Contact Us For Availability
37
Support, Heater (2) WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
38
Washer, Retainer (2) WPL 717289 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
39
Washer (2) WPL 14351 Contact Us For Availability
39
Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
41
Screw, 4-40 x 3/4 Hex Head Slotted Thread Cut WPL 98086 Contact Us For Availability
42
Nut, 10-32 (2) WPL 9420162 Contact Us For Availability
42
Clip, Retainer (2) WPL 301058 Contact Us For Availability
43
Key, Pump Housing WPL 301936 Contact Us For Availability
43
Barrier, Panel WPL 301959 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
45
Panel Edging, Door WPL 301971 Contact Us For Availability
47
Washer WPL 718750 Contact Us For Availability
48
Washer, Cup WPL 718817 Contact Us For Availability
48
Panel, Front (White) WPL 675411 Contact Us For Availability
48
Panel, Front (Superior Black) WPL 675412 Contact Us For Availability
48
Panel, Front (New Avocado) WPL 675413 Contact Us For Availability
48
Panel, Front (Coffee) WPL 675414 Contact Us For Availability
48
Panel, Front (Golden Harvest) WPL 675415 Contact Us For Availability
48
Panel, Front (Almond) WPL 675416 Contact Us For Availability
49
Wheel Assembly WPL 300844 Contact Us For Availability
49
Trim, Door WPL 301956 Contact Us For Availability
50
Screw, Shoulder WPL 712499 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
53
Screw, 8-18 x 5/8 Indented Hex Head (10) WPL 719266 Contact Us For Availability
54
Gasket (2) WPL 301662 Contact Us For Availability
55
Insert, Cup-Hos WPL 301656 Contact Us For Availability
59
WPL 301663 WPL 301663 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
61
WPL 206925 WPL 206925 Contact Us For Availability
61
WPL 261886 WPL 261886 Contact Us For Availability
61
WPL 261888 WPL 261888 Contact Us For Availability
61
WPL 261890 WPL 261890 Contact Us For Availability
61
WPL 302080 WPL 302080 Contact Us For Availability
61
WPL 302415 WPL 302415 Contact Us For Availability
61
WPL 302630 WPL 302630 Contact Us For Availability
61
WPL 302669 WPL 302669 Contact Us For Availability
61
WPL 302754 WPL 302754 Contact Us For Availability
61
WPL 72108 WPL 72108 Contact Us For Availability
61
WPL 799351 WPL 799351 Contact Us For Availability
61
WPL 799640 WPL 799640 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
70
Plate, Toe WPL 717968 Contact Us For Availability
73
Clip (2) WPL 718607 Contact Us For Availability
77
WPL 300237 WPL 300237 Contact Us For Availability
81
WPL 718592 WPL 718592 Contact Us For Availability
85
WPL 718646 WPL 718646 Contact Us For Availability
86
WPL 718596 WPL 718596 Contact Us For Availability
87
WPL 718595 WPL 718595 Contact Us For Availability
89
WPL 300230 WPL 300230 Contact Us For Availability
90
WPL 301957 WPL 301957 Contact Us For Availability
91
WPL 301857 WPL 301857 Contact Us For Availability
94
WPL 302162 WPL 302162 Contact Us For Availability
× ![]()
