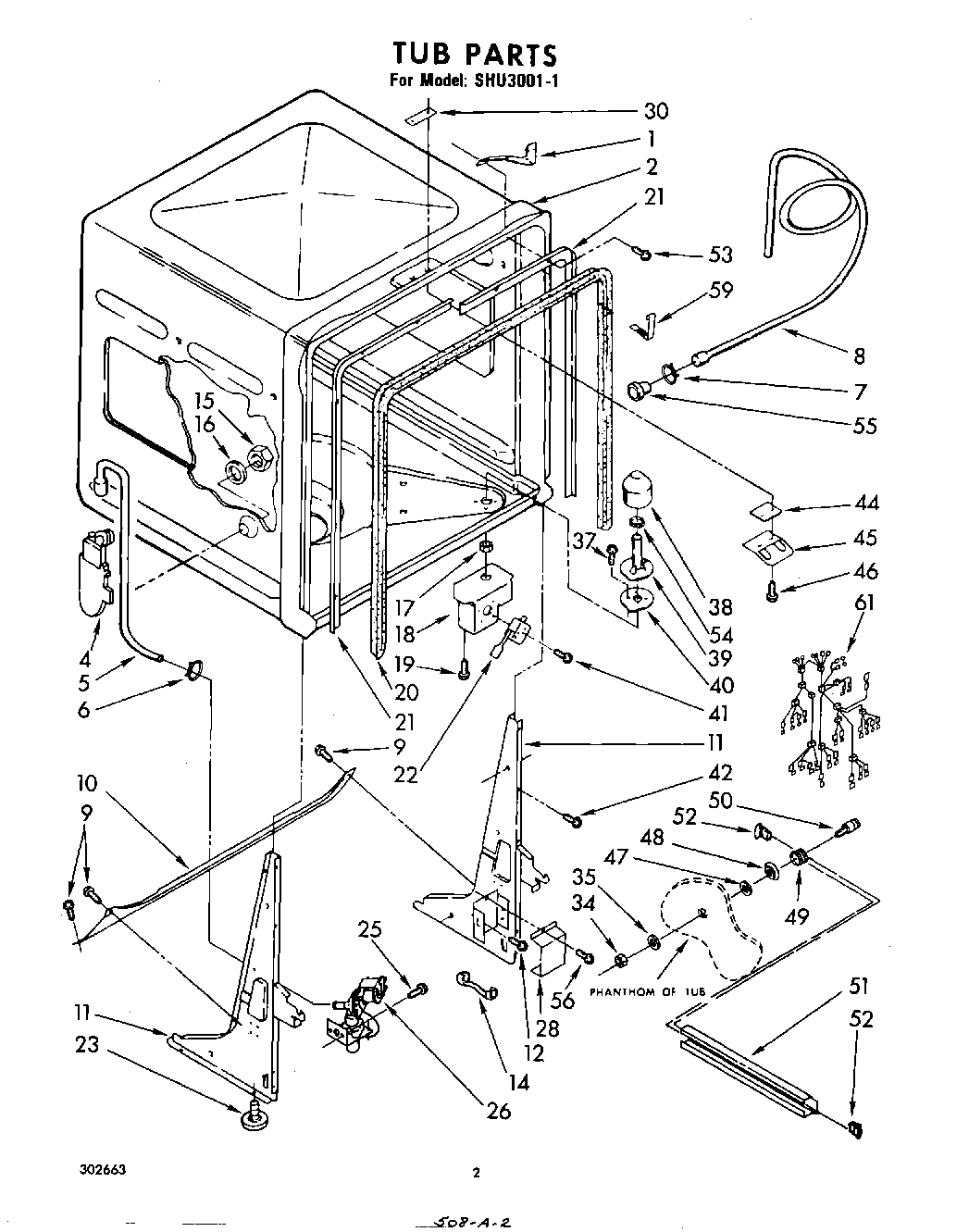

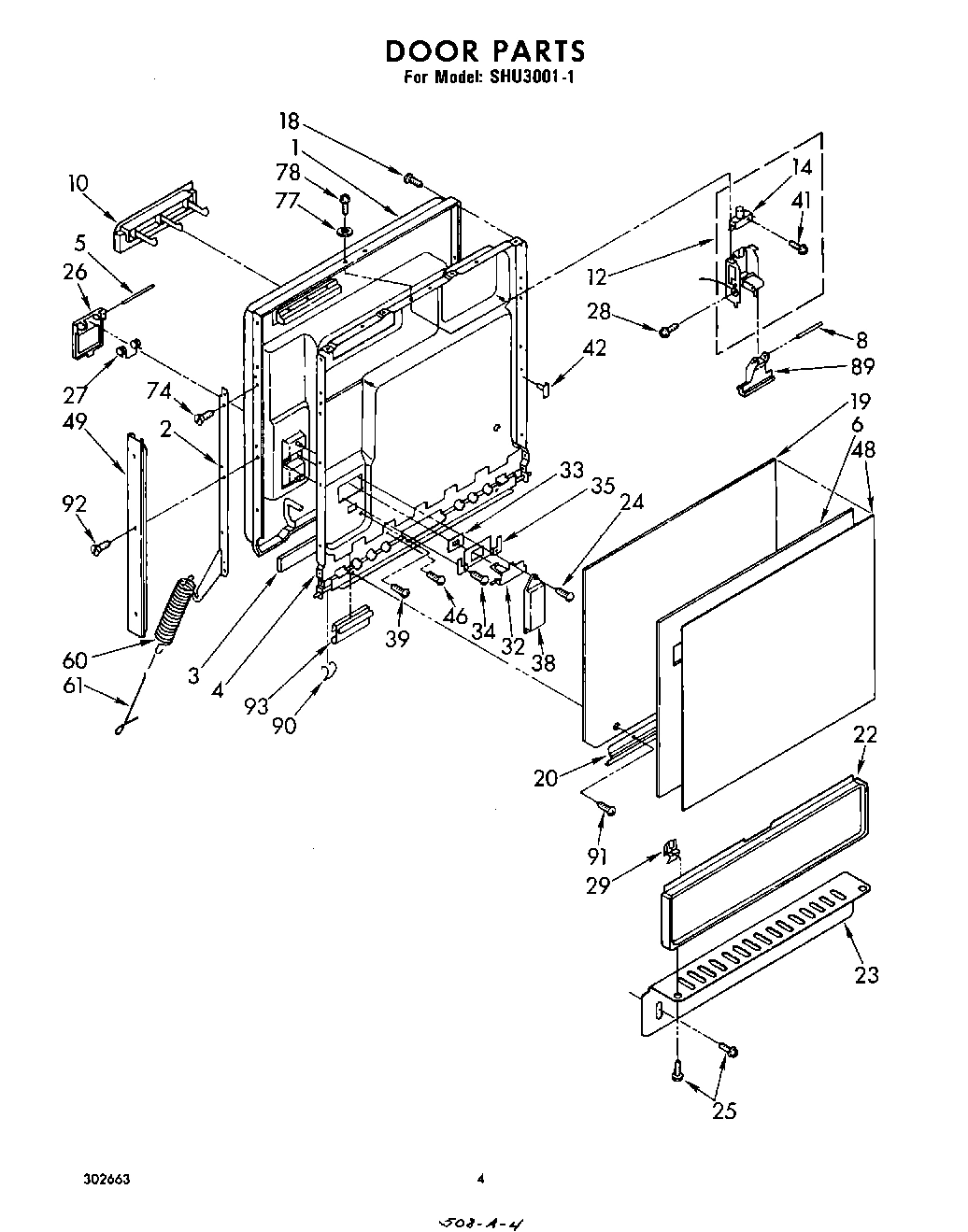

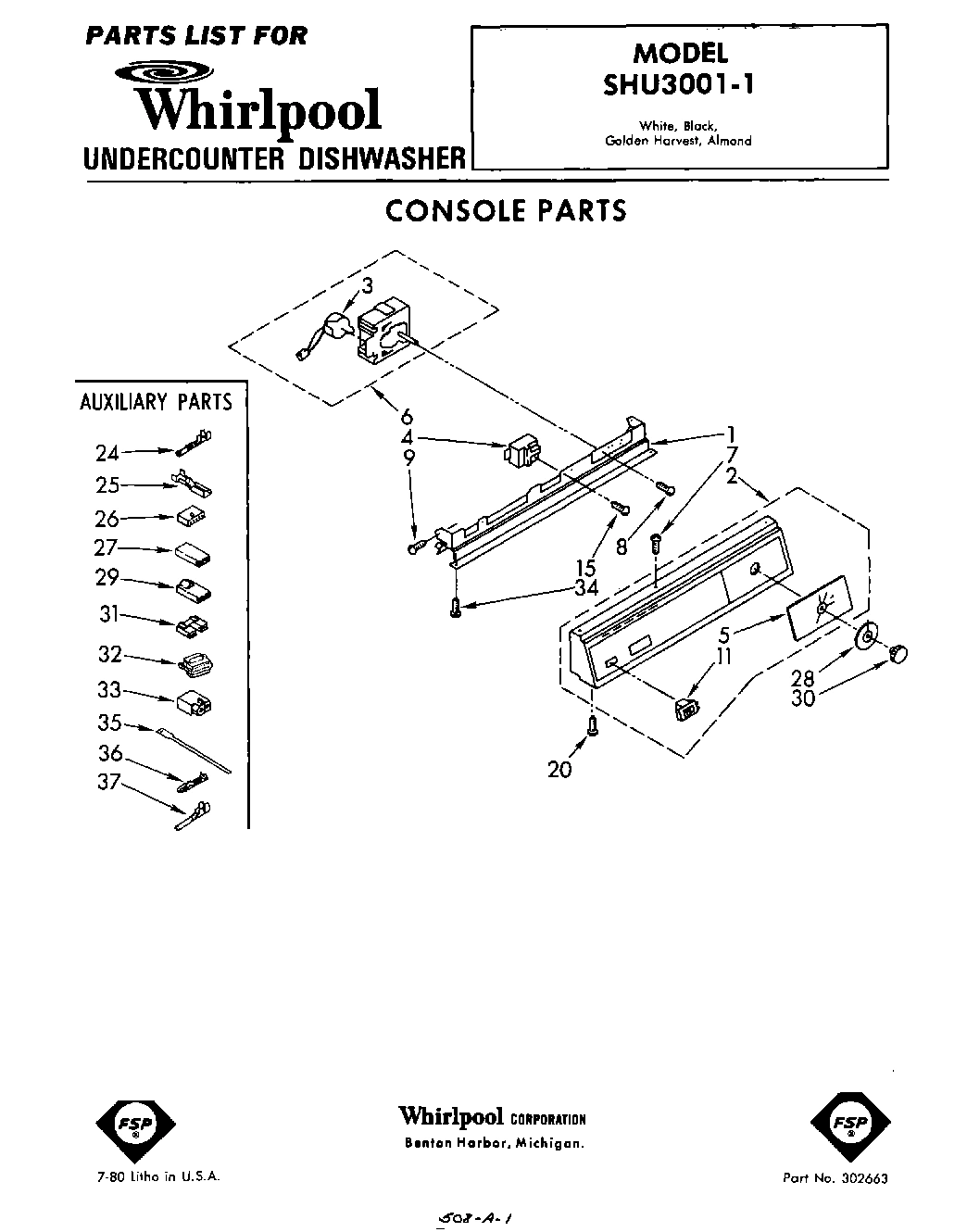

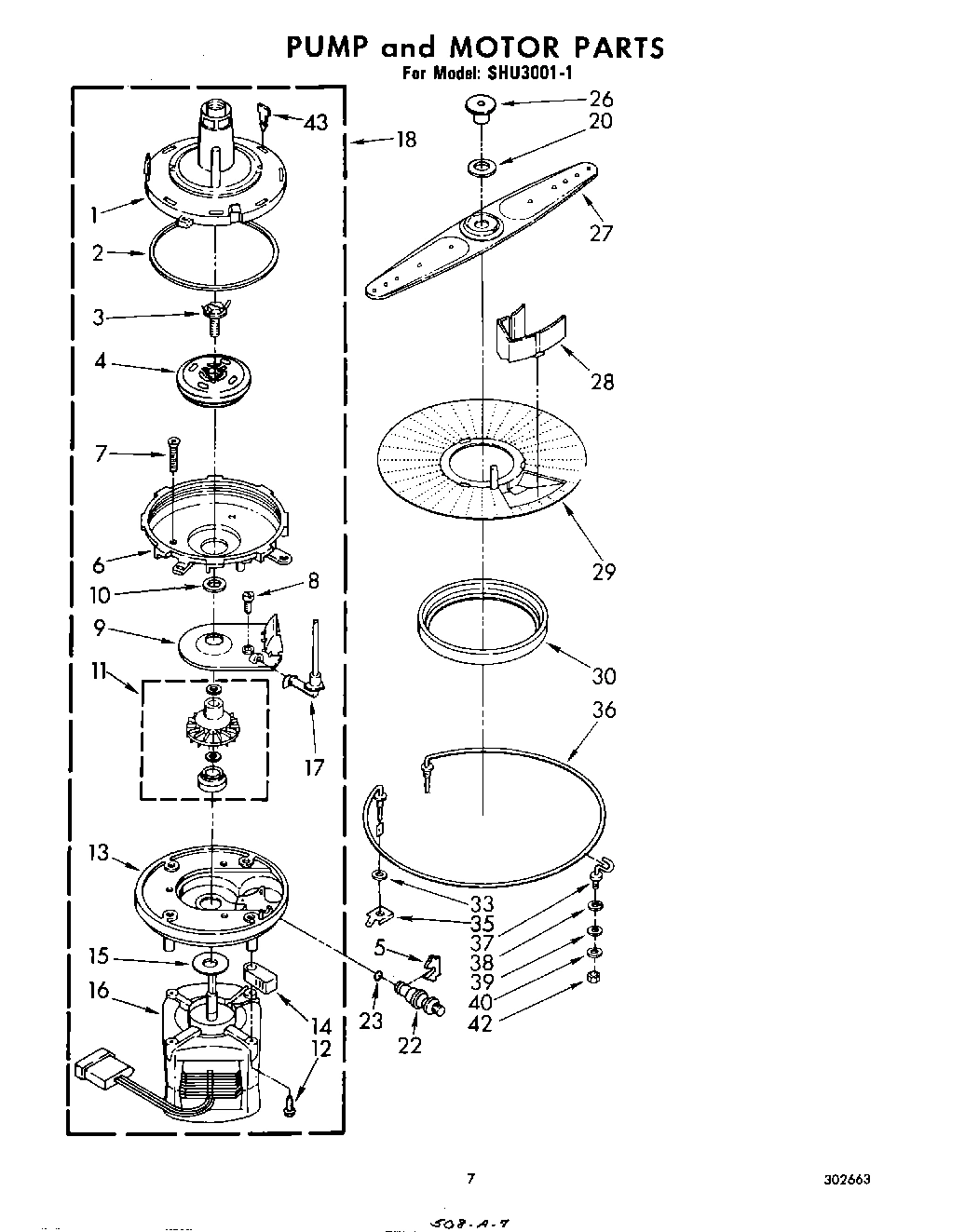

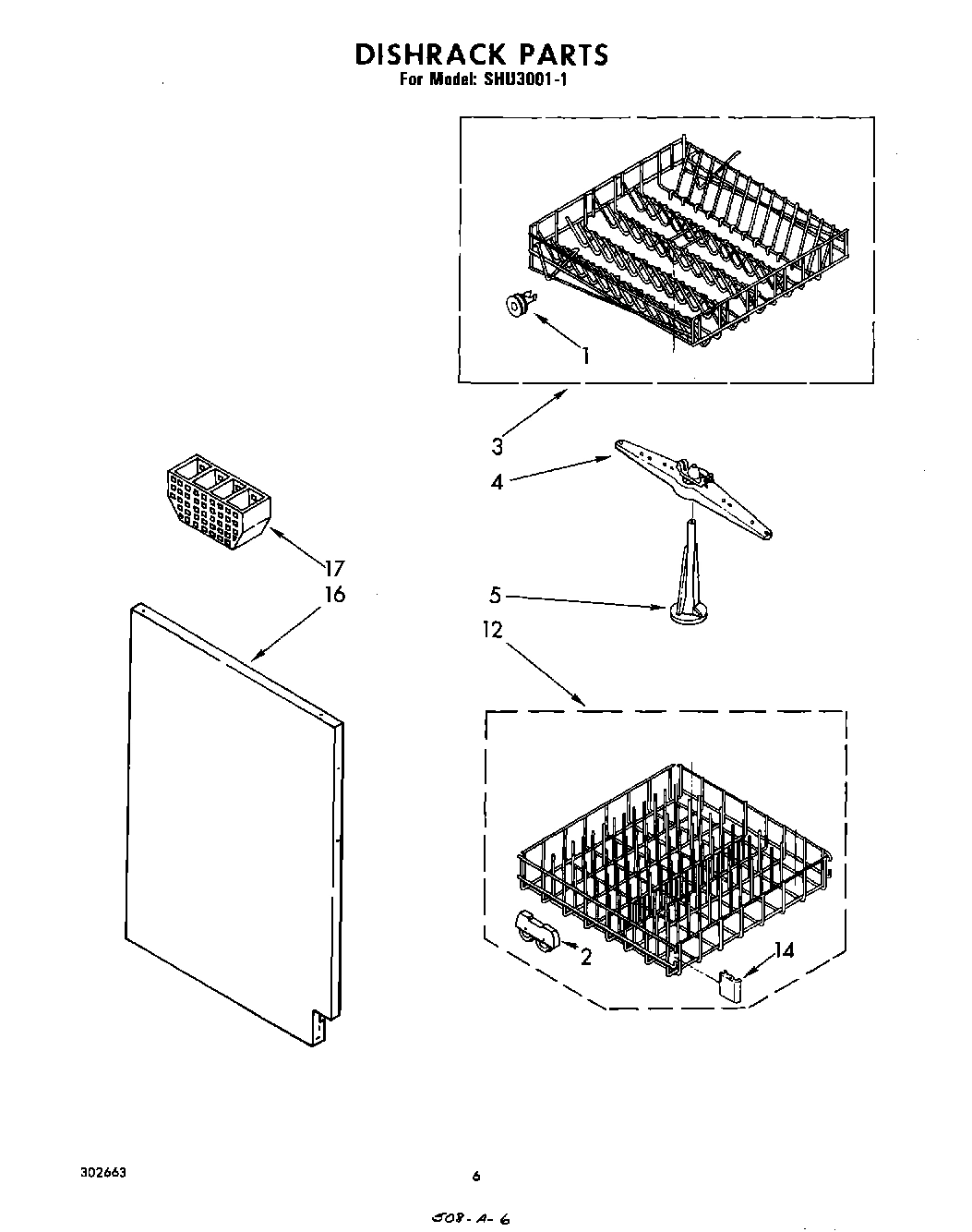

Model Whirlpool SHU30011 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

1

Bracket, Mounting (2) WPL 300796 Contact Us For Availability

1

Bracket, Console WPL 300754 Contact Us For Availability

1

Door, Inner (Includes Illus. 4) WPL 302033 Contact Us For Availability

2

Seal, Ring WPL 718259 Contact Us For Availability

2

Tub Assembly WPL 302095 Contact Us For Availability

2

Panel, Escutcheon WPL 301634 Contact Us For Availability

2

Support, Door (R.H.) WPL 301946 Contact Us For Availability

2

Support, Door (L.H.) WPL 301947 Contact Us For Availability

3

Motor, Timer WPL 301062 Contact Us For Availability

3

Gasket, Door WPL 717921 Contact Us For Availability

4

Inlet, Water WPL 300974 Contact Us For Availability

4

Relay, Start (Alternate) WPL 300516 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301536 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301620 Contact Us For Availability

4

Liner, Door WPL 302031 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

Hose, Inlet WPL 301054 Contact Us For Availability

5

Insert, Console WPL 302139 Contact Us For Availability

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

Timer WPL 302577 Contact Us For Availability

6

Spacer, Corrugated WPL 301957 Contact Us For Availability

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

Screw (4) WPL 162400 Contact Us For Availability

8

675544 Whirlpool Drain Hose Backorder WPL 675544 $48.15

8

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

8

Pin, Pivot (2) WPL 300234 Contact Us For Availability

10

Brace WPL 300739 Contact Us For Availability

10

Screen, Vent WPL 300246 Contact Us For Availability

11

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

11

Leg & Hinge Assembly, (R.H.) WPL 718987 Contact Us For Availability

11

Leg & Hinge Assembly, (L.H.) WPL 718988 Contact Us For Availability

12

Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability

12

Latch Assembly WPL 300235 Contact Us For Availability

14

Relief, Strain WPL 717563 Contact Us For Availability

14

Switch, Interlock WPL 300232 Contact Us For Availability

15

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

15

Nut, 7/8-16 Inlet Tube Polypropylene (1) WPL 713799 Contact Us For Availability

16

Motor (Emerson) WPL 301811 Contact Us For Availability

16

Motor (General Electric) WPL 301858 Contact Us For Availability

16

Gasket WPL 713878 Contact Us For Availability

17

Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability

17

Bleeder Assembly WPL 718629 Contact Us For Availability

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

18

Pump & Motor Assembly WPL 301829 Contact Us For Availability

18

Bracket, Overflow WPL 719342 Contact Us For Availability

19

Barrier, Panel WPL 301959 Contact Us For Availability

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

Gasket, Tub (Alternate) WPL 302090 Contact Us For Availability

Gasket, Tub (Alternate) WPL 302091 Contact Us For Availability

Panel Edging, Door WPL 301971 Contact Us For Availability

21

Retainer (R.H.) WPL 302093 Contact Us For Availability

21

Retainer (L.H.) WPL 302094 Contact Us For Availability

675238 Whirlpool Check Valve In Stock WPL 675238 $28.04

WP3367793 Whirlpool Black Access Panel Backorder WPL WP3367793 $17.51

Switch, Pressure WPL 301671 Contact Us For Availability

Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability

23

``O`` Ring WPL 95080 Contact Us For Availability

23

Screw Leveling (4) WPL 719168 Contact Us For Availability

23

Plate, Toe WPL 717968 Contact Us For Availability

24

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

25

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

25

Terminal, Female WPL 352088 Contact Us For Availability

26

Cap, Assembly WPL 302816 Contact Us For Availability

26

Valve, Water Inlet WPL 300453 Contact Us For Availability

26

Connector, Terminal (Motor) WPL 719585 Contact Us For Availability

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

27

Spray Arm, Lower WPL 719691 Contact Us For Availability

27

Connector Block WPL 301219 Contact Us For Availability

28

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

28

Guard, Screen WPL 300988 Contact Us For Availability

28

Dial, Indicator WPL 300996 Contact Us For Availability

29

Screen, Sump WPL 718226 Contact Us For Availability

29

Insulator .250 Terminal WPL 358736 Contact Us For Availability

29

Clip (2) WPL 718607 Contact Us For Availability

30

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

30

Nut, Twin Spring WPL 719455 Contact Us For Availability

30

Knob WPL 301010 Contact Us For Availability

31

Connector WPL 300708 Contact Us For Availability

32

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

32

Lever, Catch WPL 300119 Contact Us For Availability

33

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

33

Seal, Lever WPL 300105 Contact Us For Availability

33

Receptacle, Terminal Two-Way WPL 717252 Contact Us For Availability

34

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

34

Locknut (8) WPL 718829 Contact Us For Availability

34

Screw, 8-18 x 3/8 Hi-Lo Blunt Point (2) WPL 300250 Contact Us For Availability

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

Nut, Terminal 7/16-20 (2) WPL 718537 Contact Us For Availability

Washer (8) WPL 717624 Contact Us For Availability

Retainer WPL 300104 Contact Us For Availability

36

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

36

Heater WPL 717141 Contact Us For Availability

36

Heater (Alternate) WPL 719687 Contact Us For Availability

37

Support, Heater (2) WPL 717096 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Washer, Retainer (2) WPL 717289 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

39

Washer (2) WPL 14351 Contact Us For Availability

39

Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

40

Washer (2) WPL 711284 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

41

Screw, 4-40 x 3/4 Hex Head Slotted Thread Cut WPL 98086 Contact Us For Availability

41

Screw, 6-32 x 1 (1) WPL 301582 Contact Us For Availability

42

Nut, 10-32 (2) WPL 9420162 Contact Us For Availability

42

Clip, Retainer (2) WPL 301058 Contact Us For Availability

43

Key, Pump Housing WPL 301936 Contact Us For Availability

44

Shim WPL 712302 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

47

Washer WPL 718750 Contact Us For Availability

48

Washer, Cup WPL 718817 Contact Us For Availability

48

Panel, Front WPL ARI130402A Contact Us For Availability

49

Wheel Assembly WPL 300844 Contact Us For Availability

49

Trim, Door (2) WPL 301956 Contact Us For Availability

50

Screw, Shoulder WPL 712499 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

53

Screw, 8-18 x 5/8 Indented Hex Head (10) WPL 719266 Contact Us For Availability

54

Gasket (2) WPL 301662 Contact Us For Availability

55

Insert, Cup-Hose WPL 301656 Contact Us For Availability

59

WPL 301663 WPL 301663 Contact Us For Availability

60

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WPL 206925 WPL 206925 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 302080 WPL 302080 Contact Us For Availability

WPL 302348 WPL 302348 Contact Us For Availability

WPL 302627 WPL 302627 Contact Us For Availability

WPL 302663 WPL 302663 Contact Us For Availability

WPL 302752 WPL 302752 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer WPL 300237 Contact Us For Availability

89

Lever, Release WPL 300230 Contact Us For Availability

90

Clip, Wire WPL 301857 Contact Us For Availability

91

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

92

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59

93

Retainer, Clip WPL 302162 Contact Us For Availability
