Model Whirlpool S9507W2 – Common Parts & Diagrams

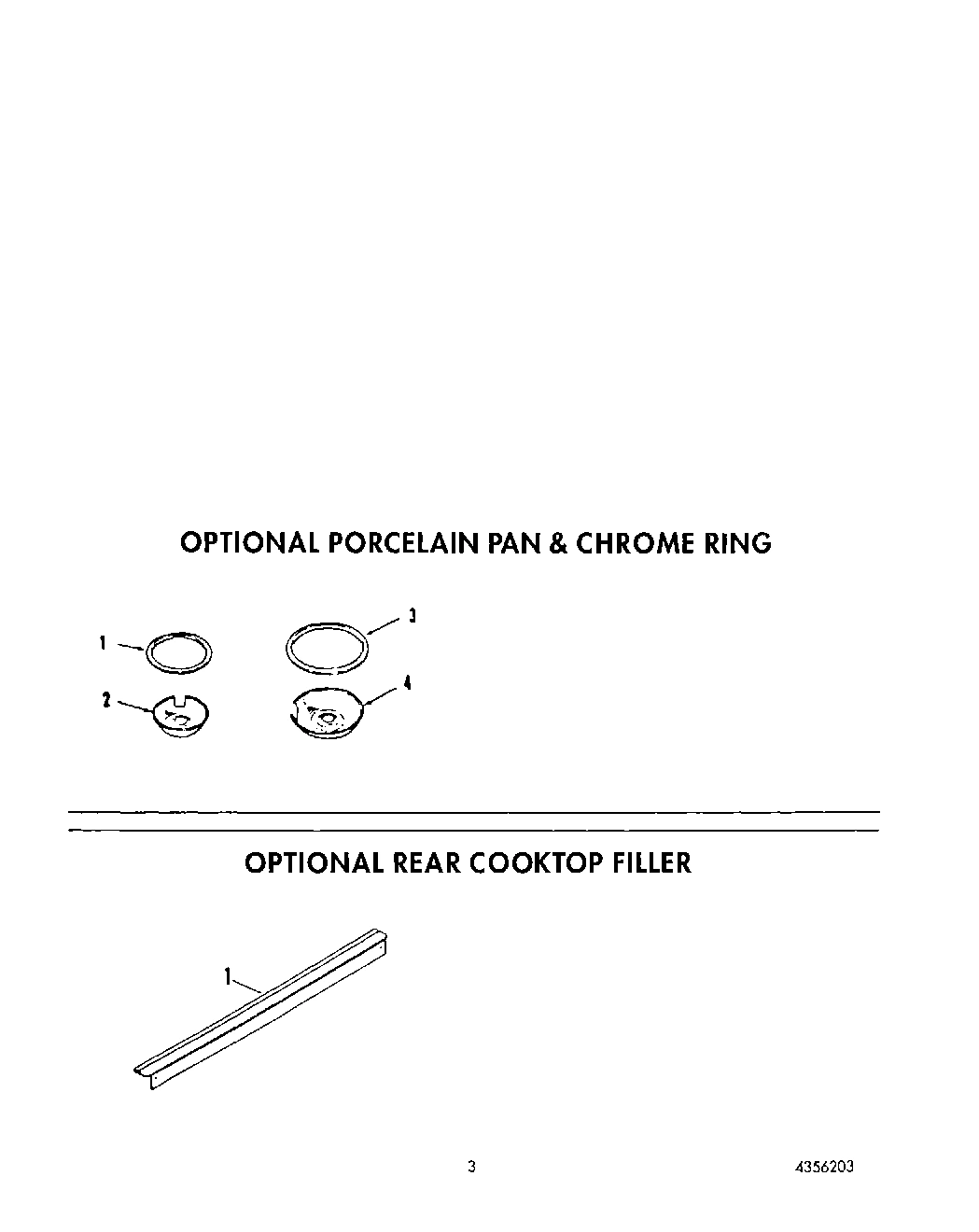

03 - OPTIONAL PORCELAIN PAN AND RING

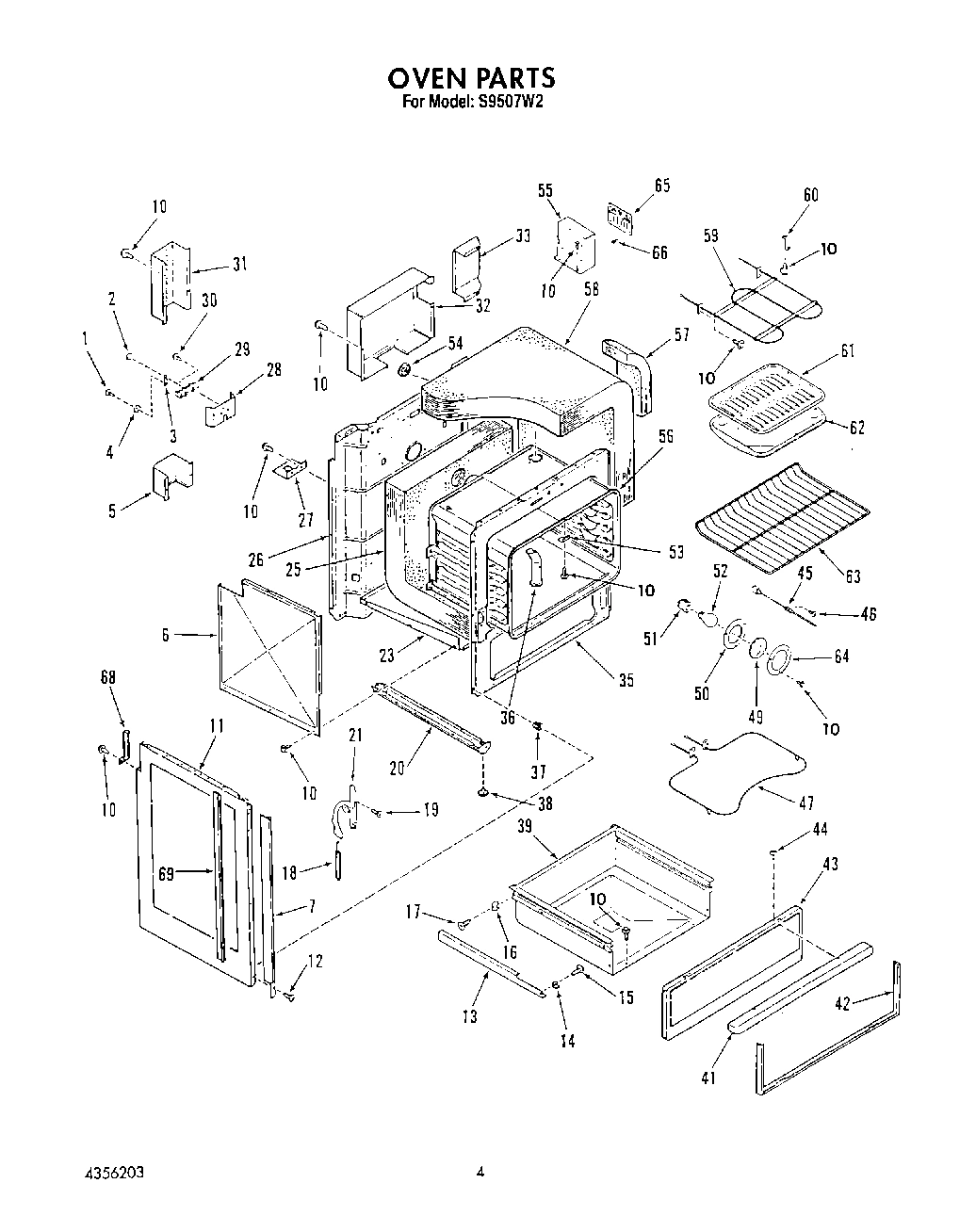

04 - OVEN

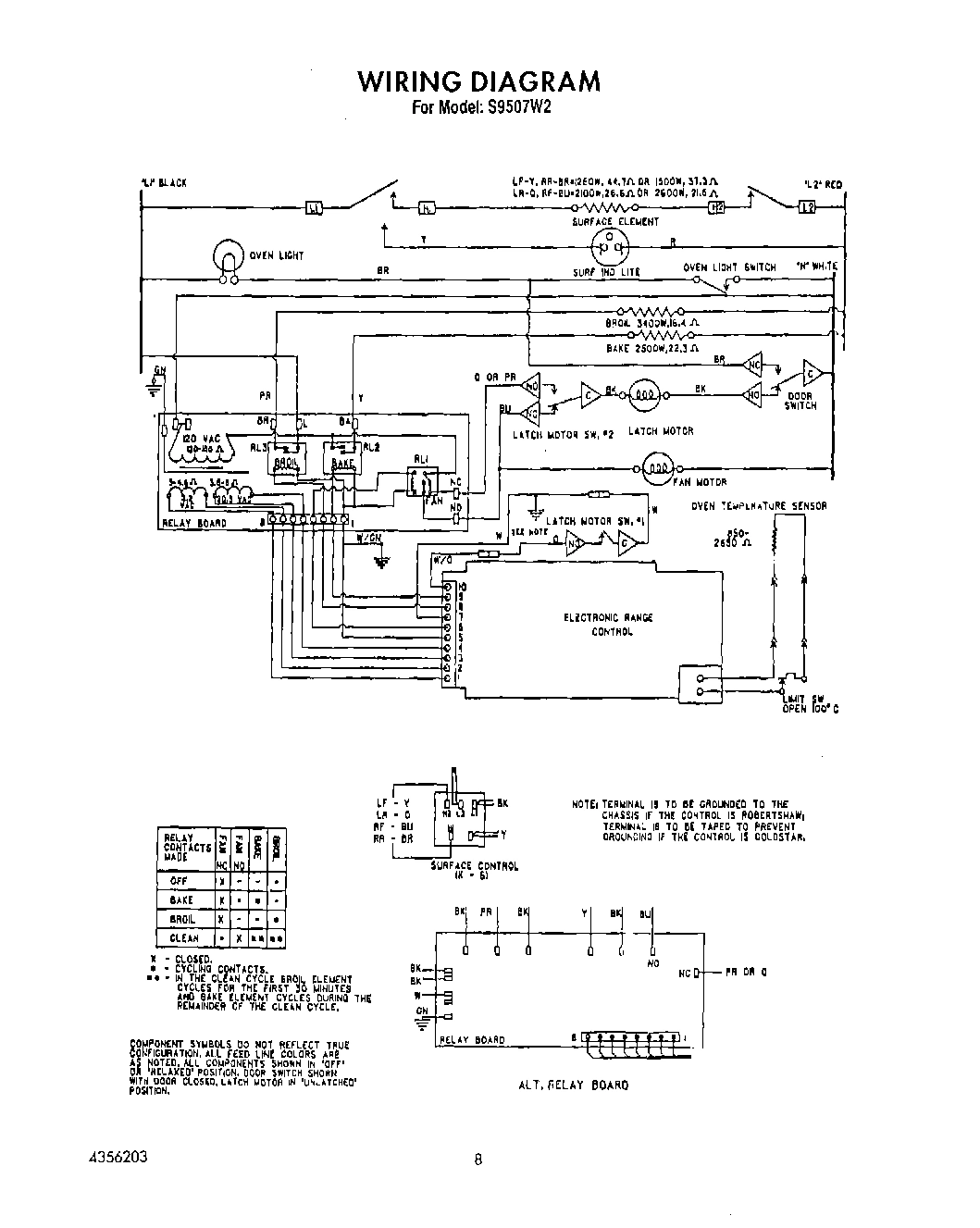

07 - WIRING DIAGRAM

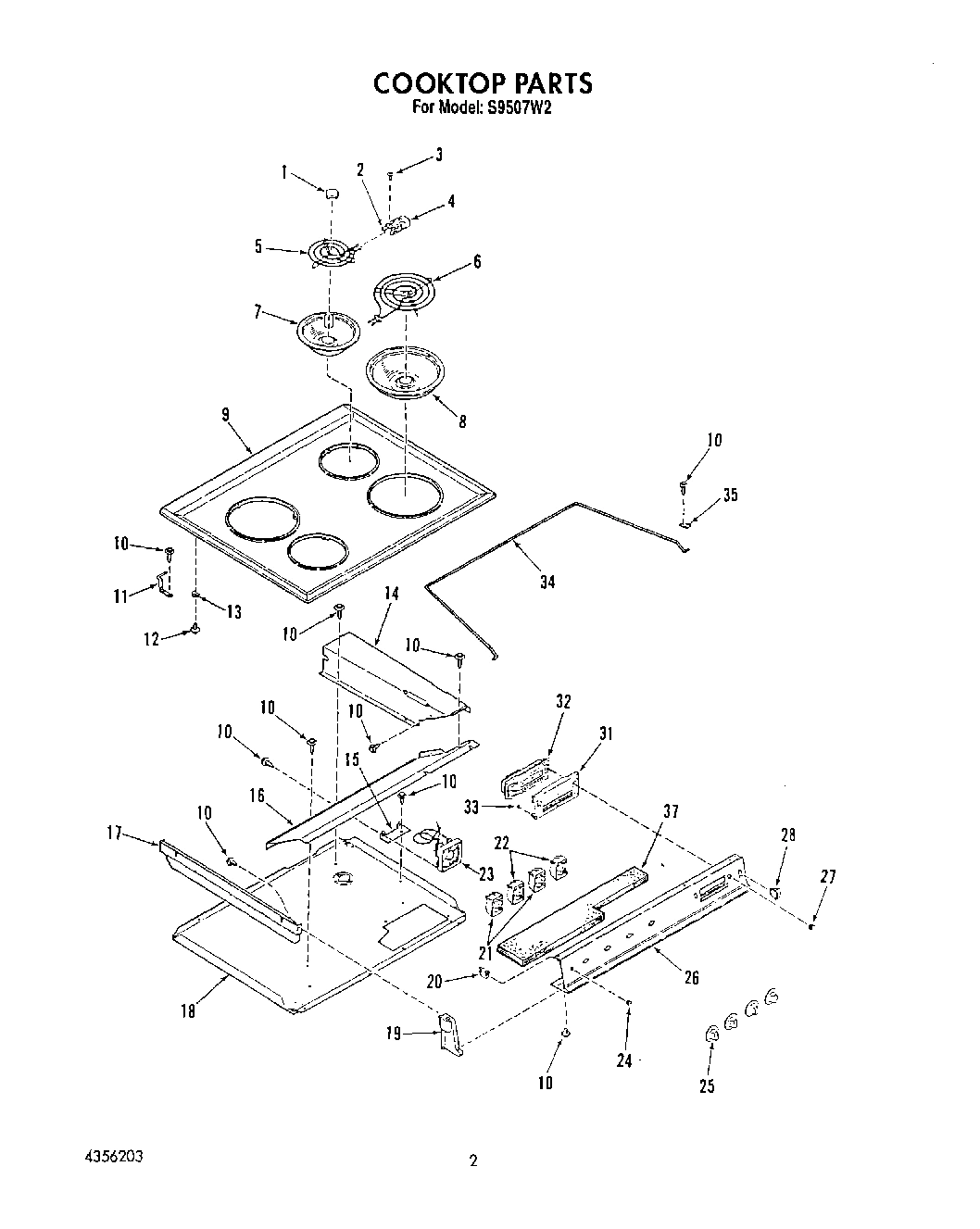

02 - COOKTOP, LIT/OPTIONAL

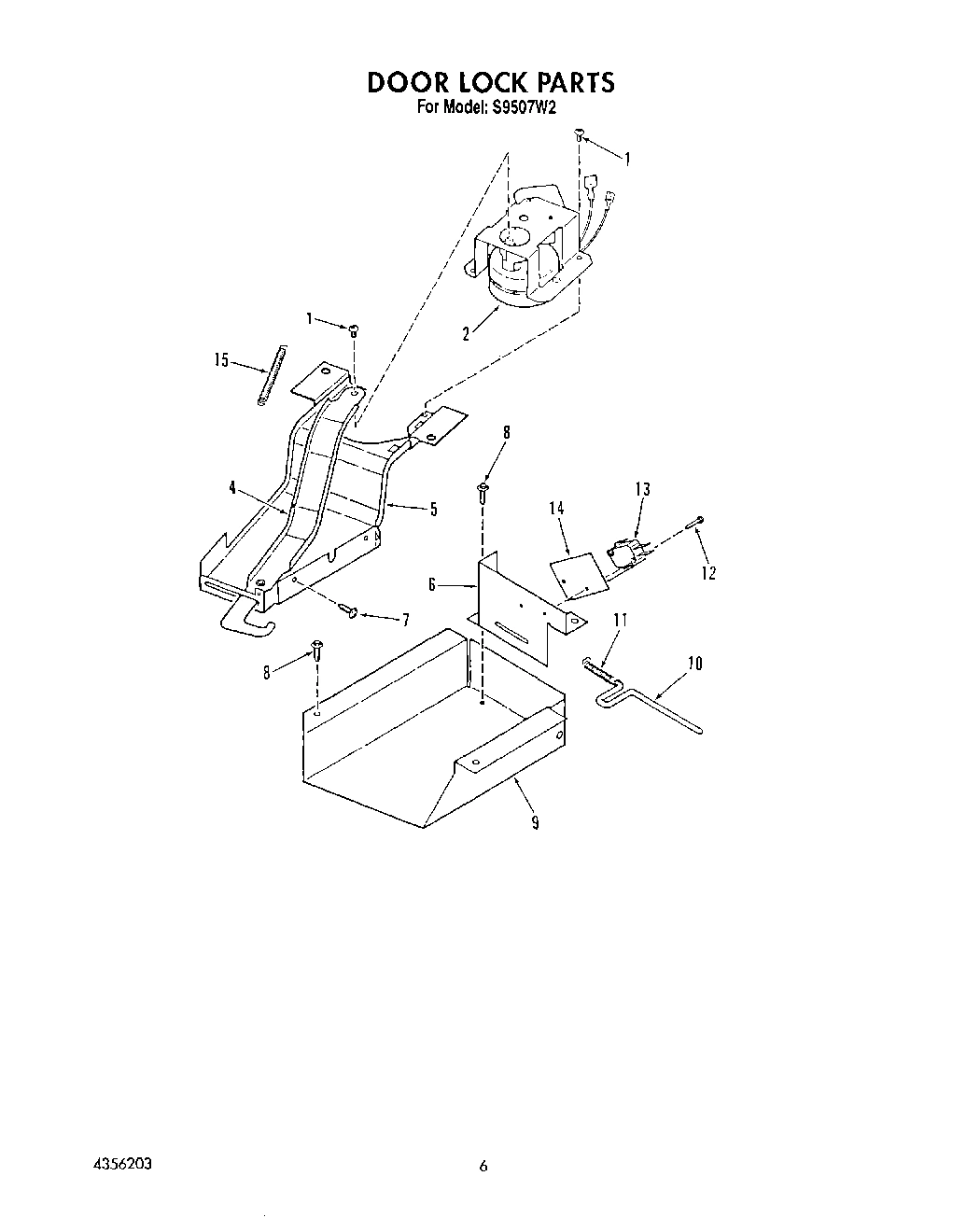

05 - DOOR LOCK

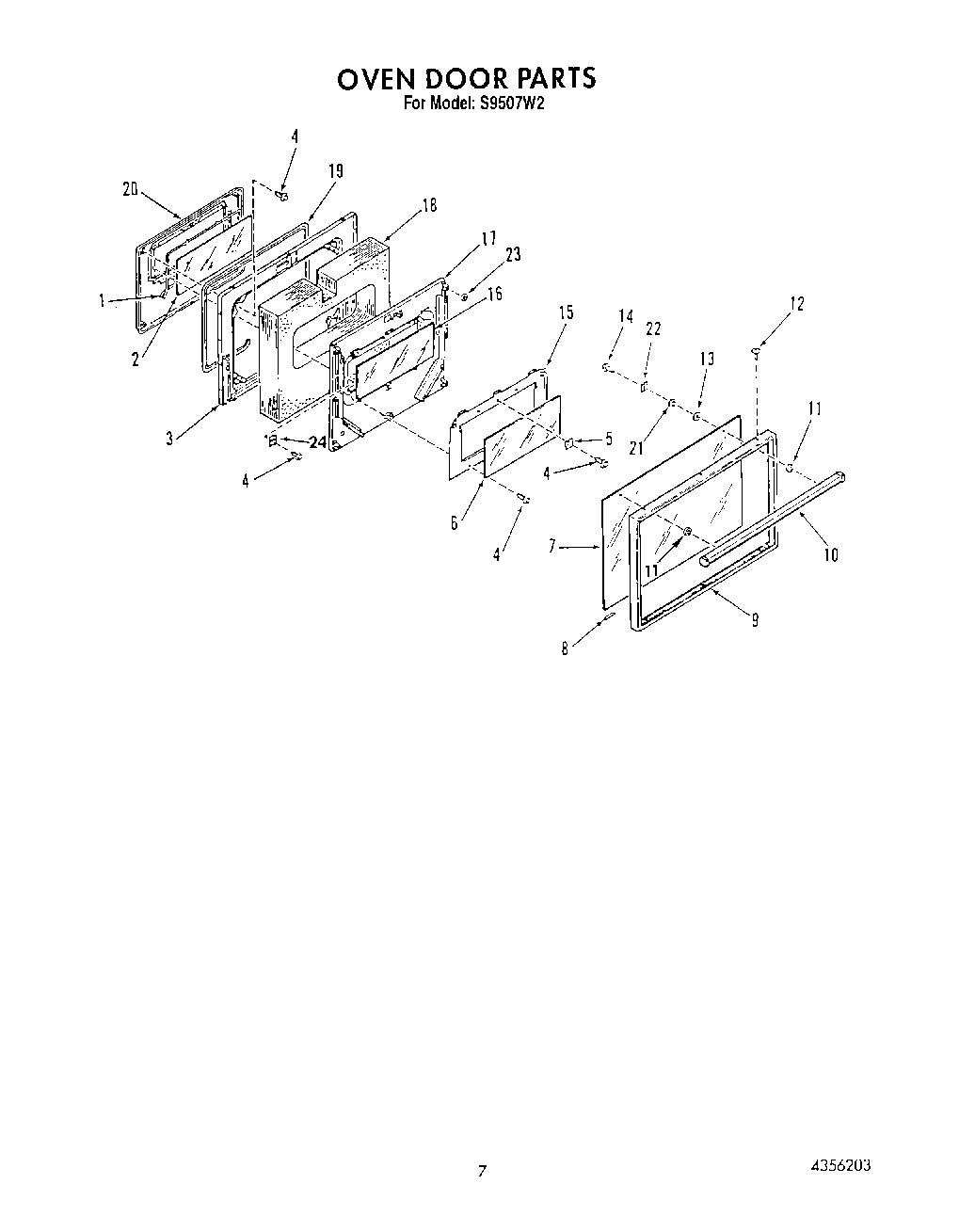

06 - OVEN DOOR
Common parts from model Whirlpool S9507W2
1
Screw No.10-32x7/16 WPL 4331573 Contact Us For Availability
1
Medallion WPL 4332691 Contact Us For Availability
1
Screw, No.8-32 x 3/8 WPL 4324647 Contact Us For Availability
1
Seal, Inner Glass WPL 4342634 Contact Us For Availability
2
Small Pan WPL 4336679 Contact Us For Availability
2
Lock Motor Asm. WPL 4343039 Contact Us For Availability
2
Glass, Inner Oven Door WPL 4337767 Contact Us For Availability
3
Large Ring WPL 4326191 Contact Us For Availability
3
Strap, Ground WPL 4335219 Contact Us For Availability
3
Screw, No.7-32 x 5/16 WPL 4327985 Contact Us For Availability
3
Lining, Oven Door WPL 4336608 Contact Us For Availability
4
Large Pan WPL 4336680 Contact Us For Availability
4
Instruction Sheet WPL 4347857 Contact Us For Availability
4
Washer WPL 4327921 Contact Us For Availability
4
Lock Lever Asm. WPL 4338225 Contact Us For Availability
5
Wire Cover, Lower WPL 4335222 Contact Us For Availability
5
Plate, Door Lock WPL 4338210 Contact Us For Availability
5
Retainer WPL 4334791 Contact Us For Availability
6
Retainer, Insulation (Lt/Rt) WPL 4353951 Contact Us For Availability
6
Bracket, Switch WPL 4338145 Contact Us For Availability
6
Glass, Intermediate WPL 4334821 Contact Us For Availability
7
Trim, Side (Left) WPL 4336263 Contact Us For Availability
7
Trim, Side (Right) WPL 4336264 Contact Us For Availability
7
Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability
7
Glass, Outer WPL 4336721 Contact Us For Availability
8
Cushion (3) WPL 4324217 Contact Us For Availability
9
Cooktop (White) WPL 4337352 Contact Us For Availability
9
Cooktop (Almond) WPL 4337353 Contact Us For Availability
9
Cooktop (Chrome) WPL 4337781 Contact Us For Availability
9
Lock Box WPL 4338068 Contact Us For Availability
9
Frame, Oven Door WPL 4338148 Contact Us For Availability
10
Actuator Pin WPL 4338149 Contact Us For Availability
10
Handle, Oven Door WPL 4336828 Contact Us For Availability
11
Side Panel (Left) WPL 4343042 Contact Us For Availability
11
Side Panel (Right) WPL 4343043 Contact Us For Availability
11
Hinge, Cooktop (Right) WPL 4337342 Contact Us For Availability
11
Hinge, Cooktop (Left) WPL 4337343 Contact Us For Availability
11
Spacer, Handle WPL 4323997 Contact Us For Availability
12
Screw WPL 4336631 Contact Us For Availability
12
Screw, No.10-32 x 5/16 WPL 4326322 Contact Us For Availability
12
Screw No.4-40x11/16 WPL 4335881 Contact Us For Availability
13
Support, (Lt/Rt), Storage Drawer WPL 4331092 Contact Us For Availability
13
Bracket, Hinge WPL 4337447 Contact Us For Availability
13
Micro Switch WPL 4337116 Contact Us For Availability
13
Washer WPL 4336868 Contact Us For Availability
14
Front Slide Block, Lt/Rt WPL 4325732 Contact Us For Availability
14
Duct, Fan WPL 4338069 Contact Us For Availability
14
Insulator WPL 4335973 Contact Us For Availability
14
Screw, No.10-32 x 3/4 WPL 4342665 Contact Us For Availability
15
Screw, No.10-32 x 17/32 WPL 4327611 Contact Us For Availability
15
Bracket, Fan WPL 4338067 Contact Us For Availability
15
Spring, Lock WPL 4338207 Contact Us For Availability
15
Eyelet Terminal WPL 4325031 Contact Us For Availability
15
Flag Terminal WPL 4325035 Contact Us For Availability
15
Faston Terminal, (3/16) WPL 4335036 Contact Us For Availability
15
Wire Harness (Sensor) WPL 4337929 Contact Us For Availability
15
Faston Terminal, (Thermal Fuse) WPL 4337930 Contact Us For Availability
15
Wire Harness- Clock/Oven Control WPL 4343045 Contact Us For Availability
15
Faston Terminal, (xPart Not Shown On Illustra WPL ARI128626A Contact Us For Availability
15
Mounting Plate WPL 4335753 Contact Us For Availability
16
Rear Slide Block (Lt/Rt) WPL 4325731 Contact Us For Availability
16
Wire Cover WPL 4338626 Contact Us For Availability
16
Glass, Center WPL 4338251 Contact Us For Availability
17
Screw, No.8-32 x 3/8 WPL 4323796 Contact Us For Availability
17
Extension, Side WPL 4337752 Contact Us For Availability
17
Retainer, Insulation WPL 4338314 Contact Us For Availability
18
Spring, Oven Door (Lt/Rt) WPL 4342931 Contact Us For Availability
18
Bottom, Burner Box WPL 4338543 Contact Us For Availability
18
Insulation WPL 4354947 Contact Us For Availability
19
End Cap (Left) WPL 4336266 Contact Us For Availability
19
End Cap (Right) WPL 4336267 Contact Us For Availability
19
Gasket, Oven Door WPL 4342564 Contact Us For Availability
20
Base W/Levelers (Lt/Rt) WPL 4338262 Contact Us For Availability
20
Indicator Light WPL 4336634 Contact Us For Availability
20
Panel, Inner Door WPL 4337448 Contact Us For Availability
21
Hinge-Oven Door (Left) WPL 4336784 Contact Us For Availability
21
Hinge-Oven Door (Right) WPL 4336783 Contact Us For Availability
21
Spacer, Glass WPL 4336869 Contact Us For Availability
22
Washer WPL 4342666 Contact Us For Availability
23
Retainer, Insulation, Bottom WPL 4353950 Contact Us For Availability
23
Fan Asm WPL 4337779 Contact Us For Availability
23
Washer, Felt WPL 4337453 Contact Us For Availability
24
Retainer, Glass WPL 4331472 Contact Us For Availability
25
Insulation-Oven Bottom & Back, (1 piece) WPL 4353609 Contact Us For Availability
25
Knob, Infinite WPL 4337760 Contact Us For Availability
26
Rear Cover WPL 4337984 Contact Us For Availability
26
Control Panel WPL 4343029 Contact Us For Availability
27
Mounting Plate, Service WPL 4335223 Contact Us For Availability
27
Knob, Clock WPL 4338513 Contact Us For Availability
28
Insulation, Service Cord WPL 4335209 Contact Us For Availability
30
Screw, No.10-32x1 WPL 4331572 Contact Us For Availability
31
Lens, Clock/Oven WPL 4342950 Contact Us For Availability
31
Wire Shield WPL 4336373 Contact Us For Availability
32
Upper Wire Shield WPL 4337981 Contact Us For Availability
32
Control, Clock/Oven WPL 4342969 Contact Us For Availability
33
Shield, Wire WPL 4354798 Contact Us For Availability
33
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
34
Support-Cooktop WPL 4337663 Contact Us For Availability
35
Frame, Front WPL 4337758 Contact Us For Availability
35
Clamp WPL 4338000 Contact Us For Availability
36
Vent Tube WPL 4336400 Contact Us For Availability
37
Expansion Nut WPL 4331381 Contact Us For Availability
37
Use & Care Manual WPL 4343026 Contact Us For Availability
37
Installation Guide WPL 4348185 Contact Us For Availability
37
Insulation Bezel, Knob WPL 4354961 Contact Us For Availability
37
Parts List WPL 4356203 Contact Us For Availability
38
Leg Leveler (4) WPL 4334834 Contact Us For Availability
39
Drawer, Storage WPL 4327658 Contact Us For Availability
41
Handle WPL 4336754 Contact Us For Availability
42
Frame, Drawer WPL 4336752 Contact Us For Availability
43
Panel, Drawer Front WPL 4337782 Contact Us For Availability
45
Sensor WPL 4337170 Contact Us For Availability
46
Screw WPL 4324445 Contact Us For Availability
47
Element, Bake (240 Volt) WPL 4334928 Contact Us For Availability
47
Bake Element (208 Volt (Opt)) WPL 4334929 Contact Us For Availability
49
Lens, Oven Lamp WPL 4324415 Contact Us For Availability
50
Seal, Lens WPL 4324481 Contact Us For Availability
53
Cover WPL 4329206 Contact Us For Availability
54
Snap Bushing WPL 4337072 Contact Us For Availability
55
Relay Cover WPL 4337800 Contact Us For Availability
56
Oven Cavity WPL 4337959 Contact Us For Availability
57
Insulation (Lt/Rt) WPL 4354262 Contact Us For Availability
58
Insulation-Top & Sides (1 Piece) WPL 4330229 Contact Us For Availability
60
WPL 4337249 WPL 4337249 Contact Us For Availability
63
WPL 4334809 WPL 4334809 Contact Us For Availability
64
WPL 4324482 WPL 4324482 Contact Us For Availability
65
WPL 4338265 WPL 4338265 Contact Us For Availability
66
WPL 4337387 WPL 4337387 Contact Us For Availability
68
WPL 4337998 WPL 4337998 Contact Us For Availability
69
WPL 4336565 WPL 4336565 Contact Us For Availability
× ![]()
