Model LG RV1380ES8N.ASSEEUS – Common Parts & Diagrams

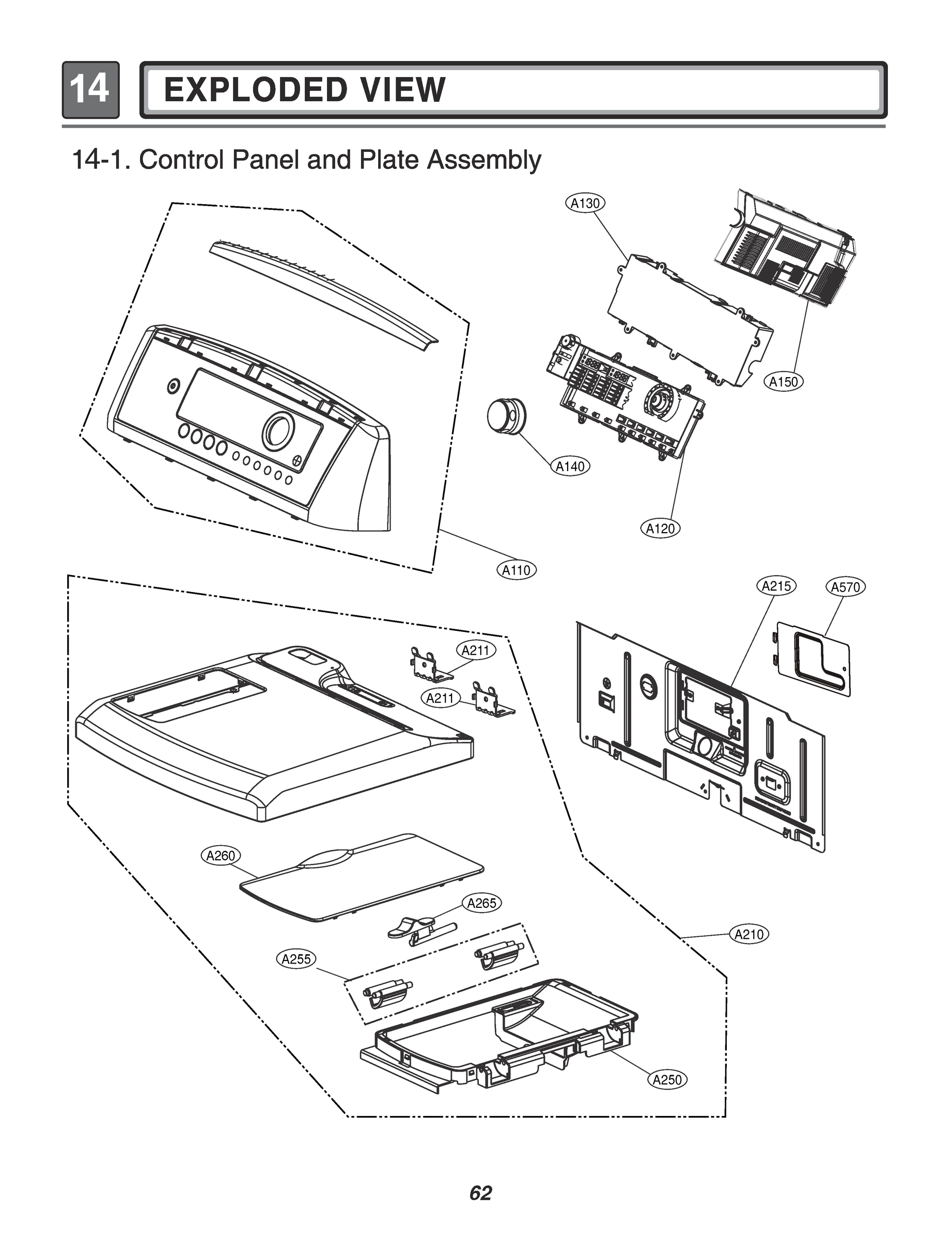

CONTROL PANEL AND PLATE ASSEMBLY

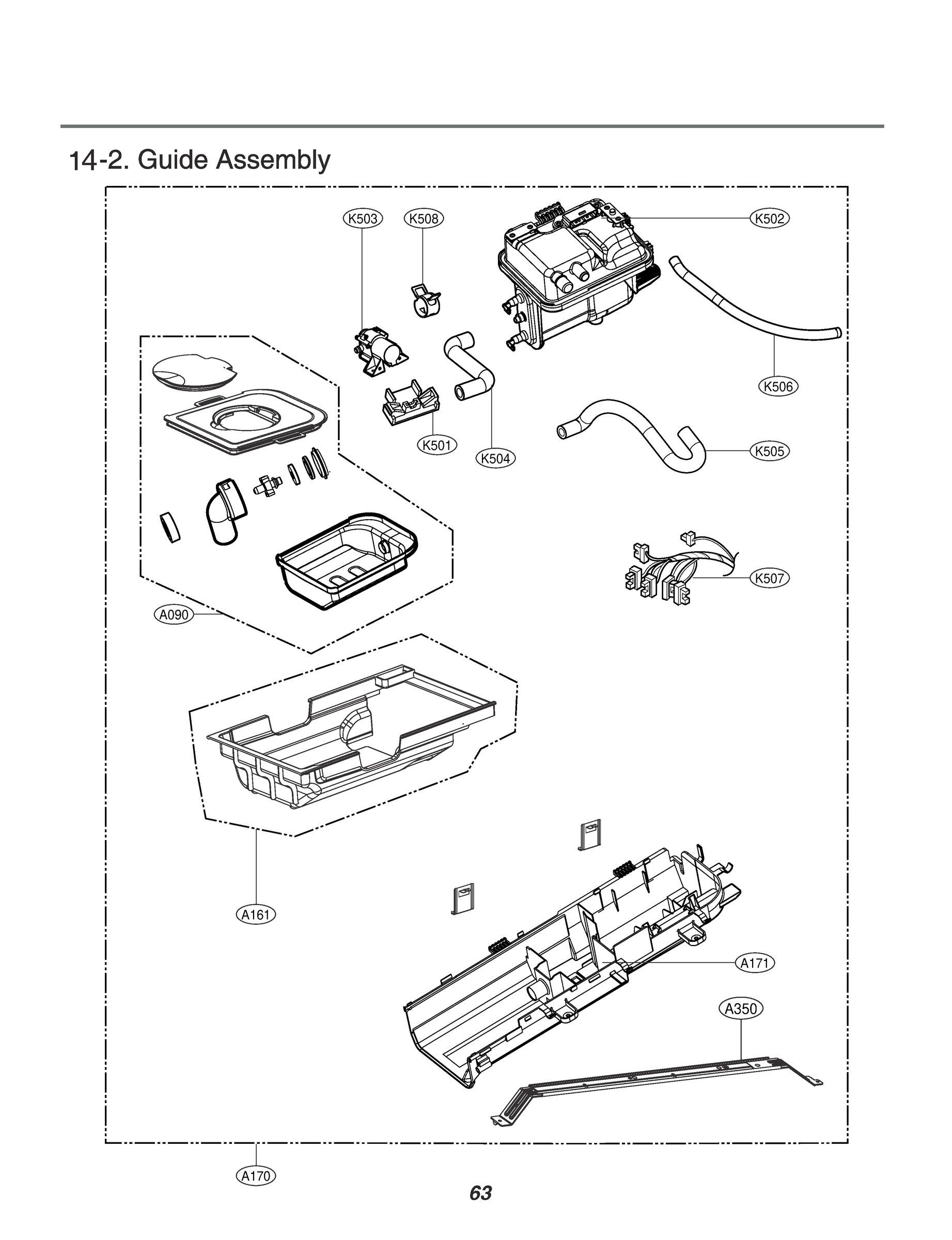

GUIDE ASSEMBLY

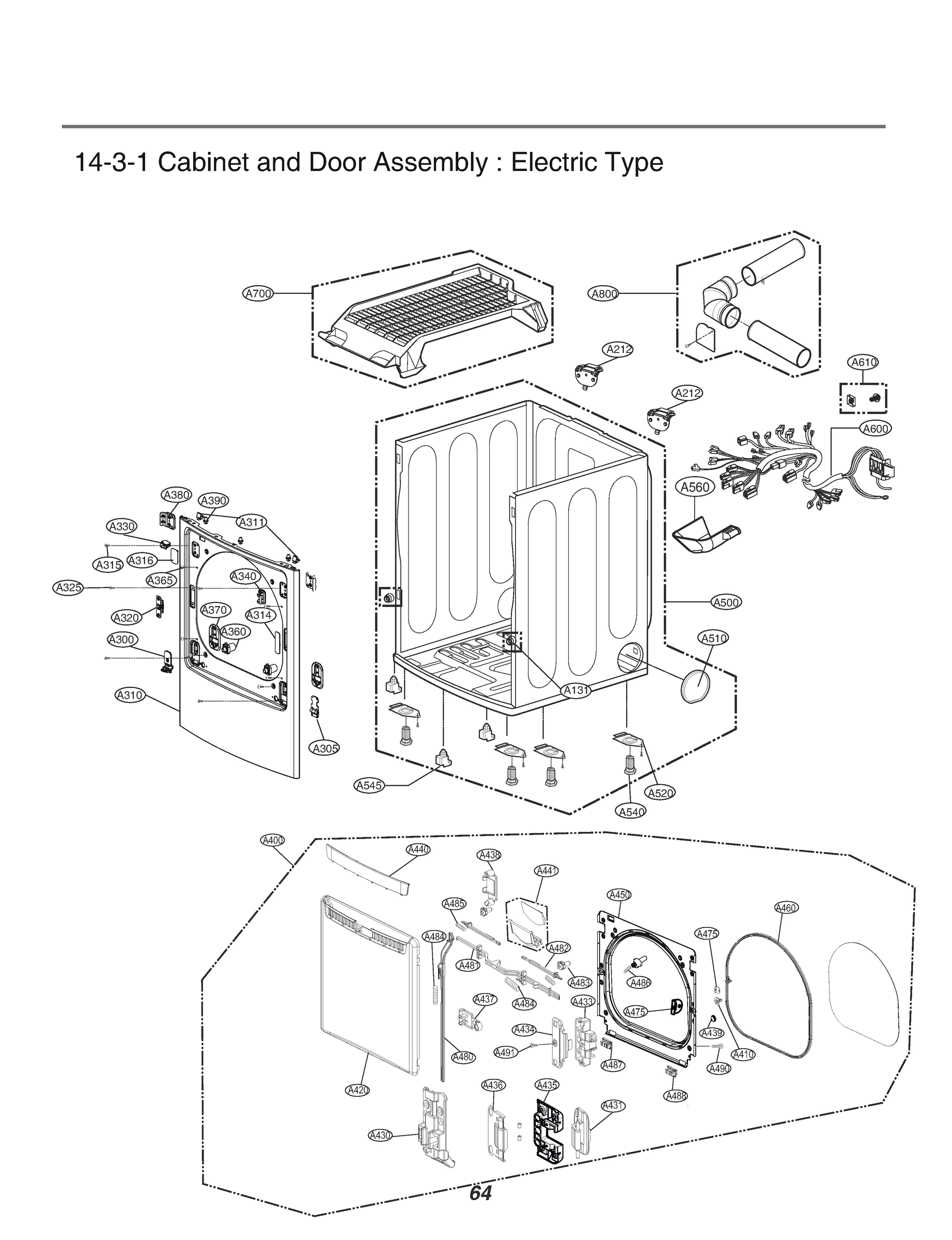

CABINET AND DOOR ASSEMBLY

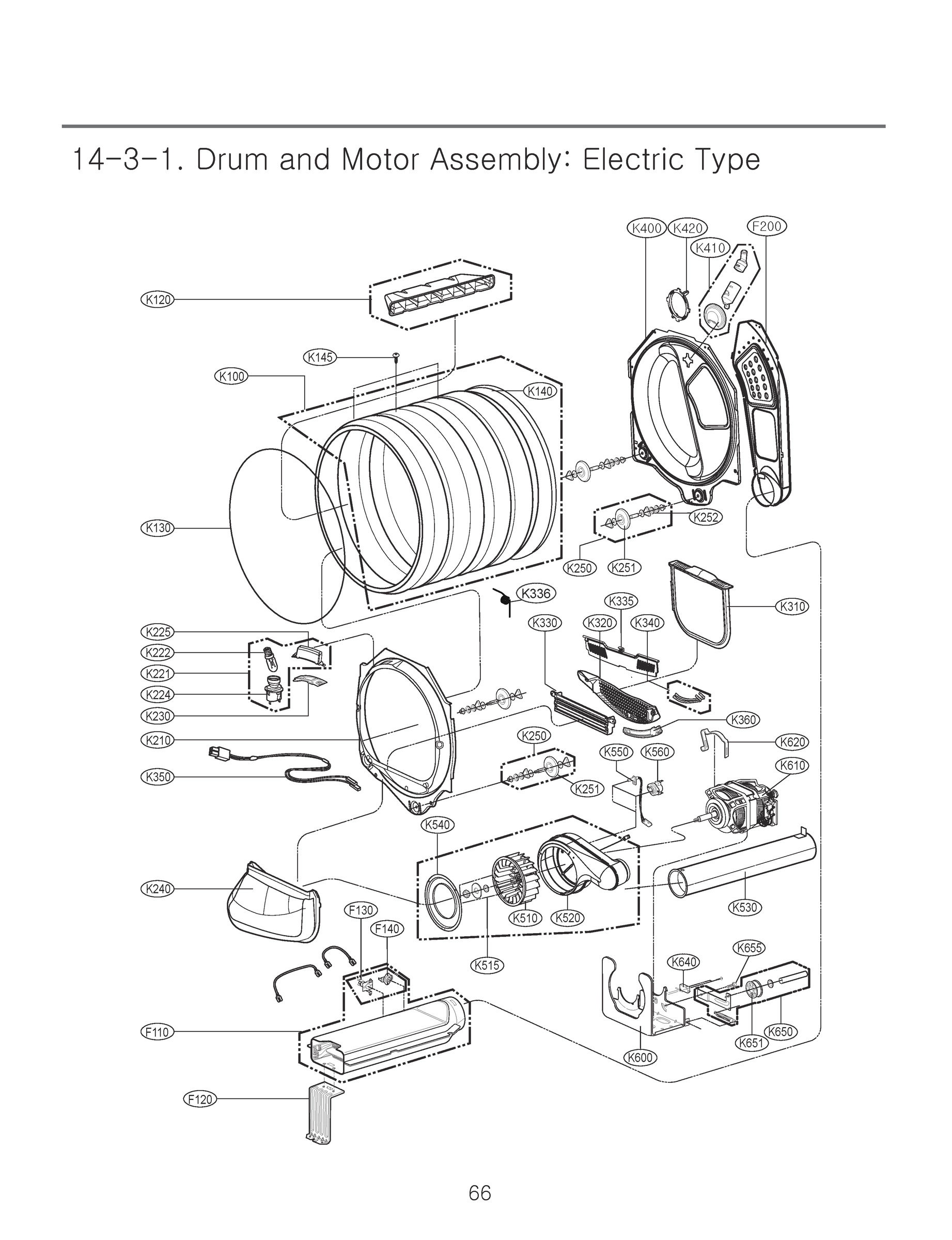

DRUM AND MOTOR ASSEMBLY
Common parts from model LG RV1380ES8N.ASSEEUS
A090
Tank Assembly,Water LGE AJL34327901 Contact Us For Availability
A110
Panel Assembly,Front LGE AGL73961909 Contact Us For Availability
A120
PCB Assembly,Display LGE EBR80240501 Contact Us For Availability
A130
PCB Assembly,Main LGE EBR76542943 Contact Us For Availability
A140
Knob Assembly LGE AEZ33665708 Contact Us For Availability
A210
Plate Assembly,Top LGE AGU72925509 Contact Us For Availability
A211
Plate,Upper LGE 3300EL4001A Contact Us For Availability
A260
Guide,Cover LGE MEA61877502 Contact Us For Availability
A300
Hinge LGE MEF62782201 Contact Us For Availability
A305
Hinge Assembly LGE AEH74256601 Contact Us For Availability
A310
Cover Assembly,Cabinet LGE ACQ86644202 Contact Us For Availability
A311
Holder LGE 4930ER4003A Contact Us For Availability
A314
Cap,Hole LGE MBL62213306 Contact Us For Availability
A315
Screw,Customized LGE 4000FD4191A Contact Us For Availability
A320
Locker Assembly LGE 4027EL1001C Contact Us For Availability
A325
Screw,Customized LGE 1SZZEL2001A Contact Us For Availability
A340
Screw,Customized LGE FAB32258901 Contact Us For Availability
A360
Damper Assembly LGE ACV73430101 Contact Us For Availability
A370
Bracket,Hinge LGE MAZ63869301 Contact Us For Availability
A380
Bracket,Hinge LGE MAZ61975501 Contact Us For Availability
A410
Locker,Hook LGE 4026EL3007C Contact Us For Availability
A430
Hinge LGE MEF62782101 Contact Us For Availability
A431
Hinge LGE MEF62782001 Contact Us For Availability
A433
Supporter,Hinge LGE MJH63096801 Contact Us For Availability
A434
Bracket,Hinge LGE MAZ63869101 Contact Us For Availability
A435
Supporter,Hinge LGE MJH63096901 Contact Us For Availability
A460
Gasket LGE MDS61982901 Contact Us For Availability
A480
Bar,Connector LGE MAK62727001 Contact Us For Availability
A481
Bar,Connector LGE MAK62727101 Contact Us For Availability
A483
Locker,Hook LGE MFG63098701 Contact Us For Availability
A491
Screw,Tapping LGE 1TTL0402418 Contact Us For Availability
A510
Cap,Drier LGE 5006EL3001S Contact Us For Availability
A520
Bracket,Base LGE 4810EL3001A Contact Us For Availability
A540
Leg LGE 4778EL3001B Contact Us For Availability
A570
Cover,Safety LGE 3550EL3002A Contact Us For Availability
A600
Harness,Multi LGE EAD60946201 Contact Us For Availability
A610
Fasteners,Parts Assembly,SVC LGE 383EEL9001H Contact Us For Availability
A700
Rack LGE 3750EL0001C Contact Us For Availability
F110
Heater Assembly LGE 5301EL1001H Contact Us For Availability
F130
Thermostat LGE 6931EL3003D Contact Us For Availability
F140
Thermostat Assembly LGE 6931EL3001F Contact Us For Availability
F200
Duct Assembly LGE 5209EL1001C Contact Us For Availability
K120
Lifter LGE 4432EL1002A Contact Us For Availability
K130
Belt,Poly V LGE 4400EL2001F Contact Us For Availability
K140
Gasket LGE 4036EL3001A Contact Us For Availability
K210
Tub Assembly,Drum LGE 3045EL1005D Contact Us For Availability
K221
Lamp,Incandescent LGE 6913EL3002K Contact Us For Availability
K222
Lamp,Incandescent LGE 6913EL3001E Contact Us For Availability
K224
Holder LGE 4930EL3008A Contact Us For Availability
K230
Cover,Lamp LGE 3550EL2001A Contact Us For Availability
K240
Duct Assembly LGE 5209EL1002A Contact Us For Availability
K251
Roller Assembly LGE 4581EL3001M Contact Us For Availability
K252
Washer,Customized LGE 4W50100F Contact Us For Availability
K310
Filter Assembly,Lint LGE 5231EL1001C Contact Us For Availability
K320
Cover,Guide LGE 3550EL1005C Contact Us For Availability
K330
Guide,Filter LGE 4974EL1002B Contact Us For Availability
K335
Cover,Filter LGE 3550EL2004B Contact Us For Availability
K336
Spring,Distortion LGE 4970EL4002C Contact Us For Availability
K350
Single Harness LGE 6631EL3003B Contact Us For Availability
K410
Nozzle Assembly,Steam LGE AGB34327803 Contact Us For Availability
K501
Damper LGE MCQ38393001 Contact Us For Availability
K502
Generator Assembly LGE 3111ER1002R Contact Us For Availability
K503
Motor Assembly,DC,Pump LGE EAU37148701 Contact Us For Availability
K507
Harness,Multi LGE EAD39301901 Contact Us For Availability
K508
Clamp LGE 4861FR3068A Contact Us For Availability
K510
Casing Assembly LGE 5835EL1002A Contact Us For Availability
K515
Locker,Parts Assembly,SVC LGE 383EEL9001G Contact Us For Availability
K520
Housing,Blower LGE MEK37661701 Contact Us For Availability
K530
Duct Assembly LGE 5209EL1006A Contact Us For Availability
K540
Guide Assembly LGE 4975EL3001A Contact Us For Availability
K550
Thermistor,NTC LGE 6323EL2001B Contact Us For Availability
K560
Thermostat LGE 6931EL3002M Contact Us For Availability
K600
Bracket,Motor LGE MAZ66065301 Contact Us For Availability
K610
Motor Assembly,DC,Drum LGE 4681EL1008A Contact Us For Availability
K620
Clamp LGE 4860EL3001A Contact Us For Availability
K640
Switch,Micro LGE EBF61734701 Contact Us For Availability
K650
Pulley Assembly,Motor LGE 4561EL3002A Contact Us For Availability
K651
Pulley,Idle LGE 4560EL3001A Contact Us For Availability
K655
Screw,Customized LGE 1SZZEL3001A Contact Us For Availability
× ![]()
