Model Whirlpool RT21DKXGW01 – Common Parts & Diagrams

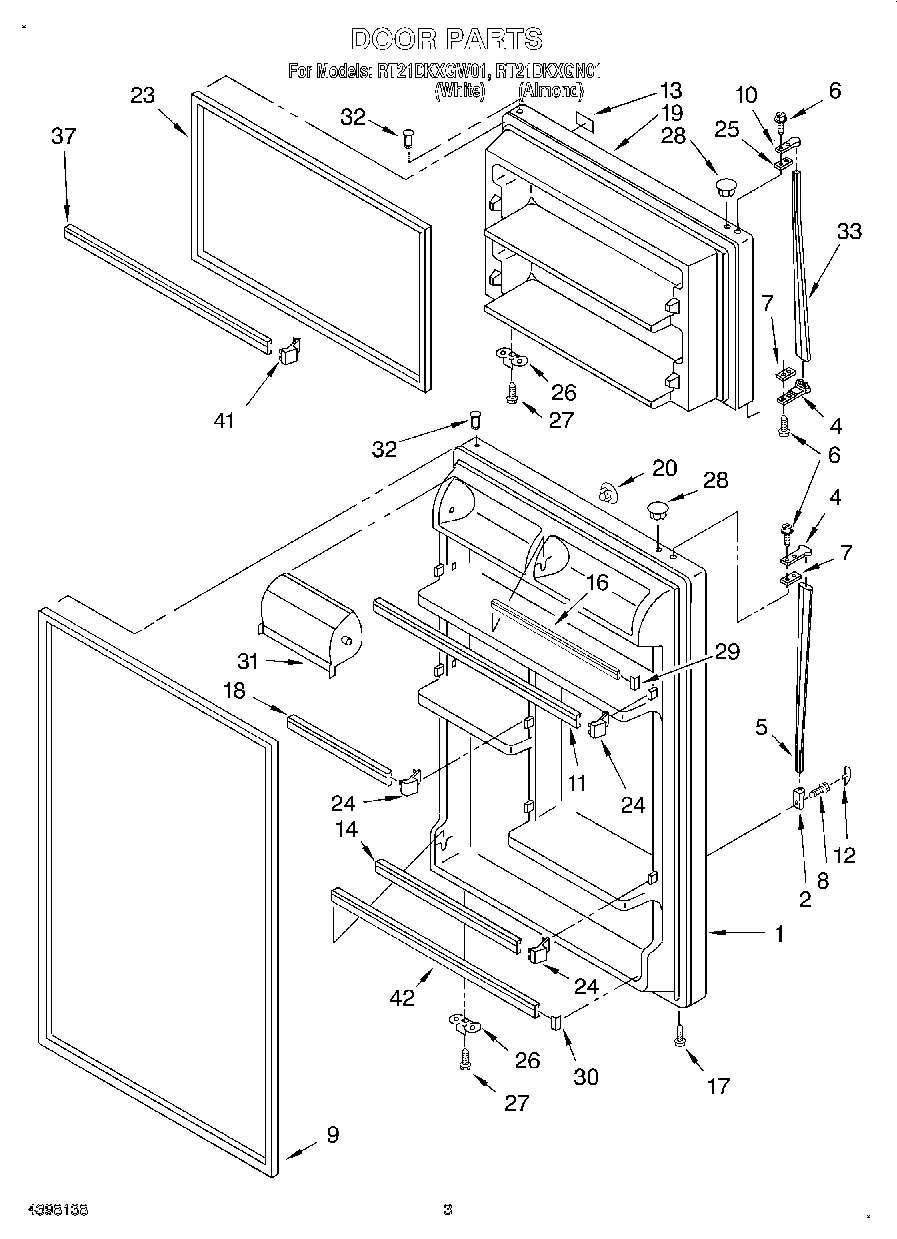

02 - DOOR

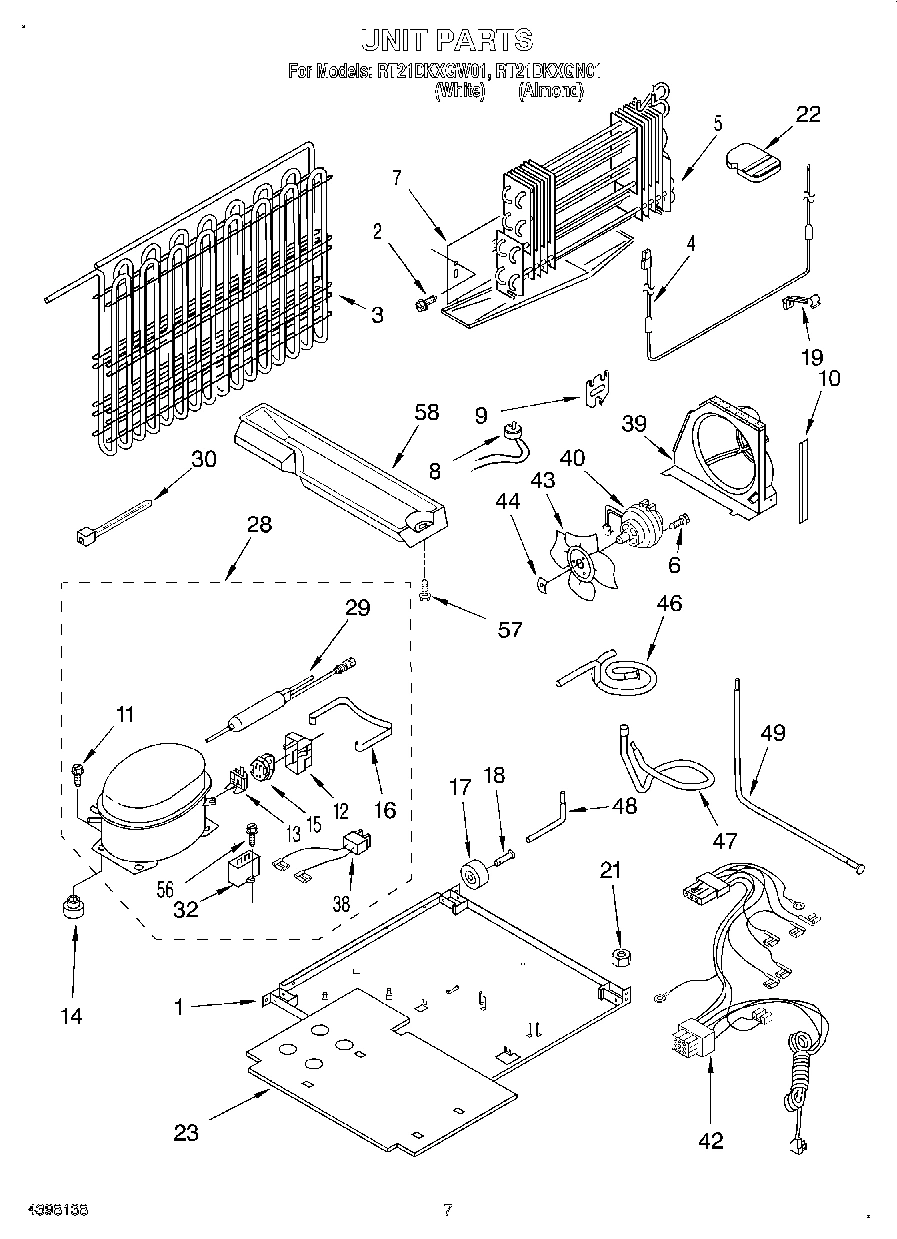

04 - UNIT

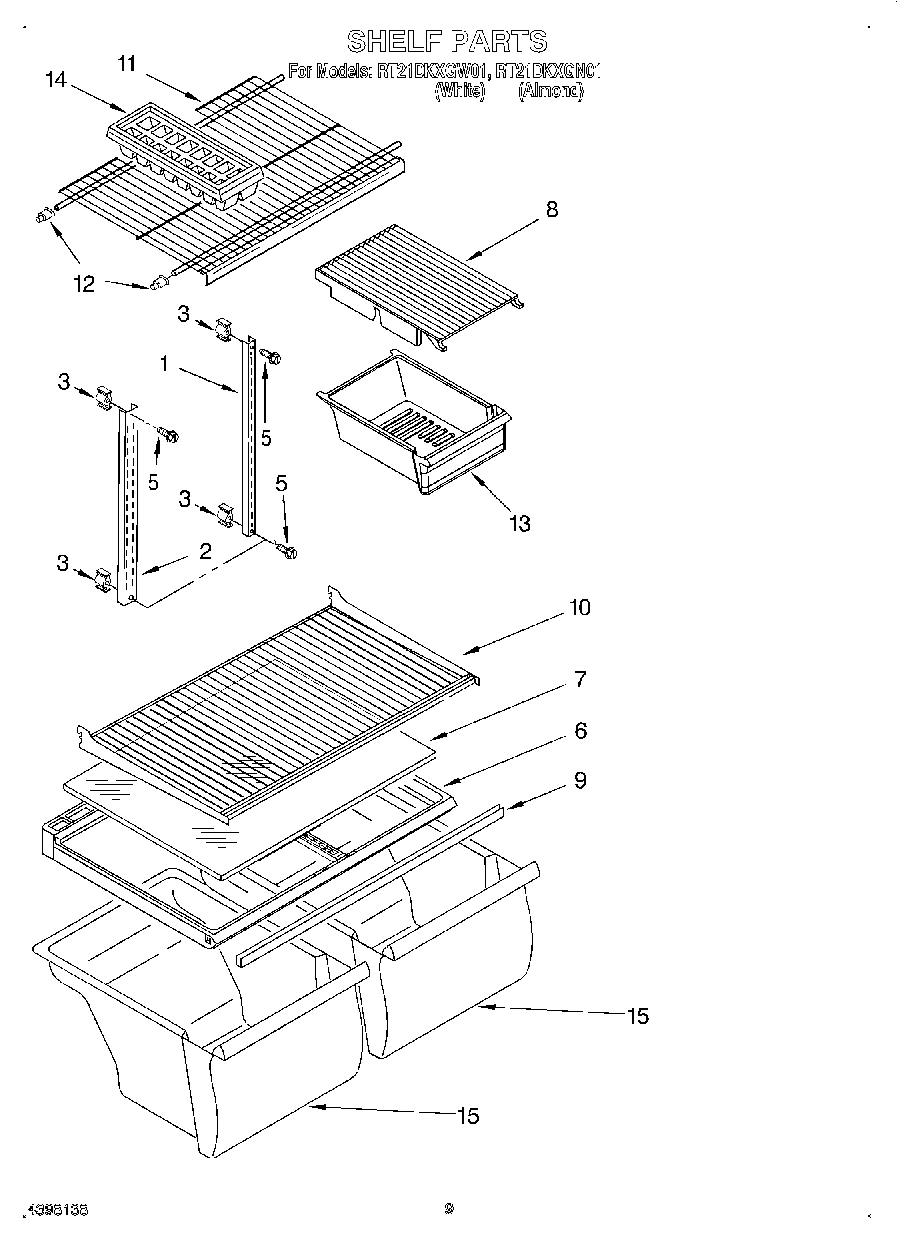

05 - SHELF, LIT/OPTIONAL

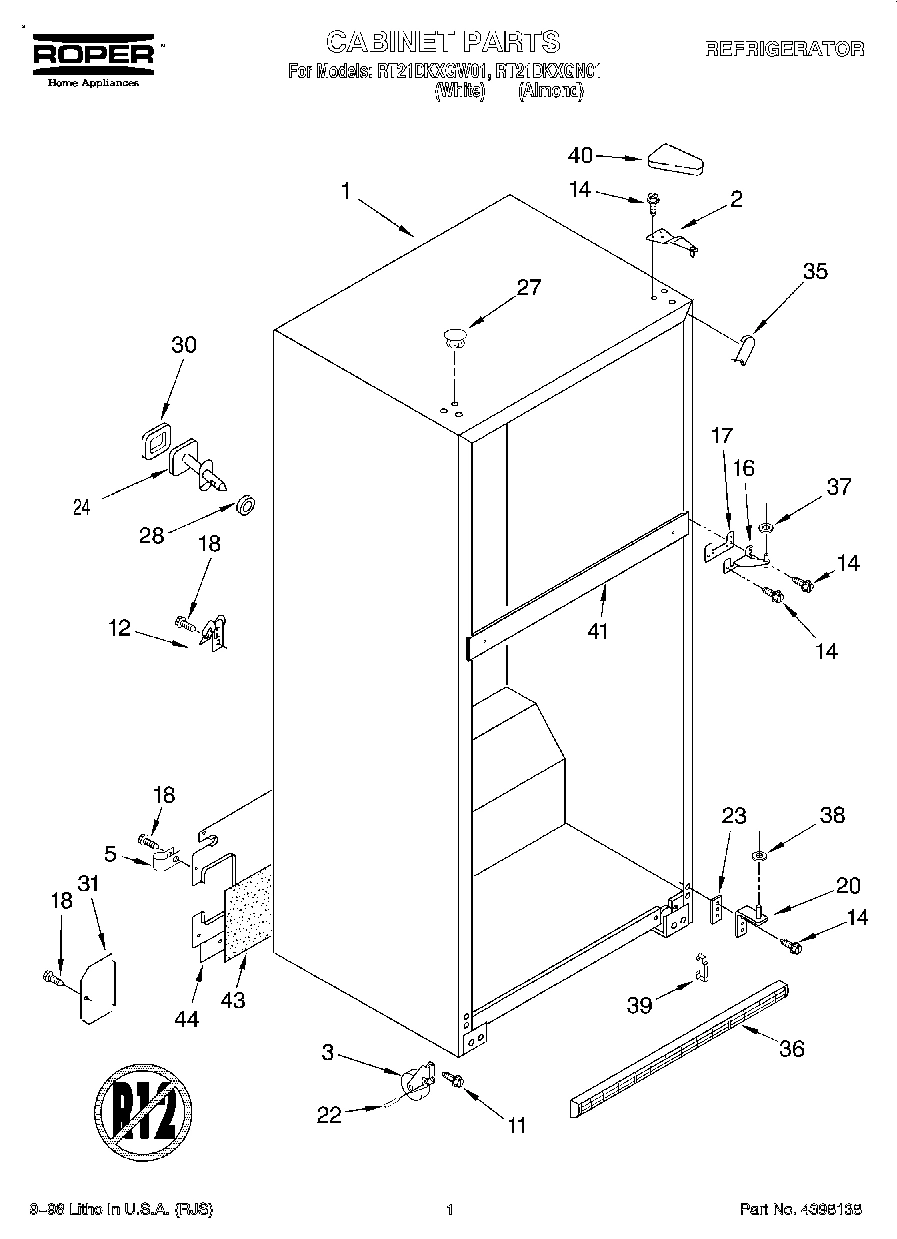

01 - CABINET

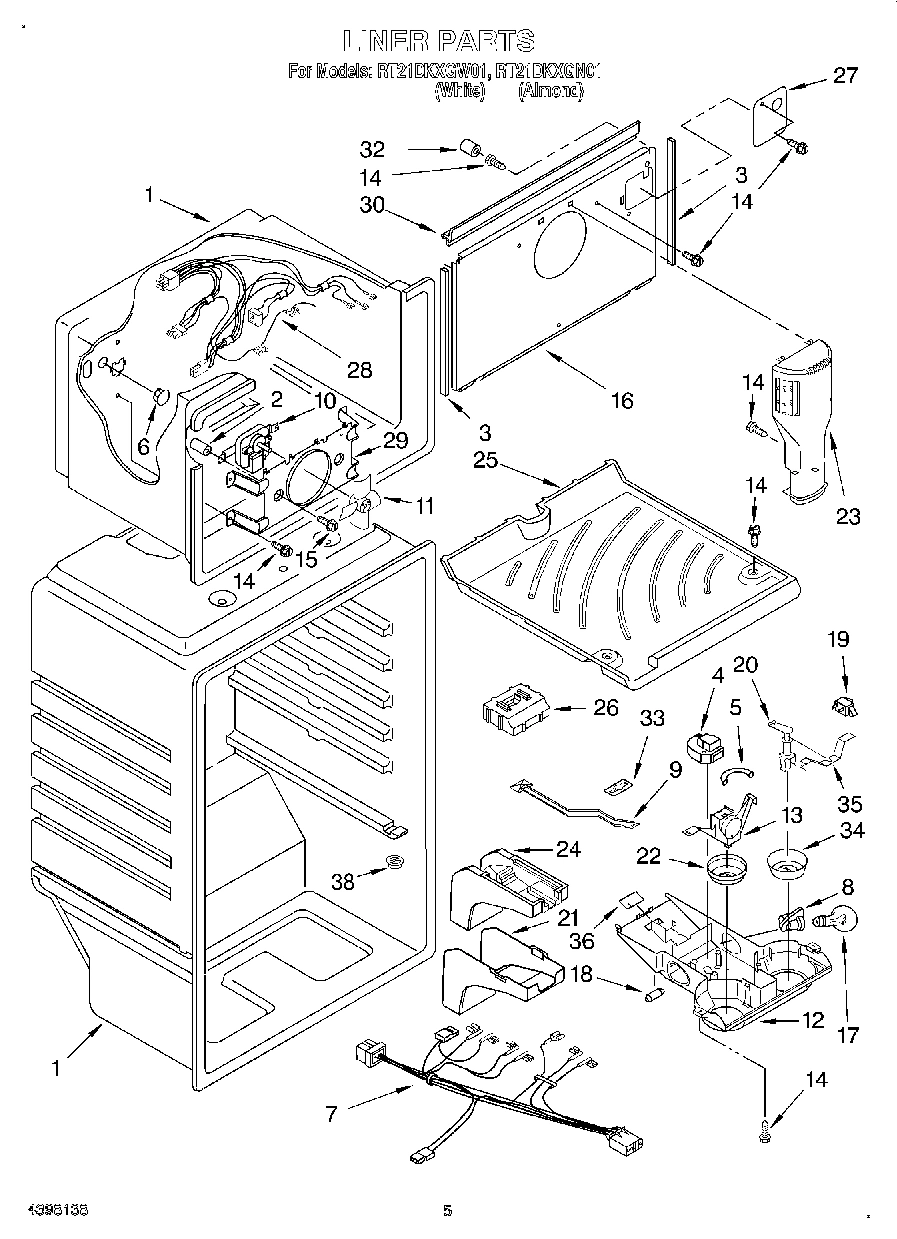

03 - LINER
Common parts from model Whirlpool RT21DKXGW01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI127979A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI127984A Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Screw Support Center WPL 2189314 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2200632 Contact Us For Availability
8
Cover, Meat Pan WPL 2163848 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Shelf, Full Cantilever WPL 2195398 Contact Us For Availability
10
Fan Motor WPL 2183448 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Control Box WPL 2200820 Contact Us For Availability
13
Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200859 Contact Us For Availability
13
Pan, Meat WPL 2169919 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2189823 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI127980A Contact Us For Availability
25
Shim WPL 943187 Contact Us For Availability
25
Floor, Freezer WPL 2184617 Contact Us For Availability
26
Air Diffuser, Top WPL 2189984 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI127981A Contact Us For Availability
28
Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI127982A Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Almond) WPL 2201007 Contact Us For Availability
37
TRIM, DOOR (2) WPL 2195947 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI127983A Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200778 Contact Us For Availability
44
Cover, Unit WPL 2200508 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Door Reversal Instructions WPL 2172516 Contact Us For Availability
100
FeaturePak (Includes 8,13) Also See Door Pg. WPL 2182576 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
100
E WPL 978883 Contact Us For Availability
× ![]()
