Model Whirlpool RT21DKXGW00 – Common Parts & Diagrams

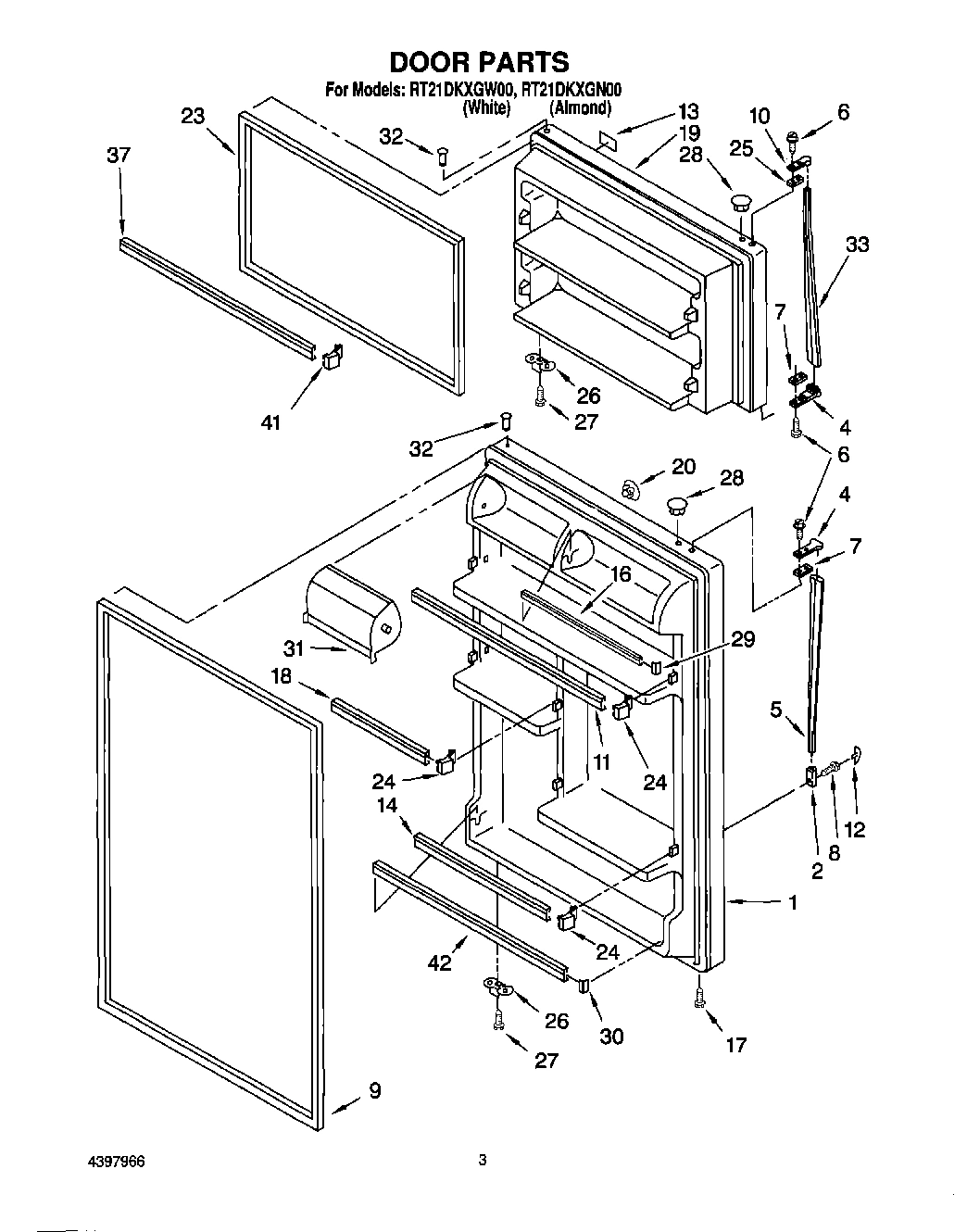

02 - DOOR

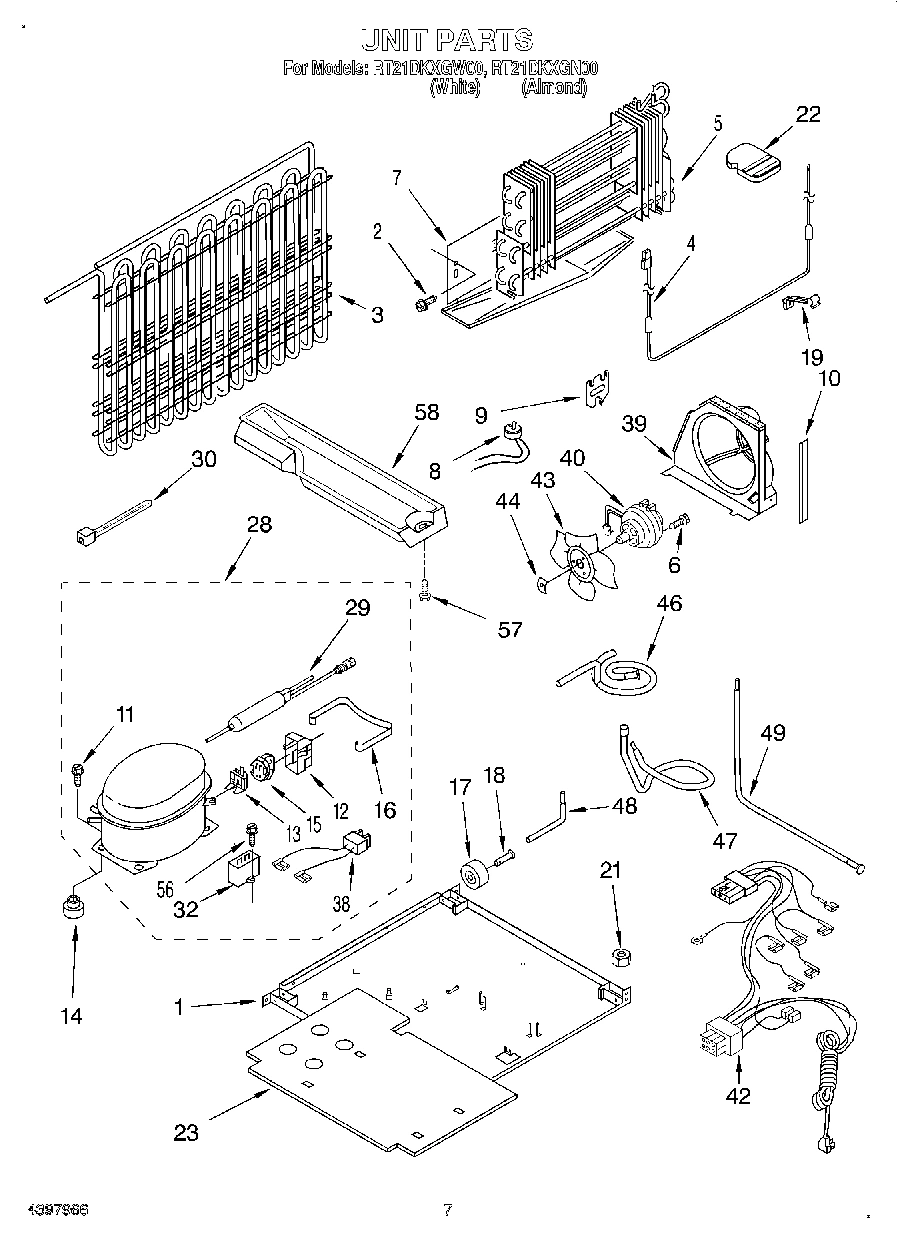

04 - UNIT

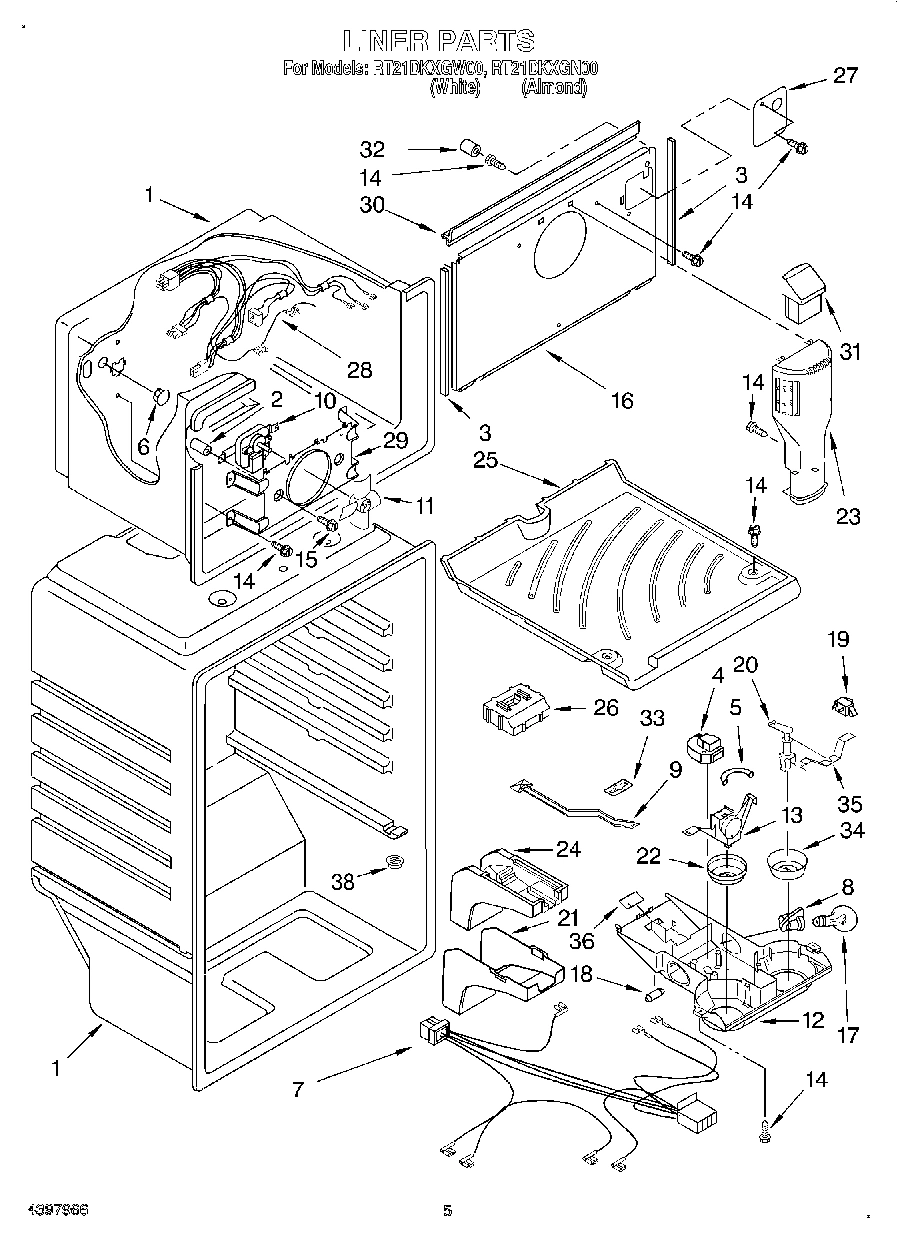

03 - LINER

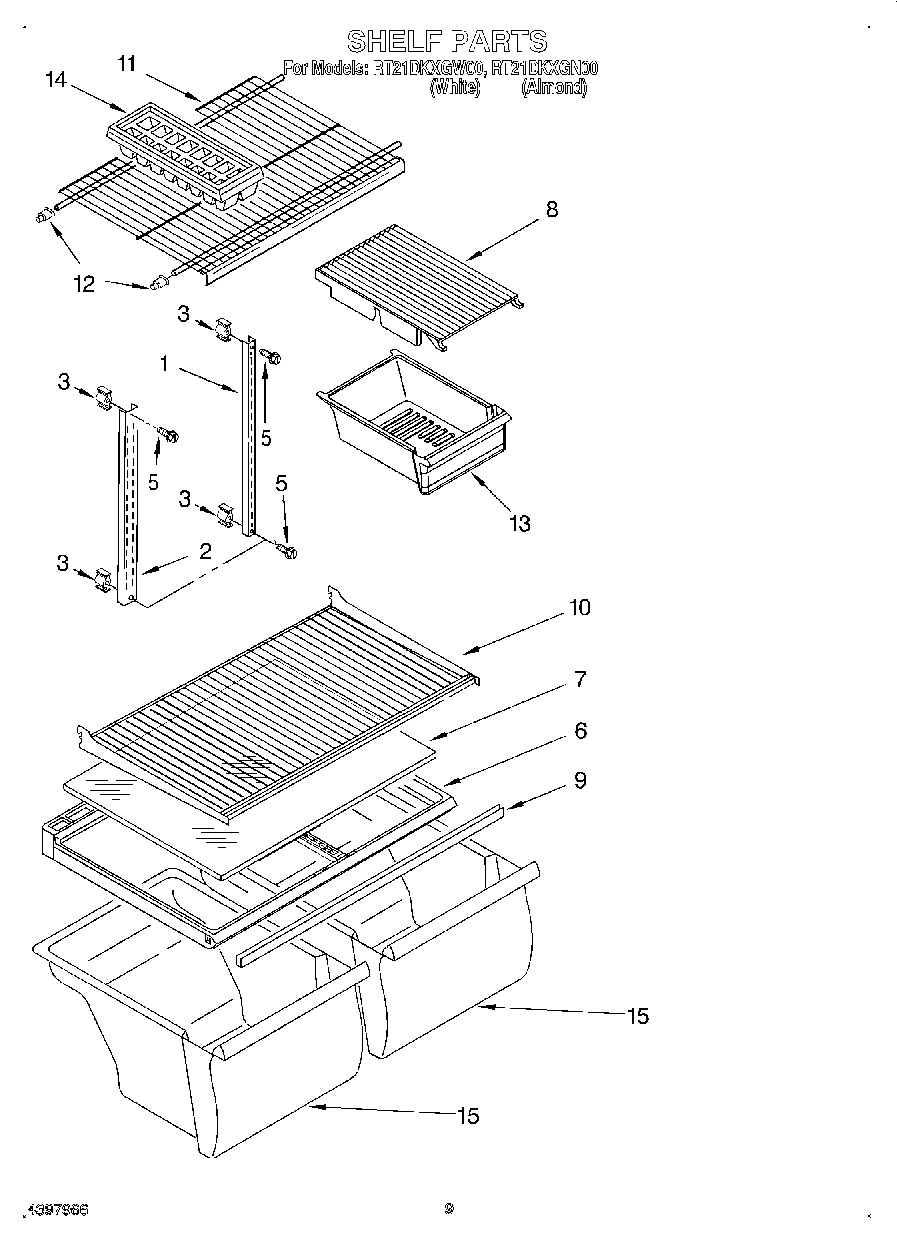

05 - SHELF, LIT/OPTIONAL

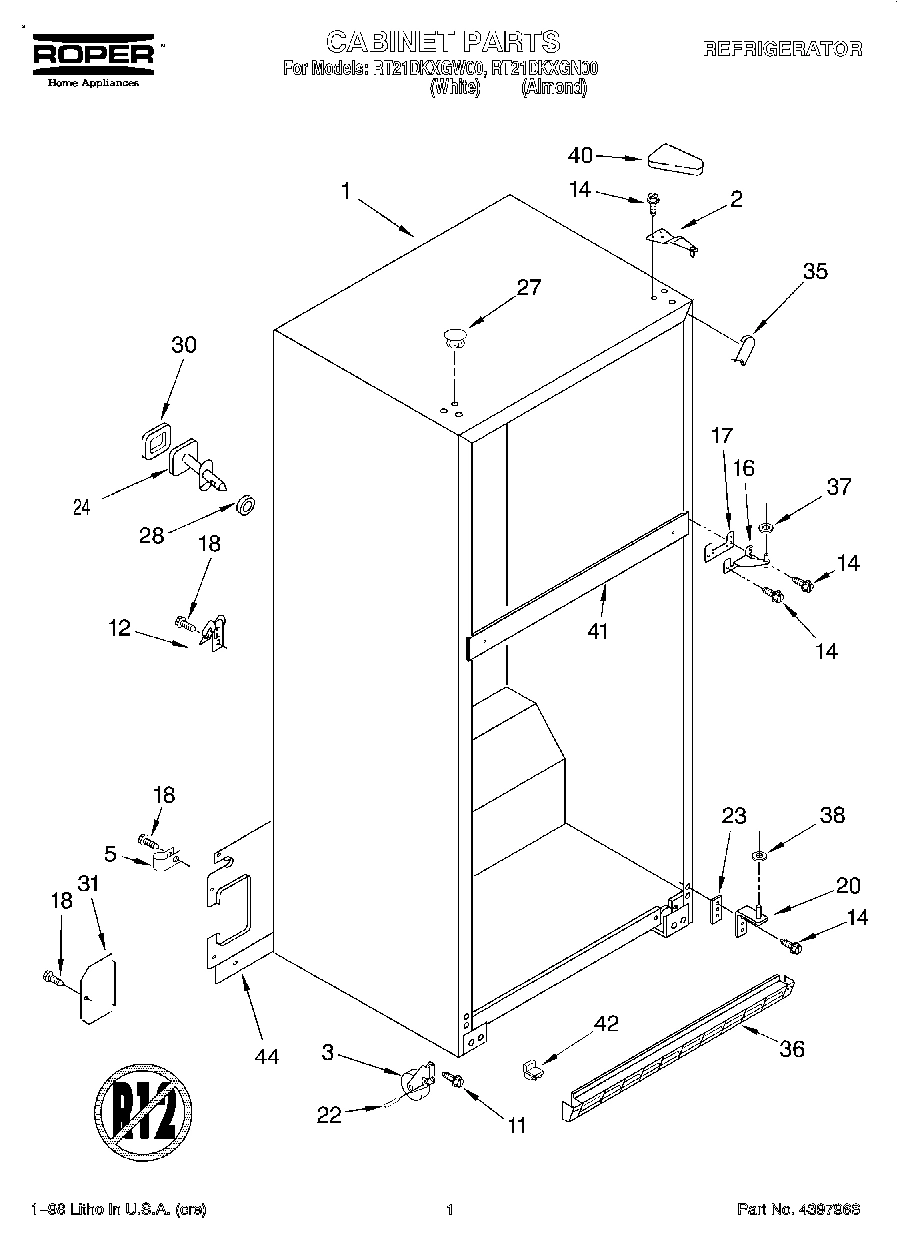

01 - CABINET
Common parts from model Whirlpool RT21DKXGW00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195381 WPL LIT2195381 Contact Us For Availability
WPL LIT2195481 WPL LIT2195481 Contact Us For Availability
WPL LIT2199064 WPL LIT2199064 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI127971A Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Screw Support Center WPL 2189314 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
8
Cover, Meat Pan WPL 2163848 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Shelf, Full Cantilever WPL 2195398 Contact Us For Availability
10
Fan Motor WPL 2183448 Contact Us For Availability
11
Shelf, Freezer WPL 2184667 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Pan, Meat WPL 2169919 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2189823 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI127972A Contact Us For Availability
25
Shim WPL 943187 Contact Us For Availability
25
Floor, Freezer WPL 2184617 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Wire Assembly, Frz. Compartment WPL 2195656 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI127973A Contact Us For Availability
29
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI127974A Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
36
Grille (White) WPL 2183991 Contact Us For Availability
36
Grille (Almond) WPL 2183992 Contact Us For Availability
37
TRIM, DOOR (2) WPL 2195947 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI127975A Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2189060 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Door Reversal Instructions WPL 2172516 Contact Us For Availability
100
FeaturePak (Includes 8,13) Also See Door Pg. WPL 2182576 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
100
E WPL 978883 Contact Us For Availability
× ![]()
