Model Whirlpool RT18BKXDN00 – Common Parts & Diagrams

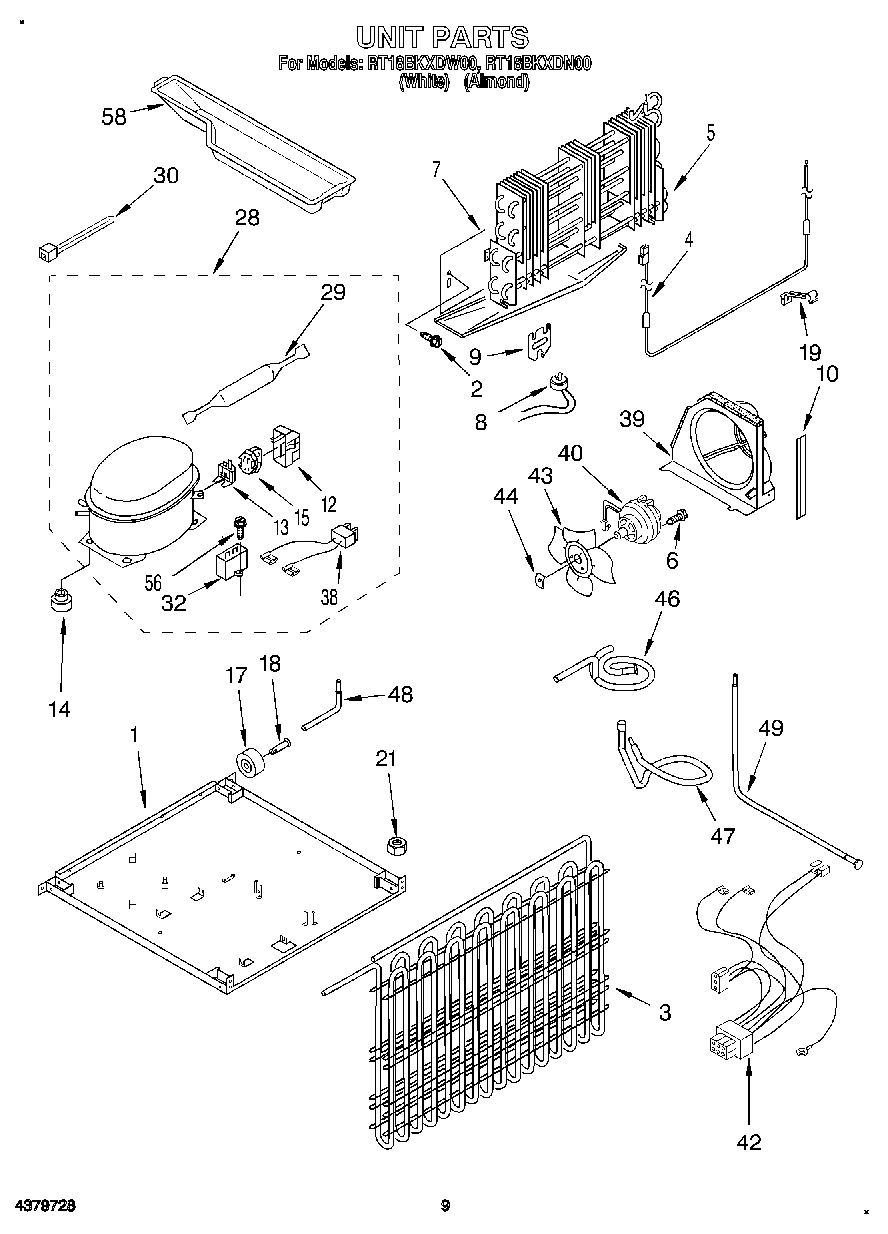

06 - UNIT, LIT/OPTIONAL

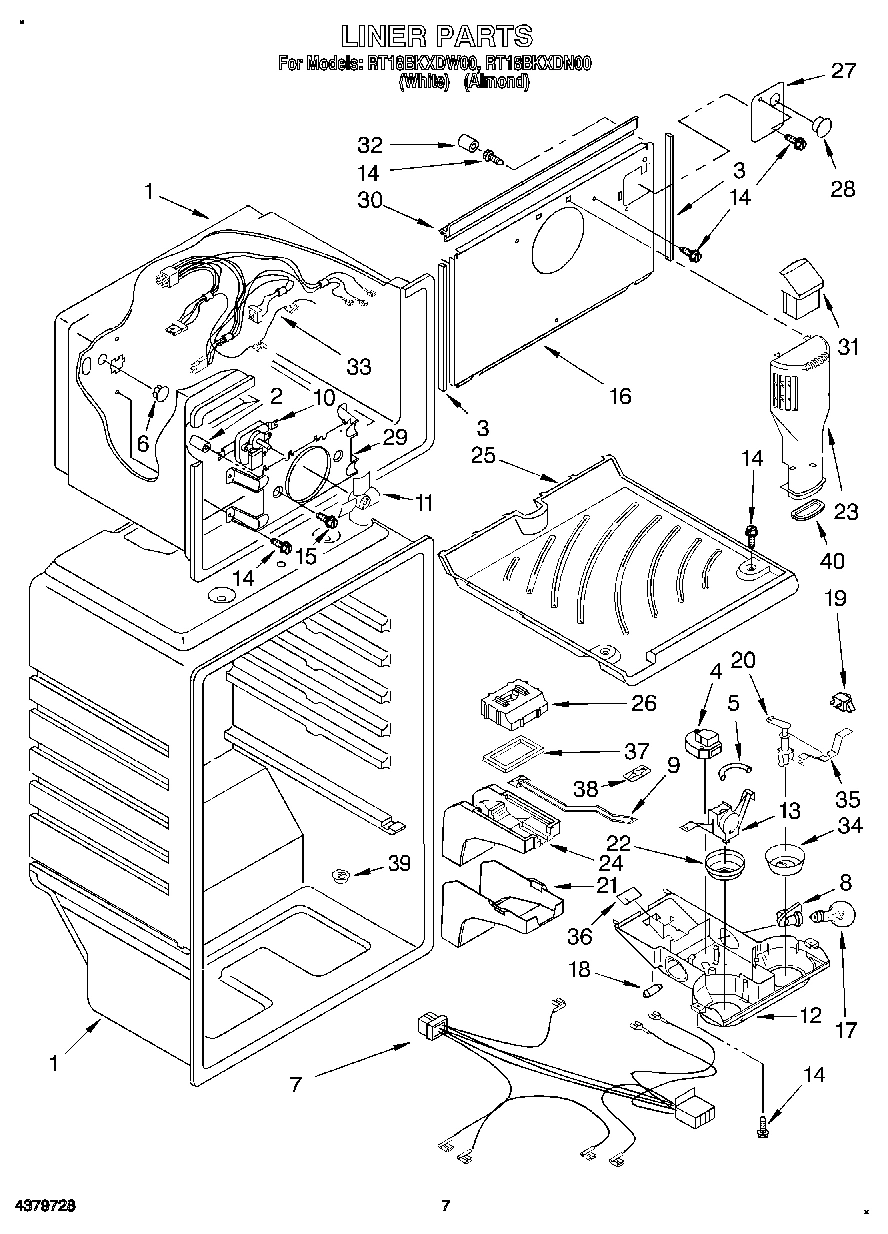

05 - LINER

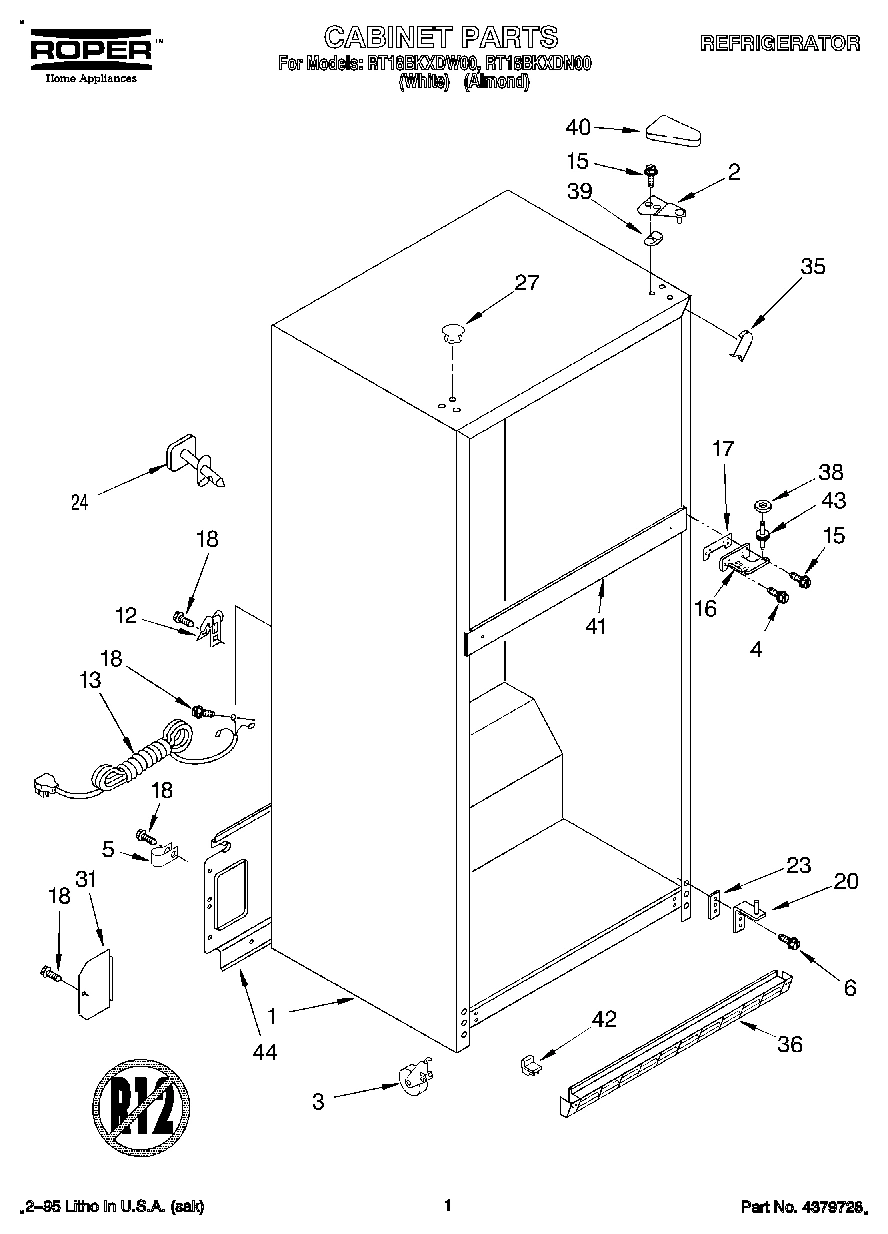

01 - CABINET

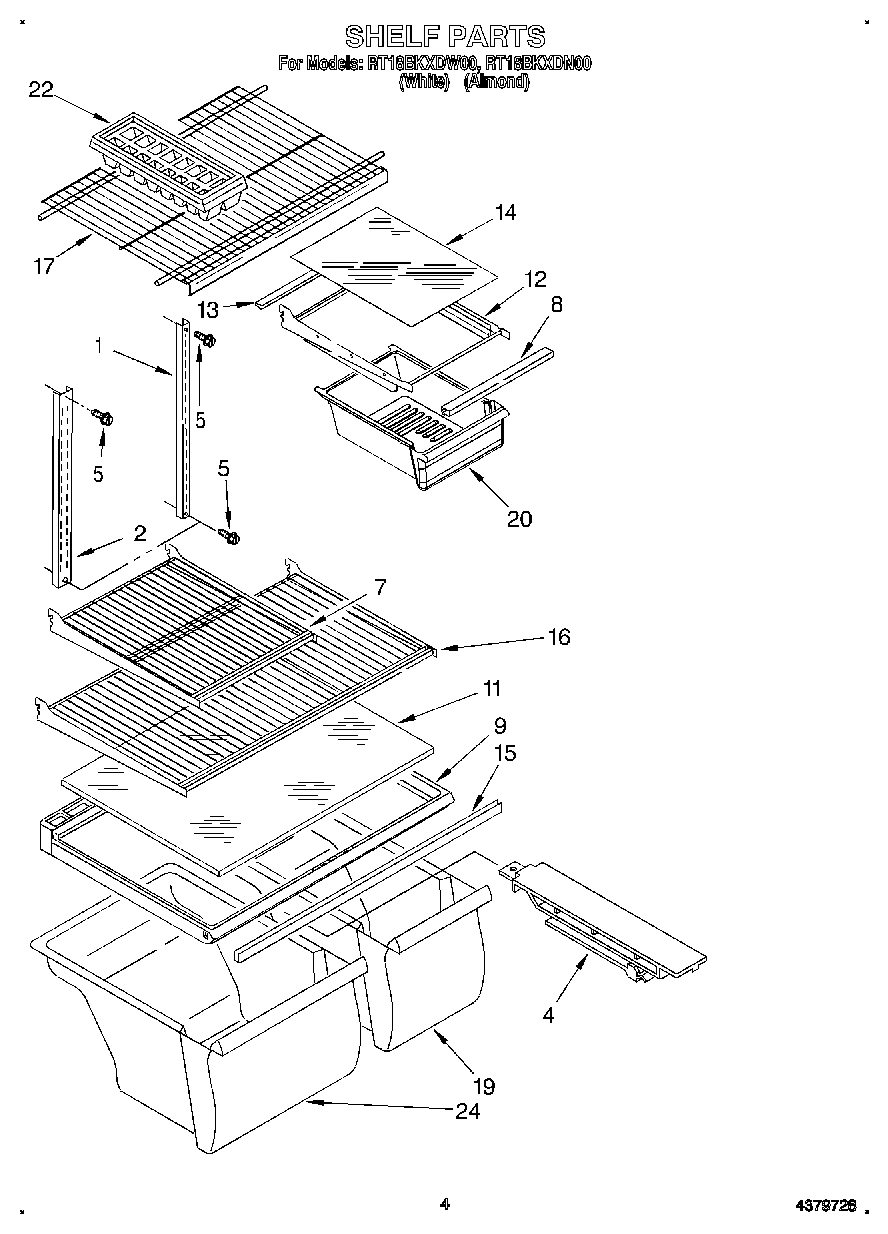

03 - SHELF

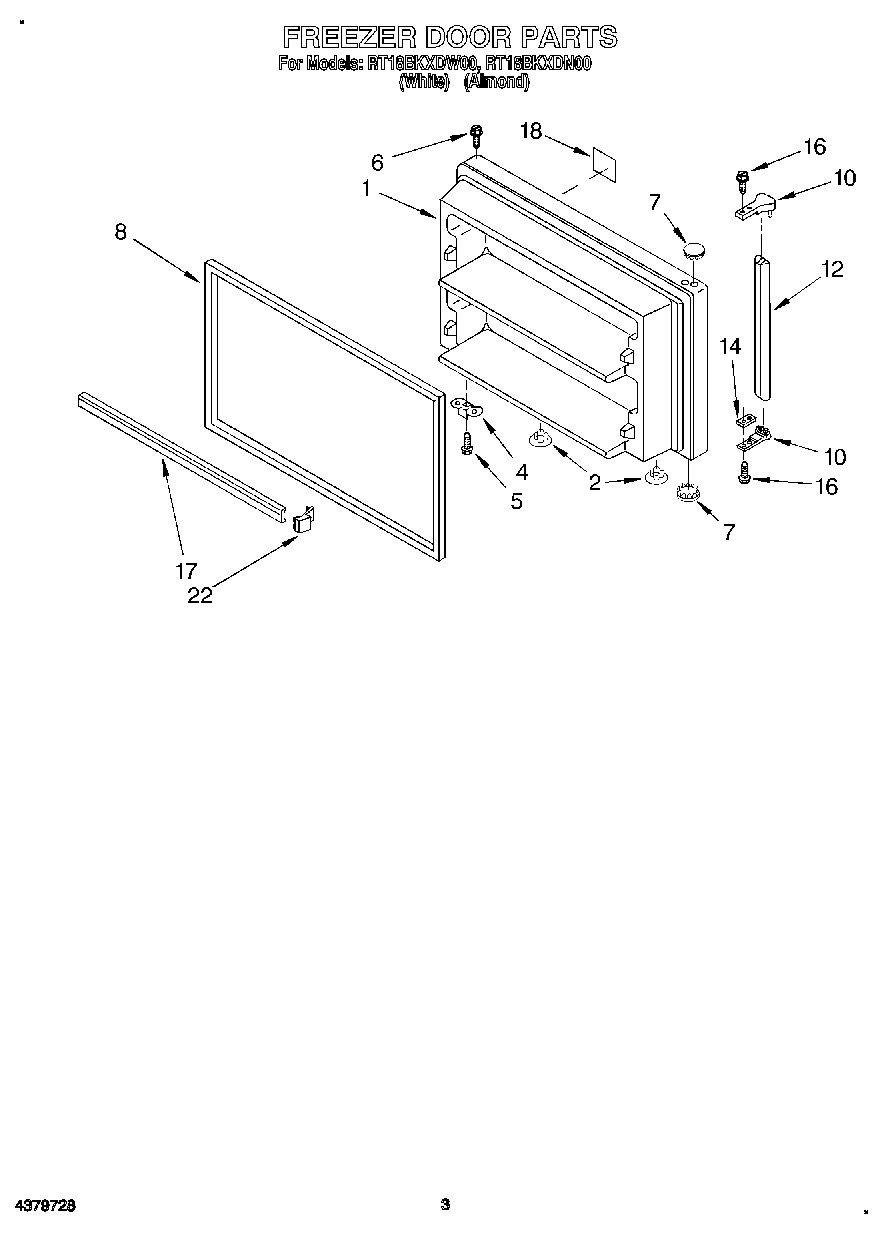

02 - FREEZER DOOR

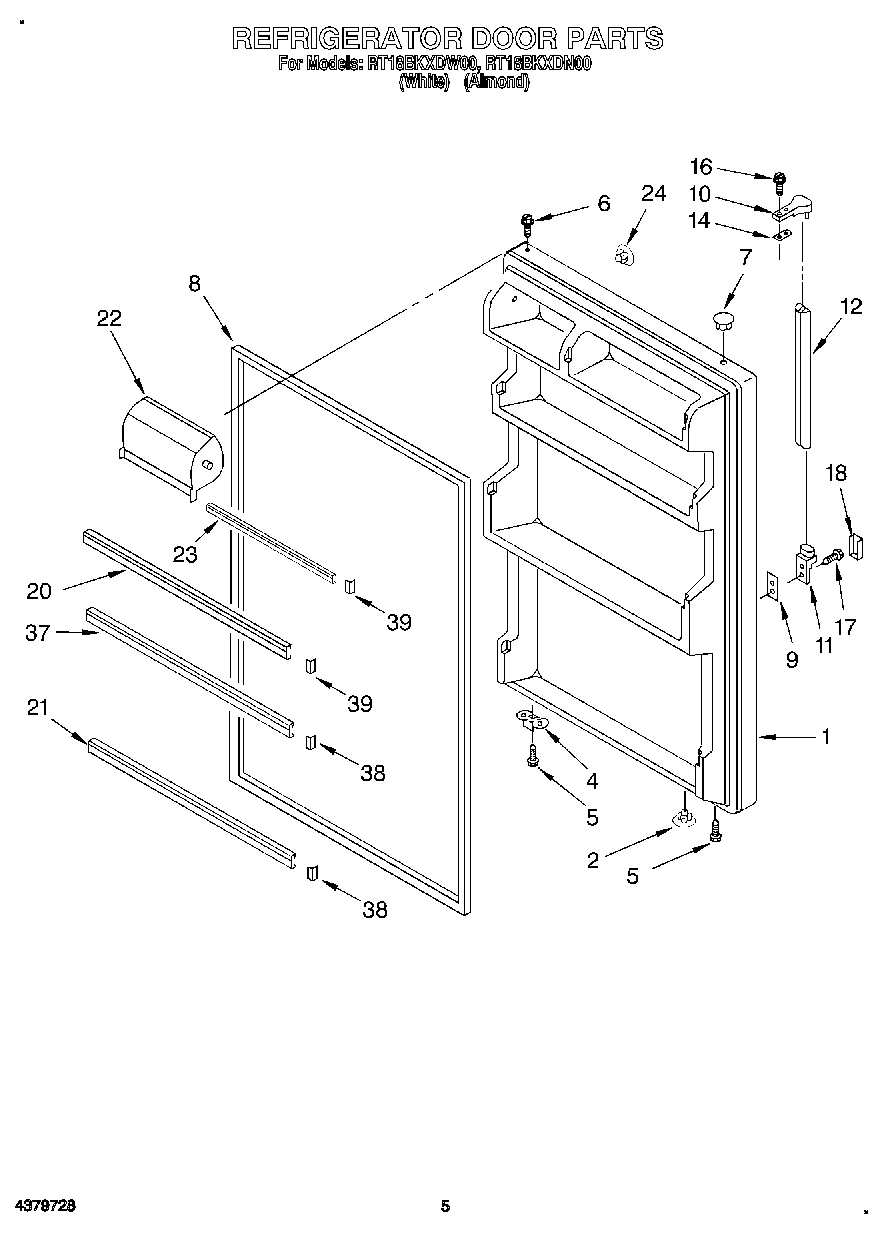

04 - REFRIGERATOR DOOR
Common parts from model Whirlpool RT18BKXDN00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI162332A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI162329A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (White) WPL 2159270 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (Almond WPL 2159271 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (W WPL 2171269 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (A WPL 2171270 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
4
Timer, Defrost WPL 2176340 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
6
Screw WPL 489457 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Shelf, Cantilever WPL 2163853 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Trim, Shelf WPL 2176262 Contact Us For Availability
9
Damper, Air WPL 2172570 Contact Us For Availability
9
Shim, Handle End WPL 935076 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
11
Handle End, Side WPL 935105 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
12
Handle, Center WPL 2173301 Contact Us For Availability
12
Handle, Center WPL 1109181 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Retainer, Glass WPL 2163882 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Glass, Meat Cover WPL 2173297 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover - Evaporator WPL 2163818 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163856 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Nameplate WPL 2163676 Contact Us For Availability
18
Screw, Cover WPL 987873 Contact Us For Availability
20
Post, Damper WPL 2163809 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Pan, Meat WPL 2173312 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Trim, Door Shelf WPL 2163683 Contact Us For Availability
22
Knob, Thermostat WPL 2176296 Contact Us For Availability
23
Air Tower WPL 2172575 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI162330A Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
33
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille WPL 2166134 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
37
Trim, Door Shelf WPL 2163682 Contact Us For Availability
38
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Gasket, Air Tower WPL 2179839 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI162331A Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
44
Cover, Unit WPL 2179786 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
