Model Whirlpool RT16VKXDW02 – Common Parts & Diagrams

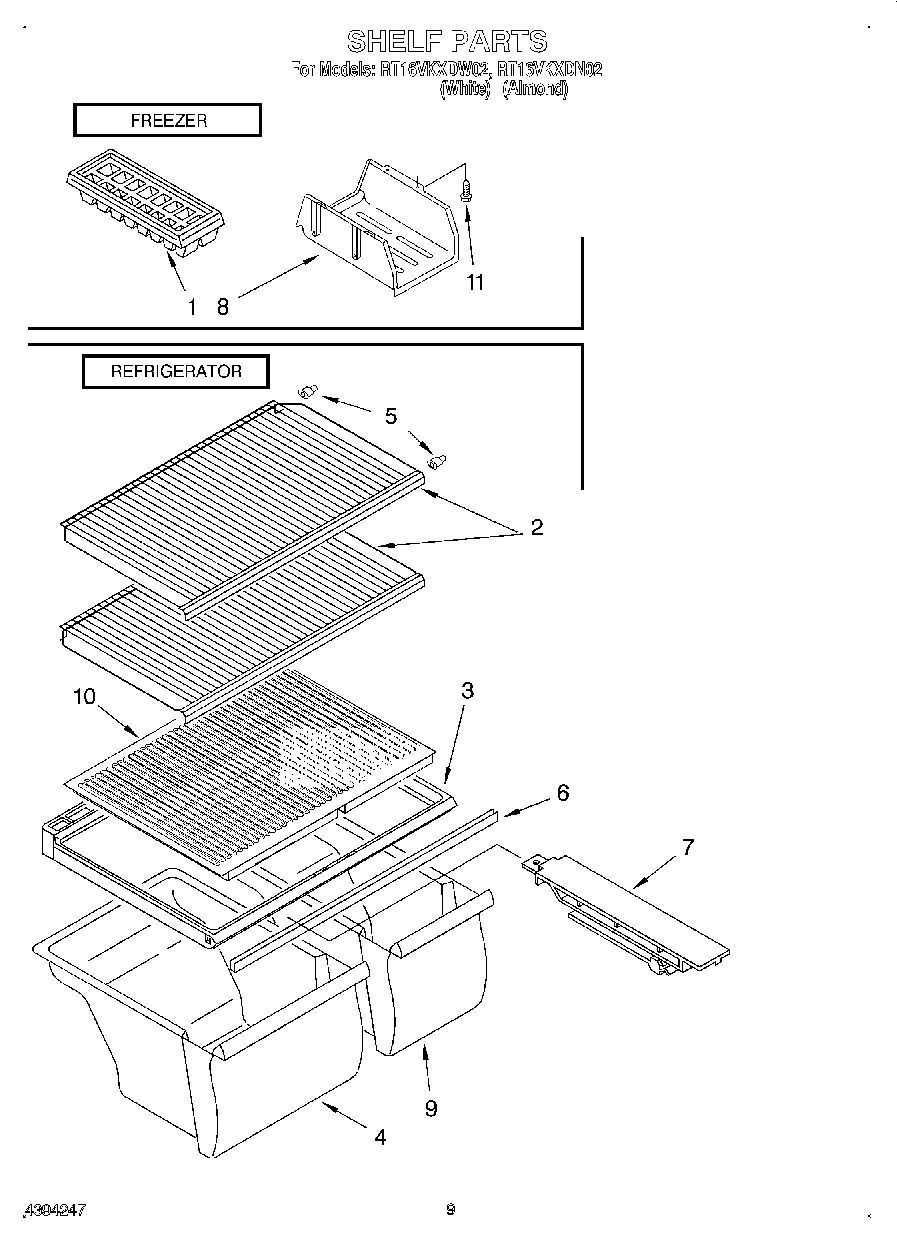

05 - SHELF, LIT/OPTIONAL

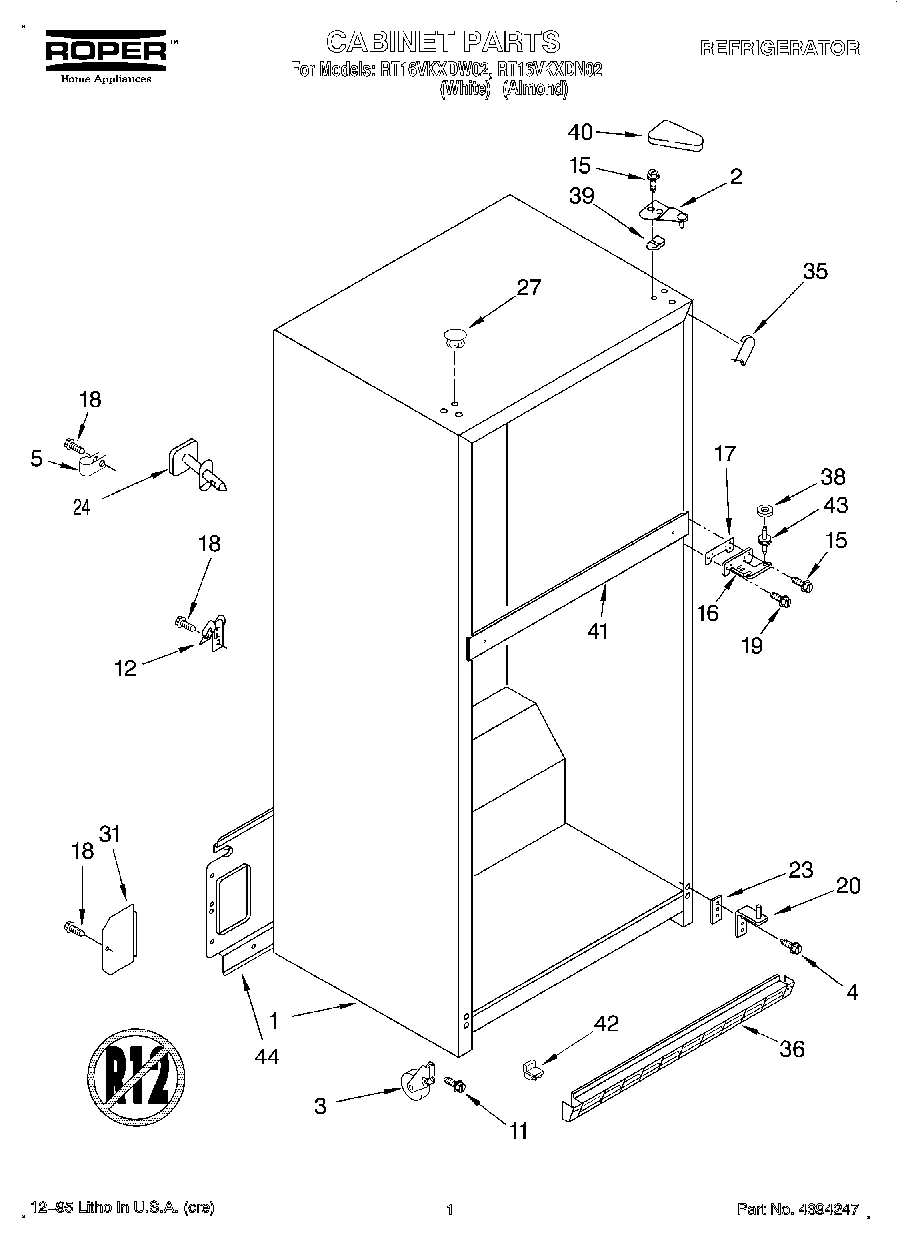

01 - CABINET

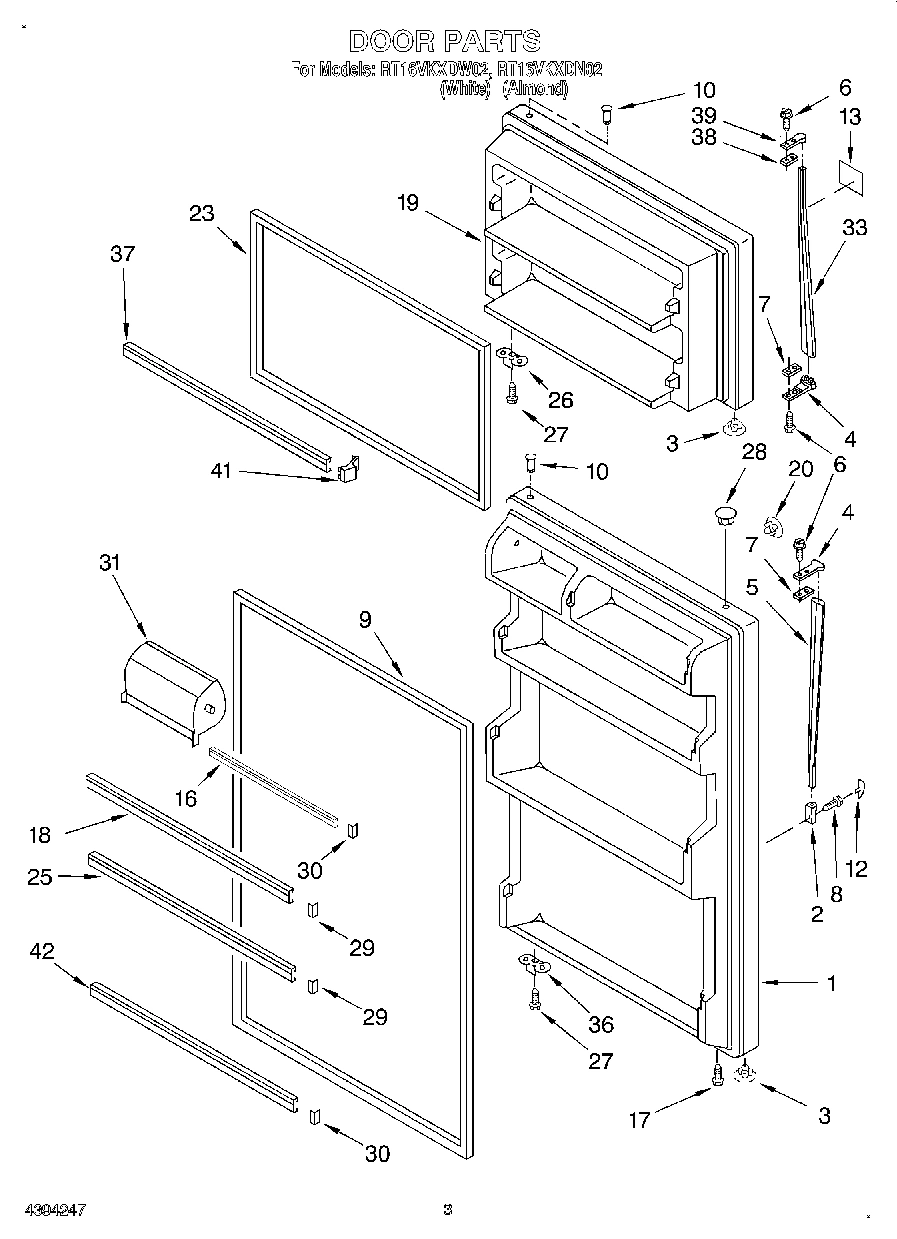

02 - DOOR

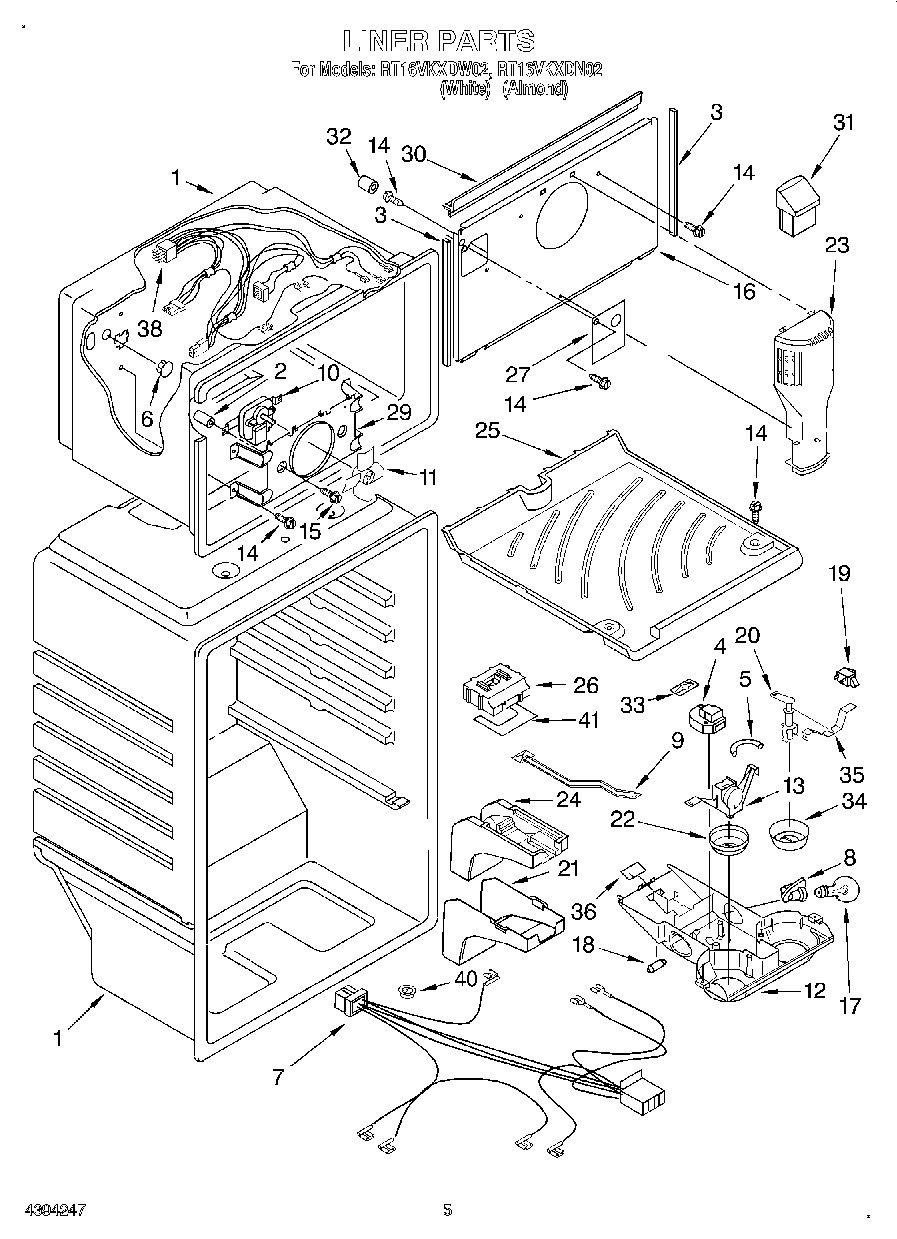

03 - LINER

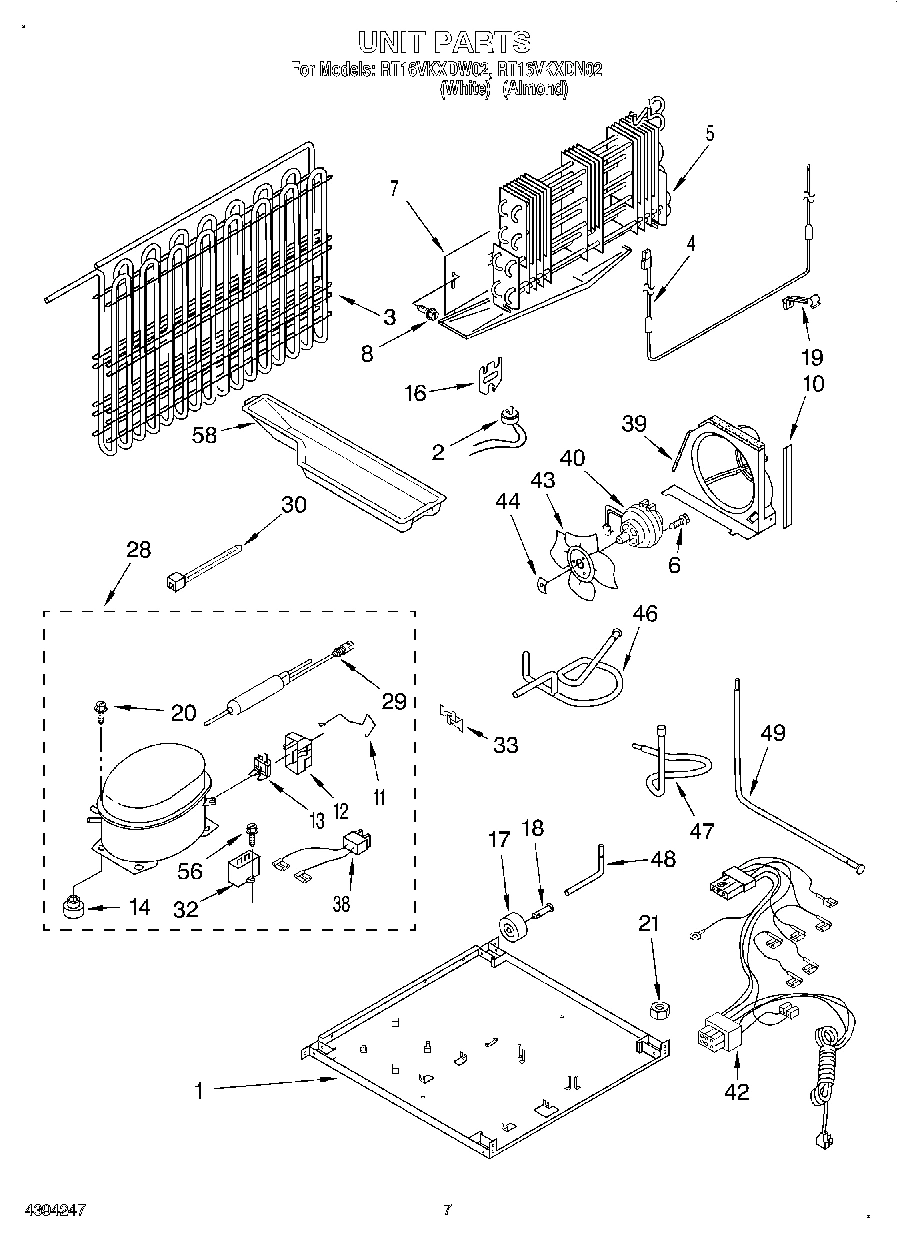

04 - UNIT
Common parts from model Whirlpool RT16VKXDW02
1
Liner (Not A Serviceable Part) WPL ARI126326A Contact Us For Availability
1
Plate, Unit Mounting WPL 2182437 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
5
Evaporator Assy. WPL 2166206 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Heat Shield and Drain Pan WPL 2172619 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
11
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
11
Torx Key WPL 1117510 Contact Us For Availability
11
Clamp (Production Only) WPL 2162400 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Nameplate WPL 2163676 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2183151 Contact Us For Availability
16
Bracket, Heater WPL 2176301 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (White) WPL 2159446 Contact Us For Availability
19
Freezer Door (Almond) WPL 2159447 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI126327A Contact Us For Availability
22
Knob, Thermostat WPL 2176296 Contact Us For Availability
23
Door Gasket, Magnetic (Service) WPL 2159056 Contact Us For Availability
23
Air Tower WPL 2182339 Contact Us For Availability
25
Trim-Door Shelf WPL 2173671 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Stop, Door WPL 2159367 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Gasket, Evaporator Cover (Top) WPL 2166192 Contact Us For Availability
32
Capacitor (Service) WPL 2154565 Contact Us For Availability
32
Capacitor (Production) WPL 2169137 Contact Us For Availability
33
Handle, F.C. WPL 2159424 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
33
Clip WPL 2166683 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
38
Wire Assembly, Freezer Comp. WPL 2174610 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
41
Seal, Air Diffuser WPL 2179834 Contact Us For Availability
42
Trim, Door WPL 2169913 Contact Us For Availability
42
Wire Assy. Unit WPL 2184585 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
