Model Whirlpool RT16DKXBW01 – Common Parts & Diagrams

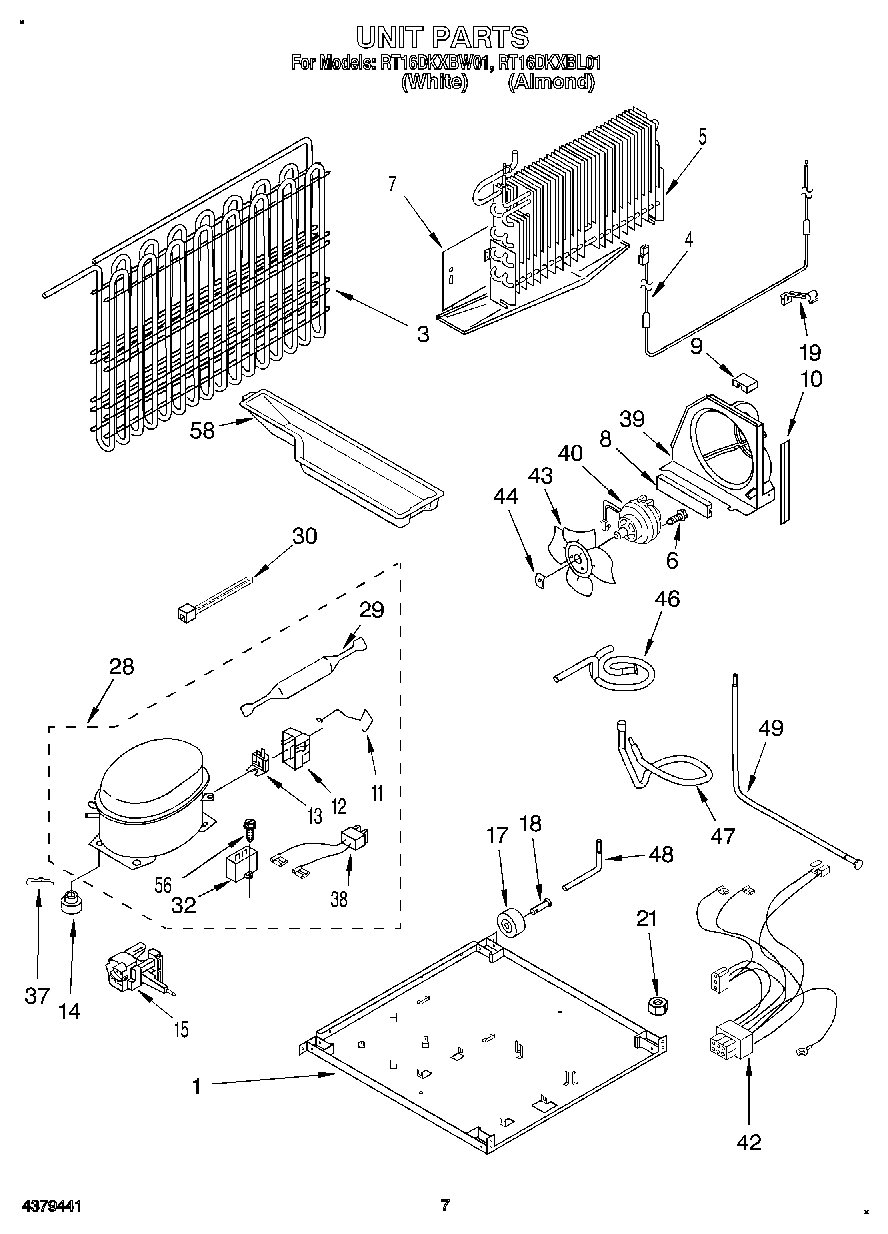

04 - UNIT

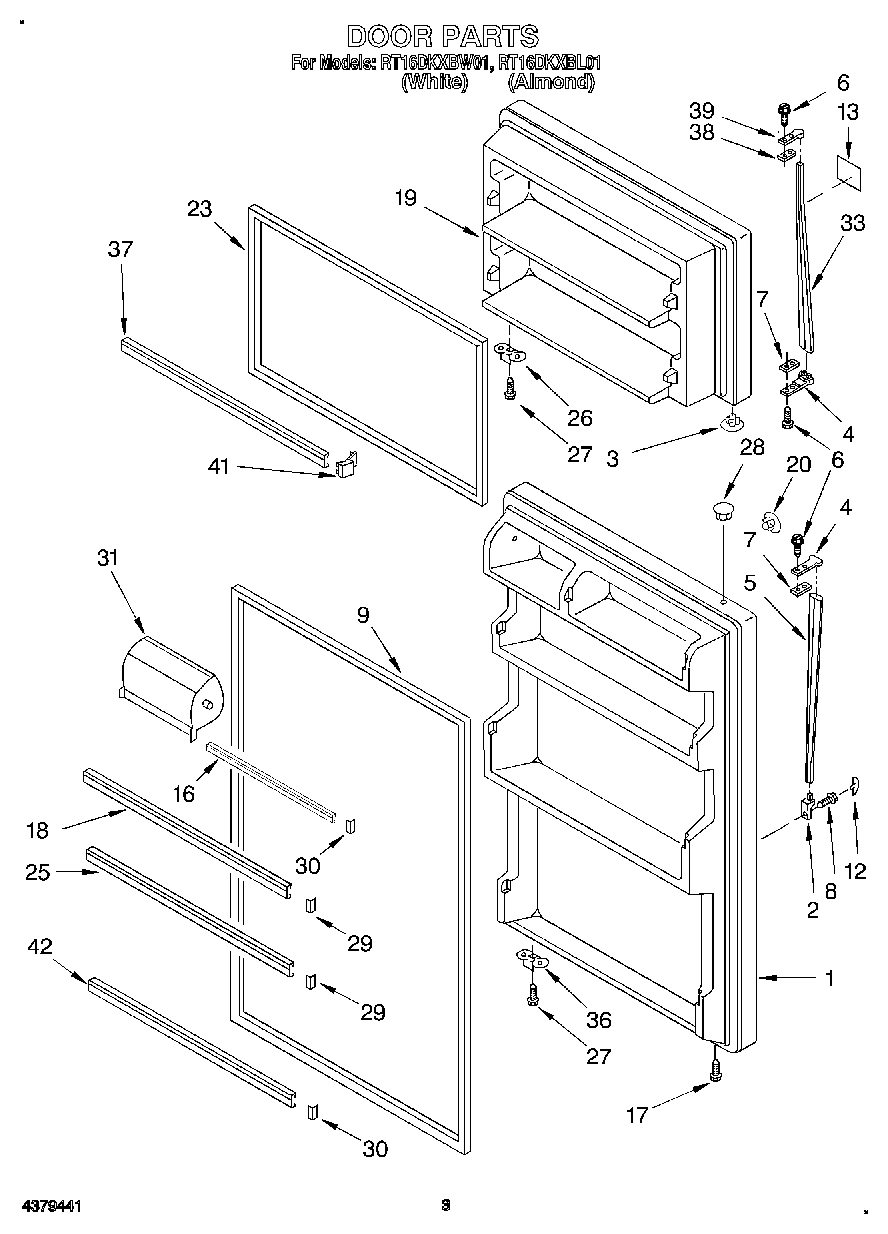

02 - DOOR
01 - CABINET
03 - LINER
05 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool RT16DKXBW01
WPL LIT2169460 WPL LIT2169460 Contact Us For Availability
WPL LIT2173221 WPL LIT2173221 Contact Us For Availability
WPL LIT2173249 WPL LIT2173249 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI126036A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI126041A Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf (2) WPL 2166147 Contact Us For Availability
4
Timer, Defrost (8 Hr.) WPL 2172691 Contact Us For Availability
5
Handle, Center WPL 1109166 Contact Us For Availability
5
Plug, Shelf Cup WPL 2166255 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
8
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
9
Damper, Air WPL 2172570 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Fan Motor WPL 2163766 Contact Us For Availability
12
Cover, Meat Pan WPL 2163848 Contact Us For Availability
12
Control Box WPL 2172566 Contact Us For Availability
13
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
13
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
13
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
13
Torx Key WPL 1117510 Contact Us For Availability
13
Nameplate WPL 2163676 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Meat Pan WPL 2166480 Contact Us For Availability
13
Door Reversal Instructions WPL 2172516 Contact Us For Availability
13
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
13
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
13
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
13
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
13
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
14
Screw WPL 486214 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2163816 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Trim, Door WPL 2163682 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Freezer Door (White) WPL 2159446 Contact Us For Availability
19
Freezer Door (Almond) WPL 2159447 Contact Us For Availability
19
Screw WPL 489426 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hinge Butt WPL 2172577 Contact Us For Availability
20
Post, Damper WPL 2163809 Contact Us For Availability
21
Cover, Air Diffuser WPL 2172560 Contact Us For Availability
22
Control Knob WPL 2163800 Contact Us For Availability
23
Door Gasket, Magnetic (Service) WPL 2159056 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Air Tower WPL 2172574 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI126037A Contact Us For Availability
24
Air Diffuser, Bottom WPL 2172564 Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
26
Stop, Door WPL 2159367 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI126038A Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 2163763 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI126039A Contact Us For Availability
30
Gasket, Evaporator Cover (Top) WPL 2166192 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
33
Handle, F.C. WPL 2159424 Contact Us For Availability
34
Knob, Dampener WPL 2163801 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Grille WPL 2166134 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI126040A Contact Us For Availability
42
Trim, Door WPL 2163683 Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
44
Cover, Unit WPL 2163814 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
