Model Whirlpool RT14DMXYW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

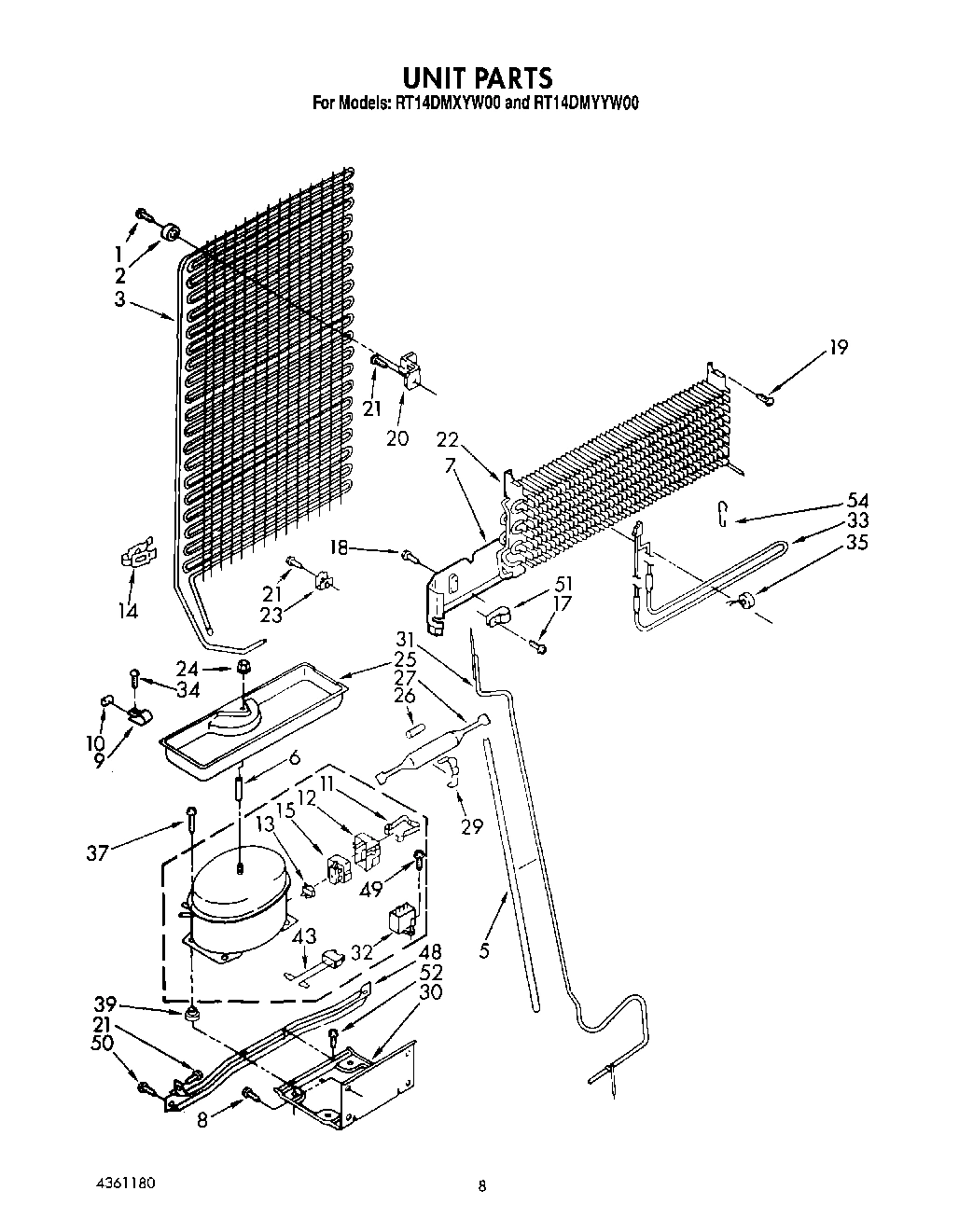

06 - UNIT

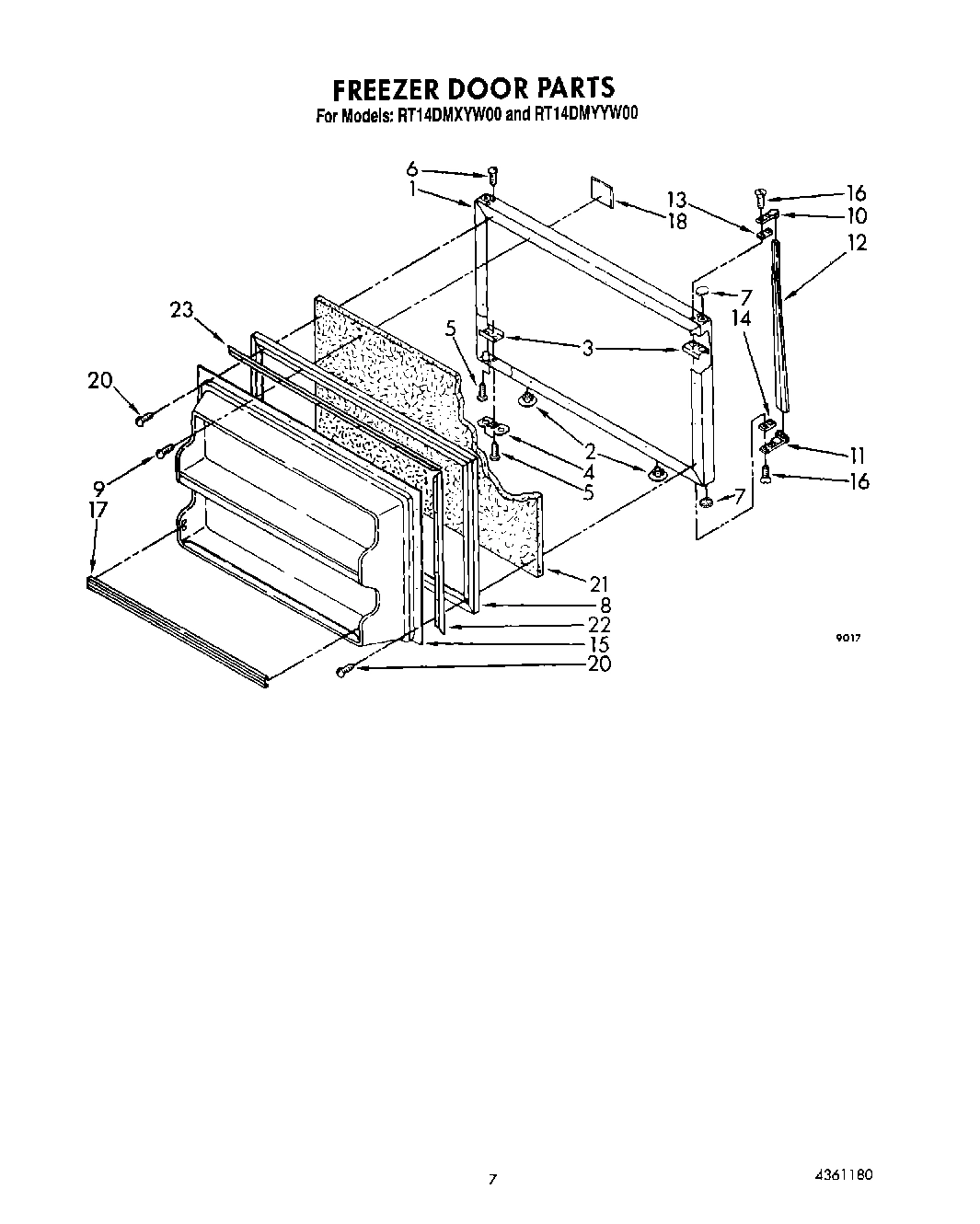

05 - FREEZER DOOR

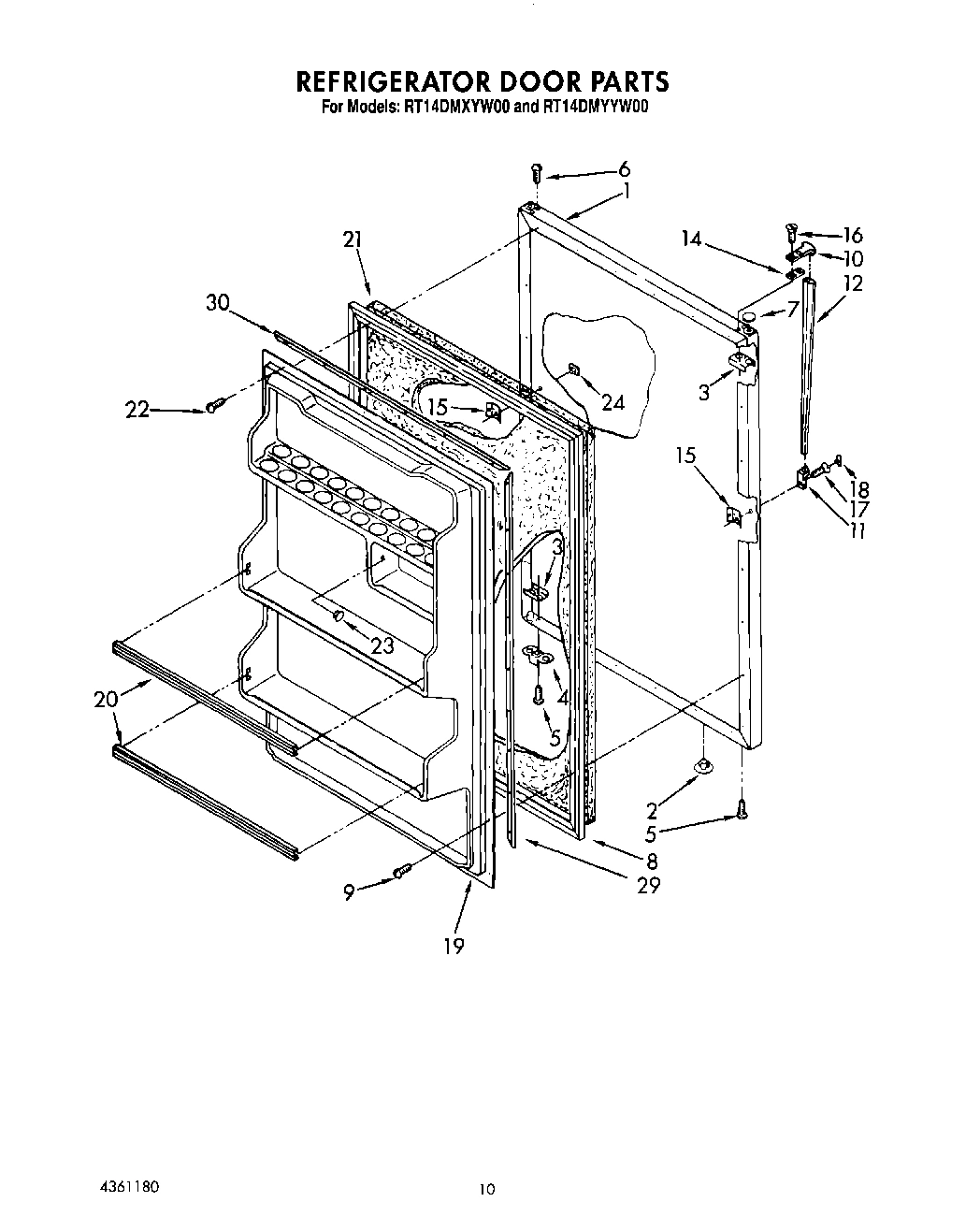

07 - REFRIGERATOR DOOR

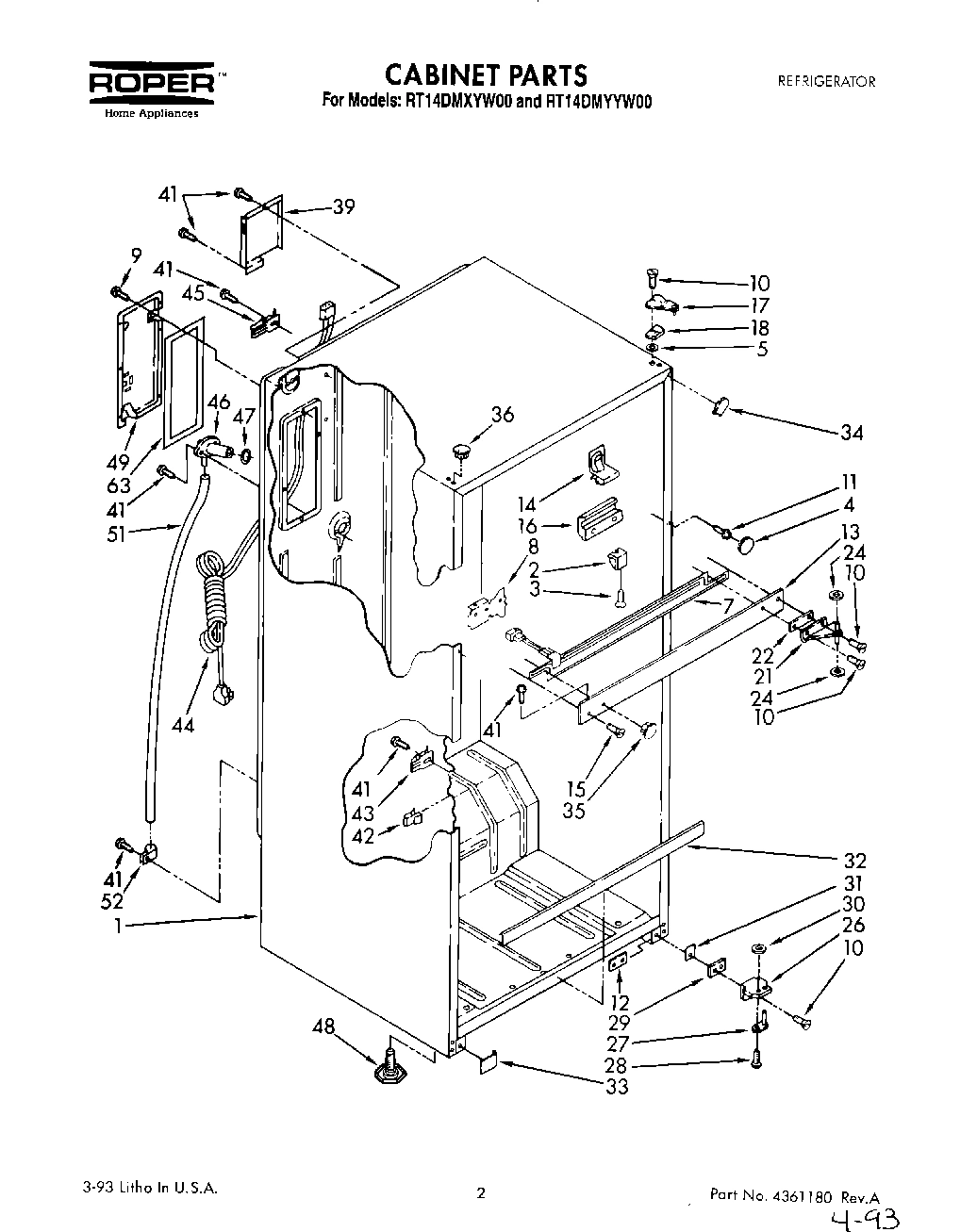

01 - CABINET

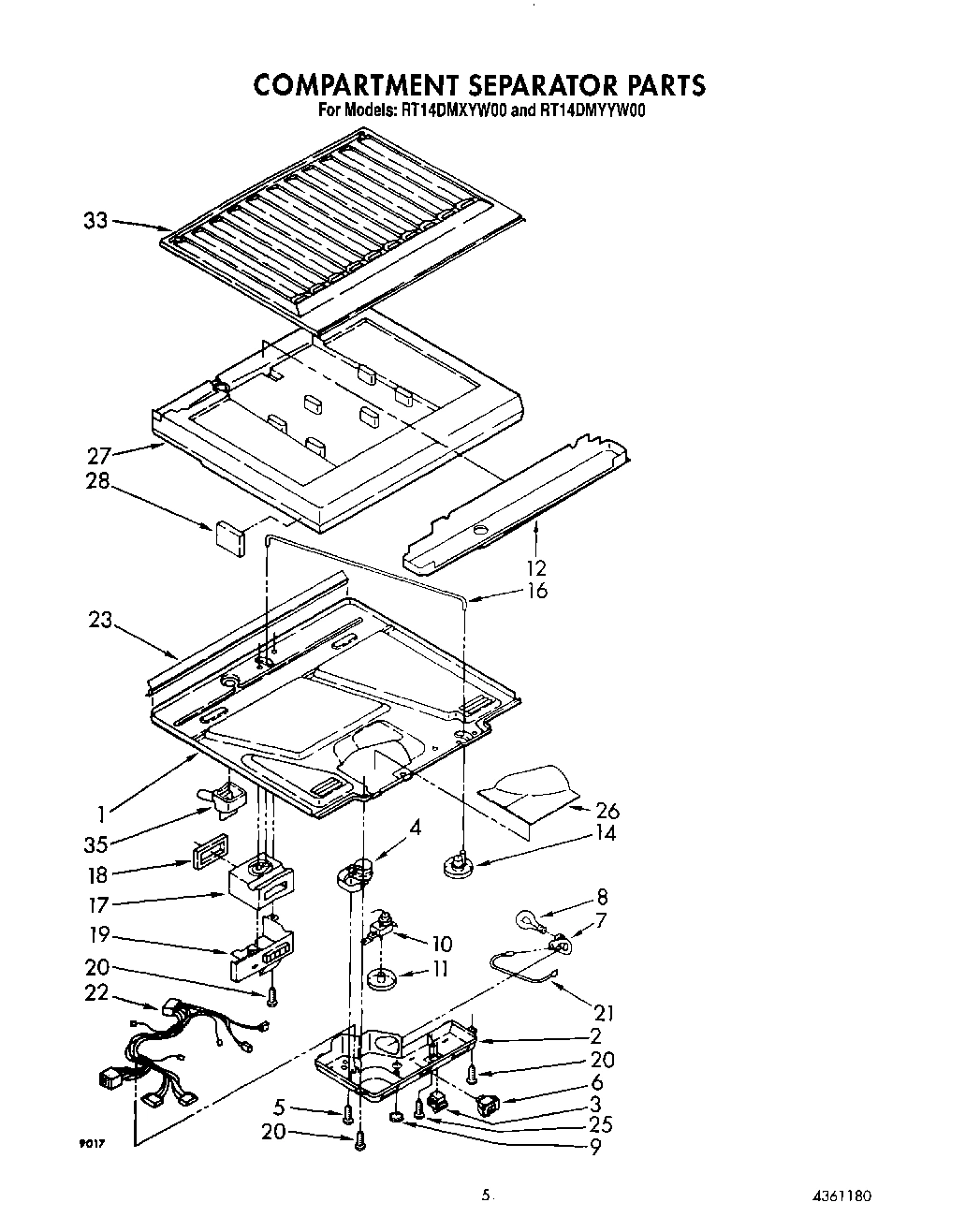

03 - COMPARTMENT SEPARATOR

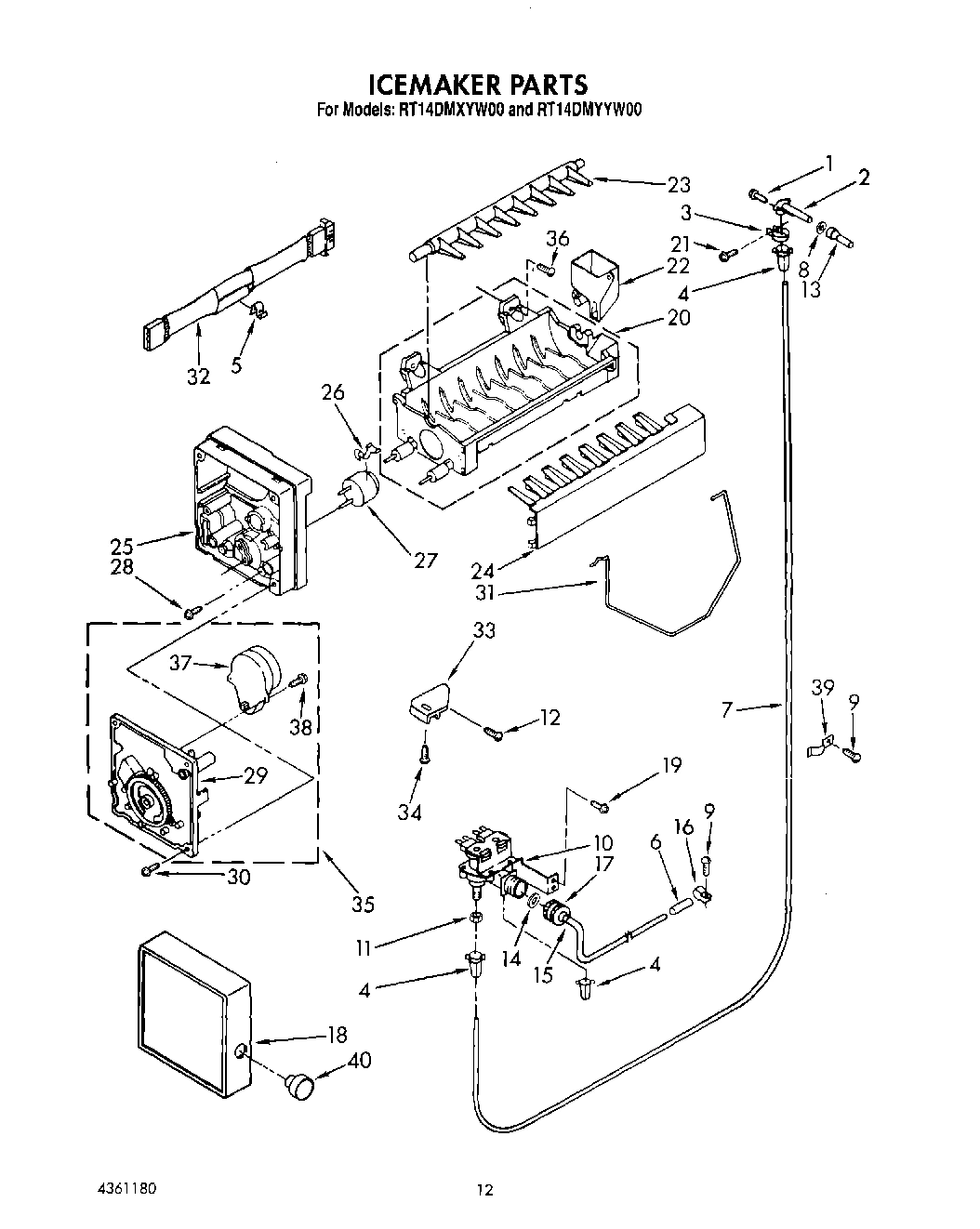

08 - ICEMAKER, LIT/OPTIONAL

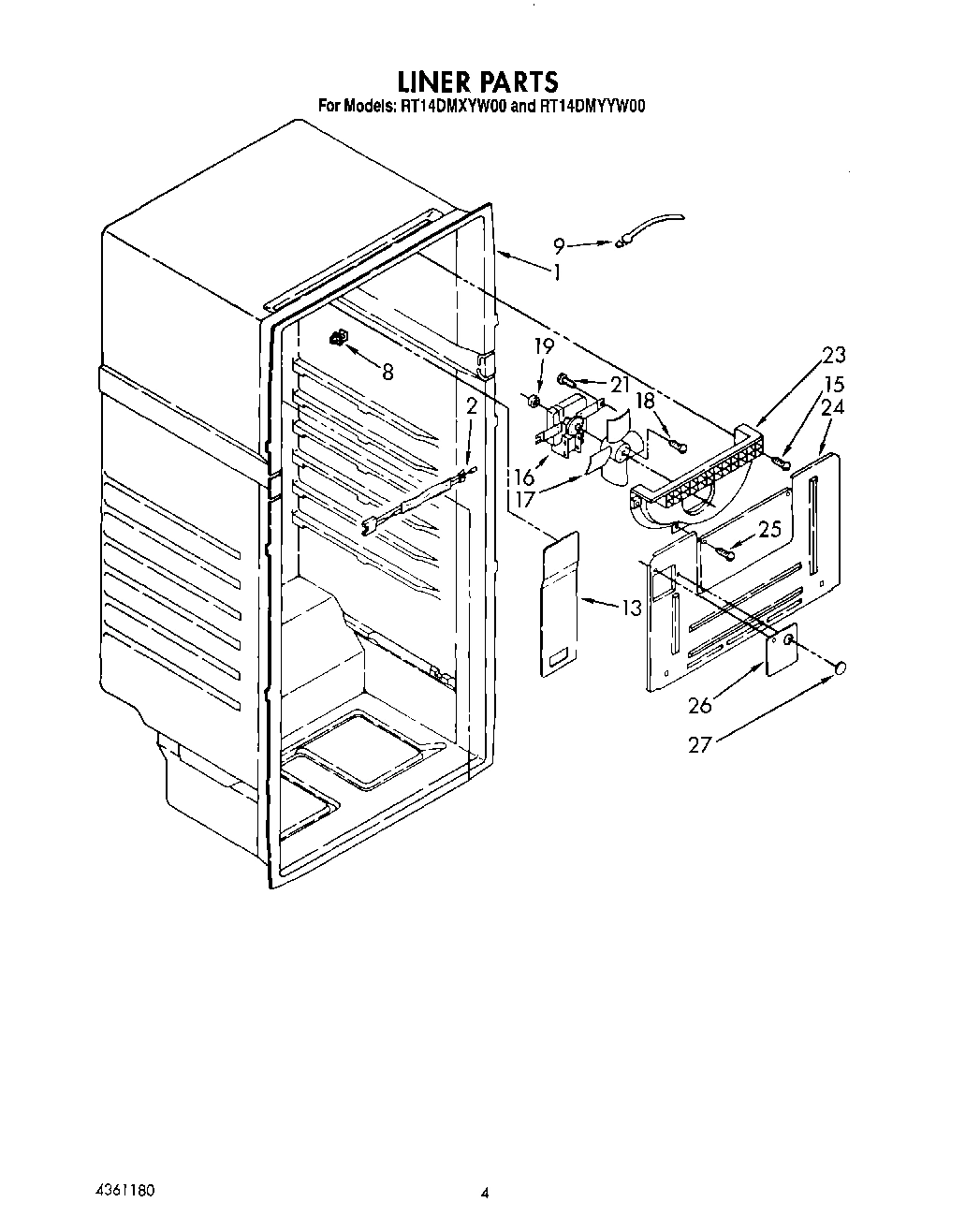

02 - LINER

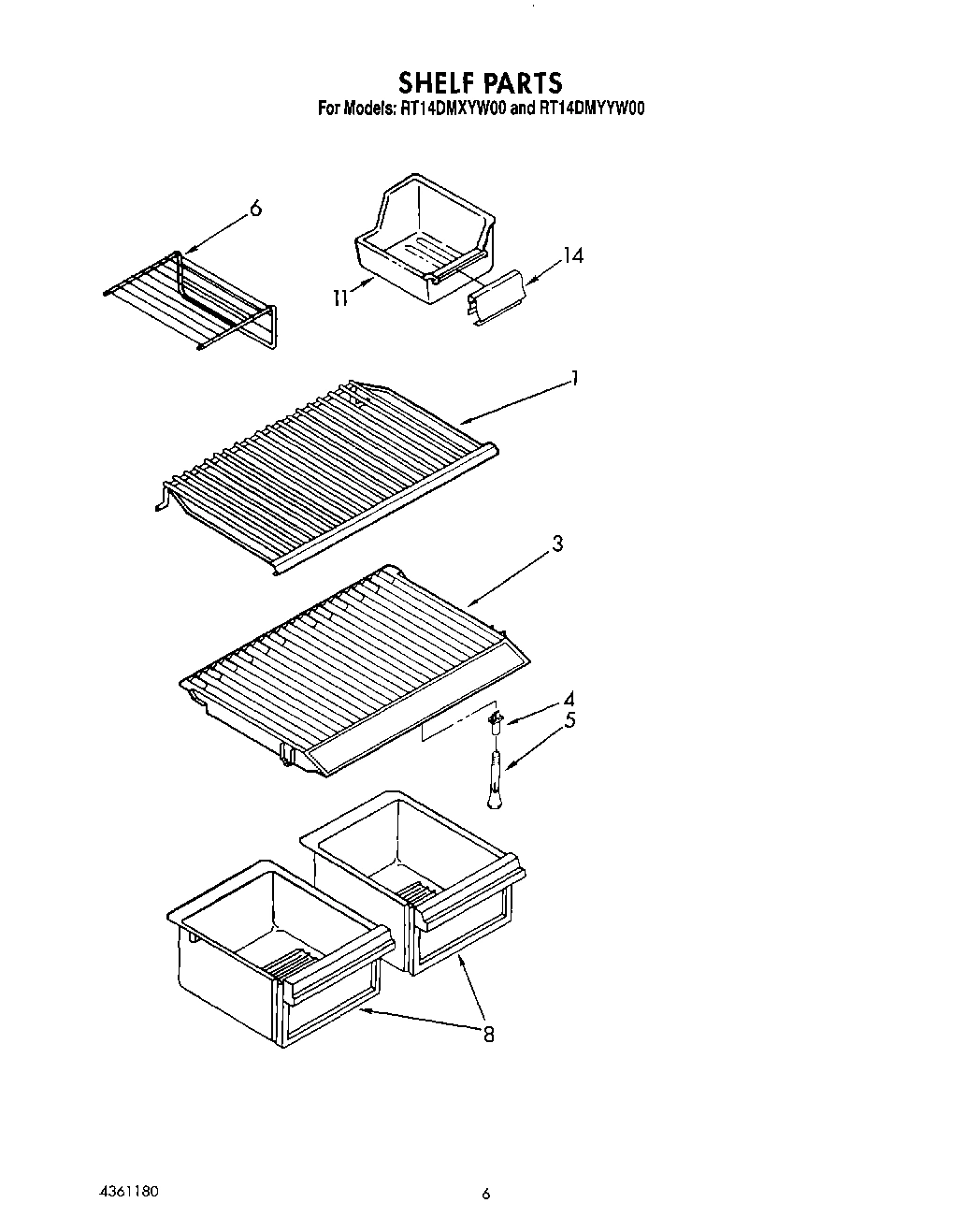

04 - SHELF
Common parts from model Whirlpool RT14DMXYW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2150256 WPL LIT2150256 Contact Us For Availability
WPL LIT2152567 WPL LIT2152567 Contact Us For Availability
WPL LIT2154703 WPL LIT2154703 Contact Us For Availability
WPL LIT4361180 WPL LIT4361180 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1103917 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1103918 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) (Also Order WPL 1103919 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI125467A Contact Us For Availability
1
Bottom, Compartment Separator WPL 2157248 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI125468A Contact Us For Availability
1
Shelf, Pullout (2) WPL 1104455 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug WPL 534927 Contact Us For Availability
2
Spacer WPL 2149077 Contact Us For Availability
2
Box, Control WPL 1126703 Contact Us For Availability
3
Cover, Crisper WPL 1124673 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
4
Hole Plug (2) (Golden Harvest) WPL 1126569 Contact Us For Availability
4
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1127571 Contact Us For Availability
4
Support, Crisper Cover WPL 1103731 Contact Us For Availability
5
Post, Cripser Cover WPL 836410 Contact Us For Availability
6
Shelf, Ice Cube Pan WPL 2151427 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heater, Mullion WPL 1118897 Contact Us For Availability
8
Stud, Evaporator (2) WPL 939065 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
8
Pan, Crisper (2) WPL 1124674 Contact Us For Availability
9
Clip, Strap WPL 1123230 Contact Us For Availability
10
Screw WPL 489327 Contact Us For Availability
11
Screw, WPL 489370 Contact Us For Availability
11
Knob, Thermostat WPL 2148148 Contact Us For Availability
12
Handle, Center WPL 1109166 Contact Us For Availability
12
Tap Plate (2) WPL 2147312 Contact Us For Availability
12
Drain Pan WPL 1108170 Contact Us For Availability
12
Screw WPL 486214 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail (White) WPL 1111510 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1111511 Contact Us For Availability
13
Center Rail (Almond) WPL 1111512 Contact Us For Availability
13
Tube, Water WPL 939027 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Clip, Center Rail WPL 1129018 Contact Us For Availability
14
Knob, Air Control WPL 2148149 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Trim, Ice Pan WPL 837122 Contact Us For Availability
15
Screw WPL 489378 Contact Us For Availability
15
Tube, Inlet Valve WPL 627883 Contact Us For Availability
16
Center, Rail Shim WPL 2151428 Contact Us For Availability
16
Rod, Connecting WPL 1111270 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Trim, Door Shelf WPL 1116038 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Nameplate WPL 2160005 Contact Us For Availability
18
Shim, Hinge Top WPL 2151698 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Interior Door Panel WPL 1120628 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Trim, Door (Top) (2) WPL 1116031 Contact Us For Availability
21
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 1129047 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box & Cabinet WPL 2154724 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1123916 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability
24
Evaporator Cover WPL 2151569 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
26
Hinge Butt, Bottom (R.H) WPL 1123882 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1123389 Contact Us For Availability
28
Also Order Tray Mounting Kit WPL 482801 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
29
Shim, Bottom WPL 943708 Contact Us For Availability
30
Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 2151423 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability
32
Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability
33
Cover, Glider Rail (Golden Harvest) WPL 944833 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119323 Contact Us For Availability
34
Filler, Wrap Corner (2) (White) WPL 1110684 Contact Us For Availability
34
Filler, Wrap Corner (2) (Almond) WPL 1110685 Contact Us For Availability
34
Filler, Wrap Corner (2) (Golden Harvest) WPL 1110686 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
Hole Plug (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (Golden Harvest) WPL 1119708 Contact Us For Availability
35
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
36
Hole Plug (2) (Almond) WPL 2151653 Contact Us For Availability
36
Hole Plug (2) (Golden Harvest) WPL 2151654 Contact Us For Availability
39
Cover, Wiring WPL 942845 Contact Us For Availability
40
Knob, Adjust Water WPL 627992 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
48
WPL 944766 WPL 944766 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
WPL 1106510 WPL 1106510 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
100
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
