Model Whirlpool RT14DMXBL10 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
02 - DOOR

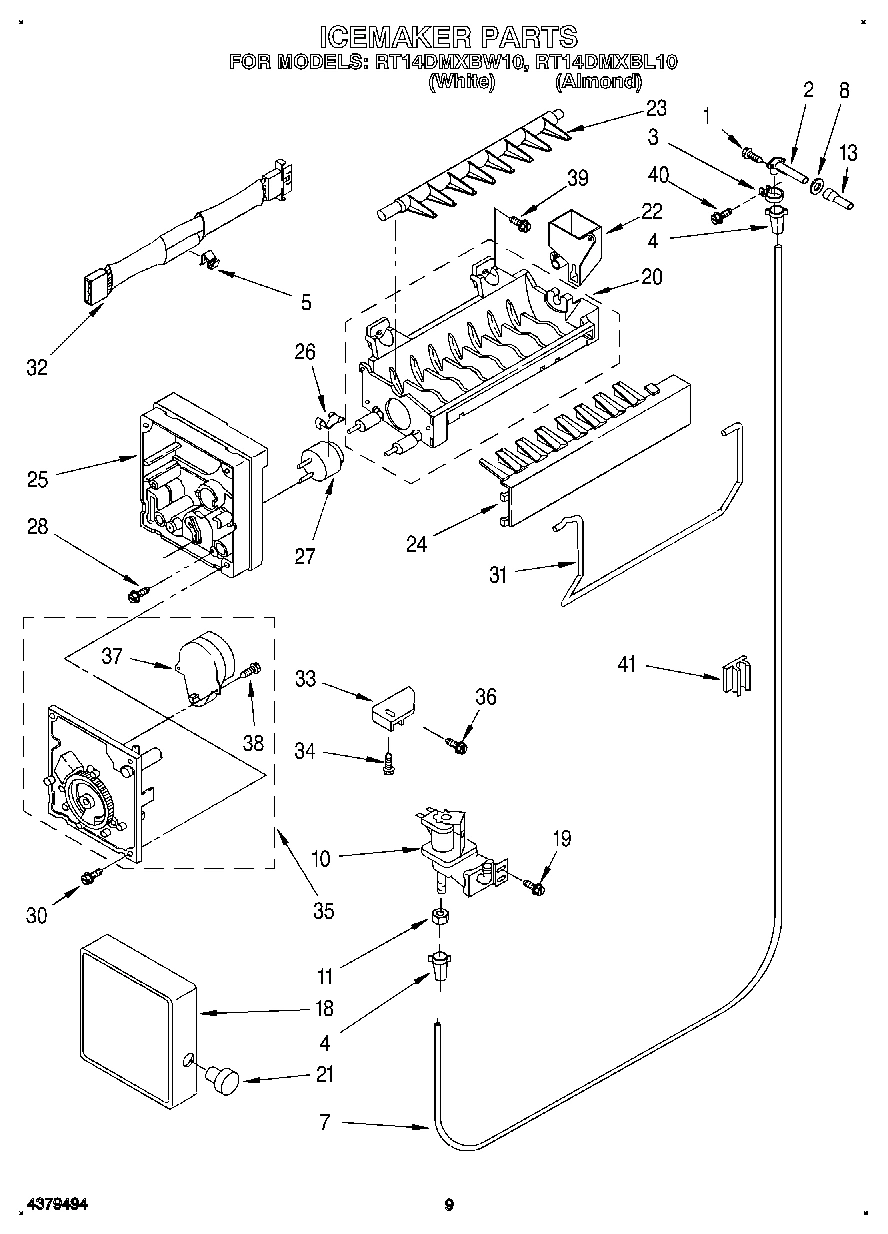

05 - ICEMAKER

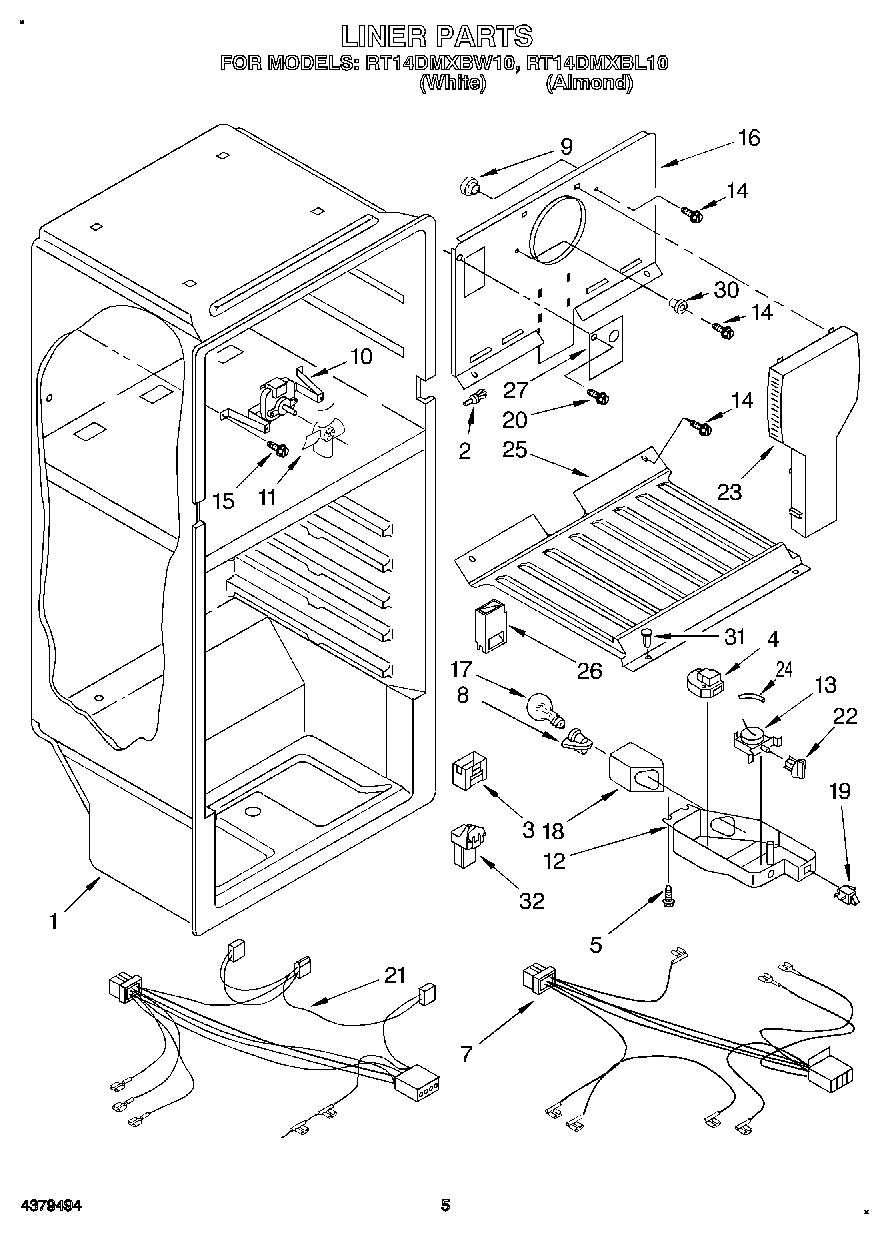

03 - LINER, LIT/OPTIONAL

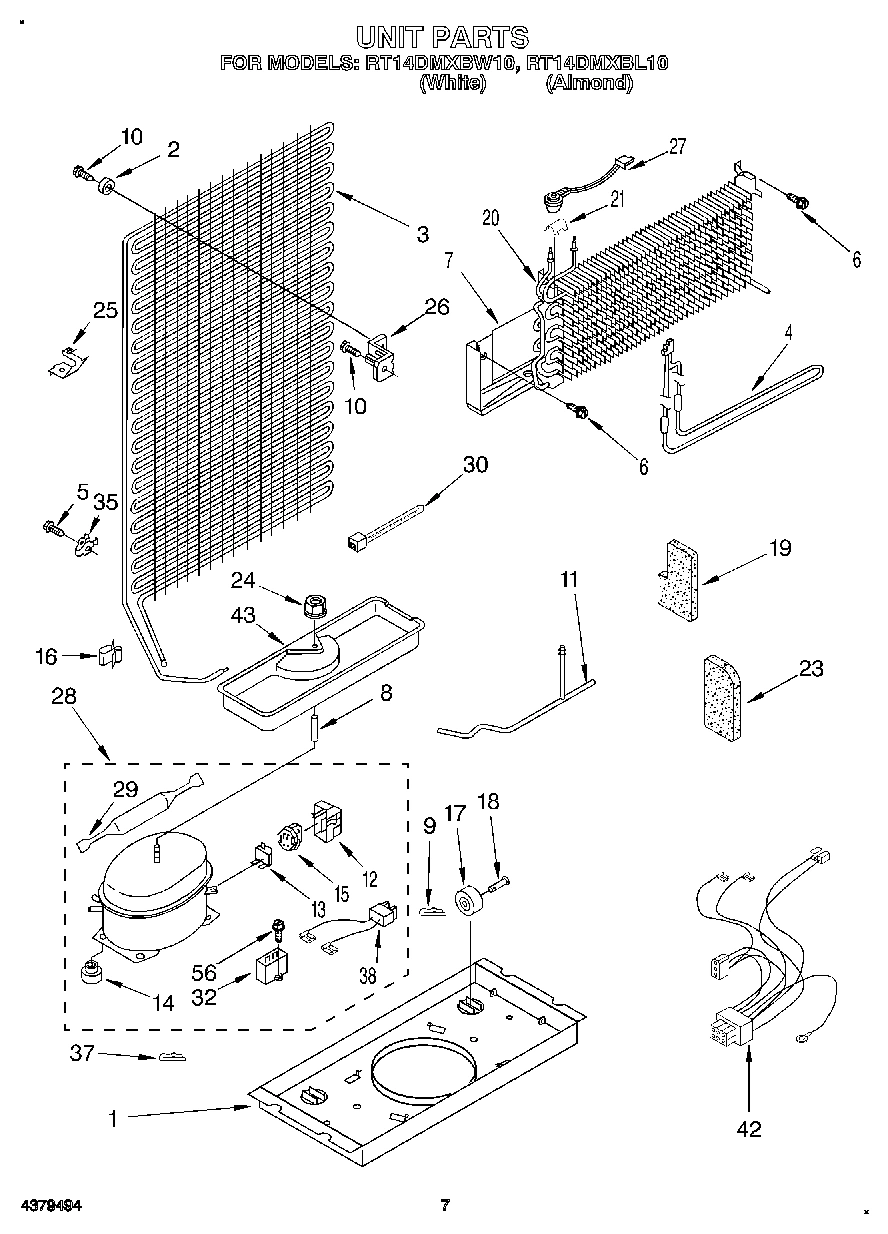

04 - UNIT

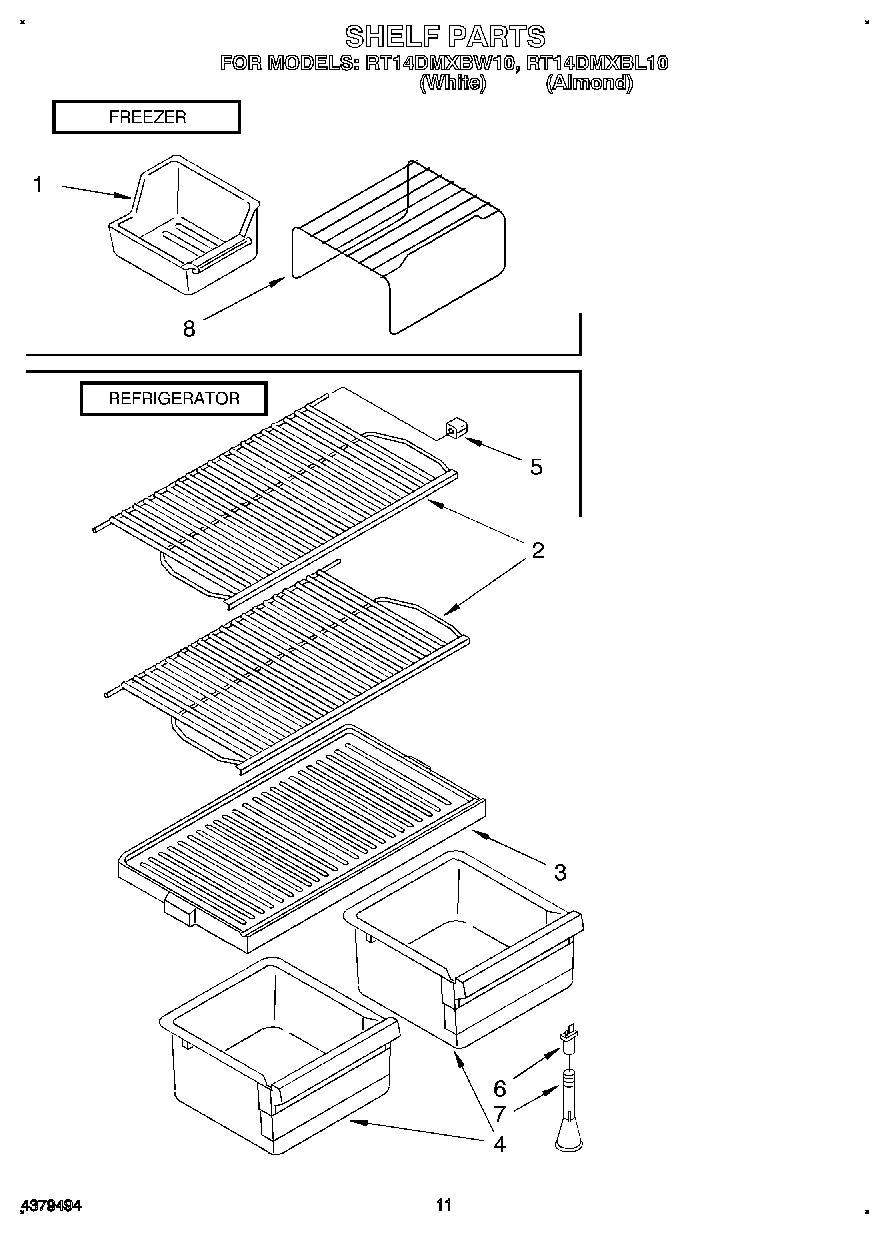

06 - SHELF
Common parts from model Whirlpool RT14DMXBL10 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2157981 WPL LIT2157981 Contact Us For Availability
WPL LIT2169459 WPL LIT2169459 Contact Us For Availability
WPL LIT2173247 WPL LIT2173247 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI125447A Contact Us For Availability
2
Bumper WPL 944772 Contact Us For Availability
3
Cover, Air Diffuser WPL 2166092 Contact Us For Availability
3
Condenser WPL 9790413 Contact Us For Availability
5
Thimble (4) WPL 9791835 Contact Us For Availability
6
Support, Crisper WPL 9791824 Contact Us For Availability
7
Shim WPL 943187 Contact Us For Availability
7
Post, Crisper WPL 836410 Contact Us For Availability
7
Heat Shield WPL 2166097 Contact Us For Availability
8
Spacer WPL 2154438 Contact Us For Availability
9
Grommet WPL 531933 Contact Us For Availability
9
Clip-Pin WPL 20150912 Contact Us For Availability
10
Fan Motor & Bracket Assy. WPL 2166013 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Fan Blade WPL 2169141 Contact Us For Availability
11
Evacuation Tube Assembly WPL 9791808 Contact Us For Availability
13
Tube, Water Inlet WPL 836490 Contact Us For Availability
13
Thermostat WPL 2174500 Contact Us For Availability
15
Relay (See Overload) WPL ARI125448A Contact Us For Availability
16
Cover-Evaporator WPL 9790382 Contact Us For Availability
18
Pin-Roller WPL 20150911 Contact Us For Availability
21
Hinge-Pin Bott. WPL 9791682 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Wiring-Freezer WPL 9791403 Contact Us For Availability
22
Screw WPL 488714 Contact Us For Availability
23
Air Tower WPL 2174502 Contact Us For Availability
25
Freezer Floor WPL 2166077 Contact Us For Availability
26
Air Diffuser WPL 9790402 Contact Us For Availability
26
Bracket, Condenser WPL 944791 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
30
Sleeve WPL 2166010 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
32
Door Reversal Instructions WPL 2148984 Contact Us For Availability
32
Hood & Foil Assembly WPL 2166082 Contact Us For Availability
32
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
32
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
32
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
32
KIT, E WPL 799833 Contact Us For Availability
32
WPL 978883 WPL 978883 Contact Us For Availability
32
Run Capacitor (Service) WPL 2154565 Contact Us For Availability
33
Handle, F.C. WPL 1111547 Contact Us For Availability
34
Retainer, Gasket WPL 1122553 Contact Us For Availability
35
Spacer WPL 943188 Contact Us For Availability
35
Clip, Tube WPL 1105406 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
Clip, Compressor WPL 24364001 Contact Us For Availability
42
Wire Assy. Unit WPL 9790416 Contact Us For Availability
43
Evaporator Tray WPL 1101002 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
Start Kit WPL 482278 Contact Us For Availability
56
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
