Model Whirlpool RS696PXEQ0 – Common Parts & Diagrams

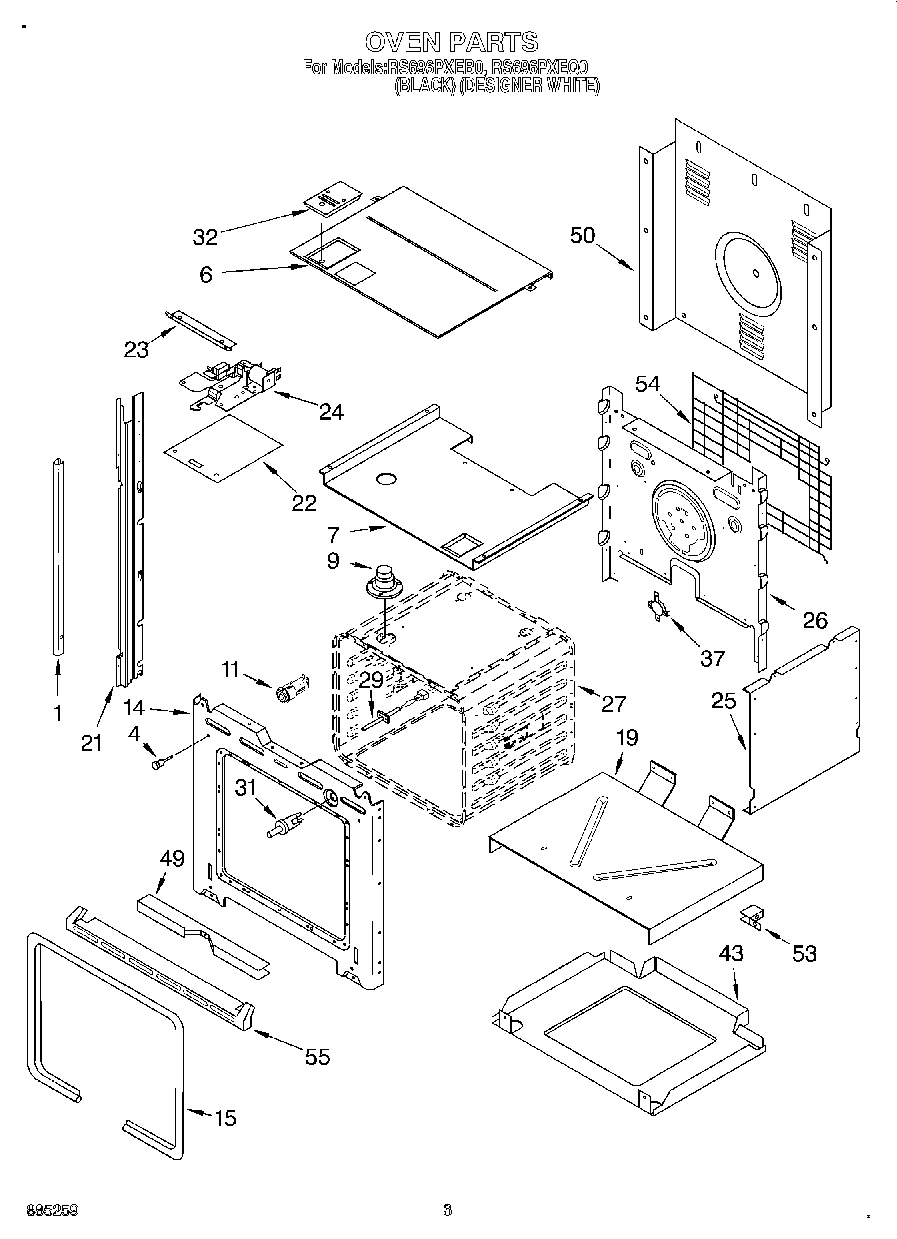

02 - OVEN

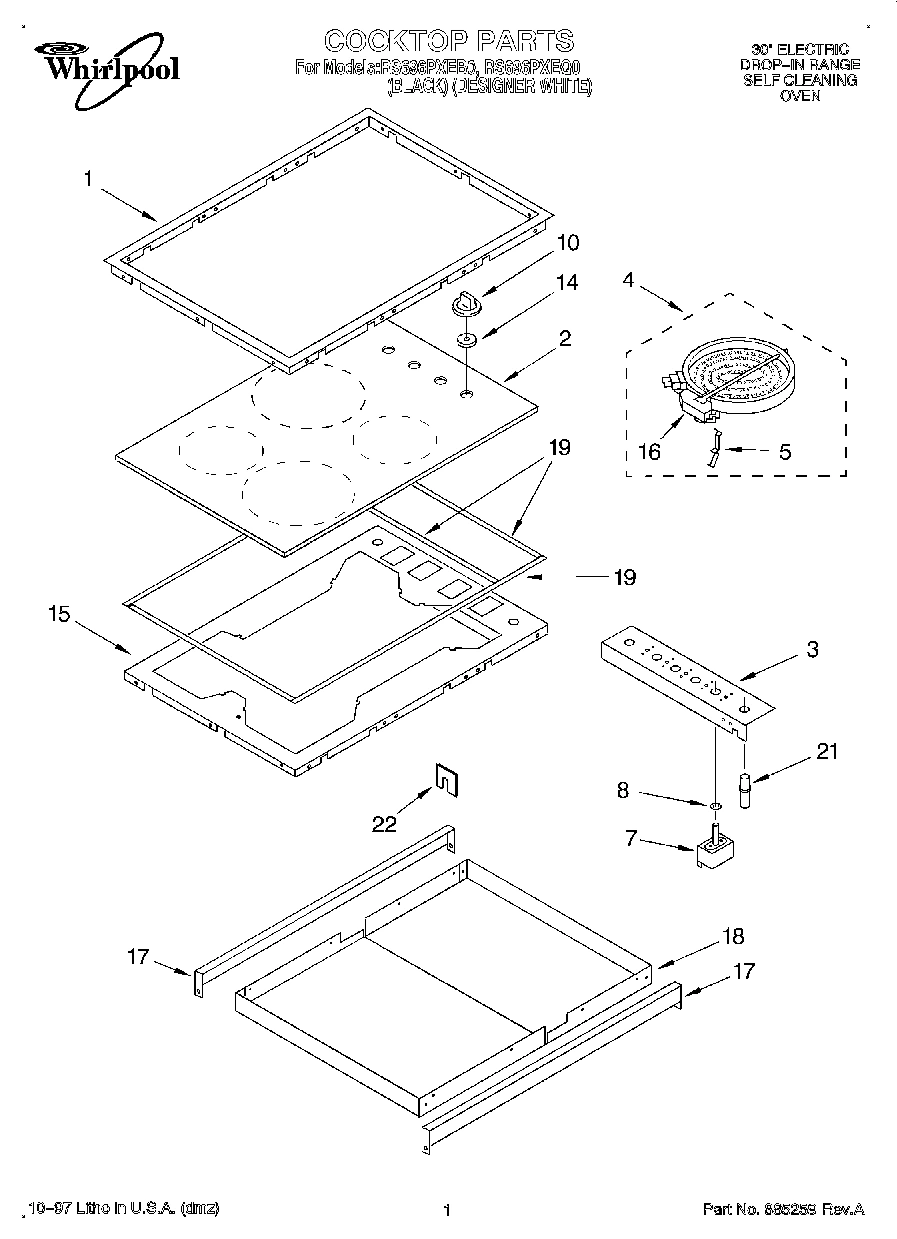

01 - COOKTOP
04 - INTERNAL OVEN
06 - TOP VENTING, OPTIONAL
05 - CONTROL PANEL, LITERATURE
03 - OVEN DOOR
Common parts from model Whirlpool RS696PXEQ0
Tech Sheet (Oven) WPL LIT4450272 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450275 Contact Us For Availability
Installation Instructions WPL LIT4450312 Contact Us For Availability
1
Trim Ring, Cooktop (Screw (10)) WPL 4168863 Contact Us For Availability
1
Trim Ring, Cooktop (Black) WPL 4449978 Contact Us For Availability
1
Trim Ring, Cooktop (White) WPL 4449979 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451231 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451232 Contact Us For Availability
1
Door Liner WPL 4450429 Contact Us For Availability
2
Cooktop, Glass (Black) WPL 4450276 Contact Us For Availability
2
Cooktop, Glass (White) WPL 4450278 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Bracket, Switch Mounting WPL 3190334 Contact Us For Availability
3
Blower, Upper/Lower WPL 4450920 Contact Us For Availability
3
Microcomputer WPL 4448874 Contact Us For Availability
4
Element, Surface (1400W Left Rear) WPL 3189894 Contact Us For Availability
4
Element, Surface (1700W Right Front) WPL 3189895 Contact Us For Availability
4
Element, Surface (2100W Right Rear) WPL 3189896 Contact Us For Availability
4
Element, Surface (2400W Left Front) WPL 3189897 Contact Us For Availability
4
Block, Foam WPL 3182384 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448680 Contact Us For Availability
5
Spring, Locator (8) WPL 3189165 Contact Us For Availability
5
Retainer, Glass WPL 4450470 Contact Us For Availability
6
Exhaust Duct WPL 4450367 Contact Us For Availability
7
Switch, Infinite (Use W/1400W Left Rear Burne WPL 4454535 Contact Us For Availability
7
Switch, Infinite (Use W/1700W Right Front Bur WPL 4454536 Contact Us For Availability
7
Switch, Infinite (Use W/2400W Left Front Burn WPL 4454537 Contact Us For Availability
8
Seal, Switch Cover WPL 309839 Contact Us For Availability
9
Retainer, Glass WPL 4449031 Contact Us For Availability
10
Knob, Control (4) (Black) WPL 3183120 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4450692 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448854 Contact Us For Availability
13
Vent, Control Panel WPL 4448549 Contact Us For Availability
13
Door Handle (White Model) WPL 4448855 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Seal, Switch (4) WPL 3182435 Contact Us For Availability
14
Side, Control Compt. (Right) WPL 4451535 Contact Us For Availability
14
Side, Control Compt. (Left) WPL 4451536 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Plate, Backer WPL 4449981 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Limiter, Temperature (Use W/3189895 Element) WPL 3190250 Contact Us For Availability
16
Limiter, Temperature (Use W/3189897 Element) WPL 3190251 Contact Us For Availability
16
Limiter, Temperature (Use W/3189896 Element) WPL 3190252 Contact Us For Availability
16
Limiter, Temperature (Use W/3189894 Element) WPL 3190253 Contact Us For Availability
17
Bracket, Support WPL 4451410 Contact Us For Availability
18
Screw WPL 3148443 Contact Us For Availability
18
Shield, Heat WPL 3187753 Contact Us For Availability
19
Seal, Silicone (Small (3)) WPL 3185589 Contact Us For Availability
19
Seal, Silicone (Large (2)) WPL 3185590 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
20
Cover, Rear WPL 4449973 Contact Us For Availability
20
Retainer, Glass WPL 4450423 Contact Us For Availability
21
Lamp, Hot Surface Indicator WPL 4454437 Contact Us For Availability
21
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
21
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
21
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
21
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
21
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
21
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
21
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
21
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
21
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
21
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
21
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
21
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
21
Wire, Tie WPL 3179589 Contact Us For Availability
21
Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability
21
Conduit WPL 4451163 Contact Us For Availability
21
Plate, Support WPL 4451407 Contact Us For Availability
21
Harness, Wire (Burners) WPL 4454594 Contact Us For Availability
21
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
21
Harness, Wire (Door Switch) (Also, order Mai WPL 4454871 Contact Us For Availability
21
Harness, Wire (Main) (Also, order Door Switc WPL 4454872 Contact Us For Availability
21
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
21
WPL 814387 WPL 814387 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
22
Grommet, Wire Way WPL 3188533 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
55
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
55
Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability
55
Insulation, Back WPL 4450365 Contact Us For Availability
× ![]()
