Model Whirlpool RS676PXL0 – Common Parts & Diagrams

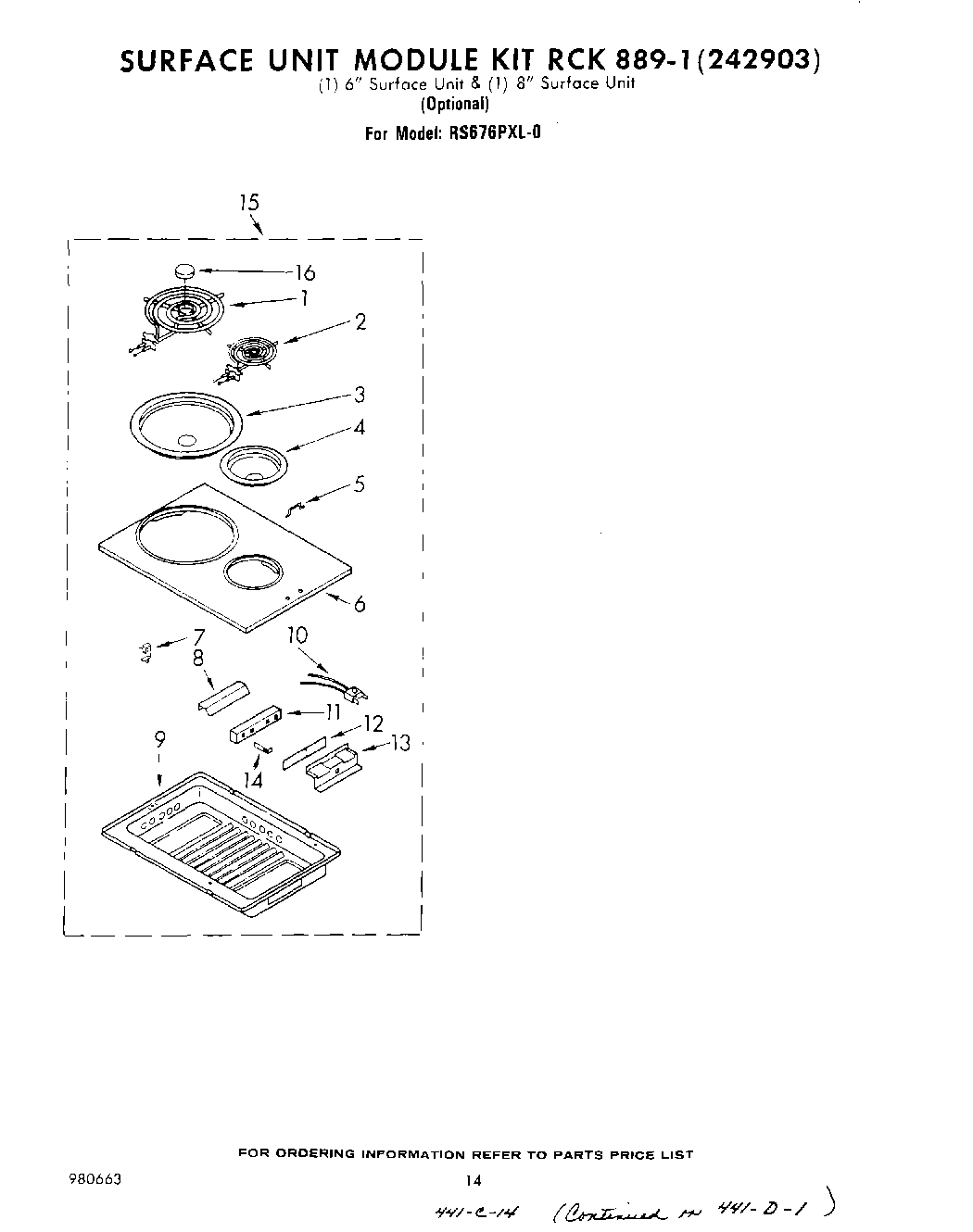

11 - SURFACE UNIT KIT RCK 889-1

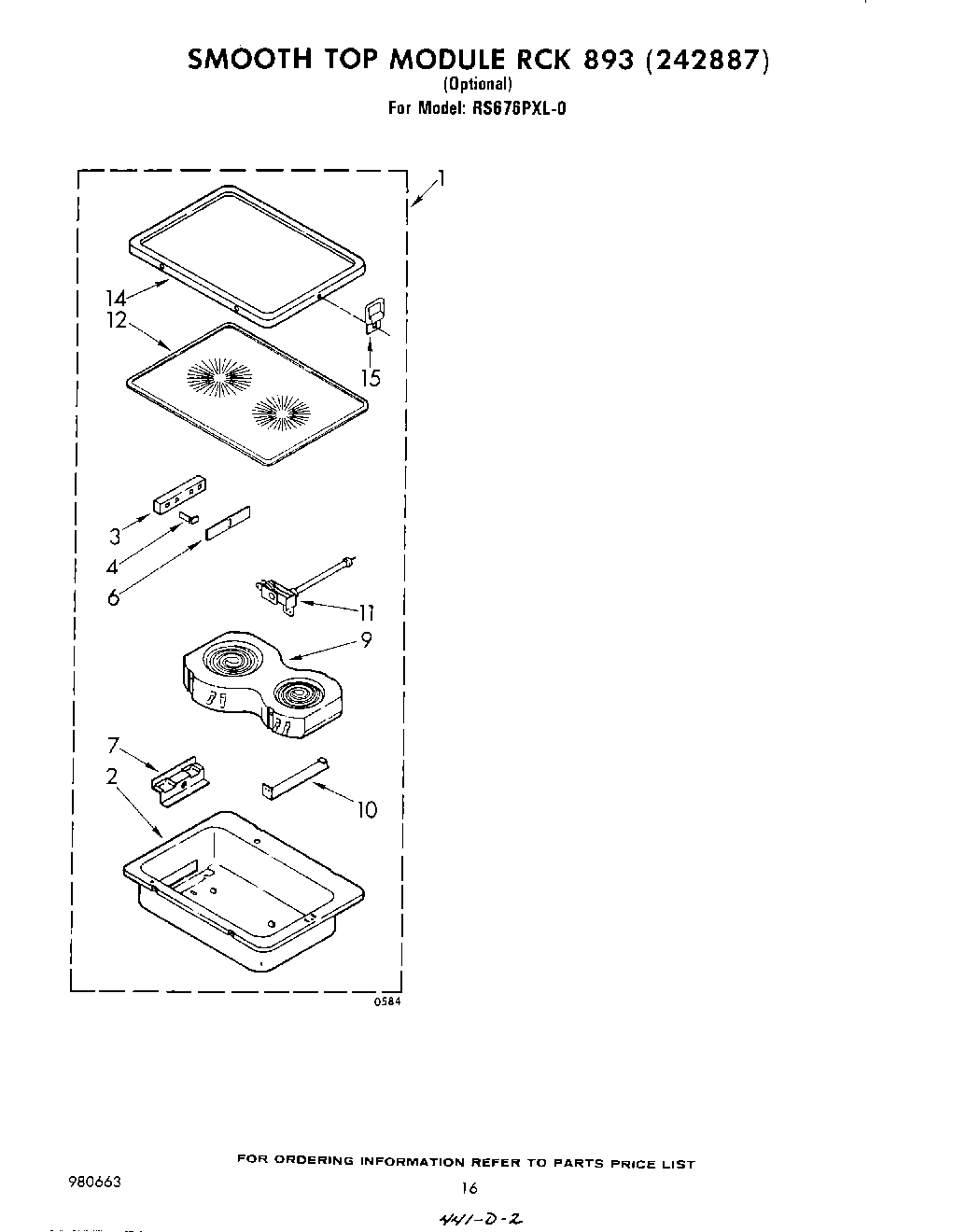

13 - SMOOTH TOP RCK 893 , LITERATURE AND

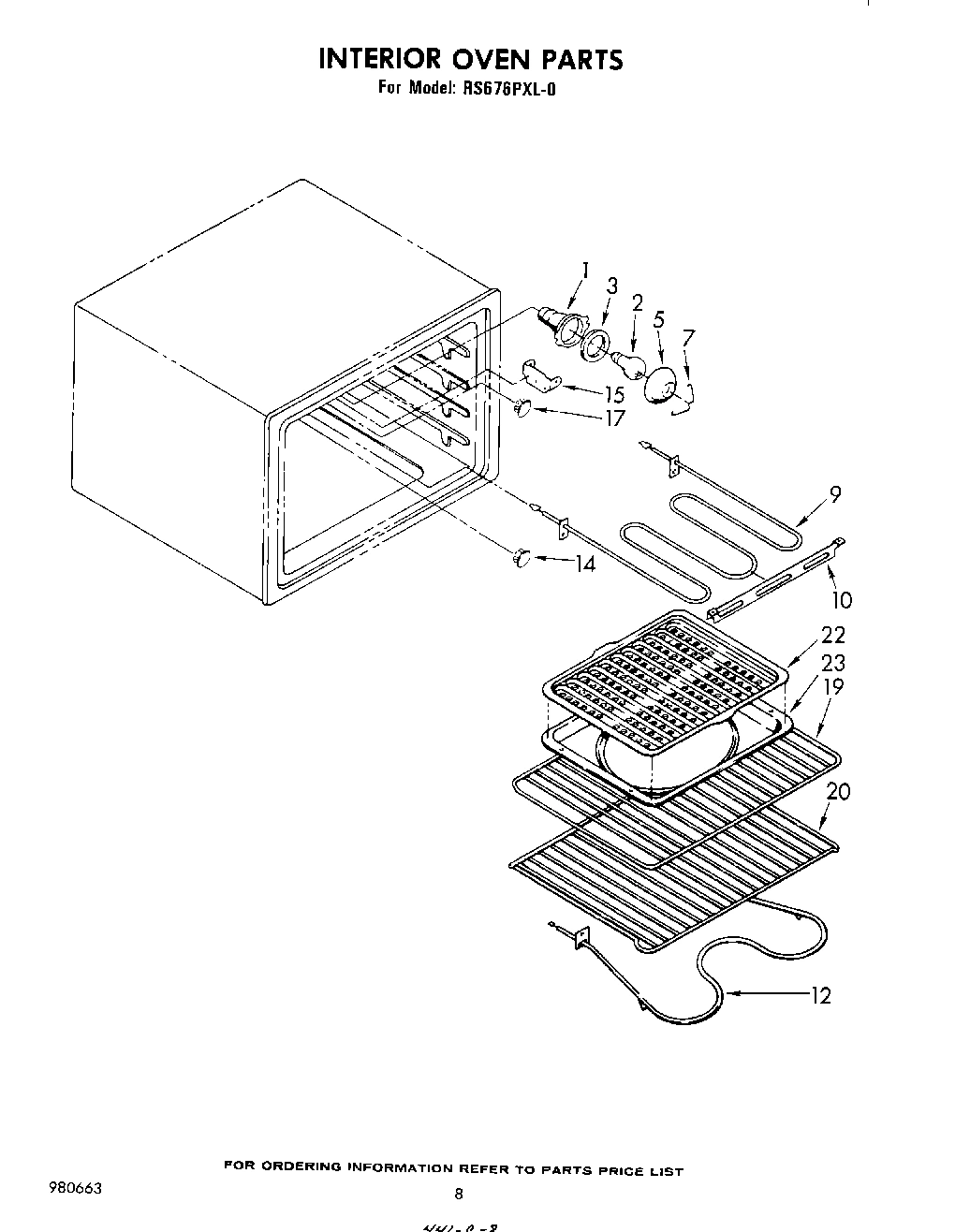

05 - INTERIOR OVEN

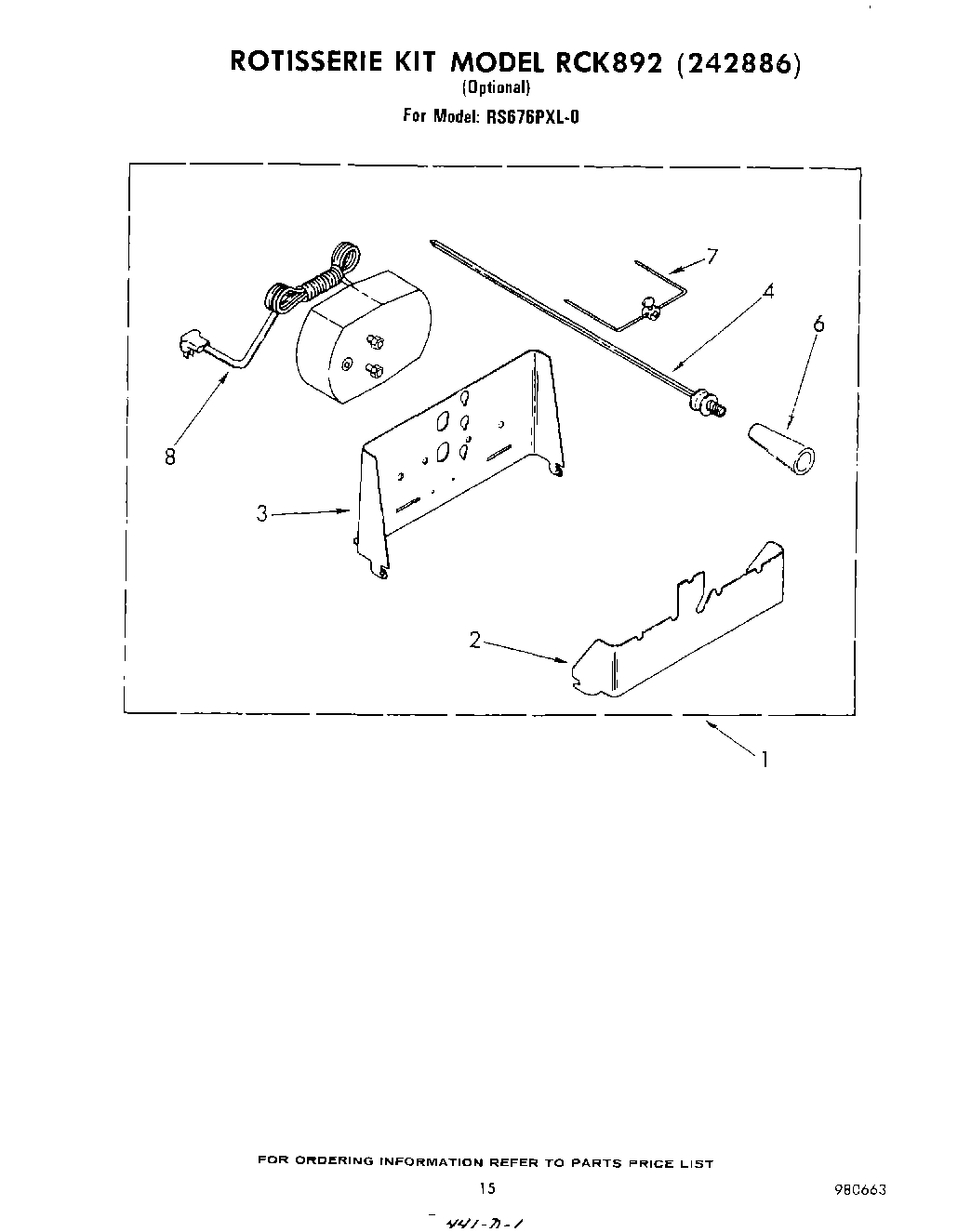

12 - ROTISSERIE KIT RCK892

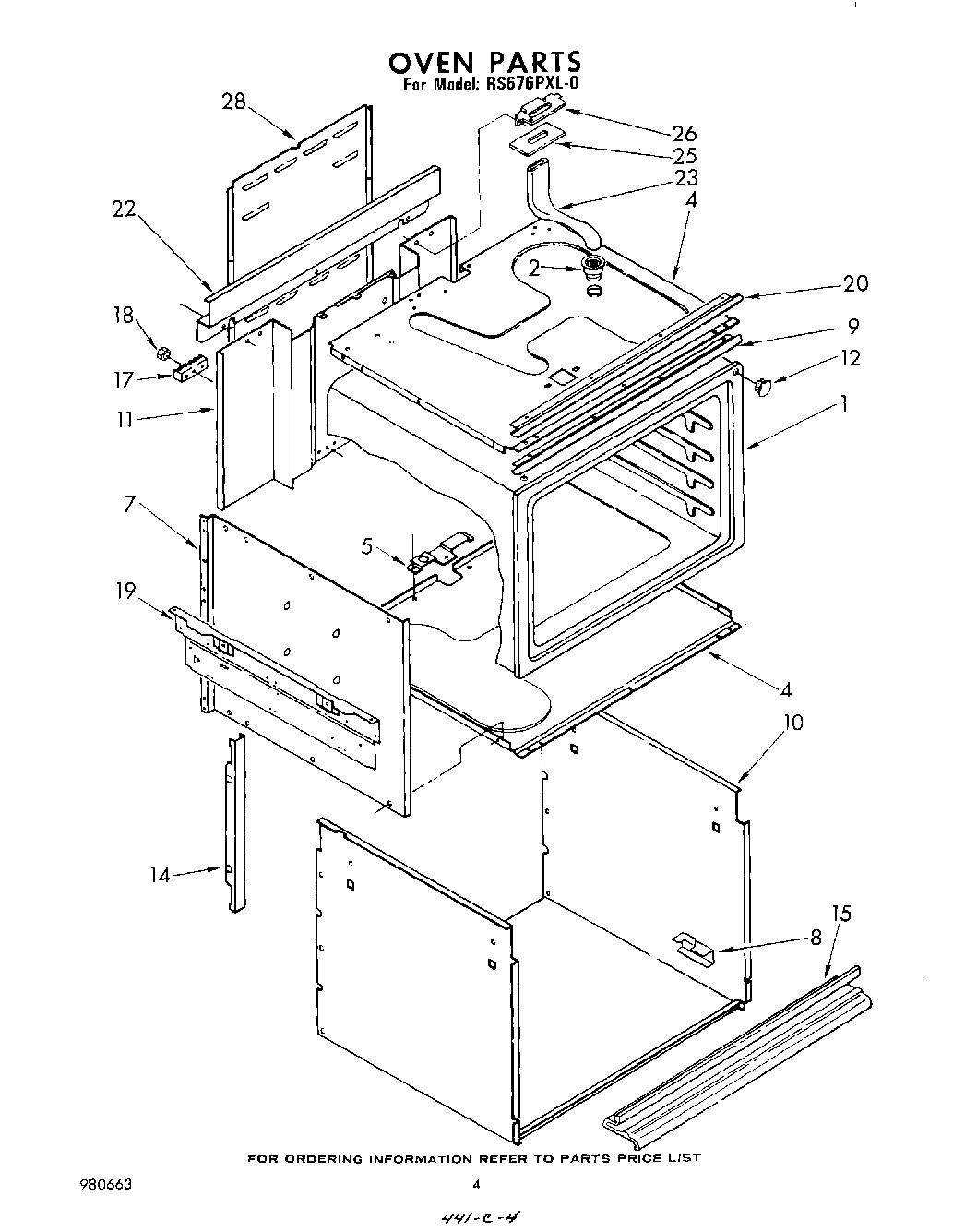

03 - OVEN

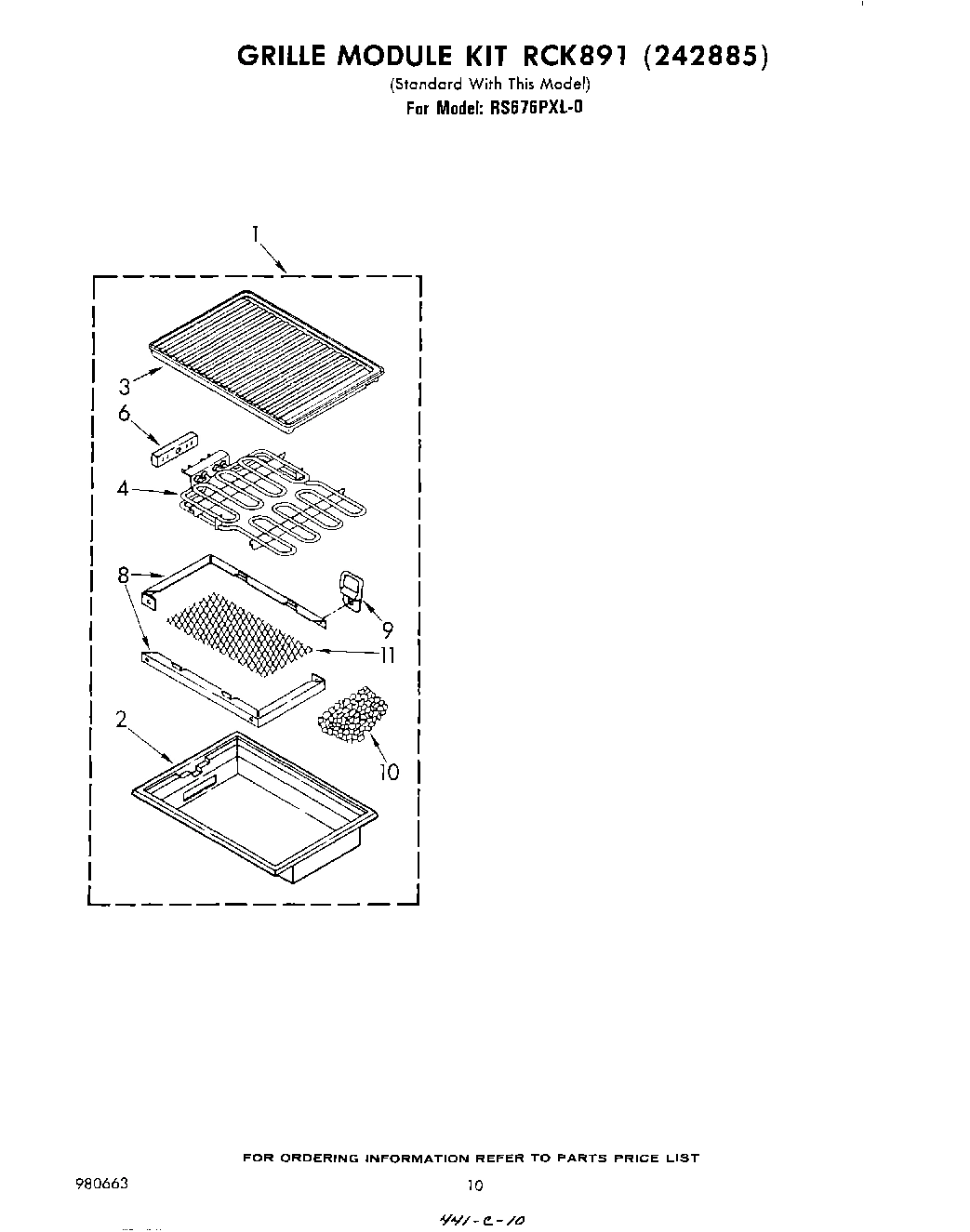

07 - GRILL KIT RCK891

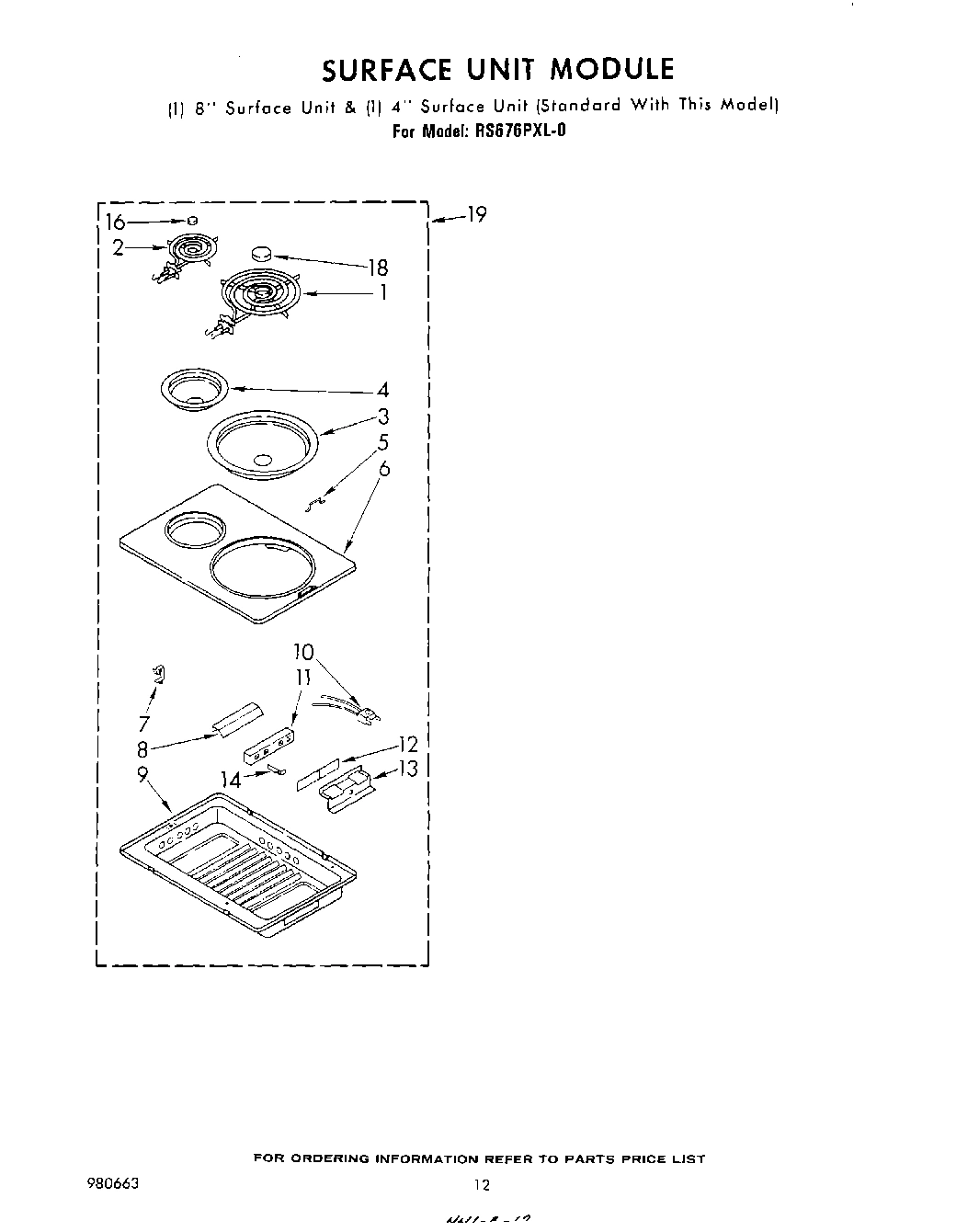

09 - SURFACE UNIT

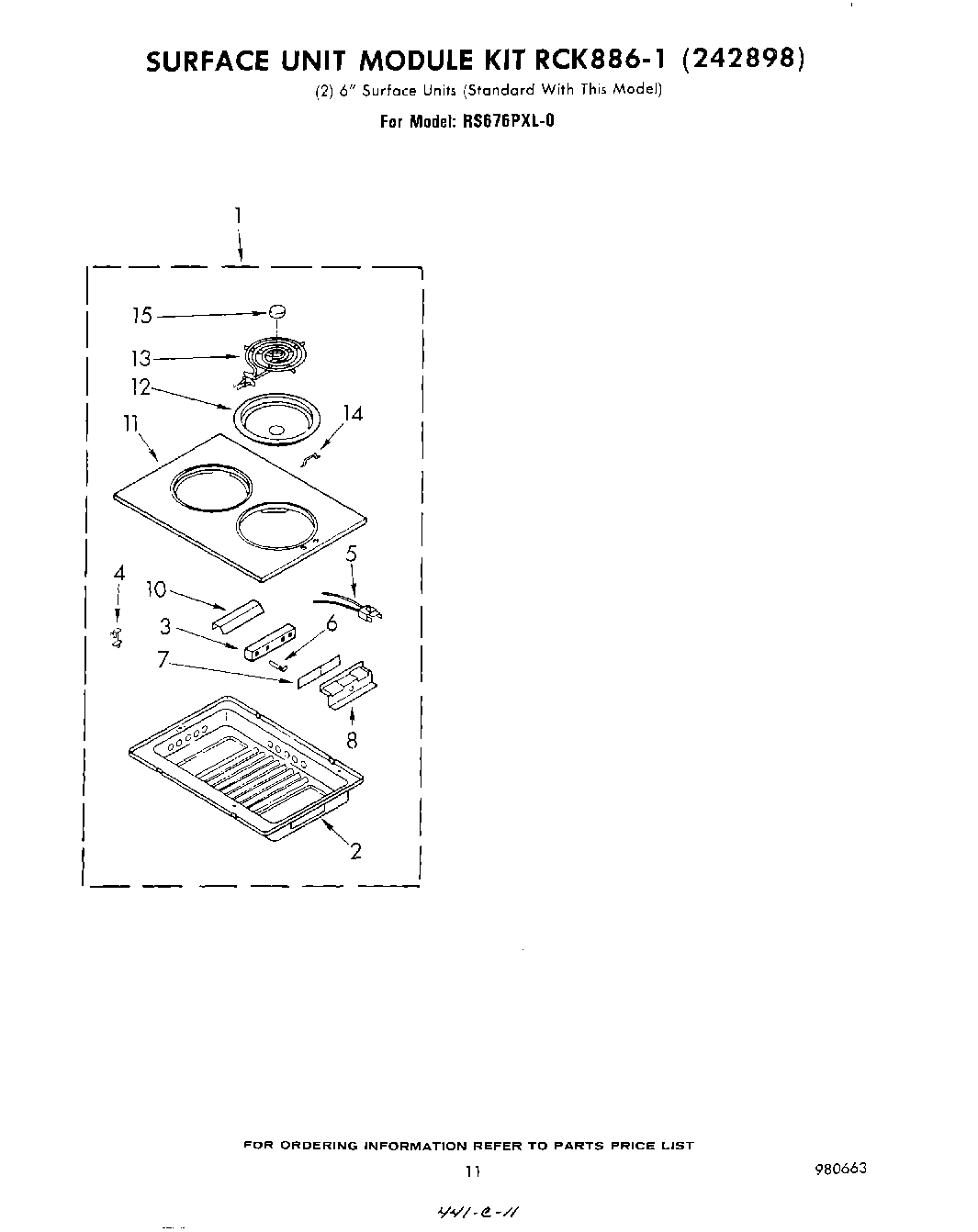

08 - SURFACE UNIT KIT RCK886-1

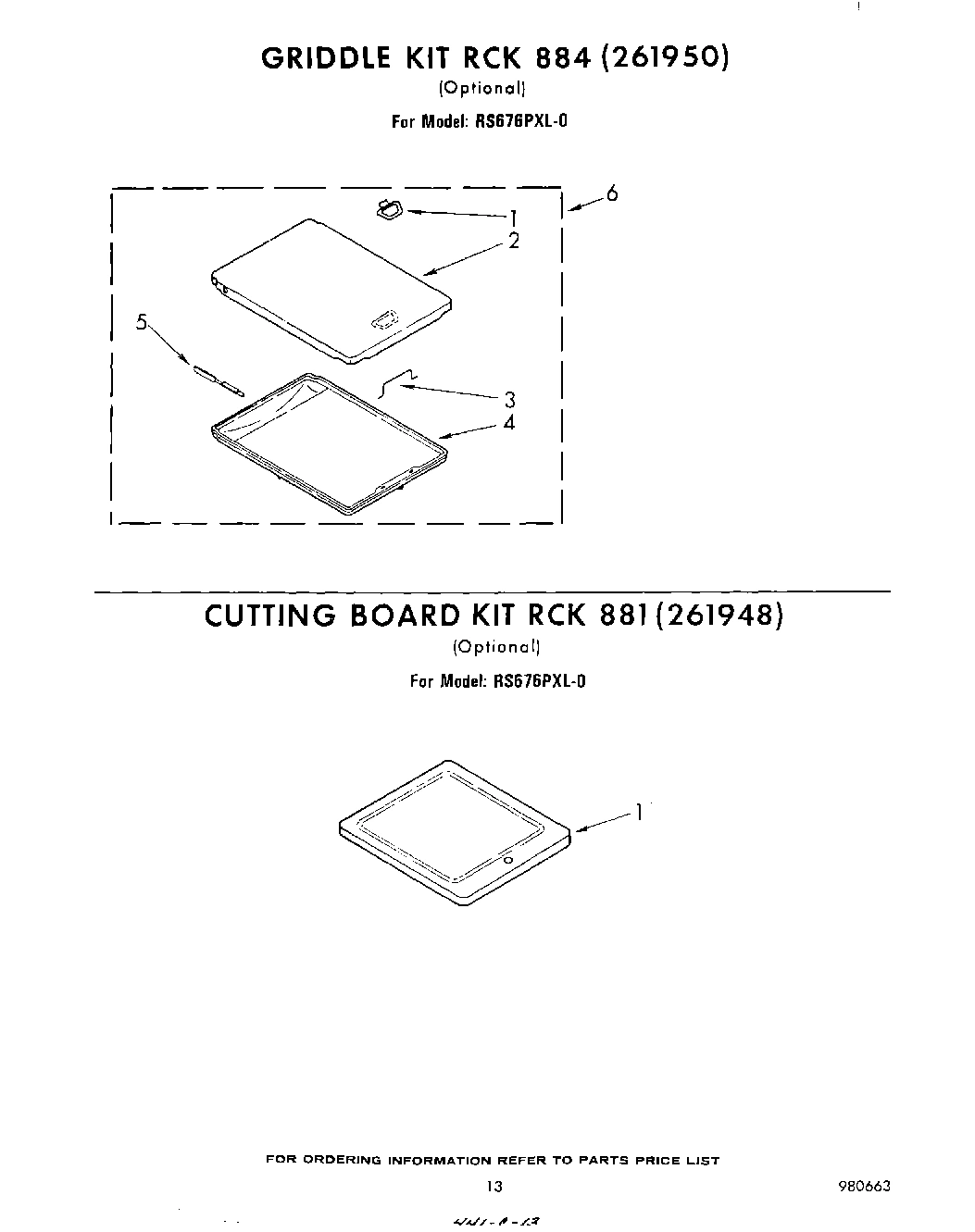

10 - GRIDDLE KIT RCK 884 , CUTTING BOAR

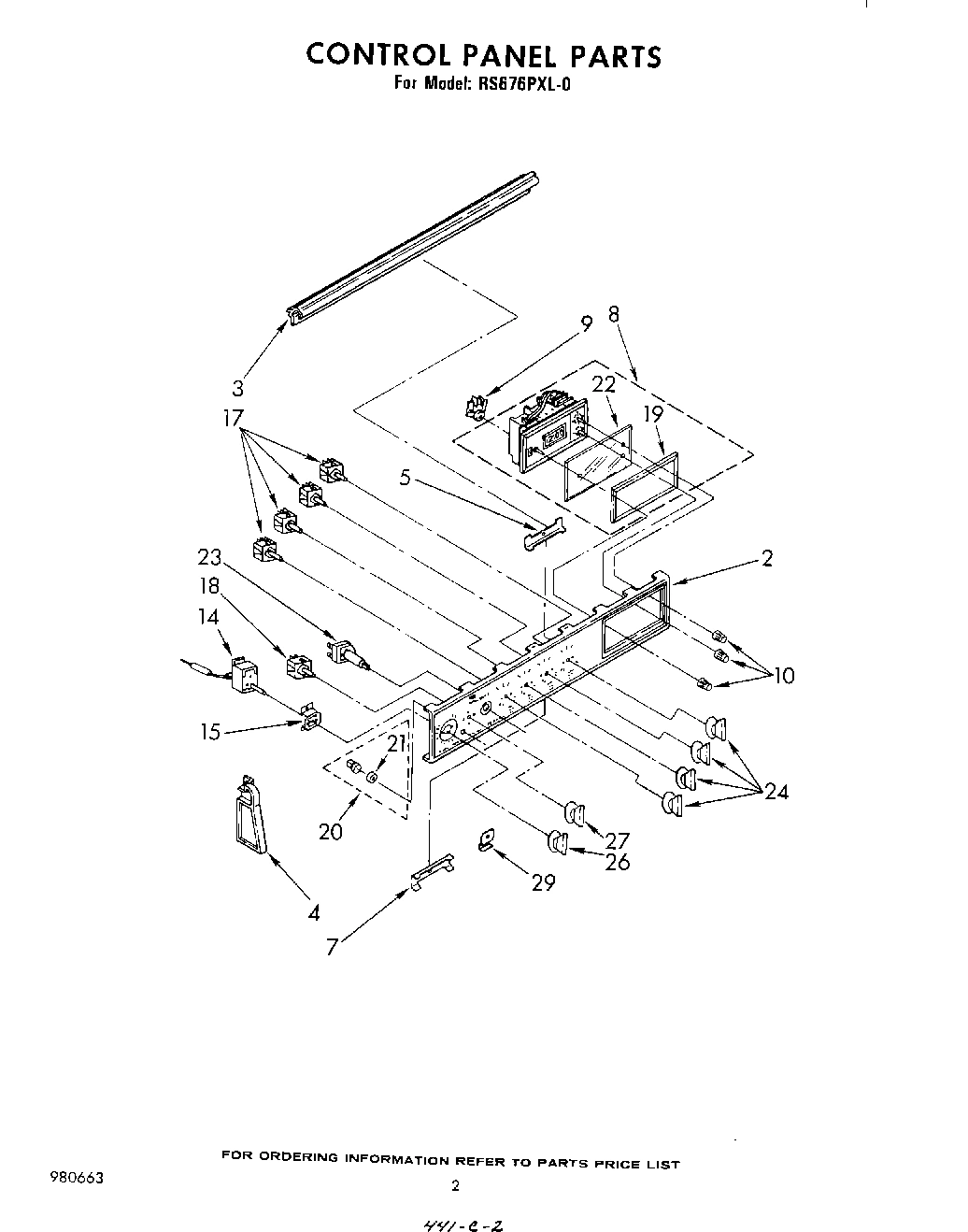

02 - CONTROL PANEL

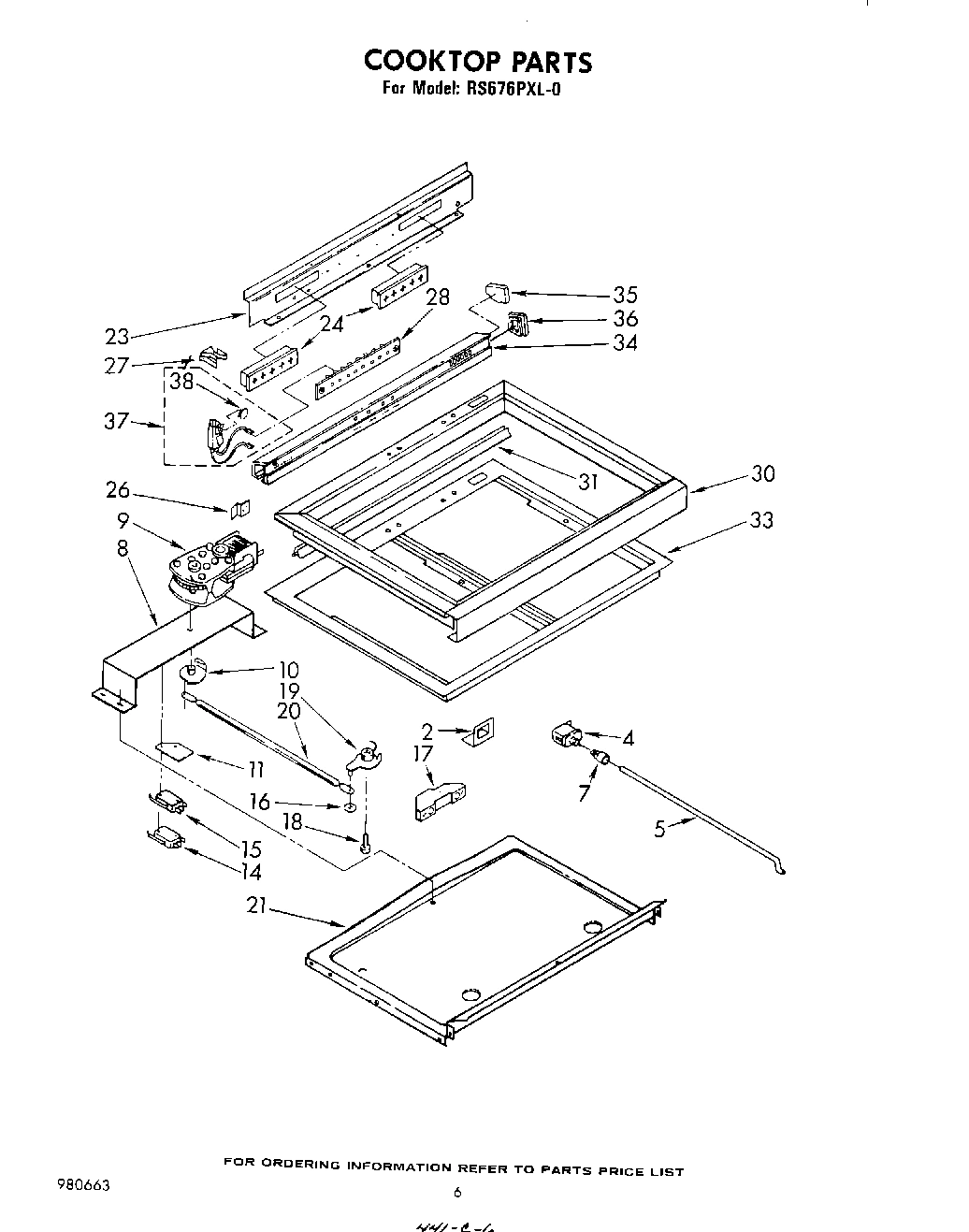

04 - COOKTOP

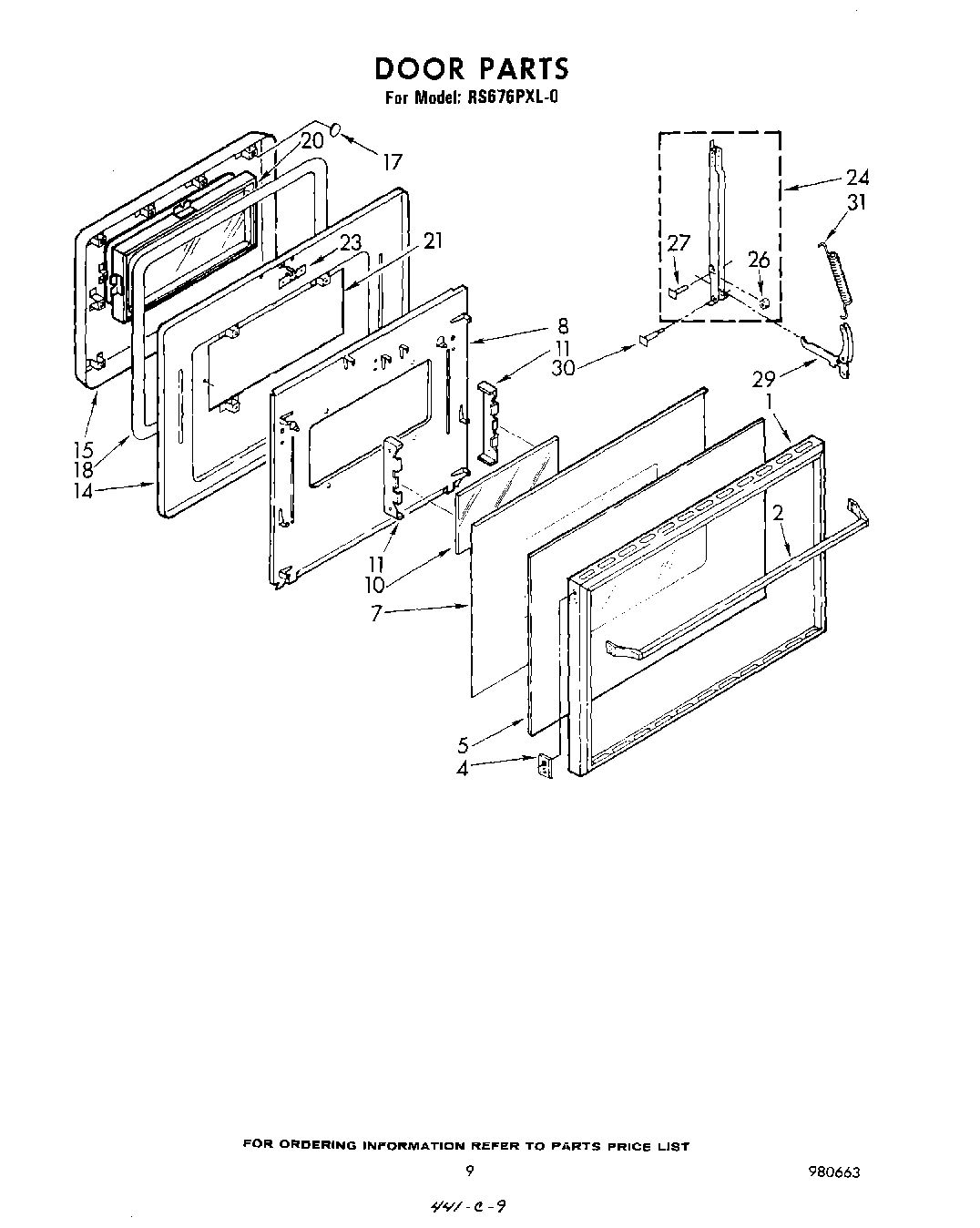

06 - DOOR
Common parts from model Whirlpool RS676PXL0
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Smooth Top Module, Complete WPL 242887 Contact Us For Availability
1
Socket, Light WPL 866133 Contact Us For Availability
1
Rotisserie Kit, Complete WPL 242886 Contact Us For Availability
1
Oven WPL 877689 Contact Us For Availability
1
Grill Kit, Complete WPL 242885 Contact Us For Availability
1
Surface Unit, Modular Complete WPL 242898 Contact Us For Availability
1
Kit, Cutting Board WPL 261948 Contact Us For Availability
1
Handle, Griddle Cover WPL 866222 Contact Us For Availability
1
Frame, Oven Door WPL 868494 Contact Us For Availability
2
Pan, Surface Unit WPL 877598 Contact Us For Availability
2
Plate, Front WPL 877596 Contact Us For Availability
2
Vent Tube (Screw, 10-24 x 3/8 (2)) WPL 241428 Contact Us For Availability
2
Vent Tube (Alternate) WPL 868815 Contact Us For Availability
2
Vent Tube (Alternate) WPL 877521 Contact Us For Availability
2
Pan, Grill WPL 877548 Contact Us For Availability
2
Unit, Surface (4``) (1) WPL 868448 Contact Us For Availability
2
Pan, Surface Unit Modular WPL 877544 Contact Us For Availability
2
Cover, Griddle (Chrome) WPL 868435 Contact Us For Availability
2
Panel, Control WPL 877525 Contact Us For Availability
2
Bracket, Door Latch Switch WPL 865961 Contact Us For Availability
2
Handle, Door WPL 877537 Contact Us For Availability
3
Receptacle, Porcelain WPL 868437 Contact Us For Availability
3
Gasket, Oven Light WPL 241609 Contact Us For Availability
3
Plate, Rear WPL 877597 Contact Us For Availability
3
Rack, Grill (2) WPL 877549 Contact Us For Availability
3
Lifter, Griddle WPL 248568 Contact Us For Availability
3
Rail, Control Panel (Top) WPL 868819 Contact Us For Availability
3
Rail, Control Panel (Bottom) WPL 868820 Contact Us For Availability
4
Rod, Skewer WPL 868454 Contact Us For Availability
4
Retainer Insulation (Bottom & Top) WPL 868643 Contact Us For Availability
4
Unit, Dual (2200W) WPL 877541 Contact Us For Availability
4
Bowl, Surface Unit (4``) (1) WPL 868446 Contact Us For Availability
4
Clamp WPL 868466 Contact Us For Availability
4
Griddle WPL 868432 Contact Us For Availability
4
Screw, 10-24 x 1/2 WPL 868876 Contact Us For Availability
4
End Cap R.H. WPL 868851 Contact Us For Availability
4
End Cap L.H. WPL 868852 Contact Us For Availability
4
Nut, Hex 6-32 (4) WPL 271482 Contact Us For Availability
4
Screw, 6-32 x 3/8 (4) WPL 866155 Contact Us For Availability
4
Trim, Frame WPL 866259 Contact Us For Availability
5
Cover, Oven Light WPL 241592 Contact Us For Availability
5
Bracket, Conduit WPL 868187 Contact Us For Availability
5
terminal, ground WPL 868434 Contact Us For Availability
5
Bracket, Control Panel (Upper) WPL 868823 Contact Us For Availability
5
Push Rod, Switch WPL 877523 Contact Us For Availability
5
Glass, Outer (Black) WPL 868199 Contact Us For Availability
6
Terminal, Male (4) WPL 868438 Contact Us For Availability
6
Handle, Rod WPL 241210 Contact Us For Availability
6
Pushnut, 1/4`` WPL 868878 Contact Us For Availability
6
Cooktop (4/8) WPL 868463 Contact Us For Availability
6
Kit, Griddle (Complete) WPL 261950 Contact Us For Availability
7
Insulator, Receptacle WPL 868814 Contact Us For Availability
7
Retainer, Cover WPL 866134 Contact Us For Availability
7
Holder, Meat WPL 241209 Contact Us For Availability
7
Retainer Insulation Side (2) WPL 866471 Contact Us For Availability
7
Screw, 8-32 x 3/8 (2) WPL 595135 Contact Us For Availability
7
Bracket, Control Panel (Lower) WPL 868824 Contact Us For Availability
7
Rod End, Switch WPL 877562 Contact Us For Availability
7
Panel, Heat Reflector WPL 868200 Contact Us For Availability
8
Pushnut, 1/8 WPL 866272 Contact Us For Availability
8
Bracket, Ground WPL 868440 Contact Us For Availability
8
Motor, Rotisserie WPL 868455 Contact Us For Availability
8
Bracket, Wrapper Support (R.H. (2)) WPL 868468 Contact Us For Availability
8
Bracket, Wrapper Support (L.H. (2)) WPL 868469 Contact Us For Availability
8
Frame, Basket (2) WPL 877542 Contact Us For Availability
8
Timer Digital (Includes Illus. 9 & 10) WPL 877526 Contact Us For Availability
8
Support, Latch Motor WPL 868982 Contact Us For Availability
8
Panel, Airwash WPL 877538 Contact Us For Availability
9
Unit, Assembly WPL 877599 Contact Us For Availability
9
Unit, Broiler WPL 865934 Contact Us For Availability
9
Bracket, Cooktop WPL 877522 Contact Us For Availability
9
Handle, Basket (2) WPL 877543 Contact Us For Availability
9
Motor, Timer WPL 866403 Contact Us For Availability
9
Motor, Door Latch (Screw, 8-32 x 5/16 (2)) WPL 273225 Contact Us For Availability
9
motor, door latch (alternate) WPL 834849 Contact Us For Availability
9
Motor, Door Latch (Alternate) WPL 868983 Contact Us For Availability
9
motor, door latch (alternate) WPL 877619 Contact Us For Availability
10
Bracket (2) WPL 877600 Contact Us For Availability
10
Hanger, Broil Unit WPL 866429 Contact Us For Availability
10
Wrapper Range WPL 877703 Contact Us For Availability
10
Rocks, Lava (4 Lbs.) WPL 868460 Contact Us For Availability
10
Shield, Wire WPL 868686 Contact Us For Availability
10
Knob, Timer (3) WPL 241383 Contact Us For Availability
10
Cam, Door Latch (Pin, Spring) WPL 455105 Contact Us For Availability
10
cam, door latch (alternate) WPL 834483 Contact Us For Availability
10
Cam, Door Latch (Alternate) WPL 868984 Contact Us For Availability
10
Glass, Inner WPL 868502 Contact Us For Availability
11
Limit, Control (Short) WPL 877601 Contact Us For Availability
11
Limit, Control (Long) WPL 877602 Contact Us For Availability
11
Screw, 8-32 x 3/8 (4) WPL 868382 Contact Us For Availability
11
Back Range Lower WPL 877697 Contact Us For Availability
11
Screen, Basket (2) WPL 877609 Contact Us For Availability
11
Cooktop, Surface Unit (1) WPL 868462 Contact Us For Availability
11
Insulator, Limit Switch (2) WPL 834905 Contact Us For Availability
11
Retainer, Glass (2) WPL 868503 Contact Us For Availability
12
Cooktop, Glass WPL 877611 Contact Us For Availability
12
Plug Button WPL 251379 Contact Us For Availability
14
Frame, Cooktop WPL 877612 Contact Us For Availability
14
Trim, Oven Front (2) WPL 866477 Contact Us For Availability
14
Handle, Cooktop WPL 868450 Contact Us For Availability
14
Thermostat WPL 877527 Contact Us For Availability
14
Switch Limit (Lower) (Alternate) WPL 834906 Contact Us For Availability
14
Switch Limit, Lower (Alternate) WPL 868985 Contact Us For Availability
14
switch limit, lower (alternate) WPL 868986 Contact Us For Availability
14
Liner, Oven Door WPL 877701 Contact Us For Availability
15
Screw (2) WPL 486146 Contact Us For Availability
15
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
15
Kit, Surface Unit Module (6``/8``) WPL 242903 Contact Us For Availability
15
Medallion WPL 868522 Contact Us For Availability
15
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
15
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
15
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
15
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
15
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
15
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
15
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
15
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
15
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
15
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
15
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
15
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
15
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
15
Grease WPL 261582 Contact Us For Availability
15
Touch-Up, Oven (1 Oz.) WPL 261748 Contact Us For Availability
15
Coffee WPL 261886 Contact Us For Availability
15
New Avocado WPL 261888 Contact Us For Availability
15
Harvest Gold WPL 261890 Contact Us For Availability
15
Book, Cooking Guide WPL 308500 Contact Us For Availability
15
WPL 72108 WPL 72108 Contact Us For Availability
15
WPL 799351 WPL 799351 Contact Us For Availability
15
WPL 799832 WPL 799832 Contact Us For Availability
15
WPL 834469 WPL 834469 Contact Us For Availability
15
WPL 834470 WPL 834470 Contact Us For Availability
15
WPL 868842 WPL 868842 Contact Us For Availability
15
WPL 868866 WPL 868866 Contact Us For Availability
15
WPL 868966 WPL 868966 Contact Us For Availability
15
WPL 980663 WPL 980663 Contact Us For Availability
15
Grille, Bottom WPL 866478 Contact Us For Availability
15
Bracket, Thermostat Mounting WPL 868827 Contact Us For Availability
15
Switch Limit (Upper) (Screw, 4-40 x 1-1/4 (2) WPL 834903 Contact Us For Availability
15
Switch Limit (Upper) (Alternate) WPL 868280 Contact Us For Availability
15
Switch Limit (Upper) (Alternate) WPL 868987 Contact Us For Availability
15
Switch Limit (Upper) (Alternate) WPL 868988 Contact Us For Availability
15
Baffle WPL 877540 Contact Us For Availability
16
Pushnut, 1/4 WPL 256158 Contact Us For Availability
17
Screw, 10-24 x 7/8 (2) WPL 834649 Contact Us For Availability
17
Button, Plug 1/2 WPL 142017 Contact Us For Availability
17
Housing, Latch WPL 877614 Contact Us For Availability
17
Button, Plug 3/16 WPL 142001 Contact Us For Availability
18
Screw, 8-32 x 3/16 (2) WPL 486525 Contact Us For Availability
18
Nut, 10-32 (3) WPL 487836 Contact Us For Availability
18
Medallion (For 4`` Unit) WPL 868911 Contact Us For Availability
18
Switch, Oven Selector WPL 877529 Contact Us For Availability
18
Axle, Latch WPL 241564 Contact Us For Availability
18
Seal, Oven Door WPL 877504 Contact Us For Availability
19
Rack, Oven Regular WPL 865983 Contact Us For Availability
19
Panel, Side (Upper) (2) WPL 877531 Contact Us For Availability
19
Surface Unit Module (Complete) WPL 242918 Contact Us For Availability
19
Bezel, Clock WPL 834764 Contact Us For Availability
19
Latch, Door (Alternate) WPL 834484 Contact Us For Availability
19
Latch, Door (Alternate) WPL 877628 Contact Us For Availability
20
Rack, Oven Offset WPL 865984 Contact Us For Availability
20
Deflector, Heat WPL 877698 Contact Us For Availability
20
Washer, Flat (4) WPL 877699 Contact Us For Availability
20
Screw (4) WPL 877700 Contact Us For Availability
20
Light Indicator (Oven) WPL 868106 Contact Us For Availability
20
Pushnut (3/16``) (2) WPL 241547 Contact Us For Availability
20
Tie Bar WPL 868487 Contact Us For Availability
20
Window WPL 877505 Contact Us For Availability
21
Screw, 10-24 x 1/2 (2) WPL 681151 Contact Us For Availability
21
Lens, Signal (Red) WPL 868107 Contact Us For Availability
21
Panel, Subtop WPL 877530 Contact Us For Availability
21
Seal, Window WPL 877506 Contact Us For Availability
22
Back, Range WPL 877532 Contact Us For Availability
22
Glass, Clock WPL 868843 Contact Us For Availability
23
Pan, Broiler WPL 866218 Contact Us For Availability
23
Tube, Oven Vent (Upper) WPL 868829 Contact Us For Availability
23
Screw, 10-24 x 1/2 (2) WPL 868430 Contact Us For Availability
23
Nut, 3/8-27 WPL 241266 Contact Us For Availability
23
Switch, Oven Light WPL 866148 Contact Us For Availability
23
Nut, 3/8-27 WPL 98754 Contact Us For Availability
23
Shield, Wire WPL 868833 Contact Us For Availability
23
Strike WPL 877507 Contact Us For Availability
24
Knob, Surface Unit (4) WPL 868431 Contact Us For Availability
24
Receptacle, Porcelain (2) WPL 868420 Contact Us For Availability
24
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
24
Channel, Hinge (2) WPL 865972 Contact Us For Availability
25
Gasket, Vent Tube WPL 868830 Contact Us For Availability
26
Washer (2) WPL 241422 Contact Us For Availability
26
Screw, 10-24 x 1/4 (4) WPL 865959 Contact Us For Availability
26
Bracket, Vent Tube WPL 868831 Contact Us For Availability
26
Knob, Thermostat WPL 868997 Contact Us For Availability
26
Clip, Receptacle WPL 868421 Contact Us For Availability
26
Roller,\ Door\ Stop (2) WPL 834471 Contact Us For Availability
27
Knob, Selector WPL 868998 Contact Us For Availability
27
Terminal Female WPL 868422 Contact Us For Availability
27
Rivet, Square Head (2) WPL 241423 Contact Us For Availability
28
Screw, 10-24 x 1/2 (2) WPL 680363 Contact Us For Availability
28
Washer Flat (3) WPL 486608 Contact Us For Availability
28
Cover, Wiring WPL 868159 Contact Us For Availability
28
Block, Terminal (Signal Light) WPL 868834 Contact Us For Availability
29
Bracket, Control Panel WPL 877535 Contact Us For Availability
29
Arm Assembly (2) WPL 865640 Contact Us For Availability
30
Frame, Cooktop WPL 877533 Contact Us For Availability
30
Pin, Hinge (2) WPL 241334 Contact Us For Availability
31
Tape, Foam (96``) WPL 866454 Contact Us For Availability
31
Spring, Door (2) WPL 241312 Contact Us For Availability
33
Cooktop WPL 877534 Contact Us For Availability
34
WPL 868836 WPL 868836 Contact Us For Availability
35
WPL 868837 WPL 868837 Contact Us For Availability
36
WPL 868838 WPL 868838 Contact Us For Availability
36
WPL 868839 WPL 868839 Contact Us For Availability
37
WPL 868840 WPL 868840 Contact Us For Availability
38
WPL 868841 WPL 868841 Contact Us For Availability
× ![]()
