Model Whirlpool RS675PXGZ0 COOKTOP – Common Parts & Diagrams

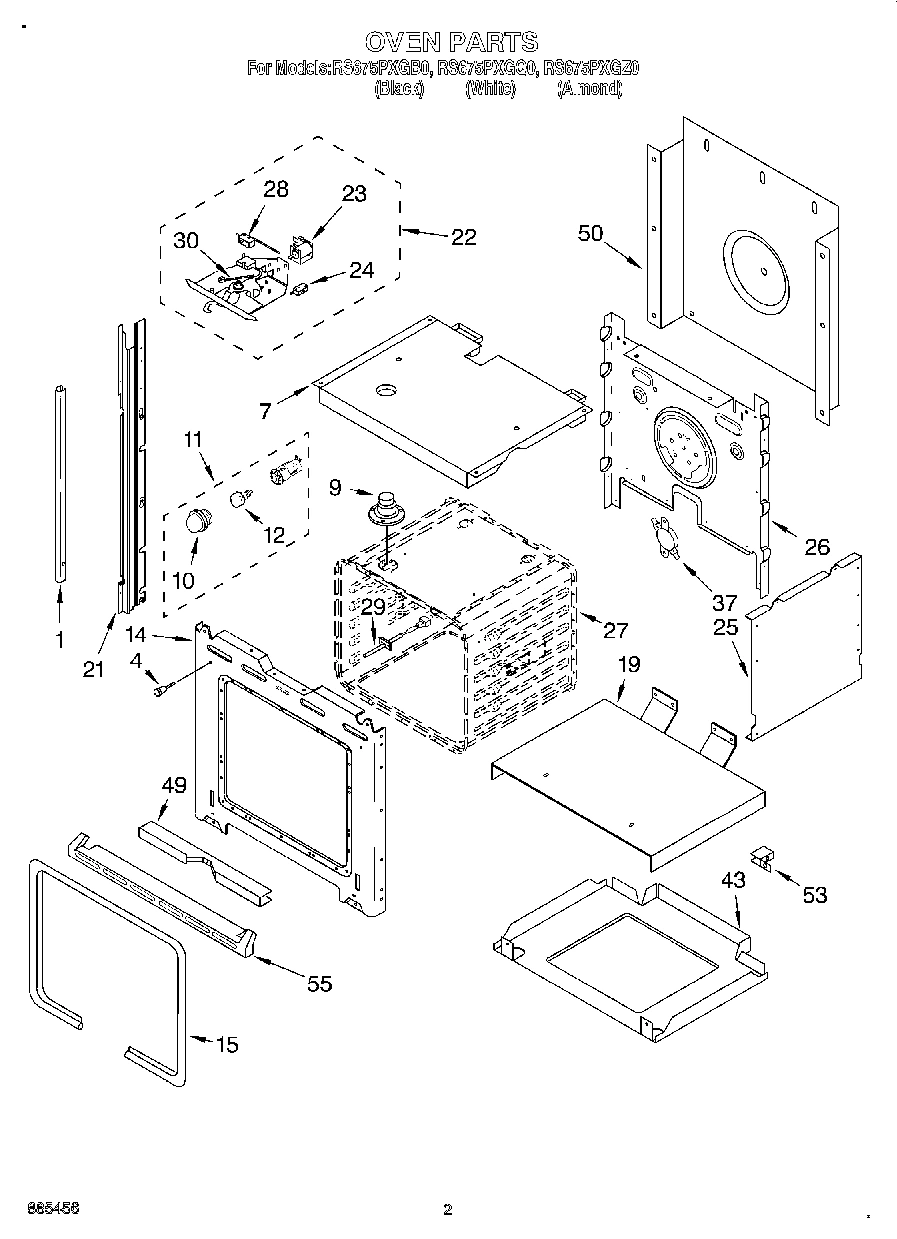

02 - OVEN

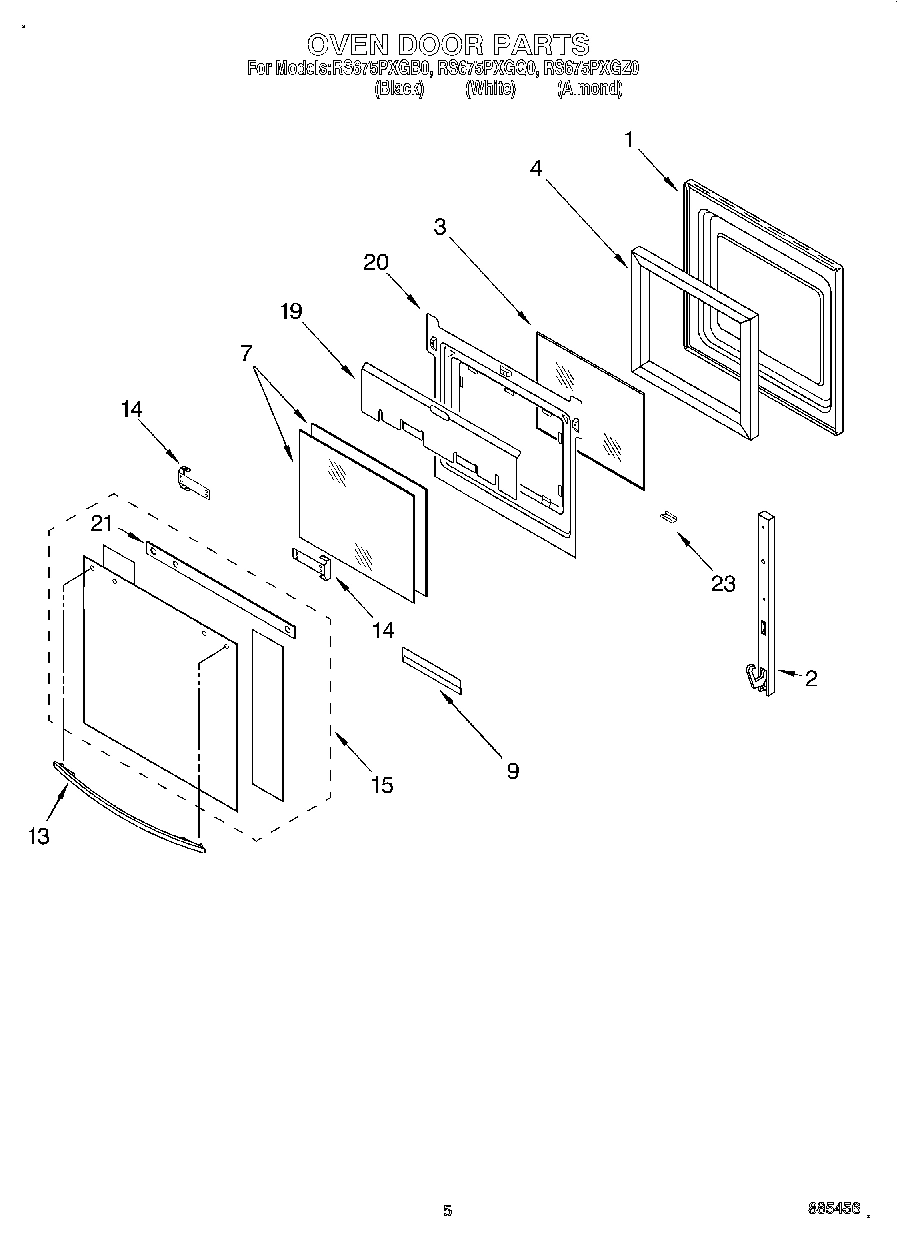

04 - OVEN DOOR
06 - TOP VENTING, OPTIONAL
01 - COOKTOP
03 - CONTROL PANEL, LITERATURE
05 - INTERNAL OVEN
Common parts from model Whirlpool RS675PXGZ0 COOKTOP
Use & Care Guide WPL LIT3191537 Contact Us For Availability
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation Instructions WPL LIT3191799 Contact Us For Availability
Tech Sheet WPL LIT3192238 Contact Us For Availability
1
Burner Box WPL 3192459 Contact Us For Availability
1
Control Panel Assy. (Black W/Membrane Switch) WPL 4451231 Contact Us For Availability
1
Control Panel Assy. (White) WPL 4451232 Contact Us For Availability
1
Control Panel Assy. (Almond) WPL 4451233 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Bracket, Mounting WPL 3192330 Contact Us For Availability
3
Microcomputer WPL 4452240 Contact Us For Availability
4
Cooktop (Black) WPL 3191167 Contact Us For Availability
4
Cooktop (White) WPL 3191168 Contact Us For Availability
4
Cooktop (Almond) WPL 3191169 Contact Us For Availability
6
Panel, Control (Black) WPL 3191228 Contact Us For Availability
6
Panel, Control (White) WPL 3191229 Contact Us For Availability
6
Panel, Control (Almond) WPL 3191230 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
13
Door Handle (Black) WPL 4448854 Contact Us For Availability
13
Vent, Control Panel WPL 4448549 Contact Us For Availability
14
Knob, Control (White) WPL 3196232 Contact Us For Availability
14
Knob, Control (Almond) WPL 3196233 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Side, Control Compt. (Right) WPL 3191832 Contact Us For Availability
15
Door Assembly, Glass (White) WPL 4452066 Contact Us For Availability
15
Assy, Door Glass (Almond Model) WPL 4452067 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
18
Trim, Extension (Black) WPL 3192102 Contact Us For Availability
18
Trim, Extension (White) WPL 3192103 Contact Us For Availability
18
Trim, Extension (Almond) WPL 3192104 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
20
Harness, Wire (Main) WPL 3191220 Contact Us For Availability
20
Retainer, Glass WPL 4451671 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
20
Cover, Rear WPL 3191842 Contact Us For Availability
20
Harness, Wire (Infinite Switch) WPL 3192236 Contact Us For Availability
20
Harness, Wire (Light) WPL 3192245 Contact Us For Availability
20
Conduit WPL 4451163 Contact Us For Availability
20
Harness, Wire (Surface) WPL 4454918 Contact Us For Availability
20
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
21
Seal, Door Top WPL 4451674 Contact Us For Availability
22
Latch Assembly WPL 4451424 Contact Us For Availability
23
Retainer, Clip (White) WPL 4450864 Contact Us For Availability
23
Retainer, Clip (Almond) WPL 4450865 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
55
Trim, Bottom (Black) WPL 4448477 Contact Us For Availability
× ![]()
