Model Whirlpool RS660BXK0 – Common Parts &amp; Diagrams

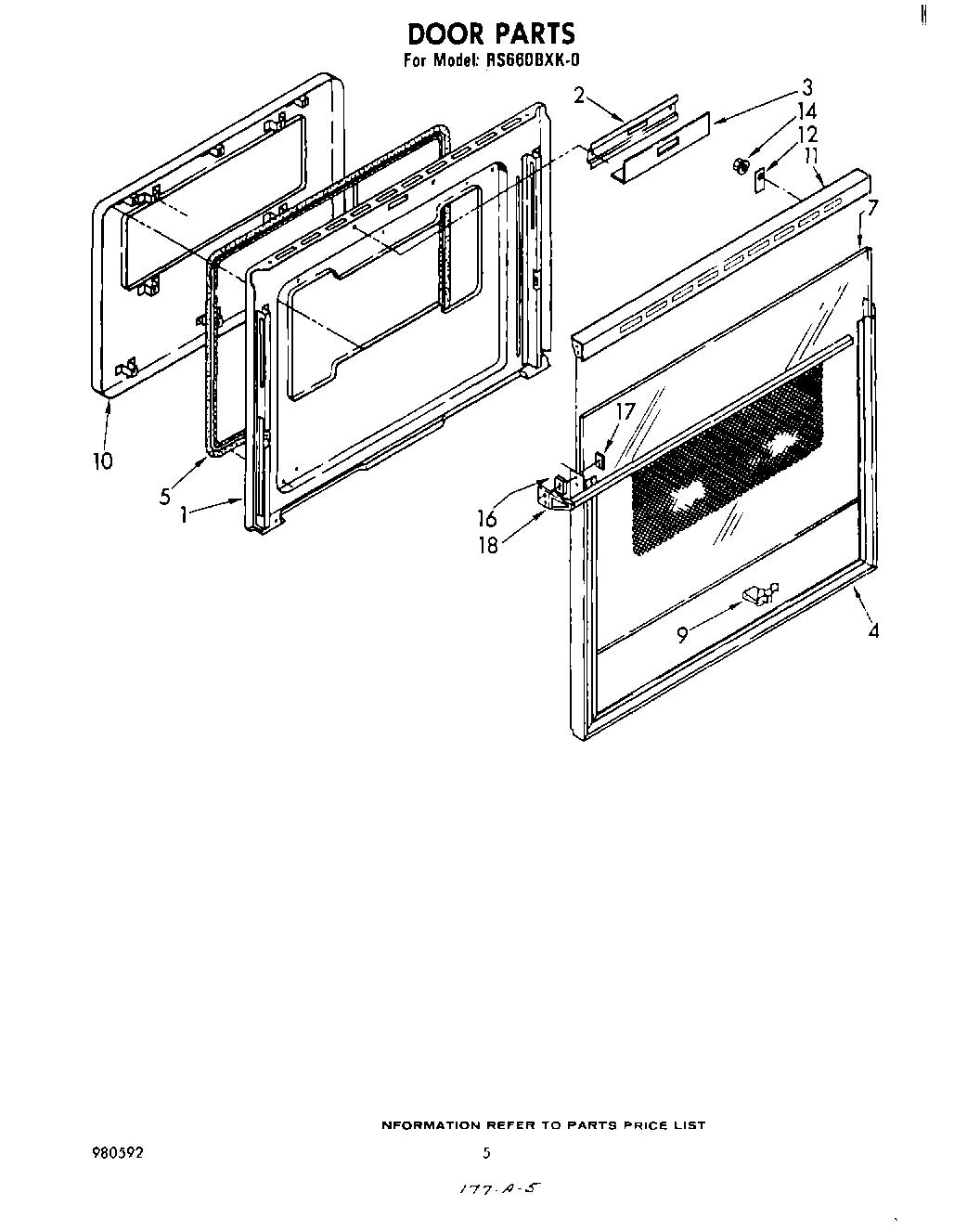

1

Frame, Front WPL 328747 Contact Us For Availability

1

Screw (2) WPL 311056 Contact Us For Availability

1

Screw (2) WPL 308504 Contact Us For Availability

1

End Cap (L.H.) WPL 310826 Contact Us For Availability

1

End Cap (R.H.) WPL 310827 Contact Us For Availability

1

Screw, 10A x 3/8 (3) WPL 254217 Contact Us For Availability

1

Liner, Door WPL 327869 Contact Us For Availability

1

Clip (2) WPL 338177 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

2

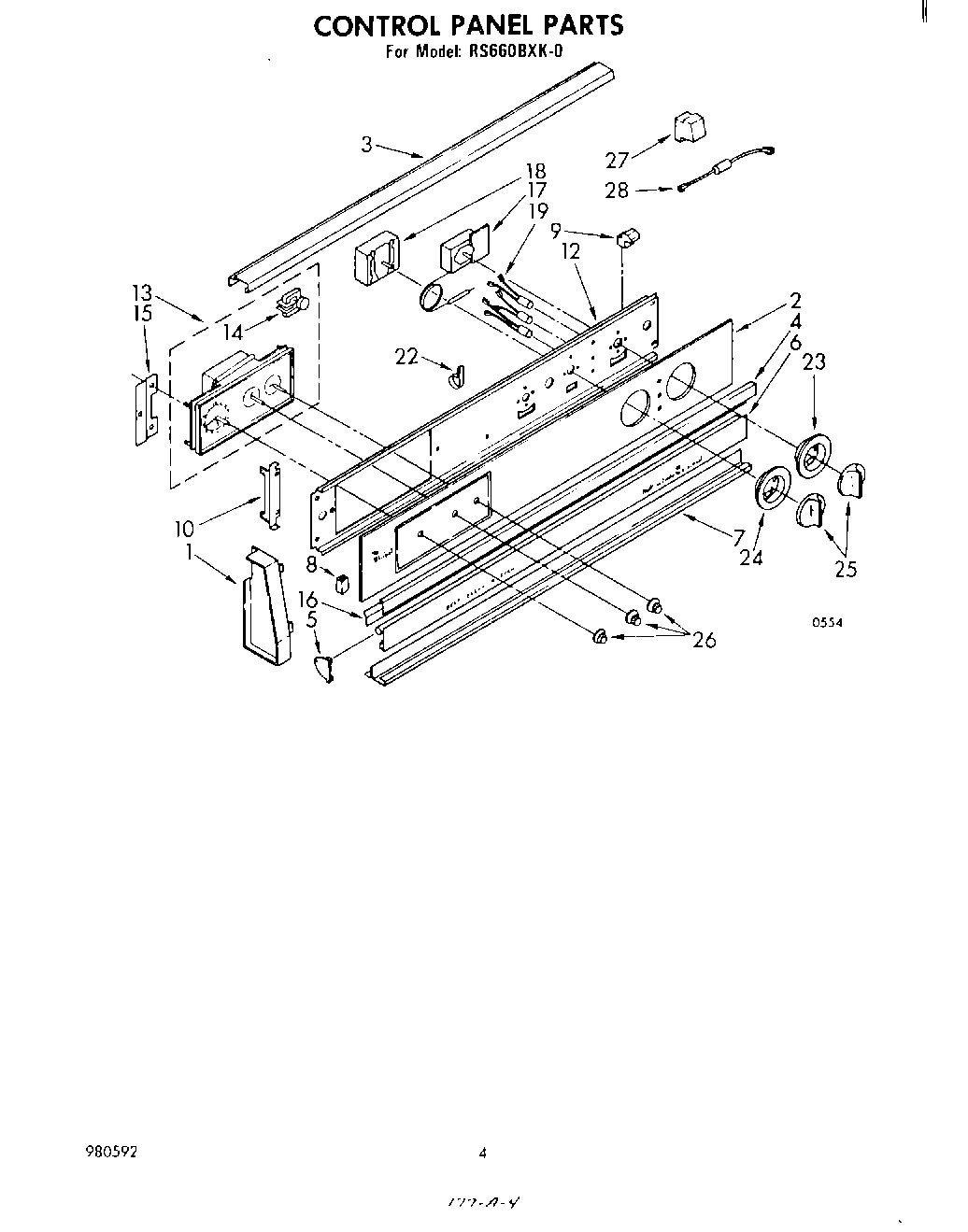

Control Panel, Glass WPL 311099 Contact Us For Availability

2

Channel, Latch WPL 308033 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Rail, Top WPL 310819 Contact Us For Availability

3

Shield, Insulation WPL 310056 Contact Us For Availability

3

Screw (2) WPL 311054 Contact Us For Availability

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

Trim, Center WPL 311189 Contact Us For Availability

4

Frame, Door WPL 310427 Contact Us For Availability

5

Insulation Tray WPL 310770 Contact Us For Availability

5

End Trim, Vent (Left Side) WPL 310832 Contact Us For Availability

5

End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability

5

Seal, Oven Door WPL 311904 Contact Us For Availability

6

WP681414 Whirlpool Screw Backorder WPL WP681414 $2.51

6

Side Wrapper (Right Side) WPL 311006 Contact Us For Availability

6

Side Wrapper (Left Side) WPL 311009 Contact Us For Availability

6

Door, Vent WPL 311191 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

7

Screw (6) WPL 342043 Contact Us For Availability

7

Trim, Bottom WPL 311190 Contact Us For Availability

7

Glass, Outer WPL 310655 Contact Us For Availability

8

Screw, 6A x 1 1/4 (2) WPL 308536 Contact Us For Availability

8

Insulation Baffle (2) WPL 311256 Contact Us For Availability

8

Channel, Rubber (2) WPL 310842 Contact Us For Availability

9

WP313808 Whirlpool Screw Backorder WPL WP313808 $2.51

9

Baffle, Top Insulation WPL 310693 Contact Us For Availability

9

Retainer, Glass (4) WPL 310823 Contact Us For Availability

9

Glass, Clip (10) WPL 310706 Contact Us For Availability

Panel, Control WPL 310837 Contact Us For Availability

Side Trim L.H. WPL 310685 Contact Us For Availability

Side Trim (R.H.) WPL 310689 Contact Us For Availability

Bracket, Control Panel (2) WPL 310720 Contact Us For Availability

Screw WPL 98520 Contact Us For Availability

Panel, Inner WPL 328546 Contact Us For Availability

Seal, Switch WPL 309839 Contact Us For Availability

Oven (30`` Pyro) WPL 328756 Contact Us For Availability

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Top, Pano Door WPL 310784 Contact Us For Availability

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $30.23

Switch, Infinite (Screw, 8-32 x 5/16 (8)) WPL 246406 Contact Us For Availability

Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability

palnut, timer 10-32 WPL 308846 Contact Us For Availability

Bracket, Control WPL 310727 Contact Us For Availability

hold down, glass (2) WPL 310705 Contact Us For Availability

Indicator Light (2) (Includes Lens) WPL 311523 Contact Us For Availability

Plug Button WPL 257314 Contact Us For Availability

Timer, Automatic (Alternate) WPL 310940 Contact Us For Availability

Timer, Automatic (Alternate) WPL 311262 Contact Us For Availability

14

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

14

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

14

Motor, Timer WPL 309822 Contact Us For Availability

15

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

15

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

15

Bracket, Timer (2) WPL 310721 Contact Us For Availability

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

Connector, Wire WPL 255673 Contact Us For Availability

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

Seal WPL 255893 Contact Us For Availability

Spacer, Door Handle (2) WPL 310707 Contact Us For Availability

Channel Arm (2) WPL 328803 Contact Us For Availability

Thermostat, Oven WPL 310017 Contact Us For Availability

screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability

Clip WPL 311506 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

W10854470 Whirlpool Trim Ring Backorder WPL W10854470 $31.49

W10858781 Whirlpool Trim Ring Backorder WPL W10858781 $32.67

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.51

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Selector Switch WPL 310006 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

touch-up self-clean (1/2 pt.) WPL 261810 Contact Us For Availability

console WPL 261825 Contact Us For Availability

Rotisserie Kit WPL 261881 Contact Us For Availability

Book, Cooking Guide WPL 308500 Contact Us For Availability

Guide, Use & Care WPL 311411 Contact Us For Availability

Installation Instructions WPL 311433 Contact Us For Availability

Handle, Door WPL 311573 Contact Us For Availability

Tech Sheet WPL 311950 Contact Us For Availability

List, Parts WPL 980592 Contact Us For Availability

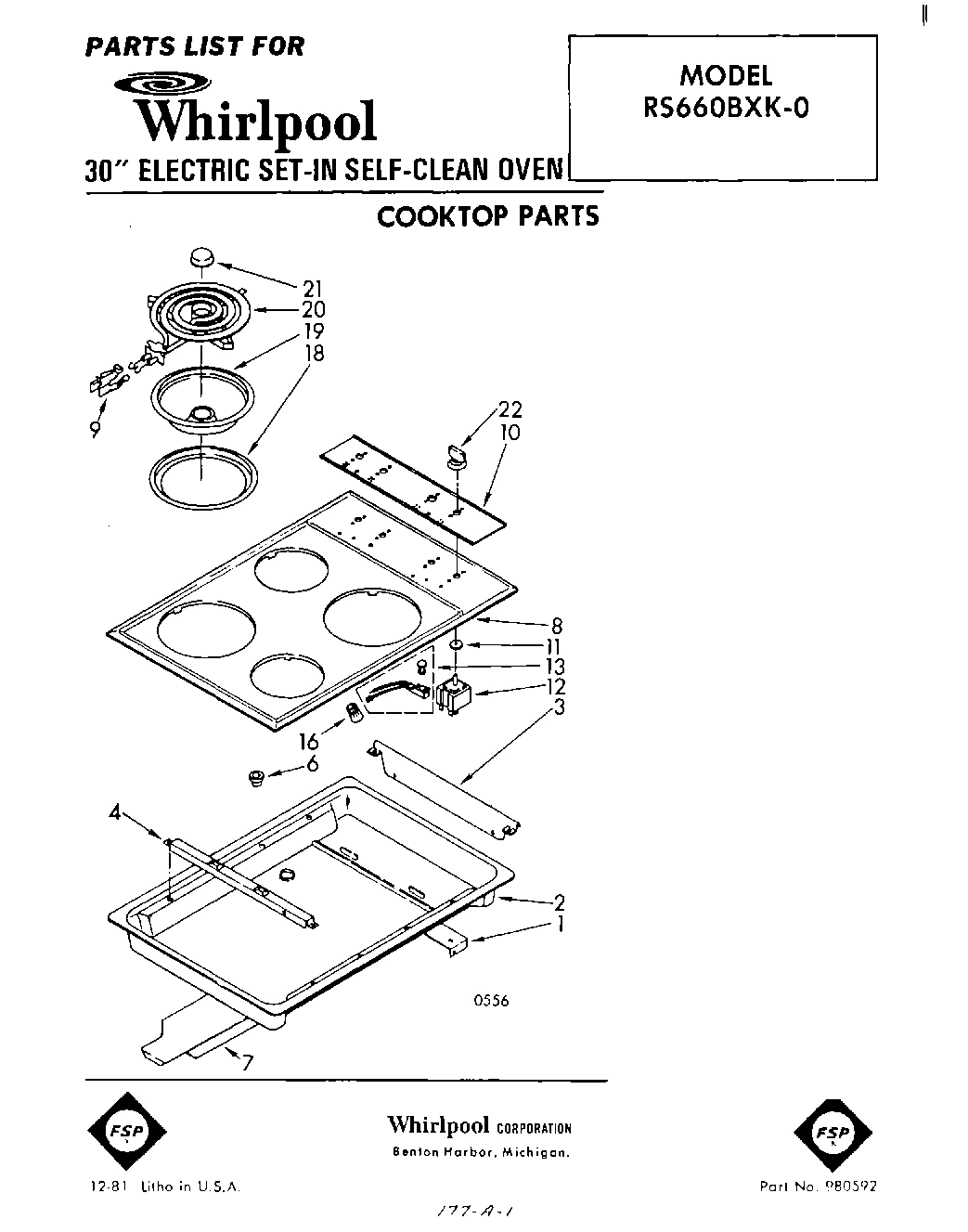

19

W10291024 Whirlpool Range Cooktop Gray Porcel In Stock WPL W10291024 $31.71

19

Ring, Retainer (2) WPL 307594 Contact Us For Availability

19

Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability

20

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.75

20

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $16.67

21

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

21

Medallion, Surface Unit WPL 309195 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

WP330190 Whirlpool Knob In Stock WPL WP330190 $14.62

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability

Strain, Relief WPL 308609 Contact Us For Availability

23

Escutcheon, Thermostat WPL 311066 Contact Us For Availability

23

Tube, Vent Extension WPL 310835 Contact Us For Availability

WP311068 Whirlpool Dial Knob Black Backorder WPL WP311068 $27.80

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Eliminator, Smoke WPL 310839 Contact Us For Availability

Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability

25

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $10.54

25

Plate, Cover WPL 310662 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

26

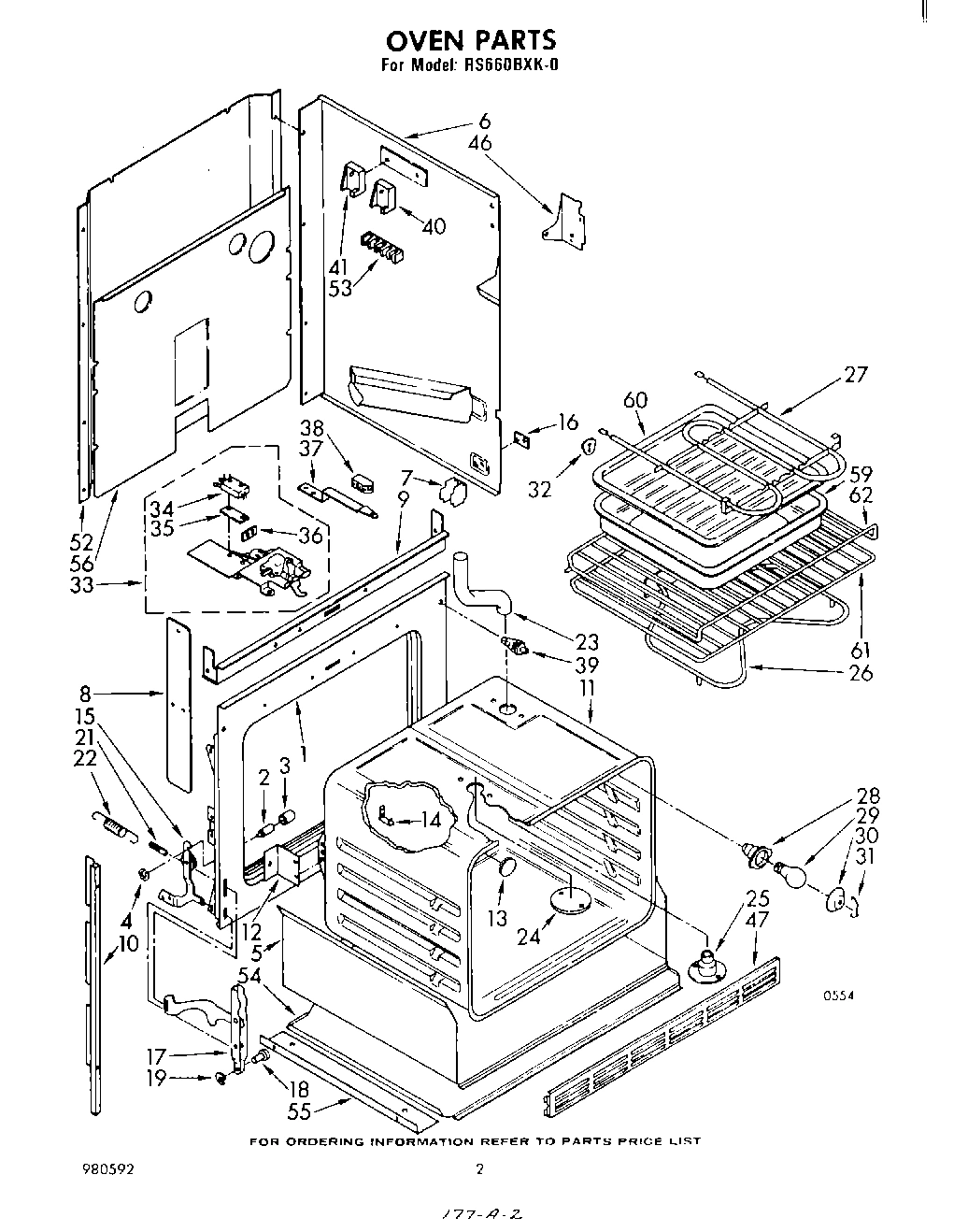

Knob, Timer (3) WPL 309553 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

27

Unit, Broil (Screw, 10-32 x 5/8 (4)) WPL 246127 Contact Us For Availability

27

Trim Support WPL 311450 Contact Us For Availability

Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability

Socket, Oven Light (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability

Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability

Resistor & Terminal Assembly WPL 328891 Contact Us For Availability

Terminal WPL 98655 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

30

Cover, L WPL 308039 Contact Us For Availability

31

WPL 308038 WPL 308038 Contact Us For Availability

32

WPL 311982 WPL 311982 Contact Us For Availability

33

WPL 328585 WPL 328585 Contact Us For Availability

34

WPL 308185 WPL 308185 Contact Us For Availability

34

WPL 98106 WPL 98106 Contact Us For Availability

35

WPL 309245 WPL 309245 Contact Us For Availability

36

WPL 310100 WPL 310100 Contact Us For Availability

37

WPL 308422 WPL 308422 Contact Us For Availability

37

WPL 310825 WPL 310825 Contact Us For Availability

38

WPL 246135 WPL 246135 Contact Us For Availability

38

WPL 311253 WPL 311253 Contact Us For Availability

39

WPL 310345 WPL 310345 Contact Us For Availability

40

WPL 310643 WPL 310643 Contact Us For Availability

41

WPL 311585 WPL 311585 Contact Us For Availability

46

WPL 310714 WPL 310714 Contact Us For Availability

46

WPL 310715 WPL 310715 Contact Us For Availability

47

WPL 309029 WPL 309029 Contact Us For Availability

47

WPL 310668 WPL 310668 Contact Us For Availability

52

WPL 310459 WPL 310459 Contact Us For Availability

53

W10841059 Whirlpool Screw Backorder WPL W10841059 $0.90

53

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

53

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

54

WPL 310458 WPL 310458 Contact Us For Availability

55

WPL 311592 WPL 311592 Contact Us For Availability

56

WPL 311012 WPL 311012 Contact Us For Availability

59

WPL 310973 WPL 310973 Contact Us For Availability

60

WPL 308674 WPL 308674 Contact Us For Availability

61

WPL 308173 WPL 308173 Contact Us For Availability

62

WPL 308172 WPL 308172 Contact Us For Availability
