Model Whirlpool RS6300XKW3 – Common Parts & Diagrams

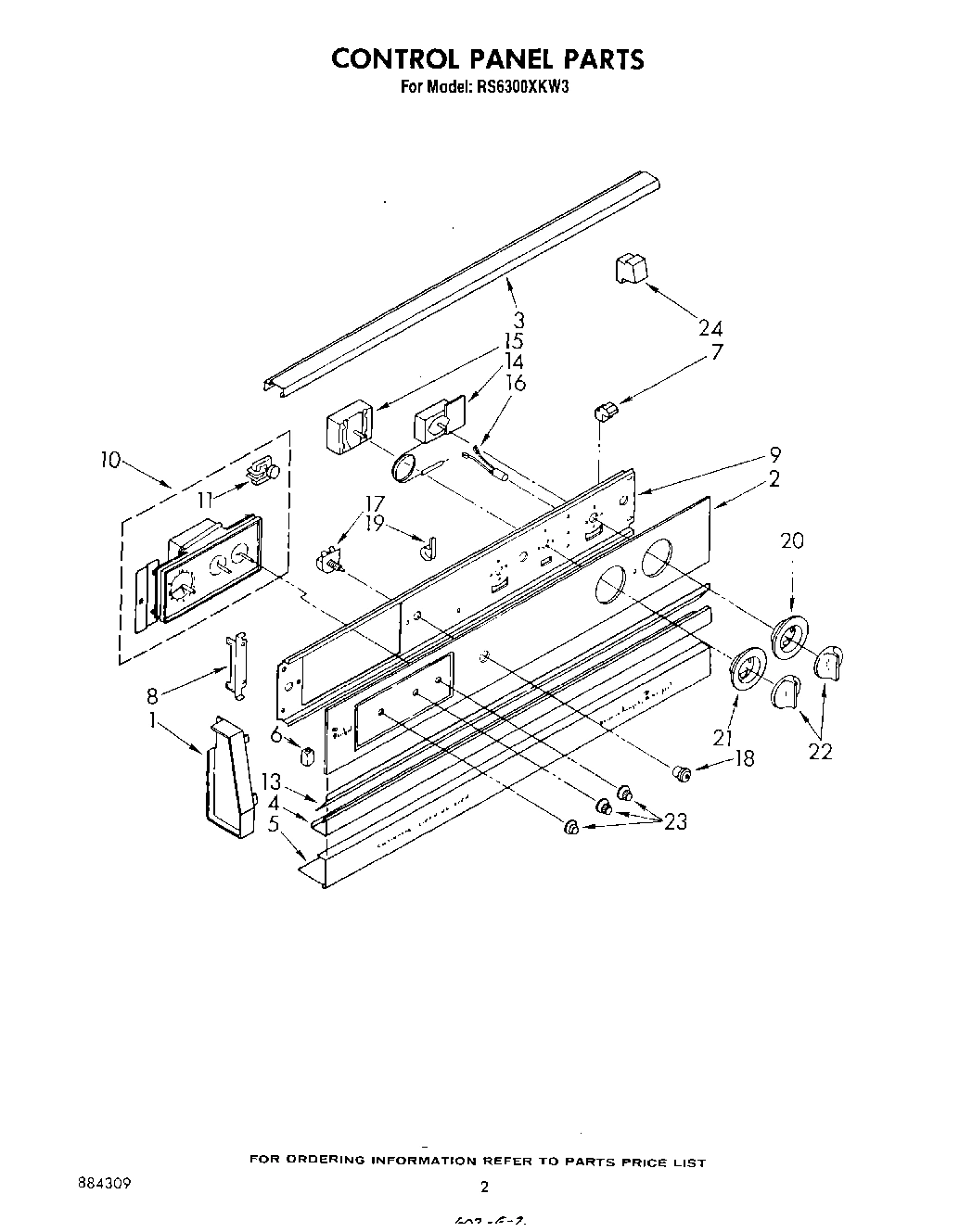

02 - CONTROL PANEL

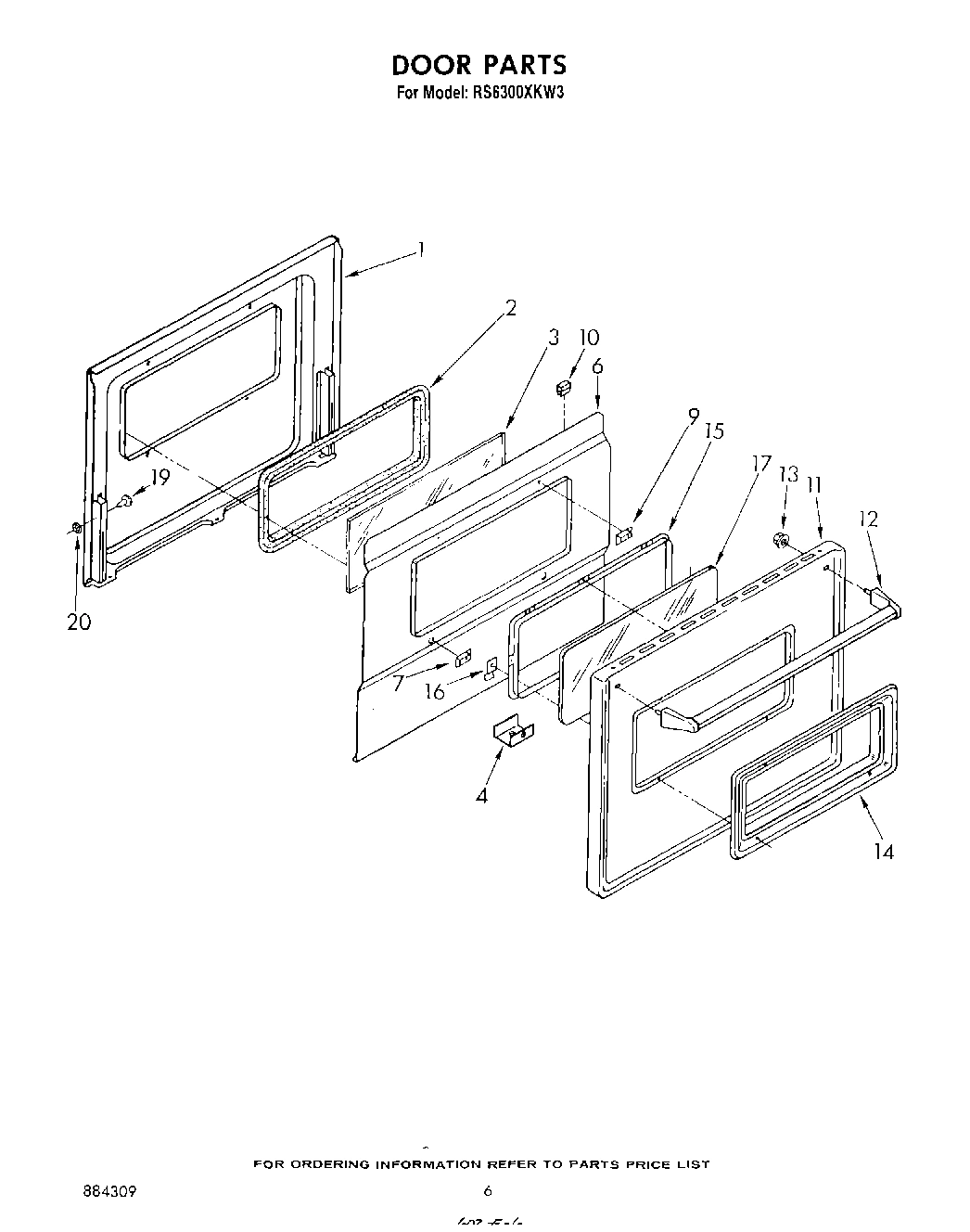

04 - OVEN DOOR , LITERATURE AND OPTIONAL

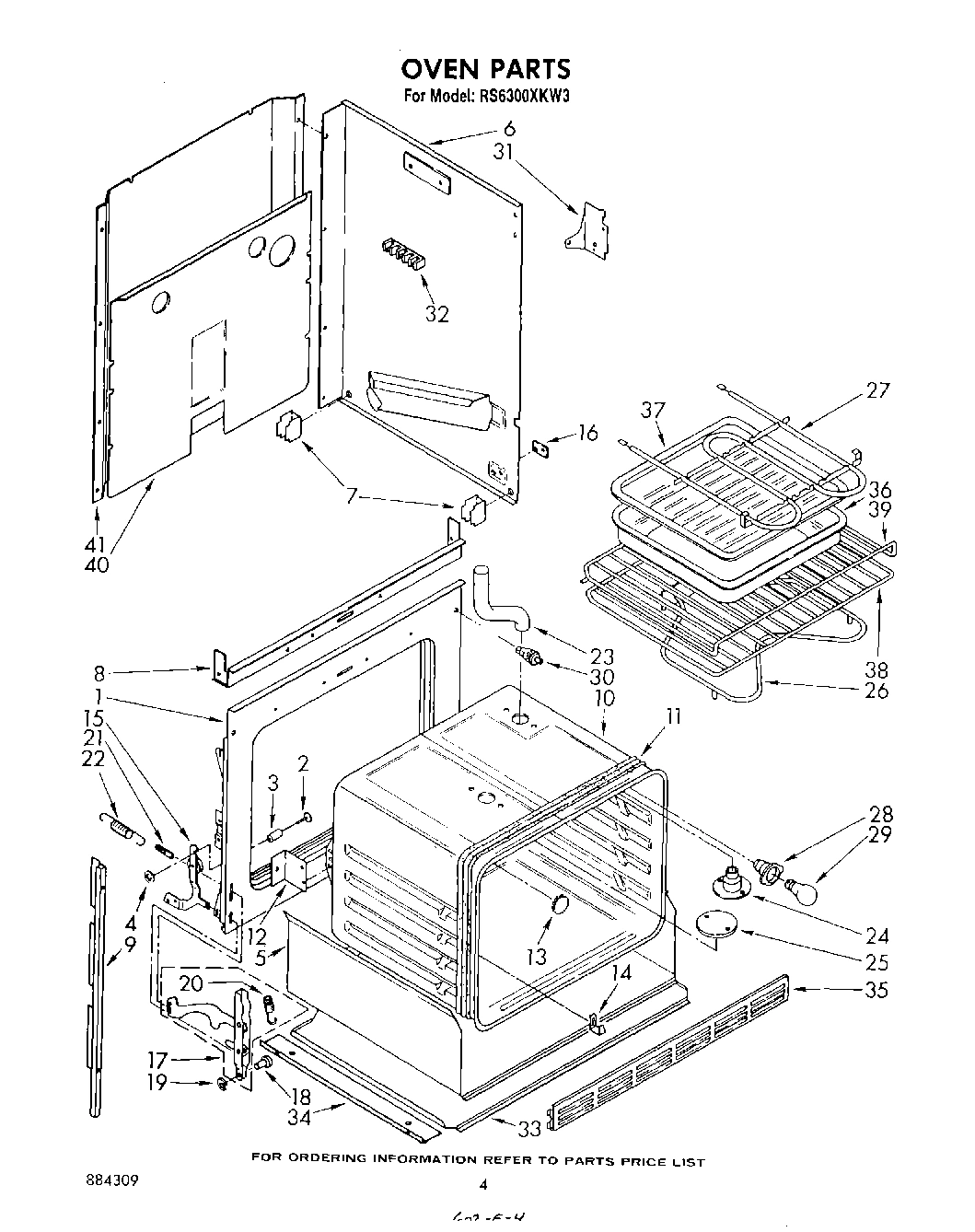

03 - SECTION

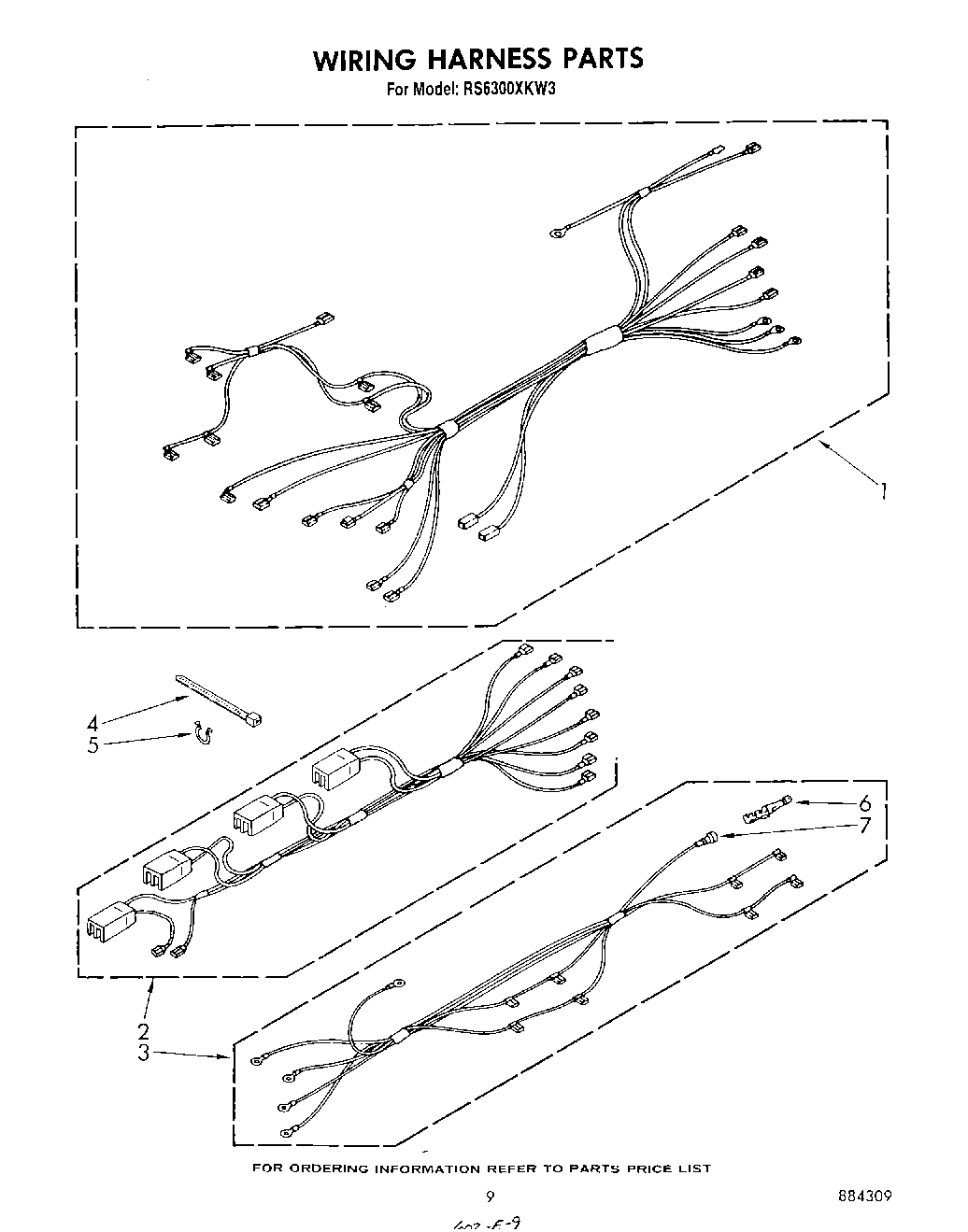

06 - WIRING HARNESS

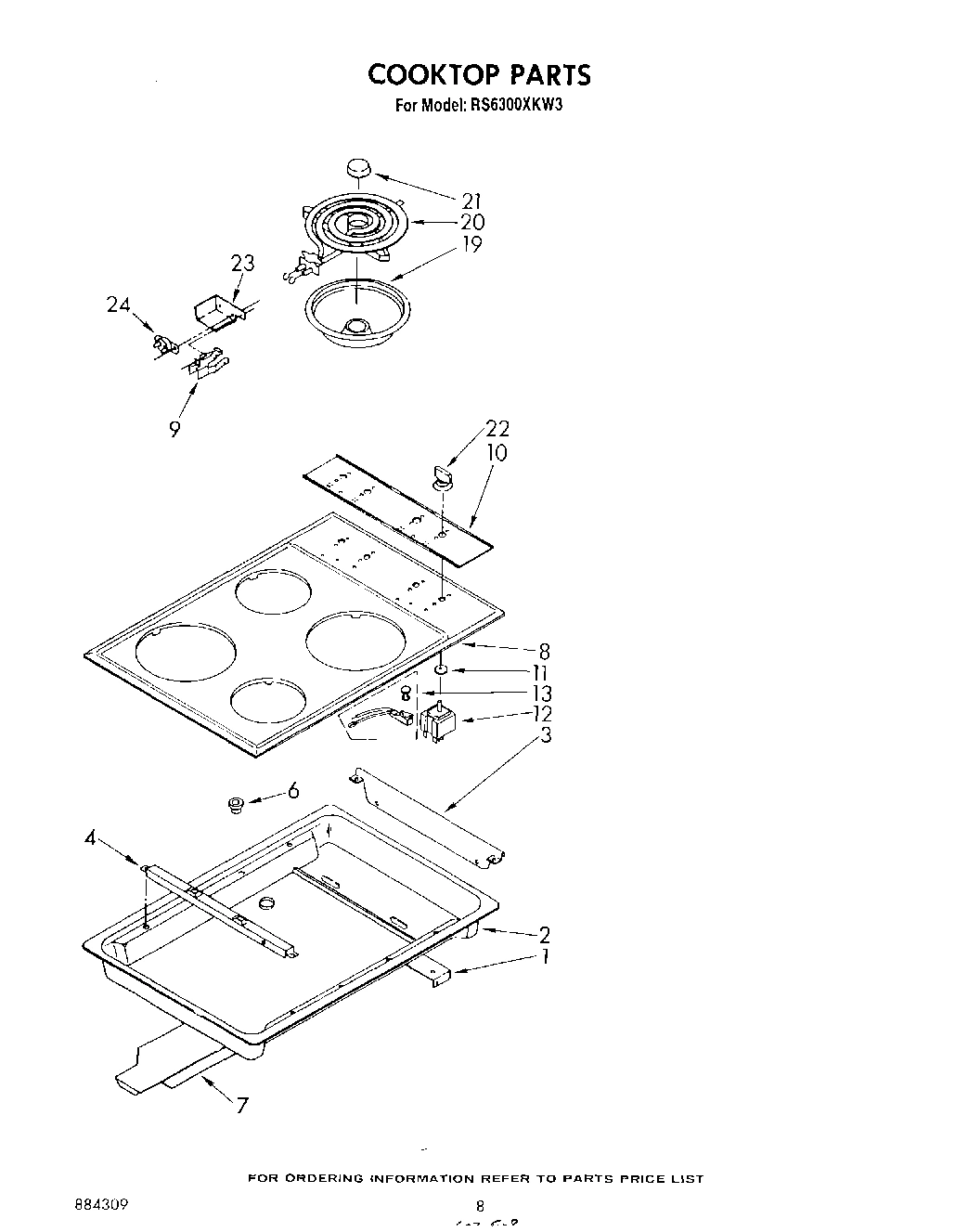

05 - COOKTOP
Common parts from model Whirlpool RS6300XKW3
WPL LIT311410 WPL LIT311410 Contact Us For Availability
WPL LIT311433 WPL LIT311433 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT884309 WPL LIT884309 Contact Us For Availability
WPL 246127 WPL 246127 Contact Us For Availability
WPL 308043 WPL 308043 Contact Us For Availability
1
liner, door WPL 329685 Contact Us For Availability
1
Frame, Front WPL 328747 Contact Us For Availability
1
Harness, Wire (Oven) WPL 310909 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
2
Seal, Glass WPL 258711 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3147976 Contact Us For Availability
2
Burner Box WPL 311019 Contact Us For Availability
3
Glass, Inner WPL 258988 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
4
Spacer, Door (2) WPL 309137 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
baffle, insulation WPL 307924 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Block, Disconnect WPL 351297 Contact Us For Availability
7
Screw, 10-32 x 1/2 WPL 312318 Contact Us For Availability
7
Cover, Top Rear WPL 3147565 Contact Us For Availability
8
Cooktop (Screw, 10-32 x 5/16 (2)) WPL 166681 Contact Us For Availability
8
Baffle, Top Insulation WPL 310693 Contact Us For Availability
8
Cooktop (White) WPL 307493 Contact Us For Availability
8
Cooktop (Harvest Gold) WPL 308944 Contact Us For Availability
8
Cooktop (Almond) WPL 308946 Contact Us For Availability
8
Cooktop (Toast) WPL 308947 Contact Us For Availability
8
Cooktop (Platinum) WPL 308948 Contact Us For Availability
9
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
9
Spacer, Baffle (2) WPL 258990 Contact Us For Availability
9
Side Trim L.S. WPL 310685 Contact Us For Availability
9
Side Trim R.S. WPL 310689 Contact Us For Availability
10
Screw (3) WPL 311056 Contact Us For Availability
10
Bumper, Rubber (4) WPL 312783 Contact Us For Availability
10
Oven, 30`` Continuous Clean WPL 328757 Contact Us For Availability
10
Panel, Control WPL 313132 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Panel, Oven Door (White) WPL 307888 Contact Us For Availability
11
Panel, Oven Door (Harvest Gold) WPL 307894 Contact Us For Availability
11
Panel, Oven Door (Almond) WPL 307896 Contact Us For Availability
11
Panel, Oven Door (Screw, 8A x 5/8 (2)) WPL 309133 Contact Us For Availability
11
Panel, Oven Door (Toast) WPL 313175 Contact Us For Availability
11
Panel, Oven Door (Platinum) WPL 313176 Contact Us For Availability
11
Seal, Switch WPL 309839 Contact Us For Availability
12
Handle, Oven Door WPL 311563 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Indicator Light (2) (Includes Light Lens No. WPL 313461 Contact Us For Availability
14
Thermostat, Oven (Alt.) WPL 310861 Contact Us For Availability
14
Thermostat, Oven (Alt.) WPL 311495 Contact Us For Availability
14
Thermostat, Oven WPL 660564 Contact Us For Availability
14
Window, Frame 30`` Small WPL 309173 Contact Us For Availability
15
Glass Retainer WPL 307792 Contact Us For Availability
15
Switch, Selector (4 Position) WPL 310866 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Light, Indicator (250 V) WPL 308753 Contact Us For Availability
16
Clip, Frame WPL 307731 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Switch, Oven Light WPL 312581 Contact Us For Availability
17
Lockwasher WPL 312796 Contact Us For Availability
17
Glass, Outer WPL 307732 Contact Us For Availability
17
Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability
17
Channel Arm (2) WPL 329714 Contact Us For Availability
18
Bezel Switch WPL 313030 Contact Us For Availability
19
Pin, Wedge WPL 312223 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
20
Escutcheon, Thermostat WPL 311065 Contact Us For Availability
20
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
20
Rotisserie Kit WPL 242985 Contact Us For Availability
20
WPL 261582 WPL 261582 Contact Us For Availability
20
WPL 261810 WPL 261810 Contact Us For Availability
20
WPL 311896 WPL 311896 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
Screw, 8 x 1/4 (2) WPL 254225 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Spring WPL 313311 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
23
Bracket, Sensor WPL 3147830 Contact Us For Availability
24
Thermostat WPL 3147833 Contact Us For Availability
24
Top, Support (2) WPL 312752 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Cover, Side (Left Side) WPL 310714 Contact Us For Availability
31
Cover, Side (Right Side) WPL 310715 Contact Us For Availability
33
WPL 310458 WPL 310458 Contact Us For Availability
34
WPL 311592 WPL 311592 Contact Us For Availability
35
WPL 309029 WPL 309029 Contact Us For Availability
35
WPL 310668 WPL 310668 Contact Us For Availability
38
WPL 308173 WPL 308173 Contact Us For Availability
39
WPL 308172 WPL 308172 Contact Us For Availability
40
WPL 310459 WPL 310459 Contact Us For Availability
41
WPL 311012 WPL 311012 Contact Us For Availability
NI
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
× ![]()
