Model Whirlpool RS610PXEN2 – Common Parts & Diagrams
03 - OVEN
05 - INTERNAL OVEN

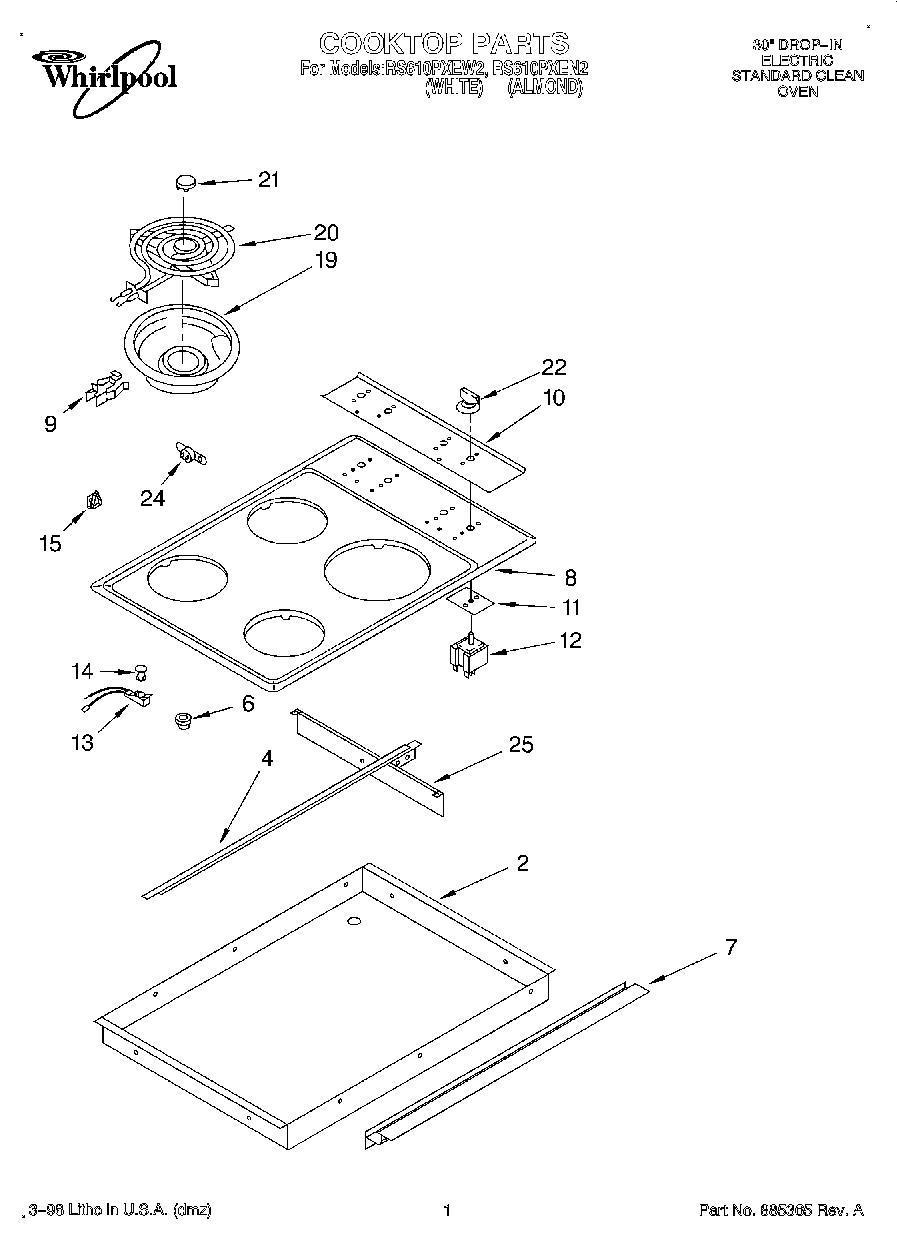

01 - COOKTOP

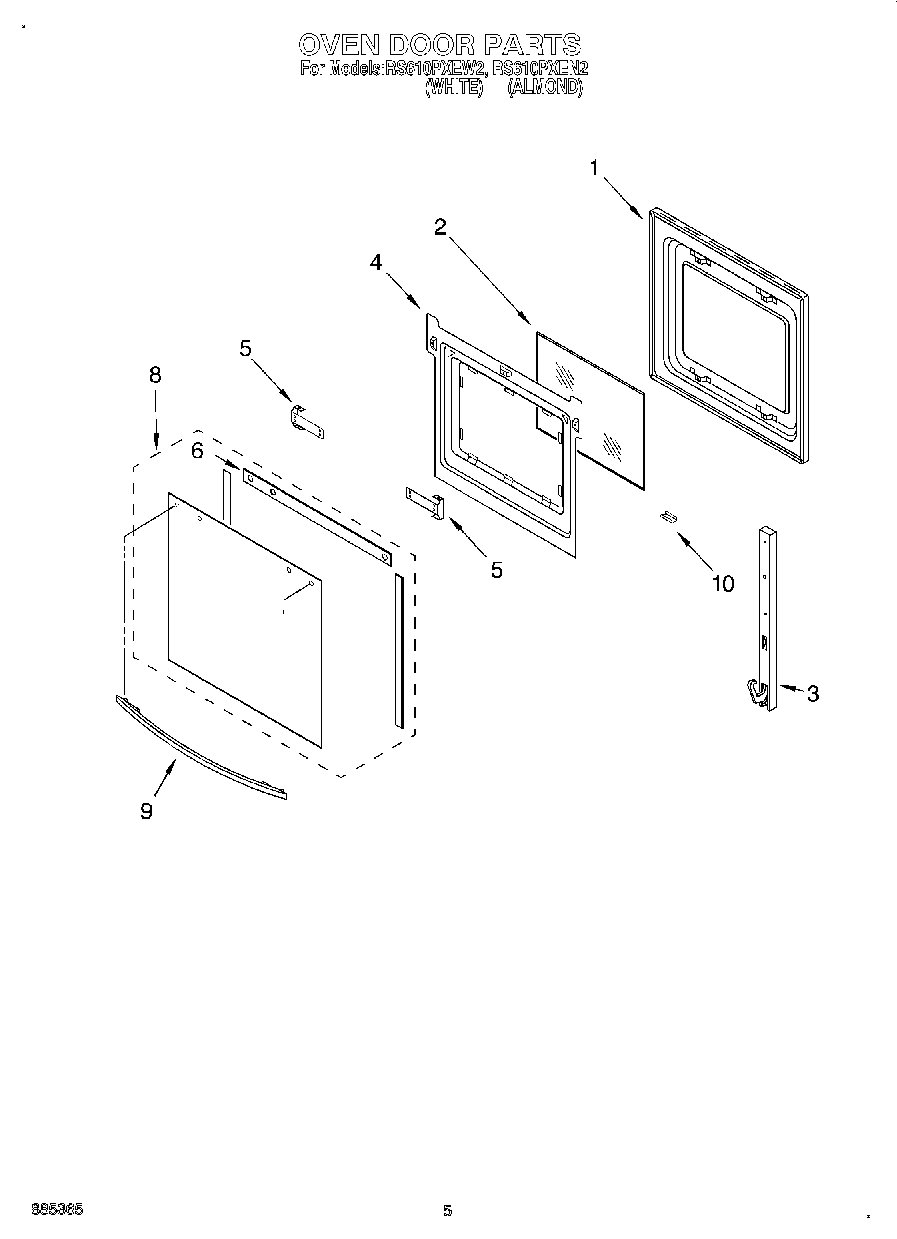

04 - OVEN DOOR
06 - TOP VENTING, OPTIONAL

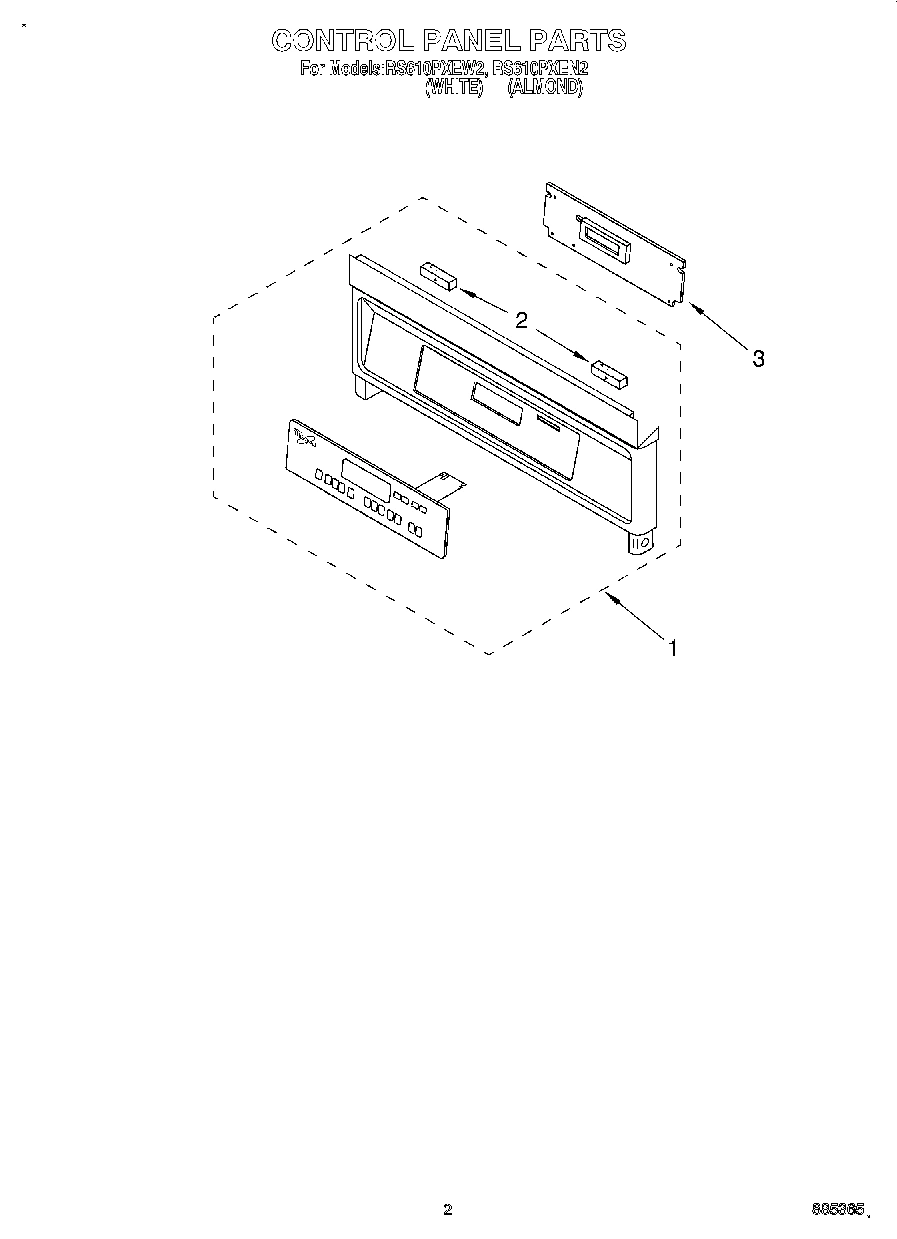

02 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool RS610PXEN2
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation Instructions WPL LIT4450269 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450273 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4452229 Contact Us For Availability
1
Screw WPL 4449040 Contact Us For Availability
1
Control Panel Assy. (Screw) WPL 3149333 Contact Us For Availability
1
Control Panel Assy. (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. (W/Membrane Switch) WPL 4451230 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Microcomputer WPL 4448873 Contact Us For Availability
4
Retainer, Glass WPL 4451671 Contact Us For Availability
5
Bracket, Handle WPL 4450813 Contact Us For Availability
5
Screw (4) WPL 4451040 Contact Us For Availability
6
Bushing WPL 4159035 Contact Us For Availability
6
Seal, Top WPL 4451674 Contact Us For Availability
7
Trim, Extension WPL 4451005 Contact Us For Availability
8
Cooktop (White) WPL 3148754 Contact Us For Availability
8
Cooktop (Almond) WPL 3148755 Contact Us For Availability
9
Handle, Door WPL 4448854 Contact Us For Availability
10
Fan & Bracket Assy WPL 4451664 Contact Us For Availability
10
Panel, Control WPL 4450908 Contact Us For Availability
10
Retainer, Glass WPL 4450863 Contact Us For Availability
12
Switch, Infinite (Use W/ 8`` Surface Unit (2) WPL 4454533 Contact Us For Availability
12
Switch, Infinite (Use W/ 6`` Surface Unit (2) WPL 4454532 Contact Us For Availability
13
Indicator Light WPL 3187778 Contact Us For Availability
13
Vent, Control Panel WPL 4448549 Contact Us For Availability
14
Lens, Light WPL 313602 Contact Us For Availability
14
Side, Control Compt. (Right) WPL 4451579 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
16
Harness, Wire (Surface Unit) WPL 3188449 Contact Us For Availability
16
Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability
16
Cover, Rear WPL 4449973 Contact Us For Availability
16
Conduit WPL 4451163 Contact Us For Availability
16
Spacer, Harness WPL 4452222 Contact Us For Availability
16
Harness, Wire (Main) WPL 4454937 Contact Us For Availability
16
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
22
Knob, Control (4) WPL 3183120 Contact Us For Availability
24
Screw, 6-32 (2) WPL 313806 Contact Us For Availability
25
Screw WPL 4159456 Contact Us For Availability
25
Shield, Heat WPL 4454837 Contact Us For Availability
51
Trim, Bottom WPL 4448477 Contact Us For Availability
× ![]()
