Model Whirlpool RS576PXP0 – Common Parts & Diagrams

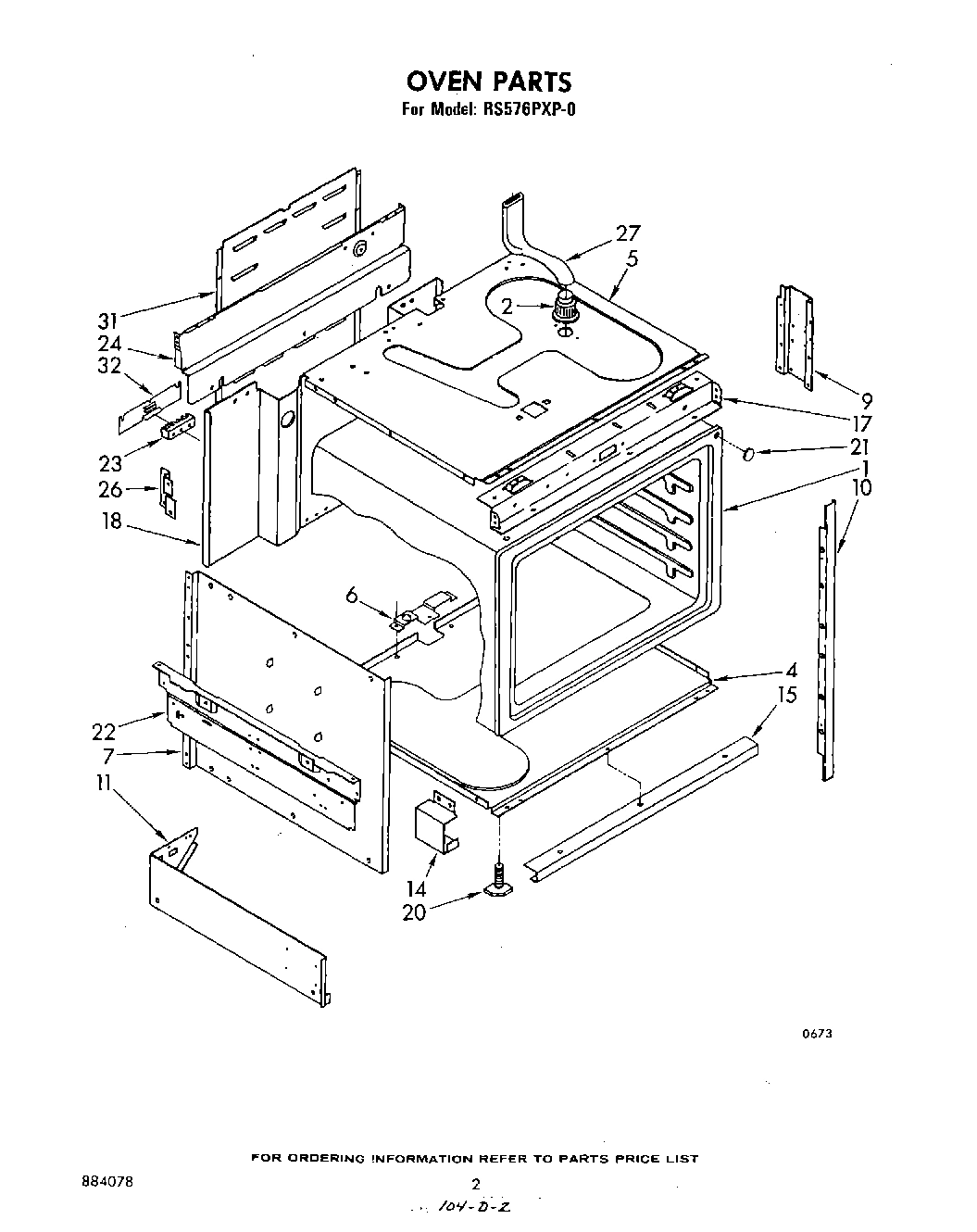

02 - OVEN
09 - ROTISSERIE , GRIDDLE
11 - SURFACE UNIT MODULE , LITERATURE
03 - CONTROL PANEL
10 - SMOOTH TOP MODULE
06 - INTERIOR OVEN
07 - GRILL MODULE KIT
08 - SURFACE UNIT MODULE KIT
04 - COOKTOP
05 - DOOR AND DRAWER
Common parts from model Whirlpool RS576PXP0
1

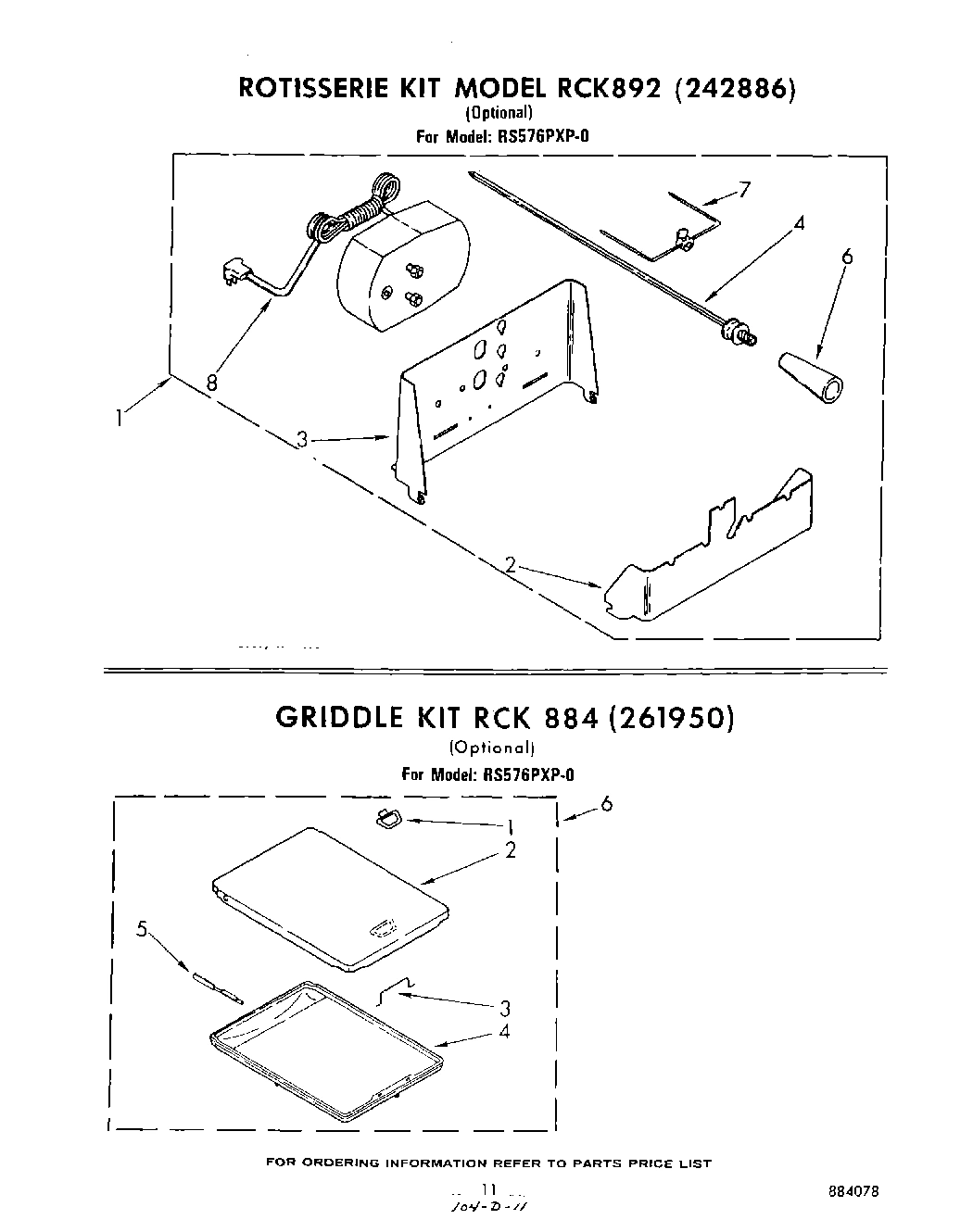

Rotisserie Kit, Complete WPL 242886 Contact Us For Availability
1
Handle, Griddle Cover WPL 866222 Contact Us For Availability
1
Panel, Control WPL 877712 Contact Us For Availability
1
Smooth Top Module, Complete WPL 242887 Contact Us For Availability
1
Cup, Light WPL 877802 Contact Us For Availability
1
Grill Kit, Complete WPL 242885 Contact Us For Availability
1
Surface Unit, Modular Complete WPL 242898 Contact Us For Availability
1
Rail, Drawer (Right Side) WPL 877685 Contact Us For Availability
1
Rail, Drawer (Left Side) WPL 877686 Contact Us For Availability
2
Cover, Griddle (Chrome) WPL 868435 Contact Us For Availability
2
Plate, Front WPL 877596 Contact Us For Availability
2
Pan, Surface Unit Modular WPL 877544 Contact Us For Availability
2
Rail, Control Panel (Top) WPL 868819 Contact Us For Availability
2
Rail, Control Panel (Bottom) WPL 868820 Contact Us For Availability
2
Pan, Surface Unit WPL 877598 Contact Us For Availability
2
Pan, Grill WPL 877548 Contact Us For Availability
2
Bracket, Door Latch Switch WPL 865961 Contact Us For Availability
2
Spacer, Drawer Rail (2) WPL 877727 Contact Us For Availability
3
Lifter, Griddle WPL 248568 Contact Us For Availability
3
Plate, Rear WPL 877597 Contact Us For Availability
3
Receptacle, Porcelain WPL 868437 Contact Us For Availability
3
Rack, Grill (2) WPL 877549 Contact Us For Availability
4
Screw, 10-24 x 7/8 (2) WPL 834649 Contact Us For Availability
4
Griddle WPL 868432 Contact Us For Availability
4
Rod, Skewer WPL 868454 Contact Us For Availability
4
Screw, 10-24 x 1/2 WPL 868876 Contact Us For Availability
4
Clamp WPL 868466 Contact Us For Availability
4
End Cap R.H. WPL 868851 Contact Us For Availability
4
End Cap L.H. WPL 868852 Contact Us For Availability
4
Unit, Dual (2200W) WPL 877541 Contact Us For Availability
4
Guide, Drawer Front (2) WPL 868127 Contact Us For Availability
5
terminal, ground WPL 868434 Contact Us For Availability
5
Bracket, Control Panel (Screw, 8-32 x 3/8 (2) WPL 595135 Contact Us For Availability
5
Bracket, Control Panel (Upper) WPL 868823 Contact Us For Availability
5
Bracket, Control Panel (Lower) WPL 868824 Contact Us For Availability
5
Lens, Light WPL 877804 Contact Us For Availability
5
Push Rod, Switch WPL 877523 Contact Us For Availability
5
Frame, Oven Door WPL 868494 Contact Us For Availability
6
Handle, Rod WPL 241210 Contact Us For Availability
6
Kit, Griddle (Complete) WPL 261950 Contact Us For Availability
6
Cooktop (6``/8``) WPL 868865 Contact Us For Availability
6
Screw, 8-32 x 3/16 (4) WPL 486525 Contact Us For Availability
6
Terminal, Male (4) WPL 868438 Contact Us For Availability
6
Pushnut, 1/4`` WPL 868878 Contact Us For Availability
7
Holder, Meat WPL 241209 Contact Us For Availability
7
Insulator, Receptacle WPL 868814 Contact Us For Availability
7
Deflector, Heat WPL 877698 Contact Us For Availability
7
Washer, Flat (4) WPL 877699 Contact Us For Availability
7
Retainer, Lens WPL 877805 Contact Us For Availability
7
Rod End, Switch WPL 877562 Contact Us For Availability
7
Handle, Door WPL 877537 Contact Us For Availability
8
Motor, Rotisserie WPL 868455 Contact Us For Availability
8
Pushnut, 1/8 WPL 866272 Contact Us For Availability
8
Bracket, Ground WPL 868440 Contact Us For Availability
8
Light Indicator (125V) (Right Module, Left Mo WPL 877865 Contact Us For Availability
8
Frame, Basket (2) WPL 877542 Contact Us For Availability
8
Support, Latch Motor WPL 868982 Contact Us For Availability
8
Nut, Hex 6-32 (4) WPL 271482 Contact Us For Availability
8
Screw, 6-32 x 3/8 (4) WPL 866155 Contact Us For Availability
8
Trim, Frame (2) WPL 866259 Contact Us For Availability
9
Unit, Assembly WPL 877599 Contact Us For Availability
9
Unit, Broiler WPL 865934 Contact Us For Availability
9
Handle, Basket (2) WPL 877543 Contact Us For Availability
9
Motor, Door Latch (Screw, 8-32 x 5/16 (2)) WPL 273225 Contact Us For Availability
9
motor, door latch (alternate) WPL 834849 Contact Us For Availability
9
Motor, Door Latch (Alternate) WPL 868983 Contact Us For Availability
9
motor, door latch (alternate) WPL 877619 Contact Us For Availability
10
Shield, Wire WPL 868686 Contact Us For Availability
10
Lens, Indicator Light (5) WPL 868934 Contact Us For Availability
10
Bracket (2) WPL 877600 Contact Us For Availability
10
Hanger, Broil Unit WPL 866429 Contact Us For Availability
10
Rocks, Lava (4 Lbs.) WPL 868460 Contact Us For Availability
10
Cam, Door Latch (Pin, Spring) WPL 455105 Contact Us For Availability
10
cam, door latch (alternate) WPL 834483 Contact Us For Availability
10
Cam, Door Latch (Alternate) WPL 877629 Contact Us For Availability
10
Glass, Outer (Black) WPL 868199 Contact Us For Availability
11
Screw, 8-32 x 3/8 (4) WPL 868382 Contact Us For Availability
11
Light Indicator (Oven) WPL 877866 Contact Us For Availability
11
Limit, Control (Short) WPL 877601 Contact Us For Availability
11
Limit, Control (Long) WPL 877602 Contact Us For Availability
11
Screen, Basket (2) WPL 877609 Contact Us For Availability
11
COOKTOP, SURFACE UNIT Unit (1) WPL 877864 Contact Us For Availability
11
Insulator, Limit Switch (2) WPL 834905 Contact Us For Availability
11
Panel, Heat Reflector WPL 868200 Contact Us For Availability
12
Cooktop, Glass WPL 877611 Contact Us For Availability
14
Shield, Toe (2) WPL 877709 Contact Us For Availability
14
Frame, Cooktop WPL 877612 Contact Us For Availability
14
Handle, Cooktop WPL 868450 Contact Us For Availability
14
Switch Limit (Lower) (Alternate) WPL 834906 Contact Us For Availability
14
Switch Limit Lower (Alternate) WPL 877800 Contact Us For Availability
14
Panel, Airwash WPL 877538 Contact Us For Availability
15
Screw WPL 486146 Contact Us For Availability
15
Channel, Oven Support (Lower) WPL 877726 Contact Us For Availability
15
Handle Assembly WPL 868866 Contact Us For Availability
15
Kit, Surface Unit Module (6``/8``) WPL 242903 Contact Us For Availability
15
Medallion WPL 868522 Contact Us For Availability
15
Thermostat WPL 877527 Contact Us For Availability
15
Switch Limit (Upper) (Screw, 4-40 x 1-1/4 (2) WPL 834903 Contact Us For Availability
15
Switch Limit (Upper) (Alternate) WPL 868280 Contact Us For Availability
15
Switch Limit (Upper) (Alternate) WPL 877801 Contact Us For Availability
15
Glass, Inner WPL 868502 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
16
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
Wire, Red 12 WPL 242829 Contact Us For Availability
16
WPL 242830 WPL 242830 Contact Us For Availability
16
WPL 242832 WPL 242832 Contact Us For Availability
16
WPL 261582 WPL 261582 Contact Us For Availability
16
WPL 261748 WPL 261748 Contact Us For Availability
16
WPL 261886 WPL 261886 Contact Us For Availability
16
WPL 261887 WPL 261887 Contact Us For Availability
16
WPL 261888 WPL 261888 Contact Us For Availability
16
WPL 261889 WPL 261889 Contact Us For Availability
16
WPL 261890 WPL 261890 Contact Us For Availability
16
WPL 261891 WPL 261891 Contact Us For Availability
16
WPL 308500 WPL 308500 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 834469 WPL 834469 Contact Us For Availability
16
WPL 834470 WPL 834470 Contact Us For Availability
16
WPL 877750 WPL 877750 Contact Us For Availability
16
WPL 877751 WPL 877751 Contact Us For Availability
16
WPL 877862 WPL 877862 Contact Us For Availability
16
WPL 884078 WPL 884078 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
16
Pushnut, 1/4 WPL 256158 Contact Us For Availability
17
Bracket, Cooktop WPL 877522 Contact Us For Availability
17
Bracket, Thermostat Mounting WPL 868827 Contact Us For Availability
17
Button, Plug 1/2 (2) WPL 142017 Contact Us For Availability
17
Housing, Latch WPL 877614 Contact Us For Availability
17
Retainer, Glass (2) WPL 868503 Contact Us For Availability
18
Back, Range (Lower) WPL 877710 Contact Us For Availability
18
Switch, Oven Selector WPL 877529 Contact Us For Availability
18
Axle, Latch WPL 241564 Contact Us For Availability
19
Bezel, Clock WPL 834764 Contact Us For Availability
19
Rack, Oven Regular WPL 865983 Contact Us For Availability
19
Latch, Door (Alternate) WPL 834484 Contact Us For Availability
19
Latch, Door (Alternate) WPL 877628 Contact Us For Availability
19
Liner, Oven Door WPL 877701 Contact Us For Availability
20
Screw, Leveling (4) WPL 868880 Contact Us For Availability
20
Timer, Range (Includes Illus. 21 & 22) WPL 877526 Contact Us For Availability
20
Rack, Oven Offset WPL 865984 Contact Us For Availability
20
Pushnut (3/16``) (2) WPL 241547 Contact Us For Availability
20
Tie Bar WPL 868487 Contact Us For Availability
20
Baffle WPL 877540 Contact Us For Availability
21
Plug Button (Light Switch Hole) WPL 251379 Contact Us For Availability
21
Motor, Timer WPL 866403 Contact Us For Availability
21
Panel, Subtop WPL 877530 Contact Us For Availability
21
Button, Plug 3/16 (2) WPL 142001 Contact Us For Availability
22
Panel Side, Upper (2) WPL 877711 Contact Us For Availability
22
Knob, Timer (3) WPL 241383 Contact Us For Availability
23
Nut, Hex 10-32 (6) WPL 487836 Contact Us For Availability
23
Washer, Grounding (3) WPL 866213 Contact Us For Availability
23
Glass, Clock WPL 868843 Contact Us For Availability
23
Pan, Broiler WPL 866218 Contact Us For Availability
23
Shield, Wire WPL 868833 Contact Us For Availability
24
Back, Range (Upper) WPL 877728 Contact Us For Availability
24
Nut, Knurled 3/8-27 WPL 241266 Contact Us For Availability
24
Switch, Oven Light WPL 866148 Contact Us For Availability
24
Nut, Hex Flat 3/8-27 WPL 98754 Contact Us For Availability
24
Receptacle, Porcelain (2) WPL 868420 Contact Us For Availability
24
Seal, Oven Door WPL 877590 Contact Us For Availability
25
Control Knob (4) (Surface Unit) WPL 868299 Contact Us For Availability
26
Bracket, Support (Right Side) WPL 877729 Contact Us For Availability
26
Bracket, Support (Left Side) WPL 877730 Contact Us For Availability
26
Screw, 10-24 x 1/4 (4) WPL 865959 Contact Us For Availability
26
Clip, Receptacle WPL 868421 Contact Us For Availability
26
Window WPL 877505 Contact Us For Availability
27
Tube, Oven Vent WPL 868829 Contact Us For Availability
27
Knob, Thermostat WPL 868997 Contact Us For Availability
27
Terminal Female WPL 868422 Contact Us For Availability
28
Knob, Oven Selector WPL 868998 Contact Us For Availability
28
Seal, Window WPL 877506 Contact Us For Availability
29
Screw, 10-24 x 1/2 (2) WPL 868430 Contact Us For Availability
29
Strike WPL 877507 Contact Us For Availability
30
Frame, Cooktop WPL 877714 Contact Us For Availability
31
W WPL 486608 Contact Us For Availability
31
WPL 868159 WPL 868159 Contact Us For Availability
31
Tape, Foam (96``) WPL 866454 Contact Us For Availability
31
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
31
Channel, Hinge (2) WPL 865972 Contact Us For Availability
32
WPL 241549 WPL 241549 Contact Us For Availability
32
Washer (2) WPL 241422 Contact Us For Availability
32
Roller,\ Door\ Stop (2) WPL 834471 Contact Us For Availability
33
Screw, 10-24 x 1/4 (4) WPL 868959 Contact Us For Availability
33
Cooktop, Modular WPL 877534 Contact Us For Availability
34
Gasket, WPL 877765 Contact Us For Availability
34
Rivet, Square Head (2) WPL 241423 Contact Us For Availability
35
Arm Assembly (2) WPL 865640 Contact Us For Availability
36
WPL 877732 WPL 877732 Contact Us For Availability
36
WPL 877733 WPL 877733 Contact Us For Availability
36
Pin, Hinge (2) WPL 241334 Contact Us For Availability
37
Spring, Door (2) WPL 241312 Contact Us For Availability
39
Bracket, Frame WPL 877715 Contact Us For Availability
40
Nut, Hex 10-24 (3) WPL 441256 Contact Us For Availability
40
Drawer WPL 877716 Contact Us For Availability
41
Guide, Drawer (Rear) (2) WPL 877717 Contact Us For Availability
42
Screw, 10-24 x 1/2 (2) WPL 681151 Contact Us For Availability
43
Panel, Drawer Black WPL 877734 Contact Us For Availability
44
Screw, 10-24 x 3/8 (5) WPL 868585 Contact Us For Availability
44
Handle, Drawer WPL 877718 Contact Us For Availability
× ![]()
