Model Whirlpool RS373PXW3 – Common Parts & Diagrams

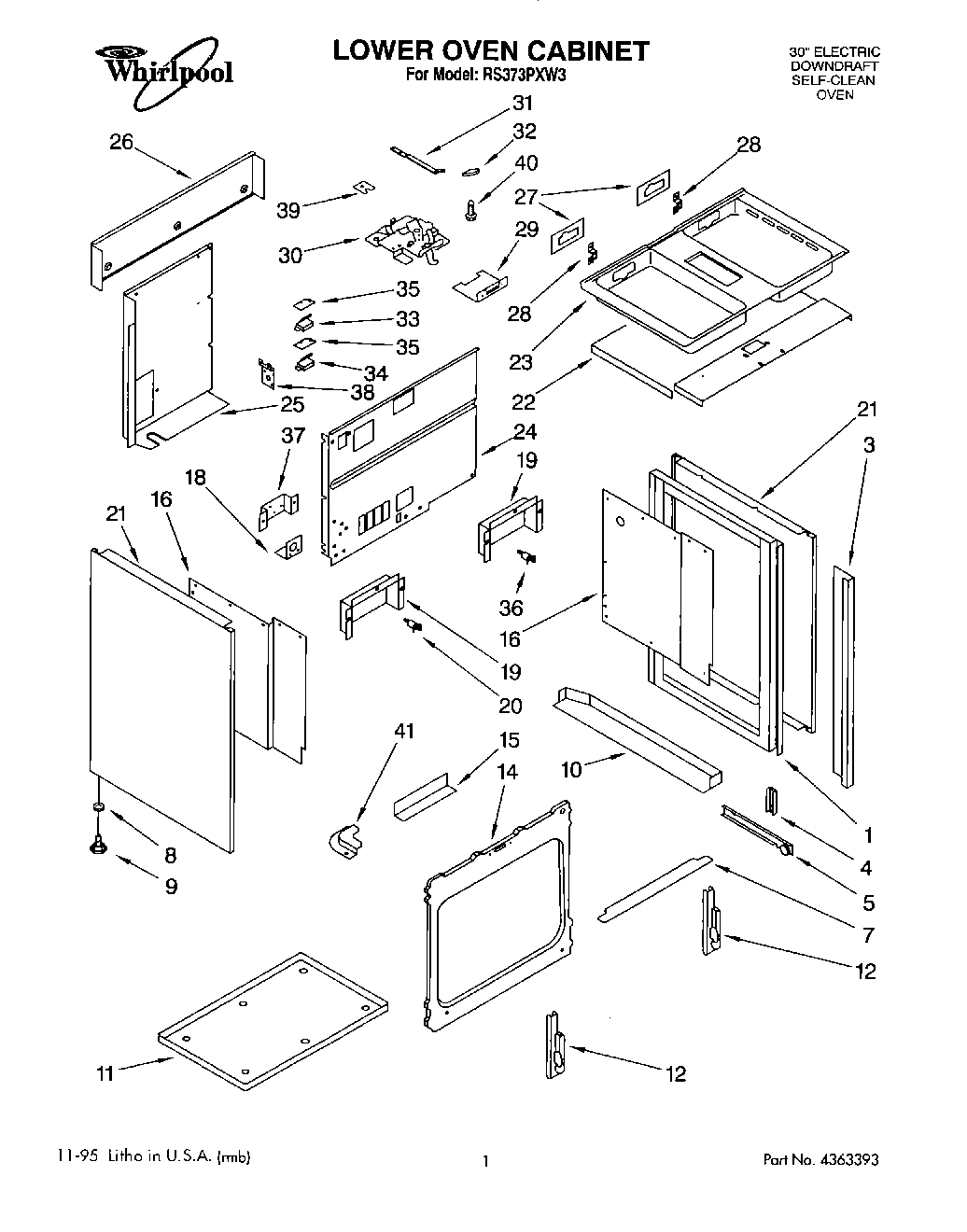

01 - LOWER OVEN CABINET

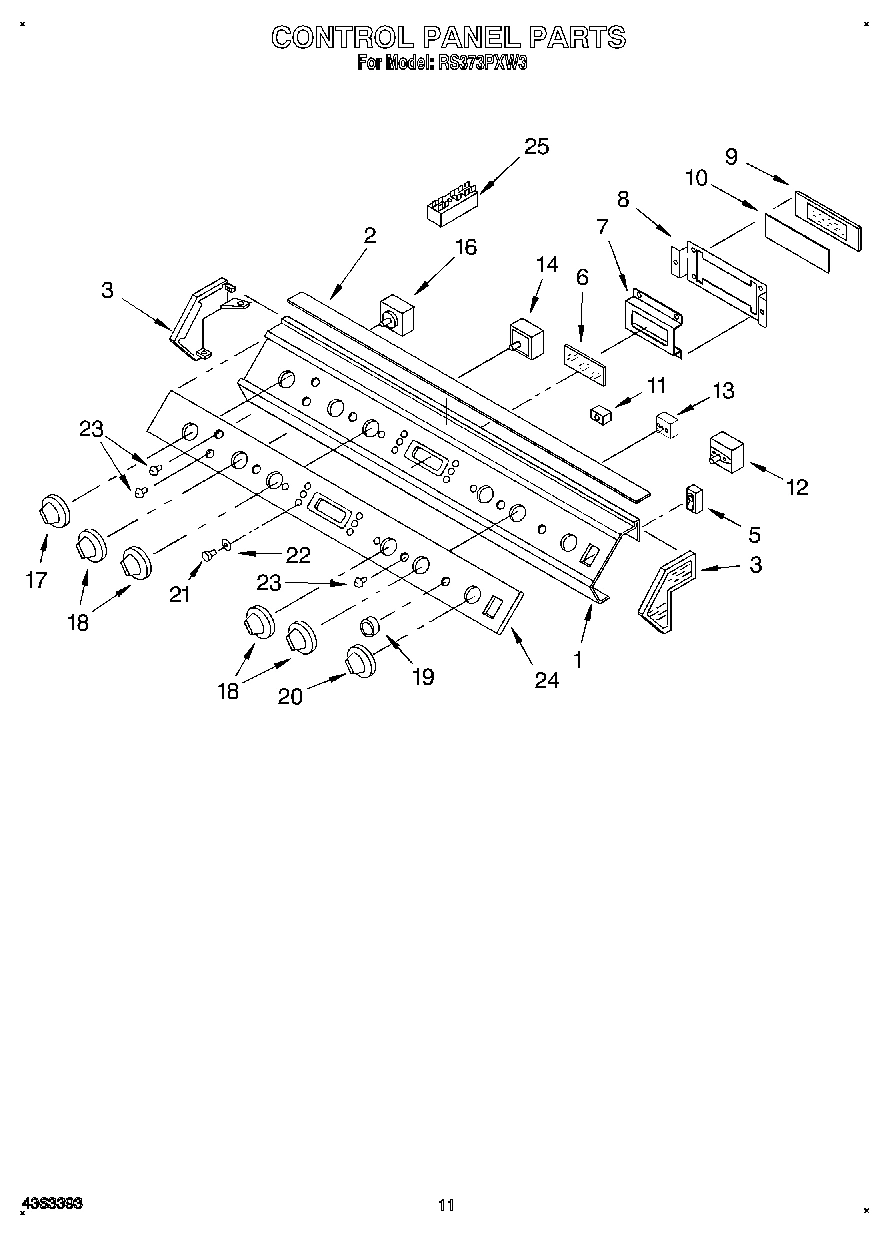

08 - CONTROL PANEL
10 - ELECTRICAL OVEN
03 - MAINTOP AND OVEN
06 - OPTIONAL SOLID ELEMENT MODULE
04 - ELECTRIC GRILL MODULE
05 - OPTIONAL ELECTRIC COIL MODULE
02 - VENTILATION, LITERATURE
07 - OPTIONAL GLASS CERAMIC MODULE
09 - OVEN DOOR AND DRAWER
Common parts from model Whirlpool RS373PXW3
Guide, Use & Care WPL LIT4320697 Contact Us For Availability
Installation Instructions WPL LIT4320698 Contact Us For Availability
Wiring Diagram WPL LIT4321133 Contact Us For Availability
1
Frame, Side (Right Side) WPL 4315112 Contact Us For Availability
1
Frame, Side (Left Side) WPL 4315113 Contact Us For Availability
1
Panel, Control WPL 4363148 Contact Us For Availability
1
Extension, Vent Tube WPL 4315221 Contact Us For Availability
1
Filter WPL 4321000 Contact Us For Availability
1
Pan, Grease WPL 786265 Contact Us For Availability
1
Top Assembly (White Frame with White Glass) WPL 4363127 Contact Us For Availability
1
Top Assembly (Black Frame with Black Glass) WPL 4363128 Contact Us For Availability
1
Handle, Door WPL 4362534 Contact Us For Availability
2
Inlay, Top WPL 4321033 Contact Us For Availability
2
Element, Broil WPL 4315235 Contact Us For Availability
2
Eliminator, Smoke WPL 4320831 Contact Us For Availability
2
Bracket, Element WPL 786708 Contact Us For Availability
2
Pan, Module WPL 4320992 Contact Us For Availability
2
Plenum Top WPL 4321053 Contact Us For Availability
2
Element, Heat (2) WPL 4363081 Contact Us For Availability
2
Spacer, Handle WPL 786410 Contact Us For Availability
3
Trim, Side Panel (2) WPL 4321011 Contact Us For Availability
3
End Cap (Right Hand) WPL 4321034 Contact Us For Availability
3
End Cap (Left Hand) WPL 4321035 Contact Us For Availability
3
Board, Clock WPL 4321040 Contact Us For Availability
3
Frame, Maintop Front WPL 4320998 Contact Us For Availability
3
Support, Glass WPL 786709 Contact Us For Availability
3
Pan, Insert WPL 4179156 Contact Us For Availability
3
Plenum Rear WPL 4321074 Contact Us For Availability
3
Bracket, Mounting WPL 786174 Contact Us For Availability
3
Frame WPL 786417 Contact Us For Availability
4
Support, Track (2) WPL 4321012 Contact Us For Availability
4
Cable, Clock WPL 4321065 Contact Us For Availability
4
Frame, Maintop Rear WPL 4321138 Contact Us For Availability
4
Element WPL 786170 Contact Us For Availability
4
Cover, Plenum Rear WPL 4321054 Contact Us For Availability
4
Glass, Black WPL 4320971 Contact Us For Availability
5
Track Drawer (L.H.) WPL 4321013 Contact Us For Availability
5
Track Drawer (R.H.) WPL 4321014 Contact Us For Availability
5
P.C. Board, Power Supply WPL 4321066 Contact Us For Availability
5
Frame, Maintop (L.H. Side) WPL 4362591 Contact Us For Availability
5
Frame, Maintop (R.H. Side) WPL 4362592 Contact Us For Availability
5
Frame, Maintop (Trim, Chrome (2)) WPL 4363174 Contact Us For Availability
5
Block, Plug WPL 786176 Contact Us For Availability
5
Top, Module (Chrome) WPL 4320994 Contact Us For Availability
5
Top, Module (Black) WPL 4321224 Contact Us For Availability
5
Top, Module (White) WPL 4321225 Contact Us For Availability
5
Orifice WPL 4179324 Contact Us For Availability
5
Trim, Door WPL 4320849 Contact Us For Availability
6
Switch, Latch WPL 786669 Contact Us For Availability
6
Glass, Clock WPL 4321036 Contact Us For Availability
6
Screw WPL 786228 Contact Us For Availability
6
Frame, Maintop Center WPL 4320999 Contact Us For Availability
6
Element 6`` WPL 4363175 Contact Us For Availability
6
Contact, Power (4) WPL 786725 Contact Us For Availability
6
Contact Ground WPL 786726 Contact Us For Availability
6
Rack, Grille (2) WPL 4157920 Contact Us For Availability
6
Gasket, Fan Scroll WPL 4179303 Contact Us For Availability
6
Support, Glass (5) WPL 786425 Contact Us For Availability
7
Filler, Front Frame WPL 4315118 Contact Us For Availability
7
Bracket, Clock Glass WPL 4321037 Contact Us For Availability
7
Plug Block (2) WPL 786196 Contact Us For Availability
7
Element 8`` WPL 4363176 Contact Us For Availability
7
Complete Module Black WPL 4320707 Contact Us For Availability
7
Nut, Weld WPL 786213 Contact Us For Availability
7
Wheel, Blower WPL 786155 Contact Us For Availability
7
Bumper, Rubber (4) WPL 786526 Contact Us For Availability
8
Teenut (4) WPL 4157527 Contact Us For Availability
8
Bracket, Clock WPL 4321038 Contact Us For Availability
8
Screw, Clock Bracket WPL 4321039 Contact Us For Availability
8
Contact, Element (5 in each block) WPL 786214 Contact Us For Availability
8
Cover, Vent WPL 4321001 Contact Us For Availability
8
Ring, Gasket (6``) WPL 786714 Contact Us For Availability
8
Griddle (Optional) WPL 4320993 Contact Us For Availability
8
Housing Blower WPL 4321055 Contact Us For Availability
8
Retainer, Insulation WPL 4320875 Contact Us For Availability
9
Leg, Leveling (4) WPL 4363180 Contact Us For Availability
9
Backrail, Lo WPL 4321137 Contact Us For Availability
9
Ring, Gasket (8``) WPL 786715 Contact Us For Availability
9
Screw, Contact (5) WPL 786231 Contact Us For Availability
9
Plate, Motor Mounting WPL 4314921 Contact Us For Availability
9
Insulation WPL 4315673 Contact Us For Availability
10
Brace, Bottom (R.H.) WPL 4362923 Contact Us For Availability
10
Brace, Bottom (L.H.) WPL 4362935 Contact Us For Availability
10
Lens- Clock WPL 4321041 Contact Us For Availability
10
Bracket, Flue Support WPL 4321002 Contact Us For Availability
10
Gasket 6`` WPL 4320996 Contact Us For Availability
10
Insulator WPL 786179 Contact Us For Availability
10
Pan, Module WPL 4320652 Contact Us For Availability
10
Grommet, Rubber (3) WPL 786234 Contact Us For Availability
10
Window Assembly WPL 4362602 Contact Us For Availability
11
Heat Shield, Drawer WPL 4321070 Contact Us For Availability
11
Light, Indicator (4) WPL 4315016 Contact Us For Availability
11
Flue Box, Rear WPL 4315228 Contact Us For Availability
11
Bracket, Mounting WPL 786707 Contact Us For Availability
11
Gasket 8`` WPL 4320997 Contact Us For Availability
11
Motor Blower WPL 4315281 Contact Us For Availability
11
Retainer (4) WPL 4179236 Contact Us For Availability
12
Hinge, Door (R.H.) WPL 786374 Contact Us For Availability
12
Hinge, Door (L.H.) WPL 786739 Contact Us For Availability
12
Switch, Selector WPL 4321042 Contact Us For Availability
12
Sensor, Oven WPL 4315255 Contact Us For Availability
12
Flue Box WPL 4321003 Contact Us For Availability
12
Trim, Top-Chrome WPL 4321135 Contact Us For Availability
12
Trim, Top (Black) WPL 4362526 Contact Us For Availability
12
Trim, Top (White) WPL 4362527 Contact Us For Availability
12
Spacer, Motor Cover (4) WPL 4314926 Contact Us For Availability
12
Pad, Door WPL 4320300 Contact Us For Availability
13
Switch, Fan WPL 4321043 Contact Us For Availability
13
Screw WPL 786245 Contact Us For Availability
13
Block, Terminal WPL 4315225 Contact Us For Availability
13
Clip, Thermo-Bulb WPL 4363178 Contact Us For Availability
13
Pan Module WPL 4321136 Contact Us For Availability
13
Wire Jumper WPL 786252 Contact Us For Availability
13
Cover, Motor WPL 4314924 Contact Us For Availability
13
Module, Pan WPL 4364012 Contact Us For Availability
13
Bumper (2) WPL 4179237 Contact Us For Availability
14
Front Frame WPL 4362535 Contact Us For Availability
14
P.C. Board, Oven WPL 4315256 Contact Us For Availability
14
Hook Bolt, Oven Shell WPL 786350 Contact Us For Availability
14
Glass, Top (White) WPL 4362513 Contact Us For Availability
14
Glass, Top (Black) WPL 786120 Contact Us For Availability
14
Duct, Wall WPL 4321056 Contact Us For Availability
14
Complete Module (Black Frame with Black Glass WPL 4363038 Contact Us For Availability
14
Complete Module (White Frame with White Glass WPL 4363039 Contact Us For Availability
14
Pin-Hinge (2) WPL 4362533 Contact Us For Availability
15
Heat Shield, Clock WPL 4315024 Contact Us For Availability
15
Switch, High Limit WPL 4321067 Contact Us For Availability
15
Washer WPL 786351 Contact Us For Availability
15
Spring, Leaf (2) WPL 786721 Contact Us For Availability
15
Bracket, Mounting WPL 786181 Contact Us For Availability
15
Duct, Floor WPL 4321057 Contact Us For Availability
15
Plate, Latch WPL 786671 Contact Us For Availability
16
Retainer, Insulation Side (R.H.) WPL 4321016 Contact Us For Availability
16
Retainer, Insulation Side (L.H.) WPL 4321017 Contact Us For Availability
16
Control, Thermostat WPL 4362894 Contact Us For Availability
16
Switch, Fan WPL 786246 Contact Us For Availability
16
Nut, Hex 10-32 WPL 786352 Contact Us For Availability
16
Nut, Hex 6mm (4) WPL 786722 Contact Us For Availability
16
Plate, Duct-Floor WPL 4321058 Contact Us For Availability
16
Gasket, Door WPL 4320302 Contact Us For Availability
17
Knob, Thermostat WPL 4363177 Contact Us For Availability
17
Switch, Self- Clean WPL 4363179 Contact Us For Availability
17
Oven Shell WPL 4362510 Contact Us For Availability
17
Screw (2) WPL 786723 Contact Us For Availability
17
Module, Complete (Black) WPL 4320708 Contact Us For Availability
17
Module, Complete (White) WPL 4320712 Contact Us For Availability
17
Complete Module (Brushed Chrome) WPL 786106 Contact Us For Availability
17
Gasket, Transition Wall-Floor WPL 4321059 Contact Us For Availability
17
Clip WPL 786426 Contact Us For Availability
18
Bracket, Conduit WPL 4321018 Contact Us For Availability
18
Knob, Surface Element (4) WPL 4321045 Contact Us For Availability
18
Switch, Fan (2) WPL 4179158 Contact Us For Availability
18
Insulation, Wrapper WPL 4321005 Contact Us For Availability
18
Transition, Wall WPL 4321060 Contact Us For Availability
18
Drawer, Storage WPL 4321029 Contact Us For Availability
19
Cover, P.C. Board WPL 4321071 Contact Us For Availability
19
Knob, Fan Switch WPL 4321046 Contact Us For Availability
19
Harness, Sensor WPL 4321068 Contact Us For Availability
19
Insulation, Back WPL 4321006 Contact Us For Availability
19
Clamp, Wire (2) WPL 4157298 Contact Us For Availability
19
Panel, Front WPL 4314976 Contact Us For Availability
20
Support, P.C. Board WPL 4315254 Contact Us For Availability
20
Knob, Selector Switch WPL 4321047 Contact Us For Availability
20
Grid, Broiler WPL 4362695 Contact Us For Availability
20
Screw, Sq. Drive WPL 4320676 Contact Us For Availability
20
Duct Side WPL 4321061 Contact Us For Availability
20
Liner, Front WPL 4315696 Contact Us For Availability
21
Panel, Side (R.H.) WPL 4362585 Contact Us For Availability
21
Panel, Side (L.H.) WPL 4362588 Contact Us For Availability
21
Button, Clock (6) WPL 4321048 Contact Us For Availability
21
Pan, Broiler WPL 4315109 Contact Us For Availability
21
Transition, Side WPL 786156 Contact Us For Availability
21
Runner (L.H.) WPL 4321030 Contact Us For Availability
21
Runner (R.H.) WPL 4321031 Contact Us For Availability
22
Retainer, Top WPL 4362603 Contact Us For Availability
22
Bushing, Clock Button WPL 4321049 Contact Us For Availability
22
Oven Rack (2) WPL 786347 Contact Us For Availability
22
Plate, Duct Wall WPL 4321063 Contact Us For Availability
23
Burner Box WPL 4321072 Contact Us For Availability
23
Lens, Indicator Light (4) WPL 4321050 Contact Us For Availability
23
Insulation, Door Latch WPL 4321007 Contact Us For Availability
23
Bolt, Blower Motor (3) WPL 4314922 Contact Us For Availability
23
Washer, Blower Motor (3) WPL 4314923 Contact Us For Availability
23
Duct, Transition WPL 4321062 Contact Us For Availability
23
Nut, Blower Motor Mounting (3) WPL 786439 Contact Us For Availability
23
Baffle, Heat WPL 4320304 Contact Us For Availability
24
Retainer, Rear Insulation WPL 4321021 Contact Us For Availability
24
Insert, Control Panel WPL 4363507 Contact Us For Availability
24
Insulation, Top WPL 4321008 Contact Us For Availability
25
Cover, Wire Rear WPL 4321022 Contact Us For Availability
25
Block, Terminal WPL 786132 Contact Us For Availability
25
Bracket, Vent Support WPL 4321009 Contact Us For Availability
26
Shield, Rear WPL 4321023 Contact Us For Availability
26
Bracket, Frame Trim WPL 4321010 Contact Us For Availability
26
Module, Complete (Black Frame with Black Glas WPL 4363040 Contact Us For Availability
26
Module, Complete (White Frame with White Glas WPL 4363041 Contact Us For Availability
26
Module, Complete (Chrome Frame with Black Gla WPL 4363042 Contact Us For Availability
27
Mounting Plate, Plug Block WPL 4321024 Contact Us For Availability
27
Support, Maintop (Front) WPL 4362605 Contact Us For Availability
27
Support, Maintop (Rear) WPL 4362606 Contact Us For Availability
28
Bracket, Plug Block (2) WPL 786194 Contact Us For Availability
29
Bracket, Mounting Latch WPL 4362599 Contact Us For Availability
30
Latch, Oven Door WPL 4321025 Contact Us For Availability
31
Latch Arm WPL 4320864 Contact Us For Availability
32
Knob Latch WPL 4320863 Contact Us For Availability
33
Switch, Latch Upper WPL 786127 Contact Us For Availability
35
Insulator, Latch WPL 786380 Contact Us For Availability
36
Support, Clock P.C. Board (3) WPL 4321026 Contact Us For Availability
37
Bracket, Terminal Board WPL 4321073 Contact Us For Availability
38
Bracket, Latch WPL 786381 Contact Us For Availability
39
Cover, Latch WPL 4321027 Contact Us For Availability
41
Anti-Tip Kit WPL 4315792 Contact Us For Availability
× ![]()
