Model Whirlpool RS313PXYH0 – Common Parts & Diagrams
02 - CONTROL PANEL

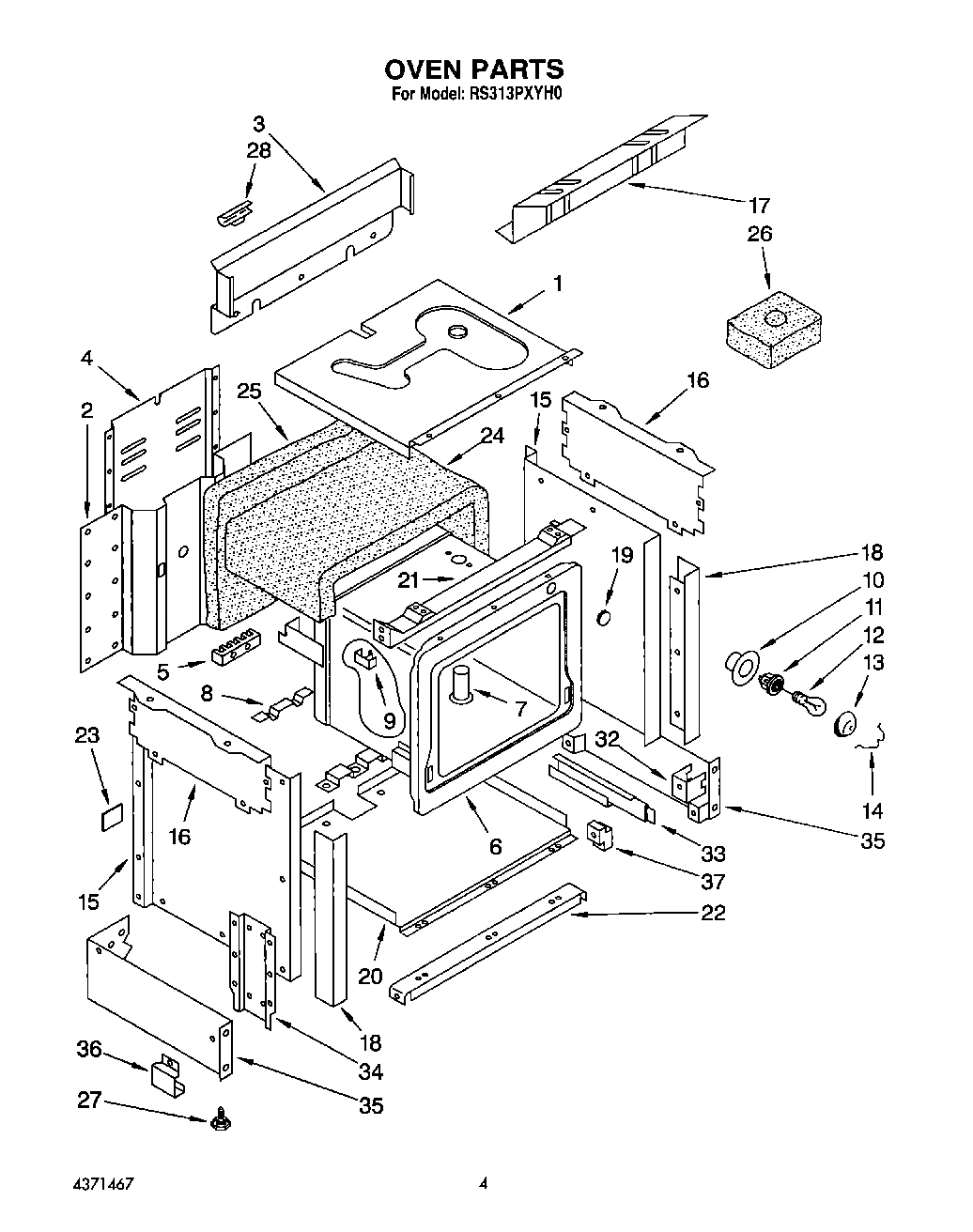

04 - OVEN, LIT/OPTIONAL

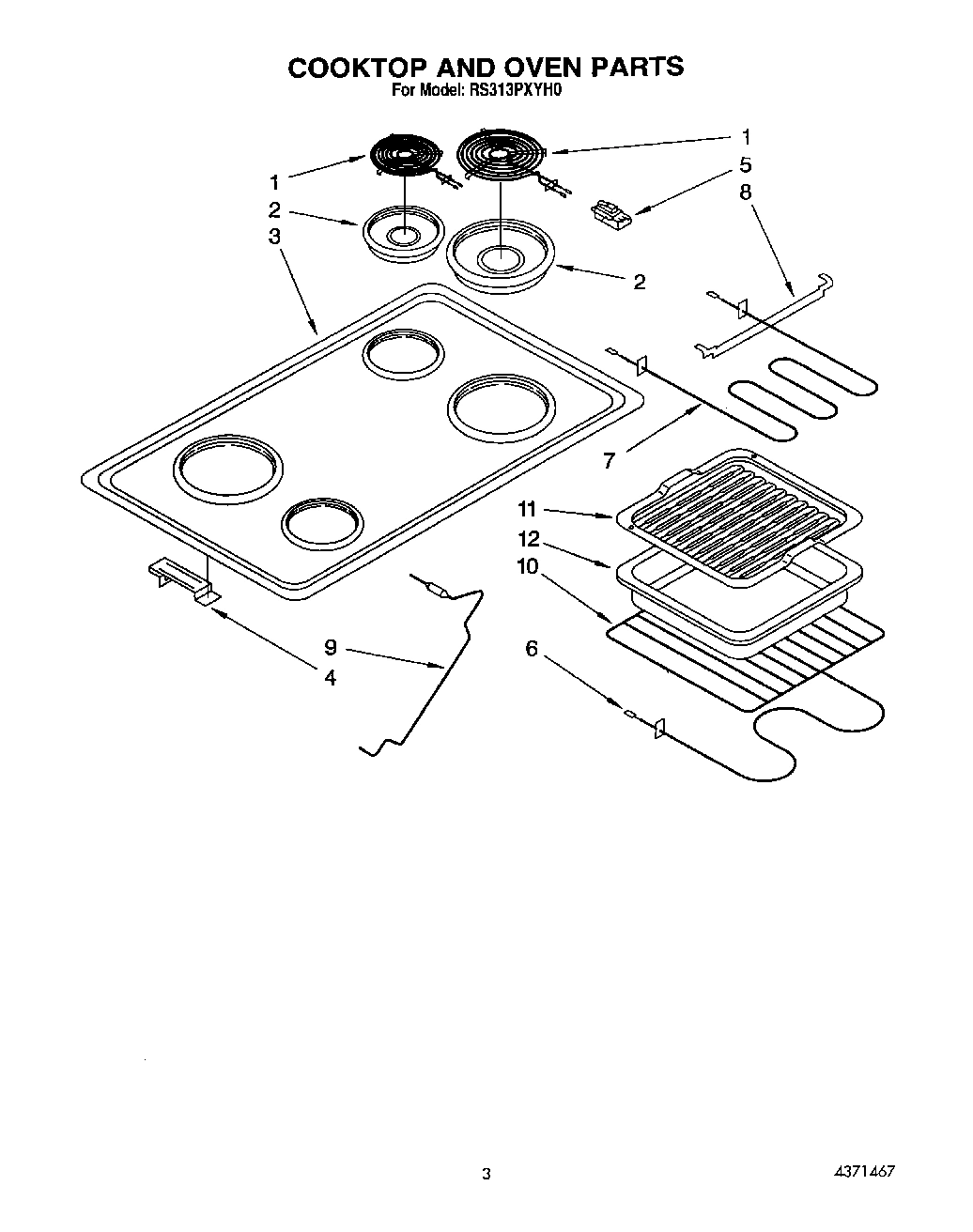

03 - COOKTOP AND OVEN

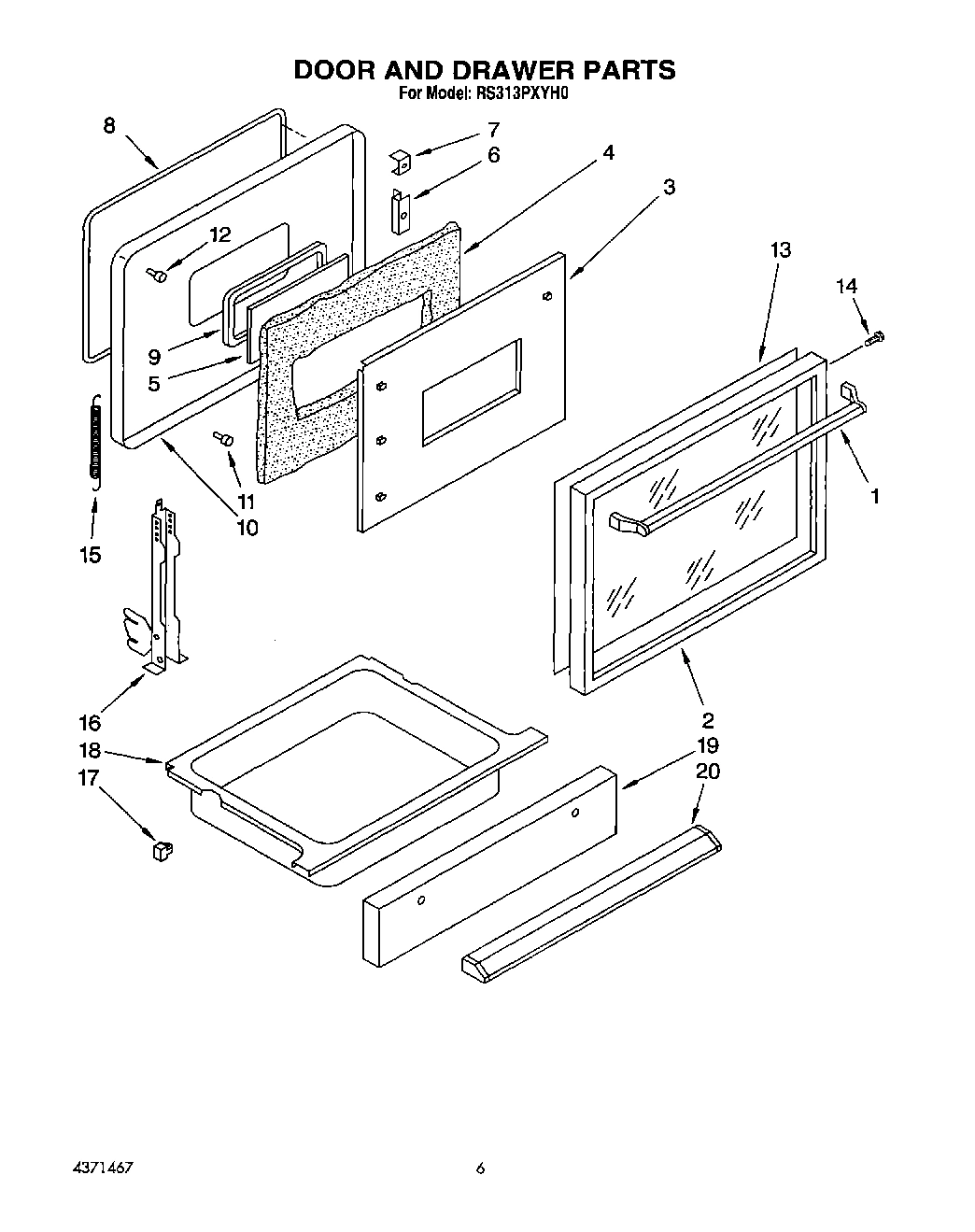

05 - DOOR AND DRAWER
Common parts from model Whirlpool RS313PXYH0
List, Repair Parts WPL LIT4371467 Contact Us For Availability
Use & Care Guide WPL LIT816984 Contact Us For Availability
Installation Instructions WPL LIT816985 Contact Us For Availability
1
Retainer, Top WPL 4371369 Contact Us For Availability
1
Handle, Door WPL 4371340 Contact Us For Availability
2
Panel, Rear (lower) WPL 4371330 Contact Us For Availability
2
Pan, Reflector (6`` (2)) WPL 4371387 Contact Us For Availability
2
Pan, Reflector (8`` (2)) WPL 4371445 Contact Us For Availability
2
Frame, Door WPL 4371435 Contact Us For Availability
3
Thermostat, Oven WPL 4371444 Contact Us For Availability
3
Panel, Rear (upper) WPL 4371422 Contact Us For Availability
3
Cooktop, Stainless Steel WPL 4371416 Contact Us For Availability
3
Retainer, Insulation WPL 4371633 Contact Us For Availability
4
Switch, Selector WPL 4371442 Contact Us For Availability
4
Cover, Wire WPL 816471 Contact Us For Availability
4
Hinge, Cooktop WPL 4371430 Contact Us For Availability
4
Insulation WPL 4371457 Contact Us For Availability
5
Indicator Light Oven WPL 4371380 Contact Us For Availability
5
Glass, Inner WPL 4371454 Contact Us For Availability
6
Indicator Light, Burners WPL 4371439 Contact Us For Availability
6
Liner, Oven WPL 816791 Contact Us For Availability
6
Retainer, Inner Glass WPL 4371459 Contact Us For Availability
7
Bracket, Clock WPL 4371436 Contact Us For Availability
7
Tube, Vent WPL 4371468 Contact Us For Availability
7
Element, Broil WPL 4371425 Contact Us For Availability
7
Spacer (4) WPL 4371464 Contact Us For Availability
8
End Cap (R.H.) WPL 4371374 Contact Us For Availability
8
End Cap (L.H.) WPL 4371375 Contact Us For Availability
8
Plate, Mounting WPL 816473 Contact Us For Availability
8
Support, Element WPL 866429 Contact Us For Availability
8
Seal, Door WPL 4371461 Contact Us For Availability
9
Plate, End Cap WPL 4371389 Contact Us For Availability
9
Bracket, Bulb WPL 4371423 Contact Us For Availability
9
Rod, Cooktop Support WPL 4371397 Contact Us For Availability
9
Seal, Glass WPL 4371460 Contact Us For Availability
10
Lens, Light WPL 4371440 Contact Us For Availability
10
Cup, Oven Light WPL 4371293 Contact Us For Availability
10
Rack, Oven WPL 816646 Contact Us For Availability
10
Liner, Door WPL 4371458 Contact Us For Availability
11
Switch, Oven Light WPL 4371383 Contact Us For Availability
11
Insert, Broiler Pan WPL 816626 Contact Us For Availability
11
Bumper, Window Bottom WPL 4371463 Contact Us For Availability
12
Knob, Infinite Switch (4) WPL 4371432 Contact Us For Availability
12
Pan, Broiler WPL 816644 Contact Us For Availability
12
Bumper, Window Top WPL 4371462 Contact Us For Availability
13
Knob, Thermostat WPL 4371434 Contact Us For Availability
13
Lens, Oven Light WPL 816609 Contact Us For Availability
13
Glass, Outer WPL 4371453 Contact Us For Availability
14
Knob, Selector Switch WPL 4371433 Contact Us For Availability
14
Retainer, Lens WPL 4371394 Contact Us For Availability
14
Screw, Handle (4) WPL 4371346 Contact Us For Availability
15
Clock, Timer WPL 4371437 Contact Us For Availability
15
Retainer, Insulation (2) WPL 4371446 Contact Us For Availability
15
Spring, Door (2) WPL 4371456 Contact Us For Availability
16
Panel, Side (2) WPL 4371370 Contact Us For Availability
16
Channel, Hinge (2) WPL 4371455 Contact Us For Availability
17
Knob, Clock (3) WPL 816480 Contact Us For Availability
17
Shield, Wire WPL 4371403 Contact Us For Availability
17
Guide (2) WPL 4371413 Contact Us For Availability
18
Rail, Top WPL 4371377 Contact Us For Availability
18
Trim, Oven Front (2) WPL 4371410 Contact Us For Availability
18
Drawer WPL 4371412 Contact Us For Availability
19
Rail, Bottom WPL 4371438 Contact Us For Availability
19
Switch, Oven Light WPL 4371452 Contact Us For Availability
19
Panel, Drawer WPL 4371415 Contact Us For Availability
20
Washer, Spacer (3) WPL 4371428 Contact Us For Availability
20
Shield, Bottom Insulation WPL 4371447 Contact Us For Availability
20
Handle, Drawer WPL 4371469 Contact Us For Availability
21
Bracket, Cooktop WPL 4371451 Contact Us For Availability
22
Channel, Oven WPL 4371424 Contact Us For Availability
23
Plate, Filler (2) WPL 4371388 Contact Us For Availability
24
Insulation, Wrap WPL 4371431 Contact Us For Availability
25
Insulation, Back WPL 4371362 Contact Us For Availability
26
Insulation, Vent WPL 4371364 Contact Us For Availability
27
Leg, Leveling (4) WPL 4371398 Contact Us For Availability
28
Bracket, Hinge Support WPL 4371335 Contact Us For Availability
32
Spacer (2) WPL 4371404 Contact Us For Availability
33
Rail, Drawer (R.H.) WPL 4371355 Contact Us For Availability
33
Rail, Drawer (L.H.) WPL 4371356 Contact Us For Availability
34
Support, Front (2) WPL 4371406 Contact Us For Availability
35
Panel, Lower Side (R.H.) WPL 4371371 Contact Us For Availability
35
Panel, Lower Side (L.H.) WPL 4371372 Contact Us For Availability
36
Shield, Toe WPL 4371449 Contact Us For Availability
37
Anti-tip Kit WPL 4371420 Contact Us For Availability
37
Glide, Front (2) WPL 4371429 Contact Us For Availability
× ![]()
